Rostra 250-8406 User manual

TOYOTA TACOMA 2014
PART NUMBER: 250-8406 TACOMA / 250-8411 CAMRY
REARSIGHT
ITEM QTY DESCRIPTION
11INTERFACE ADAPTER HARNESS
21R
EAR CAMERA ASSEMBLY
31C
AMERA EXTENSION HARNESS
41SACK PARTS
NOTE:
KIT CONTENTS
HARDWARE BAG CONTENTS
ADDITIONAL ITEMS REQUIRED FOR INSTALL
FORM #5485 REV. A 04-02-14
CONFLICTS
RECOMMENDED TOOLS
V EHICLE T RIM C OLOR
COLOR APPLICABILITY/TRIM LEVEL
ACCESSORY COLOR
ALL MODELS
GENERAL APPLICABILITY
RECOMMENDED SEQUENCE OFAPPLICATION
LEGEND
* MANDATORY
SPECIAL NOTE: INSTALLATION SEQUENCES
AFTER SAFETY MANDATED PREPATORY STEPS HAVE BEEN TAKEN, THE INSTALLATION
SEQUENCE IS THE SUGGESTED METHOD FOR COMPLETING THE ACCESSORY INSTAL-
LATION. IN SOME INSTANCES THE SUGGESTED SEQUENCE IS WRITTEN FOR ONE
ASSOCIATE TO INSTALL AND IN OTHERS THE SEQUENCE IS GIVEN AS PART OF A TEAM
ACCESSORY INSTALLATION. UNLESS OTHERWISE STATED IN THE DOCUMENT, THE
ASSOCIATES MAY PERFORM THE INSTALLATION STEPS IN ANY ORDER TO MAKE THE
INSTALLATION AS EFFICIENT AS POSSIBLE WHILE MAINTAINING CONSISTENT QUALITY.
STOP: DAMAGE TO VEHICLE MAY OCCUR. DONOT PROCEED UNTIL
PROCESS COMPLIANCE HAS BEEN MET.
OPERATOR SAFETY: USE CAUTION TO AVOID RISK OF INJURY.
CRITICAL PROCESS: PROCEED WITH CAUTION TO ENSURE A
QUALITY INSTALLATION. THESE POINTS WILL BE AUDITED ON A
COMPLETED VEHICLE INSTALLATION.
GENERAL PROCESS: THIS HIGHLIGHTS SPECIFIC PROCESSES TO
ENSURE A QUALITY INSTALLATION. THESE POINTS WILL BE AUDITED
DURING THE ACCESSORY INSTALLATION.
TOOLS & EQUIPMENT: THIS CALLS OUT THE SPECIFIC TOOLS
AND EQUIPMENT REQUIRED FOR THE PROCESS.
REVISION MARK: THIS MARK HIGHLIGHTS A CHANGE IN
INSTALLATION WITH RESPECT TO PREVIOUS ISSUE.
ITEM QTY DESCRIPTION
1N/AELECTRICAL TAPE
2
3
4
SAFETY TOOLS
SPECIAL TOOLS
INSTALLATION TOOLS
FASTENER REMOVAL TOOL WIRE CUTTERS
TRIM REMOVAL TOOL T30 TORX SOCKET
10-MM DEEP SOCKET
T ORQUE W RENCH (36 IN . LB .)
SPECIAL CHEMICALS
ITEM QTY DESCRIPTION
110WIRE TIES
23ADHESIVE FOAM
31S
EALING PUTTY
4 1 ALCOHOL PAD

PARTS IDENTIFICATION
PAGE 2

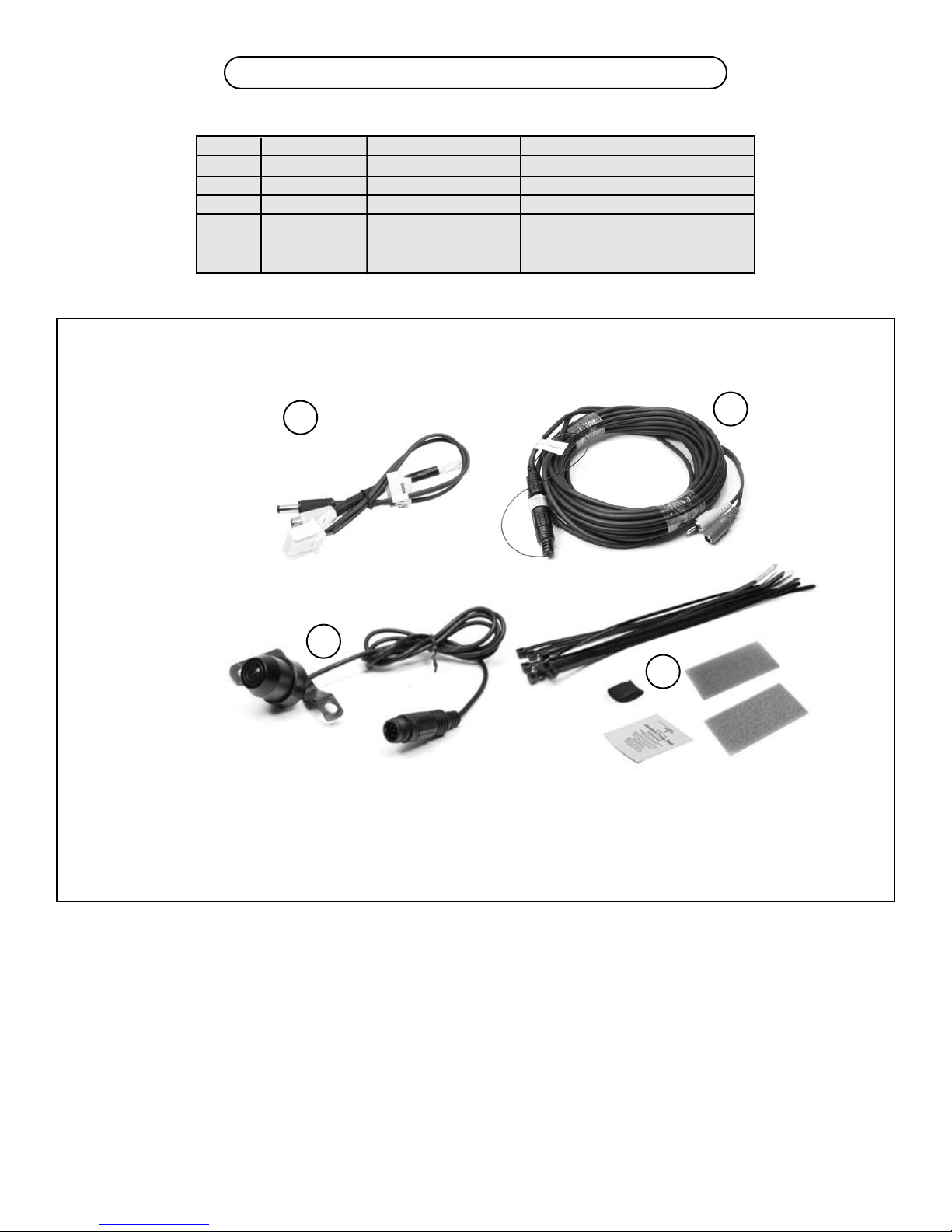

ITEM QUANTITY PART NUMBER DESCRIPTION
1 1 2014-0016 INTERFACE ADAPTER HARNESS
A 1 250-8530 CAMERA EXTENSION HARNESS
B 1 250-8147 CCD REAR CAMERA ASSEMBLY
2 1 250-8598 SACK PARTS: TIE STRAPS,
FOAM TAPE, SEALING PUTTY
*BEFORE BEGINNING INSTALLATION, FAMILIARIZE YOURSELF WITH THE INSTALLATION INSTRUCTIONS AND
THE REARSIGHTTM BACK-UP CAMERA SYSTEM COMPONENTS.
2
B
A
1

VEHICLE PREPARATION

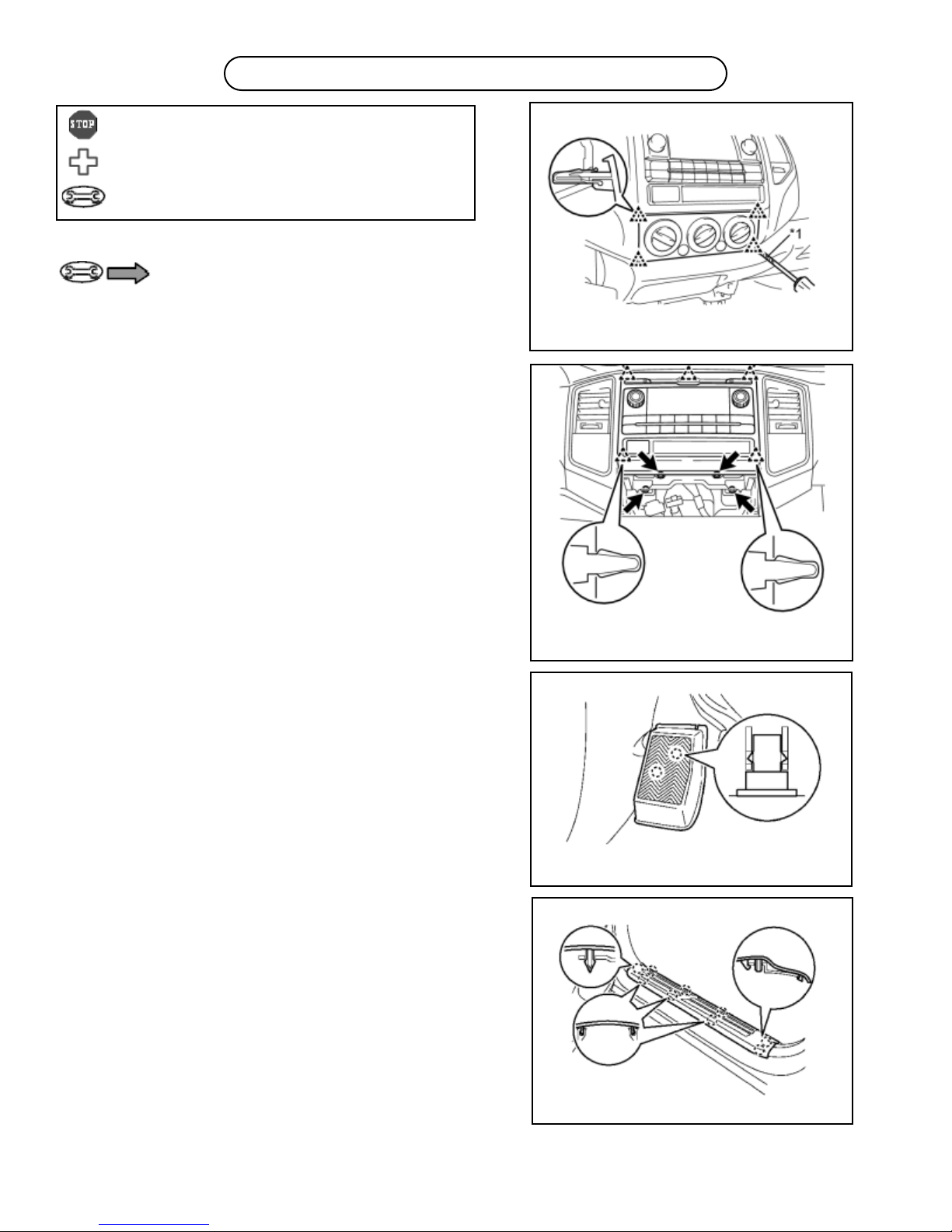

1. USE A SCREWDRIVER WITH ITS TIP WRAPPED IN PROTECTIVE
TAPE TO DISENGAGE THE 4 CLIPS AND REMOVE THE AIR CONDI-
TIONER CONTROL ASSEMBLY. DISCONNECT ALL CONNECTORS.
FIGURE 1
2. REMOVE 4 (10MM BOLTS) AND DISENGAGE THE 5 CLIPS
AND REMOVE THE RADIO RECEIVER ASSEMBLY WITH BRACKET.
DISCONNECT ALL CONNECTORS. FIGURE 2
3. DISENGAGE THE 2 CLIPS TO REMOVE THE FRONT DRIVER
SIDE FLOOR FOOT REST. FIGURE 3
4. DISENGAGE CLIPS, AND REMOVE THE FRONT DOOR SCUFF
PLATE AND KICK PANEL. FIGURE 4
CAUTION: IT IS ADVISABLE TO DISCONNECT THE
NEGATIVE BATTERY CABLE FOR 3 MINUTES BEFORE
BEGINNING INSTALLATION TO AVOID UNINTENDED AIR
BAG DEPLOYMENT. NOTE AND RECORD ANY ANTI-
THEFT RADIO CODES PRIOR TO DISCONNECTING.
VEHICLE PREPARATION
PAGE 3
FIGURE 1
FIGURE 2
FIGURE 3
FIGURE 4

VEHICLE PREPARATION
VEHICLE PREPARATION CONTINUED...
5. USE A T30 TORX SOCKET WRENCH TO REMOVE 7 SCREWS
AND DISENGAGE CLIPS TO REMOVE THE TAIL GATE PROTECTOR.
FIGURE 5
6. USE A T30 TORX SOCKET TO RELEASE 8 SCREWS AND
REMOVE THE TAILGATE SERVICE HOLE COVER. FIGURE 6
7. DISCONNECT THE CONNECTOR AND REMOVE EXISTING
WIRING CABLE IN TAILGATE. REMOVE (2)10MM BOLTS FROM
DUMMY HOUSING. DISCARD DUMMY HOUSING. THE BOLTS WILL
BE NEEDED LATER FOR THE CAMERA INSTALL. FIGURE 7
8. REMOVE EXISTING WIRING HARNESS FROM TAILGATE. DO
NOT DISCARD AS THE PROTECTIVE TUBING OF THE TAILGATE
WIRING HARNESS WILL BE USED LATER FOR THE CAMERA
EXTENSION HARNESS INSTALLATION. FIGURE 8
FIGURE 6
PAGE 4
FIGURE 7
FIGURE 5
FIGURE 8

PAGE 5

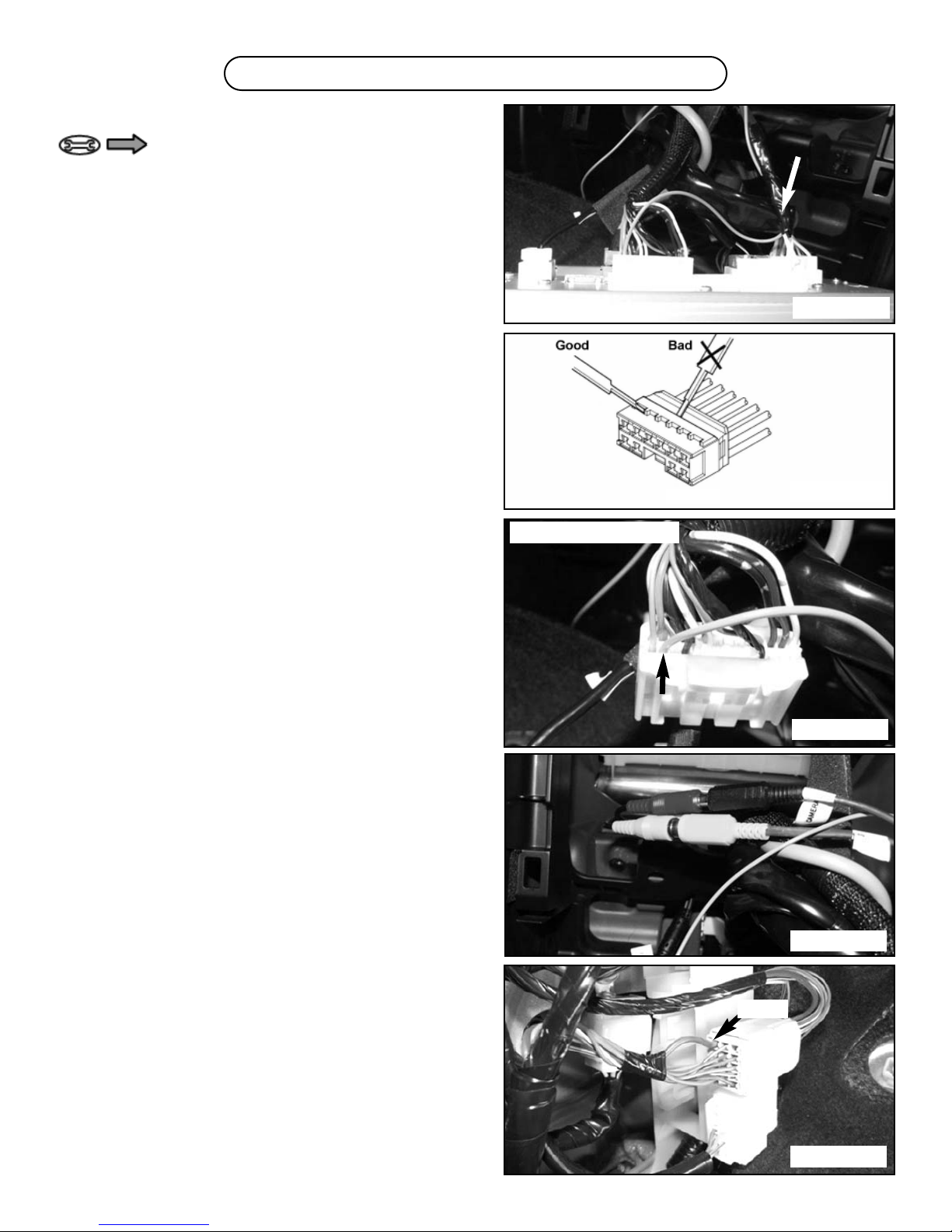

INSTALLING INTERFACE HARNESS
1. CONNECT THE INTERFACE ADAPTER HARNESS INTO RADIO
RECEIVER CONNECTOR HOUSING R32 AS SHOWN IN FIGURE 9.
2. LOCATE WHITE CONNECTOR R31 FROM THE RADIO RECEIV-
ER THAT CONNECTS BESIDE THE INTERFACE ADAPTER HARNESS
CONNECTION.BE SURE TO PULL OUT TERMINAL RETAINER AT
THE CENTER OF CONNECTOR. FIGURE 10. INSERT TERMI-
NAL FROM INTERFACE ADAPTER HARNESS INTO PIN 2 OF CON-
NECTOR R31. FIGURES 10 & 11
3. CAREFULLY LOCK THE TERMINALS INTO PLACE. PULL THE
TERMINALS BACK GENTLY TO CHECK WHETHER IT IS LOCKED
CORRECTLY. REASSEMBLE CONNECTOR AND PLACE BACK ONTO
RADIO RECEIVER. BE SURE RETAINER IS PRESSED IN BEFORE
REINSTALLING.S
ECURE HARNESS WITH WIRE TIES.
4. CONNECT MALE RCA VIDEO CONNECTOR OF CAMERA
EXTENSION HARNESS TO VIDEO INPUT (YELLOW CONNECTOR) OF
INTERFACE ADAPTER HARNESS. CONNECT MALE DC POWER
CONNECTOR OF CAMERA EXTENSION HARNESS TO CAMERA
POWER OUTPUT (BLACK CONNECTOR) OF INTERFACE ADAPTER
HARNESS. WRAP ALL RCA AND DC CONNECTORS WITH THE
FOAM TAPE PROVIDED. FIGURE 12. ROUTE CAMERA EXTEN-
SION HARNESS AND GREEN WIRE FROM INTERFACE ADAPTER
HARNESS TO THE DRIVER’S SIDE KICKPANEL AREA.
5. LOCATE GRAY CONNECTOR ID2 AT THE DRIVER’S SIDE KICK
PANEL AREA. CONNECT THE GREEN WIRE FROM THE INTER-
FACE ADAPTER HARNESS TO THE RED WIRE IN PIN 1OF CON-
NECTOR. FIGURE 13
INSTALLATION
FIGURE 9
FIGURE 10
R32
R31
R31
TERMINAL INSERTED
FIGURE 11
FIGURE 12
FIGURE 13
PIN 1
PIN 2

PAGE 6
ROUTING HARNESS AND MOUNTING
CAMERA
1. ROUTE THE CAMERA EXTENSION HARNESS TO SCUFF PLATE
AREA AND THROUGH THE ACCESS GROMMET UNDERNEATH CAR-
PET. USE THE EXISTING WIRING WITH WIRE CLIPS TO SECURE
HARNESS. FIGURE 14. CONTINUE ROUTING THE HARNESS
ALONG THE FRAME WIRING BELOW VEHICLE AND TO TAILGATE
AREA.
2. ROUTE THE CAMERA EXTENSION HARNESS THROUGH THE BED
ACCESS HOLE. PULL THE CONNECTOR THROUGH, THEN INSERT
INTO HOLE AT THE BOTTOM RIGHT SIDE OF THE TAILGATE. USE
EXISTING WIRE CLIP AND PREVIOUSLY REMOVED PROTECTIVE
TUBING FROM WIRING HARNESS WHEN ROUTING THE CAMERA
EXTENSION HARNESS THOUGH TO TAILGATE. USE THE EXIST-
ING HARNESS CLIPS AND WIRE TIES TO SECURE HARNESS AT THE
BOTTOM OF THE TAILGATE. FIGURE 15
3. USE THE PREVIOUSLY REMOVED (2) 10MM BOLTS TO MOUNT
CAMERA ASSEMBLY AND BRACKET TO LATCH. FIGURE 16
4. CONNECT THE CAMERA EXTENSION HARNESS TO THE VEHICLE
CAMERA CONNECTOR IN THE TAILGATE AS SHOWN IN FIGURE 17.
SECURE THE CONNECTOR TO THE TAILGATE WITH FOAM TAPE TO
PREVENT RATTLES.
INSTALLATION
FIGURE 16
FIGURE 17
FIGURE 14
A-PILLAR CONNECTOR
FIGURE 15
WIRE CLIP
WIRES TIES
SECURE WITH FOAM TAPE

TESTING
1. RECONNECT NEGATIVE BATTERY CABLE AND TORQUE TO
3 FT LBS. RE-ENTER ANY THEFT DETERRENT INFORMATION IF
APPLICABLE.
2. TURN THE IGNITION SWITCH ON. PUT THE VEHICLE IN
REVERSE. VERIFY THAT THE RADIO DISPLAY IS ON AND THAT
THE CAMERA’S PICTURE APPEARS.
3. IF THERE IS NO PICTURE, VERIFY ALL CONNECTIONS ARE
SECURE.
REASSEMBLY
1. REINSTALL ALL TRIM PIECES TAKING SPECIAL CARE TO
ENSURE HARNESSES AND WIRING CONNECTIONS ARE PROPERLY
SECURED.
2. BE SURE HARNESS IS NOT PINCHED OR BOUND BY TRIM
PIECES.
3. PLACE THE OWNER’S CARD IN THE GLOVE BOX.
4. RECONNECT ALL DISCONNECTED BULBS AND CHECK FOR
FUNCTION.
PAGE 7
TESTING AND REASSEMBLY
FIGURE 18
