REARSIGHT CAMERA SYSTEM
250-8010 and 250-8122
SHUTTER Camera Applications Installation Instructions
Parts Identification Page 1
System Layout Page 2
Installation Page 3
Testing Page 5
Reassembly Page 5
Installation Tips Page 5
CAUTION: To minimize risk of injury from contact with the monitor during an accident,
always wear your seat belt.
Parts Identification
Item Qty. Part Number Description
1A 1 250-8202 RearSight Monitor
1B 1 250-8131 RearSight Monitor and Stem
2 1 250-8097 Rear Camera Assembly (SHUTTER)
3 1 250-8583 Camera RCA and Power Harness
4 1 250-8511 49-foot Camera Extension Cable
5 1 250-8509 Sack Parts: Tie Straps, T-taps, Sealing Putty
Form #5336, Rev. A, 07-27-12

Rostra Precision Controls, Inc. - 2519 Dana Dr. - Laurinburg, NC 28352 - 800-782-3379 - rostra.com Page 2
System Layout
Vehicle Preparation
Before beginning your installation, familiarize yourself with the installation instructions and the RearSight
camera system components.
To ensure your safety, (A) apply the emergency brake and (B) read this entire manual before beginning.
CAUTION: It is advisable to disconnect the negative battery cable for 3 minutes before beginning
installation, to avoid unintended air bag deployment. Note and record any anti- theft radio codes
prior to disconnecting.
Installation
Harness Connections
Route harnesses to be joined with Video 2 In (red) and Audio In (white) RCA connections of LCD monitor
(Video 2 In allows reverse override to function). Use provided wire ties to secure wiring harnesses away from
moving parts and sharp edges of the vehicle.
•RCA Yellow from camera harness 250-8583 to Video 2 In (red) of LCD monitor.
•RCA White from camera harness 250-8583 to Audio In (white) of LCD monitor.

Rostra Precision Controls, Inc. - 2519 Dana Dr. - Laurinburg, NC 28352 - 800-782-3379 - rostra.com Page 3
•Solid black wire from camera harness 250-8583 to chassis ground.
•Red wire from camera harness 250-8583 to accessory 12-volt power.
•DC male power connector from camera harness 250-8583 to DC female power connector of LCD monitor.
•Backward In wire from LCD monitor to vehicle 12-volt reverse signal.
•Blue trigger wire from camera harness 250-8583 to vehicle 12-volt reverse signal (opens shutter).
Note: Video 1 In (yellow) of LCD monitor is not used in this application, but is available for use with any
device that provides video via a standard RCA connection.
Monitor Mounting (with attached stem)
•Remove existing rearview mirror from vehicle.
•Mount RearSight monitor to attached windshield lug and tighten screw.
•Route camera extension harness to the rear of the vehicle.
•Secure harnesses with wire ties.
Monitor Mounting (with included dash mount)
•Before removing adhesive backing, form pedestal base tabs to fit the contour of the dashboard where the
monitor is to be installed.
•Once dry fitment is complete, attach the LCD monitor to the pedestal mount to verify placement and
security of fasteners that connect the monitor to the mount.
•Thoroughly clean desired mounting space on dashboard to ensure proper adhesion of the mounting tape.
Note: By failing to properly form base tabs, the pedestal mount will not secure to the dashboard.

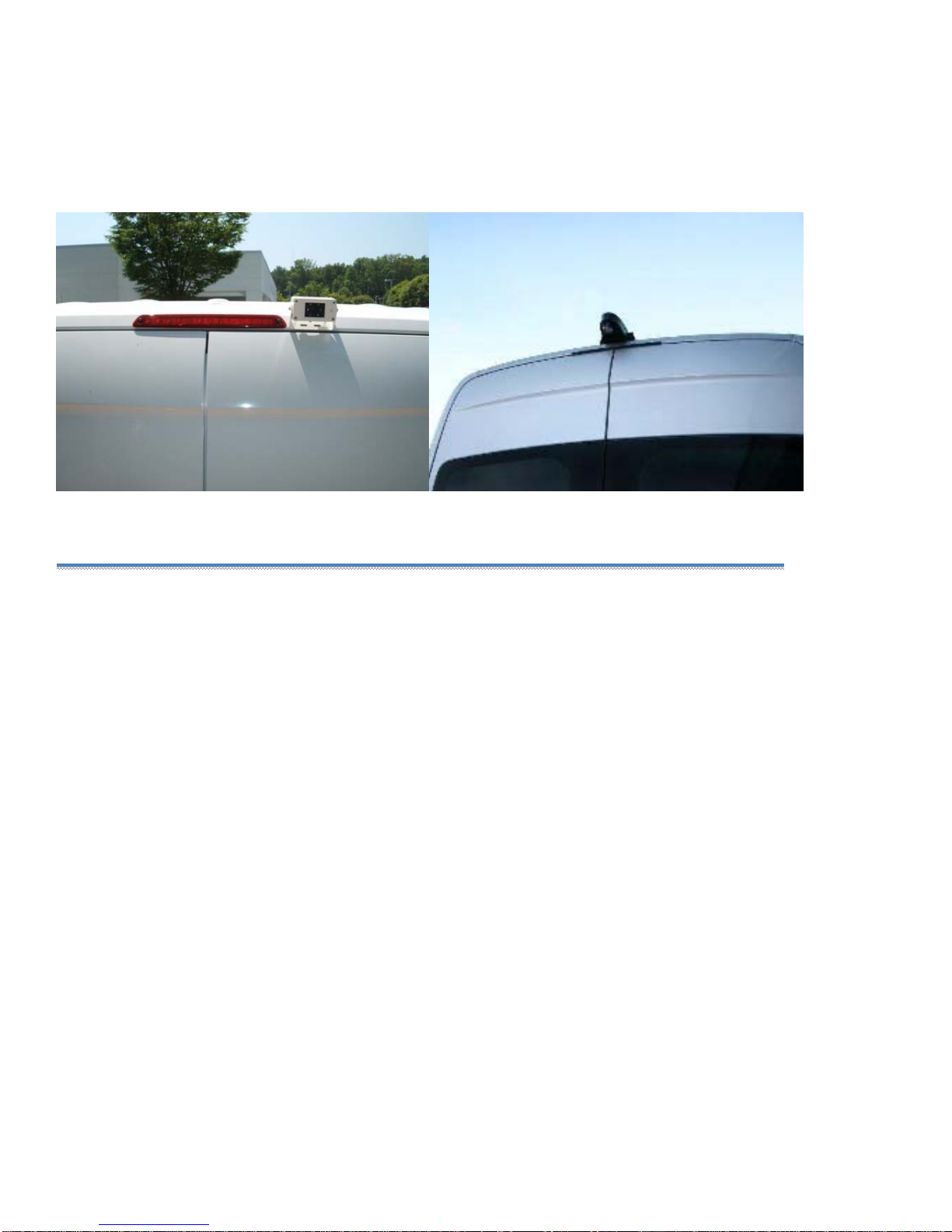

Camera Mounting
When choosing a mounting location for your camera, choose a location that meets the following requirements:
•The camera is mounted in a manner that provides a clear view of the area behind the vehicle that needs to be
visualized in the monitor. When possible, this should include a portion of the rear of the vehicle so as to
provide a point of reference for the driver.

Rostra Precision Controls, Inc. - 2519 Dana Dr. - Laurinburg, NC 28352 - 800-782-3379 - rostra.com Page 4
•When possible, the camera should be mounted in an area of the vehicle that protects it from damage due to
general vehicle use where it will not make contact with shipping bay doors, building awnings, or be subject
to movement such as on the bed of a dump truck.
•When possible, avoid mounting the camera too low on a vehicle where the lens will be subject to being
covered with road dirt, mud, or exhaust gases.
•Use supplied bracket as a template for mounting hole locations.
•Assemble camera as shown in included instructions.
Testing and Reassembly
Testing
1. Reconnect the negative battery cable and torque to 3 ft-lbs.
2. Re-enter any theft deterrent information (if applicable).
3. Turn the ignition switch to ON. Press the MENU button to switch from VIDEO 1 to VIDEO 2. Verify that
the RearSight monitor is on and the camera’s picture appears. Press the POWER button. Place the vehicle
in reverse gear. Verify that the camera’s picture appears.
Note: If there is no picture present, re-checkall harness connections.
Reassembly
1. Reinstall all trim pieces taking special care to ensure harnesses and wiring connections are properly secured.
2. Make sure no harnesses are bent or pinched by trim pieces.
3. Reconnect all disconnected bulbs and check for function.
Installation Tips
•Confirm proper cable extension connector orientation and always verify proper ends are routed in correct
direction.
•It is a good idea to dry-fit all pieces in this kit before permanently attaching them to ensure proper
orientation and operation before beginning installation for familiarization with components.
•Always treat any metal exposed during installation with a rust preventative compound to prevent system
failure due to rust and/or corrosion.
•Always seal any holes drilled with the provided sealing putty to prevent water infiltration through
unprotected areas.
•Confirm integrity of mechanical and electrical connections before moving to next installation sequence.
