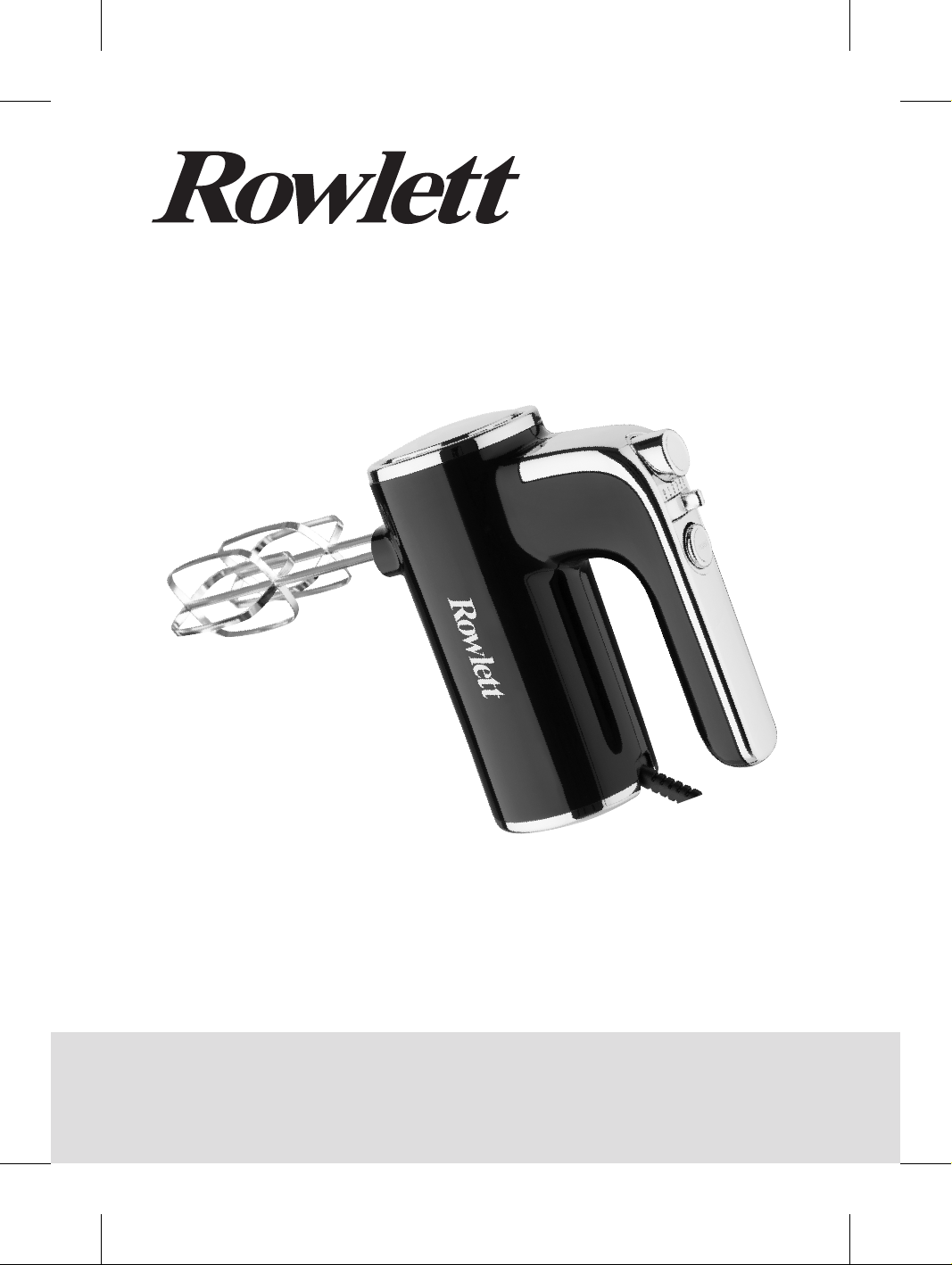

Rowlett CU743-A User manual

Model:
CU743-A
Hand Mixer
Instruction manual
CU743-A_A5_v1_20230606.indb 1CU743-A_A5_v1_20230606.indb 1 2023/6/6 15:132023/6/6 15:13

2
EN Telephone Helpline: 1300225960
Safety Instructions
• A service agent/qualified technician should carry out
installation and any repairs if required. Do not remove any
components on this product.
• Consult Local and National Standards to comply with the
following:
- Health and Safety at Work Legislation
- Fire Precautions
- IEE Wiring Regulations
- Building Regulations
• NEVER leave the appliance unattended when in use.
• Do not attempt to defeat the interlock mechanism.
• The use of accessory attachments not recommended or sold
by Rowlett may cause fire, electric shock, or injury, which will
invalidate your guarantee.
• DO NOT remove food from the appliance until the mixing
attachments have come to a complete stop.
• Avoid contacting moving parts. Keep hands, hair, clothing and
utensils away from mixing attachment and container while
operation to prevent the possibility of severe injury to persons
and/or damage to the appliance.
• DO NOT operate the unit if damaged.
• DO NOT use jet/pressure washers to clean the appliance.
• DO NOT attempt to mix items that this machine is not
designed for. This can damage the mixing attachments.
• Always switch off and disconnect the power supply to the
appliance when not in use, before cleaning and before putting
on or taking off parts.
• Not suitable for outdoor use.
CU743-A_A5_v1_20230606.indb 2CU743-A_A5_v1_20230606.indb 2 2023/6/6 15:132023/6/6 15:13

3
AUEN
Telephone Helpline: 1300225960
• Keep all packaging away from children. Dispose of the
packaging in accordance to the regulations of local authorities.
• If the power cord is damaged, it must be replaced by a
Rowlett agent or a recommended qualified technician in order
to avoid a hazard.
• This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been
given supervision or instruction concerning the use of the
appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play
with the appliance.
• DO NOT let cord hang over edge of table or counter, or touch
hot surfaces.
• Rowlett recommend that this appliance should be periodically
tested (at least annually) by a Competent Person. Testing
should include, but not be limited to: Visual Inspection,
Polarity Test, Insulation Continuity and Functional Testing.
Introduction
Please take a few moments to carefully read through this manual. Correct maintenance and operation of
this machine will provide the best possible performance from your Rowlett product.
Pack Contents
The following is included:
• Hand mixer
• Dough hooks x 2
• Beaters x 2
• Balloon whisk x 1
• Storage clip
• Instruction manual
Rowlett prides itself on quality and service, ensuring that at the time of unpacking the contents are
supplied fully functional and free of damage.
Should you find any damage as a result of transit, please contact your Rowlett dealer immediately.
CU743-A_A5_v1_20230606.indb 3CU743-A_A5_v1_20230606.indb 3 2023/6/6 15:132023/6/6 15:13

4
EN Telephone Helpline: 1300225960
Operation
Eject button
TURBO button
Handle
Dough hooks
Balloon whisk
Speed selector
Beaters
1. Before use clean all mixing attachments. Let them dry well, then mount into the mixer head.
• Note: Both beaters can be inserted in either opening, as they are identical. For the 2 dough hooks,
make sure to insert the one with washer in the large opening and the other in the small opening.
Otherwise, they cannot lock in place.
2. Lower the beaters, dough hooks, or balloon whisk into the foodstuff to be mixed. Then connect the
appliance to the power supply.
3. Set the speed selector to desired setting (1to 5). The table below is for reference only.
Speed Use Remark
1 to 2 • Slow mixing for combining and aerating dry ingredients
without splattering,
• Add ingredients to cookie doughs or cake batters
• Fold creams or egg whites into batters
• Stir sauces and gravies
• Mix muffin or pancake batters
• Add dry ingredients to doughs or batters
Refrigerated ingredients
like butter and eggs
should be set out in
advance, until reaches
room temperature before
mixing.
It is suggested to start
with lower speed then
increase gradually as
necessary
Do not over beat. Only
mix/blend mixtures as
recommended in your
recipe
3 to 4 • Mix cake mixes
• Add eggs to doughs or batters
• Add dry ingredients with liquid ingredients
• Cream softened butter and sugar
• Whip potatoes or squash
• Whip cream
• Beat whole eggs or yolks
• Mix thin batters
5 • Add sugar to whipped egg whites for meringues
• Beat egg yolks until thick and light
• Whip egg whites
• Stir the dough (speed setting 6 is recommended)
CU743-A_A5_v1_20230606.indb 4CU743-A_A5_v1_20230606.indb 4 2023/6/6 15:132023/6/6 15:13

5
AUEN
Telephone Helpline: 1300225960
Caution:
• Do not let the mixer run continuously for more than 5 minutes to avoid overheating.
Ensure to let the mixer rest for at least 20 minutes between consecutive cycles.
• During mixing, never let the mixing attachments face towards people or objects. Risk of
damage or injury!
• Never add ingredients into the container during mixing.
4. During operation, you can also press the “TURBO” button to mix with the highest speed. In turbo
mode, do not let the motor run for more than 1 minute.
5. After mixing, turn off the mixer by setting the speed selector to “0”, then disconnect from power
supply and let cool completely.
6. To remove the beaters or dough hooks, hold them with one hand and press the Eject button with the
other hand.
Removing the lodged food
If a piece of food gets lodged onto the attachments, please follow the instructions below:
1. Turn off mixer, disconnect from power supply and let it come to a complete stop.
2. Press the Eject button to release the attachments.
3. Use a rubber/wooden spatula to carefully remove the food lodged.
Cleaning, Care & Maintenance
• Always turn off the mixer and disconnect from power supply before cleaning.
• Never put the mixer body in water or let the body, cord or plug get wet.
• Use warm soapy water to clean the mixing attachments. Do not use abrasive cleaning chemicals as
these can leave harmful residues. The mixing attachments are dishwasher safe.
• Clean the exterior of the appliance with a slightly damp cloth.
• Dry all parts thoroughly after cleaning.
For storage, mixing attachments can be fixed on the storage clip, and the storage clip can be mounted to
the mixer body.
Troubleshooting
A qualified technician must carry out repairs if required.
Fault Probable Cause Solution
The appliance is not
working
The unit is not switched on Check the unit is plugged in correctly and
switched on
Plug or lead is damaged Replace Plug or lead
Mains power supply fault Check mains power supply
Mixer slows down Too many contents in the mixing
container, and unit runs at speed
setting 1 for too long time
Turn off the mixer and remove some of the
contents. Adjust the food formula if needed
Wrong mixing attachment used Select suitable attachment
Loud noise Mixing attachments not correctly
fitted
Remove and refit attachments
Mixing attachments deforms Contact a qualified technician
Mixing attachments
will not drop when
pressing Eject button
Speed selector is not set to “0”
thus safety protection is activated
Set Speed selector to “0” and wait to let
attachments come to a complete stop. Then
press Eject button to release attachments
CU743-A_A5_v1_20230606.indb 5CU743-A_A5_v1_20230606.indb 5 2023/6/6 15:132023/6/6 15:13

6
EN Telephone Helpline: 1300225960
Technical Specifications
Note: Due to our continuing program of research and development, the specifications herein may be
subject to change without notice.
Model Voltage Power Dimensions
H x W x D mm
Weight
(kg)
CU743-A 220-240V~
50Hz 300W 190 x 83 x 150 0.93kg
Electrical Wiring
The plug is to be connected to a suitable mains socket.
This appliance is wired as follows:
• Live wire (coloured brown) to terminal marked L
• Neutral wire (coloured blue) to terminal marked N
If in doubt consult a qualified electrician.
Electrical isolation points must be kept clear of any obstructions. In the event of any emergency
disconnection being required they must be readily accessible.
Compliance
The product must not be disposed of as household waste. To help prevent possible harm to human
health and/or the environment, the product must be disposed of in an approved and environmentally safe
recycling process. For further information on how to dispose of this product correctly, contact the product
supplier, or the local authority responsible for waste disposal in your area.
Rowlett parts have undergone strict product testing in order to comply with regulatory
standards and specifications set by international, independent, and federal authorities.
Rowlett products have been approved to carry the following symbol:
All rights reserved. No part of these instructions may be produced or transmitted in any form or by any means, electronic,
mechanical, photocopying, recording or otherwise, without the prior written permission of Rowlett.
Every effort is made to ensure all details are correct at the time of going to press, however, Rowlett reserve the right to
change specifications without notice.
CU743-A_A5_v1_20230606.indb 6CU743-A_A5_v1_20230606.indb 6 2023/6/6 15:132023/6/6 15:13

DECLARATION OF CONFORMITY
• Conformiteitsverklaring • Déclaration de conformité • Konformitätserklärung • Dichiarazione di conformità •
• Declaración de conformidad • Declaração de conformidade
Equipment Type • Uitrustingstype • Type d'équipement • Gerätetyp
• Tipo di apparecchiatura • Tipo de equipo • Tipo de equipamento
Model • Modèle • Modell • Modello
• Modelo • Malli
Hand Mixer
CU743-A
Application of Territory Legislation &
Council Directives(s)
Toepassing van Europese Richtlijn(en)
• Application de la/des directive(s) du
Conseil • Anwendbare EU-Richtlinie(n)
• Applicazione delle Direttive
• Aplicación de la(s) directiva(s) del
consejo • Aplicação de directiva(s) do
Conselho
Electrical Safety
AS/NZS 60335.1:2020
AS/NZS 60335.2.14:2017 +A1
Electro-Magnetic Compatibility (EMC)
EN IEC 55014-1:2021
EN IEC 55014-2:2021
EN IEC 61000-3-2: 2019 +A1:2021
EN 61000-3-3: 2013 +A1:2019 +A2:2021
Producer Name • Naam fabrikant • Nom du producteur • Name des Herstellers
• Nome del produttore • Nombre del fabricante • Nome do fabricante
Rowlett
I, the undersigned, hereby declare that the equipment specified above conforms to the above Territory Legislation, Directive(s)
and Standard(s).
Ik, de ondergetekende, verklaar hierbij dat de hierboven gespecificeerde uitrusting goedgekeurd is volgens de bovenstaande
Richtlijn(en) en Standaard(en).
Je soussigné, confirme la conformité de l'équipement cité dans la présente à la / aux Directive(s) et Norme(s) ci-dessus
Ich, der/die Unterzeichnende, erkläre hiermit, dass das oben angegebene Gerät der/den oben angeführten Richtlinie(n) und
Norm(en) entspricht.
Il sottoscritto dichiara che l'apparecchiatura di sopra specificata è conforme alle Direttive e agli Standard sopra riportati.
El abajo firmante declara por la presente que el equipo arriba especificado está en conformidad con la(s) directiva(s) y
estándar(es) arriba mencionadas.
Eu, o abaixo-assinado, declaro que o equipamento anteriormente especificado está em conformidade com a(s) anterior(es)
Directiva(s) e Norma(s)
Date • Data • Date • Datum • Data •
Fecha • Data
26th May 2023
Signature • Handtekening • Signature
• Unterschrift Firma • Firma •
Assinatura
Full Name • Volledige naam • Nom et
prénom • Vollständiger Name • Nome
completo • Nombre completo • Nome
por extenso
Ashley Hooper
Brendan Denmeade
Position • Functie • Fonction • Position
• Qualifica • Posición • Função
Technical & Quality Manager
Commercial Manager/ Responsible
Supplier
Producer Address • Adres fabrikant •
Adresse du producteur • Anschrift des
Herstellers • Indirizzo del produttore •
Dirección del fabricante • Morada do
fabricante
Fourth Way,
Avonmouth,
Bristol,
BS11 8TB
United Kingdom
15 Bagdally Road,
Campbelltown
NSW 2560
DocuSign Envelope ID: ECEA4536-5C5F-42F9-BC7A-AC7E39A1D526
CU743-A_A5_v1_20230606.indb 7CU743-A_A5_v1_20230606.indb 7 2023/6/6 15:132023/6/6 15:13

CU743-A_A5_v1_2023/06/06
CU743-A_A5_v1_20230606.indb 8CU743-A_A5_v1_20230606.indb 8 2023/6/6 15:132023/6/6 15:13
