Rowley R-tec automation rtmsolar2 User manual

Solar Panel Battery Charger

RTMSOLAR2

When paired with our solar panel, Li-ion motors or battery packs remain powered by harnessing

the natural energy of the sun. Sleek design allows for unobtrusive placement behind most headrails.

The charger uses industry leading, crystal technology to maximize sun ray absorption in a wide range of locations and

orientations. Renewable power means motors stay running for longer, without the need for regular charging.

Solar Panel Battery Charger - Use the sun to your

advantage with our R-TEC Automation®Solar Panel,

even when Solar Panel is partially shaded.

FEATURES

USB

Charge

Solar

Powered

Sleek

Design

Crystal

Technology

Low Light

Efficiency

Eco

Friendly

Plug &

Play

TABLE OF CONTENTS

Compliance Statement 3

Technical Data / Pack Contents 3

Product Speciﬁcations

Kit Components

Safety 4

Installation Location Guide 5 - 7

Sun's Seasonal Declination Differences

Sun's Seasonal Performance

Light Transmission

Assessing the Installation Location 8 - 10

Pre Installation Assessment

Example of Pre Installation Assessment

Installation 11 - 17

Mounting Options

Installation Process

Bending Bracket

Connecting Solar Panel with Motor

Dimensions 18

Troubleshooting 19

Parameters Value

COMPLIANCE STATEMENT

TECHNICAL DATA / PACK CONTENTS

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

• This device may not cause harmful interference.

• This device must accept any interference received, including interference that may cause undesired operation.

167

2

3 5

4

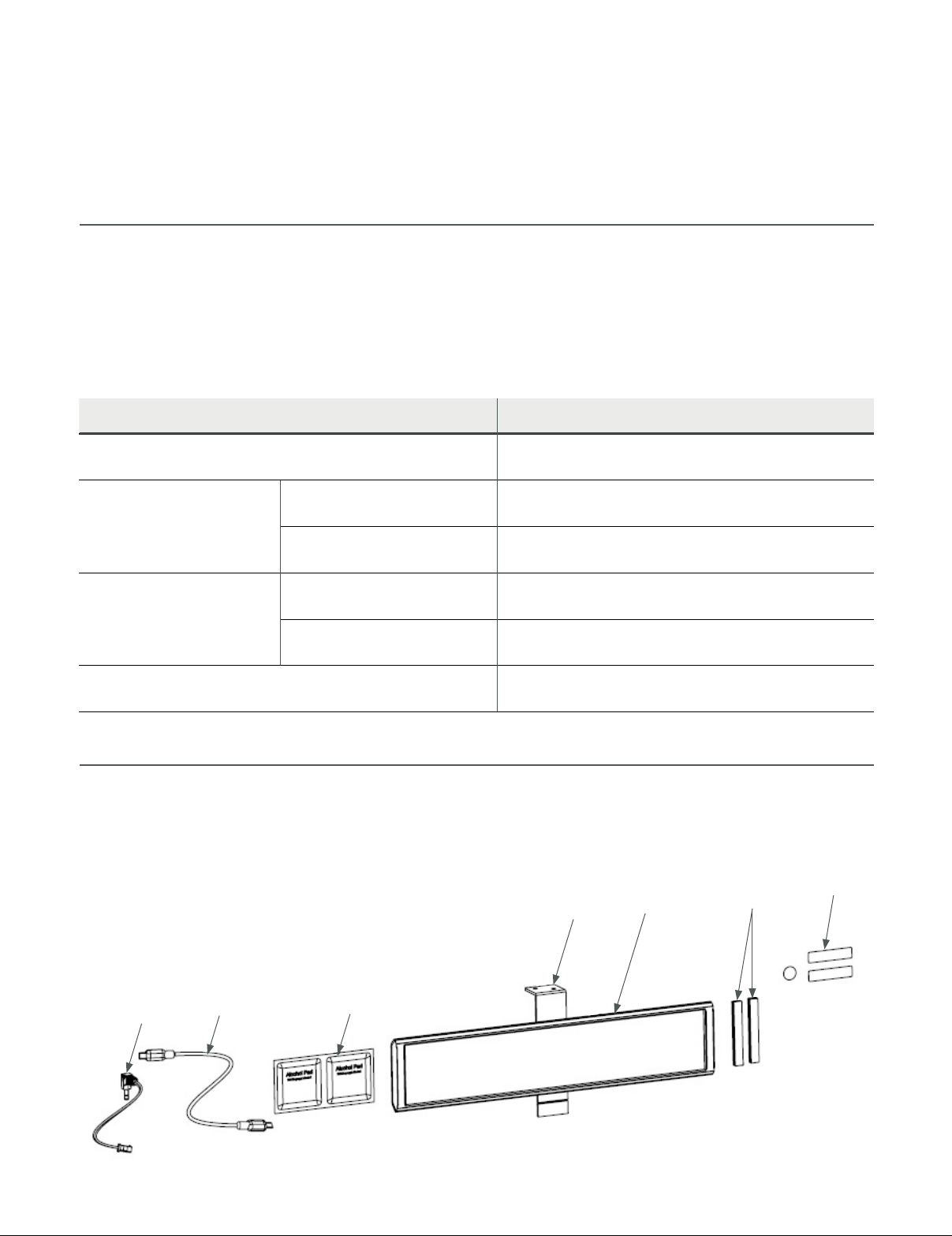

KIT COMPONENTS

1. Solar Panel

2. L-Bracket - Aluminum

3. Cable: Male Micro USB to Male Micro USB Connector Cable

4. Cable: Male Barrel to Male 2 Pin SMR

5. Alcohol Wipe Cloths (Twin Pack)

6. Dual Lock Type 250 Fastener

7. Slot & Screw Cover Stickers / Label Set

PRODUCT SPECIFICATIONS

Max Output Power (Under 1 SUN - 1200W/m²) 2.73 W

Round Connector

Vmax 12.6 V

Imax 220 mA

USB Connector

Vmax 5 V

Imax 300 mA

IP Rating IP40

SAFETY

Any changes or modiﬁcations to this unit not expressly approved by the party responsible for compliance could

void the user’s authority to operate the equipment. Incorrect installation can lead to serious injury and will void

manufacturer’s liability and warranty.

WARNING

Do no dispose of in general waste.

Please recycle batteries and damaged electrical

products appropriately.

CAUTION

• Do not expose to moisture or extreme temperatures.

• Do not allow children to play with this device.

• Use or modiﬁcation outside the scope of this instruction manual will void warranty.

• Installation and programming to be performed by a suitably qualiﬁed installer.

• For use within Li-ion Motors and rechargeable battery packs only.

• Do not cut power cables.

• Use only R-TEC Automation®hardware.

• NOT suitable for exterior application.

• Do not drill into Solar Panel body.

• The routing of cable through walls shall be protected by isolating bushes or grommets.

• Ensure power cable is clear and protected from moving parts.

• If cable or power connector is damaged, do not use.

IMPORTANT SAFETY INSTRUCTIONS TO BE READ PRIOR

TO OPERATION

• It is important for the safety of persons to follow the enclosed instructions. Save these instructions for future reference.

• Persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge

should not be allowed to use this product.

• Frequently inspect for improper operation. Do not use if repair or adjustment is necessary.

• Keep Solar Panel away from children.

Avoid shadowing from trees, awnings, etc. for optimal performance.

IMPORTANT

INSTALLATION LOCATION GUIDE

SUN’S SEASONAL DECLINATION DIFFERENCES

Take into account the movement of sun throughout the season.

Northern Hemisphere

Southern Hemisphere

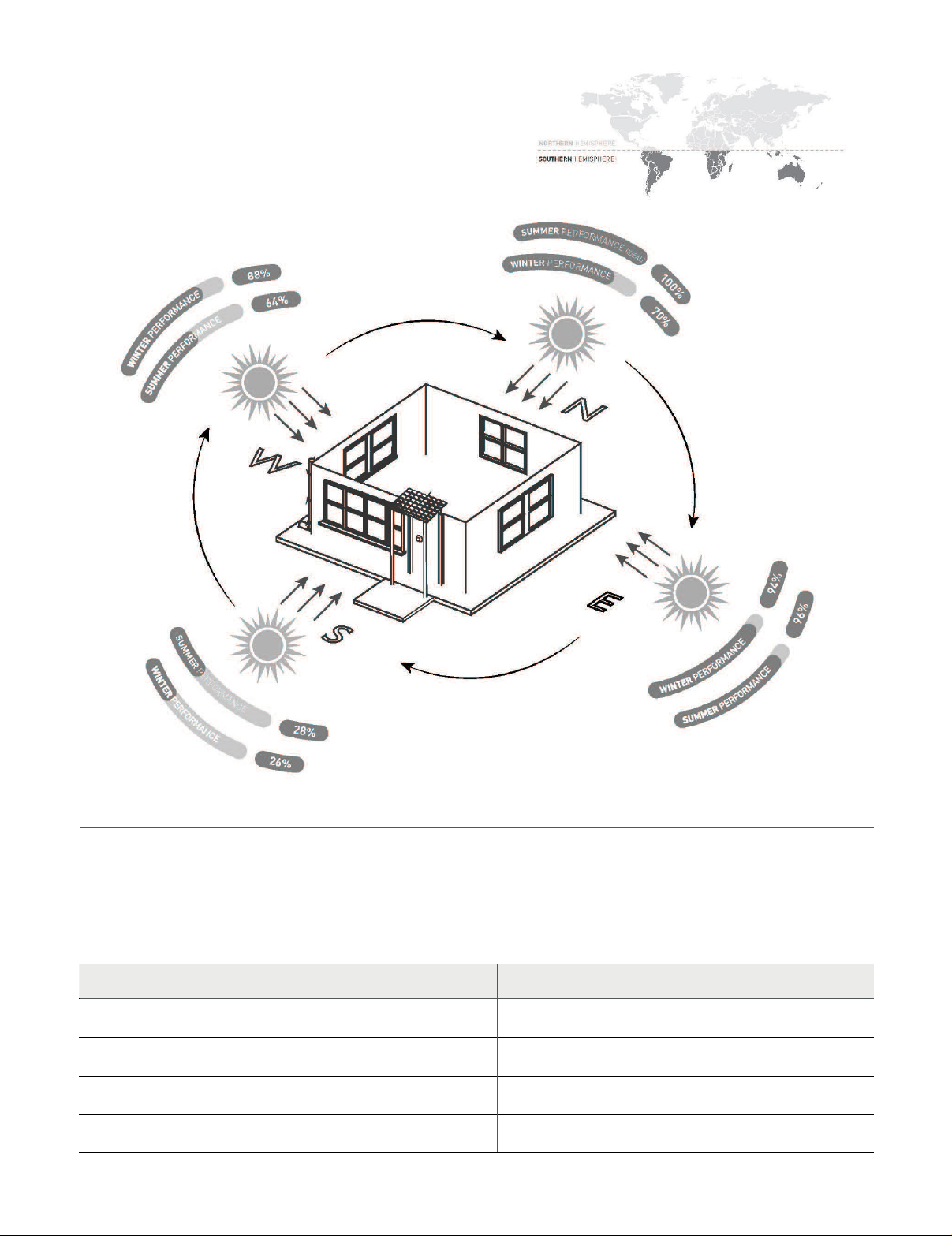

SUN’S SEASONAL PERFORMANCE

Northern Hemisphere

Southern Hemisphere

LIGHT TRANSMISSION

Light transmission can vary widely with the number of window panes and types of coatings. The type of glass needs to be

assessed. Approximate transmission factors are:

Glass Type Transmission Factors

Single Panel 70%

Double Panel 63%

Double Panel with bronze tint 30%

Double Panel with selective low-e coating 45% - 57%

ASSESSING THE INSTALLATION LOCATION

PRE INSTALLATION ASSESSMENT

Hold the Lux meter directly against the window glass indoors in the location you wish to mount the solar panel, and observe

the KLux Reading.

Lux Meter

Measuring sunlight through the window

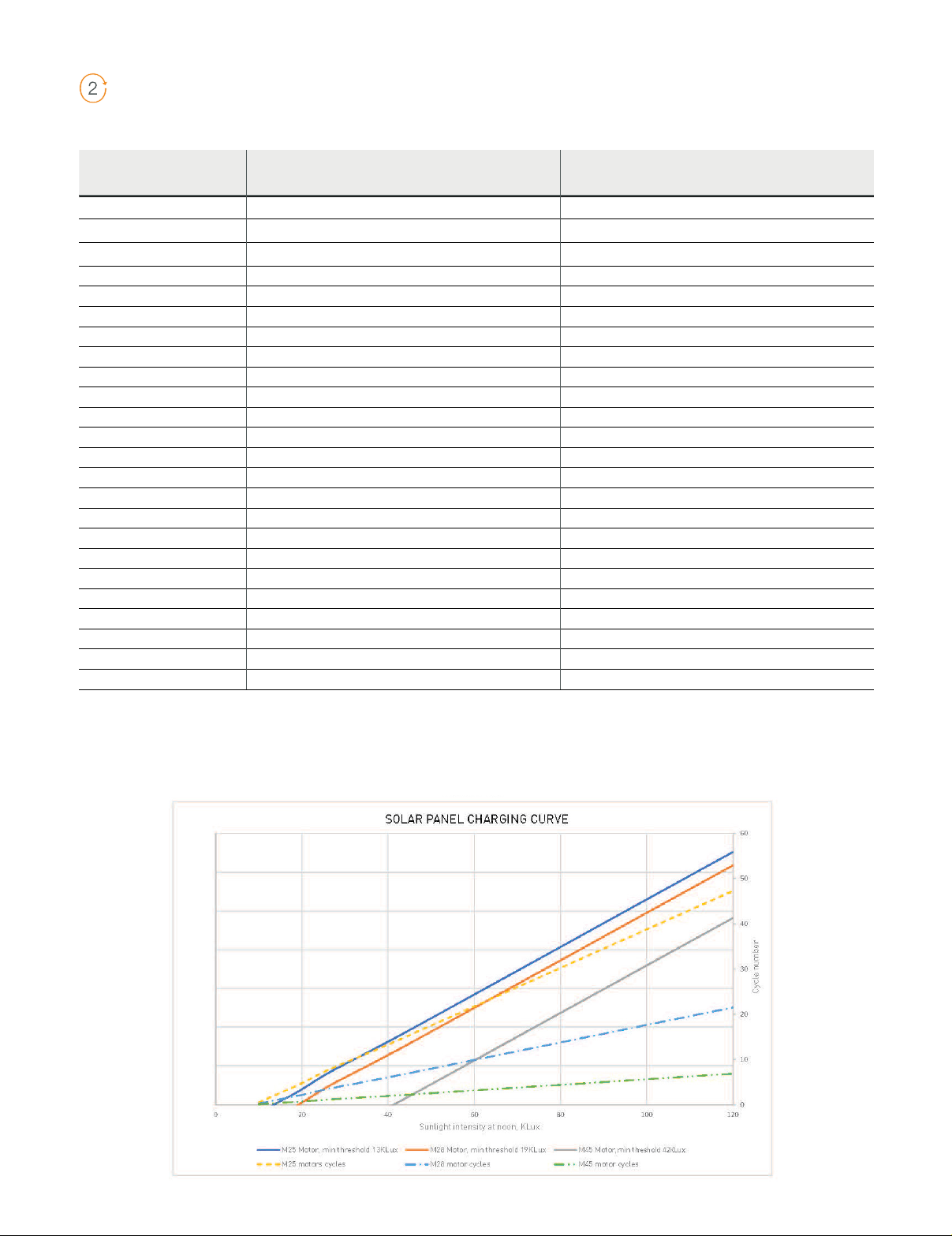

Using the time of the day that the measurement was taken, select the coefﬁcient that corresponds to your region / time of year.

Use the value calculated from the table above with the graph below to estimate the number of cycles that the solar panel can

provide over a 24 hour period.

Note: 0.00 coefﬁcient means that the sunlight intensity is too low to be measured accurately.

Estimate performance

Time of Measurement

on a Particular Day

Coefﬁcient in January (North Hemisphere)

& July (South Hemisphere)

Coefﬁcient in July (North Hemisphere)

& January (South Hemisphere)

1:00 AM 0 0

2:00 AM 0 0

3:00 AM 0.00 0.00

4:00 AM 0.00 0.00

5:00 AM 0.00 0.00

6:00 AM 0.00 13.64

7:00 AM 0.00 4.96

8:00 AM 0.00 2.97

9:00 AM 5.57 1.95

10:00 AM 1.79 1.53

11:00 AM 1.24 1.34

12:00 PM 1.00 1.09

1:00 PM 1.02 1.00

2:00 PM 1.06 1.07

3:00 PM 1.51 1.16

4:00 PM 2.26 1.32

5:00 PM 0.00 1.69

6:00 PM 0.00 2.56

7:00 PM 0.00 5.34

8:00 PM 0.00 0.00

9:00 PM 0.00 0.00

10:00 PM 0.00 0.00

11:00 PM 0.00 0.00

12:00 PM 0.00 0.00

EXAMPLE OF PRE INSTALLATION ASSESSMENT

Measure the KLux using a Lux meter

Measured Value = 20KLux

Measuring sunlight through the window

Measuring sunlight intensity at 3:00 PM during winter of Northern Hemisphere, for a M25 motor installation:

Multiply the measured Value by the coefﬁcient in the table on page 9.

Sunlight intensity = Measured Value x coefﬁcient

Sunlight intensity = 20KLux x 1.51 = 30.2KLux

Estimate performance

Calculated sunlight intensity = 30.2KLux

Locate 30.2KLux on the x-axis and draw a vertical line from it until it meets the motor curve.

Draw a horizontal line intersecting the vertical line and the y-axis; gives an estimated number of cycles (within a 24-hour

period) that can be achieved without depleting the battery level. i.e. the motor is only consuming energy harvested from

the sun.

In this case it is approximately 10 cycles.

3:00 PM 1.51 1.16

MOUNTING OPTIONS

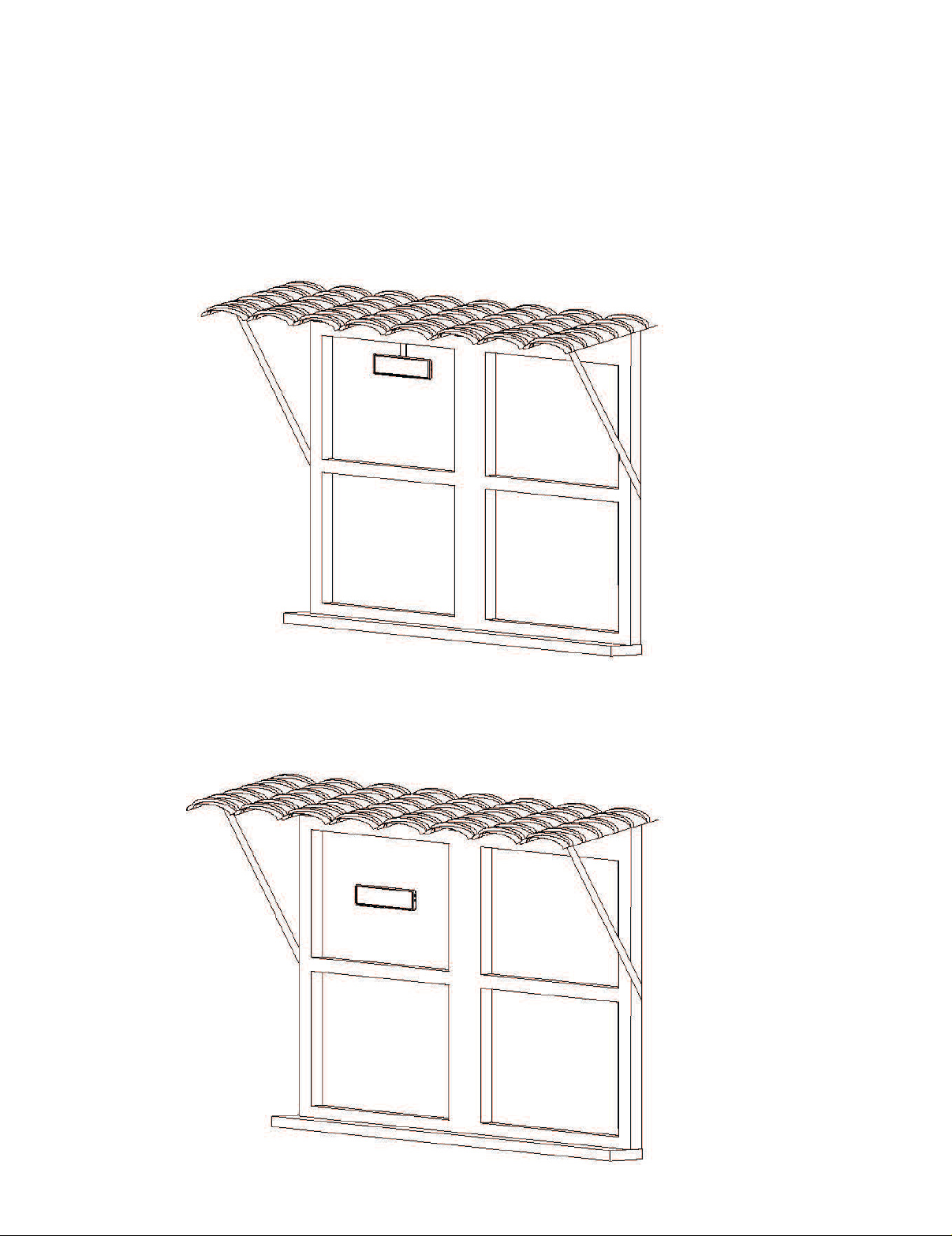

OPTION A. Attaching Mounting Bracket to Window Frame

OPTION B. Attaching Solar Panel via Velcro Strip to a Window or surface

INSTALLATION

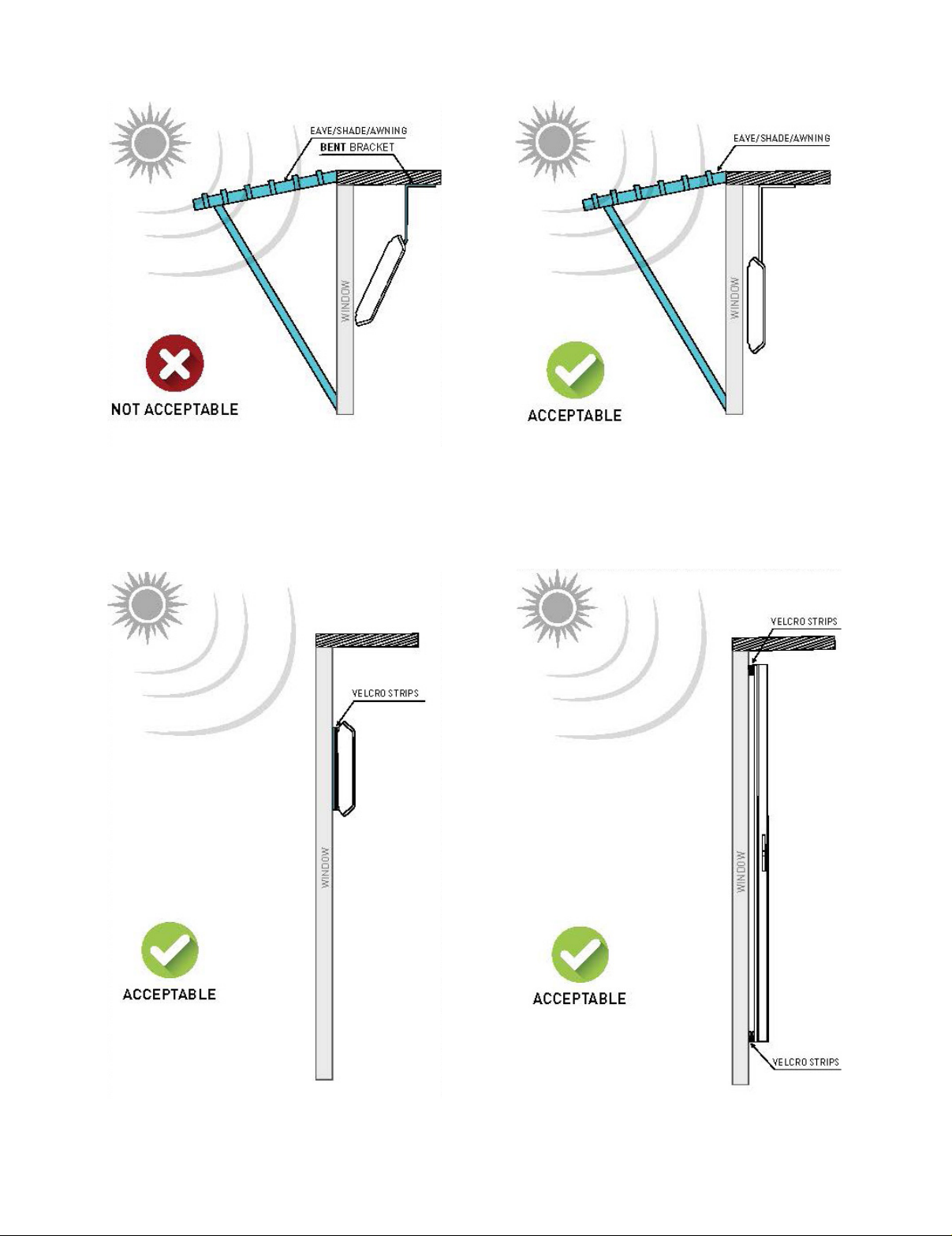

Solar panel should not be too far from the window

because the performance will be reduced.

The back of the bracket should not be facing

opposite to the window.

Keep the solar panel as close to the window as

possible.

The back of the bracket should be facing toward

the window.

In case of an eave, shade or awning, the bracket

should not be bent.

Use velcro strips to stick the bracket on the

window (horizontal orientation).

Use velcro strips to stick the bracket on the

window (vertical orientation).

HORIZONTAL ORIENTATION VERTICAL ORIENTATION

INSTALLATION PROCESS

Fully charge the Motor or Battery Pack before beginning Solar Panel installation.

IMPORTANT

Ensure solar panel has adequate exposure to sunlight. When selecting a position for solar panel, consider any external

obstructions like trees, building, signs, etc. that may limit the amount of sun light reaching onto the solar panel.

IMPORTANT

The PV panel supports two motor voltages; however a single PV panel can only charge one motor type at a time. That

is, if the 12V port is connected to a 12V motor, the USB (5V) port is switched off. Conversely If the 12V port is NOT

connected, the USB port is automatically switched on.

IMPORTANT

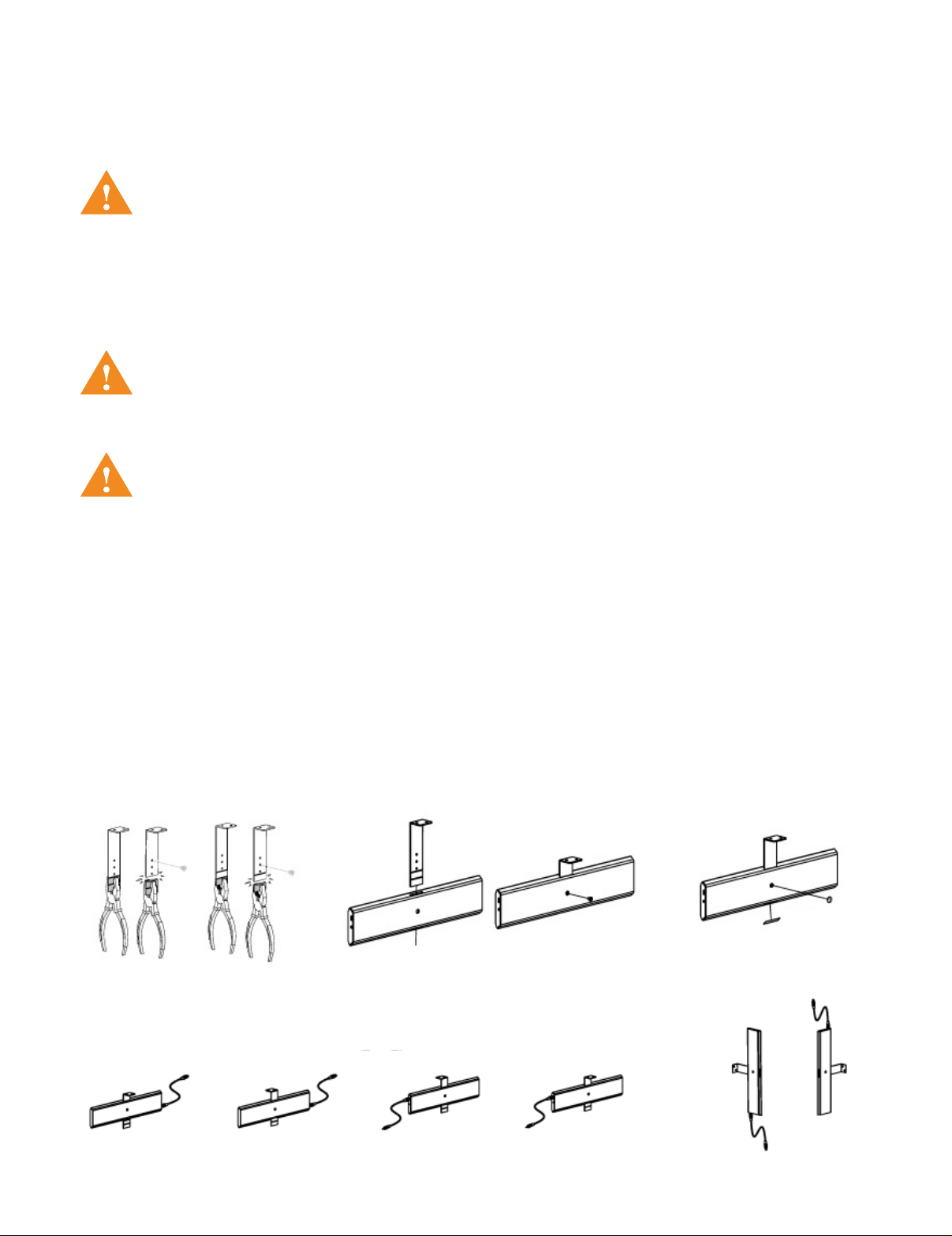

OPTION A. Attaching Mounting Bracket to Window Frame

Locate the optimal position for solar panel in window.

Ensure all components are available for installation scenario.

Possible Orientations

Top Fix Side Fix

StickersScrew

i. Break off excess bracket length using Pliers (if required).

ii. Install mounting bracket to wall/mounting point.

iii. Fix Solar panel to mounting bracket using screw.

iv. Apply stickers onto the Solar Panel to seal unused mounting holes.

OPTION B. Attaching Solar Panel via Velcro Strip to a Window or surface

Stickers

Protective Film

Dual Lock

i. Clean solar panel front surface with alcohol wipe. Allow surface to dry.

ii. Peel protective ﬁlm off one side of Dual Lock and attach to one end of solar panel. Press adhesive tape ﬁrmly onto solar

panel surface for 5 seconds to ensure good adhesion. Ensure that Dual Lock does NOT cover any portion of the solar

panel cells. Repeat previous steps for attaching adhesive tape to other end of solar panel.

iii. Apply stickers onto the solar panel to seal unused mounting holes.

iv. Clean the window or surface with alcohol wipe. Allow surface to dry.

Peel protective ﬁlm off Dual Locks. Press ﬁrmly onto ﬁxing surface.

Apply hand pressure for 5 seconds and check if ﬁrmly attached.

Any partial or total covering of any solar panel cell will degrade solar panel performance.

IMPORTANT

BENDING BRACKET

Bend the bracket prior to installation of the solar panel.

IMPORTANT

Ensure the bend angle is between 150° to 180°.

IMPORTANT

Make sure that the solar panel has adequate exposure to sunlight.

IMPORTANT

Bracket can be bent in order to receive more direct sunlight which provides more energy to the motor.

The bracket should be bent at a distance of 22 mm, 36 mm or 48 mm from the base of the bracket as shown below:

CONNECTING SOLAR PANEL WITH MOTOR

Ensure any cables are kept clear of fabric at all times.

IMPORTANT

Connect solar panel with the motor.

5V

12V

12V Male Barrel to male 2 pin SMR

Connection

12V Compatible Components

5V Micro USB Connection

5V Compatible Components

or

Item # Description Item # Description

RTMLBC Rechargeable Battery Pack (optional)

RTMLCXT48 12V Charger Cable Extender 48"

RTMLCXT96 12V Charger Cable Extender 96"

RTMLDSSUSB USB Charger Cable 13', 20

AWG

DIMENSIONS

8"

6"

Front View

1.34

34.05

1-3/8"

4-5/8"

`

4.57

116

12-9/16"

12.53

318.35

12 9/16"

4

5/8"

Front View

1.34

34.05

1-3/8"

4-5/8"

`

4.57

116

12-9/16"

12.53

318.35

1

3/8"

Any Questions?

Contact our R-TEC Automation®in-house experts at 866.985.3423. Email us at RTECAutomation@RowleyCompany.com.

TROUBLESHOOTING

Problem Cause Remedy

Motor is not responding

Remote control battery is

discharged Replace battery.

Battery is inserted incorrectly

into remote control Check battery polarity.

Radio interference / shielding Ensure remote is positioned away from metal objects and

the antenna on motor is kept straight.

Motor distance is too far from

remote control Move remote to a closer position.

Battery power depleted Recharge with AC Adaptor (optional).

Incorrect wiring Check that motor wiring is connected correctly (refer to

motor installation instructions).

Motor beeps 10 times when

in use

Battery voltage is low / Solar

Panel issue

Solar Panel not providing enough

power

Check connection and positioning of Solar Panel. Ensure

sun exposure is adequate.

Recharge with AC Adaptor (optional).

No output Voltage from

Round Connector

Not enough light Turn the orientation of Solar Panel for more light energy.

Round Connector is open circuit Connect battery motor for 5 minutes to check charge

current.

Motor battery capacity is full Run the motor continuously until the battery voltage is

below 12 V.

No output of USB Connector Round Connector is charging

battery motor Disconnect the motor from the Round Connector.
