Rowlinson SHAP43PTL User manual

No. Fixing Kit Qty.
9 50mm screw 17
10 30mm nail 28
11 10mm felt nail 20
No. Components Qty.
1 Upright 2
2 Side panel 1
3Backpanel 1
4 Roof panel 1
5 Felt batten (905mm) 2
6 Roof rafter (645mm) 2
7 Roof felt roll 1
8 Bargeboards 2
2
1
3
4
5
6
2014 © Rowlinson Garden Products Ltd
7
Before assembly
•We recommend that time is taken to read the instructions before
starting assembly, then follow the easy step by step guide.
The instruction sheet is only a guide to the assembly.
Certain items may not be shown to scale.
•Check all components prior to assembly
•Drill all components where indicated.
•This product should be assembled by no less than two people.
•Never attempt to erect the assembly in high winds.
Recommended tools for assembly
•Cross head screw driver
•Drill with 2mm diameter drill bit
•Step ladder
x 2 Drill
8
ROWLINSON GARDEN PRODUCTS LIMITED
Green Lane
Wardle, Nr. Nantwich
Cheshire
CW5 6BN
Help Line (Normal Office Hours) 01829 261 121
English SS349
Assembly Instructions
4x3 Shed Lean to/log store
We constantly improve the quality of our products, occasionally the
components may differ from the components shown and are only
correct at time of printing. We reserve the right to change the
specification of our products without prior notice.
IMPORTANT NOTE:
This instruction is for use in
conjuction with the 4x3 Shed
assembly instruction (SS276).
The lean to can be fitted to
either side of the shed.
Side panel Back panel
50mm
50mm
50mm
50mm
50mm
3. Attaching walls
Position the walls under the roof. Secure the back wall to the side of the shed
using 3 x 50mm screws. At the front and rear screw through the roof rafter
into the uprights as shown using 1 x 50mm screw for each upright.
10mm
10mm
10mm
10mm
10mm
4. Roof felt
Lay the lean to roof felt over the lower part of the long roof. Ensure the is
equal overhang front and rear. Fold over the felt so it covers the felt batten at
the bottom edge of the roof and secure to the batten using 10 x 10mm felt
nails. Tension the felt up the roof and secure the other edge with 3 x 10mm
to the roof. Lay the shed roof felt over the short side of the roof. Fold over
the felt so it covers the felt batten and secure to the batten using 10 x 10mm
felt nails. Tension the felt up over the roof apex and secure the other edge
using 10 x 10mm felt nails. Dress the felt down over the front and back and
secure using 11 x 10mm felt nails. If necessary trim off any excess felt.
5. Bargeboards and finials
To the front and rear of the shed, secure the bargeboards so that the top edge
is flush with the roof line and the two boards meet evenly at the apex secure
using 3 x 30mm nails per board. Attach a finial at the roof apex, over the joins
between the bargeboards using 2 x 30mm nails.
30mm
30mm 30mm
1. Back and side panels
Secure an upright to each edge of the side panel using 3 x 50mm screws per
leg, screw through the panel frame into the legs. Then secure the side panel
to the leg and back panel as shown using 3 x 50mm screws. It is recommended
to drill pilot holes for all screws with a 2mm drill bit before assembly.
2mm
Drill
2mm
Drill
2mm
Drill
50mm
30mm
30mm
2. Roof panel
Using 5 x 30mm nails fix the felt battens flush with the long each edges of the
roof panel. Then attach the roof rafters between the felt battens flush to the
short roof edges using 4 x 30mm nails. Screw the panel to the felt batten on
the shed using 3 x 50mm screws.

1. Floor section
Prepare a level area for the shed to sit. To the bottom of the floor, attach two floor bearers flush with the short edges
of the floor using 4 x 30mm nails. Nail through the floor panel into the bearers. Attach the remaining two bearers spaced
evenly between the first two in the same way.
2. Wall panels
Position the back panel and a side panel on the floor as shown. Note how the panel frames sit on the floor with the panel
cladding overhanging the floor edge. Ensure square and secure using 3 x 50mm screws, screw through the frame of the
side panel into the frame of the back panel. Attach the other side panel in the same way. Then add the front panel.
It is recommended to drill pilot holes
for each screw before assembly.
3mm
Drill
Important note
When positioning the shed, it is recommended that
adequate provision is made to ensure ground contact is
avoided and air is able to circulate underneath the building.
Placing the building on a concrete pad or slab base is
acceptable provided that the building is not allowed to sit in
pooled water during wet conditions.
If the building is to sit on soil or grass it MUST be erected
on pressure treated wooden 50mm x 50mm or similar
bearers (These are not supplied in the kit).
Rowlinson Garden Products recommend using pressure
treated bearers with all buildings on any type of base.
30mm
Floor
Panel frames
rest on floor.
panel cladding
overhangs floor
edge.
Side panel Back panel
50mm
50mm
Front panel
Back panel
Side panel
Panel frame
Floor
Back panel
Side panel
50mm
30mm
Floor joists
30mm
30mm
10mm
10mm
10mm
10mm
5. Roof felt
Lay the roof felt centrally over the roof. On one side fold over the felt so it covers the felt batten and secure to the batten
using 10 x 10mm felt nails. Tension the felt over the roof and fold the felt over the other felt batten and secure using
10 x 10mm to the batten. Dress the felt down over the front and back and secure each using 6 x 10mm felt nails. If
necessary trim off any excess felt.
30mm
30mm
30mm
30mm
30mm
50mm30mm 30mm
63mm
It is recommended to drill pilot holes
for each screw before assembly.
3mm
Drill
4. Roof Panels
Insert the roof purlin into the gap at the apex of the front and back panel framing, secure in place using 2 x 63mm screws.
Secure a felt batten to each roof panel using 4 x 30mm nails as shown. Ensure the felt batten is flush to the edges of the
panels. Position the roof panels onto the assembly, make sure the top edges are located at the apex and the roof is
centred front and back to the body of the shed, secure the panels in place using 8 x 30mm nails per panel. Nail through
the roof into the panel frames.
3. Securing the walls to the floor
Ensure the panels are sitting square on the floor. Secure the front and rear panels using 2 x 50mm screws per panel,
screw through the panel frames and floor into the centre floor joists. Secure the side panels from the outside using
2 x 30mm nails, nail through the panel cladding into the side of the floor.
It is recommended
to drill pilot holes
for each screw
before assembly.
3mm
Drill
6. Coverstrips, bargeboards & finials
Fit a coverstrip into each corner, attach using 3 x 30mm nails per strip. To the front and rear of the shed, secure the
bargeboards so that the top edge is flush with the roof line and the two boards meet evenly at the apex secure using
3 x 30mm nails per board. At the front and rear of the assembly, attach the finials at the apex over the join between the
bargeboards using 2 x 30mm nails per finial
30mm
Side panel
Use this diagram to
check the correct
orientation of the corners
Important

4x3 Pressure Treated Shiplap Shed
English SS276A
1
2
3
12
6
8
Before assembly
•We recommend that time is taken to
read the instructions before starting
assembly, then follow the easy step by
step guide. The instruction sheet is only
a guide to the assembly.
Certain items may not be shown
to scale.
•Check all components prior to assembly
•This product should be assembled
by no less than two people
•Drill all components where indicated
5
4
7
11
10
9
13
15
2011 © Rowlinson Garden Products Ltd
If in doubt of any aspect regarding the assembly, use or safety of your building please contact us :
Help Line (Normal Office Hours) 01829 261 121
ROWLINSON GARDEN PRODUCTS LIMITED
Green Lane
Wardle Nr. Nantwich
Cheshire
CW5 6BN
We constantly improve the quality of our products, occasionally the
components may differ from the components shown and are only
correct at time of printing. We reserve the right to change the
specification of our products without prior notice.
x 2 Drill
Assembly Instructions

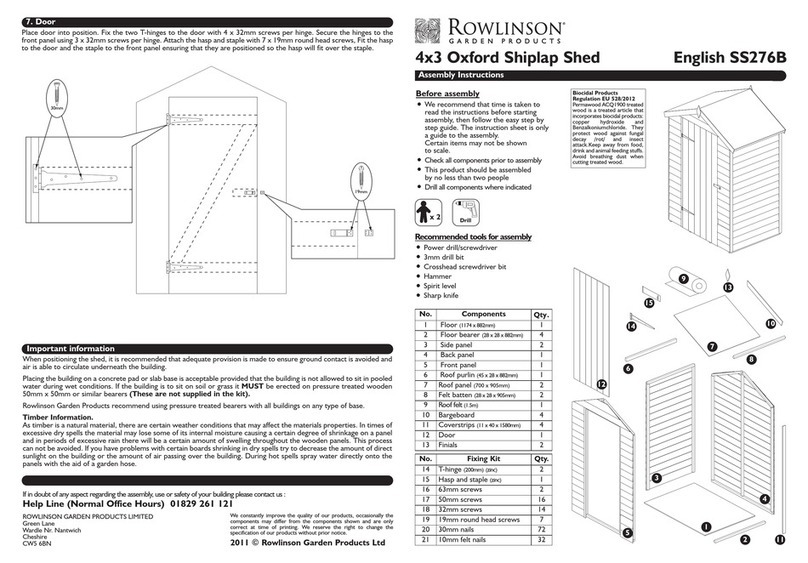

7. Door
Place door into position. Fix the two T-hinges to the door with 4 x 32mm screws per hinge. Secure the hinges to the
front panel using 3 x 32mm screws per hinge. Attach the hasp and staple with 5 x 19mm round head screws, Fit the hasp
to the door and the staple to the front panel ensuring that they are positioned so the hasp will fit over the staple.
32mm
19mm
Important information
When positioning the shed, it is recommended that adequate provision is made to ensure ground contact is avoided and
air is able to circulate underneath the building.
Placing the building on a concrete pad or slab base is acceptable provided that the building is not allowed to sit in pooled
water during wet conditions. If the building is to sit on soil or grass it MUST be erected on pressure treated wooden
50mm x 50mm or similar bearers (These are not supplied in the kit).
Rowlinson Garden Products recommend using pressure treated bearers with all buildings on any type of base.
Timber Information.
As timber is a natural material, there are certain weather conditions that may affect the materials properties. In times of
excessive dry spells the material may lose some of its internal moisture causing a certain degree of shrinkage on a panel
and in periods of excessive rain there will be a certain amount of swelling throughout the wooden panels. This process
can not be avoided. If you have problems with certain boards shrinking in dry spells try to decrease the amount of direct
sunlight on the building or the amount of air passing over the building. During hot spells spray water directly onto the
panels with the aid of a garden hose. No. Fixing Kit Qty.
14 T-h in ge (200mm) (zinc) 2
15 Hasp and staple (zinc) 1
16 63mm screws 2
17 50mm screws 16
18 32mm screws 14
19 19mm round head screws 5
20 30mm nails 72
21 10mm felt nails 32
No. Components Qty.
1Floor (1174 x 882mm) 1
2Floor bearer (28 x 28 x 882mm) 4
3Side panel 2
4Back panel 1
5Front panel 1
6Roof purlin (45 x 28 x 882mm) 1
7Roof panel (700 x 905mm) 2
8Felt batten (28 x 28 x 905mm) 2
9Roof felt (1.5m) 1
10 Bargeboard 4
11 Coverstrips (11 x 40 x 1580mm) 4
12 Door 1
13 Finials 2
Recommended tools for assembly
•Power drill/screwdriver
•3mm drill bit
•Crosshead screwdriver bit
•Hammer
•Spirit level
•Sharp knife
14
