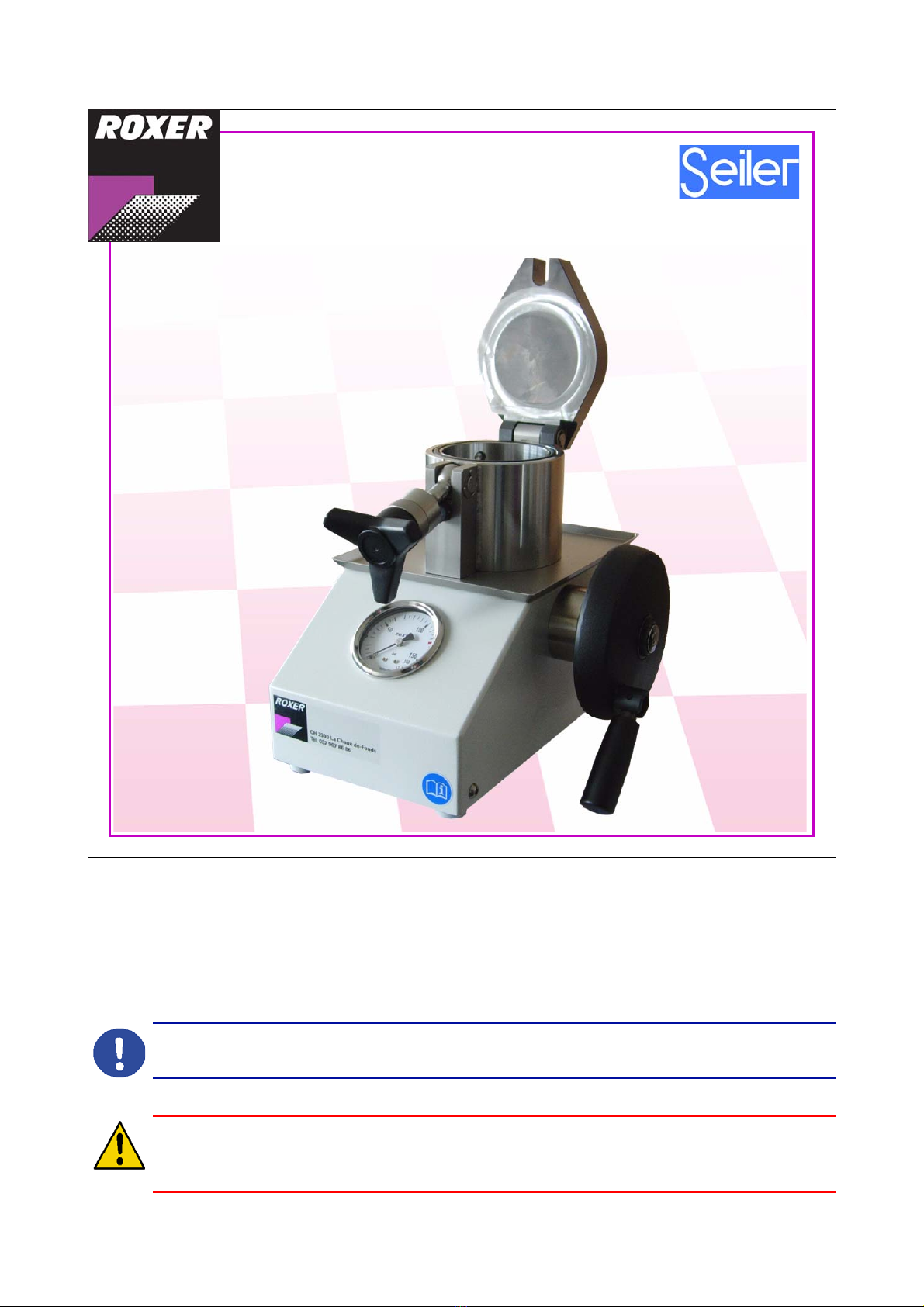

ROXER Natator 125 User manual

Natator 125
ROXER SA Rue du collège 92 CH-2300 La Chaux-de-Fonds Tél. [phone] - Fax [phone]
Operating instructions
Version 1.2, 19 October 2009 - EN
Instruction
This document must be retained for future reference.
Attention
Before any use of the device, each user must have read the operating instructions
and must pay particular attention to the safety instructions.
Stand-alone water-resistance testing device

Operating instructions Natator 125 Table of contents
EN ___ JDV V1.2 - 19.10.09 Page 3 / 30
Table of contents
1 General points . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
1.1 Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.1.1 Document . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.1.2 Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.1.3 Copyright . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.2 General information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.2.1 Conformity with standards and directives . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.2.2 Usage specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.2.3 Limitation of liability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.3 Procedure for requesting technical service . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
2.1 Definition of icons used . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2.1.1 Danger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2.1.2 Attention . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2.1.3 Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2.1.4 Restriction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2.1.5 Instruction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2.2 Potential and residual risks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
2.2.1 General points . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
2.2.2 Risks arising from pressurized elements . . . . . . . . . . . . . . . . . . . . . . . . . 10
2.2.3 Mechanical risks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
3 Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
3.1 General points . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3.2 Technical specification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3.3 General description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
3.4 Operating principle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
4 Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
4.1 Parts supplied . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
4.2 Usage environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
4.3 Before first use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
4.3.1 Connection of the tube for purging the device . . . . . . . . . . . . . . . . . . . . . 16
4.3.2 Purge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Operating instructions Natator 125
Table of contents
EN ___ JDV V1.2 - 19.10.09Page 4 / 30
5 Use. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
5.1 Initial operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
5.2 Increasing the pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
5.3 Reducing the pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
6 Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
6.1 Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
6.2 Replacement of the tank seal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
6.3 Changing the water in the tank . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
6.4 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
6.5 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
7 Appendices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
7.1 Standards relating to the water-resistance of watches . . . . . . . . . . . . . . . . . 27
7.2 Declaration of conformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
7.3 Installation drawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

EN ___ JDV V1.2 - 19.10.09 Page 5 / 30
Operating instructions Natator 125 General points
1 General points
1.1 Identification
1.1.1 Document
Name :.....Operating instructions
Subject :..................... Natator 125
Language :...................................EN
1.1.2 Device
Device name :..................... Natator 125
Device number :.......................................-
Year :................................2007
Manufacturer :..................... ROXER SA
1.1.3 Copyright
Reproduction of this document, either completely or in part is prohibited. No section may be
reproduced, in any form, whether processed, copied or distributed using electronic means, in
particular by photocopying, magnetic media and other recording modes, without prior written per-
mission from ROXER SA. All rights, in particular, production, distribution and translation rights as
well as any rights linked to intellectual property, are reserved. The same restrictions apply to any
software provided with ROXER SA machines.
Printed in Switzerland
Version history
Version Date Description Checked by
1.0 9 November 2007 First edition C.Paroz
1.1 7 March 2008 Tank capacity modified C.Paroz
1.2 19 October 2009 Tank modified C.Paroz
Table 1 - 1

EN ___ JDV V1.2 - 19.10.09Page 6 / 30
Operating instructions Natator 125
General points
1.2 General information
This document has been written based on information available at the time of its publication.
Nevertheless, ROXER SA accepts no responsibility in case of errors or omissions.
The reference version is written in the French language.
Information contained in the current manual is the property of ROXER SA; it has been provided
for internal use by operators and is not intended for any other use; its transmission to third parties
as well as its reproduction is forbidden.
1.2.1 Conformity with standards and directives
The “CE” marking indicates that this product conforms to all European requirements in respect of
safety, health, the environment and protection of the user.
$See the declaration of conformity on page 28.
1.2.2 Usage specifications
The indications given in these operating instructions must be observed, in particular the safety
instructions.
Use of the device implies obligatory adherence to the following usage specifications:
Instruction
Read and observe the operating instructions supplied with the device. Only persons who
have read and understood these instructions may use the device.
Warning
Access to protected elements requiring use of dismantling tools is only permitted to com-
petent specialists who have been designated by the manufacturer.
1.2.3 Limitation of liability
ROXER SA accepts no responsibility for damages or losses:
• Resulting from the specifications given in this document not having been observed;
• Resulting from modifications made to mechanical elements, control or safety circuits without
its agreement:
• Resulting from the use of the device without its protective equipment.

EN ___ JDV V1.2 - 19.10.09 Page 7 / 30
Operating instructions Natator 125 General points
1.3 Procedure for requesting technical service
For any requests for technical service:
A. Collect any information from the identification plate.
B. Clearly identify the suspected fault.
C. Contact Roxer:
ROXER SA
Rue du collège 92
CH-2300 La Chaux-de-Fonds
Tél. [phone]
Fax [phone]

EN ___ JDV V1.2 - 19.10.09Page 8 / 30
Operating instructions Natator 125
General points
THIS PAGE IS INTENTIONALLY BLANK

EN ___ JDV V1.2 - 19.10.09 Page 9 / 30
Operating instructions Natator 125 Safety instructions
2 Safety instructions
All protection and safety instructions given in this document, must be adhered to in order to avoid
injuries, material damage or pollution.
At the same time, any other legal regulations, accident prevention and environmental protection
measures, as well as any recognized technical regulations relating to appropriate and risk-free
methods of working which apply in the country and place of use of the machine must be adhered
to.
2.1 Definition of icons used
2.1.1 Danger
Used to designate an imminent dangerous situation which, if not avoided, could lead to death or
serious injury.
Danger
Danger text.
2.1.2 Attention
Used to designate a potentially dangerous situation which, if not avoided, could lead to non-seri-
ous injuries.
Attention
Attention text.
2.1.3 Warning
Used to designate a potentially dangerous situation which, if not avoided, could lead to material
damage.
Warning
Information text.
2.1.4 Restriction
Restriction
Restriction text.
2.1.5 Instruction
Instruction
Instruction text.

EN ___ JDV V1.2 - 19.10.09Page 10 / 30
Operating instructions Natator 125
Safety instructions

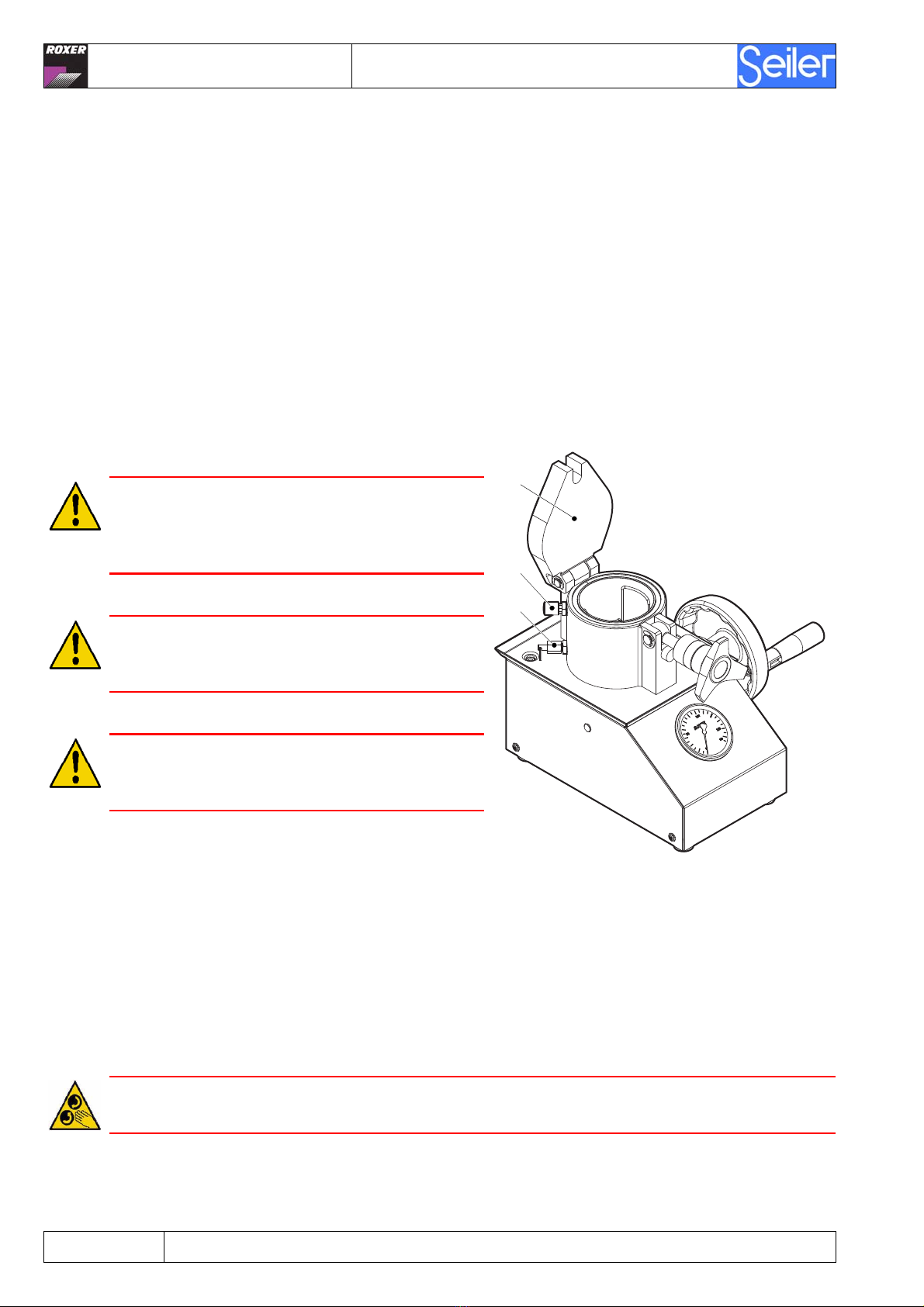

2.2 Potential and residual risks
2.2.1 General points
Potential and residual risks may be encountered in the system and its attached elements.
2.2.2 Risks arising from pressurized elements
During its operation, the device is subject to a considerable internal pressure.
Attention
Do not try to open the lid (1) when the tank
is pressurized! Always completely reduce
the tank pressure before opening.
Attention
Do not press the purge push-button (2)
while the tank is pressurized!
Attention
Do not unscrew the tank purge connection
(3) while the tank is pressurized!
2.2.3 Mechanical risks
When closing the lid, there is a risk that your fingers can be pinched.
Attention, risk of pinching
Do not leave your fingers around the lid (1) when closing!
Figure 2-1
3
2
1

EN ___ JDV V1.2 - 19.10.09 Page 11 / 30
Operating instructions Natator 125 Description
3 Description
3.1 General points
The Natator 125 is stand-alone, water-resistance testing device for watches. It permits creation
of a pressure between 0 and 125 bar in the interior of a tank filled with water in which the watch
under test is placed.
5The device does not require any electrical power supply.
3.2 Technical specification
Pressure range :.....................0 to 125 bar
Tank height (int.) :.............................65 mm
Tank diameter (int.) :.............................80 mm
Tank capacity :................................ 0.33l
Dimensions l/w/h :............. 306/325/355 mm
Weight :............................ 11.9 kg

EN ___ JDV V1.2 - 19.10.09Page 12 / 30
Operating instructions Natator 125
Description

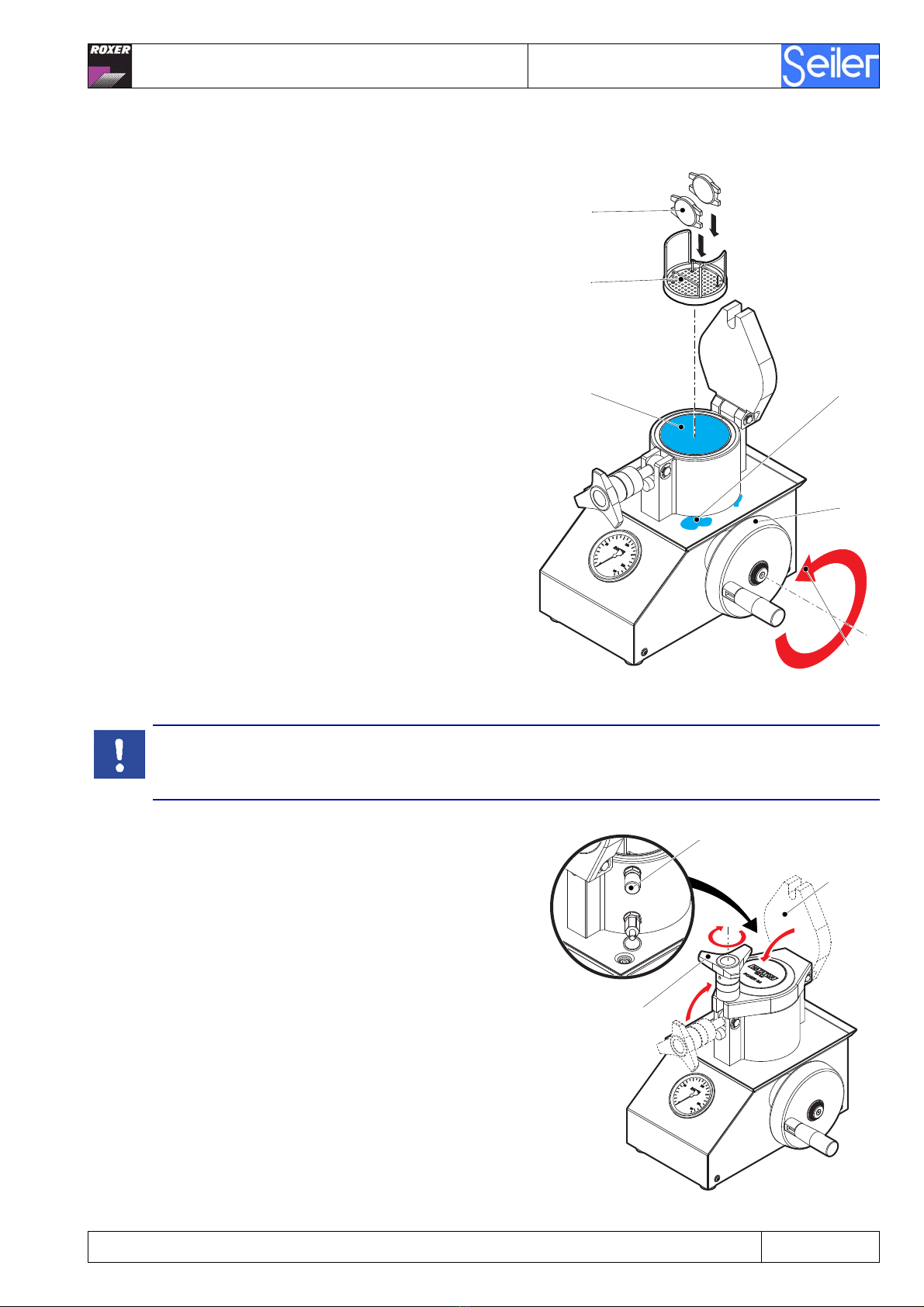

3.3 General description
(1) Watch loading basket
(2) Lid
(3) Locking handle for closing the lid
(4) Pressure gauge
(5) Purge push-button
(6) Tank purge connection
(7) Dropping cup purge valve
(8) Pressurization tank
(9) Dropping cup
(10) Hand wheel for increasing the pressure (and reducing the pressure)
(11) Hand wheel (10) notched ring
(12) Displaceable handle of the hand wheel (10)
Figure 3-1
(6)
(1)
(2)
(4)
(3)
(7)
(8)
(10)
(12)
(9)
(11)
(5)

EN ___ JDV V1.2 - 19.10.09 Page 13 / 30
Operating instructions Natator 125 Description
3.4 Operating principle
The watch under test is placed in the tank
which has been filled with water (2). Once the
lid (1) is closed, the pressure can be progres-
sively increased by turning the hand wheel (4).
The tank’s internal pressure is indicated by the
pressure gauge (3).
Warning
The tank pressure can be increased up to a value which could destroy the watch!
Attention
Using the hand wheel it is possible to obtain a pressure greater than 125 bar. Never
exceed this value (risk of damage to the mechanical elements of the Natator 125).
Warning
Roxer does not guarantee the correct functioning of the device if the maximum pressure
(125 bar) has been exceeded.
Figure 3-2
(4)
(3)
(1)
(2)

EN ___ JDV V1.2 - 19.10.09Page 14 / 30
Operating instructions Natator 125
Description
THIS PAGE IS INTENTIONALLY BLANK

EN ___ JDV V1.2 - 19.10.09 Page 15 / 30
Operating instructions Natator 125 Installation
4 Installation
4.1 Parts supplied
• Natator 125 device;
• Watch loading basket (contained within the tank when delivered);
• Dropping cup purging tube;
• This current operating instructions.
4.2 Usage environment
The Natator 125 must be placed in an environment meeting the following requirements:
• Dry and clean area (max. 60% humidity);
• Stable temperature (between 20°C and 30°C);
• Do not expose the Natator 125 directly to the sun’s rays;
• Clean, stable and horizontal work surface.
$See the installation drawing on page 29.

EN ___ JDV V1.2 - 19.10.09Page 16 / 30
Operating instructions Natator 125
Installation
4.3 Before first use
4.3.1 Connection of the tube for purging the device
A. Connect the purging tube (2) to the dropping cup purge valve (1).
B. Connect the other side to a water evacuation system of your choice (3).
C. Open the valve (1).
Figure 4-1
(2)
(1)
(3)

EN ___ JDV V1.2 - 19.10.09 Page 17 / 30
Operating instructions Natator 125 Installation
4.3.2 Purge
Before first use, it is imperative to carry out a device purge. This operation permits removal of
any residual air within internal piping.
5When delivered, the hand wheel is screwed fully home and the notched ring is positioned to
reduce the pressure.
A. Open the lid (1).
B. Fill the tank with water (2).
Instruction
Do not close the lid.
C. Unscrew (6) the hand wheel (4) as far as it will go.
5To unscrew the hand wheel, the notched ring must first be turned in a clockwise direction (7).
Warning
Do not force the hand wheel once it is fully screwed out! Risk of severely damaging the device.
D. Screw in (5) the hand wheel (4) as far as it will go. Check that there are no air bubbles in the tank (3) .
5To screw in the hand wheel, the notched ring must first be turned in a counter-clockwise direction (8).
E. If bubbles appear, restart at point C. until they have completely disappeared.
5If problems occur, screw in the hand wheel as far as it will go, empty the tank and restart the
operation at point A. To empty the water out of the tank, follow the procedure on page 24.
Figure 4-2
(1)
(3)
(2)
(4)
(5)
(6)
(7)
(8)

EN ___ JDV V1.2 - 19.10.09Page 18 / 30
Operating instructions Natator 125
Installation
THIS PAGE IS INTENTIONALLY BLANK

EN ___ JDV V1.2 - 19.10.09 Page 19 / 30
Operating instructions Natator 125 Use
5Use
To test a watch using the Natator 125, carry out
the following operations:
5.1 Initial operations
A. Ensure that the hand wheel (5) is completely
unscrewed (6).
B. Place a watch (1) in the basket (2) and insert in
the tank (3).
C. Adjust the water level until the tank (3) floods.
5Ensure the water spills over slightly to make
sure the tank is completely full (the dropping
cup ensures any excess water is caught (4)).
5Use demineralised water to ensure no marks
are left on the watch after testing.
Warning
Do not force the hand wheel once it is fully screwed out ! Risk of severely damaging the
device.
D. Close the lid (7), pivot and screw in the locking
handle (8) while pressing the purge push-but-
ton (9).
Figure 5-1
(1)
(2)
(3) (4)
(5)
(6)
Figure 5-2
(9)
(7)
(8)

EN ___ JDV V1.2 - 19.10.09Page 20 / 30
Operating instructions Natator 125
Use

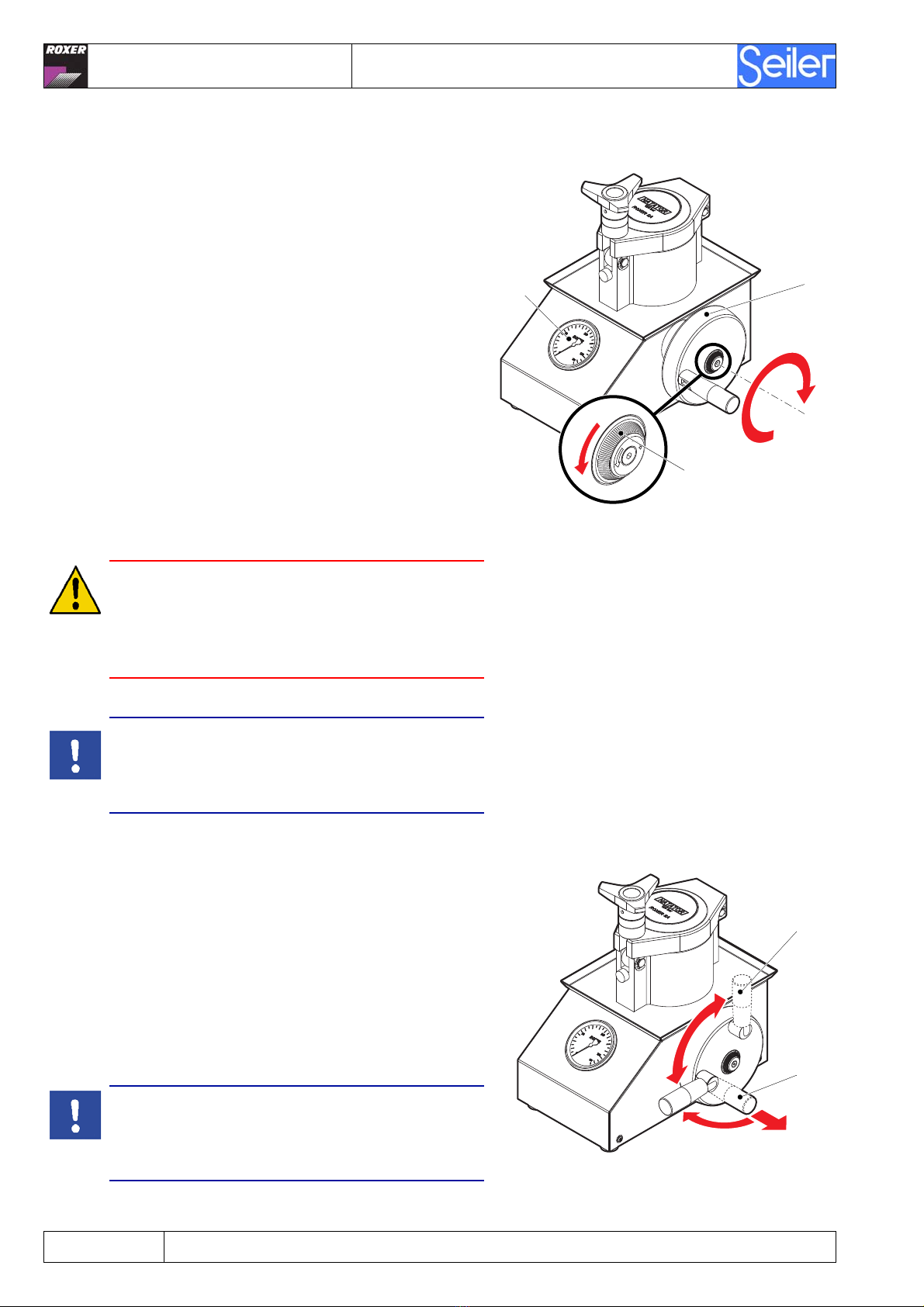

5.2 Increasing the pressure
A. Turn the notched ring (2) in a counter-clock-
wise direction until it “clicks”.
B. Turn the hand wheel (3) in a clockwise direc-
tion to increase the pressure to the required
value (1).
5The test can be carried out at any value
between 0 and 125 bar. It is not necessary to
increase the pressure up to the maximum
device pressure.
5If the required pressure is not reached,
decrease the pressure down to zero and repeat
the purge of the tank as explained on page 17.
Attention
Using the hand wheel you can obtain a
pressure greater than 125 bar. Never
exceed this value (risk of damage to the
mechanical elements).
Warning
Roxer does not guarantee the correct func-
tioning of the device if the maximum pres-
sure (125 bar) has been exceeded.
5If the force to be applied to the hand wheel is
too great, the handle (5) can be positioned as
indicated (4) in the adjoining figure. The pres-
sure can then be increased or reduced by back
and forth motion.
Warning
Do not force the hand wheel once it is fully
screwed out! Risk of severely damaging the
device.
Figure 5-3
(1)
(2)
(3)
Figure 5-4
(4)
(5)
