Seaward PAC3760 User manual

403A557 Rev 1.2
PAC3760 DL
Operating Instructions
Represented in Australia by:
EMONA Instruments Pty Ltd
78 Parramatta Rd
Camperdown NSW 2050
Tel: [phone]
www.emona.com.au
www.protag.com.au
[email protected]
Represented in New Zealand by:
Electrotest Ltd
12A Te Kea Place
Albany
Auckland
Tel: [phone]
www.electrotest.co.nz

Part Number 403A557 Revision 1.2
© 2014 Seaward Electronic Ltd
PAC3760 DL Operating Instructions
1
Represented in Australia by:
EMONA Instruments Pty Ltd
78 Parramatta Rd
Camperdown NSW 2050
Tel: [phone]
www.emona.com.au
www.protag.com.au
[email protected]
Represented in New Zealand by:
Electrotest Ltd
12A Te Kea Place
Albany
Auckland
Tel: [phone]
www.electrotest.co.nz
Operating Instructions
PAC3760 DL

PAC3760 DL Operating Instructions
2
Limited Warranty & Limitation of Liability
SEAWARD Electronic Limited guarantees this product
to be free from defects in material and workmanship
under normal use and service for a period of 1 year.
The period of warranty will be effective from the day
of delivery.
© Copyright 2014
All rights reserved. Nothing from this edition may be
multiplied, or made public in any form or manner,
either electronically, mechanically, by photocopying,
recording, or in any manner, without prior written
consent from SEAWARD Electronic Limited. This also
applies to accompanying drawings and diagrams.
Due to a policy of continuous development SEAWARD
Electronic Limited reserves the right to alter the
equipment specification and description outlined in
this publication without prior notice and no part of this
publication shall be deemed to be part of any contract
for the equipment unless specifically referred to as an
inclusion within such contract.

PAC3760 DL Operating Instructions
3
DECLARATION OF CONFORMITY
As the manufacturer of the apparatus listed, declare
under our sole responsibility that the product:
PAC3760 DL
To which this declaration relates are in conformity with
the relevant clauses of the following standard:
EN 61010-1:2010
Safety requirements for electrical equipment
for measurement, control, and laboratory use –
Part 1: General requirements.
EN 61010-2-030:2010
Safety requirements for electrical equipment
for measurement, control, and laboratory use –
Part 2-030: Particular requirements for testing and
measuring circuits
IEC 61326:2013
Electrical equipment for measurement, control
and laboratory use-EMC Requirements
Performance: The instrument operates within
specification when used under the
conditions in the above standards
EMC and Safety Standards.
The product identified above conforms to the
requirements of Council Directive 2004/108/EC and
2006/95/EC.
Seaward Electronic Ltd is registered under BS EN
ISO9001:2000 Certificate No: Q05356.

Operating Instructions
4
PAC3760 DL
Contents
1 Important Information ..........................................................
2 Introduction ....................................................................................
3 Performing Tests .......................................................................
3.1 Testing a Class I Appliance ............................................
3.2 Testing a Class I Appliance with Leakage ...........
3.3 Testing a Class II Appliance ...........................................
3.4 Testing a Class II Appliance with Leakage .........
3.5 Testing a mains cord ...........................................................
3.6 Testing an extension lead ................................................
3.7a Test an EPOD (Powerboard) ..........................................
3.7b Test an EPOD/Extension Lead with
MOV and/or RCDs ................................................................
3.8 Testing 3-Phase equipment ...........................................
3.9 Testing Installation RCD Operating Time .............
3.10 Testing Portable RCD Operating Time ..................
4 Memory & Print Functions ...............................................
4.1 Setting the Retest Period ................................................
4.2 Saving Test Results ..............................................................
4.3 Viewing Test Results ...........................................................
4.4 Deleting Test Results ..........................................................
4.5 Transferring Test Results ..................................................
4.6 Printing Test Results ............................................................
4.7 Setting the Real Time Clock ..........................................
5 Troubleshooting .........................................................................
6 Specification ..................................................................................
7 Maintenance ..................................................................................
8 Battery Check ..............................................................................
8.1 Battery Replacement ..........................................................
9 Fuse Replacement ..................................................................
10 Service and Calibration ......................................................
5
7
10
10
12
14
15
17
18
18
20
22
22
23
25
25
25
25
25
26
27
28
29
30
32
32
33
33
34

Operating Instructions
5
1 Important Information
These operating instructions are intended for the use
of adequately trained personnel.
The following symbols are used in these operating
instructions and on the PAC3760 DL.
Caution, risk of electric shock.
Indicates instructions must be followed to
avoid danger to persons.
Caution, risk of danger.
The operating instructions must be adhered
to in order to avoid danger.
Before use, ensure unit is clean and dry; visually
inspect all leads, connectors, and case. Any damage
or wear must be rectified prior to use.
If the PAC3760 DL is used in a manner not
specified by these operating instructions
then the protection provided may be
impaired.
Always ensure that the circuit or appliance
under test is electrically isolated.
The PAC3760 DL and all associated cables
and leads must be checked for signs of
damage before equipment is operated. Do
not use if there are signs of damage. Only
use the correct leads supplied with the
PAC3760 DL.
Do not touch test probes beyond the hand
barrier on the test probe.
PAC3760 DL

Operating Instructions
6
The PAC3760 DL may apply high voltage
or mains power to the appliance under test.
Do not touch conductive parts of the
appliance while tests are active.
Do not operate the PAC3760 DL in an
explosive gas or dust environment.
The PAC3760 DL has been designed to
make measurements in a dry environment.
Do not open the PAC3760 DL, no user
serviceable parts.
Note: Data may be lost or altered in virtually
any electronic memory under certain
circumstances. Therefore Seaward
Electronic assumes no responsibility
for financial losses or claims due to data
lost or otherwise rendered unusable
whether as a result of abuse, improper
use, defects, disregard of operating
instructions or procedures, or any allied
causes.
PAC3760 DL
Part Number
403A912
71G082
161A024
325A005
Seaward PAC3760 DL unit
Carry Case
Black Test Lead 1m
IEC mains cord 0.5m
Optional Accessories
Part Number
372A950Leakage test 3-Phase Adaptor
Standard Accessories

Operating Instructions
7
PAC3760 DL
2 Introduction

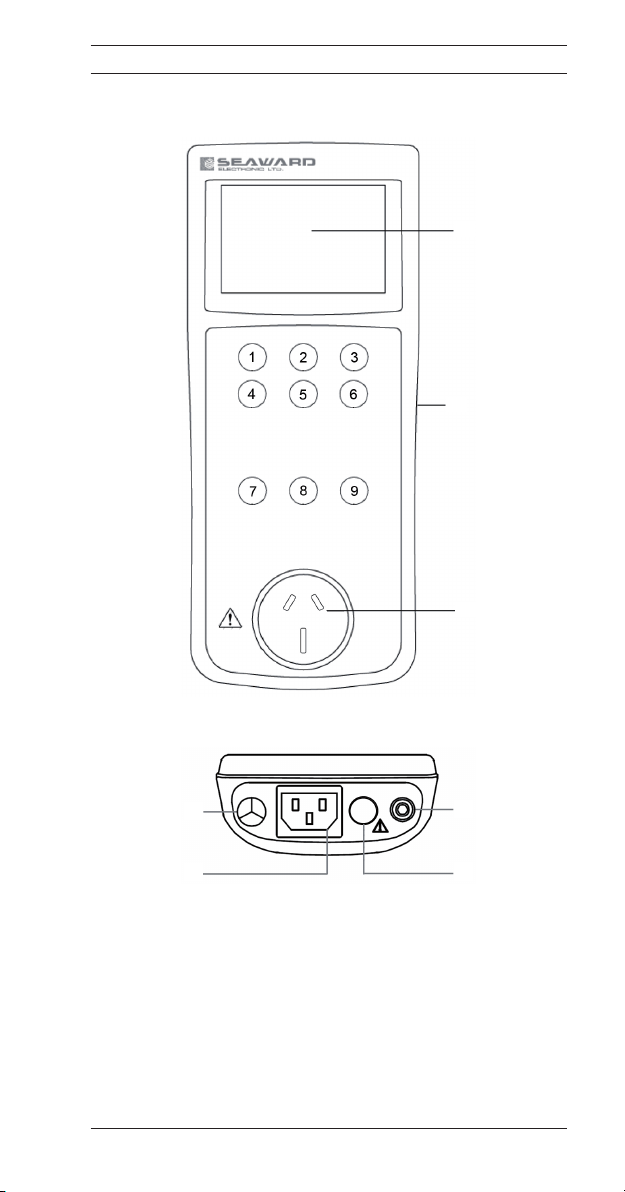

Figure 1. PAC3760 DL Front View
Figure 2. PAC3760 DL End View
10
12
11
15
14
16
13

Operating Instructions
8
The PAC3760 DL is a hand held battery powered unit
suitable for carrying out electrical safety checks on:
• Class I appliances
• Class II appliances
• IEC mains leads
• Extension leads
• 10mA Installation and portable RCDs
• 30mA Installation and portable RCDs
• 3-Phase appliances when used with the
3-Phase adaptor.
Overview
With reference to Figures 1 and 2.
1. Save / Recall Button
2. Set Retest Period Button
3. Print Button
4. CLI / Cord Sequence Button
5. CLII Test Sequence Button
6. Leakage Test Start Button
7. 10mA RCD Test Button
8. 30mA RCD Test Button
9. 3-Phase Test Sequence Button
10. LCD
11. Test/Mains outlet socket
12. USB Interface
13. IEC Test Connection
14. Mini DIN Printer Interface
15. Earth Continuity Test Terminal
16. Mains inlet socket
User Interface
The LCD display shows test progress, results for
individual tests and the overall test result for an
appliance or mains cord.
Measurements displayed next to the RPE icon indicate
the resistance of the protective earth conductor.
PAC3760 DL

Operating Instructions
9
Measurements displayed next to the RISO icon indicate
the resistance measured by the insulation test.
Measurements displayed next to the ILEAK icon
indicate the leakage current measured while the unit
is powered from a mains supply.
Tests are initiated using the six push buttons.
Power ON/OFF = press and hold the Class I and Class
II test buttons simultaneously, PAC3760 DL will power
on/off when buttons are released.
Note: The unit will automatically switch OFF
after approximately 3 minutes if no keys
are pressed.
PAC3760 DL

Operating Instructions
10
3 Performing Tests

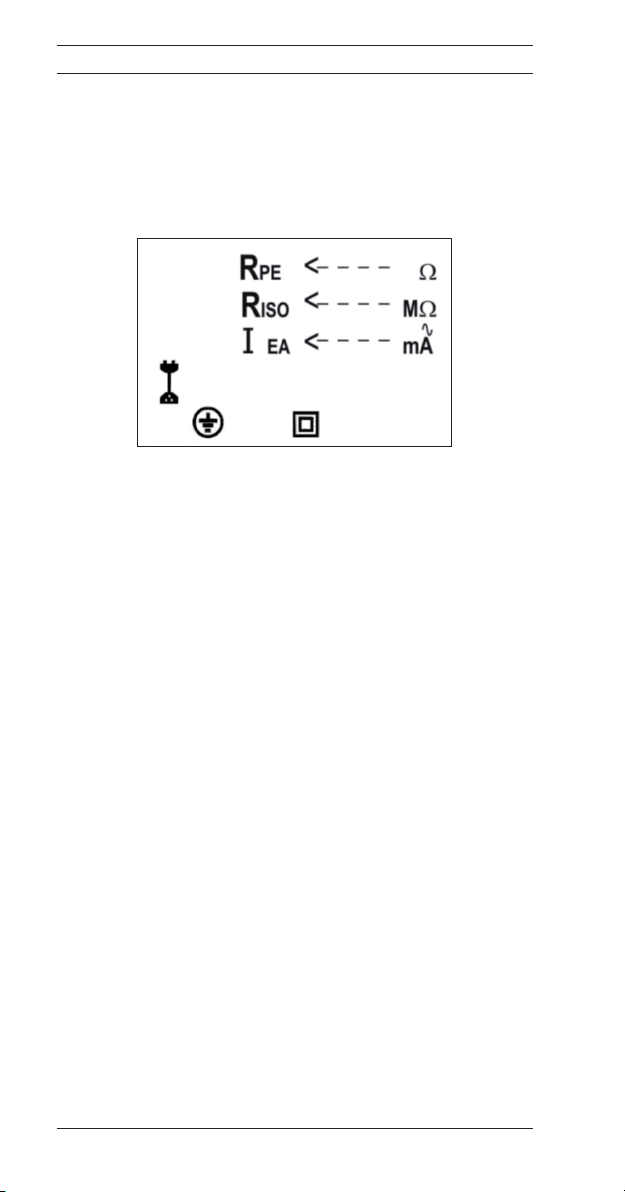

Press CLI and CLII keys simultaneously to switch on
the PAC3760 DL. When the unit is ready the display
will be as shown below.
PAC3760 DL
3.1 Testing a Class I Appliance
Visually inspect the appliance as per requirements of
AS/NZS 3760:2010. If the appliance passes a visual
inspection proceed with the electrical tests.
Plug the earth test lead into the Earth Continuity test
terminal on the PAC3760 DL end panel.
Plug the appliance into the PAC3760 DL front panel
test socket.
Connect the earth test lead to an exposed metal part
on the appliance.
If the Appliance under test has an ON/OFF switch,
make sure it is in the ON position.
Press the Class I test button to start a Class I test
sequence.
The PAC3760 DL will now test the continuity of the
protective earth.
If the measured value is greater than the 1 ohm pass/
fail threshold, the measured value is displayed and the
unit indicates a fail result as shown below.

Operating Instructions
11
If the measured value is less than or equal to the 1 ohm
pass/fail threshold, the measured value is displayed
and the unit indicates a pass result, as shown below.
PAC3760 DL
If the Earth Continuity test has passed then the unit
will proceed with an Insulation test.

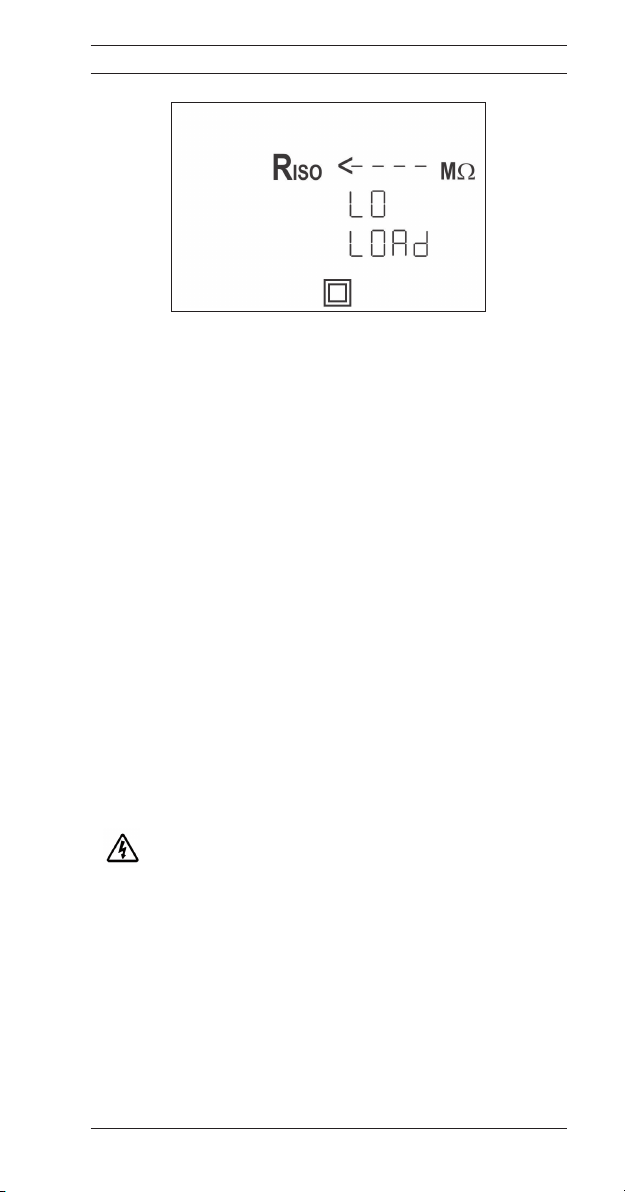

Note: The power switch on the appliance under
test must be in the ON position to perform
an insulation test. If no appliance is detected
the PAC3760 DL will display LO LOAd.
If the LO LOAd enunciator is displayed, the load
presented by the appliance may be too small for the
PAC3760 DL to detect. In this case, press the Class I
test button to continue.
If the Insulation test measures below the 1Mohm
pass/fail threshold, the measured value is displayed
and the unit indicates a fail.

Operating Instructions
12
If the measured value is greater than or equal to the
1 Mohm pass/fail threshold, the measured value is
displayed and the unit indicates a pass result.
3.2 Testing a Class I Appliance with Leakage
Visually inspect the appliance as per requirements of
AS/NZS 3760:2010. If the appliance passes a visual
inspection proceed with the electrical tests.
Plug the mains lead into the PAC3760 DL and a mains
supply socket.
When plugging the mains lead into the
PAC3760 DL ensure that the polarity
orientation of the connector is correct.
DO NOT FORCE THE PLUG INTO THE
CONNECTOR, doing so may damage the
PAC3760 DL.
Plug the earth test lead into the Earth Continuity test
terminal on the PAC3760 DL end panel.
Plug the appliance into the PAC3760 DL front panel
test socket.
Connect the earth test probe to an exposed metal
part on the appliance.
If the Appliance under test has an ON/OFF switch,
make sure it is in the ON position.
Press and hold the Leakage button and then the Class
I test button.
The PAC3760 DL will now test the continuity of the
protective earth.
If the measured value is greater than the 1 ohm pass/
fail threshold, the measured value is displayed and the
unit indicates a fail.
If the measured value is less than or equal to the 1 ohm
pass/fail threshold, the measured value is displayed
and the unit indicates a pass result.
The unit will proceed with a Leakage test.
PAC3760 DL

Operating Instructions
13
Note: The power switch on the appliance under
test must be in the ON position to perform a
leakage test. If no appliance is detected the
PAC3760 plus will display LO LOAd.
The ILEAK icon will flash, press the Leakage button to
start a Leakage test.
The mains supply status is checked and the status
is indicated using the LN, LE and NE enunciators of
the LCD.
PAC3760 DL
If the LO LOAd enunciator is displayed, the load
presented by the appliance may be too small for the
PAC3760 DL to detect. In this case, press the Leakage
button to continue.
Note: If the High Load enunciator is displayed,
the load presented by the appliance may
be too great for the PAC3760 DL and users
should carry out an insulation test.
If the Leakage current is greater than 5mA a cross is
placed next to the ILEAK enunciator.
The FAIL enunciator is illuminated.
If the Leakage current is less than or equal to 5mA a
tick is placed next to the ILEAK enunciator.
The PASS enunciator is illuminated.
Mains status
Correct
No mains
Earth fault
Live/neutral reversed
ON
Flash
OFF
OFF
ON
Flash
Flash
Flash
OFF
OFF
Flash
Flash
LN NELE

Operating Instructions
14
3.3 Testing a Class II Appliance
Visually inspect the appliance as per requirements of
AS/NZS 3760:2010. If the appliance passes a visual
inspection proceed with the electrical tests.
Plug the black continuity test lead into the Earth
Continuity test terminal on the PAC3760 DL end panel.
Plug the appliance into the PAC3760 DL front panel
test socket.
Connect the black continuity test lead to an exposed
metal part on the appliance.
If the Appliance under test has an ON/OFF switch,
make sure it is in the ON position.
Press the Class II test button to start a Class II test
sequence.
Note: The power switch on the appliance under
test must be in the ON position to perform
an insulation test. If no appliance is detected
the PAC3760 DL will display LO LOAd.
If the LO LOAd enunciator remains on the display,
the load presented by the appliance may be too small
for the PAC3760 DL to detect. In this case, press the
Class II test button to continue.
PAC3760 DL

Operating Instructions
15
PAC3760 DL
The unit will now perform an Insulation test.
If the Insulation Resistance is less than 1Mohm a
cross is placed next to the RISO enunciator.
The FAIL enunciator is illuminated.
If the Insulation Resistance is greater than or equal to
1Mohm a tick is placed next to the RISO enunciator.
The PASS enunciator is illuminated.
3.4 Testing a Class II Appliance with Leakage
Visually inspect the appliance as per requirements of
AS/NZS 3760:2010. If the appliance passes a visual
inspection proceed with the electrical tests.
Plug the mains lead into the PAC3760 DL and a mains
supply socket.
When plugging the mains lead into the
PAC3760 DL ensure that the polarity
orientation of the connector is correct.
DO NOT FORCE THE PLUG INTO THE
CONNECTOR, doing so may damage the
PAC3760 DL.
Plug the black continuity test lead into the Earth
Continuity test terminal on the PAC3760 DL end panel.
Plug the appliance into the PAC3760 DL front panel
test socket.
Connect the black continuity test lead to an exposed
metal part on the appliance.

Operating Instructions
16
If the Appliance under test has an ON/OFF switch,
make sure it is in the ON position.
Press and hold the Leakage button and then the Class
II test button to perform the Class II test sequence
including a Leakage test.
Note: The power switch on the appliance under
test must be in the ON position to perform
a leakage test. If no appliance is detected
the PAC3760 DL will display LO LOAd.
The ILEAK icon will flash, press the Leakage button to
start a Leakage test.
The mains supply status is checked and the status
is indicated using the LN, LE and NE enunciators of
the LCD.
PAC3760 DL
If the LO LOAd enunciator is displayed, the load
presented by the appliance may be too small for the
PAC3760 DL to detect. In this case, press the Leakage
button to continue.
Note: If the High Load enunciator is displayed,
the load presented by the appliance may
be too great for the PAC3760 plus and the
user should carry out an Insulation test.
If the Leakage current is greater than 1mA a cross is
placed next to the ILEAK enunciator.
The FAIL enunciator is illuminated.
If the Leakage current is less than or equal to 1mA a
tick is placed next to the ILEAK enunciator.
The PASS enunciator is illuminated.
Mains status
Correct
No mains
Earth fault
Live/neutral reversed
ON
Flash
OFF
OFF
ON
Flash
Flash
Flash
OFF
OFF
Flash
Flash
LN NELE

Operating Instructions
17
3.5 Testing a mains cord
Visually inspect the appliance as per requirements
of AS/NZS 3760:2010. If the cord passes a visual
inspection proceed with the electrical tests.
Plug the mains cord under test into the IEC socket
and the front panel mains socket on the PAC3760 DL.
Press the Class I test sequence button.
The PAC3760 DL will first test the continuity of the
protective earth.
If the measured value is greater than 1 ohm a cross is
placed next to the
RPE enunciator, a FAIL is indicated.
If the measured value is less than or equal to 1 ohm a
tick is placed next the RPE enunciator.
The unit will proceed with the Insulation test.
If the Insulation Resistance is less than 1 Mohm a
cross is placed next to the RISO enunciator.
If the Insulation Resistance is greater than or equal to
1 Mohm a tick is placed next to the RISO enunciator.
The unit will proceed with the wiring test, checking the
live and neutral conductors for short or open circuits
or reversed connections.
If the wiring is correct a tick is placed next to the cord
enunciator, the GOOd enunciator is illuminated and a
PASS is indicated for the sequence.
PAC3760 DL
Note: If the tested cord has a wiring fault, one
of the following enunciators will be
illuminated in place of GOOd
OPEn indicates that either the live or neutral
conductor is broken (open circuit) or the plug top
fuse has blown

Operating Instructions
18
Shrt indicates that the live and neutral conductors
are shorted together
CrOS indicates that the live and neutral connections
are crossed (live and neutral conductors reversed)
3.6 Testing an extension lead
Visually inspect the appliance as per requirements
of AS/NZS 3760:2010. If the cord passes a visual
inspection proceed with the electrical tests.
Plug the supplied 0.5m IEC lead into the IEC socket
and into a mains outlet on the extension lead. Plug the
mains plug of the extension lead into the front panel
mains socket on the PAC3760 DL.
The extension lead can now be tested in the same
manner as an IEC as described above.
3.7a Test an EPOD (Powerboard)
Visually inspect the appliance as per requirements of
AS/NZS 3760. If the cord passes a visual inspection
proceed with the electrical tests. AS/NZS 3760
requires an earth resistance test to be performed to
each outlet.
Operators have the choice of carrying out two test
sequences for EPODs:
Procedure A: a complete test sequence is carried
out for every socket (earth, insulation
and polarity)
Procedure B: a complete test sequence is carried
out on the very last socket. Only an
earth resistance test is carried out on
the remaining sockets.
PAC3760 DL
