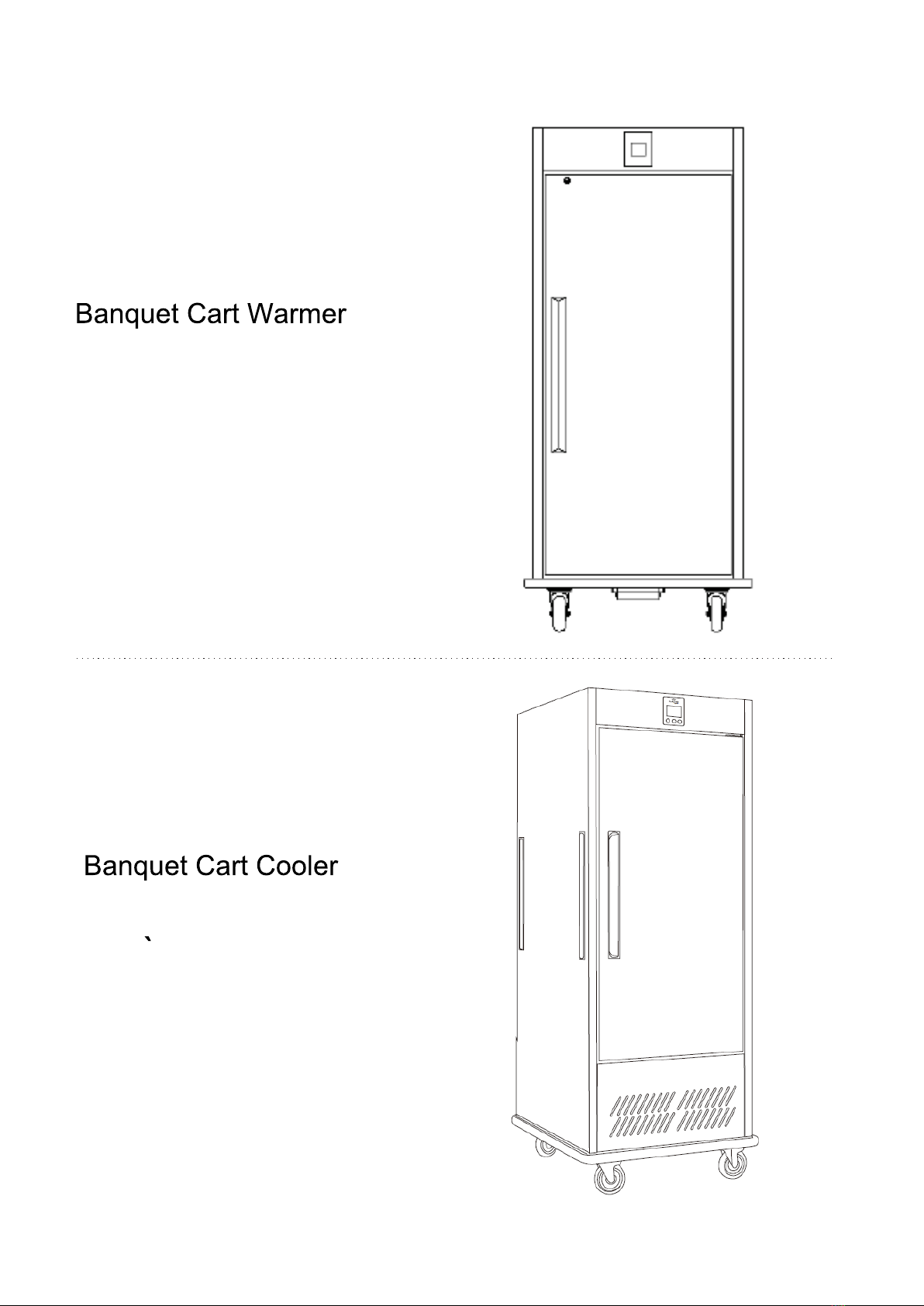

Instructions shall be provided with the appliance so that the appliance can be used safely.
This instruction manual is an integral part of the machine. Please carefully read manual
before installation and use.
This product is used for storing foods rather than gasoline, flammable or explosive goods,
or corrosive materials or liquids or gas.
Be sure to cut off power supply before maintenance and cleaning.
Be sure to cut off power supply before maintenance and no use for a long time.
Avoid water directly flowing into the electric components.
Installation, troubleshooting and repair of the relevant appliances and condensing units
must be performed by the manufacturer's professionals.
If without supervision or guidance by experiential personnel, any one having impedimental
body, sense or spirit or lacking of experience or knowledge or children can not use this
product.
Children shall be monitored if playing nearby, to prevent risk.
The scrapped product shall be disposed by the relevant authority.
Motor and compressor are self-lubricating, no need to add lubricant.
Dismount and maintain product shall be disposed by the authorized service organization.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or
similarly qualified persons in order to avoid a hazard.
On airborne noise emissions, the A-weighted sound pressure level is below 70 dB(A).
1. WARNING
2. INSTALLATION
2.1 Transportation
Please keep the unit upright during transportation. Any excessive tip or lean may cause
damage to the unit internally.
If the machine is not upright during transportation, you must leave the unit without powering on
to sit for 24 hours before turning the unit on.
-1-

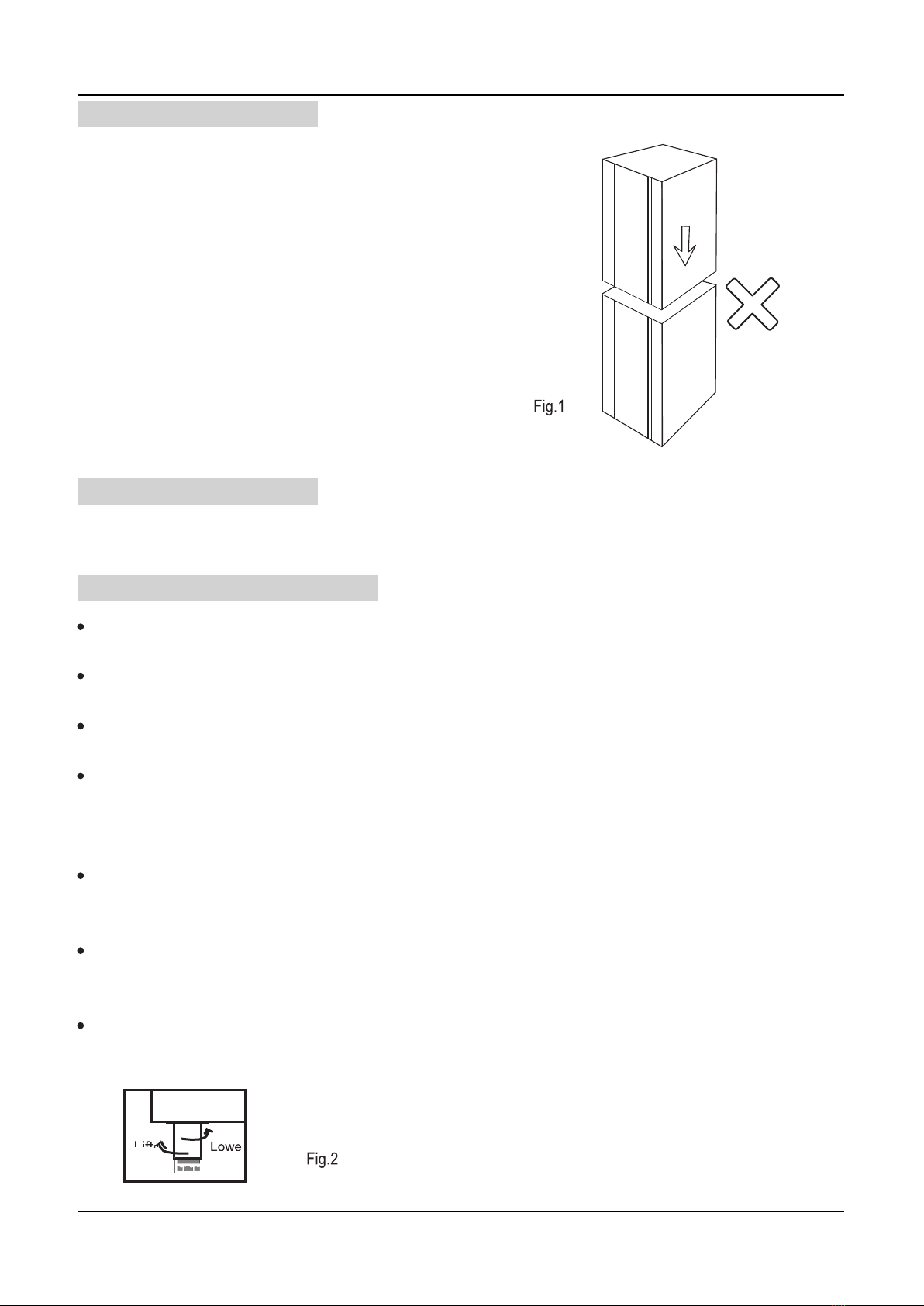

2.2 Storage
2.3 Unpacking
2.4 Refrigerator Installation
The unit must not be double stacked. (Fig.1)
Please remove all packaging materials including the protective film on the stainless steel.
Do not install the machine in the area where it can be damaged by water.
This unit is intended for indoor use only.
Place machine on a flat and sturdy surface.
For good ventilation, keep a distance of 100mm between unit and wall or other objects.
Increase the distance if the objects are a near a heating source. When the display is in
place, press the brake on the wheels to keep it level and secure.
Please do not leave stock on the floor of the unit. All stock must be up on a shelf for
good ventilation.
For adjustment of refrigerator supporting legs, please refer to the following figure,
with max. Adjusting amount of 200mm.
Height adjustment: Clockwise rotate the legs to lift and counter clockwise rotate them
to lower.
-2-

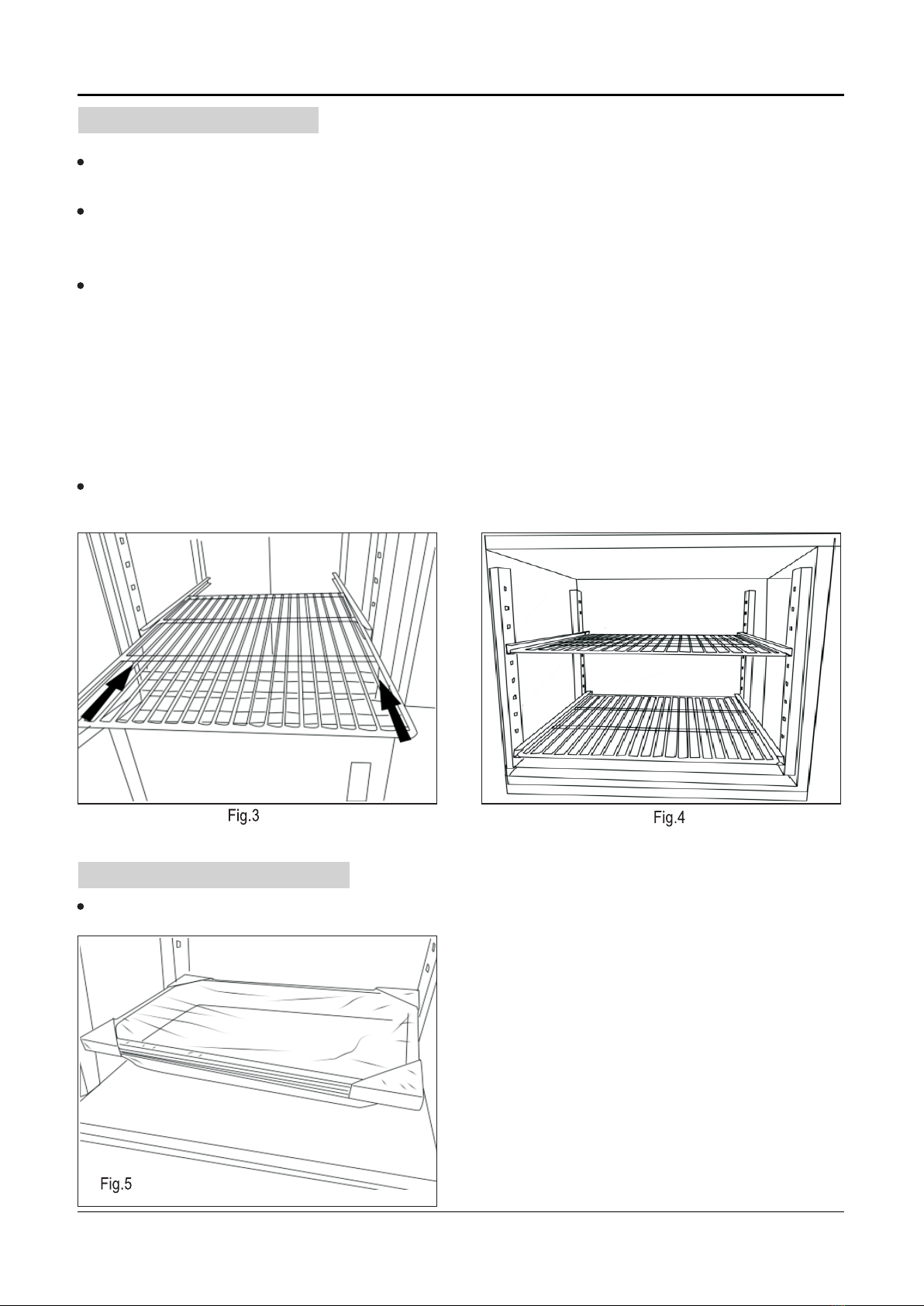

2.5 Shelf Installation
2.6 GN Pan Installation
Once unpacked and all packaging removed.
Ensure that all backing strips are mounted at the same horizontal place with the supporting
strips, and they can be positioned according to the number on the supporting strips.
Remove the shelf backing strips from the plastic belt. For installation, closed end shall be
located at rear and open end at front.
First push the backing strip backwards to make its rear buckle on the rear supporting strip.
Lift the front end of backing strip slightly and then buckle it on the front supporting strip.
downwards.
Slide the shelves into the refrigerator.
①
②
-3-
Remove the GN pan protective package(not supplied).

Place the GN pan into the refrigerator.
Specifications of GN pan:
GN 1/1 for BCS6/BCG6 Range.(Fig.7)
GN 2/1 BCS7/BCG7/HPB Range.(Fig.8)
In order to ensure cold air circulation, do not place the foods against the inner wall of
refrigerator.
Please do not place foods excess the load line and place foods evenly. The load
capacity of each shelf is 30kgs.
-4-

2.7 Place foods
In order to ensure well cold air circulation, do not place the foods against the inner wall of
refrigerator.
Please do not place foods excess the load line and place foods evenly. The load
capacity of each shelf is 30kgs. (Fig. 11)
The food loading of banquet cart chiller with drawer is not over 4cm of load line.
-5-
！

2.8 Power Connection
Obey current security standard and ensure the machine to connect efficient ground power
system.
Do not cut off or remove three-pin plug.
Ensure power supply voltage and frequency the same as voltage and frequency on
nameplate. If voltage is different, the machine works after installing a power regulator with
five-fold input total power.
All the machine shall be connected with proper power supply. Before connecting the power
supply, please refer to label inside of refrigerator door.
Plug unit directly into socket and not through an extension cord.
Insert the power plug into the power socket well grounded in accordance with the power
supply safely regulation.
In case of failure of power supply, please restart the compressor after five minutes to
prevent damage. Any damage of compressor due to low voltage will not be included within
the warranty range
-6-

3. OPERATION
Recommend: Before storing any food, it is recommended that refrigerator compressor
shall be running until the unit gets to temperature. During this compressor running period,
you can check the power wire connection.
3.1 Banquet Cart Cold
Startup: Press the power switch button for 3s.
Shutdown: Press the power switch button for 3s.
Set Temp: Press for 3s, the setting temp. flashing,
and then press or to adjust the temperature. After
without pressed any key for 6s, it will return to display
working temp. display.
Illuminating: Press for 1s, the light is on, press the button again, the light will be
off. Light automatically turns on when the door opens.
Manual defrosting: Press for 3s, then shows and enters the defrosting
model. Press for 3s again to exit.
3.2 Banquet Cart Hot
Startup: Press the power switch button for 3s.
Shutdown: Press the power switch button for 3s.
Set Temp: Press for 3s, the setting temp. flashing,
and then press or to adjust the temperature.
After without pressed any key for 6s, it will return to
display working temp. display.
Its factory default value of controlling temperature is -2°C.
Its factory default value of controlling temperature is 75°C.
-7-

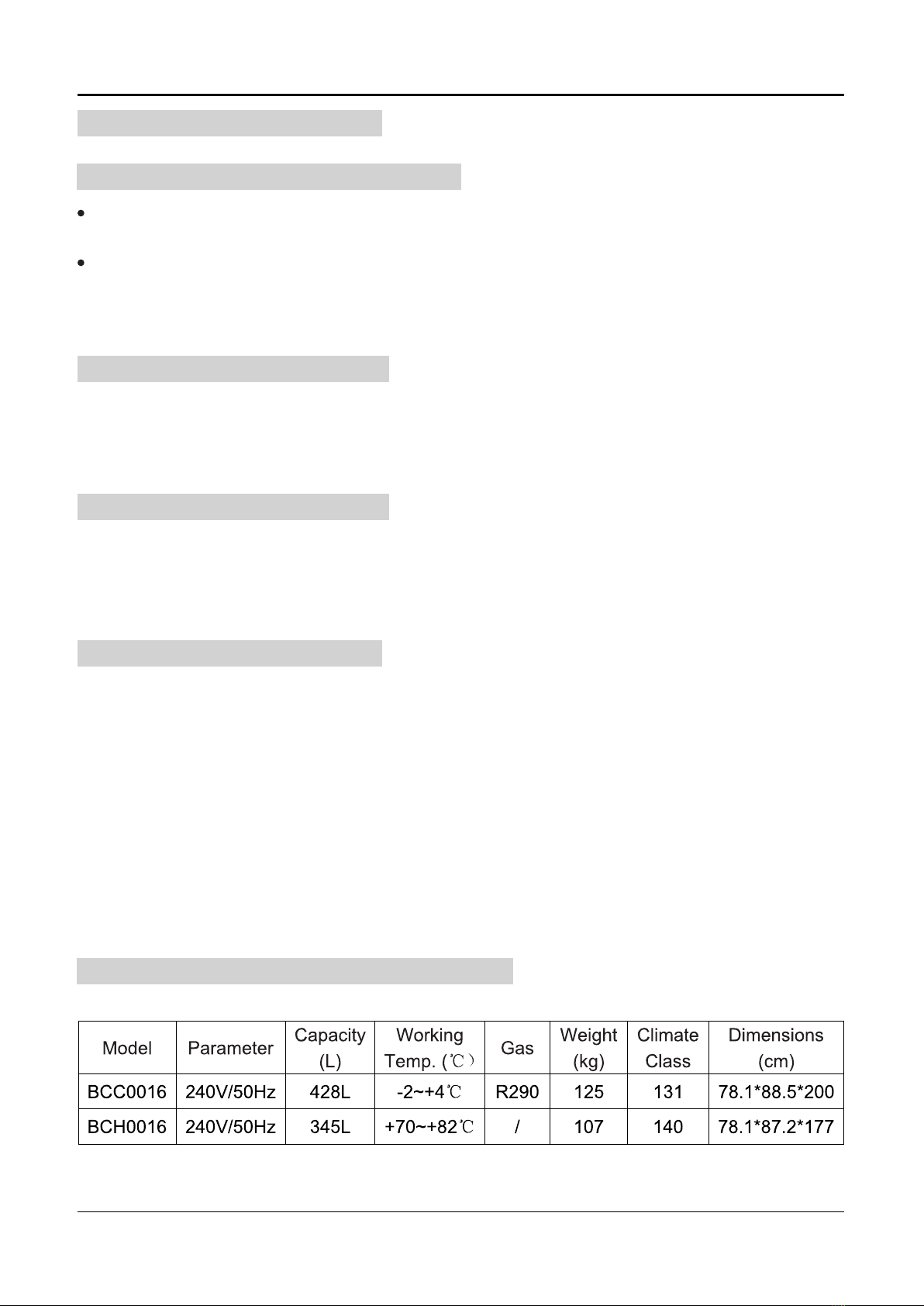

4. CLEANING
4.1 Interior and Exterior Cleaning
4.2 Condenser Cleaning
4.3 Door Seals Cleaning
5. DISPOSAL
6. TECHNICAL SPECIFICATIONS
In order to ensure the cooling effect of refrigerator, condenser must be regularly
cleaned to prevent dust or grease accumulation, at least monthly, a dust pan brush
can be used to remove dust etc.
In order to ensure good sealing of refrigerator, door seals shall be often cleaned. We
recommend cleaning with warm soapy water at least monthly.
Before cleaning, please turn unit off.
Use warm soapy water is used to clean (do not use flammable or toxic substance for
cleaning). During cleaning process, wring dry the cloth to prevent water from flowing
into the electric component to cause short circuit.
Render old machine unusable:
1. Pull out the mains plug,
2. Cut off the power cable and discard with the plug,
Caution:
Refrigerants in refrigeration machines and gases in thermal insulation must be
disposed of professionally. Please discard the machine according to the local
regulations.
-8-

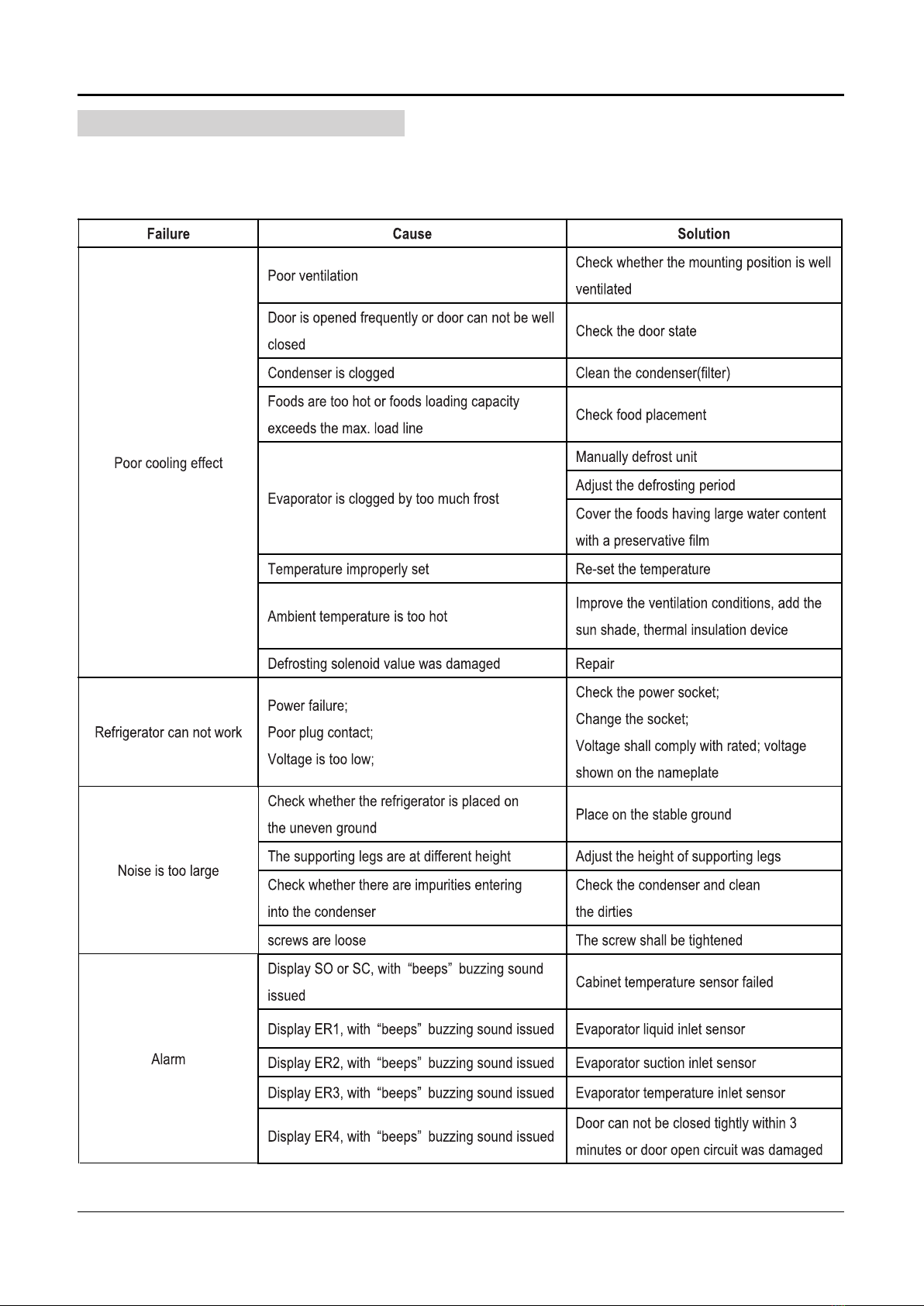

If found that the refrigerator can not work normally, please find out the cause according
to the following table.
7. TROUBLE SHOOTING
-9-

8. WIRING DIAGRAMS
-10-

9. PARTS DIAGRAMS
9.1 Banquet Cart Cold
1. Condenser filter
2. Power cord
3. Electronic expansion valve body
4. Electronic expansion valve coil
5. Prop stand of electronic expansion valve
6. Dry filter
7. Condenser
8. Base plate for cooling unit
9. Compressor
10. water tray
11. Fixed plate for evaporating pipe
12. water plate evaporating pipe
13. Condenser fan motor
14. Fan cover
15. blade of condenser
16. Caster wheel
17. Plastic strip
18. Cabinet body
19. Caster wheel
20. Strip against door
21. Front louver
22. Door gasket
23. Hinge plug
24. Foaming door
25. Lock
26. Controller
27. Left ladder
28. Right ladder
29. Left supporting strip
30. Right supporting strip
31. Strip against door
32. Stainless steel panel for controller
33. LCD(liquid crystal display)
34. Panel with holes
35. Evaporator blade supporter
36. Blade of condense
37. Evaporator fan motor
38. Water tray
39. Evaporator supporter
40. Evaporator
41. Air grill
42.Filler panel
43.Back louver
-11-

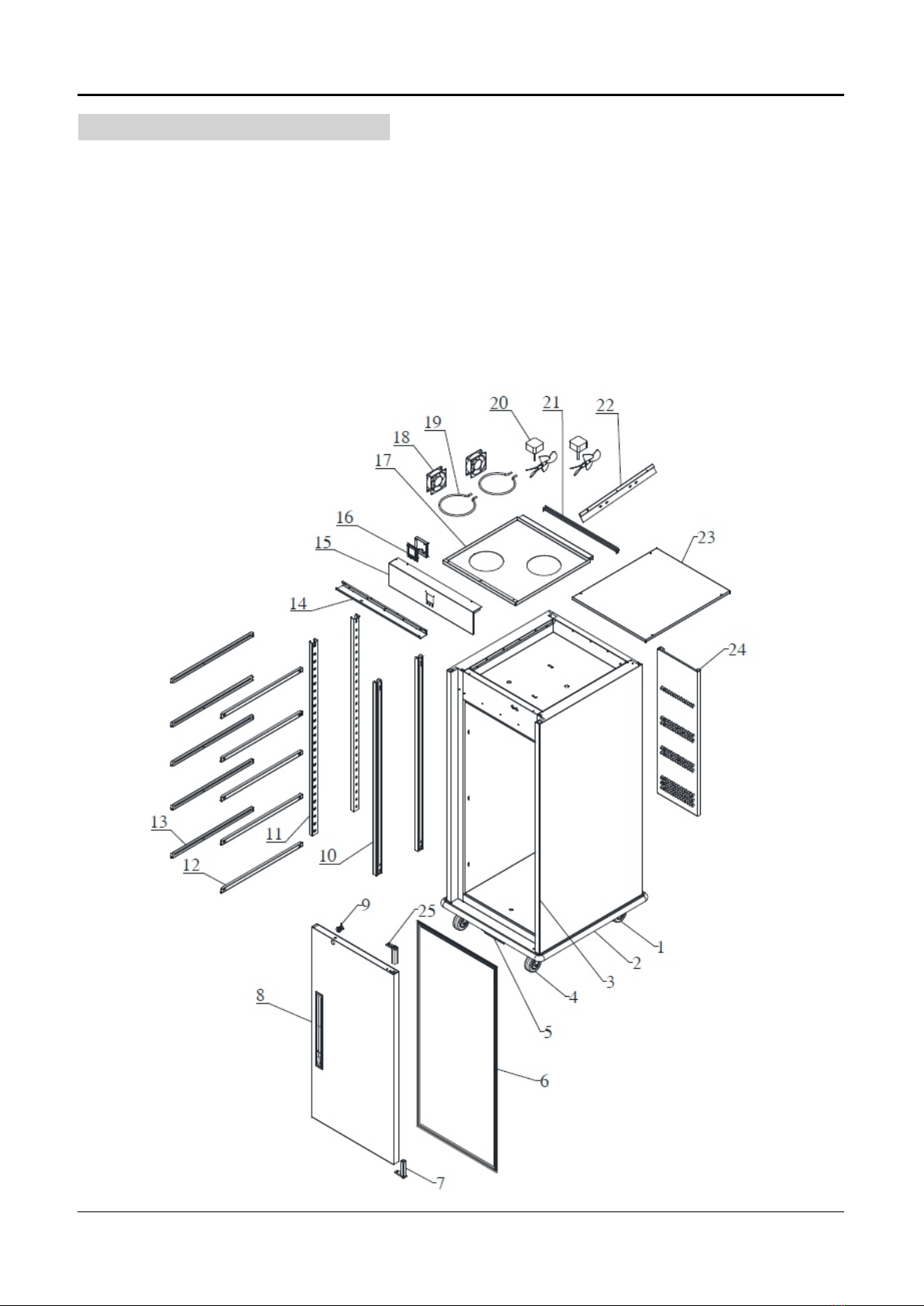

1. Caster wheel
2. Plastic strip
3. Cabinet body
4. Caster wheel
5. Water tray
6. Door gasket
7. Hinge plug
8. External bile of door
9. Lock
10. Right ladder
11. Left ladder
12. Right supporting strip
13. Left supporting strip
14. Strip against door
15. Stainless steel panel for controller
16. Controller
17. Panel with holes
18. Fan motor
19. Heating element
20. Axial flow fan
21. Supporter
22. Heating element supporter
23. Top panel
24. Air grill
25. Door hinge
9.2 Banquet Cart Hot
