RoyalTek RBT-2300 User manual

1
RoyalTek
Bluetooth GPS
Datalog Receiver
RBT-2300
User Manual
V1.0
SiRF Star III GPS Engine Inside
Published on July, 2007 by Royal ek Company Ltd.
Design and s ecification are subject to change without notice.
All manuals and user guides at all-guides.com
all-guides.com

2

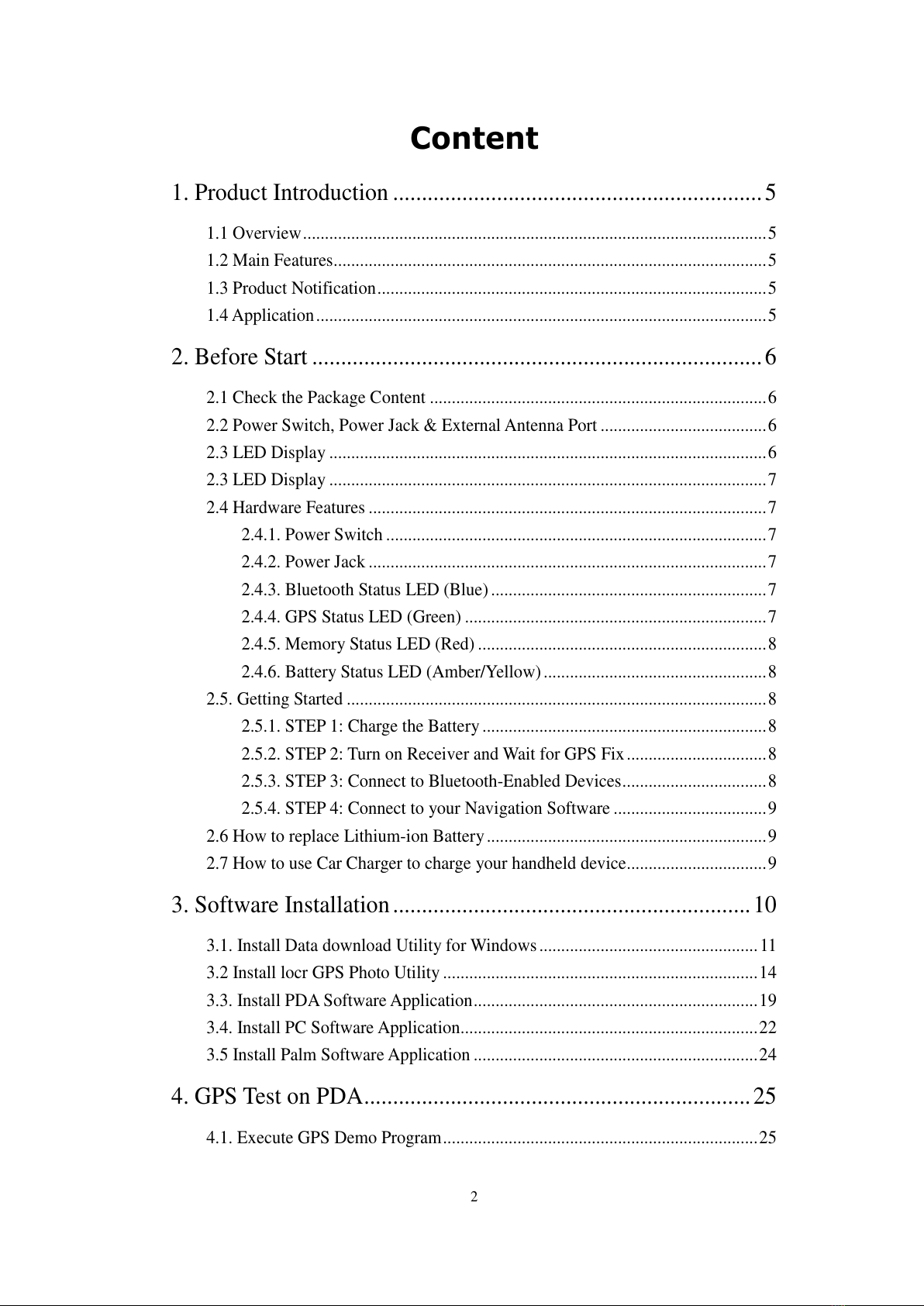

Content
1. Product Introduction ................................................................ 5
1.1 Overview..........................................................................................................5
1.2 Main Features...................................................................................................5
1.3 Product Notification.........................................................................................5
1.4 Application.......................................................................................................5
2. Before Start .............................................................................. 6
2.1 Check the Package Content .............................................................................6
2.2 Power Switch, Power Jack & External Antenna Port ......................................6
2.3 LED Display ....................................................................................................6
2.3 LED Display ....................................................................................................7
2.4 Hardware Features ...........................................................................................7
2.4.1. Power Switch .......................................................................................7
2.4.2. Power Jack ...........................................................................................7
2.4.3. Bluetooth Status LED (Blue) ...............................................................7
2.4.4. GPS Status LED (Green) .....................................................................7
2.4.5. Memory Status LED (Red) ..................................................................8
2.4.6. Battery Status LED (Amber/Yellow) ...................................................8
2.5. Getting Started ................................................................................................8
2.5.1. STEP 1: Charge the Battery .................................................................8
2.5.2. STEP 2: Turn on Receiver and Wait for GPS Fix ................................8
2.5.3. STEP 3: Connect to Bluetooth-Enabled Devices.................................8
2.5.4. STEP 4: Connect to your Navigation Software ...................................9
2.6 How to replace Lithium-ion Battery ................................................................9
2.7 How to use Car Charger to charge your handheld device................................9
3. Software Installation ..............................................................10
3.1. Install Data download Utility for Windows .................................................. 11
3.2 Install locr GPS Photo Utility ........................................................................14
3.3. Install PDA Software Application.................................................................19
3.4. Install PC Software Application....................................................................22
3.5 Install Palm Software Application .................................................................24
4. GPS Test on PDA...................................................................25
4.1. Execute GPS Demo Program........................................................................25
All manuals and user guides at all-guides.com

3
4.2. GPS Demo Screen.........................................................................................26
4.2.1. GPS Port: ...........................................................................................26
4.2.2. Baud Rate:..........................................................................................26
4.2.3. About:.................................................................................................26
4.2.4. Action:................................................................................................26
4.2.5. ..................................................................................................26
4.3. Cold/Warm/Hot Start ....................................................................................26
4.4. NMEA Configuration....................................................................................27
4.5. About.............................................................................................................27
4.6. Next Screen...................................................................................................28
5. GPS Test on PC...................................................................... 29
5.1. Execute GPS Demo Program........................................................................29
5.2. GPS Demo Screen.........................................................................................29
5.2.1. GPS Port: ...........................................................................................29
5.2.2. Baud Rate:..........................................................................................29
5.2.3. About:.................................................................................................29
5.2.4. Action:................................................................................................29
5.2.5. ..................................................................................................30
5.3. Cold/Warm/Hot Start ....................................................................................30
5.4. NMEA Configuration....................................................................................31
5.5. About.............................................................................................................31
5.6. Next Screen...................................................................................................32
6. GPS Test on PDA of Palm OS ...............................................33
6. GPS Test on PDA of Palm OS ...............................................33
6.1. Execute GPS Demo Program........................................................................33
6.2. GPS Demo Screen.........................................................................................33
6.2.1. GPS Port: ...........................................................................................33
6.2.2. Baud Rate:..........................................................................................33
6.2.3. About:.................................................................................................34
6.2.4. Action:................................................................................................34
6.2.5. ..................................................................................................34
6.3. Cold/Warm/Hot Start ....................................................................................34
6.4. About.............................................................................................................35
6.5. Next Screen...................................................................................................35
7. Transfer data to your PC or Notebook...................................36
All manuals and user guides at all-guides.com

4
7.1 Connect RBT-2300 ................................................................................36
7.2. How to use data download Utility ........................................................36
8.Explanation of GPS Terminology...........................................41
9. Photo match Tool -locr GPS Photo introduction ...................42
All manuals and user guides at all-guides.com

5
1. Product Introduction
1.1 Overview
Royal ek the first SiRF Star III Bluetooth GPS datalog receiver,
RBT-2300, is the successor of well-known RBT-2300 Bluetooth GPS
datalog receiver in 2007. It uses SIRF Star III low power extreme fast
FF GPS engine and inherits the previous strength point by using the
same battery (Lithium-ion battery) of Nokia 6100 cell phone. With the
same dimension of 72(L) x 42(W) x 25mm(H) and weight only 62g,
making it an ideal solution to carry everywhere.
1.2 Main Features
 SiRF Star III GPS chipset
 20 parallel channels
 NMEA0183 compliant protocol
 Extreme fast FF at low signal level.
 Adopt CXO as GPS core clock source
 Industrial Standard
 Selectable Baud Rate
 WAAS/ ENGOS is supported
1.3 Product Notification
 Operating temperature range -10 ºC to +60 ºC
 Charger operating temperature range 0 ºC to +60 ºC
 Battery Storage temperature range -20 ºC to +70 ºC
 8hr at full charge continuous operation mode.
 Humidity range up to 95% no condensing
1.4 A lication
 PDA and Cellular Phone Navigation
 Consumer wireless GPS
 Automotive Vehicle racking
 Personal Positioning
 Sporting and Recreation
All manuals and user guides at all-guides.com

6
2. Before Start
2.1 Check the Package Content
Before you start using RBT-2300, please check out if your package includes
the following items. If any item is damaged or missed, please contact your
reseller at once.
● RB -2300 Bluetooth GPS datalog receiver ● Car Charger (optional)
● CD ● AC Adapter(optional) ● External antenna(optional)
● Backup battery(optional)
2.2 Power Switch, Power Jack & External
Antenna Port
External
Antenna Port
(Optional)
Power
Switch
Power Jack
All manuals and user guides at all-guides.com
all-guides.com

7
2.3 LED Dis lay
1 Yellow LED indicates power is in charging
2 Blinking Amber LED indicates low power
3 Glowing RED LED indicates Memory Full (GPS Green LED off)
4 Glowing Green LED indicates position is fixed
Blinking Green LED indicates position not fixed
5 Glowing Blue LED indicates Bluetooth is connected
Blinking Blue LED indicates Bluetooth is not connected
2.4 Hardware Features
2.4.1. Power Switch
Power ON / Power OFF
2.4.2. Power Jack
he power jack allows you to connect to either a DC (included) or
AC power charger to recharge the internal battery.
2.4.3. Bluetooth Status LED (Blue)
Glowing - Bluetooth is on and ready to transmit.
2.4.4. GPS Status LED (Green)
Glowing - Position is fixed.
Steady light – Device is on but position is not fixed.
1
2
3
4
5
Battery Status
Memory Status
Bluetooth Status
GPS Status
All manuals and user guides at all-guides.com

8

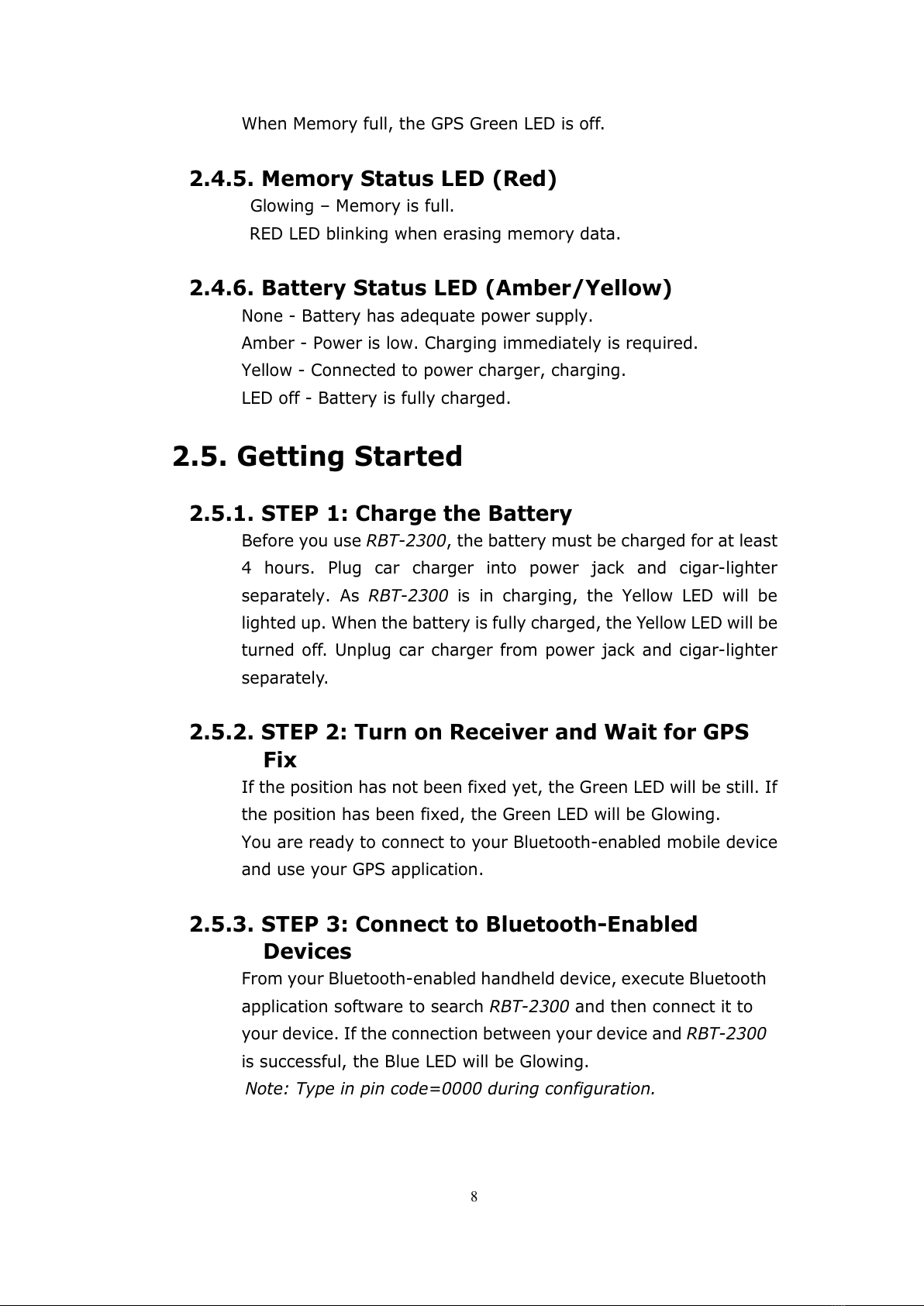

When Memory full, the GPS Green LED is off.
2.4.5. Memory Status LED (Red)
Glowing – Memory is full.
RED LED blinking when erasing memory data.
2.4.6. Battery Status LED (Amber/Yellow)
None - Battery has adequate power supply.
Amber - Power is low. Charging immediately is required.
Yellow - Connected to power charger, charging.
LED off - Battery is fully charged.
2.5. Getting Started
2.5.1. STEP 1: Charge the Battery
Before you use RBT-2300, the battery must be charged for at least
4 hours. Plug car charger into power jack and cigar-lighter
separately. As RBT-2300 is in charging, the Yellow LED will be
lighted up. When the battery is fully charged, the Yellow LED will be
turned off. Unplug car charger from power jack and cigar-lighter
separately.
2.5.2. STEP 2: Turn on Receiver and Wait for GPS
Fix
If the position has not been fixed yet, the Green LED will be still. If
the position has been fixed, the Green LED will be Glowing.
You are ready to connect to your Bluetooth-enabled mobile device
and use your GPS application.
2.5.3. STEP 3: Connect to Bluetooth-Enabled
Devices
From your Bluetooth-enabled handheld device, execute Bluetooth
application software to search RBT-2300 and then connect it to
your device. If the connection between your device and RBT-2300
is successful, the Blue LED will be Glowing.
Note: Type in pin code=0000 during configuration.
All manuals and user guides at all-guides.com

9
2.5.4. STEP 4: Connect to your Navigation
Software
 Load your GPS mapping or routing software, along with the
corresponding maps of the areas that you are occupying or
plan to travel to.
 Start the application. Make sure the application is set for the
COM port that your Bluetooth-enabled mobile device will use
for serial communication. Now you should be ready to use
your GPS application as directed by the user documentation
that came with the software. More configurations may be
necessary.
 Refer to the following software application user manual to set
up the parameters of the device via Bluetooth radio.
2.6 How to re lace Lithium-ion Battery
 Open the bolt on the bottom cover of RBT-2300 and take the
Lithium-ion battery out.
 Place new Lithium-ion battery into the room of RBT-2300.
 he RBT-2300 Lithium-ion battery is replaceable and
rechargeable.
 he RBT-2300 Lithium-ion battery can last more than 8 hours in
continuous operation mode.
2.7 How to use Car Charger to charge
your handheld device
 Connect car charger into your adapter connector of RBT-2300.
 Plug adapter connector into handheld device connector and plug car
charger into cigar-lighter.
All manuals and user guides at all-guides.com

10

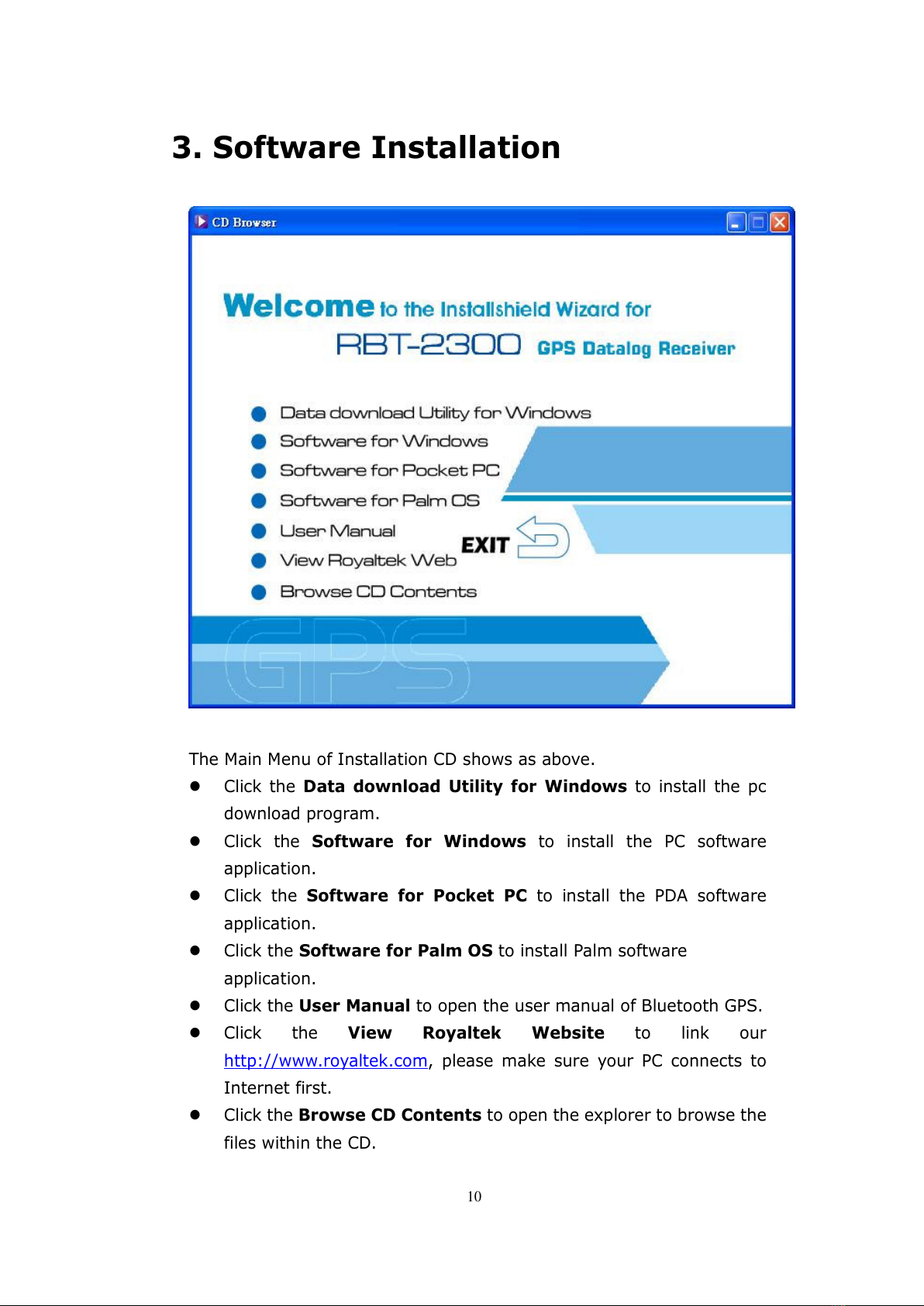

3. Software Installation
he Main Menu of Installation CD shows as above.
 Click the Data download Utility for Windows to install the pc
download program.
 Click the Software for Windows to install the PC software
application.
 Click the Software for Pocket PC to install the PDA software
application.
 Click the Software for Palm OS to install Palm software
application.
 Click the User Manual to open the user manual of Bluetooth GPS.
 Click the View Royaltek Website to link our
http://www.royaltek.com, please make sure your PC connects to
Internet first.
 Click the Browse CD Contents to open the explorer to browse the
files within the CD.
All manuals and user guides at all-guides.com

11
3.1. Install Data download Utility for
Windows
Click “Next> to next page”, or click”<Back” to back last stage or
“Cancel” to give up installation.

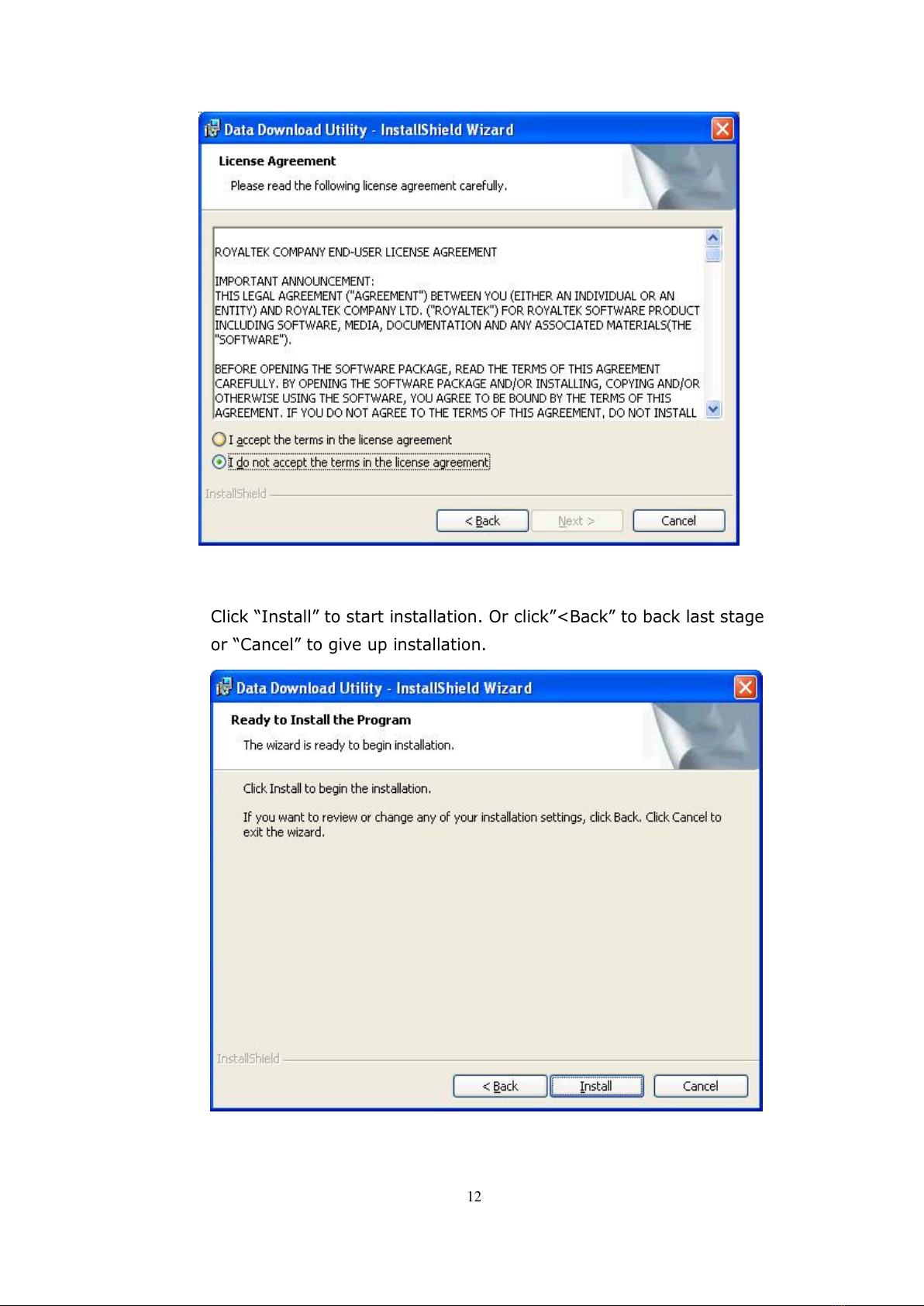

o the License Agreement page: Click “ I accept the terms in the license
agreement” then click “Next>” to next page, or click”<Back” to back last
stage or “Cancel” to give up installation.
All manuals and user guides at all-guides.com
all-guides.com

12
Click “Install” to start installation. Or click”<Back” to back last stage
or “Cancel” to give up installation.
All manuals and user guides at all-guides.com

13
Start installation.
Please click “Finish” to finish the Installation.
All manuals and user guides at all-guides.com

14
Finally you will see the icon on windows desk.
3.2 Install locr GPS Photo Utility
*Before you install the Utility, please check the Internet connection is
ok.
o the License Agreement page: Click “Accept” to start installation, or
click ”Don’t Accept” to give up installation. hen
All manuals and user guides at all-guides.com

15
Start installation.
Click “Next> to next page”, or click”<Back” to back last stage or
“Cancel” to give up installation.
All manuals and user guides at all-guides.com

16
Select Installation folder and Click “Next> to next page”, or click”<Back” to
back last stage or “Cancel” to next step.
Click “Next> to start installation”, or click”<Back” to back last stage or
“Cancel” to give up installation.
All manuals and user guides at all-guides.com
all-guides.com

17
locr GPS Photo is being installed
Installation Complete
Finally you will see the icon on the windows desk.
All manuals and user guides at all-guides.com

18
All manuals and user guides at all-guides.com

3.3. Install PDA Software A lication
Before you click the “Software for Pocket PC ” to install the PDA
software application from CD, you have to synchronize the PDA and
your system. hen the following window will show in your system as
below:
Click “Yes>” to continue. Or click ”No” to select the other destination
to install, or “Cancel” to give up installation.
All manuals and user guides at all-guides.com

20
Click “ OK” to complete the installation.
All manuals and user guides at all-guides.com
