BEFORE USE
These symbols on your device mean:
This appliance is filled with Propane gas R290. Follow strictly the
manufacturer‘s instruction concerning use and repairs!
Before using the machine, read carefully the entire instruction
manual.
Do not install, operate or store the device in a room smaller than
15m2 .
General Cautions
FOR INDOOR USE ONLY.
Do not use in cabinet, closet, boats, caravans or similar locations.
Do not use the unit in swimming pools, washrooms or similar wet
areas.
Leave the unit to stand for 12hours before connecting to the
mains supply after transport or when it has been tilted (ex. During
cleaning).
Only use the unit in the upright position on a flat level surface
(even during transport!) and at least 50cm from any objects.
Do not use the unit in a potentially explosive environment
containing combustible liquids, gases or dusts.
Do not use the appliance in the vicinity of flammable or explosive
substances or fuels. Never use any paint, cleaning sprays, anti-

4
rspro.com
insect sprays or similar near the unit; this could deform the plastic
or cause electrical damage.
Ensure that there is at least 50cm between the sides of the
appliance and any flammable, heating materials.
Do not place objects on the unit or restrict air inlet/outlet.
Do not spill liquid onto the machine.
Closely supervise any children and pets when the unit is in use.
The appliance can be used by persons with reduced physical, sensory
or mental capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the appliance
in a safe way and understand the hazards involved this machine is not
suitable to be used by children without supervision of an adult.
CHILDREN SHALL NOT PLAY WITH APPLIANCE.
Cleaning and user maintenance shall not be made by children
without supervision.
Switch off and unplug the unit when not in use.
Never leave a functioning device unsupervised.
Do not pull the unit along by the cord.
Avoid over-twisting, -coiling, -pulling the power cord, never use
nylon or iron wire to tide the power cord.
Make sure that the plug and socket remain visible and accessible
at all the time.
Do not use extension cords.
Never reach to retrieve the unit if it has fallen in water. In such
case, immediately pull the plug. Have the unit checked before
using it again.
IF THE SUPPLY CORD IS DAMAGED, IT MUST BE REPLACED
BY AN ELECTRICIAN OR SIMILARLY QUALIFIED PERSON,
TO AVOID HAZARD.
THE MAINS SUPPLY MUST CONFORM TO THE
SPECIFICATION SHOWN ON THE RATING PLATE AT THE
BACK OF THE UNIT.
The appliance shall be installed in accordance with national
wiring regulations.
Do not exceed the recommended room size for max. efficiency.

5
rspro.com
Close the doors and windows.
Keep curtains or blinds closed during the sunniest hours of the
day.
Keep filters clean.
Once room has reached the desired conditions, reduce the
setting for temperature and ventilation.
Do not turn on the appliance if you have discovered damage to
the appliance, cord or plug, if the appliance is malfunctioning or if
there are signs of any other defect. Return the complete product
to the vendor or to a certified electrician for inspection and/or
repair. Always ask for original parts. The appliance (incl. cord
and plug) may only be opened and/or repaired by properly
authorised and qualified persons.
Suggest to send the unit for professional maintenance
periodically.
ONLY A LICENSED PROFESSIONAL IS ALLOWED TO
DISMANTLE OR MODIFY THE APPLIANCE.
THE MACHINE IS TO BE USED ONLY FOR ITS PRESCRIBED
PURPOSE. ANY OTHER USE IS DEEMED TO BE A CASE OF
MISUSE. THE USER/OPERATOR, NOT THE MANUFACTUER
WILL BE LIABLE FOR ANY DAMAGE OR INJURIES OF ANY
KIND CAUSED AS A RESULT OF THIS.
Safety relating to refrigerant R290:
Read these warnings carefully.
This appliance contains the refrigerant R290. R290 is a
refrigerant that complies with the relevant European Directives.
Never perforate the refrigerant circuit. R290 is flammable
(GWP3)!
Do not use means to accelerate the defrosting process or to
clean, other than those recommended by the manufacturer.
The appliance shall be stored in a room without continuously
operating ignition sources (for example: open flames, an
operating gas appliance or an operating electric heater).
Do not pierce or burn any of the components of the cooling circuit
of the unit. Do not set light to the unit.

6
rspro.com
The appliance shall be stored so as to prevent mechanical
damage from occurring.
Appliance should be installed, operated and stored in a room with
a floor area larger than 15m2.
Be aware that the refrigerants may not contain an odour, which
means you cannot smell leaks..
Compliance with national gas regulations shall be observed.
Keep ventilation openings clear of obstruction.
A warning that the appliance shall be stored in a well-ventilated
area where the room size corresponds to the room area as
specified for operation.
Any person who is involved with working on or breaking into a
refrigerant circuit should hold a current valid certificate from an
industry-accredited assessment authority, which authorises their
competence to handle refrigerants safely in accordance with an
industry recognised assessment specification.
Servicing shall only be performed on the grounds as
recommended by the equipment manufacturer. Maintenance and
repair requiring the assistance of other skilled personnel shall be
carried out under the supervision of the person competent in the
use of flammable refrigerants.

7
rspro.com

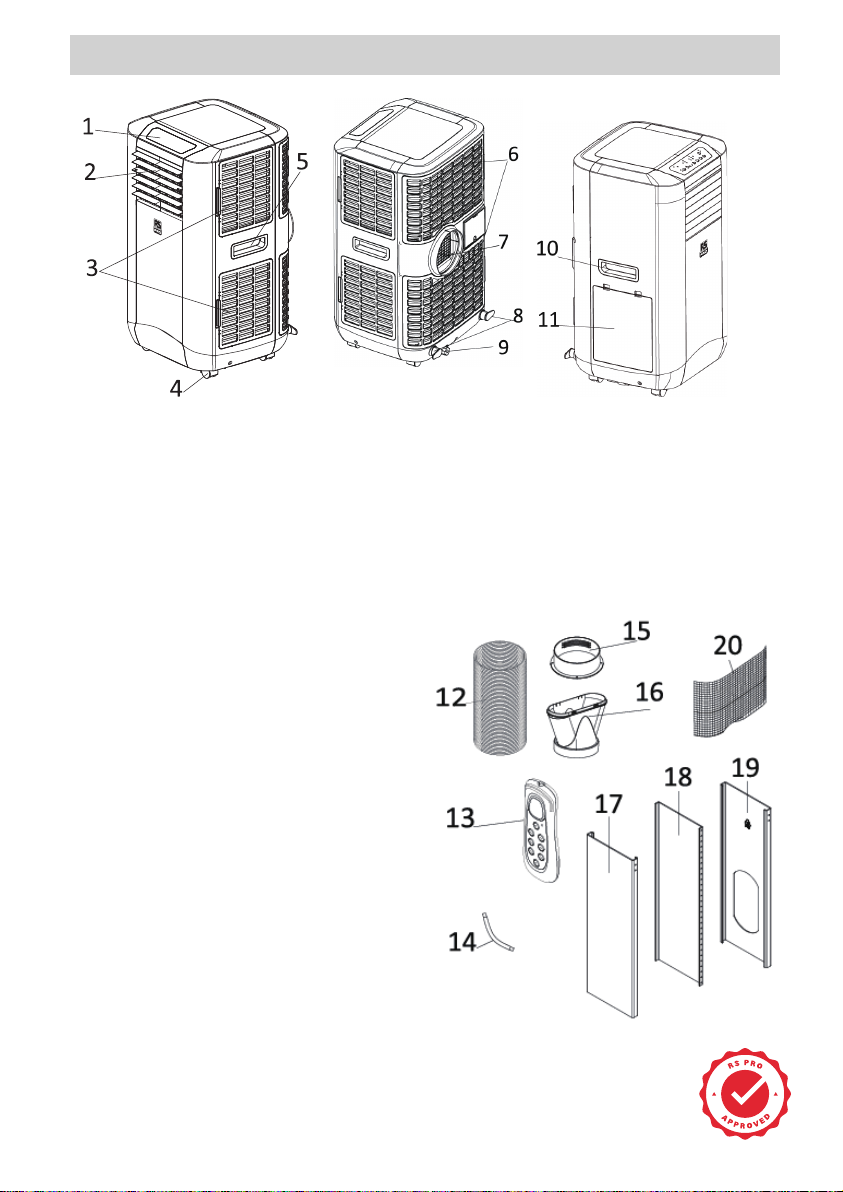

Parts
1. Control Panel
2. Air outlet
3. Side air filter (air inlet)
4. Caster
5. Handle
6. Air filter (air inlet)
7. Exhaust air outlet
8. Cord hanger

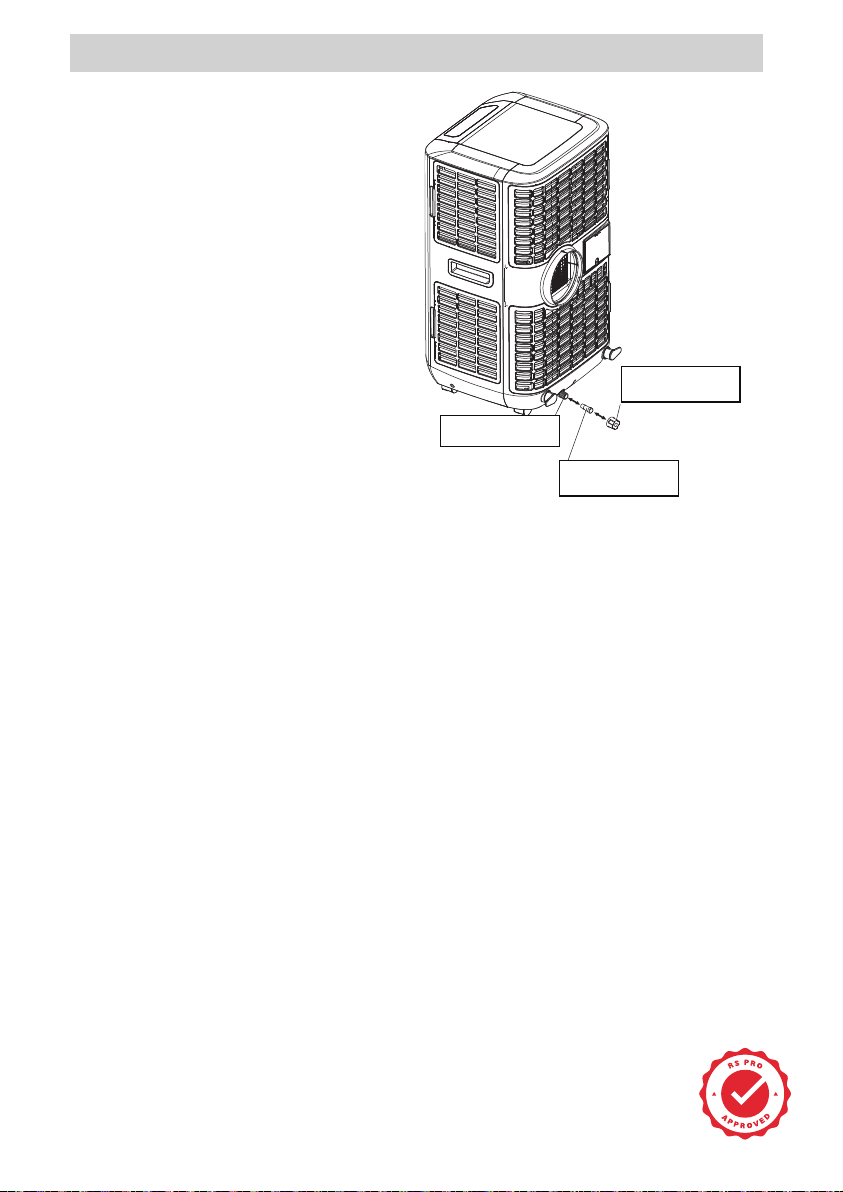

9. Drainage knob / drainage point
10. Handle
11. Water bole (for energy efficiency boosng)
Accessories
12. Exhaust hose.
13. Remote control
14. Drain tube for connuous drainage
15. Round Adapter –for connecng
the unit and the exhaust pipe
16. Flat Adaptor – for connecng
the exhaust pipe and the window
spacer
17. Window spacer - for filling the
open window space
18. Window spacer - for filling the
open window space
19. Window spacer - for filling the
open window space and with
hole for connecon to exhaust
hose
20. Acve carbon filter

8
rspro.com
Installation
The unit is a portable air condioner that may be moved from room to room.

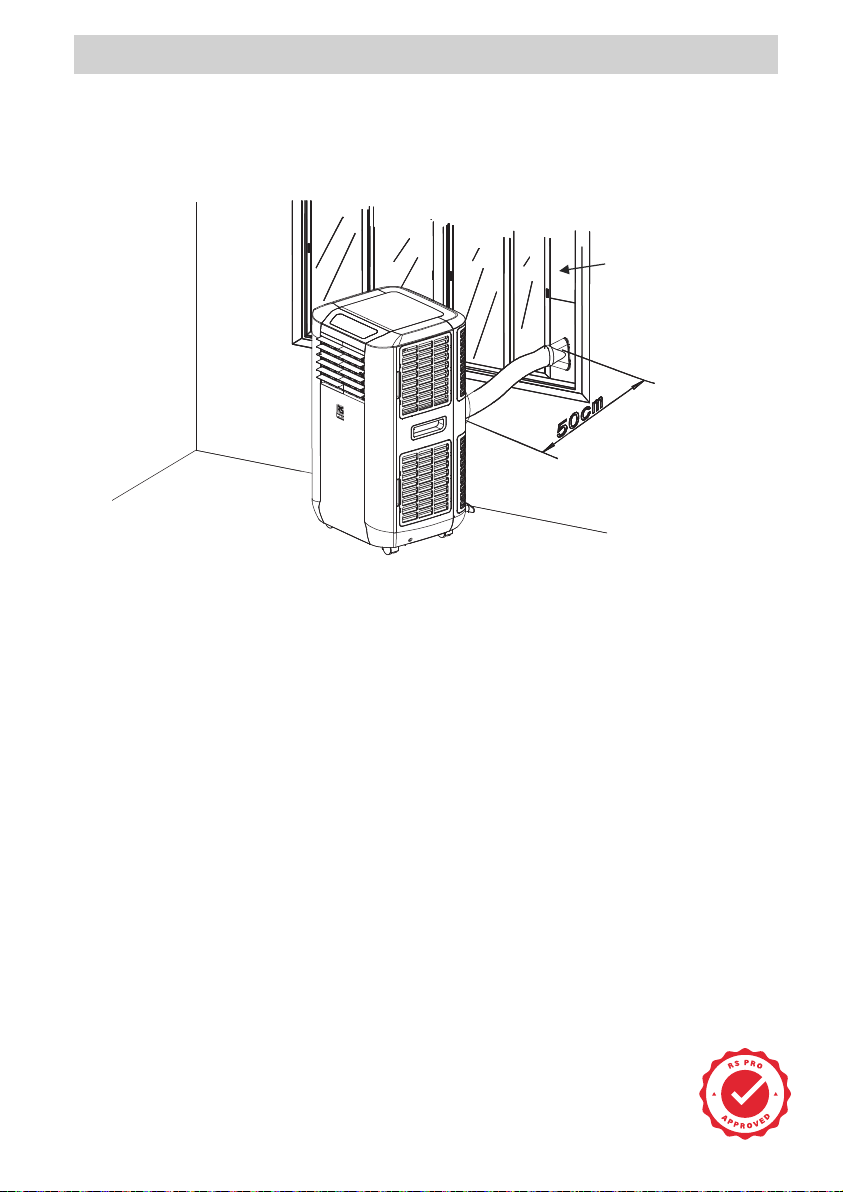

1. Using the supplied window spacer
• Offer window spacer to the window gap and adjust the length as you need.
• Feed exhaust hose through the window spacer and slide window across so
that spacer is held securely. This technique may also be used for sash windows.
Note: Take care to maintain protecon against intruders
Extendable slide
Window spacer

9
rspro.com
• Use only the hose provided and clip
exhaust hose and unit adaptor to the back
of the air condioner

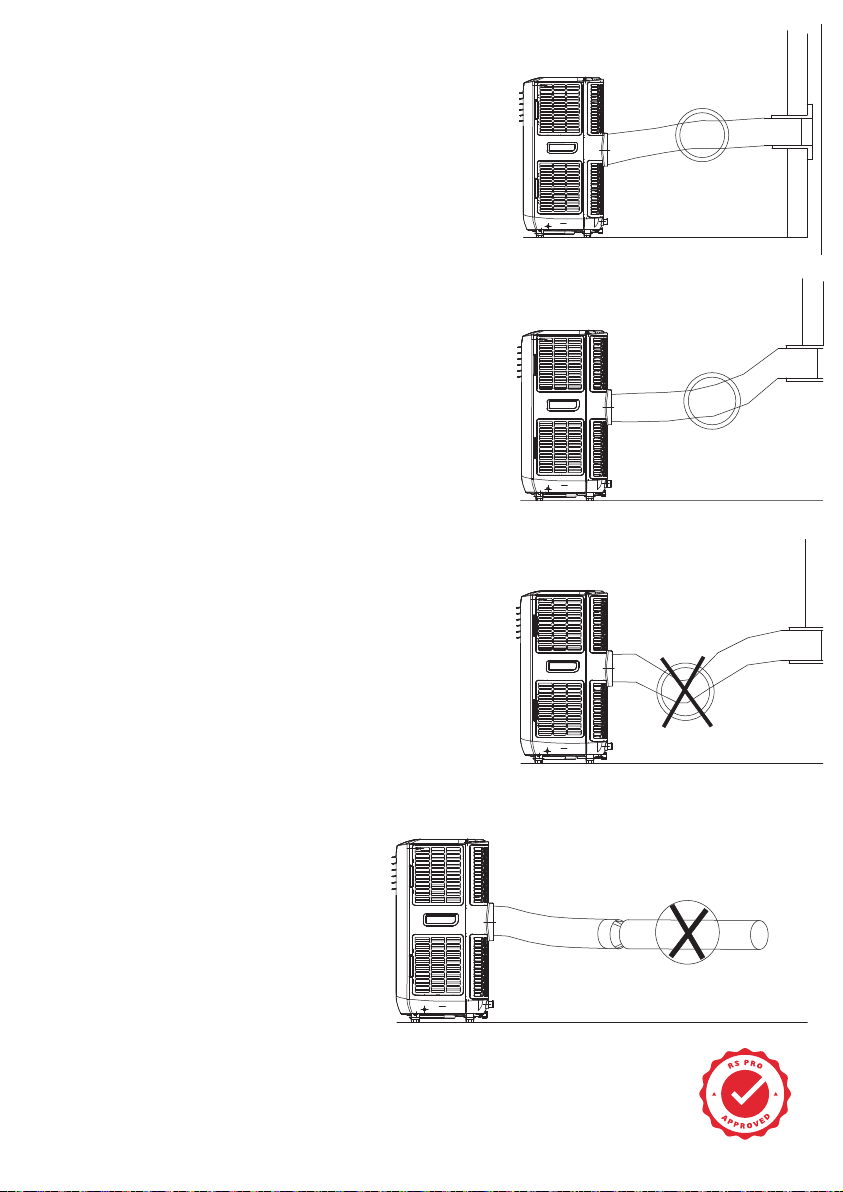

• Avoid kinks and bends in the exhaust hose
as this will cause expelled moist air to
build up causing the unit to overheat
and shut down.
• The hose may be extended from 300mm
to 1500mm but for maximum efficiency
use the shortest length possible.
WARNING!
The length of the exhaust pipe is
specially designed according to the
specificaon of this product. Do not
replace or prolong it with your own
private hose as this could cause the
unit to mal-funcon.

• Installaon of the carbon filter
This machine is equipped with the acve carbon filter. The acvated carbon is charcoal
that has been treated with oxygen to open up millions of ny pores between the carbon
atoms. It is used to get rid of unwanted odors (smoke, fumes, and animal odor).
Please note, the carbon filter is not washable, its life span is variable and depends on the
ambient condions where the unit is used. The filter should be checked periodically and
replaced if necessary (normally, it’s 6 months), below is the installaon of the acve carbon
filter along with this unit:

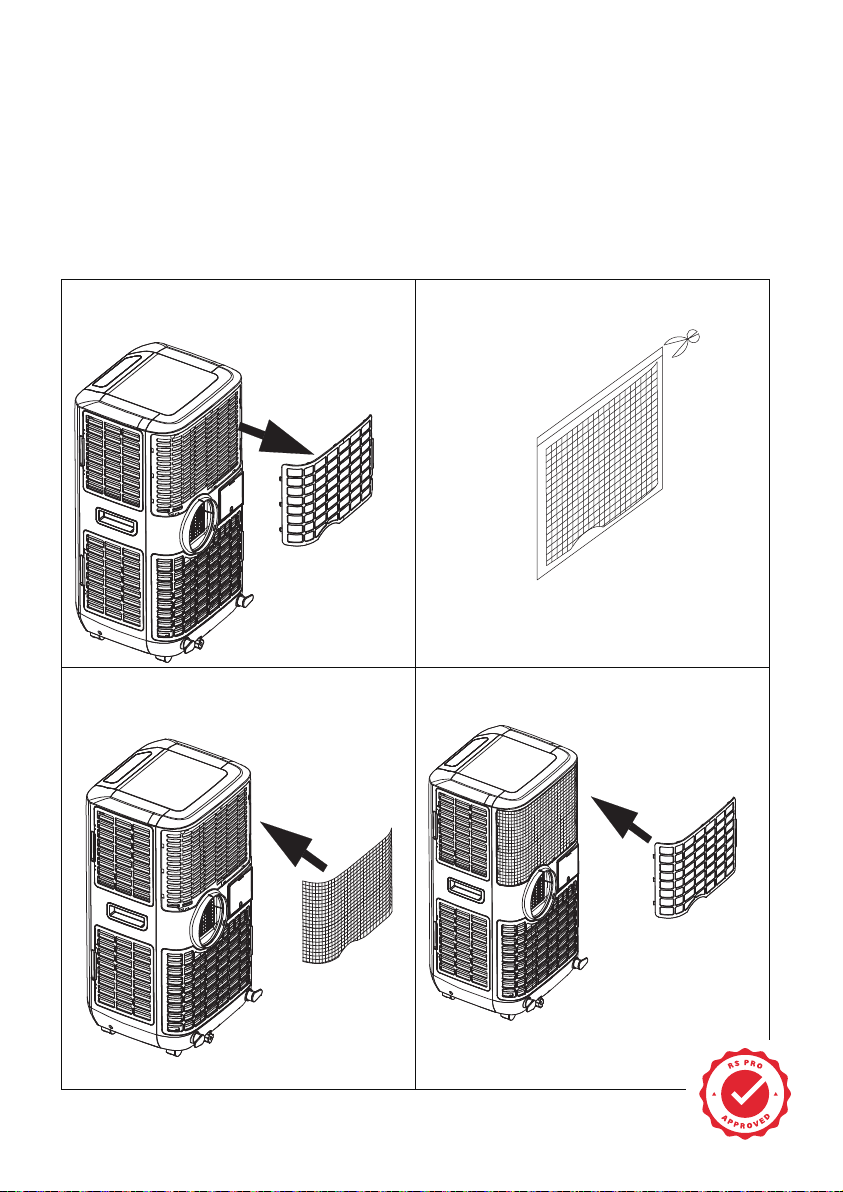

1.
Separate the filter frame the unit.
2.
Take out the carbon filter from its
bag.
3.
Apply the carbon filter on the unit.
4.
Fix back the filter frame on the unit.
10
rspro.com

11
rspro.com
Operation
Control panel with press buon
1. ON/OFF (POWER) buon
2. MODE buon
3. SPEED (venlaon) buon
4. TIMER buon
5. TEMPERATURE DOWN buon
6. TEMPERATURE UP buon
7. SLEEP buon
a. Water full indicator
b. AUTO mode indicator
c. DEHUMIDIFY (DRY) mode indicator
d. Medium fan speed indicator
e. High fan speed indicator
f. Timer indicator
g. Compressor operaon indicator
h. FAN mode indicator
i. COOL mode indicator
j. Low fan speed indicator
k. Sleep mode indicator

12
rspro.com
Operation
Turning ON/OFF
Touch ON/OFF buon, the unit will start in AUTO (automac) mode.
Automac mode
In automac mode, the unit can cool , venlate or heat depending on ambient temperature and
setpoint adjustment. The unit is preset as follows:
1. If ambient temperature is > 23°C , the unit will be in automac cooling mode. Default
seng 24°C. During this operaon, the indicator for AUTO and COOL mode light up.
2. If the ambient temperature is < 24°C, but > 20°C, the unit will work in venalon mode.
During this operaon, the indicator for AUTO and FAN mode light up.
3. If the ambient temperature is < 20°C, the unit will work in heang mode. During this
operaon, the indicator for AUTO and HEAT mode light up.

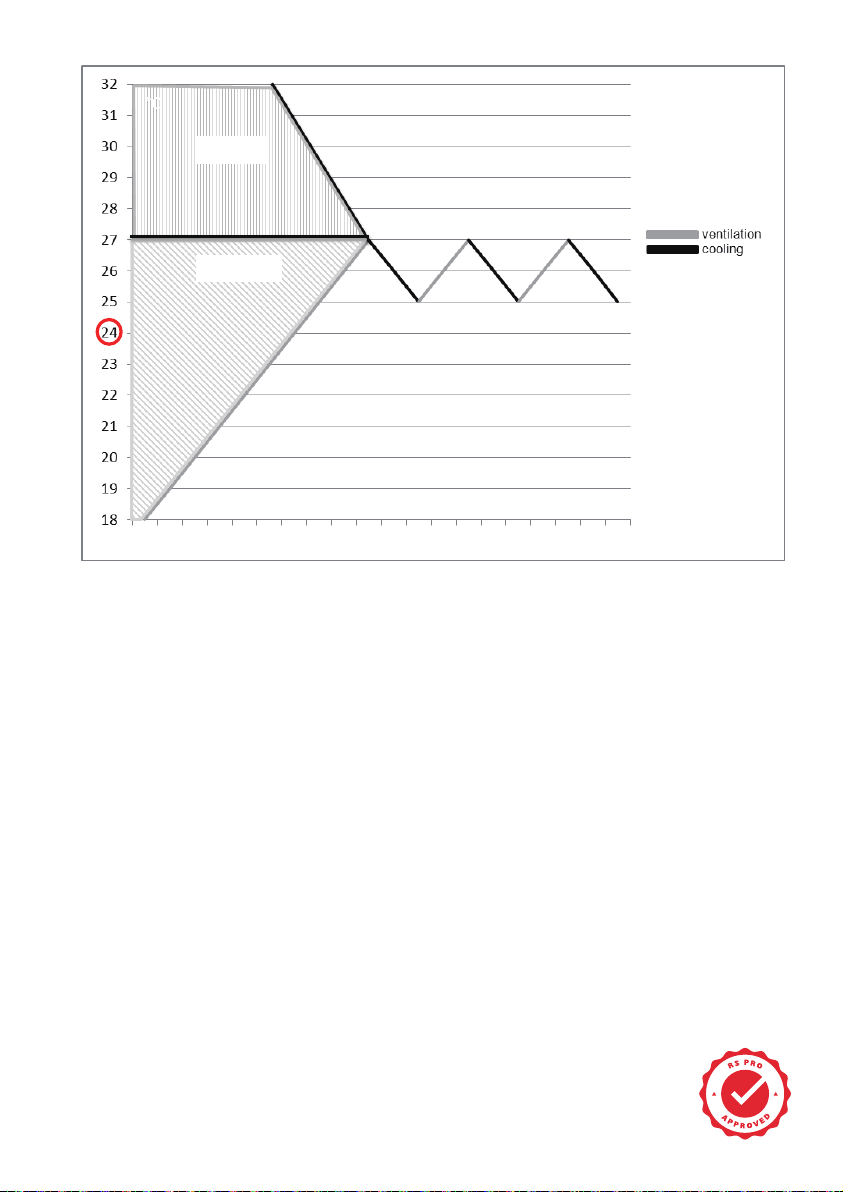

Setpoint seng in automac cooling mode 18-32°C
If you set the setpoint at 24°C the unit starts to cool at 27°C (Setpoint + 3°C). It cools down to
25°C (Setpoint +1°C) and then switches back to the venlaon.

13
rspro.com
Seng mode/funcon
Touch MODE buon to select required working mode: cooling, fan or dehumidify (dry)
Sign of your selected mode comes on.
Seng temperature
1. Touch 'Temperature up' or 'Temperature down' buon to regulate the temperature you
desired.
2. The display window will show the temperature you set as you press 'Temperature up' or '
Temperature down' buon. Otherwise, it will always show the ambient temperature.
3. The pre-seng temperature of this machine is: 24oC for cooling.
Seng venlaon speed
Touch SPEED buon to choose the venlaon speed you need, high, medium or low. The sign
of high, medium or low venlaon will light on at the same me.
°C
Time
cooling
ventilation

14
rspro.com
Seng mer
1. Touch TIMER buon to set the operang hours you desired (1 to 24 hours, the sign of
mer will light on). When the set me has been reached, the machine will turn off
automacally. The display window will show the hour(s) you set as you press TIMER
buon. If the mer buon is not pressed, the unit will work connuously.
2. By touching the mer but without turning on the other funcons, you can PRE-SET the
me for the machine to work. For example, if you press the mer to '2', the unit will work
automacally aer 2 hours.
Sleep funcon
1. In cooling mode, by pressing the SLEEP buon, the set temperature will increase 1oC at the
1st hour, another 1 oC at the second hour, then keeps at that temperature.
2. In sleep mode, the venlaon will keep at low speed. Re-press the SLEEP buon, the seng
temperature and venlaon speed will return to the pre-selected one.
3. The unit will shut down automacally aer the SLEEP funcon running for 12 hours.
4. Please note, the sleep funcon is not available while the machine is working in venlaon,
dehumidificaon or auto mode. Only available in Cooling mode.
5. When the machine is in Sleep funcon, the Fan Speed would turn to be LOW speed.
Dehumidify (DRY) mode
In dehumidify (DRY) mode, the temperature cannot be adjusted, the venlaon will fix at low
speed. When the unit is operang in Dehumidify ( DRY) mode, humidity extracted from the air
is collected in an internal tank. If the tank reaches full, the compressor and motor cut out
automacally. At the same me, the “Water Full” indicator comes on. An alarm will also sound.
When the tank is full, drain the water as shown in the page concerning “DRAINAGE”. You may
also use the unit without having to empty the tank so oen by using “connuous drainage”,
please also refer to the page about “DRAINAGE”.

15
rspro.com

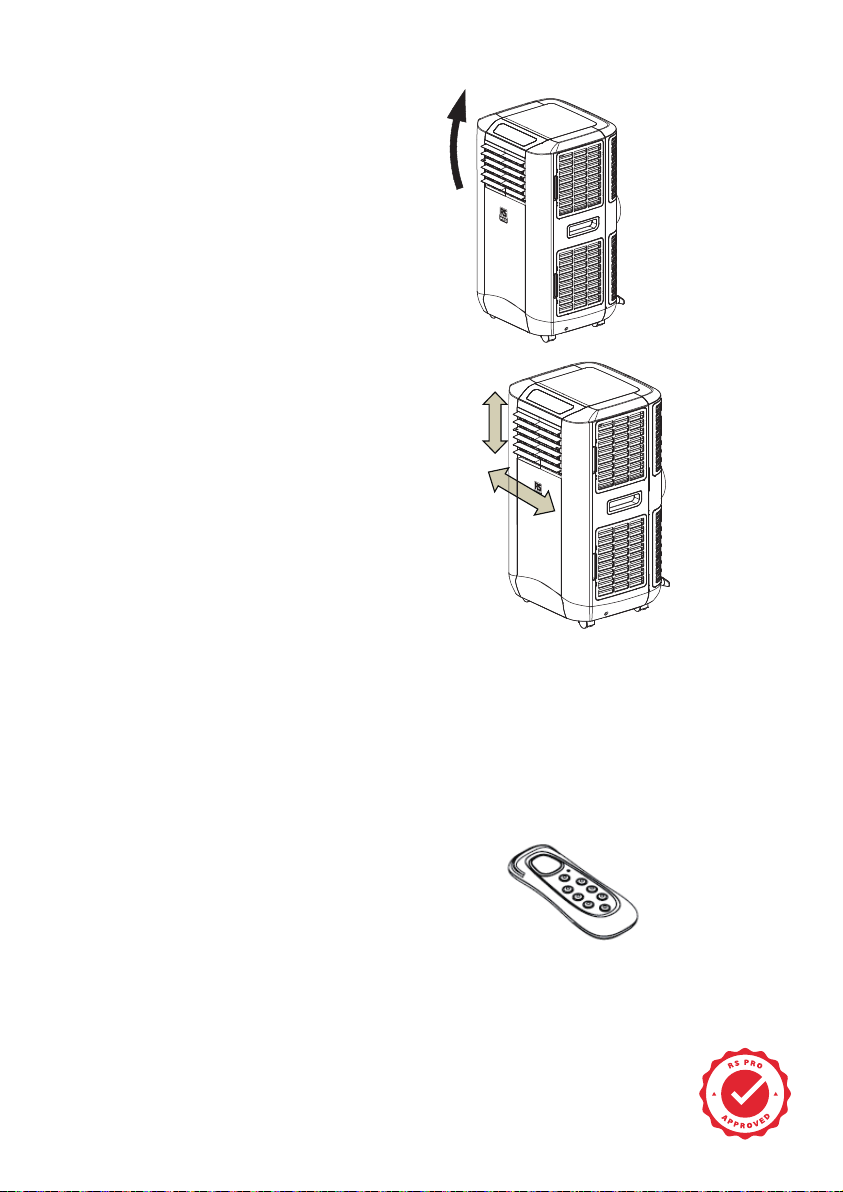

Adjust the air vent
Before using the unit, please do open the
horizontal louver!
Adjust the louvers to your desired direcon
Self-diagnosis
This machine is equipped with self-diagnosis funcon. If something is wrong in the machine,
the LED will show the word “E1” or “E2”.
Please call your service centre. Please DO NOT dismantle the machine by
yourselves in any case.
All the above funcons can also be performed with the
supplied remote control.
This remote control requires 2 pcs AAA baeries to
operate (baery is not supplied along with the unit).

16
rspro.com
EFFICIENCY BOOSTING
This unit is equipped with “energy efficiency boosng” funcon, by adding water (3L max.) to
the water gate at the side of the unit, the energy efficiency can be elevated. The principle is:
while the machine is working, the condenser will be geng hot, if you add the water into the
unit aer the unit has been worked for more than one hour, the water will cool down the c
ondenser, thus it consumes less power, i.e. saving energy.
**
NOTE
1. This efficiency feature by adding water is proposed to do aer one hour operaon and the
water should NOT be over 3L, otherwise, the “water full” indicator will light in red and the
unit will stop working.
2. In case the “water full” indicator is in red, please drain the water from the drain point at the
back side of the unit unl the red light goes out. The unit should work again now.
IMPORTANT !
1. To prolong the compressor's life, aer switch-off of the unit, please wait for 3 minutes (at least)
before re-switch.
2. The cooling system will switch off if the ambient temperature is lower than the set one. The
venlaon, however, keeps working on the set level. If the ambient temperature rises above
the selected level, the cooling will return to work.
3. This machine is equipped with ANTI-FROST funcon. While using the heang funcon during
low temperature, somemes the heang will stop for a while in order to melt the frost. As this
occurs, just wait for the heang returns to work.

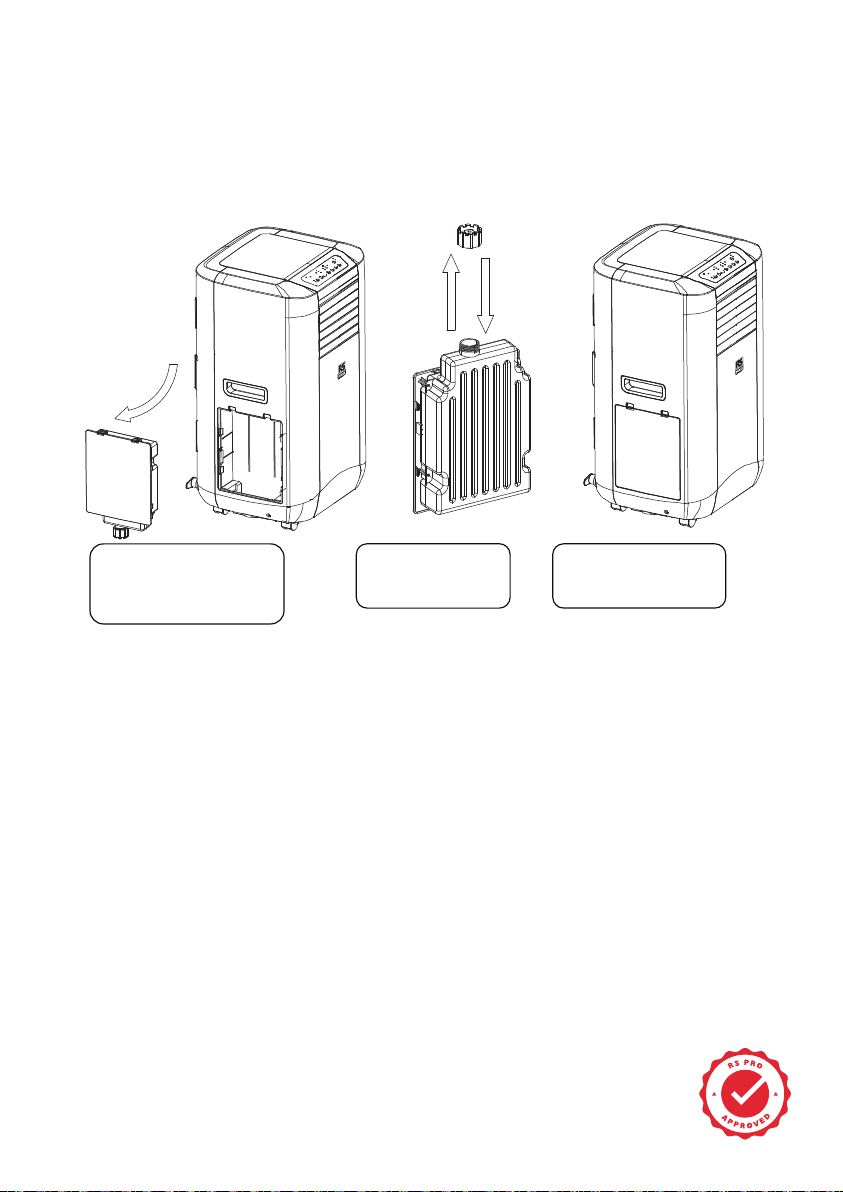

1. Take out the water
bole from the side
of the unit.
3. Place the water
gate into space.
2. Fill the water
(max. 3L).

17
rspro.com
Drainage
When the unit is operang in Cooling or
Dehumidify ( DRY) mode, humidity extracted
from the air is collected in an internal tank.
If the tank reaches full, the compressor and
motor cut out automacally. At the same
me, the “Water Full” indicator comes on.
An alarm will also sound. When the tank is
full, carry out the following instrucons:
1. Turn off the air condioner and avoid moving it when full.
2. Posion a container (a water tray for example) underneath the drain hole.
3. Remove the drain knob & rubber plug from the drain hole and allow the water to drain out.
4. When the container is almost full, replace the rubber plug in the drain hole and empty the
water tray.
5. Repeat unl the unit is emped.
6. Replace the rubber plug and ghten the drain knob firmly.
7. Switch on the unit - the full water or compressor operang indicator should not be flashing.
Drain hole
Rubber plug
Drain knob

18
rspro.com
Should you prefer to use the appliance without having to empty the tank every so oen,
proceed as follows:
• Remove the drain knob and rubber plug and retain for future use.
• Connect the drain tube supplied to the
water outlet as shown and locate the
other end into a drain.
• The drain tube may be extended by
adding an extension tube and using a
suitable connector.
Please note
1. The drain must be at a lower level than the drain hole on the unit.
2. Flashing ‘Water Full’ indicator will not funcon in this mode of drainage.
3. If you want to extend the water tube, you can connect it with another tube (OD: 18mm).
*The extended tube is NOT supplied along with the unit.
Originally
supplied drain
Extended drain tube
(outer diameter:
18mm)
Originally
supplied drain
tube

19
rspro.com
Maintenance
Always unplug the air condioner from the mains before cleaning.
To maximize the efficiency of the air condioner, clean the unit regularly.
Cleaning the housing
Use a so, damp cloth to wipe the body clean.
Never use aggressive chemicals, gasoline, detergents, chemically treated cloths, or other
cleansing soluons. These all could possibly hurt the cabinet.
Cleaning the filter
Use a vacuum cleaner or tap the filter lightly to remove loose dust and dirt from the filters and
then rinse thoroughly under running water (no hoer than 40oC).
Dry thoroughly before replacing.
Noce! Never operate the unit without the filters.
End of season storage
• Drain any water in the unit before completely operang the unit on venlaon only mode
for a few hours, to thoroughly dry the inside.
• Clean or change the filter
• Unplug and store the power cord on the cord hanger.
• Replace in the original carton or cover for storage.
