RSI XL600 Owner's manual

Document # 2012-XLIN
1375 Willow Lake Blvd. #103
Vadnais Heights, MN 55110
877-206-5800
*A Videofied CMA601 or XMB611/XMA611 Alphanumeric Keypad is required for
programming and maintenance
COMPLETE SETUP AND PROGRAMMING MANUAL
FOR
XL600 GPRS PANEL
CMA601
XL600 GPRS
XMB611/XMA611

2011/11/28 E2.5 Installation Manual for XL600GPRS
2 | P a g e
Table of Contents
Page
FCC Guidelines 3
Basic Guidelines 4
Initial Programming 6-11
After Initial Programming Flow Chart 12-13
Entering Badges and Access Codes 14
Disabling Monitoring 15
Choosing Siren Options 16
Testing to Central Station 17

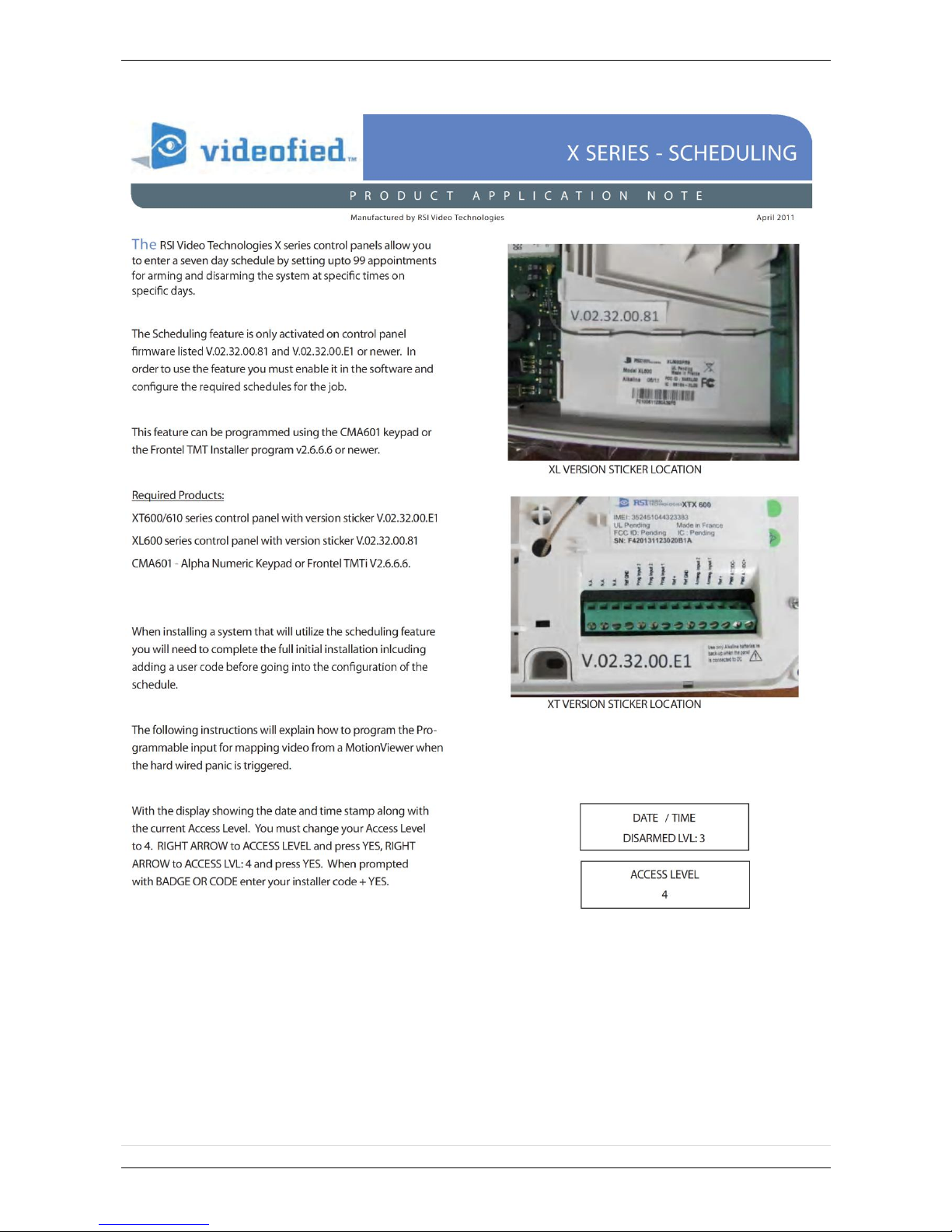

Scheduling 18-20
Mounting the XL 21
Testing GPRS Level 21
Testing RF Level 22
User Functions 23-26
Troubleshooting 27-28
Central Station not getting Video 27
Central Station not getting any Signals 28
Panel saying Connected with Monitor Station 28
Unable to record device or getting ‘Pairing Failure’ error 28

2011/11/28 E2.5 Installation Manual for XL600GPRS
3 | P a g e
Regulatory Information for USA and Canada
FCC Part 15.21 Changes or modifications made to this equipment not expressly approved by RSI
VideoTechnologies may void the FCC authorization to operate this equipment.
FCC Part 15.105 Class B
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
Radiofrequency radiation exposure information according 2.1091 / 2.1093 / OET bulletin 65
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance of 20 cm
between the radiator and your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.

2011/11/28 E2.5 Installation Manual for XL600GPRS
4 | P a g e
Basic Setup Guidelines for Installation and Programming
1) Obtain the account number from the Central Station :
2) Activate the SIM card by calling your SIM card provider :
*Note: Do step 1 and 2 the day before the install.
3) Setup and program the system in the office or in your vehicle. DO NOT MOUNT THE
DEVICES. (6-11)
4) Add user codes and or badges after initial programming. (Page 14)
5) Silence the siren before you set the alarm. (Page 16)
6) Arm the system and send one alarm signal and video to the central station. Call the central
station and make sure they received the signal. (Page 17)
Note: You will want to disable monitoring until you are ready to send signals into the
monitoring station. (Page 15)
DEPLOYING THE SYSTEM ON SITE
7) Put the panel where you want to mount it and run the GPRS test to make sure you are
receiving good cell signal. If you get 3/5 or better, mount the panel. If not, you will need to
move the panel and run the test again. (Page 21)
8) Now you are ready to deploy the devices. Use your keypad to run the RF test for each
device. If you get a 9/9 for your RF test on the first device, then mount it. If not, you will
need to move the device to get optimal signal. (Page 22)
*Note: There are no external antenna options for the XL control
panel. For cellular issues a third party cellular repeater may be
used to increase signal.
Note: Re-enable monitoring before you send signals (page 14)
8.5) If you are currently using TMT Installer to program the system you can take
still pictures from each MotionViewer using the software. See TMT Installer
Users Manual available on support.videofied.com.
9) Once you have everything mounted, you are ready to arm the system and set off each
device. Make sure you stand in front of each MotionViewer for 10 seconds so the central
station has some video to look at. (Page 17)
10) After you have sent signals to central station, call to verify.
The following pages will go through each one of these steps and, if you have any issues, you cannot
resolve, please feel free to call technical support at 1-651-855-7800 EXT 45, Toll Free: 1-877-206-
5800 EXT 45, or you can reach live support chat and additional technical notes at
support.videofied.com.
Sleeping mode and Wake-up on the XL600:
Most of the time, the keypad is in a sleeping mode (backlight off). This mode is automatic after
a few minutes of inactivity. When you put your hand against the touch-pad, the keypad wakes
up. The first touch on the pad that wakes it up will not be a registered command and will only
wake up the touch-pad.

2011/11/28 E2.5 Installation Manual for XL600GPRS
5 | P a g e
Obtaining CMA Keypad Special Characters
Obtaining XMB/XMA Keypad Special
Characters
UL Installation Guidelines
In order for an installation to be UL compliant you must follow the
specifications in the table below:
Type
Specifications
Location In Manual
Audio
When a MotionViewer is
installed on the system you
may not have the siren sound
for less than 60 seconds
Page 26
Audio
If no MotionViewer is installed
on the system you may not
have the siren sound for less
than 240 seconds
Page 26
Delays
When a MotionViewer is
installed on the system the
Entry delay must be 45 seconds
Page 9

2011/11/28 E2.5 Installation Manual for XL600GPRS
6 | P a g e
Assemble the front
cover on the back.
Power the XL panel
Programming the XL Control Panel
Option 1
8 x E95VP 1.5v Alkaline D-Cell
Used for Installations without power available
Install the SIM card
Put the SIM card on the plastic
(take care to respect the right direction).
Slide it in the connector.
Connect the battery
connector on the Cover
board and wait for 20
seconds before proceeding.
*The SIM card must NOT be inserted or
removed while the panel is powered*
Power the Control Panel

2011/11/28 E2.5 Installation Manual for XL600GPRS
7 | P a g e
Setting up the XL with the CMA601or XMB611/XMA611 keypad
XL touch-pad
=>
Programming Keypad
or
Reset the XL panel :
Press and hold programming button 10 seconds until the
touch-pad lights up fully.
This will reset the panel to factory programming.
Press the programming button and release on the XL for the
enrollment of a CMA/XMB/XMA programming keypad.
CLR & ESC/NO
<======XX======>
Press both ESC/NO and CLR keys on the programming
keypad.
YES
KEYPAD 1
RECORDED
RSI (c)2005
www.RsiAlarm.com
<- LANGUAGE : ->
ENGLISH
or for language selection
YES to apply
RADIO RANGE
TEST ?
RF TEST
x/9
YES
YES
Other languages are available by scrolling with arrows.
ITALIANO, NEDERLANDS, DEUTSCH, CASTELLANO,
SVENSKA, PORTUGUES, FRANCAIS
Press YES for the selected one.
LED will Dance
BEEP
!
The Radio Range test must be run during the learn in
process in order to ensure proper pairing with the control
panel. This test is the strength of communication between
the device and the control panel. The keypad will display a
real time range out of 9 for the device that the test is running
for. To receive the most accurate results you must run the
radio range test for at least 30 seconds.
The RF level test must be 9/9 or better for reliable
transmission.
RADIO RANGE
TEST ?
ESC/NO

2011/11/28 E2.5 Installation Manual for XL600GPRS
8 | P a g e
ENTER THE
INSTALLER CODE
4 TO 6 DIGITS
THEN YES
INSTALLER CODE:
INSTALLER CODE:
####
YES
CONFIRM CODE
RE-ENTER CODE
CONFIRM CODE
####
CODE NAME :
ACCESS 1
ENTRY COMPLETE
ADJUSTING
TIME AND DATE
DATE (Year) :
00/ /
DATE (Year) :
10/ /
DATE (Month) :
10/12/
DATE (Month) :
10/12/
DATE (Day) :
10/12/27
DATE (Day) :
10/12/27
DATE (Hour) :
00:
DATE (Hour) :
10:
YES
YES
YES
YES
YES
Wait while the screen changes
Name the installer code using the alphanumeric keypad. If
you leave it blank and press YES it will be named ACCESS 1
Use the or to set the Year.
Use the or to set the Month.
Use the or to set the Day.
Use the or to set the Hour.
From here until the end of the programming you will not be
able to step back to a previous parameter. All parameters
can be changed after initial programming has been
completed.
Wait while the screen changes
Use the Alphaumeric Keypad to enter the Installer Code.
This code can be 4-6 digits and is important to keep track of
in your paper work.
YES

2011/11/28 E2.5 Installation Manual for XL600GPRS
9 | P a g e
CODE/STATE modification
These are the default transmitted events:
Device Alarm
Alert Alarm
Initialization Not Transmitted
Panel Batteries Alarm/End
AC Power Alarm/End
Phoneline Fault Not Transmitted
Tamper Alarm/End
Device Batt. Alarm/End
Radio Jamming Not Transmitted
Supervision Alarm/End
Periodic Test Alarm
Wrong Codes Not Transmitted
Duress Code Alarm
Alarm Memory Not Transmitted
Arm/Disarm Not Transmitted
If you would like to change the state press YES and
use the or to toggle between:
Alarm –Appearance
Alarm/End –Appearance and Restoral
Not Transmitted –Not Transmitted
If you would like the default press ESC/NO
YES
YES
YES
DATE (Minutes) :
10:00
DATE (Minutes) :
10:53
03/06/09 10:53
ENTRY COMPLETE
CONNECTED TO
MONITOR.STATION?
ACCOUNT NUMBER?
ACCOUNT NUMBER:
########
PERIODIC TEST:
24 HOURS
or for period selection
and YES to apply
CODE/STATE
MODIFICATION ?
AREAS
CONFIGURATION
AREA NAME 1:
EXIT DELAY:
45 sec
Other values are available:
2 min, 1 min, 45 sec
Use the arrows for the selection and YES to confirm.
Other values are available:
2 min, 1 min, 45 sec, 30 sec, 15 sec
Use the arrows for the selection and YES to confirm.
ENTRY DELAY :
30 sec
YES
YES
Use the or to set the minutes.
YES
Use the Alphanumeric Keypad to enter in 4-8 digit account
number provided by the Central Station
Wait
ESC/NO
YOU MUST ALWAYS CHOOSE ‘YES’
TRANS. STATE
MODIFICATION
List of all
events
ESC/NO
Use the Alphanumeric Keypad to name the area and press
YES. Repeat for all areas. If you want to keep the default
area names press the ESC/NO key.
The system will send a test to the central station every 24
hours.
Make sure the test is between 24:00 and 04:00.

2011/11/28 E2.5 Installation Manual for XL600GPRS
10 | P a g e
YES





YES
YES
GPRS
PARAMETERS ?
APN CODE
APN CODE:
TELARGO.T-MOBILE.COM
USERNAME
IP1 ADDRESS
IP1 ADDRESS:
xxx.xxx.xxx.xxx
DOMAIN NAME 1
PORT 1
888
YES
GPRS PARAMETERS?
ESC/NO
PASSWORD
If you have a secondary IP or TMT IP continue to press the
YES key and repeat the above steps to enter the
parameters.
Once completed, press ESC/NO to get out of GPRS
Parameters, then ESC/NO again to continue on in
programming.
Your APN (Access Point Name) code is given to you by your
Cellular Provider. Press YES to enter into the parameter
and use the Keypad to complete the code. Press YES to
confirm your entry and the arrow to move to the next
parameter.
Your USERNAME is given to you by your Cellular Provider.
Press YES to enter into the parameter and use the
Keypad to complete the name. Press YES to confirm
your entry and the arrow to move to the next parameter.
Your PASSWORD is given to you by your Cellular Provider.
Press YES to enter into the parameter and use the
Keypad to complete the name. Press YES to confirm
your entry and the arrow to move to the next parameter.
Your IP1 address is given to you by your Central Station.
Press YES to enter into the parameter and use the
Keypad to complete the address. Press YES to confirm
your entry and the arrow to move to the next parameter.
You will use either a IP address or a Domain Name but not
both
Your Domain Name is given to you by your Central Station.
Press YES to enter into the parameter and use the
Keypad to complete the name. Press YES to confirm
your entry and the arrow to move to the next parameter.
You will use either a IP address or a Domain Name but not
both leave it blank if an IP has already been entered.
The Port is given to you by your Central Station. By default
the panel will use 888. If you need to modify the port press
the YES key to enter into the parameter and the keypad
to complete the port. Press YES to confirm and the
arrow to move to the next parameter.
ESC/NO

2011/11/28 E2.5 Installation Manual for XL600GPRS
11 | P a g e
GPRS LEVEL?
TEST IN PROGRESS
YES = END
GPRS LEVEL
x/5
RECORDING
DEVICES
PRESS PROGRAM
BUTTON OF DEVICE
ENTERING A NEW
DEVICE?
END OF
CONFIGURATION
CLOSE THE PANEL
OPERATION
COMPLETED?
YES
YES
YES
ESC/NO
During the GPRS Level test the Modem will boot and
attempt to gain access to the internet to post a Level out of
5 or an error Code that will help troubleshoot why it cannot
connect. To keep the keypad awake use any keys on the
keypad except the YES, ESC/NO, and CLR keys. This test
can take up to 5 minutes. Once the level or error has
posted press YES to continue in programming.
*For explanation of GPRS errors see bottom of page.
Videofied will require a 3/5 or better for reliable transmission
of Video alarms.
Each device has a unique programming button. Please
reference the Installation Sheet for the device you would like
to program.
Before completing programming make sure that all tampers
are depressed by verifying that each devices indicator LED is
off.
(Device Type) #
Recorded
RADIO RANGE
TEST?
RADIO RANGE
TEST?
RF TEST
x/9
YES
YES
AREA ALLOCATION:
NAME LOCATION:
FUNCTIONAL
DEVICE TEST?
ESC/NO
YES
YES
ESC/NO
Use the arrow keys to select the proper area. Devices that
need an entry/exit delay should be set to AREA 1. Devices
that must be instant trigger should be AREA 2.
The Central Station will see the name of the device when
they receive the alarm. Using the alphanumeric keypad enter
in a discription of the device location and press YES.
Repeat the previous steps for programming additional
devices by hitting YES. Once all devices have been entered
press ESC/NO.
You must allow the Radio Range test to run for at least 30
seconds (9/9) before stopping the test.

2011/11/28 E2.5 Installation Manual for XL600GPRS
12 | P a g e

2011/11/28 E2.5 Installation Manual for XL600GPRS
13 | P a g e
CONFIGURATION
GPRS
PARAMETERS
NAME OR ADDRESS
PHONE NUMBER
SITE
IDENTIFICATION
GENERAL
PARAMETERS
IP 1 ADDRESS
PASSWORD
USERNAME
APN CODE
PORT GPRS
SMTP GPRS
DATA TIMEOUT
PAQUET SIZE
PORT TMT
DOMAIN NAME TMT
TMT IP ADDRESS
PORT 2
DOMAIN NAME 2
IP 2 ADDRESS
PORT 1
DOMAIN NAME 1
MAX TCP PACKET
RINGTONE
TOUCH –PAD AND
KEYPAD
RADIO OPTIONS
BUILT IN ANTENNA
ALARM MODES
PROGRAMMABLE
DESIGNATION
MODE
ALARM MODE SP2
AREAS: 1234
STATE: AAAA
DESIGNATION
MODE
ALARM
SIREN
ALARM
SIREN
AREAS: 1234
STATE: AAAA
ALARM MODE SP1
ALARM
SIREN
AREAS: 1234
STATE: AAAA
FULLY ARMED
RESPONDING
PARTY LIST
EMAIL SENDER
ENTER A NEW
EMAIL ADDRESS
SELECT/MODIFY
EMAIL ADDRESS
VIDEOMAIL ALARM
ADDRESS
AREAS AND
DEVICES
DEVICES
ADD A NEW DEVICE
DEVICE
CONFIGURATION
DEVICES LIST
DELETE DEVICE
CHANGING NAME
CHANGING AREA
24 HOUR DEVICE
24 HOUR SIREN
MODE
AREAS
AREAS LIST
AREA CONTENT
LIST OF DEVICES IN
AREA
CHANGING NAME
AREA
SIREN DURATION
INTRUSION 90sec
SIREN DURATION
TAMPER 90sec
ENTRY DELAY
15 sec
EXIT DELAY
45 sec
DELAY BEEPS
ENABLED
SIREN PANEL BY
DEFAULT
BUZZER PANEL BY
DEFAULT
AUTOARMING
DELAY
SCHEDULING
WARNING BIP
ENABLED
CONFIGURATION
MONITOR STATION
MONITORING
PARAMETERS
ACCOUNT NUMBER
MONITORING
ENABLED
PERIODIC TEST
SYSTEM ARMED
DISABLED
TEST HOUR
PERIODIC TEST
24 HOUR
INTERCOM
LIST OF EVENTS
ALARM CODES
TRANS STATE
MODIFICATION
INTERCOM
120sec
FILTERS
INTERCOM1
INTERCOM2
EXTENDED
FILTERS
Configuration Menu Structure for XL

2011/11/28 E2.5 Installation Manual for XL600GPRS
14 | P a g e
Entering a Badge or Access Code for Arming/Disarming
After Initial programming has been completed, you are not able to arm and disarm the system until
you enter a user code or badge (the installer code cannot arm and disarm the system). Codes can
be 4-6 digits and the 4th digit must be 2 values higher or lower than any other code on the system:
Example: User code 1234, next code cannot be 1235, 1236, 1233, or 1232 –These are reserved for
Silent Duress and Audible Duress. The XL system can accept up to 19 Badges or Access codes in
any combination.
10/12/27 10:53
DISARMED LVL:3
BADGES ACCESS
CODES
BADGE OR CODE
****
ENTER A
BADGE/CODE
BADGE OR CODE:
****
YES
Badge
Presented
Press the arrow to move to BADGES ACCESS CODES.
Enter the Installer code.
Enter a 4-6 digit user code or present a badge to the reader
for 2 seconds.
NAME OF BADGE:
CONFIRM THE
CODE:
CODE NAME:
ENTRY COMPLETE
ENTER A
BADGE/CODE
YES
Use the keypad to name the badge or code or leave it blank
for the default name : ACCESS #.
If you are entering any additional codes press YES. If you
have completed entering Badges and Codes press and hold
ESC/NO for 5 seconds to return to the main manu.
Confirm the code by re-entering.
YES
YES
YES
YES

2011/11/28 E2.5 Installation Manual for XL600GPRS
15 | P a g e
How to Disable Monitoring
Disabling monitoring can be a useful tool in many situations. Before mounting devices and moving the
panel to find a good GPRS level, disabling monitoring will ensure that you will have access to programming
and that unnecessary signals are not sent to the monitoring station. When performing maintenance on the
system you will want to disable monitoring until the issue has been resolved. This will ensure that you will
have access to programming throughout your troubleshooting.
Press YES on MONITORING ENABLED and use the 
to change the value to DISABLED and press YES to lock it
in.
Use the to move to CONFIGURATION MONITOR.
STATION
Press YES on MONITORING PARAMETERS
Press the to move to CONFIGURATION
Enter the installer code for the system
Enter the installer code for the system
Press the arrow to move to ACCESS LVL.
Use your arrow keys to change the level to 4
YES
YES
MONITORING:
DISABLED
YES
BADGE OR CODE
YES
YES
BADGE OR CODE
****
YES
CONFIGURATION
MONITOR. STATION
ACCESS LVL: 4
MONITORING
PARAMETERS
MONITORING
ENABLED
CONFIGURATION
ACCESS LEVEL
3
10/12/27 10:53
DISARMED LVL:3
GENERAL
PARAMETERS

2011/11/28 E2.5 Installation Manual for XL600GPRS
16 | P a g e
Changing Siren Options
In some situations it is required to silence the siren permanently or just for the testing of the system.
10/12/27 10:53
DISARMED LVL:3
ACCESS LEVEL 3
ACCESS LVL: 4
BADGE OR CODE:
****
YES
Press the arrow to move to ACCESS LEVEL 3.
Use the arrow to move the level to 4.
Enter the Installer code.
ALARM MODES
PROGRAMMABLE
CONFIGURATION
FULLY ARMED
AREAS: 1234
STATE: AAAA
Display will show GENERAL PARAMETERS. once to
ALARM MODES PROGRAMMABLE.
Press YES to modify the parameters of the FULLY ARMED
profile.
Press the once so the keypad says CONFIGURATION.
YES
YES
ALARM:
WITHOUT SIREN
BADGE OR CODE:
****
Enter the Installer code followed by YES
Press YES to keep the default AREAS and STATE which will
arm all devices on the Videofied system.
Use the arrow keys to modify the type of siren that the default
FULLY ARMED profile will use when an alarm is triggered.
Alarm Siren Descriptions :
Siren : All sounders on the system will be triggered when the system goes into alarm. Entry
and exit delays will also be audible.
Without Siren : Only sounders in the Keypad and Badge Reader will be triggered when the
system goes into alarm. Entry and Exit delays will also be audible.
Silent : No sounders will be triggered when the system goes into alarm. Only the Exit delay
will be audible.
Delay Beeps : Only Entry and Exit delays will sound.
YES
YES
YES
YES
ESC/NO
Press and hold ESC/NO for 5 seconds to return to the main
menu.
SP1
SP1

2011/11/28 E2.5 Installation Manual for XL600GPRS
17 | P a g e
How to Test to the Dispatch Center
Testing to the dispatch is done twice during installation. Once while you are programming the
system and then again once the installation has been completely finished. Although both will use the
same steps the initial test will be just confirmation using one device to verify the programming.
10/12/27 10:53
DISARMED LVL:3
ARMING THE
SYSTEM
SYSTEM ARMED
Enter a User code and press YES or present a badge to the
reader.
The system will sound the exit delay through the keypad and
badge reader.
INTRUSION
DETECTED
(DEVICE NAME)
(AREA)
The display will tell you that there has been an intrusion since
the last time the system was armed. Press YES to continue.
After pressing YES the keypad will tell you which device has
been triggered. Press YES to continue.
Once the delay has expired and the keypad says SYSTEM
ARMED, put motion in front of a MotionViewer. If the
MotionViewer is in area 1 you will need to wait for the entry
delay to expire before disarming the system. Once the
system has gone into alarm enter a User Code followed by
YES or present a badge to the reader to disarm.
The system will go back to the main menu automatically but
will not allow you to move around in programming until the
system has disconnected from the central station.
YES
YES
YES
YES
10/12/27 10:53
****
10/12/27 10:53
DISARMED LVL:3
SYSTEM ARMED
****
To verify that the system has transmitted you must contact
the Dispatch Center and have the account information ready
Note: Send 1 MotionViewer in at a time and verify with Central Station that they are
getting Alarm and Video before tripping another MotionViewer. This will save time with
the Central Station.

2011/11/28 E2.5 Installation Manual for XL600GPRS
18 | P a g e

2011/11/28 E2.5 Installation Manual for XL600GPRS
19 | P a g e

2011/11/28 E2.5 Installation Manual for XL600GPRS
20 | P a g e
