Firmware Version 8.7.22
460A-NNA4
Protocol Gateway
Product User Guide

Real Time Automation, Inc.
2
1-800-249-1612
Trademarks
CompactLogix, ControlLogix, & PLC-5 are registered trademarks of Rockwell Automation, Inc. EtherNet/IP is a trademark of the ODVA.
MicroLogix, RSLogix 500, and SLC are trademarks of Rockwell Automation, Inc. Microsoft, Windows, and Internet Explorer are registered
trademarks of Microsoft Corporation. BACnet®is a registered trademark of American Society of Heating, Refrigerating and Air-Conditioning
Engineers (ASHRAE). All other trademarks and registered trademarks are the property of their holders.
Limited Warranty
Real Time Automation, Inc. warrants that this product is free from defects and functions properly.
EXCEPT AS SPECIFICALLY SET FORTH ABOVE, REAL TIME AUTOMATION, INC. DISCLAIMS ALL OTHER WARRANTIES, BOTH
EXPRESSED AND IMPLIED, INCLUDING BUT NOT LIMITED TO IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR APPLICATION. THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER
RIGHTS, WHICH VARY FROM STATE TO STATE.
The examples and diagrams in this manual are included solely for illustrative purposes. Because of the many variables and requirements
associated with any particular application, Real Time Automation, Inc. cannot assume responsibility or liability for actual use based on the
examples and diagrams. Except as specifically set forth above, Real Time Automation and its distributors and dealers will in no event be liable
for any damages whatsoever, either direct or indirect, including but not limited to loss of business profits, income, or use of data. Some states
do not allow exclusion or limitation of incidental or consequential damages; therefore, the limitations set forth in this agreement may not apply
to you.
No patent liability is assumed by Real Time Automation with respect to use of information, circuits, equipment, or software described in this
manual.
Government End-Users
If this software is acquired by or on behalf of a unit or agency of the United States Government, this provision applies: The software (a) was
developed at private expense, is existing computer software, and was not developed with government funds; (b) is a trade secret of Real Time
Automation, Inc. for all purposes of the Freedom of Information Act; (c) is “restricted computer software” submitted with restricted rights in
accordance with subparagraphs (a) through (d) of the Commercial “Computer Software-Restricted Rights” clause at 52.227-19 and its
successors; (d) in all respects is proprietary data belonging solely to Real Time Automation, Inc.; (e) is unpublished and all rights are reserved
under copyright laws of the United States. For units of the Department of Defense (DoD), this software is licensed only with “Restricted Rights”:
as that term is defined in the DoD Supplement of the Federal Acquisition Regulation 52.227-7013 (c) (1) (ii), rights in Technical Data and
Computer Software and its successors, and: Use, duplication, or disclosures is subject to restrictions as set forth in subdivision (c) (1) (ii) of the
Rights in Technical Data and Computer Software clause at 52.227-7013. If this software was acquired under GSA schedule, the U.S.
Government has agreed to refrain from changing or removing any insignia or lettering from the Software or documentation that is provided or
from producing copies of the manual or media. Real Time Automation, Inc.
© 2021 Real Time Automation, Inc. All rights reserved.

Real Time Automation, Inc.
3
1-800-249-1612
Revision History ............................................................................................................................................5
Overview .......................................................................................................................................................6
Hardware Platforms......................................................................................................................................7
Hardware –NNA4 .....................................................................................................................................8
Powering the Gateway..............................................................................................................................8
Port Configuration.....................................................................................................................................9
Mounting with a DIN Rail............................................................................................................................10
Installing..................................................................................................................................................10
Removing ................................................................................................................................................10
Accessing the Main Page.............................................................................................................................11
Error: Main Page Does Not Launch.........................................................................................................12
Committing Changes to the Settings ..........................................................................................................13
Main Page ...................................................................................................................................................14
Device Configuration...................................................................................................................................15
Network Configuration ...............................................................................................................................16
ASCII Configuration.....................................................................................................................................17
Receive Data............................................................................................................................................18
Receive Data –Operation Mode.............................................................................................................19
Transmit Data..........................................................................................................................................20
Transmit Data –Triggering Methods ......................................................................................................21
ASCII Configuration –Technology Triggering Method................................................................................23
ASCII Configuration –ASCII Parsing ............................................................................................................25
ASCII Configuration –ASCII Parsing Examples ........................................................................................26
ASCII Configuration –ASCII Concatenating.............................................................................................28
ASCII Configuration –ASCII Concatenating Examples.............................................................................30
ASCII Configuration –ASCII Message Counter........................................................................................32
Mapping - Transferring Data Between Devices ..........................................................................................33
Display Mapping and Values.......................................................................................................................34
Display Data ............................................................................................................................................34
Display String...........................................................................................................................................37
Display String use case................................................................................................................................39
Data and String Mapping –Auto-Configure................................................................................................40
Data Mapping –Explanation.......................................................................................................................41
Data Mapping –Adding Diagnostic Information ........................................................................................42

Real Time Automation, Inc.
4
1-800-249-1612
String Mapping –Explanation.....................................................................................................................46
Mapping –Auto-Configure Mode to Manual Configure Mode ..................................................................47
Mapping –Manual Configure Mode to Auto-Configure Mode ..................................................................48
View as Text ................................................................................................................................................49
Data Mapping..........................................................................................................................................49
String Mapping........................................................................................................................................49
Base Triggering –Data Validiation Triggering.........................................................................................50
Security Configuration ................................................................................................................................52
Security Configuration-Security Levels ...................................................................................................53
Security - Log In.......................................................................................................................................54
Security - Log Out....................................................................................................................................54
Email Configuration ....................................................................................................................................55
Alarm Configuration....................................................................................................................................56
Diagnostics –Alarm Status......................................................................................................................58
Alarms –Active .......................................................................................................................................58
Alarms –Clear .........................................................................................................................................59
Change of State (COS) Configuration..........................................................................................................60
Diagnostics Info...........................................................................................................................................61
Diagnostics Mapping...............................................................................................................................61
Diagnostics –ASCII......................................................................................................................................62
LED Configuration .......................................................................................................................................67
Configuration Files ......................................................................................................................................68
Export Configuration...............................................................................................................................68
Import Configuration ..............................................................................................................................68
Save and Replace Configuration Using SD Card..........................................................................................70
Saving Configuration Using SD Card........................................................................................................70
Replacing Configuration Using SD Card ..................................................................................................70
Intelligent Reset Button..............................................................................................................................71
Utilities........................................................................................................................................................72

Real Time Automation, Inc.
5
1-800-249-1612
Revision History
Version
Date
Notes
8.4.5
11/18/2019
Features Added
1. Released OPC UA Server (US) Protocol
2. Ability to now Import/Export Template Files with out an FTP session.
Bug Fixes
1. Updated Profinet Server (PS) on N34 hardware Platform
2. Updated Wi-Fi software
8.6.0
2/28/20
Bug Fixes
1. Omron Plc Communication fixes for EtherNet/IP
2. Profinet GSDML Substitute values fix
8.7.4
9/1/20
Features Added:
1. BMS, BM, DFM, DS, DM, TCP, USB, PBS have been ported to the latest base software.
2. TCP,BMS,BM now Available on N2E and N2EW hardware Platform
3. New ASCII Mode Available on TCP/A/USB/WI protocols
4. User Guides updated with more examples
Bug Fixes:
1. Improved Data Mapping and String Mapping performance
2. Improved functionality/performance on EC,ETC,ES,MC,MS,BS,BC, A,,WI,PS protocols.
8.7.22
4/6/21
Features Added:
1. Support for RSLogix Versions 32 + with unsigned data type support
2. ETC now support Long integer files (L files) for MicroLogix PLCS that support them
3. SC now supports data block (DB) access

Real Time Automation, Inc.
6
1-800-249-1612
Overview
The 460A-NNA4 gateway connects up to two ASCII devices. By following this guide, you will be able to
configure the 460A-NNA4 gateway.
For further customization and advanced use, please reference the appendices located on the CD or
online at: http://www.rtautomation.com/product/460-gateway-support/.
If at any time you need further assistance, do not hesitate to call Real Time Automation support.
Support Hours are Monday-Friday 8am-5pm CST
Toll free: 1-800-249-1612
Email: [e-mail]

Real Time Automation, Inc.
7
1-800-249-1612
Hardware Platforms
The 460 Product Line supports a number of different hardware platforms. There are differences in how
they are powered, what serial settings are supported, and some diagnostic features supported (such as
LEDs). For these sections, be sure to identify the hardware platform you are using.

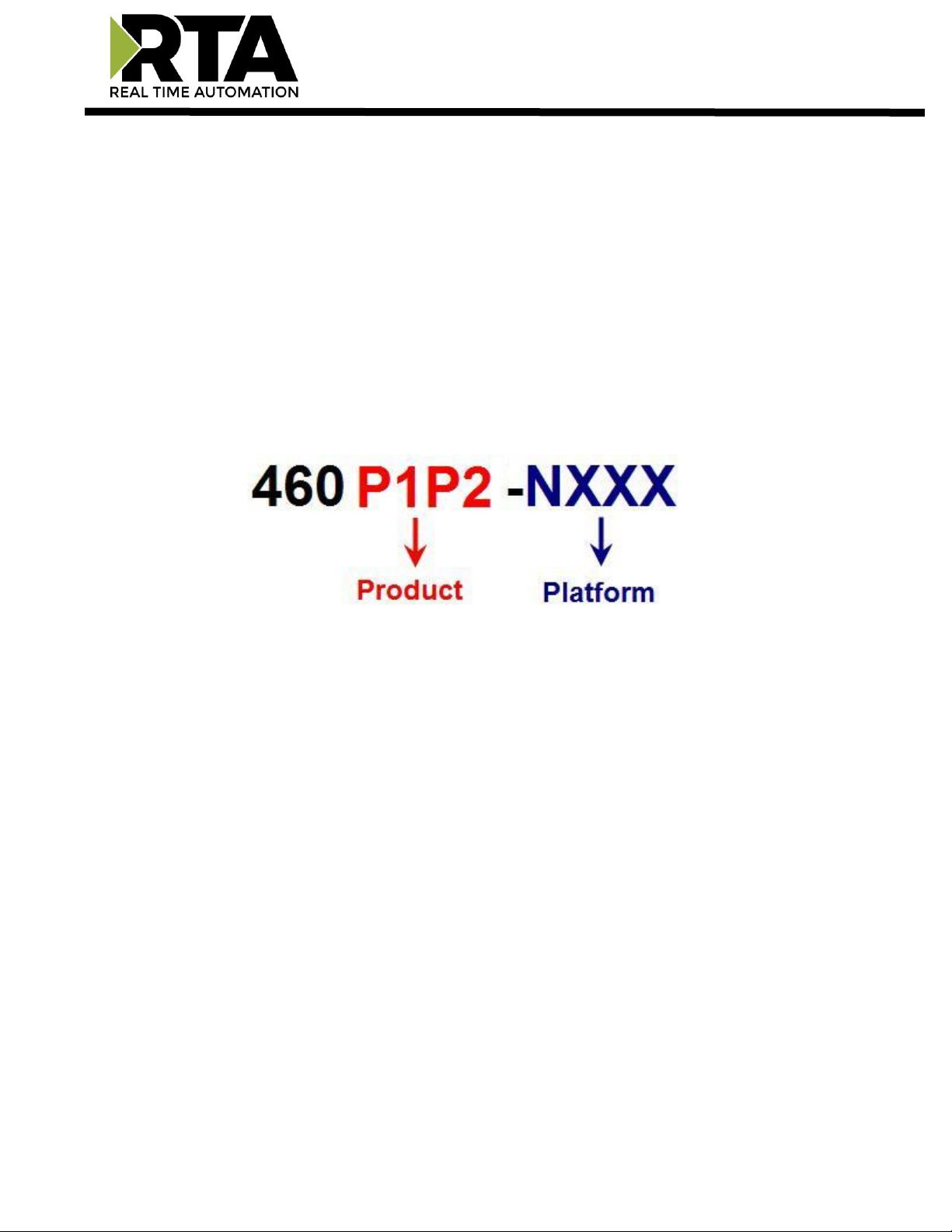

To find which hardware platform you are using:
1) Look on the front or back label of the unit for the part number.
2) On the webpage inside the gateway, navigate to the dropdown menu under Other and select
Utilities. Click the Listing of Revisions button. The full part number is displayed here.
Once you have the full part number, the platform will be the number following the “-N”:

Real Time Automation, Inc.
8
1-800-249-1612

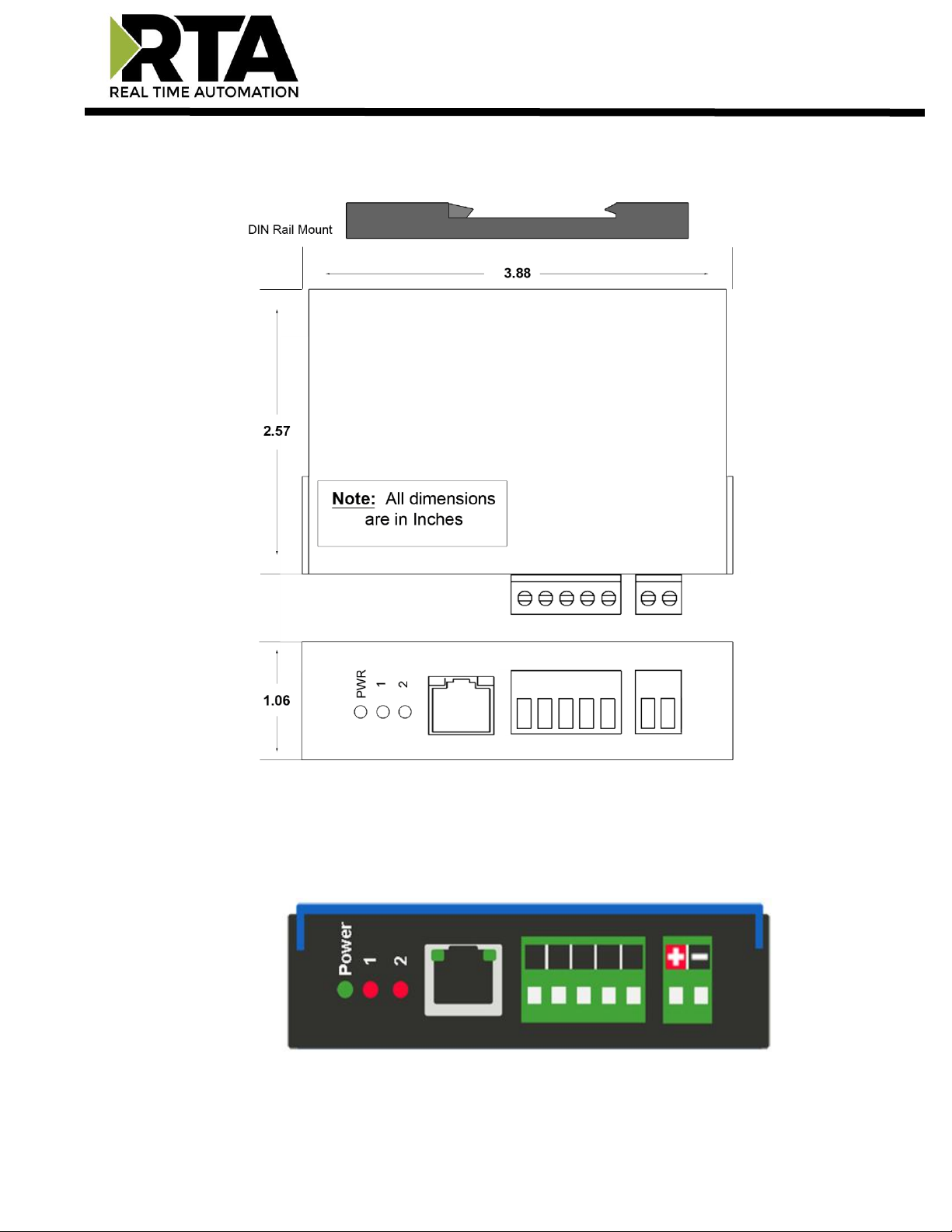

Hardware –NNA4
Powering the Gateway
1) Connect a 12-24 VDC power source to the gateway, Red Wire = (+) Black Wire = (-).
a) The unit draws 175mA @ 12 V.

Real Time Automation, Inc.
9
1-800-249-1612
Port Configuration
The Port Configuration page is where you set port specific parameters. These settings must match the
settings of the device(s) that you are connecting to.
When you have completed your port configuration, click the Save Parameters button.

Real Time Automation, Inc.
10
1-800-249-1612
Mounting with a DIN Rail
Installing
Follow these steps to install your interface converter.
1) Mount your DIN Rail.
2) Hook the bottom mounting flange under the DIN Rail.
3) While pressing the 460A-NNA4 against the rail, press up to engage the spring loaded lower clip and
rotate the unit parallel to the DIN Rail.
4) Release upward pressure.
Removing
Follow these steps to remove your interface converter.
1) Press up on unit to engage the spring loaded lower clip.
2) Swing top of the unit away from DIN Rail.
DIN Rail
Spring Loaded Lower Clip

Real Time Automation, Inc.
11
1-800-249-1612
Accessing the Main Page
The following steps will help you access the browser based configuration of the gateway. By default,
DHCP is enabled. If the gateway fails to obtain an IP address over DHCP it will Auto IP with 169.254.X.Y.
For more information on your Operating system network setting refer to the Access Browser
Configuration Doc on the CD or download from our support web site.
1) Insert the provided CD-ROM into a computer also on the network.
2) Run the IPSetup.exe program from the CD-ROM.
3) Find unit under “Select a Unit”.
a. Change Gateway’s IP address to match that of your PC if DHCP has failed.
i. You will know DHCP has failed if the gateway’s IP address is AutoIP at 169.254.X.Y.
ii. If successful, it will say DHCP’d at ex: 192.168.0.100 or however your DCHP Client is set up.
b. If you do not see the gateway in this tool, then your PC is most likely set up as a static IP.
i. Change your PC’s network settings to be DHCP. If DHCP fails, then it will change to be on the 169.254.x.y
network.
ii. Relaunch the IP Setup tool to see if gateway can be discovered now.
4) Click Launch Webpage. The Main page should appear.
Default setting is set to DHCP. If DHCP fails, default IP Address is 169.254.x.y

Real Time Automation, Inc.
12
1-800-249-1612

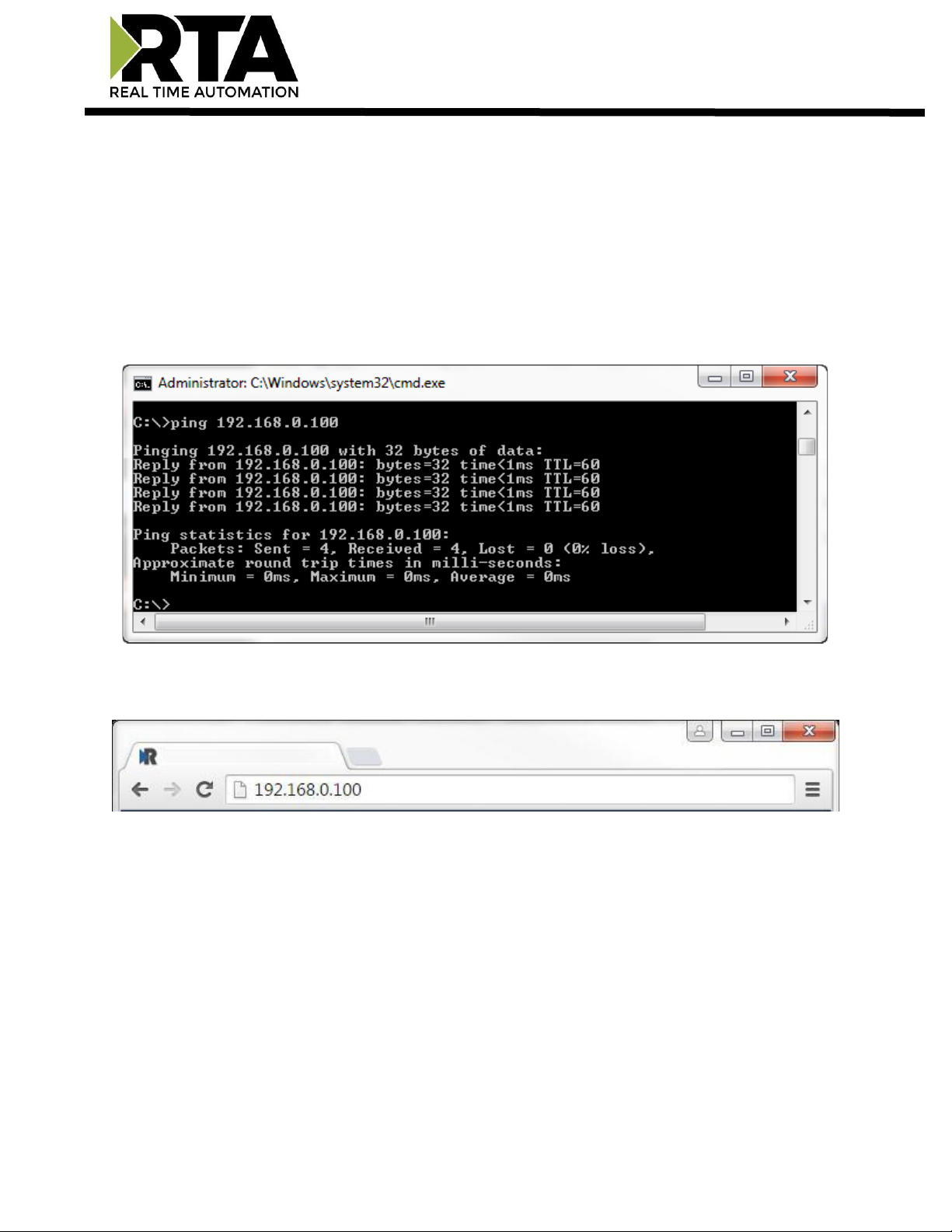

Error: Main Page Does Not Launch
If the Main Page does not launch, please verify the following:
1) Check that the PC is set for a valid IP Address
a. Open a MS-DOS Command Prompt
b. Type “ipconfig” and press enter
c. Note the PC’s IP Address, Subnet, and Default Gateway
2) The gateway must be on the same Network/Subnet as the PC whether it’s setup for DHCP or Static.
Once you have both devices on the same network, you should be able to ping the gateway using a MS-
DOS Command Prompt.
The Screenshot above shows a gateway that is currently set to a static IP Address of 192.168.0.100.
If you are able to successfully ping your gateway, open a browser and try to view the main page of the
gateway by entering the IP Address of the gateway as the URL.

Real Time Automation, Inc.
13
1-800-249-1612
Committing Changes to the Settings
•All changes made to the settings of the gateway in Configuration Mode will not take effect until the
gateway is restarted via the webpage. Changes will not be stored if the gateway’s power is removed
prior to a reboot.
•NOTE: The gateway does not need to be restarted after every change. Multiple changes can be made
before a restart, but they will not be committed until the gateway is restarted.
•When all desired changes have been made, press the Restart Now button.
•The webpage will redirect to our rebooting page shown below:
•The reboot can take up to 20 seconds.
oIf the IP address has not been modified, the gateway will automatically redirect to the main page.
oIf the IP address was modified, a message will appear at the top of the page to instruct the user to
manually open a new webpage at that new IP.

Real Time Automation, Inc.
14
1-800-249-1612
Main Page
The main page is where important information about your gateway and its connections are displayed.
Mode (orange box below):
Running Mode:
-Protocol communications are enabled
-Configuration cannot be changed during Running Mode. If changes are needed, click the Configuration
Mode button shown in the green box below
Configuring Mode:
-Protocol communication is stopped and no data is transmitted
-Configuration is allowed
Navigation (green box below):
You can easily switch between modes and navigate between pages (Configuration, Diagnostics, and
Other pages) using the buttons on the left hand side.

Real Time Automation, Inc.
15
1-800-249-1612
Device Configuration
The device configuration area is where you assign the device description parameter. Changes can only
be made when the gateway is in Configuration Mode.
Once you are done configuring the Description, click the Save Parameters button.

Real Time Automation, Inc.
16
1-800-249-1612
Network Configuration
The network configuration area is where you assign the IP address and other network parameters.
Changes can only be made when the gateway is in Configuration Mode.
Once you are done configuring the Network Settings, click the Save Parameters button.
If you are changing the IP Address of the gateway, the change will not take effect until the unit has been
rebooted. After reboot, you must enter the new IP Address into the URL.
It is recommended to leave the DNS Gateway set to 0.0.0.0 and the Ethernet Link as
Auto-Negotiate. If configuring the gateway to use E-mail, the DNS Gateway must be
set.

Real Time Automation, Inc.
17
1-800-249-1612
ASCII Configuration
After the port Configuration has been completed, click the ASCII button to continue configuration.
1) To add an ASCII device, or additional ASCII devices, click the -Select- dropdown menu under ASCII
Configuration and select Add Generic ASCII option.
a) To remove a device, navigate to the ASCII device to delete using the << and >> buttons and click
the Delete ASCII Device button.
b) To create a new ASCII device with the same parameters already configured from another ASCII
device, click the -Select- dropdown menu and select the Add from ASCII X option (where X
represents the ASCII device you wish to copy parameters from).
c) Once created, you can make any additional changes needed to that new ASCII device.
2) The Enable check box should be selected for the device.
3) Port: Select which port is being used for communication. This port must be configured on the
Port/USB or TCP/IP (depending on your product) Configuration page. If it has not yet been
configured, it will not display in this dropdown.
4) Enter a Device Label to identify the device within the gateway.
5) LED Inactivity Timeout: Enter the amount of time, in seconds, to wait before flashing the LED red
indicating that no messages have been received or transmitted during this time.
6) Operation Mode:
a. Mark Data New on Change of State: Send data to the mating technology, on a per point basis,
upon a change of state. For more explanation see the Receive Data –Operation Mode section
below.
b. Mark Data New on New Message: Send data to the mating technology for all data points, no
matter change of state or not. For more explanation see the Receive Data –Operation Mode
section below.

Real Time Automation, Inc.
18
1-800-249-1612
Receive Data
This side is configured to receive data from the ASCII device into the gateway.
Use the following fields to determine when a message has been received.
1) Enable: Check this box to configure the Receive Data section.
2) Max Message Length: Enter the max number of characters that can be received by the gateway.
Example: Max Message Length is set to 5 and the message of "helloworld" was sent by the ASCII
device. This will be sent to the other protocol as "hello" followed by "world" as two messages.
3) Receive Character Timeout: Enter the max amount of time (in ms) between characters that the
gateway will wait before issuing a timeout and calling the message complete.
Example: If Max Message Length varies in size, then use a timeout to call the message complete
rather than message length. You can also use End Delimiters (below) to call a message complete.
4) Number of Start Delimiters: Select the number of delimiters that the gateway should look for
before the gateway processes the data.
5) Select Start Delimiters: Select the Start Delimiters that the gateway should look for.
6) Number of End Delimiters: Select the number of delimiters that the gateway should look for to call
a message complete.
7) Select End Delimiters: Select the End Delimiters that the gateway should look for.
8) Remove Delimiters from ASCII Message: If checked, the gateway will remove all delimiters that
have been configured before sending it to the other protocol.
9) ASCII Parsing (Optional): Additional parsing can be performed on the string before being passed to
the other protocol. See the ASCII Configuration - ASCII Parsing section for more information.

Real Time Automation, Inc.
19
1-800-249-1612
10) Gateway Hold Msg Timeout: Enter the amount of time (in ms) to wait before sending a new
message to the other protocol.
11) Queue Full Behavior: Select which message to discard when the queue is full. Once the queue is full,
the gateway will discard either the oldest or newest message (Only used if Gateway Hold Msg
Timeout is non-zero).
12) Queue Size: Select how many complete messages the gateway will hold before starting to discard
(Only used if Gateway Hold Msg Timeout is non-zero).
Receive Data –Operation Mode
Mark Data New on Change of State (COS)
When data comes into the RTA gateway, then it will be sent over to the matting protocol only if the data
has a different value.
Example for 460ETCA
Operator scans “HelloWorld” with a barcode scanner. That data is gathered in the ASCII side of
the RTA gateway, and is then processed and sent over to the ETC side and written over to the Allen-
Bradley PLC. Next time the operator scans the same barcode “HelloWorld”. The ASCII side gathers the
data, but the data didn’t change so it will not be sent over to the ETC portion of the RTA gateway. The
operator scans “1234567890” with the barcode scanner. The ASCII side of the RTA gateway will process
the data and since the data has changed it will be sent over to ETC and sent over to the PLC.
Mark Data New on New Message
When data comes into the RTA gateway, it will be sent over to the matting protocol regardless if it’s the
same data. This allow you to send the same data over again to the mating protocol.
Example ETCA
Operator scans “HelloWorld” with a barcode scanner. That data is gathered in the ASCII side of
the RTA gateway, and is then processed and sent over to the ETC side and written over to the Allen-
Bradley PLC. Next time the operator scans the same barcode “HelloWorld”. The ASCII side gathers the
data, processes it, then sends it over to the ETC portion of the RTA gateway to be sent out. If the
operator scans “1234567890”, the ASCII side of the RTA gateway will process the data and send it over
to ETC side and to the PLC.

Real Time Automation, Inc.
20
1-800-249-1612
Transmit Data
This side is configured to transmit data from the gateway into the ASCII device.
Use the following setup fields to help the 460 transmit an ASCII message.
1) Enable: Check this box to configure the Transmit Data section.
2) Max Message Length: Enter the max number of characters that can be transmitted by the gateway.
3) Transmit Timeout: Enter the amount of time (in ms) that the gateway waits before sending an ASCII
message (0 Sends Immediately). If the data has changed before the time expires, the gateway
immediately sends the message to the ASCII device.
4) Delay Between Messages: Enter the amount of time (in ms) that the gateway waits before verifying
a Change of State of the ASCII message OR will start the Transmit Timeout.
5) Number of Start Delimiters: Select the number of delimiters that will be added onto the beginning
of the ASCII string.
6) Select Start Delimiters: Select the Start Delimiters that should be added to the ASCII string.
7) Number of End Delimiters: Select the number of delimiters that will be added onto the end of the
ASCII string.
8) Select End Delimiters: Select the End Delimiters that should be added to the ASCII string.
9) ASCII Concatenating (Optional): Additional concatenating can be performed on the string before
being written to the ASCII device. See the ASCII Configuration - ASCII Concatenating section for more
information.
