Overview
The 460EC-NNA4 gateway interconnect up to 32 Ethernet/IP devices. By following this guide, you will be
able to configure the 460EC-NNA4 gateway.
Number of ASCII devices is dependent on the Hardware and Product number of the 460 gateway.
For further customization and advanced use, please reference the appendices located on the CD or
online at: http://www.rtautomation.com/product/460-gateway-support/.
If at any time you need further assistance, do not hesitate to call Real Time Automation support.
Support Hours are Monday-Friday 8am-5pm CST
Toll free: 1-800-249-1612
Email: [e-mail]

Real Time Automation, Inc.
7
1-800-249-1612
Hardware Platforms

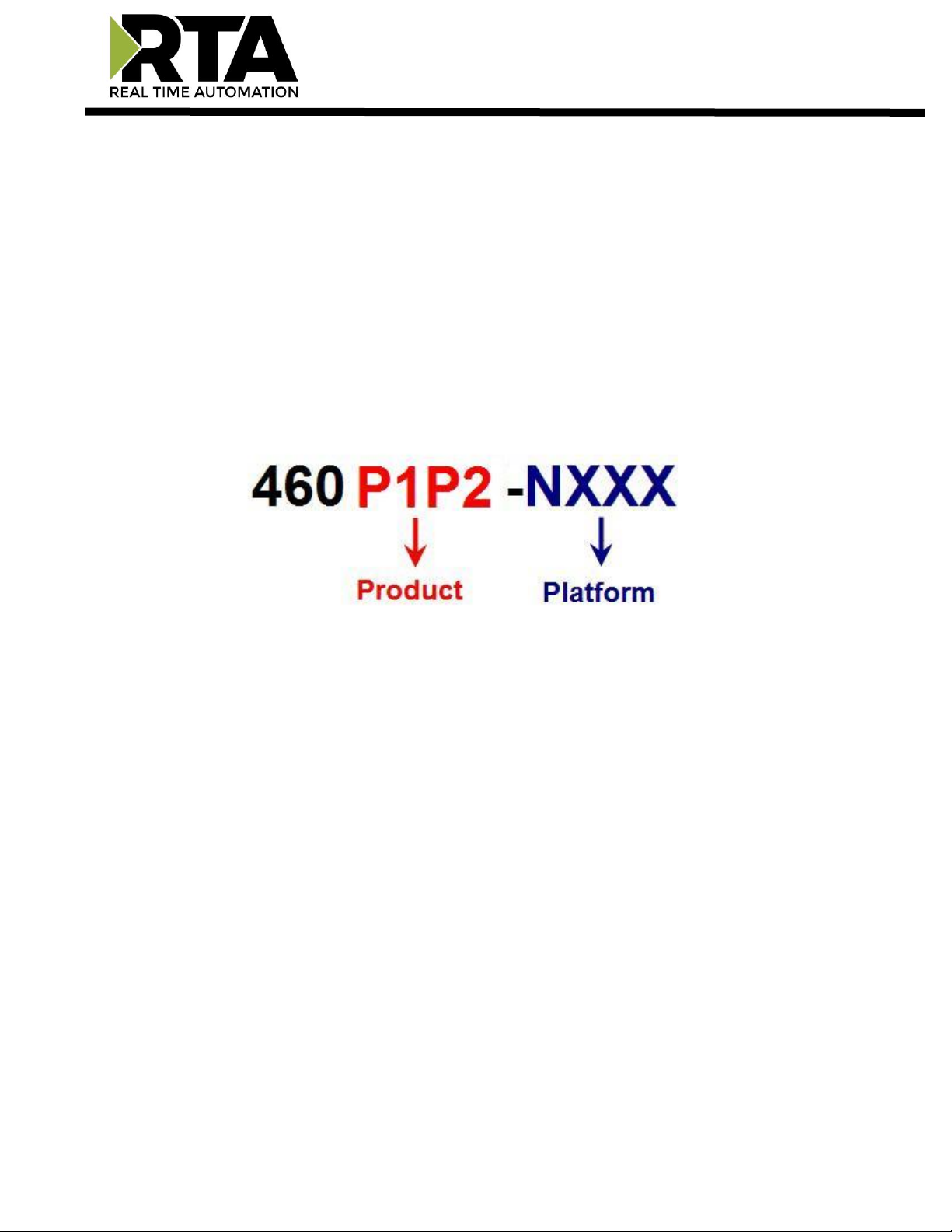

The 460 Product Line supports a number of different hardware platforms. There are differences in how
they are powered, what serial settings are supported, and some diagnostic features supported (such as
LEDs). For these sections, be sure to identify the hardware platform you are using.
To find which hardware platform you are using:
1) Look on the front or back label of the unit for the part number.
2) On the webpage inside the gateway, navigate to the dropdown menu under Other and select
Utilities. Click the Listing of Revisions button. The full part number is displayed here.
Once you have the full part number, the platform will be the number following the “-N”:

Real Time Automation, Inc.
8
1-800-249-1612

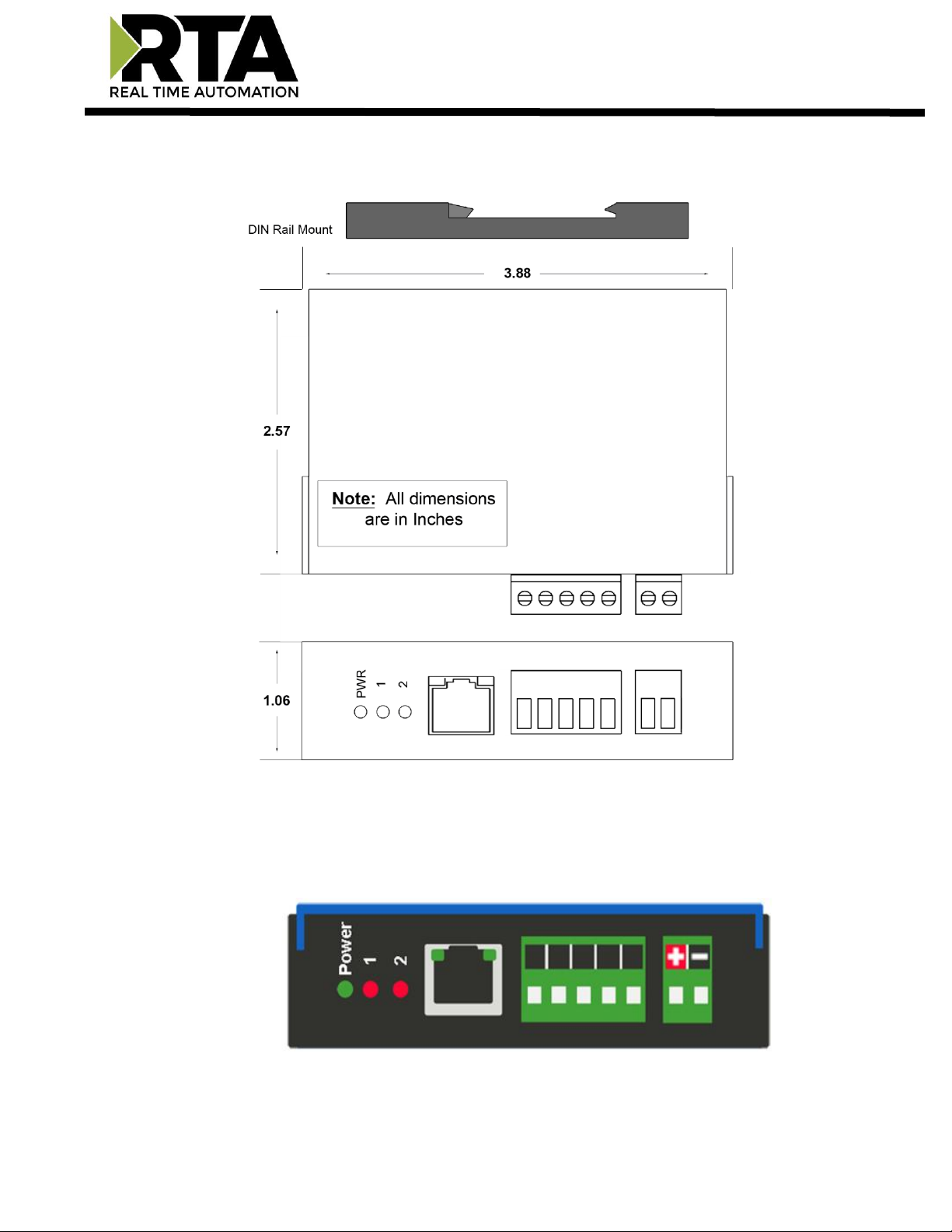

Hardware –NNA4
Powering the Gateway
1) Connect a 12-24 VDC power source to the gateway, Red Wire = (+) Black Wire = (-).
a) The unit draws 175mA @ 12 V.

Real Time Automation, Inc.
9
1-800-249-1612
Port Configuration
The Port Configuration page is where you set port specific parameters. These settings must match the
settings of the device(s) that you are connecting to.
When you have completed your port configuration, click the Save Parameters button.

Real Time Automation, Inc.
10
1-800-249-1612

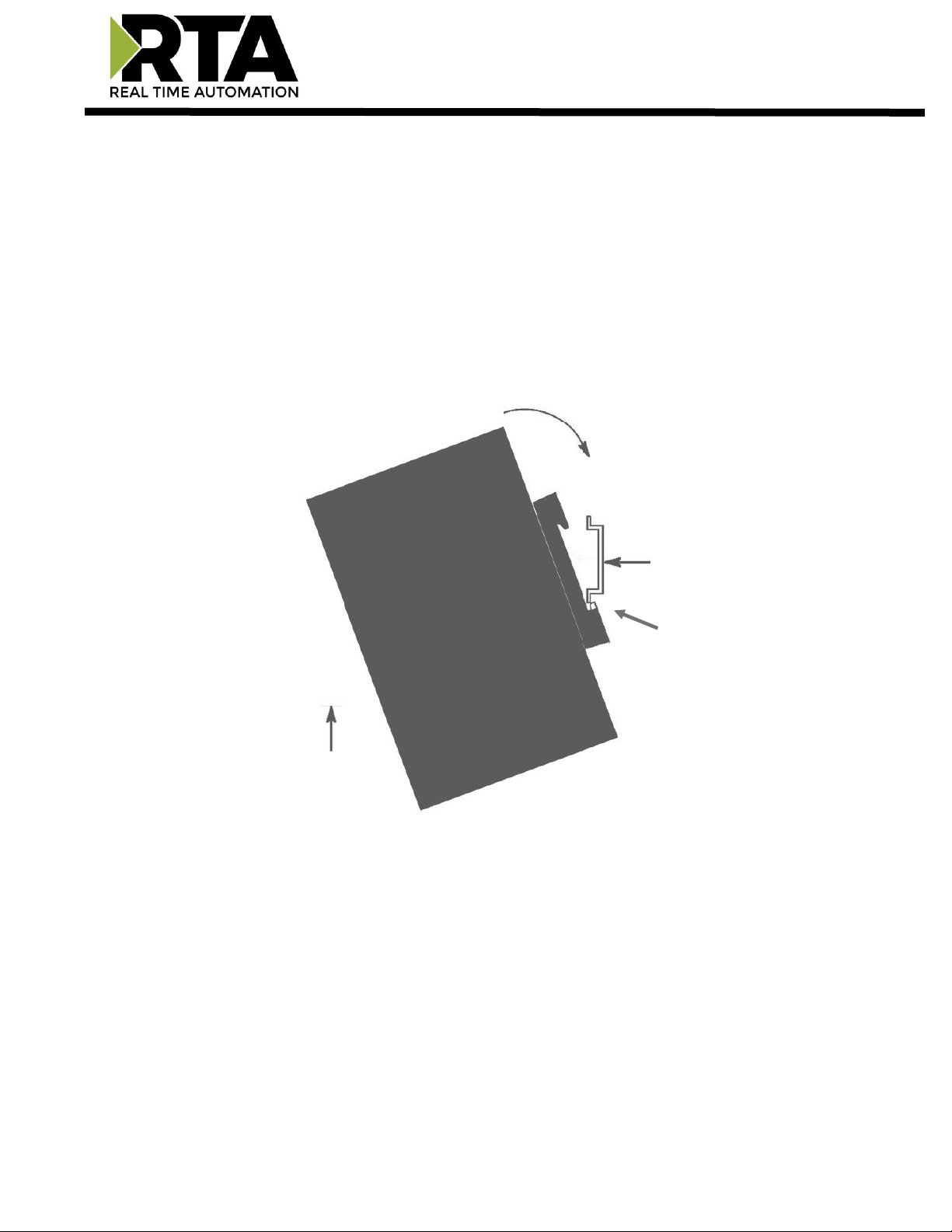

Mounting with a DIN Rail
Installing
Follow these steps to install your interface converter.
1) Mount your DIN Rail.
2) Hook the bottom mounting flange under the DIN Rail.
3) While pressing the 460EC-NNA4 against the rail, press up to engage the spring loaded lower clip and
rotate the unit parallel to the DIN Rail.
4) Release upward pressure.
Removing
Follow these steps to remove your interface converter.
1) Press up on unit to engage the spring loaded lower clip.
2) Swing top of the unit away from DIN Rail.
DIN Rail
Spring Loaded Lower Clip

Real Time Automation, Inc.
11
1-800-249-1612

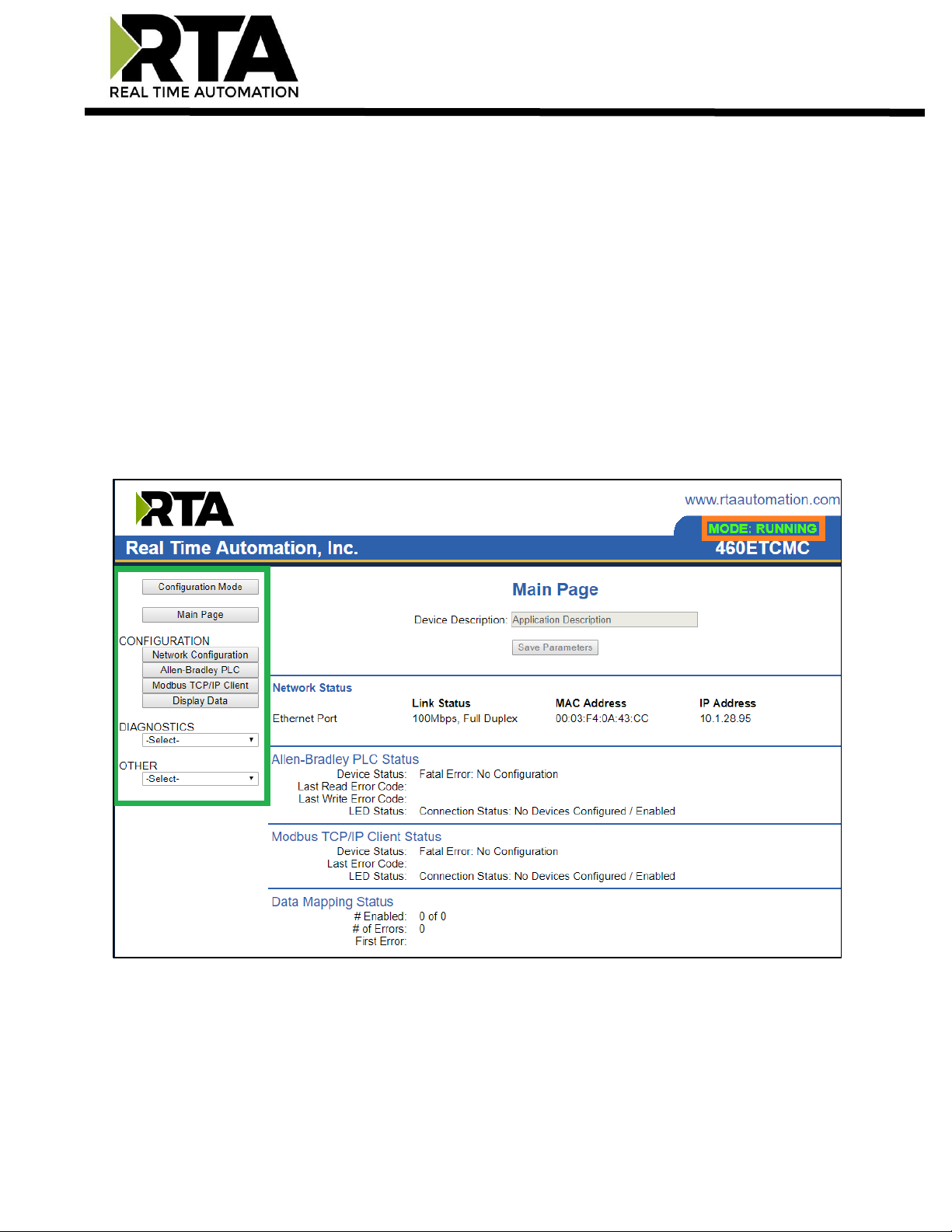

Accessing the Main Page
The following steps will help you access the browser based configuration of the gateway. By default,
DHCP is enabled. If the gateway fails to obtain an IP address over DHCP it will Auto IP with 169.254.X.Y.
For more information on your Operating system network setting refer to the Access Browser
Configuration Doc on the CD or download from our support web site.
1) Insert the provided CD-ROM into a computer also on the network.
2) Run the IPSetup.exe program from the CD-ROM.
3) Find unit under “Select a Unit”.
a. Change Gateway’s IP address to match that of your PC if DHCP has failed.
i. You will know DHCP has failed if the gateway’s IP address is AutoIP at 169.254.X.Y.
ii. If successful, it will say DHCP’d at ex: 192.168.0.100 or however your DCHP Client is set up.
b. If you do not see the gateway in this tool, then your PC is most likely set up as a static IP.
i. Change your PC’s network settings to be DHCP. If DHCP fails, then it will change to be on the
169.254.x.y network.
ii. Relaunch the IP Setup tool to see if gateway can be discovered now.
4) Click Launch Webpage. The Main page should appear.
Default setting is set to DHCP. If DHCP fails, default IP Address is 169.254.x.y

Real Time Automation, Inc.
12
1-800-249-1612
Error: Main Page Does Not Launch
If the Main Page does not launch, please verify the following:
1) Check that the PC is set for a valid IP Address
a. Open a MS-DOS Command Prompt
b. Type “ipconfig” and press enter
c. Note the PC’s IP Address, Subnet, and Default Gateway
2) The gateway must be on the same Network/Subnet as the PC whether it’s setup for DHCP or Static.
Once you have both devices on the same network, you should be able to ping the gateway using a MS-
DOS Command Prompt.
The Screenshot above shows a gateway that is currently set to a static IP Address of 192.168.0.100.
If you are able to successfully ping your gateway, open a browser and try to view the main page of the
gateway by entering the IP Address of the gateway as the URL.

Real Time Automation, Inc.
13
1-800-249-1612
Committing Changes to the Settings
All changes made to the settings of the gateway in Configuration Mode will not take effect until the
gateway is restarted via the webpage. Changes will not be stored if the gateway’s power is removed
prior to a reboot.
NOTE: The gateway does not need to be restarted after every change. Multiple changes can be made
before a restart, but they will not be committed until the gateway is restarted.
When all desired changes have been made, press the Restart Now button.

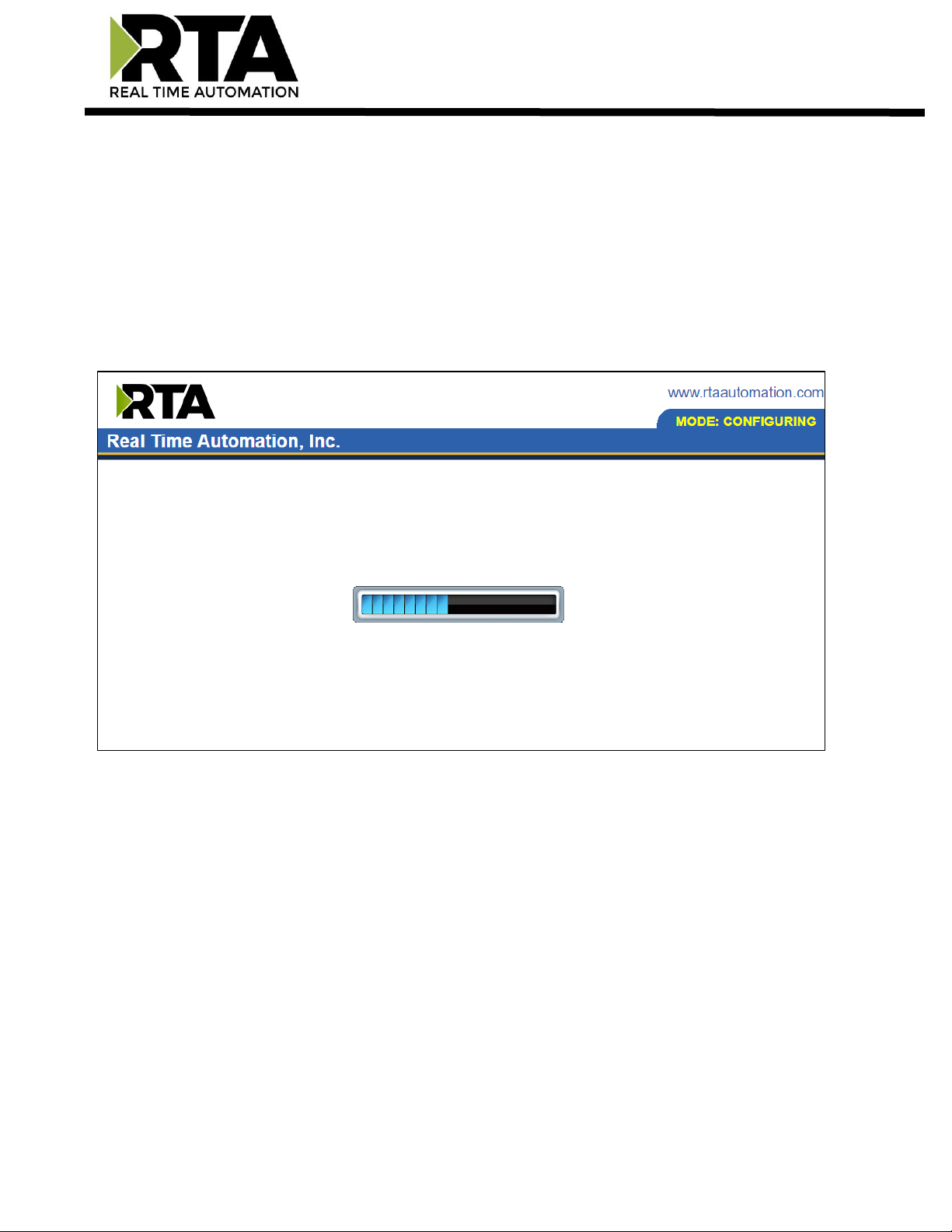

The webpage will redirect to our rebooting page shown below:
The reboot can take up to 20 seconds.
If the IP address has not been modified, the gateway will automatically redirect to the main page.
If the IP address was modified, a message will appear at the top of the page to instruct the user to
manually open a new webpage at that new IP.

Real Time Automation, Inc.
14
1-800-249-1612
Main Page
The main page is where important information about your gateway and its connections are displayed.
Mode (orange box below):
Running Mode:
•Protocol communications are enabled
•Configuration cannot be changed during Running Mode. If changes are needed, click the
Configuration Mode button shown in the green box below
Configuring Mode:
•Protocol communication is stopped and no data is transmitted
•Configuration is allowed
Navigation (green box below):
You can easily switch between modes and navigate between pages (Configuration, Diagnostics, and
Other pages) using the buttons on the left hand side.

Real Time Automation, Inc.
15
1-800-249-1612
Device Configuration
The device configuration area is where you assign the device description parameter. Changes can only
be made when the gateway is in Configuration Mode.
Once you are done configuring the Description, click the Save Parameters button.

Real Time Automation, Inc.
16
1-800-249-1612
Network Configuration
The network configuration area is where you assign the IP address and other network parameters.
Changes can only be made when the gateway is in Configuration Mode.
Once you are done configuring the Network Settings, click the Save Parameters button.
If you are changing the IP Address of the gateway, the change will not take effect until the unit has been
rebooted. After reboot, you must enter the new IP Address into the URL.
It is recommended to leave the DNS Gateway set to 0.0.0.0 and the Ethernet Link as
Auto-Negotiate. If configuring the gateway to use E-mail, the DNS Gateway must be
set.

Real Time Automation, Inc.
17
1-800-249-1612
EtherNet/IP Scanner Configuration
Click the EIP Scanner button to access the configuration page.
1) Network Interface: Select which network you wish to communicate with EtherNet/IP scanner. If
using single port hardware, the Network Interface will default to Ethernet Port only.
2) Delay Between Connect Attempts: Enter the amount of time the gateway will delay between
attempts to make a connection.
3) Dependency Protocol: If enabled, EtherNet/IP communication will stop if communication to the
selected protocol is lost.

Real Time Automation, Inc.
18
1-800-249-1612
EtherNet/IP Scanner Device Configuration
The bottom area of the EtherNet/IP Scanner Configuration page lets you configure up to 32 external
EtherNet/IP adapter devices.
1) To add additional adapter connections, click the -Select- dropdown under EtherNet/IP Scanner
Device List and select Add Generic Adapter option.
a. If you are configuring multiple devices click << or >> to navigate to another device.
b. To create a new adapter with the same parameters already configured from another
adapter, click the -Select- dropdown and select the Add from Adapter X option (where X
represents the adapter you wish to copy parameters from). Once created, you can make
any additional changes needed to that new adapter.
c. To remove a device, navigate to the adapter to delete using the << and >> buttons and
click the Delete Adapter button.
d. Click the Save Parameters button to save change before restarting or going to another
configuration page.
2) The Enable check box should be selected for the device.
3) Enter a Device Label to identify the device within the gateway.
4) Enter the unique IP Address that matches the adapter. If this value doesn’t match, the gateway
will timeout.
5) Select the TCP Mode to use.
a. Close: This will force the TCP connection used to open the I/O connection to close
immediately after the connection is established. This is the default value.
b. Open: This will keep the TCP connection open while the I/O connection is open. Use this
mode if the adapter device does not remove the I/O UDP traffic versus TCP dependency
–this is possible with legacy devices.
6) Enter the Configuration Instance that matches the I/O adapter (if used). Many devices use 1 as a
place holder when configuration isn’t needed.
7) Configuration Size: Configuration data is not currently supported.

Real Time Automation, Inc.
19
1-800-249-1612
Configuring Input Instance
Follow these steps to manually configure the Input Instance.
1) Select View Input Instance if not already selected.
2) Run Idle Header: Check this box if the I/O adapter’s data contains information about the validity
of the input data. Default value is unchecked since most devices don’t use this.
3) Request Packet Interval (RPI): This is the amount of time between each read/write request to
the adapter. If this value is faster than the adapter supports, an error will occur.
4) Input Instance: This is the input instance defined by the I/O adapter device. This must match for
proper communication.
5) Priority: Select the appropriate value as defined by the I/O adapter. Default value is scheduled.
6) Connection Type: Select the type of TCP connection to the I/O adapter.
a. Unicast: This means the gateway will communicate directly to the I/O adapter’s IP
address. Set by default.
b. Multicast: This means the gateway will communicate using a class D IP address. This
option requires IGMP snooping and managed switches for proper functionality.
7) Select a Data Type and enter the number of Data Elements that the instance allows for to make
the data meaningful. The number of data elements must match the values set by the I/O
adapter for the Input Instance requested. See data limits for the various data types below.

Real Time Automation, Inc.
20
1-800-249-1612
Configuring Output Instance
Follow these steps to manually configure the Output Instance.
1) Select View Output Instance if not already selected.
2) Run Idle Header: Check this box if the I/O adapter’s data contains information about the validity
of the output data. Default value is checked since most devices use this.
3) Request Packet Interval (RPI): This is the amount of time between each read/write request to
the adapter. If this value is faster than the adapter supports, an error will occur.
4) Output Instance: This is the output instance defined by the I/O adapter device. This must match
for proper communication.
5) Priority: Select the appropriate value as defined by the I/O adapter. Default value is scheduled.
6) Connection Type: Select the type of TCP connection to the I/O adapter.
a. Unicast: This means the gateway will communicate directly to the I/O adapter’s IP
address. Set by default.
b. Multicast: Not supported for this direction.
7) Select a Data Type and enter the number of Data Elements that the instance allows for to make
the data meaningful. The number of data elements must match the values set by the I/O
adapter for the Output Instance requested. See data limits for the various data types below.
