Overview
The 460ESDFM-N2EW gateway connects an EtherNet/IP Scanner with as many as 32 DF1 Slaves. By
following this guide, you will be able to configure the 460ESDFM-N2EW gateway.
Number of ASCII devices is dependent on the Hardware and Product number of the 460 gateway.
For further customization and advanced use, please reference the appendices located on the CD or
online at: http://www.rtautomation.com/product/460-gateway-support/.
If at any time you need further assistance, do not hesitate to call Real Time Automation support.
Support Hours are Monday-Friday 8am-5pm CST
Toll free: 1-800-249-1612
Email: [e-mail]

Real Time Automation, Inc.
8
1-800-249-1612
Hardware Platforms
The 460 Product Line supports a number of different hardware platforms. There are differences in how
they are powered, what serial settings are supported, and some diagnostic features supported (such as
LEDs). For these sections, be sure to identify the hardware platform you are using.
To find which hardware platform you are using:
1) Look on the front or back label of the unit for the part number.
2) On the webpage inside the gateway, navigate to the dropdown menu under Other and select
Utilities. Click the Listing of Revisions button. The full part number is displayed here.
Once you have the full part number, the platform will be the number following the “-N”:

Real Time Automation, Inc.
9
1-800-249-1612
Hardware –N2EW
Powering the Gateway
The following steps will allow you to properly and safely power the gateway.
1)
2)
1) Connect a 12-24 VDC power source to the gateway, Red Wire = (+) Black Wire = (-).
a) The unit draws 8 VDC 900mA (7.2W) Max
b) The unit draws 35 VDC 900mA (31.5W) Max
c) The gateway has a voltage operating range from 8-35 VDC, 24 VDC is recommended.
Warning: Improper wiring will cause unit
failure! Use the Screw Terminals power
connection!

Real Time Automation, Inc.
10
1-800-249-1612
Hazardous Environment Power & Installation Instructions
This equipment is suitable for use in Class I, Division 2, Groups A, B, C and D, or non-hazardous locations only.
WARNING –EXPLOSION HAZARD - Do not disconnect equipment unless power has been removed or the area is
known to be non-hazardous.
WARNING –EXPLOSION HAZARD - Substitution of components may impair suitability for Class I, Division 2.
THIS EQUIPMENT IS AN OPEN-TYPE DEVICE AND IS MEANT TO BE INSTALLED IN AN ENCLOSURE SUITABLE
FOR THE ENVIRONMENT SUCH THAT THE EQUIPMENT IS ONLY ACCESSIBLE WITH THE USE OF A TOOL.
WARNING –POWER JACK (Screw Terminals, J7) IS FOR MAINTENANCE USE ONLY AND MAY ONLY BE USED WHILE
THE AREA IS KNOWN TO BE FREE OF IGNITIBLE CONCENTRATIONS OF FLAMMABLE GASES OR VAPORS. IT IS NOT TO
BE CONNECTED UNDER NORMAL OPERATION.
In Hazardous Environments the unit must be powered with between 8-35 VDC, 8 VDC @ 900 mA (7.2 W) max.
Supervised. The unit is certified to be operated at -40C to 50°C.
Instructions d’alimentation et d’installation pour environnement
dangereux
Cet équipement est conçu pour être utilisé uniquement dans des lieux de classe I, division 2, groupes A, B, C et D,
ou non dangereux.
AVERTISSEMENT - RISQUE D'EXPLOSION - Ne débranchez pas l'équipement à moins que le courant ne soit coupé
ou que la zone ne présente aucun danger.
AVERTISSEMENT - RISQUE D'EXPLOSION - La substitution de composants peut compromettre l'adéquation à la
classe I, division 2.
CET APPAREIL EST UN DISPOSITIF DE TYPE OUVERT ET IL FAUT L'INSTALLER DANS UN ENCEINTE ADAPTÉ À
L'ENVIRONNEMENT TEL QU'IL N'EST ACCESSIBLE À L'UTILISATION D'UN OUTIL.
AVERTISSEMENT - LE POWER JACK (bornes à vis, J7) est destiné exclusivement à la maintenance et ne peut être
utilisé que lorsque la zone est connue pour être exempte de concentrations inintéressantes de gaz ou de vapeurs
inflammables. IL NE DOIT PAS ÊTRE CONNECTÉ SOUS UN FONCTIONNEMENT NORMAL.
Dans les environnements dangereux, l'unité doit être alimentée entre 8-35 VDC, 8 VDC @ 900 mA (7,2 W) max.
Supervisé. L'appareil est certifié pour fonctionner entre -40 ° C et 50 ° C.

Real Time Automation, Inc.
11
1-800-249-1612
Port Configuration
The Port Configuration page is where you set port specific parameters. These settings must match the
settings of the device(s) that you are connecting to.
Only 1 mode can be configured for this hardware. Below are the wiring pinouts for each mode.
When you have completed your port configuration, click the Save Parameters button.
RS232 pinouts:
RS485 pinouts:

Real Time Automation, Inc.
12
1-800-249-1612

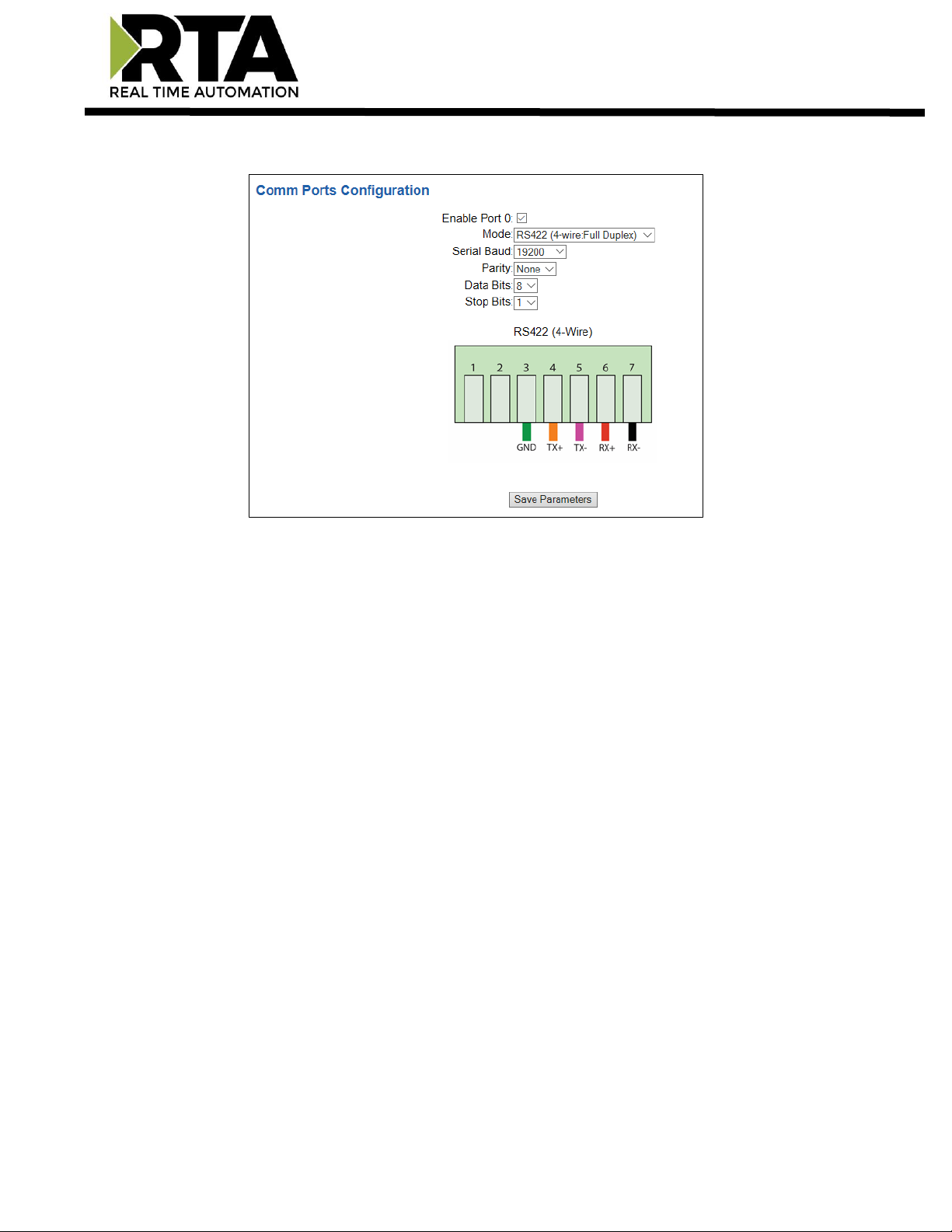

RS422 pinouts:

Real Time Automation, Inc.
13
1-800-249-1612
Mounting with a DIN Rail
Installing
Follow these steps to install your interface converter.
1) Mount your DIN Rail.
2) Hook the bottom mounting flange under the DIN Rail.
3) While pressing the 460ESDFM-N2EW against the rail, press up to engage the spring loaded lower clip
and rotate the unit parallel to the DIN Rail.
4) Release upward pressure.
Removing
Follow these steps to remove your interface converter.
1) Press up on unit to engage the spring loaded lower clip.
2) Swing top of the unit away from DIN Rail.
DIN Rail
Spring Loaded Lower Clip

Real Time Automation, Inc.
14
1-800-249-1612
Accessing the Main Page
The following steps will help you access the browser based configuration of the gateway. By default,
DHCP is enabled. If the gateway fails to obtain an IP address over DHCP it will Auto IP with 169.254.X.Y.
For more information on your Operating system network setting refer to the Access Browser
Configuration Doc on the CD or download from our support web site.
1) Insert the provided CD-ROM into a computer also on the network.
2) Run the IPSetup.exe program from the CD-ROM.
3) Find unit under “Select a Unit”.
a. Change Gateway’s IP address to match that of your PC if DHCP has failed.
i. You will know DHCP has failed if the gateway’s IP address is AutoIP at 169.254.X.Y.
ii. If successful, it will say DHCP’d at ex: 192.168.0.100 or however your DCHP Client is set up.
b. If you do not see the gateway in this tool, then your PC is most likely set up as a static IP.
i. Change your PC’s network settings to be DHCP. If DHCP fails, then it will change to be on the
169.254.x.y network.
ii. Relaunch the IP Setup tool to see if gateway can be discovered now.
4) Click Launch Webpage. The Main page should appear.
Default setting is set to DHCP. If DHCP fails, default IP Address is 169.254.x.y

Real Time Automation, Inc.
15
1-800-249-1612
Error: Main Page Does Not Launch
If the Main Page does not launch, please verify the following:
1) Check that the PC is set for a valid IP Address
a. Open a MS-DOS Command Prompt
b. Type “ipconfig” and press enter
c. Note the PC’s IP Address, Subnet, and Default Gateway
2) The gateway must be on the same Network/Subnet as the PC whether it’s setup for DHCP or Static.
Once you have both devices on the same network, you should be able to ping the gateway using a MS-
DOS Command Prompt.

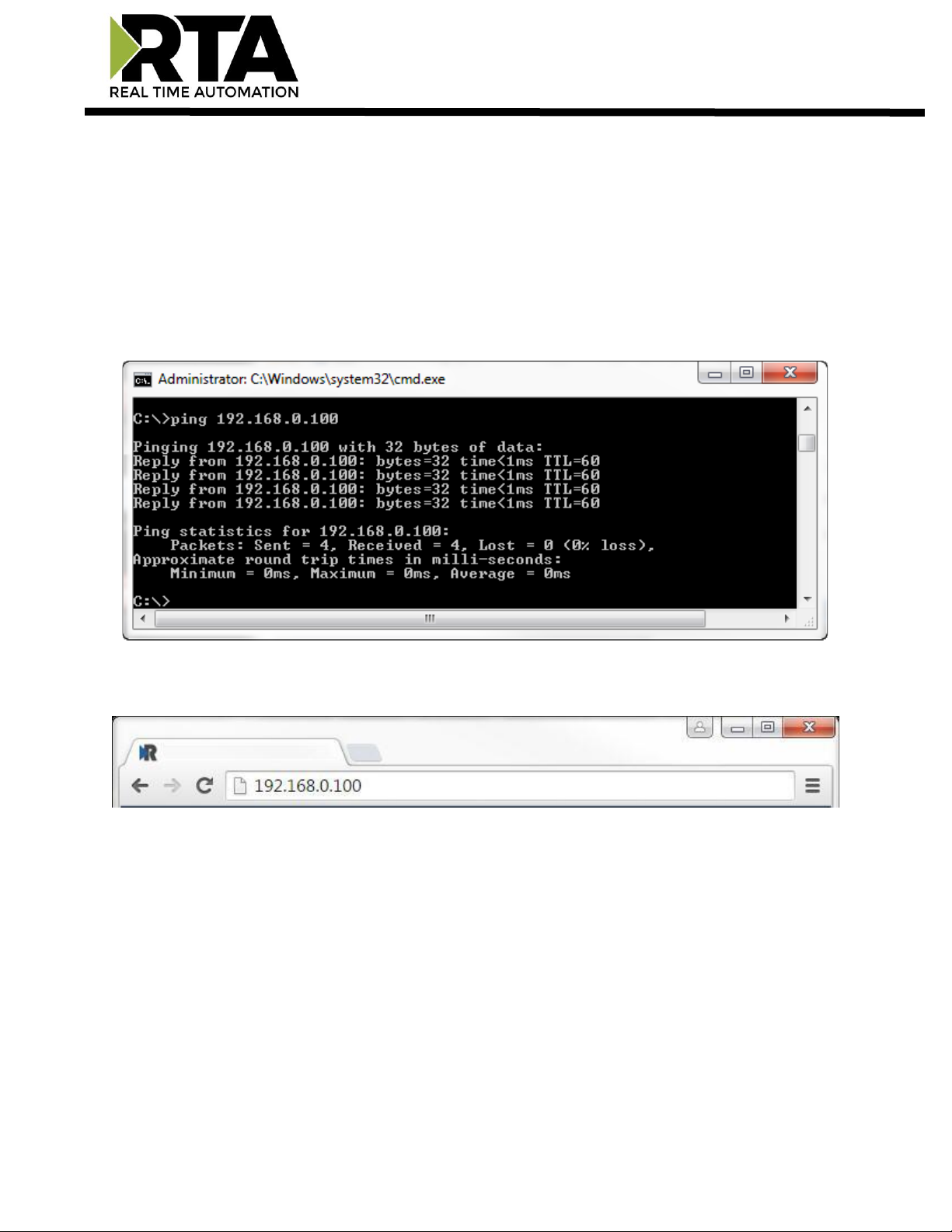

The Screenshot above shows a gateway that is currently set to a static IP Address of 192.168.0.100.
If you are able to successfully ping your gateway, open a browser and try to view the main page of the
gateway by entering the IP Address of the gateway as the URL.

Real Time Automation, Inc.
16
1-800-249-1612
Committing Changes to the Settings
All changes made to the settings of the gateway in Configuration Mode will not take effect until the
gateway is restarted via the webpage. Changes will not be stored if the gateway’s power is removed
prior to a reboot.
NOTE: The gateway does not need to be restarted after every change. Multiple changes can be made
before a restart, but they will not be committed until the gateway is restarted.
When all desired changes have been made, press the Restart Now button.
The webpage will redirect to our rebooting page shown below:
The reboot can take up to 20 seconds.
If the IP address has not been modified, the gateway will automatically redirect to the main page.
If the IP address was modified, a message will appear at the top of the page to instruct the user to
manually open a new webpage at that new IP.

Real Time Automation, Inc.
17
1-800-249-1612
Main Page
The main page is where important information about your gateway and its connections are displayed.
Mode (orange box below):
Running Mode:
•Protocol communications are enabled
•Configuration cannot be changed during Running Mode. If changes are needed, click the
Configuration Mode button shown in the green box below
Configuring Mode:
•Protocol communication is stopped and no data is transmitted
•Configuration is allowed
Navigation (green box below):
You can easily switch between modes and navigate between pages (Configuration, Diagnostics, and
Other pages) using the buttons on the left hand side.

Real Time Automation, Inc.
18
1-800-249-1612
Device Configuration
The device configuration area is where you assign the device description parameter. Changes can only
be made when the gateway is in Configuration Mode.
Once you are done configuring the Description, click the Save Parameters button.
Network Configuration
The network configuration area is where you assign the IP address and other network parameters.
Changes can only be made when the gateway is in Configuration Mode.
Once you are done configuring the Network Settings, click the Save Parameters button.
If you are changing the IP Address of the gateway, the change will not take effect until the unit has been
rebooted. After reboot, you must enter the new IP Address into the URL.

Real Time Automation, Inc.
19
1-800-249-1612
Network Interface Options
The N2EW hardware has three different Network Interface options, Independent Mode, Switch Mode
and Wi-Fi Mode. Below, you can find the different use cases that each interface option allows for.
Independent Mode
1) Two Ethernet-based protocols on the same IP Network
a) Ethernet Port 1 used OR
b) Ethernet Port 2 used OR
c) Wi-Fi used OR

Real Time Automation, Inc.
20
1-800-249-1612
d) Ethernet Port 1 & 2 used
2) Two Ethernet-based protocols on different IP Networks
a) Ethernet Port 1 used AND
b) Ethernet Port 2 used AND
c) Wi-Fi used
Switch Mode –Only Ethernet Port 1 is used for protocol communication
1) One Ethernet-based protocol on the IP Network (layer-2 switch)
a) Ethernet Port 1 used for direct protocol communication
b) Ethernet Port 2 available for daisy chaining devices together
i) A Ring topology is NOT supported
2) Two Ethernet-based protocols on same IP Network
a) Ethernet Port 1 used for direct protocol communication with another switch, hub, or router
b) Ethernet Port 2 available for a daisy chaining devices together
i) A Ring topology is NOT supported
3) Two Ethernet-based protocols on different IP Networks
a) Not Possible –must use Independent Mode
Wireless Mode –Only Wi-Fi is used for protocol communication
1) Two Ethernet-based protocols on the same IP Network into a Router
It is recommended to leave the DNS Gateway set to 0.0.0.0 and the Ethernet Link as
Auto-Negotiate. If configuring the gateway to use E-mail, the DNS Gateway must be
set.
