460 Gateway Device Line 460ETCMRS
Overview
The 460ETCMRS Gateway connects an Allen Bradley PLC to a Modbus RTU Master By following this guide,
you will be able to configure the 460ETCMRS Gateway for basic operation You will set the device’s net-
work settings and parameters to the proper configuration for initial operation and physically place the de-
vice in your network
For further customization and advanced use, feel free to consult the provided Users’ Manual In addition,
Real Time Automation would be happy to provide support to help you utilize this device

Real Time Automation, Inc. 2 1-800-249-1612
460 Gateway Device Line 460ETCMRS
Required Tools and Data
You will need the following tools:
♦ The 460ETCMRS Gateway
♦ The provided CD-ROM
♦ A functionin Windows© based PC with Internet Explorer
♦ An Ethernet crossover cable
(If connectin throu h a hub or switch use a standard Ethernet cable)
♦ A 7-30 VDC power source (T-strip)
♦
You will also need to verify the following Modbus RTU Communication Characteristics:
♦ Connector [ Port 0: T-Strip/Port 1 :DB9]
♦ Mode [RS-232, RS-485 Half, RS-422 Full]
♦ Slave Address
♦ Baud Rate
♦ Parity
♦ Data Bits
♦ Stop Bits

Real Time Automation, Inc. 3 1-800-249-1612
460 Gateway Device Line 460ETCMRS
Port Connections
The factory default port settings on the 460ETCMRS gateway are for Port 0 (T-strip) to be set for RS485
including power (Pin 5) Port 1 (DB9) is set to RS232 by default
If these default port are not compatible with your equipment they can be configured differently For spe-
cific jumper settings refer to the end of this manual, appendix A For assistance changing port configura-
tions contact our customer support department

Real Time Automation, Inc. 4 1-800-249-1612
460 Gateway Device Line 460ETCMRS
Accessing the Main Page
Before you can configure the 460ETCMRS gateway itself you must configure the network settings to
connect the gateway The following steps will connect the gateway properly
1) Connect a 7-30 VDC power source to the device The unit can be powered through the T-strip
2) Using the crossover cable (supplied) connect the device to the PC If you are connecting through a hub
or a switch use a standard Ethernet cable
3) Insert the provided CD-ROM
4) Run the IPSetup program from the CD-ROM
5) Configure the IP Address of the unit to be compatible
with your subnet (See next page for additional
instructions if needed )
6) Click Set
7) Click Launch Webpage The main page should
appear
NOTE
Browser configuration is only Internet
Explorer compatible. The use of
FireFox is not supported.
Default IP address is 192.168.0.100

Real Time Automation, Inc. 5 1-800-249-1612
460 Gateway Device Line 460ETCMRS
Error: Main Page Does Not Launch
If the main page does not launch the IP Address is most likely incorrect Correct the IP Address and try
again If you do not know the IP Address use the following procedure:
1) Open an MS-DOS Command Prompt
2) Type ipconfig and press Enter
3) Note the IP Address (The previous example was 192 168 0 100)
4) To test the communication between the PC and the unit type ping (###.###.#.###) in the
prompt and press Enter The (###.###.#.###) is the IP Address of the unit you used in step 5 of
network configuration, which is 192.168.0.100 by default If the device is connected to the network
the ping will show a response If you get no response check the crossover cable

Real Time Automation, Inc. 6 1-800-249-1612
460 Gateway Device Line 460ETCMRS
Modbus RTU Slave Settings
Now that the device is on the network you will configure the device settings
1) If you would like to change the device description, on the main page, click Edit in the Description
row Otherwise, skip to step 4
2) Type the desired description into the text box
3) Click Save
4) In the Selected Communication Modules row click Edit
5) Ensure that the following devices are enabled:
Modbus RTU Slave 1
Ethernet/IP Tag Client
6) Alongside the Modbus RTU Slave 1 row click the Edit button to modify the listed parameters
7) Enter the address of the Slave device Select the type of connector you will be using and the
appropriate settings for the mode, baud, parity, data and stop bits fields The settings should match
your Modbus device
If you would like to use RS422 (4 wire) please refer to appendix A of this user guide or
contact Real Time Automation Customer Support
8) When you have selected the correct Modbus parameters click Save Click eturn to Main Page

Real Time Automation, Inc. 7 1-800-249-1612
460 Gateway Device Line 460ETCMRS
Modbus Internal Device Settings
1) In the Server Module Configuration row click Edit
2) The Modbus registers are configured as:
Read/Write Registers moving data from Modbus RTU Slave devices to Ethernet/IP Tag
Servers: 401-800
Read Registers moving data from Ethernet/IP Tag Servers to Modbus TCP Clients: 1-400
3) Click the Main Page button

Real Time Automation, Inc. 8 1-800-249-1612
460 Gateway Device Line 460ETCMRS
Add Remote Ethernet/IP Tag Server
1) Next to Client Module Configuration click Edit
2) Click Add emote Device Ethernet/IP Tag Server (PLC)
3) Next to the new Ethernet/IP Tag Client buffer click Edit
(Continued on page 9)

Real Time Automation, Inc. 9 1-800-249-1612
460 Gateway Device Line 460ETCMRS
4) Enter a unique label for the device so that it is easily distinguishable on your network
5) In the Server IP Address enter the IP Address that corresponds to your Ethernet/IP Tag Server
6) Select the type of PLC you are using (Logix, SLC505/MicroLogix, or PLC5E)
7) Enter a value for the CPU Slot of the PLC (0-255)
8) Insert Tag Names The tag names are case sensitive and must be unique between any Ethernet/IP
tag client devices
9) Specify which Data Type is being used per each scan line
(Continued on page 10)

Real Time Automation, Inc. 10 1-800-249-1612
460 Gateway Device Line 460ETCMRS
10) Specify the correct Data Length for each data type being used
11) When all required parameters are entered click Save
To delete the entire Slave device click Clear
To return to the main page and abandon all changes click Cancel

Real Time Automation, Inc. 11 1-800-249-1612
460 Gateway Device Line 460ETCMRS
Application Parameters
1) Next to Application Parameters click Edit
2) 460ETCMRS Mapping will display the connection between the tags / file names in your PLC to the
Modbus Register within your Modbus RTU Master

Real Time Automation, Inc. 12 1-800-249-1612
460 Gateway Device Line 460ETCMRS

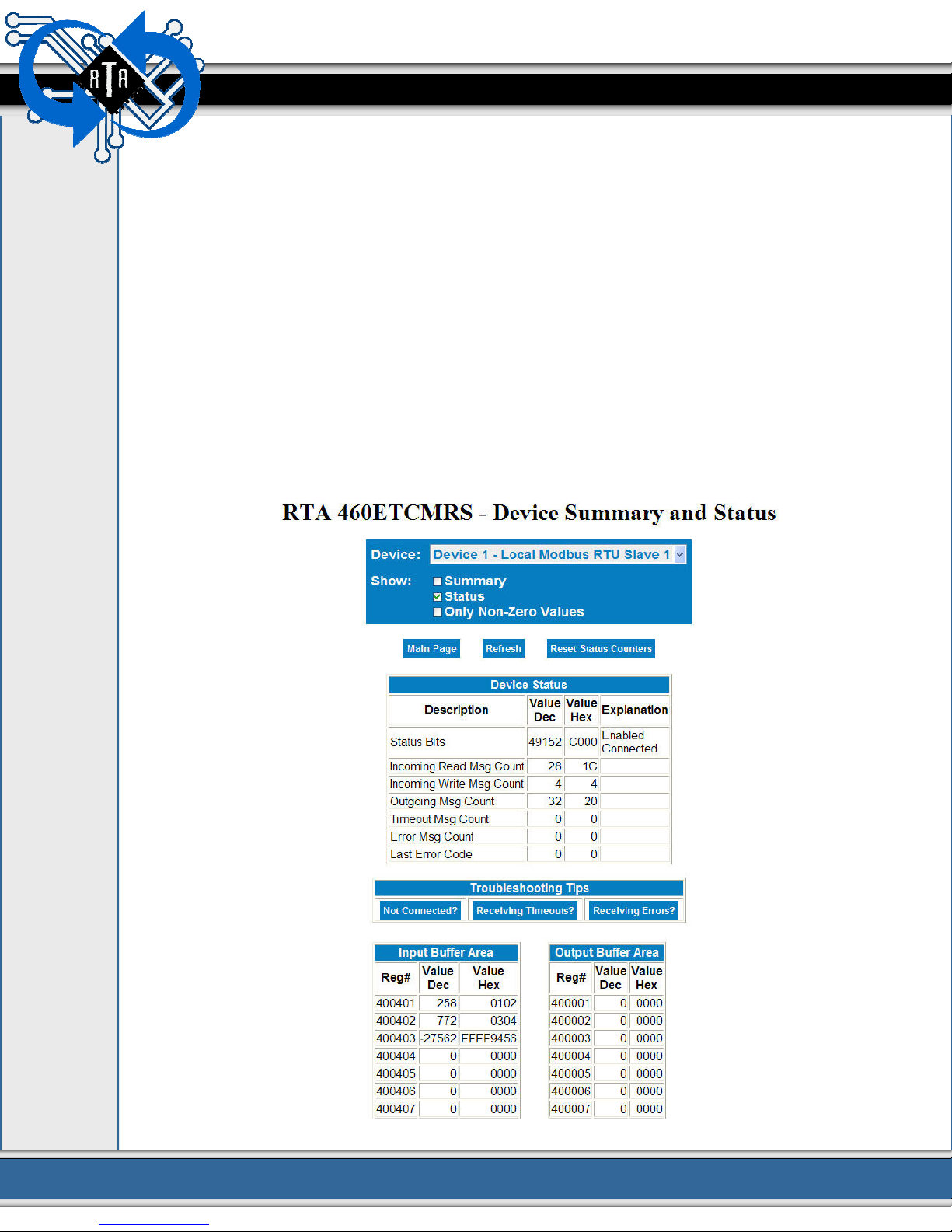

Confirming Data Transmission
To check the status of the devices and to see the data that has transmitted use the following steps:
1) On the main page click on the Status and Summary button located on the left hand side of the
screen
2) The 460ETCMRS Device Summary and Status page will be shown
3) The device drop down menu allows you to switch between the different devices and display the
device statuses
4) Under Show you can choose to view only values that are greater than zero by checking the Only
Non-Zero Values checkbox
5) The Device Status section displays whether or not the device is connected and enabled

Real Time Automation, Inc. 13 1-800-249-1612
460 Gateway Device Line 460ETCMRS
Validating Gateway Communication
If the Timeout counter or the Error counter are incrementing or a status of Enabled Not Connected, refer
to the Troubleshooting Tops to help get the device up and running

Real Time Automation, Inc. 14 1-800-249-1612
460 Gateway Device Line 460ETCMRS
Configuring Multiple Devices
If you are configuring multiple devices the same way, you can repeat the configuration by saving your
work into a file To do so, follow these steps
1) From the main page click the Utilities button
2) Click Save Configuration to File
3) Click Save
4) Browse to the location you want to save the file
5) Click OK
6) Remove the first device
7) Repeat the network configuration section to connect the next device
8) Once you launch the webpage, click the Utilities button
9) Click Browse… and browse to the file you previously saved
10) Click Open
11) Click estore from File

Real Time Automation, Inc. 15 1-800-249-1612
460 Gateway Device Line 460ETCMRS
Completing the Installation
Now that the gateway is configured properly, you must place the device in the network The following
instructions will tell you how to take the device from the configuration area to the shop floor or other
operating environment
1) Disconnect the crossover cable and power supply from the device
2) Move the device to its intended location
3) Connect an Ethernet cable between your Ethernet switch/router and the network port on the 460
ETCMRS Gateway
4) Attach the serial connection from the Modbus RTU device to the 460ETCMRS Gateway
5) Connect the 7-30 VDC power source to the device via the T-strip

Real Time Automation, Inc. A 1-800-249-1612
460 Gateway Device Line 460ETCMRS
Jumper Configurations
To change port settings on the 460 EDX Gateway use the following steps:
1) No cables should be connected to the Gateway unit If this unit has been in use and you are
making a change, disconnect the power cable and any communications cables from the gateway
unit
2) Remove the two small Phillips-head screws from each long side of the unit
3) Remove the green T-strip connector Slide the cover off towards the ports The jumpers are just
behind the ports
4) Move the jumper shunts to reflect the desired settings
5) Replace the Gateway unit’s cover Replace the four screws Replace the green T-strip connector
Only one RS232, RS485, or CAN port setting can be active at a time for each unit For
example, a unit cannot have two ports set for RS232 or two ports set for CAN
Port 0 (T-Strip) RS485 & PWR 1 2 3 4 5
Pin Setting GND TX- TX+ NC PWR
Port 1 (D -9) RS232 1 2 3 4 5 6 7 8 9
Pin Setting NC RX TX NC GND NC NC NC NC
NC=No connection

Real Time Automation, Inc. B 1-800-249-1612
460 Gateway Device Line 460ETCMRS
Port 0 (T-Strip) CAN 1 2 3 4 5
Pin Setting GND CANL SHIELD CANH PWR
Port 1 (D -9) RS485 1 2 3 4 5 6 7 8 9
Pin Setting NC TX- NC NC GND NC TX+ NC NC
Port 0 (T-Strip) CAN 1 2 3 4 5
Pin Setting GND CANL SHIELD CANH PWR
Port 1 (D -9) RS232 1 2 3 4 5 6 7 8 9
Pin Setting NC RX TX NC GND NC NC NC NC
NC= No connection
NC= No connection

Real Time Automation, Inc.
150 South Sunny Slope Road Suite 130
Brookfield, WI 53005
Local [phone]
Toll free 1-800-249-1612
www.rtaautomation.com
[e-mail]
