RTI MCX-2F User manual

EMPTYWASTETANK
FILLRADIATOR&OVERFLOW
EXCHANGECOOLANTOR
LOWERRADIATOR
&OVERFLOW
&OVERFLOW
LOWERRADIATOR
EMPTYWASTETANK
EXCHANGECOOLANT
&OVERFLOW
FILLRADIATOR
SYSTEMPRESSURESYSTEMVACUUM
TEST
OFF
OFF
OFF
OPERATION MANUAL
MCX-2F
Multiple Coolant Exchanger
(With Flush & Flow Indicator)
RTI Technologies, Inc.
10 Innovation Drive
York, Pennsylvania USA
800-468-2321
www.rtitech.com
035-80833-00 (Rev D)

Page 1
TABLE OF CONTENTS
Component Description ....................... 2
SafetyPrecautions ........................... 3
Set-up ..................................... 4
Connection to Power ......................... 5
RelievingRadiatorPressure.................... 6
LoweringCoolantLevel ....................... 7
Connecting to the Coolant System ............... 8
SpecialHookups............................. 9
EngineFlush............................... 10
CoolantReplacement ........................ 11
Test Coolant System for Leaks ................ 12
CompletingtheJob.......................... 13
Changing Coolant Type ...................... 15
EmptyingtheWasteTank .................... 17

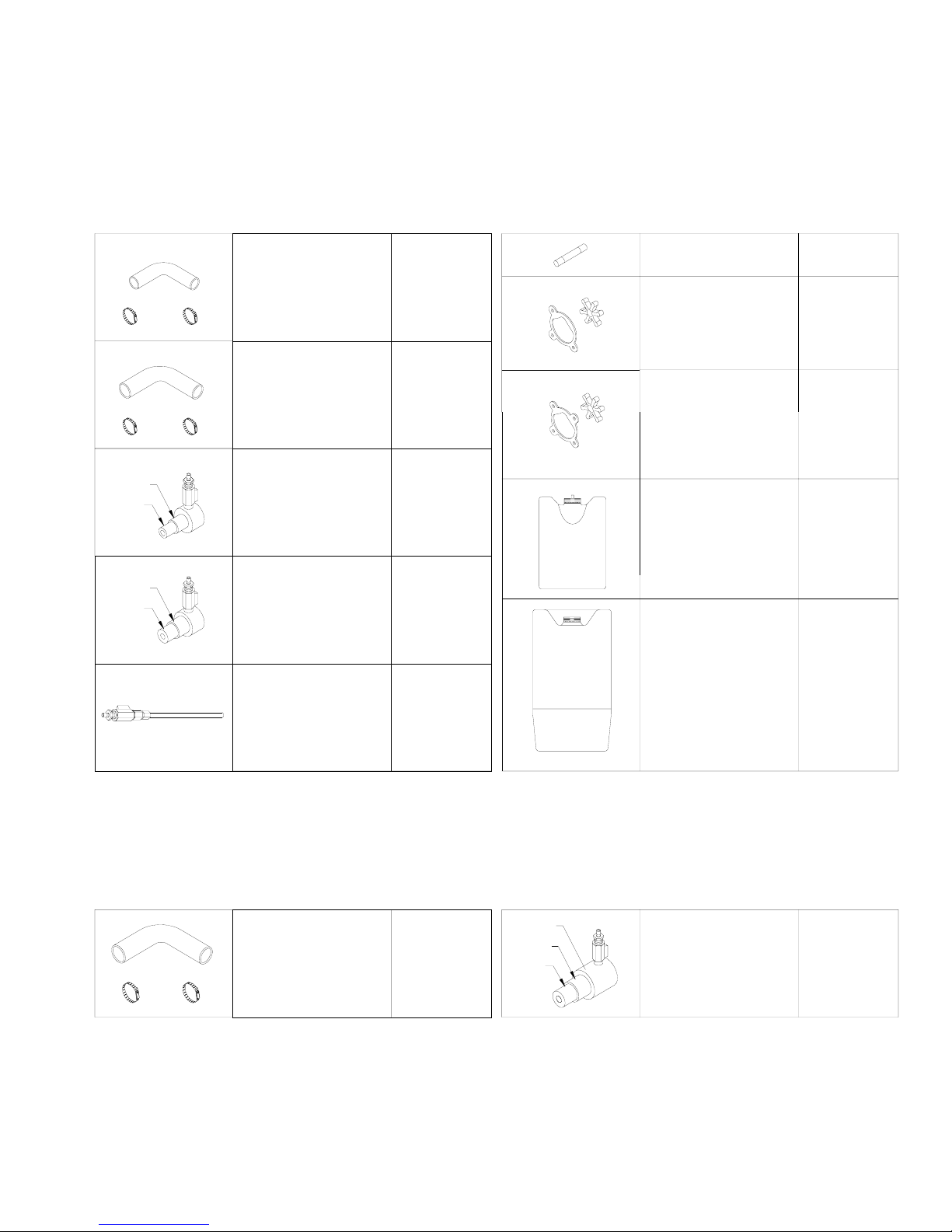

ReplacementParts .......................... 18
WastePumpImpellerReplacement ............. 19
Flow & Wiring Diagram ....................... 20

Page 2
Wand
New Coolant
Tank
Waste Tank
Small Adapter Hose
Large Adapter Hose
Small Hose Clamps
Large Hose Clamps
1-1/4
1-1/2
Large Step Adapters
Small Step Adapters
VALVE OPEN
1-3/4
VALVE CLOSED
1-1/4
1-3/8
(Qty=2)
Filter & Bowl
1-3/8
1-1/2 1-3/4
Impeller & Gasket
EMPTYWASTETANK
FILLRADIATOR&OVERFLOW
EXCHANGECOOLANTOR
LOWERRADIATOR
&OVERFLOW
&OVERFLOW
LOWERRADIATOR
EMPTYWASTETANK
EXCHANGECOOLANT
&OVERFLOW
FILLRADIATOR
SYSTEMPRESSURESYSTEMVACUUM
TEST
OFF
OFF
OFF
Black Hose
Green Hose

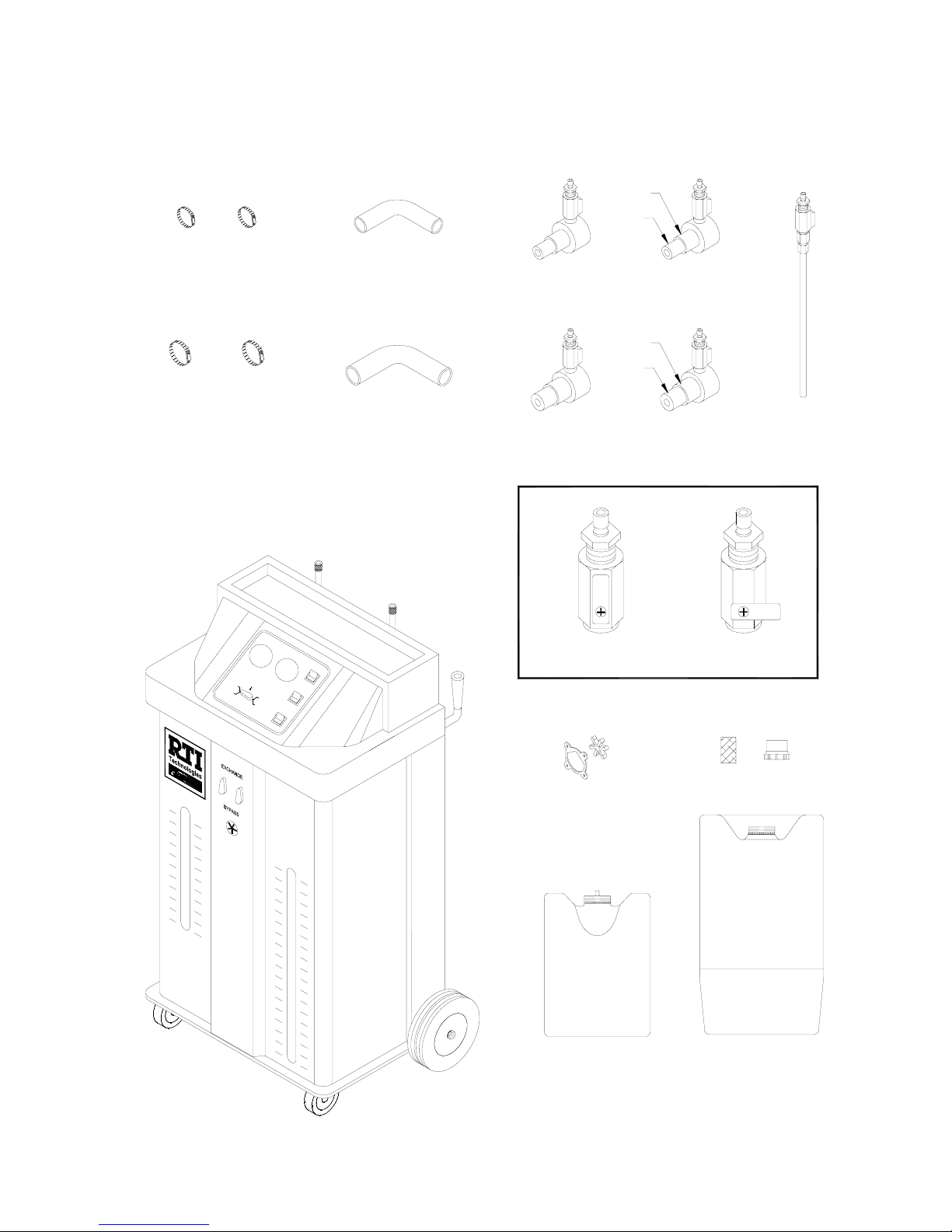

COMPONENT DESCRIPTION
Unpack all components and verify quantities per this illustration.
Contact RTI if any items are missing or damaged.

Page 3
SAFETY PRECAUTIONS
WARNING: FAILURE TO FOLLOW THESE PRECAUTIONS CAN RESULT IN
SERIOUS INJURY OR DEATH.
CRead and understand the Operation Manual completely before operating this unit.
CAlways wear proper eye and skin protection when operating and maintaining this
equipment.
CTake precautions to keep clothing, hair, hands, hoses, etc. away from all moving
parts on the vehicle.
CAutomotive cooling systems can be under pressure and extremely hot. Allow the
cooling system to cool down and use extreme caution when removing caps and
hoses.
CCoolants are poisonous to people and animals and are also corrosive. Clean up any
spills immediately.
CAUTION: FAILURE TO FOLLOW THE PRECAUTIONS AS OUTLINED IN
THE OPERATION MANUAL CAN RESULT IN DAMAGE TO THE
ENGINE, VEHICLE OR EQUIPMENT WHICH WILL NOT BE
SUPPORTED OR COVERED UNDER WARRANTY.
CDo not allow waste coolant tank to overflow. Immediately clean up any coolant
spills. Damage to the vehicle and equipment can result from the corrosiveness of
coolant.
CContinuous monitoring of the coolant replacement process is required.

Page 4
New Coolant Tank
Coupler
Quick
Green Hose
OFF
OFF
OFF
TEST
SYSTEMVACUUM
SYSTEMPRESSURE
FILLRAD
IATOR
&OVERFLOW
EXCHANGECOOLANT
EMPTYWASTETANK
LOWERRADIATOR
&OVERFLOW
&OVERFLOW
LOWERRADIATOR
EXCHANGECOOLANTOR
FILLRADIATOR&OVERFLOW
EMPTYWASTETANK
Black Hose
Green Hose
Tank Cap & Plug
(Small)
New Coolant

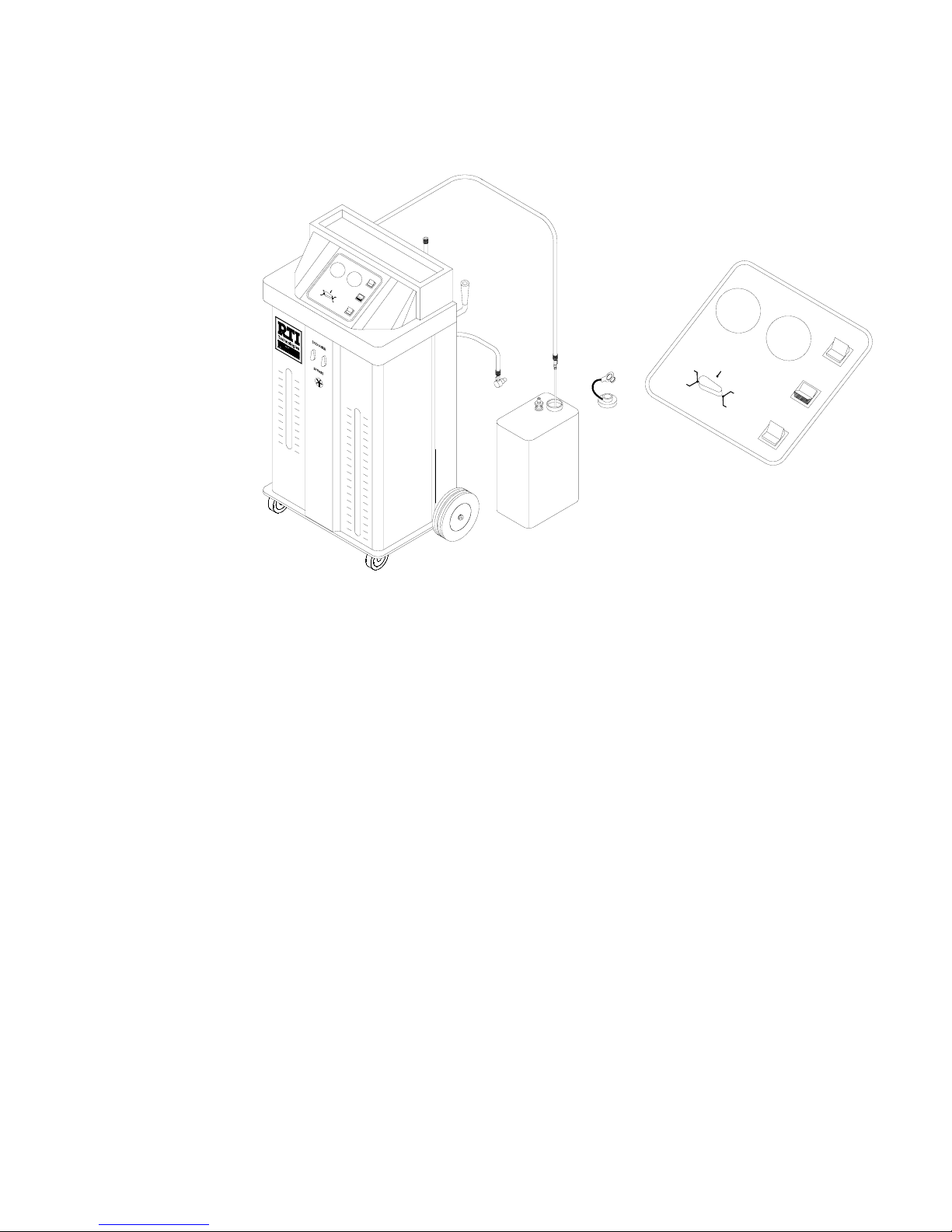

SET UP
The MCX-2F has two tanks (plus an extra New Coolant Tank) which are installed and
connected from the rear. Quick connect couplers are mounted on the hoses which
connect these tanks to the MCX-2F. A green hose connects to the New Coolant Tank
(right side) and a black hose connects to the Waste Tank (left side). The small diameter
black drain hose must be inserted into the hole in the cap of the Waste Tank.
1. Slide the New Coolant Tank to the
rear and sit it on the floor.
2. Remove the tank cap and fill the
tank with new coolant and water in
the proportions specified by the
coolant supplier. The tank can be
disconnected and moved to a bulk
coolant storage area for filling if
desired. A plug is provided on the
cap to prevent spillage during
transport.
3. Replace the tank cap and position
the tank in the MCX-2F. Make sure
the green hose is securely
connected. Slide the tank to the
front so the liquid level can be
seen through the front panel slot.
4. Make sure the plugs are removed from the caps on the Waste Tank and
the New Coolant Tank. This is required for venting the tanks during
operation. The small diameter black drain hose must be inserted into the
hole in the cap of the Waste Tank.
5. Fasten the clips on the tank strap to secure the tanks in the MCX-2F.
Install Filter and Bowl on rear of MCX-2F as shown.
These items are shipped in the carton with the
adapters and adapter hoses.

Page 5
LOWERRADIATOR
&OVERFLOW
EMPTYWASTETANK
OFF
OFF
OFF
TEST
SYSTEMVACUUM
SYSTEMPRESSURE
FILLRADIATOR
&OVERFLOW
EXCHANGECOOLANT
&OVERFLOW
LOWERRADIATOR
EXCHANGECOOLANTOR
FILLRADIATOR&OVERFLOW
EMPTYWASTETANK
CONNECTION TO POWER
The MCX-2F control panel is illustrated above. Note that the bottom of all three selector
switches has been pressed which turns all functions off. Make sure all switches are
off before connecting the battery cable clips to the battery of the vehicle.
WARNING: Handle battery connection cable with extreme caution. Batteries
generate explosive gases during normal operation. Working in the
vicinity of a lead-acid or other automotive battery is dangerous.
Wear eye protection. Never smoke or allow a spark or flame in the
vicinity of the battery. Do not connect the black power clip to the
negative post of the battery to avoid a spark.
1. Verify that all switches are in the off position.
2. Connect the red power clip to the “+” (positive) post of the vehicle battery. The
battery must be 12 volt.
3. Connect black power clip to an engine ground (not the negative post of the
battery).

Page 6
SYSTEMPRESSURE
OFF
EXCHANGECOOLANT
Clear Hose
Green Hose
Black Hose
EMPTYWASTETANK
OFF
EMPTYWASTETANK
LOWERRADIATOR
&OVERFLOW
&OVERFLOW
LOWERRADIATOR
OFF
OFF
SYSTEMVACUUM
EXCHANGECOOLANTOR
FILLRADIATOR&OVERFLOW
TEST
FILLRADIATOR
&OVERFLOW
SYSTEMPRESSURE
EXCHANGECOOLANT
Radiator
&OVERFLOW
FILLRADIATOR
&OVERFLOW
LOWERRADIATOR
EMPTYWASTETANK
TEST
Overflow
Radiator
Hose
Water
Pump
SYSTEMVACUUM
EMPTYWASTETANK
FILLRADIATOR&OVERFLOW
EXCHANGECOOLANTOR
OFF
OFF
&OVERFLOW
LOWERRADIATOR
Heater
Core
Block
Engine

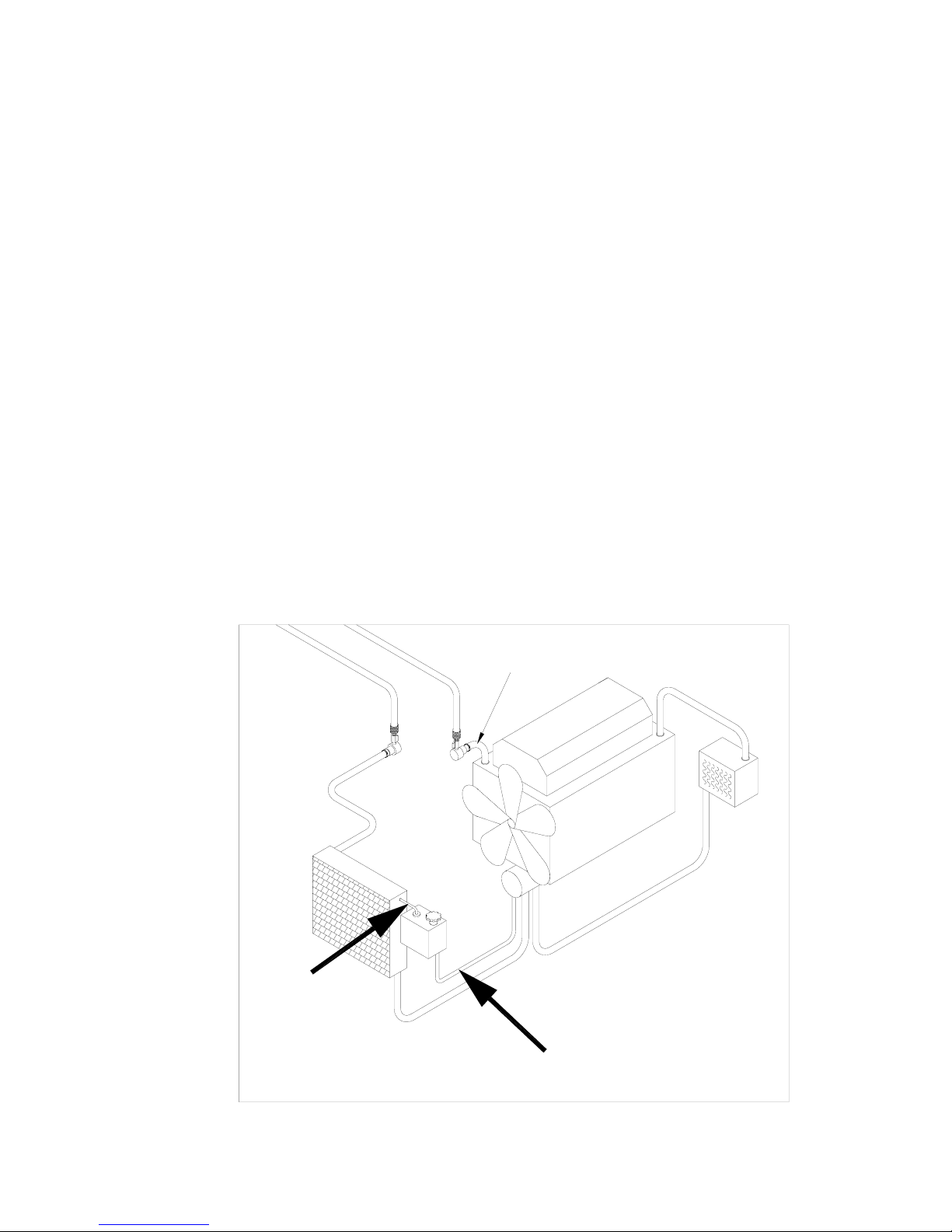

RELIEVING RADIATOR PRESSURE
WARNING: Coolant in the vehicle cooling system may be extremely hot and
under great pressure. Wear safety glasses and use protective
clothing and gloves. Use extreme caution when removing radiator
cap and hoses.
NOTE: The MCX-2F does not need to be connected to power for the following.
The MCX-2F will relieve the pressure in a hot-car radiator by drawing a vacuum on the
overflow port on the radiator cap.
Shop air (55 to 100 PSI), connected to the rear port of the MCX-2F causes a vacuum
to be pulled on the small diameter clear hose, also connected to the rear. This clear
hose is connected to the overflow port on the radiator cap as shown above.
The system Vacuum Gauge on the MCX-2F control panel indicates the vacuum level
which will increase until the radiator cap opens and relieves the pressure. As the
pressure releases a small amount of coolant will be seen flowing in the clear hose.
When the pressure has been relieved, the radiator cap will again close and the vacuum
level will increase and become steady on the gauge.
The radiator cap can now be slowly and carefully removed.

Page 7
VERY IMPORTANT
Open valve on wand only while end is in fluid.
Do not suck air as the pump may loose its prime.
EXCHANGECOOLANT
SYSTEMPRESSURE
EMPTYWASTETANK
LOWERRADIATOR
&OVERFLOW
SYSTEMPRE
SSURE
&OVERFLOW
LOWERRADIATOR
SYSTEMVACUUM
OFF
OFF
OFF
EXCHANGECOOLANTOR
FILLRADIATOR&OVERFLOW
EMPTYWASTETANK
TEST
FILLRADIATOR
&OVERFLOW
EXCHANGECOOLANT
Green Hose
Radiator
Radiator
Hose
Black Hose
&OVERFLOW
FILLRADIATOR
&OVERFLOW
LOWERRADIATOR
EMPTYWASTETANK
TEST
Wand
Water
Pump
Overflow
EMPTYWASTETANK
OFF
Heater
FILLRADIATOR&OVERFLOW
EXCHANGECOOLANTOR
SYSTEMVACUUM
OFF
OFF
LOWERRADIATOR
&OVERFLOW
Block
Core
Engine
LOWERING COOLANT LEVEL
WARNING:
Coolant in the vehicle cooling system may be extremely hot and under great
pressure. Wear safety glasses and use protective clothing and gloves. Use
extreme caution when removing radiator cap and hoses.
1. Turn both valves on front of MCX-2F to EXCHANGE.
2. Slowly and carefully remove the cap from the radiator.
3. Remove cap from overflow container.
4. Attach the wand to the black hose. Close the valve.
5. Turn control valve to LOWER RADIATOR & OVERFLOW.
6. Press the top of LOWER RADIATOR & OVERFLOW selector switch to turn on
pump.
7. Use the Wand to empty the overflow container and lower the level of coolant in
the radiator to a level just below the upper hose connecting the radiator to the
engine. Open valve on wand as required.
8. Press bottom of LOWER RADIATOR & OVERFLOW selector switch to turn off
pump.
9. Replace caps on the radiator and overflow container.

Page 8
Water
Pump
Connecting at Engine
OFF
OFF
OFF
TEST
SYSTEMVACUUM
SY
STEMP
RESSURE
FILLRADIATOR
&
OVERFLOW
EXCHANGE
COOLANT
EMPTYWASTETANK
LOWERRADIATOR
&OVERFLOW
&
OVERFLOW
LOWERRADIATOR
EXCHANGECOOLANTOR
FILLRADIA
TOR&
OVERFLOW
EMPTYWASTE
TANK
Black Hose
Green Hose
Radiator
Hose Step
Adapters
Overflow
Radiator
Connecting at Radiator
Engine
Block
Green Hose
Black Hose
SYSTEMVACUUM
EXCHANGECOOLANTOR
FILLRADIATOR&OVERFLOW
OFF
OFF
TEST
SYSTEMPRESSURE
FILLRADIATOR
&OVERFLOW
EXCHANGECOOLANT
EMPTYWASTETANK
LOWERRADIATOR
&
OVERFLOWEMPTYWASTETANK
OFF
&OVERFLOW
LOWERRADIATOR
Hose
Engine
Block
Adapter
Heater
Core
Hose
Adapters
Step
Hose
Adapter
Radiator
Water
Pump
Overflow
Radiator
Heater
Core

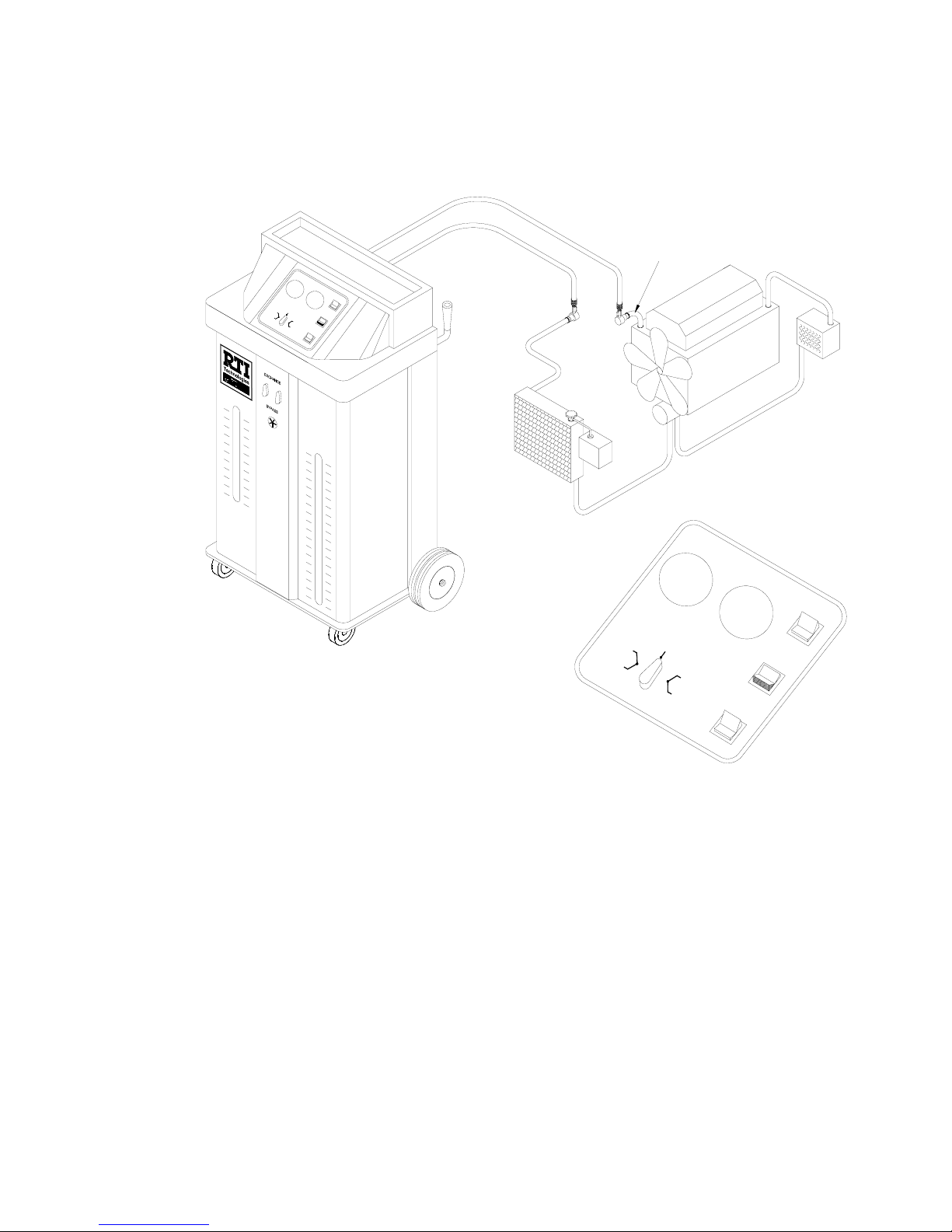

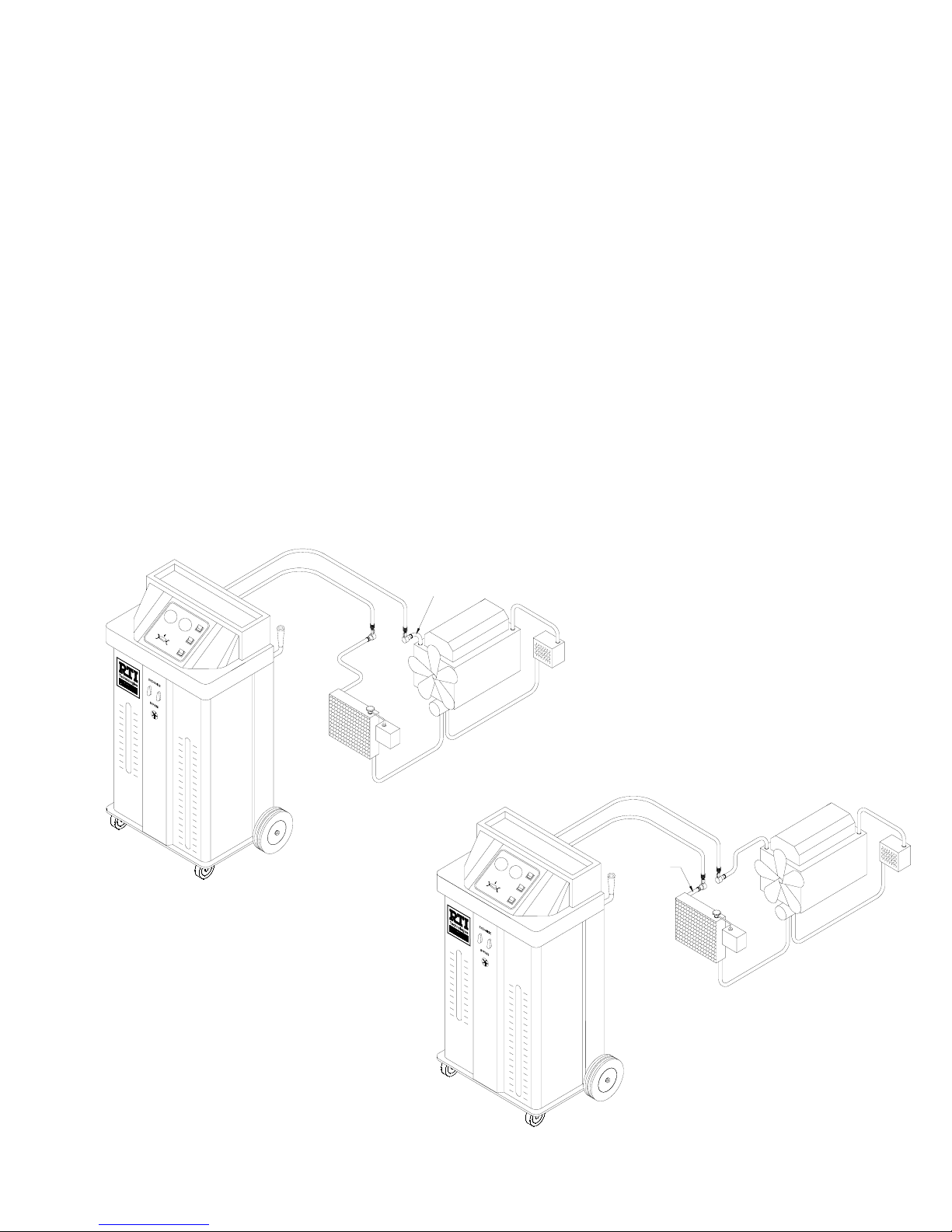

CONNECTING TO THE COOLANT SYSTEM
The MCX-2F can be connected to the cooling system in either of the configurations
shown below. The choice is dependent on the ease of accessability to the hose
connections.
1. Turn both valves on the front of the MCX-2F to EXCHANGE.
2. Disconnect the radiator hose from either the engine or the radiator.
3. Select an Adapter Hose with the same inner diameter as the radiator hose and
connect at the point the radiator hose was disconnected using a clamp.
4. Install Step Adapters in the Adapter Hose and the radiator hose using clamps.
Make sure the outside diameter of the Step Adapters is the same as the inner
diameter of the radiator hose.
5. Connect the Green and Black hoses from the MCX-2F to the two Step Adapters
as shown in the illustrations. See next page for special hookups.
6. Open the valves on the two Step Adapters.

Page 9
Block
Engine
Adapters
HOSE
PINCH
Hose
Radiator
PINCH
HOSE
Overflow
Pump
Water
Step
Hose
Adapter
Heater
Core
SPECIAL HOOKUPS
Special Hookup 1) It may be necessary to reverse the hoses during the coolant
replacement procedure on the next page for systems with a
reverse-connected thermostat. See note after Step 6 on next
page for the symptoms of this situation.
Special Hookup 2) Some cooling systems do not have a cap on the radiator.
Instead, there is a single cap on the overflow tank as shown in
the illustration below.
The hoses to and from the overflow tank must be pinched using
hose pinching pliers during the coolant replacement procedure
on the next page.
Failure to pinch these hoses will cause fluid to be forced out of
the vented cap on the overflow tank during the coolant
replacement procedure.

Page 10
Overflow
LOWERRADIATOR
&OVERFLOW
EMPTYWASTETANK
FILLRADIATOR&OVERFLOW
EXCHANGECOOLANTOR
&OVERFLOW
LOWERRADIATOR
EMPTYWASTETANK
EXCHANGECOOLANT
&OVERFLOW
FILLRADIATOR
SYSTEMPRESSURESYSTEMVACUUM
TEST
OFF
OFF
OFF
Green Hose
Black Hose
Radiator
Adapters
Step
Hose
Radiator
Adapter
Block
Engine
Hose
Pump
Water
Core
Heater
ENGINE FLUSH
The engine can be flushed with a chemical additive with the MCX-2F connected as
described in preceding pages. Two valves located on the front panel each have two
positions - EXCHANGE and BYPASS.
When the valves are both turned to the BYPASS position the coolant in the vehicle
bypasses the MCX-2F. It flows through the green and black hoses which are connected
together inside the MCX-2F by the two valves being in the BYPASS position.
Flush (or leak sealant) additives can be added to the vehicle cooling system through
the radiator fill port. The engine can then be started to circulate the additives throughout
the cooling system.
Connecting the MCX-2F to the cooling system prior to adding additives and running the
engine eliminates the need to make connections involving hot coolant.
Coolant bypasses MCX-2F when both valves are turned to BYPASS

Page 11
Adapters
Green Hose
TEST
&OVERFLOW
LOWERRADIATOR
EMPTYWASTETANK
EMPTYWASTETANK
FILLRADIATOR&OVERFLOW
EXCHANGECOOLANTOR
LOWERRADIATOR
&OVERFLOW
SYSTEMVACUUM
OFF
OFF
&OVERFLOW
FILLRADIATOR
EXCHANGECOOLANT
SYSTEMPRESSURE
OFF
Radiator
Black Hose
Radiator
Hose
EMPTYWASTETANK
OFF
SYSTEMPRESSURE
EXCHANGECOOLANT
TEST
FILLRADIATOR
&OVERFLOW
EMPTYWASTETANK
LOWERRADIATOR
&OVERFLOW
Overflow
Water
Pump
Step
Adapter
Hose
OFF
OFF
SYSTEMVACUUM
&OVERFLOW
LOWERRADIATOR
EXCHANGECOOLANTOR
FILLRADIATOR&OVERFLOW
Core
Engine
Block Heater
If the pump is running and the new coolant level does not go down:
Try reversing the connections of the green and black hoses.
COOLANT REPLACEMENT
Once the MCX-2F is connected as described on the preceding pages it is ready to
replace the old coolant with new coolant.
Scales for the tank levels are
graduated in quarts and liters
1 Gallon = 4 Quarts.
1. Determine the capacity and type of coolant for the vehicle cooling system. Refer to
the vehicle Owner’s Manual.
2. Make sure the New Coolant Tank (left slot on front) is filled with the correct coolant
and at a level higher than the amount required to fill the coolant system to full
capacity.
3. Check the Waste Tank (right slot on front) to make sure the level is low enough to
accept the full capacity of coolant in the vehicle cooling system.
4. Turn both valves on front of MCX-2F to EXCHANGE.
5. Turn control valve to EXCHANGE COOLANT.
6. Press the top of EXCHANGE COOLANT OR FILL RADIATOR & OVERFLOW
selector switch to turn on the pump.
7. Watch the level of coolant as it lowers in the New Coolant Tank. Press the bottom
of the EXCHANGE COOLANT OR FILL RADIATOR & OVERFLOW selector switch
when it reaches the correct level. This will stop the transfer of coolant.

Page 12
EMPTYWASTETANK
EXCHANGECOOLANT
FILLRADIATOR
&OVERFLOW
SYSTEMPRESSURE
TEST
LOWERRADIATOR
&OVERFLOW
EMPTYWASTETANK
Overflow
EMPTYWASTETANK
Step
Adapters
Hose
OFF
Radiator
Black Hose
Green Hose
OFF
SYSTEMVACUUM
&OVERFLOW
LOWERRADIATOR
EXCHANGECOOLANTOR
FILLRADIATOR&OVERFLOW
Radiator
Block
Engine
EMPTYWASTETANK
OFF
Pump
Water
&OVERFLOW
LOWERRADIATOR
&OVERFLOW
FILLRADIATOR
TEST
EXCHANGECOOLANT
SYSTEMPRESSURE
Heater
Core
FILLRADIATOR&OVERFLOW
EXCHANGECOOLANTOR
LOWERRADIATOR
&OVERFLOW
SYSTEMVACUUM
OFF
OFF
Hose
Adapter
TEST COOLANT SYSTEM FOR LEAKS
The MCX-2F can be used to check the coolant system for leaks. The coolant system
is pressurized and the System Pressure Gauge on the MCX-2F is monitored for a drop
in pressure which would indicate a system leak.
The MCX-2F should be connected a shown above.
1. Turn both valves on front of MCX-2F to EXCHANGE.
2. Turn control valve to TEST.
3. Press the top of EXCHANGE COOLANT OR FILL RADIATOR & OVERFLOW
selector switch to turn on the pump.
4. Watch the System Pressure Gauge and press the bottom of the EXCHANGE
COOLANT OR FILL RADIATOR & OVERFLOW selector switch when the
pressure reaches 10 to 13 PSI.
5. The coolant system is now pressurized. Monitor the pressure for a constant
reading. A coolant system leak is indicated if the pressure falls.

Page 13
OFF
EXCHANGECOOLANTOR
FILLRADIATOR&OVERFLOW
Green Hose
OFF
SYSTEMVACUUM
EMPTYWASTETANK
TEST
FILLRADIATOR
&OVERFLOW
EMPTYWASTETANK
LOWERRADIATOR
&OVERFLOW
SYSTEMPRESSURE
EXCHANGECOOLANT
OFF
&OVERFLOW
LOWERRADIATOR
EMPTYWASTETANK
Overflow
&OVERFLOW
LOWERRADIATOR
Wand
Radiator
Black Hose
Hose
Radiator
EMPTYWASTETANK
OFF
FILLRADIATOR&OVERFLOW
EXCHANGECOOLANTOR
SYSTEMVACUUM
OFF
EXCHANGECOOLANT
SYSTEMPRESSURE
&OVERFLOW
FILLRADIATOR
TEST
Block
Pump
Water
Engine
LOWERRADIATOR
&OVERFLOW
OFF
Heater
Core

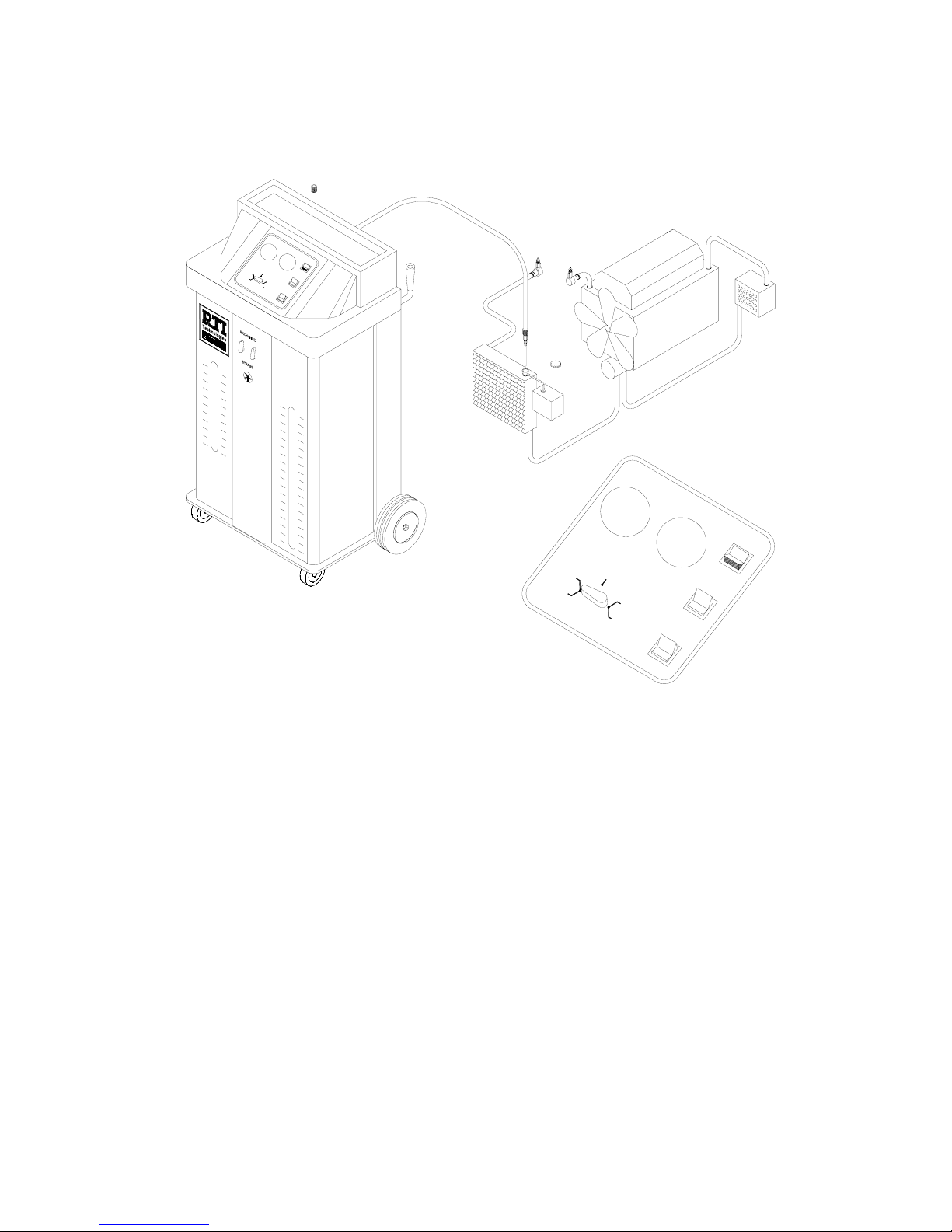

COMPLETING THE JOB
ll used coolant in the vehicle cooling system has now been replaced with new coolant.
The following steps will complete the job.
1. Turn both valves on front of MCX-2F to EXCHANGE.
2. Close the valves on the Step Adapters.
3. Disconnect the black and green hoses from the Step Adapters.
4. Install Wand on black hose. Close the valve.
5. Remove the cap from the radiator.
6. Turn control valve to LOWER RADIATOR & OVERFLOW.
7. Press top of LOWER RADIATOR & OVERFLOW selector switch to turn on
pump.
8. Use the Wand to lower the level of coolant in the radiator to a level just below
the upper hose where the Step Adapter is attached. Open valve on Wand as
required.
Continued on next page . . .

Page 14
EMPTYWASTETANK
FILLRADIATOR&OVERFLOW
EXCHANGECOOLANTOR
LOWERRADIATOR
&OVERFLOW
SYSTEMPRESSURESYSTEMVACUUM
OFF
OFF
OFF
&OVERFLOW
LOWERRADIATOR
EMPTYWASTETANK
TEST
EXCHANGECOOLANT
&OVERFLOW
FILLRADIATOR
Radiator
Hose
Radiator
Green Hose
Black Hose
TEST
EMPTYWASTETANK
LOWERRADIATOR
&OVERFLOW
Wand
Pump
Water
Overflow
EMPTYWASTETANK
OFF
&OVERFLOW
LOWERRADIATOR
OFF
OFF
SYSTEMVACUUM
SYSTEMPRESSURE
FILLRADIATOR
&OVERFLOW
EXCHANGECOOLANT
EXCHANGECOOLANTOR
FILLRADIATOR&OVERFLOW
Block
Engine
Heater
Core
COMPLETING THE JOB
9. Remove the Step Adapters from the radiator hose and the Adapter Hose.
10. Remove the Adapter Hose and reattach the radiator hose.
11. Remove the overflow container cap.
12. Install the Wand on the green hose. Close the valve.
13. Turn control valve to FILL RADIATOR & OVERFLOW.
14. Press the top of EXCHANGE COOLANT OR FILL RADIATOR & OVERFLOW
selector switch to turn on the pump.
15. Open the valve on the Wand to fill the radiator and overflow container to the
recommended levels.
16. Replace the radiator cap and overflow container cap.
17. Press the bottom of the EXCHANGE COOLANT OR FILL RADIATOR &
OVERFLOW selector switch and disconnect power cord.

Page 15
SYSTEMPRESSURE
EMPTYWASTETANK
LOWERRADIATOR
&OVERFLOW
OFF
EMPTYWASTETANK
EXCHANGECOOLANT
&OVERFLOW
FILLRADIATOR
SYSTEMPRESSURE
TEST
OFF
OFF
&OVERFLOW
LOWERRADIATOR
EMPTYWASTETANK
FILLRADIATOR&OVERFLOW
EXCHANGECOOLANTOR
SYSTEMVACUUM
Black Hose
OFF
TEST
FILLRADIATOR
&OVERFLOW
EXCHANGECOOLANT
EMPTYWASTETANK
LOWERRADIATOR
&OVERFLOW
OFF
OFF
SYSTEMVACUUM
&OVERFLOW
LOWERRADIATOR
EXCHANGECOOLANTOR
FILLRADIATOR&OVERFLOW
New Coolant Tank
(Small)
Green Hose
Adapter
Wand
Green Hose
Step

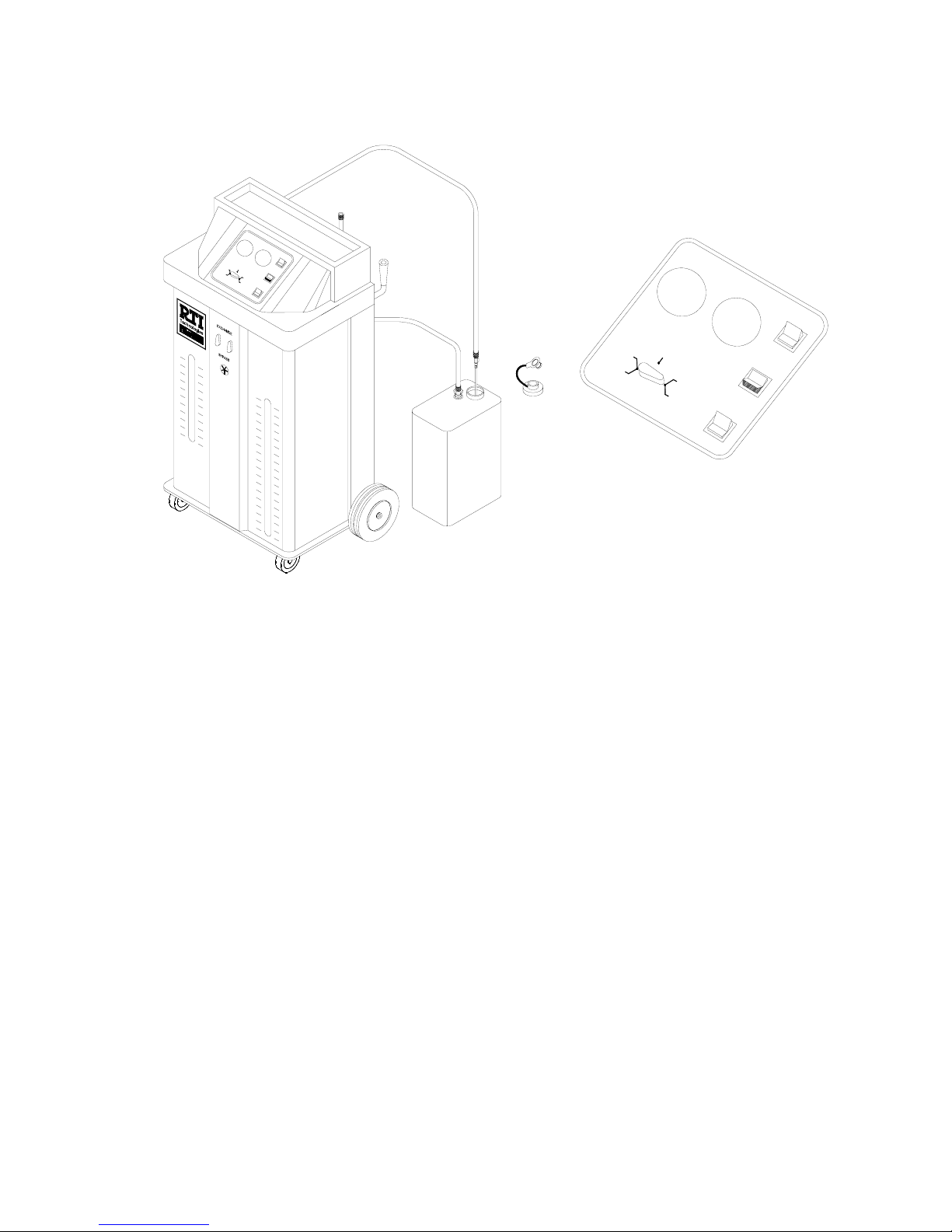

CHANGING COOLANT TYPE
The MCX-2F has a means for easily using different types of coolants. A special feature
is the clearing process which purges coolant from the hoses and pumps prior to
changing the new coolant tank. The MCX-2F must be connected to a battery during this
procedure.
1. Slide the New Coolant Tank to the rear and sit it on the floor.
2. Disconnect the green hose from the tank and install a Step Adapter on the end.
Close the valve on the Step Adapter.
3. Close the valve and install the Wand on the long green hose.
4. Turn both valves on the front of the MCX-2F to EXCHANGE.
5. Turn control valve to FILL RADIATOR & OVERFLOW.
6. Press the top of the EXCHANGE COOLANT OR FILL RADIATOR &
OVERFLOW selector switch to start the pump.
7. Insert the end of the Wand in the fill port of the New Coolant Tank. Open the
valve on the Wand and then open the valve on the Step Adapter. All coolant in
the hoses and pump will be emptied into the New Coolant Tank.
8. Close the valve on the Wand and Step Adapter. Press the bottom of the
EXCHANGE COOLANT OR FILL RADIATOR & OVERFLOW selector switch
to turn off the pump.
9. Remove the Step Adapter from the green hose and connect the hose to a New
Coolant Tank with a different type of coolant.
Continued on next page . . .

Page 16
Black Hose
LOWERRADIATOR
EMPTYWASTETANK
&OVERFLOW
SYSTEMPRESSURESYSTEMVACUUMLOWERRADIATOR
&OVERFLOW
TEST
EXCHANGECOOLANTOR
EMPTYWASTETANK
EXCHANGECOOLANT
&OVERFLOW
FILLRADIATOR
OFF
OFF
FILLRADIATOR&OVERFLOW
OFF
LOWERRADIATOR
&OVERFLOW
EMPTYWASTETANK
SYSTEMVACUUM
FILLRADIATOR&OVERFLOW
OFF
OFF
FILLRADIATOR
&OVERFLOW
EXCHANGECOOLANT
TEST
SYSTEMPRESSURE
EMPTYWASTETANK
EXCHANGECOOLANTOR
OFF
&OVERFLOW
LOWERRADIATOR
Green Hose
Green Hose
Wand
(Small)
New Coolant Tank
CHANGING COOLANT TYPE
10. Press the top of the EXCHANGE COOLANT OR FILL RADIATOR &
OVERFLOW selector switch to start the pump.
11. Insert the end of the Wand in the fill port of the New Coolant Tank. Open the
valve on the Wand.
12. The pump will prime and hoses will fill with the new coolant.
13. Close the valve on the Wand when new coolant starts flowing.
14. Press the bottom of the EXCHANGE COOLANT OR FILL RADIATOR &
OVERFLOW selector switch to turn off the pump.
15. Place the cap on the New Coolant Tank and slide it into the MCX-2F.

Page 17

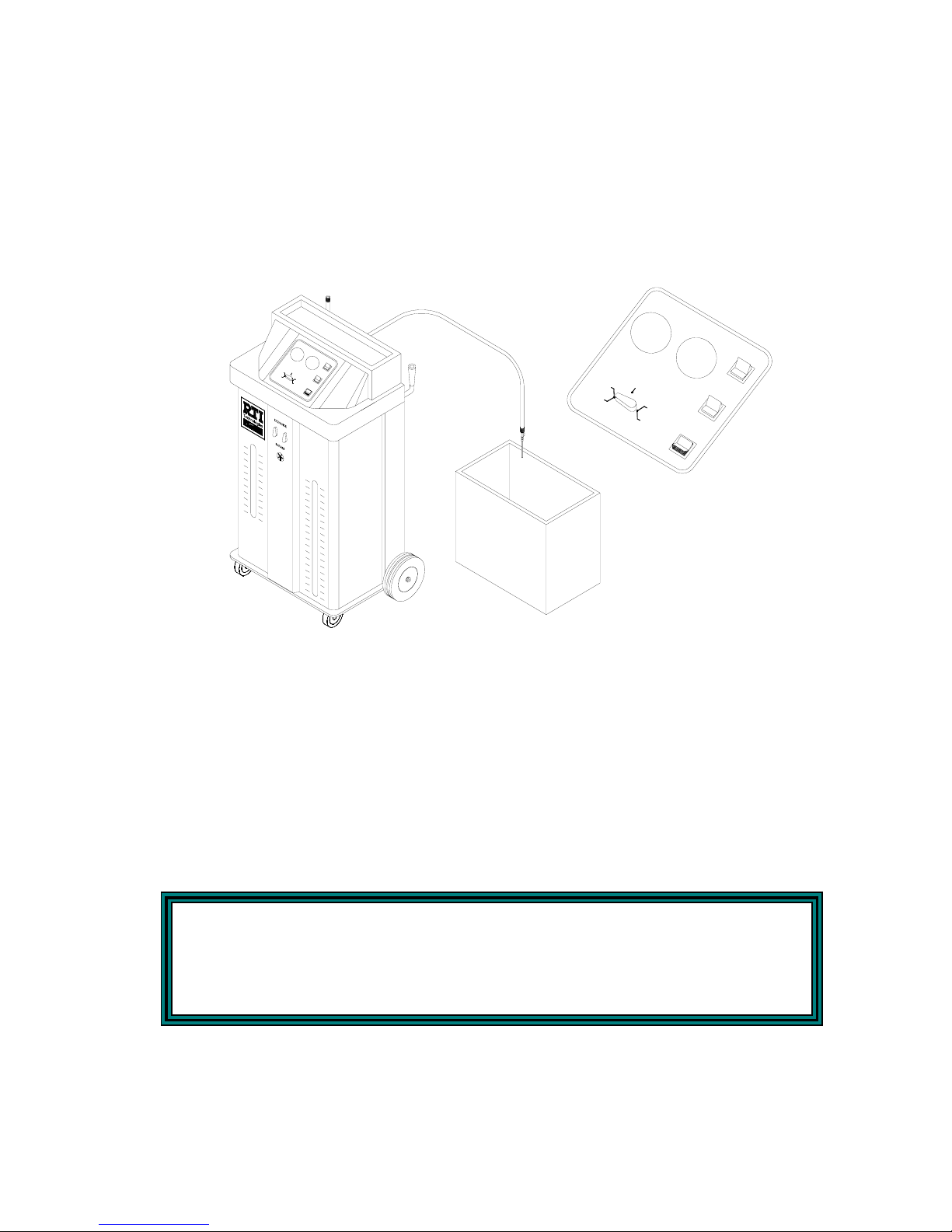

Do not leave the MCX-2F unattended while emptying the waste tank.
The pump will be destroyed if allowed to run for more than one
minute after waste tank is empty.
Bulk Waste Container
&OVERFLOW
FILLRADIATOR
TEST
EMPT
YWASTETANK
&OVERFLOW
LOWERRADIATOR
Black Hose
SYSTEMPRESSURELOWERRADIATOR
&OVERFLOW
EMPTYWASTETANK
EXCHANGECOOLANT
OFF
OFF
OFF
FILLRADIATOR&OVERFLOW
EXCHANGECOOLANTOR
SYSTEMVACUUM
Green Hose
EXCHANGECOOLANTOR
FILLRADIATOR&OVERFLOW
LOWERRADIATOR
&OVERFLOW
EMPTYWASTETANK
SYSTEMVACUUM
OFF
OFF
FILLRADIATOR
&OVERFLOW
EXCHANGECOOLANT
TEST
SYSTEMPRESSURE
EMPTYWASTETANK
OFF
&OVERFLOW
LOWERRADIATOR
EMPTYING THE WASTE TANK
The Waste Tank can be emptied two different ways.
A. The Waste Tank can be removed from the MCX-2F and transported to the area
where it is to be emptied. A quick connect coupler is installed on the black hose
to make this disconnection quick and clean.
B. The MCX-2F can be used to pump the waste coolant directly from the Waste
Tank into another waste collection tank. A 12 volt battery will be required to
power the MCX-2F.
1. Install the Wand on the black hose.
2. Turn both valves on the front of the MCX-2F to EXCHANGE.
3. Turn the control valve to EMPTY WASTE TANK.
4. Press the top of the EMPTY WASTE TANK selector switch to start the pump.
5. Hold the Wand over the Bulk Waste Container and open the valve.
6. Waste coolant will be pumped directly from the MCX-2F Waste Tank into the
Bulk Waste Container.
7.
Close the valve on the Wand when done.
8. Press the bottom of the EMPTY WASTE TANK selector switch to stop the
pump.

Page 18
Fuse 15 AMP
Impeller & Gasket
(For Waste Pump M2)
New Coolant Tank
Waste Tank
028-80240-00
370-80007-00
370-80008-00
025-80326-00
1-3/4
1-1/2
370-80006-00
370-80047-00
Large Step Adapter
Wand
1-3/8
1-1/4
370-80049-00
370-80050-00
370-80046-00
Large Adapter Hose
(Includes 2 Clamps)
Small Step Adapter
Small Adapter Hose
(Includes 2 Clamps)
1-1/4 1-3/8
1-1/2 1-3/4
2
2-1/4
2-1/2
Extra Large Step Adapter 370-80048-00
370-80051-00
Extra Large Adapter Hose
(Includes 2 Clamps)
2-1/4 2-1/2
Optional Accessories
Impeller & Gasket
(For Waste Pump M2)
028-80210-00
4-Bolt Style
3-Bolt Style
REPLACEMENT PARTS
Call 800-468-2321 (Extension 259)
For Technical Support or Parts Ordering
Visit our web-site at www.rtitech.com

Page 19
Cover Plate
Screw
Impeller
Gasket
Pump
Housing
Cover Plate
Screw
Impeller
Gasket
Pump
Housing
WASTE PUMP IMPELLER REPLACEMENT
The waste pump impeller may require periodic replacement. The concentration of
impurities in recovered old coolant affects the life of the pump impeller. Changing the
impeller is quick and easy as follows:
1. Remove Hose Holder on rear of unit to access the end of the Waste Pump.
2. Remove screws.
3. Remove cover plate, gasket and worn impeller.
4. Coat new impeller with Vaseline®petroleum jelly.
5. Align flats and press impeller onto shaft.
6. Attach new gasket and cover plate.
7. Replace Hose Holder.
3-Bolt Style 4-Bolt Style
Impeller & Gasket Impeller & Gasket
Part Number: 028-80210-00 Part Number: 028-80240-00
