OPERATION MANUAL
ATX-2
Automatic Transmission Exchanger
Manual P/N 035-80854-00 (Rev A)

Page 1
TABLE OF CONTENTS
Component Description ....................... 2
SafetyPrecautions........................... 3
Keypad Functions ............................ 4
Connecting to the Transmission System .......... 6
Flush ..................................... 8
DrainPan.................................. 8
Fluid Exchange .............................. 9
-1/2Quart.................................. 9
+1/2Quart ................................. 9
Disconnecting from the Transmission System ......10
EmptyUsed ................................11
EmptyNew.................................11
Maintenance ................................12
Parts Identification ...........................13
Flow&WiringDiagram........................14

Page 2

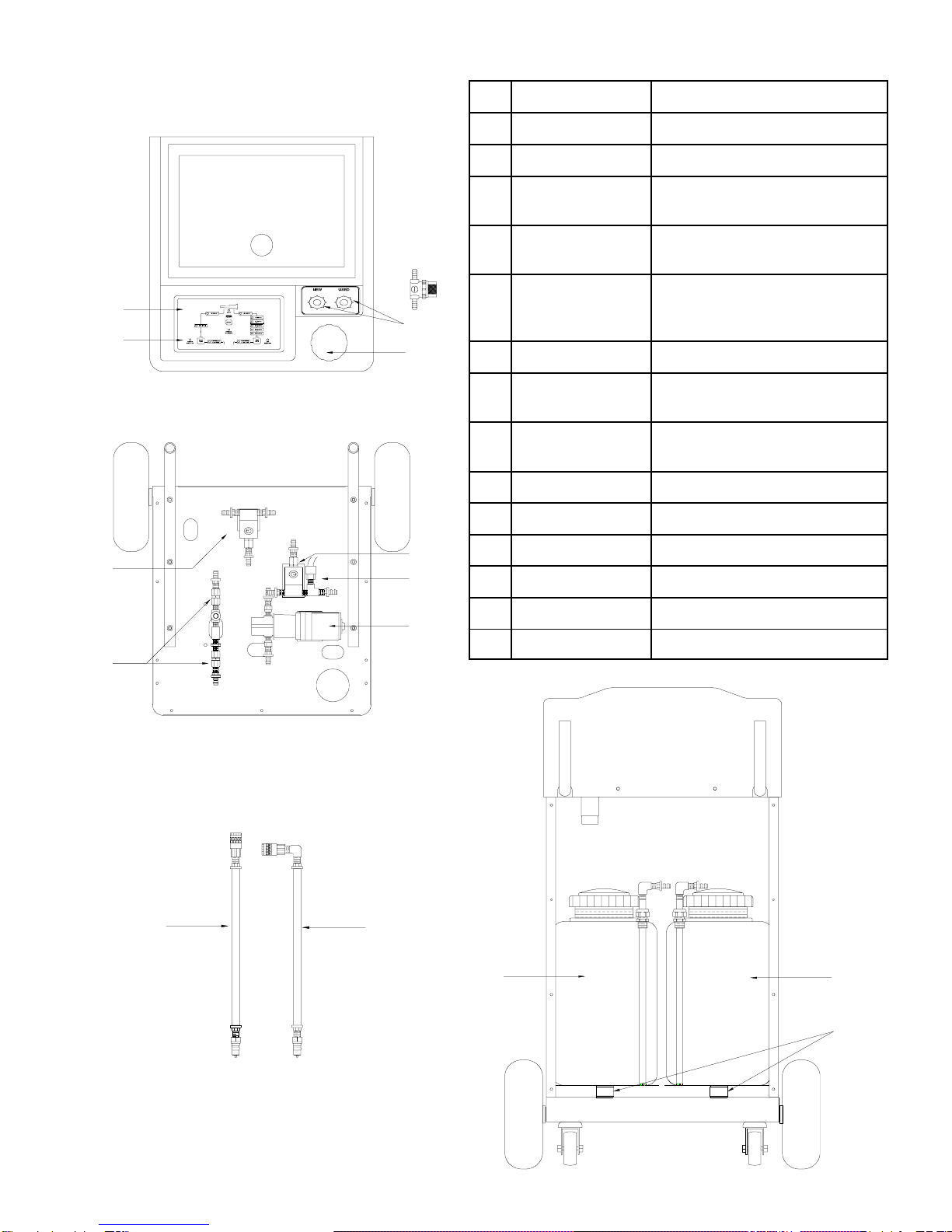

(90°)
(STRAIGHT)
12 INCH HOSE ADAPTE
R
12 INCH HOSE ADAPTER
NEW - USED SIGHT BOWLS
PRESSURE GAUGE
(FILTERS)
10 FT BLACK HOSE
10 FT RED HOSE
SIGHT INDICATOR
NEW FLUID
USED FLUID
SIGHT INDICATOR
8 FT BLACK HOSE
FILL PORT
FITTING ADAPTER SET
KEYPAD
COMPONENT DESCRIPTION
Unpack all components. Use laminated placard to verify fitting adapter quantities.
Contact RTI if any items are missing or damaged.

Page 3
Safety Precautions
WARNING: Failure to follow these precautions can result in
serious injury or death.
• Read and understand the Operation Manual completely before operating this unit.
• Always wear proper eye and skin protection when operating and maintaining this equipment.
• Take precautions to keep clothing, hair, hands, hoses etc. away from all moving parts of the
vehicle.
• Many Automatic Transmission systems can be extremely hot and operate at high pressures.
Always use extreme caution when connecting and dis-connecting hoses and adapters.
• Always keep a fire extinguishing device nearby when working with flammable liquids.
• Choose a well ventilated work area and avoid breathing any harmful fumes when preforming a
transmission fluid exchange.
• Check engine oil level and coolant level. Refill if low. Do not perform the exchange if either is
low.
• Flush solutions are combustible and are harmful or fatal if swallowed. If swallowed call doctor
immediately and do not induce vomiting. If Flush Solution gets in eyes flush with water
immediately. For contact with skin wash with soap and water. Apply skin lotion if necessary to
sooth irritation.
• Immediately clean up any transmission fluid spills and use proper container for disposal.
• Comply with local, state, and federal regulations for fluid disposal.
•Material Safety Data Sheets (MSDS) must be obtained on all chemicals and placed in a shop
file for reference.

Page 4

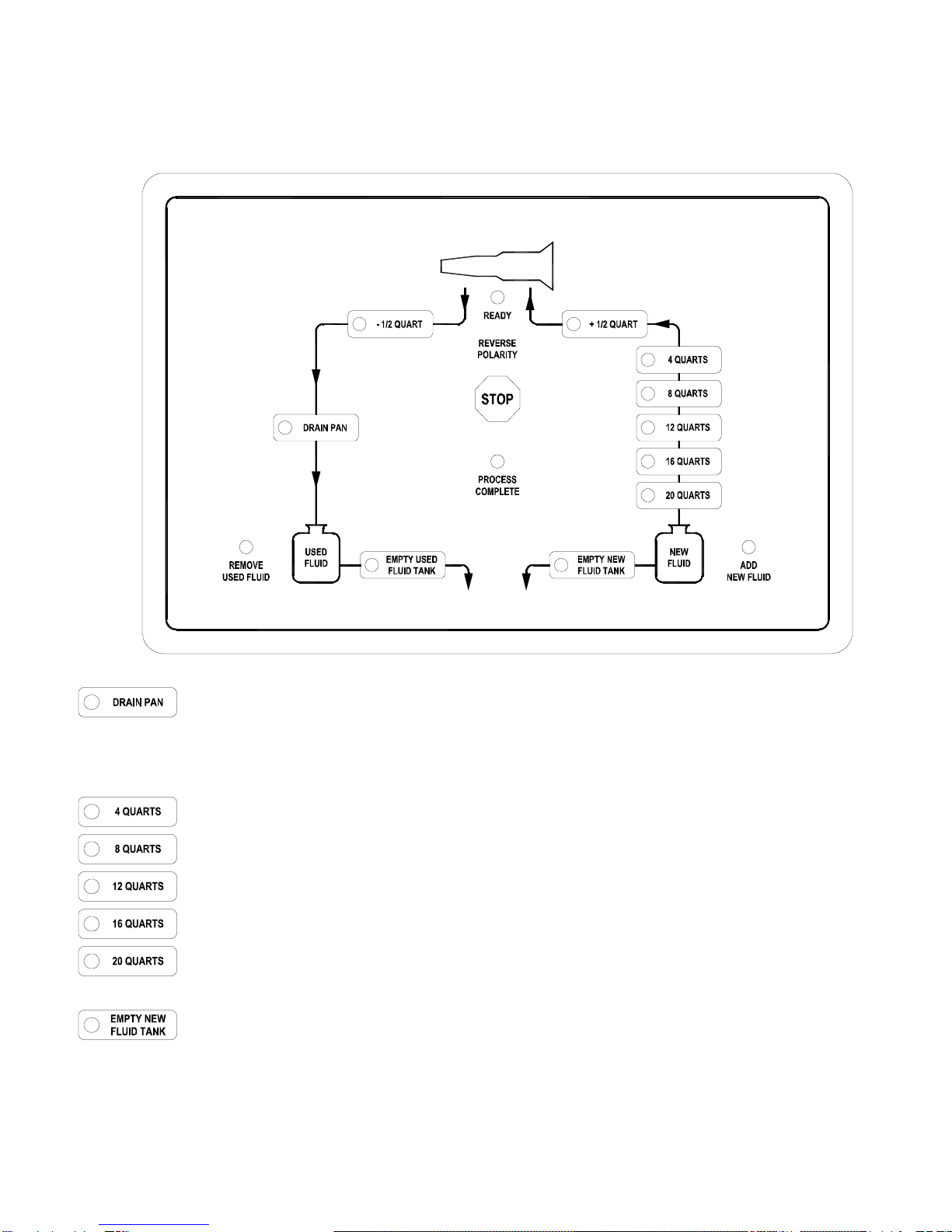

KEYPAD FUNCTIONS
The ATX-2 is an automatic transmission fluid exchanger featuring state-of-the-art electronic controls
with digital weight scales measuring the automatic transmission fluid coming into and going out of
the machine. Operation of the ATX-2 is intuitive and very easy to master.
Transmission fluid is recovered from vehicle and filtered before collecting in the ATX-2
used fluid tank. The used fluid is pumped by the vehicle transmission pump and when
the procedure is complete, the ATX-2 buzzer will sound continuously until the stop
button is pressed. Refer to page 8 for complete instructions.
Filters and exchanges the used transmission fluid in the vehicle for new from the ATX-
2. The fluid is moved by both the vehicle transmission pump removing the used inside
the vehicle and the ATX-2 pump replacing it with new. The procedure is complete
when the buzzer sounds continuously until the stop button is pressed. Refer to page 9
for complete instructions
Transmission fluid is emptied completely from the new fluid tank inside the ATX-2. It
can be stored in a bulk container for later use. This procedure is performed if a change
in transmission fluid types is required. The ATX-2 buzzer will sound continuously until
the stop button is pushed when procedure is complete. Refer to page 11 for complete
instructions.
