Graco Oil King C Series Operation manual

Instructions – Parts List
GRACO INC.ąP.O. BOX 1441ąMINNEAPOLIS, MNą55440-1441
Copyright 1996, Graco Inc. is registered to I.S. EN ISO 9001
Used–Oil Receiver
Model 238866, Series C
Used–Anti–Freeze Receiver
Model 248632, Series C
Funnel Kit
Model 243650, Series A
U.S. Patent No. Des. 395,439
NOTE: These used-fluid receivers can be
used with the Graco used-oil receiver
evacuation system and accessories
documented in instruction manuals
308719 and 307870.
Table of
Contents
Warnings 2. . . . . . . . . . . . . . . . . . . . . . . . . .
Operation 3. . . . . . . . . . . . . . . . . . . . . . . . .
Parts Drawing 4. . . . . . . . . . . . . . . . . . . . . .
Parts List 5. . . . . . . . . . . . . . . . . . . . . . . . . .
Technical Data 5. . . . . . . . . . . . . . . . . . . . .
Graco Standard Warranty 6. . . . . . . . . . .
Graco Information 6. . . . . . . . . . . . . . . . . .
308667K
Read warnings and instructions.
TI0414
25–GALLON (95–LITER)
Oil Kingtand
Coolant Kingt
This equipment is intended for collection of petroleum lubricants or antifreeze
only. Any other use or collection of any other fluids could result in damage to
the equipment or serious bodily injury.
Parts

2 308667
Symbols
Warning Symbol
WARNING
This symbol alerts you to the possibility of serious
injury or death if you do not follow the instructions.
Caution Symbol
CAUTION
This symbol alerts you to the possibility of damage to
or destruction of equipment if you do not follow the
instructions.
WARNING
INSTRUCTIONS
EQUIPMENT MISUSE HAZARD
Equipment misuse can cause the equipment to malfunction and result in serious injury.
DThis equipment is for professional use only.
DRead all instruction manuals before you operate this equipment.
DUse the equipment only for its intended purpose. If you are not sure, contact your Graco distributor.
DDo not alter or modify this equipment.
DCheck equipment daily. Repair or replace worn or damaged parts immediately.
DThis equipment is intended for collection of petroleum lubricants or antifreeze only. Any other use
or collection of any other fluids could result in damage to the equipment or serious bodily injury.
DAlways wear protective eyewear, gloves, clothing, and respirator as recommended by the fluid and
solvent manufacturer.
DComply with all applicable local, state, and national fire, electrical, and safety regulations.
DDispose of waste fluids according to all local, state, and national guidelines.
FIRE AND EXPLOSION HAZARD
Poor ventilation, open flames, or sparks can cause a hazardous condition and result in a fire or explo-
sion and serious injury.
DIf you are using this unit with an evacuation system, make sure the pumping system is installed
and grounded according to the manufacturer’s recommendation.
DProvide fresh air ventilation to avoid the buildup of flammable fumes.
DExtinguish all open flames in the work area.
DDo not smoke in the work area.
United States Government safety standards have been adopted under the Occupational Safety and Health Act. You
should consult these standards–particularly the General Standards, Part 1910.

308667 3
Operation
Refer to parts drawing. Squeeze the handles together on the torsion spring (8), and slide the funnel up or down to
achieve the proper height.
WARNING
To lower the center of gravity and reduce the possibility of tipping, make sure you lower
the funnel before you roll the unit anywhere.
To ensure that the funnel does not plug and fill up, keep the strainer (24) clean.
DTo drain the unit, use the lower drain, or use an evacuation system as described in instruction manual
308719.
WARNING
To prevent spill, do not fill unit above the 25 gallon indication on the sight tube.
CAUTION
NOTE: If you will use the lower drain, remove the pipe plug (12) from the tee (10), and replace it
with the drain valve (25) before you put any fluid into the unit.
DFor ease in positioning the unit during use, it is best to guide the unit by the front handle, because the
pivoting casters are on the front.

4 308667

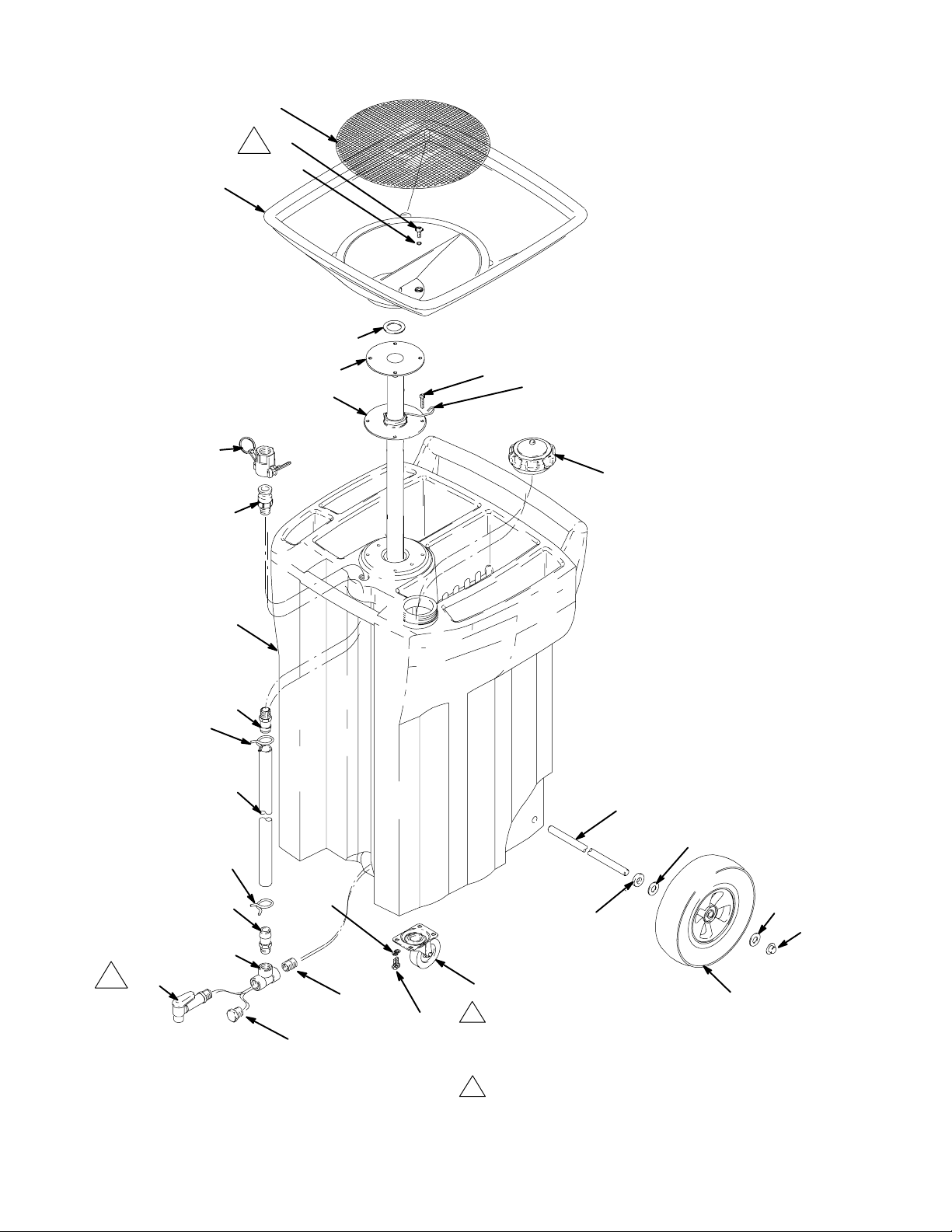

Parts Drawing
21
1
2a
34
6
7
9
10
16
16
11
13
14
17
19
20
22
22
2f
8
12
25
1Drain valve handle is shown in the
closed position. To open it, rotate
the handle so it points away from
the unit.
1
26
27
15
TI0415
2b
2c
2d
2e
15
2
2Torque to 30 – 35 in.lbs.

308667 5
Parts List
Used-Oil Receiver (black tank), Model 238866, Series C
Used-Anti–Freeze Receiver (green tank), Model 248632, Series C
Ref.
No. Part No. Description Qty.
1 TANK; 25 gallon (95 liter) 1
2 243650 FUNNEL ASSEMBLY 1
2a FUNNEL 1
2b SCREW, machine, pan head,
5/16–18 UNC 4
2c 111959 O–RING 4
2d TUBE, drain 1
2e 116092 GASKET 1
2f 196562 STRAINER 1
3 113645 CASTER, polyurethane;
3 in. (76 mm) 2
4 113647 WHEEL, semi-pneumatic, syn-
thetic rubber;10.5 in. (267 mm) 2
6 191748 COLLAR, funnel 1
7 191752 AXLE 1
8 104820 SPRING, torsion 1
9 192871 TUBE, sight;
1.29 in. O.D x 1 in. I.D. x 29 in. 1
Ref.
No. Part No. Description Qty.
10 113655 TEE, pipe;
3/4 in. x 3/4 in. x 3/4 in. 1
11 113656 NIPPLE, pipe; 3/4 in. x 3/4 in. 1
12 113657 PLUG, pipe; 3/4 in. 1
13 113648 FILL CAP, vented 1
14 113783 SCREW, machine, panhead;
1/4–20 UNC–2A 4
15 113908 CLAMP, hose; 1.25 in. (32 mm) 2
16 113649 ADAPTER, hose 2
17 113658 CREST NUT, hat 2
19 BOLT, hex hd; 5/16–18 x 3/4 in. 8
20 100214 WASHER, lock; 5/16 in. 8
21 191824 WASHER, spacer;
0.66 in. I.D. x 0.25 in. thick 2
22 111841 WASHER, plain; 5/8 in. 4
25 113895 VALVE, drain; 3/4 in. 1
26 113902 COUPLING, cam, male; 3/4 in. 1
27 113907 COUPLING, cam, female; 3/4 in. 1
Technical Data
Length 24 in. (610 mm). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Width 24 in. (610 mm). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Height
with bowl at lowest adjustment 45 in. (1143 mm). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
with bowl at highest adjustment 69 in. (1573 mm). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Dry Weight 54 lb (24.5 kg). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fluid inlet/inspection port size 3 in. (76 mm) buttress. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fluid outlet fitting size 3/4 in. npt. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wetted parts linear low-density polyethylene (LLDPE), zinc-plated steel,. . . . . . . . . . . . . . . .
brass, nylon, polypropylene, PVC, Buna–N, polyurethane
Recommended operating temperature 30_to 105_F (–1_to 41_C). . . . . . . . . . . . . . . . . . . .

6 308667
Graco Standard Warranty
Graco warrants all equipment manufactured by Graco and bearing its name to be free from defects in material and workmanship on the
date of sale to the original purchaser for use. With the exception of any special, extended, or limited warranty published by Graco,
Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be
defective. This warranty applies only when the equipment is installed, operated and maintained in accordance with Graco’s written
recommendations.
This warranty does not cover, and Graco shall not be liable for general wear and tear, or any malfunction, damage or wear caused by
faulty installation, misapplication, abrasion, corrosion, inadequate or improper maintenance, negligence, accident, tampering, or sub-
stitution of non–Graco component parts. Nor shall Graco be liable for malfunction, damage or wear caused by the incompatibility of
Graco equipment with structures, accessories, equipment or materials not supplied by Graco, or the improper design, manufacture,
installation, operation or maintenance of structures, accessories, equipment or materials not supplied by Graco.
This warranty is conditioned upon the prepaid return of the equipment claimed to be defective to an authorized Graco distributor for
verification of the claimed defect. If the claimed defect is verified, Graco will repair or replace free of charge any defective parts. The
equipment will be returned to the original purchaser transportation prepaid. If inspection of the equipment does not disclose any defect
in material or workmanship, repairs will be made at a reasonable charge, which charges may include the costs of parts, labor, and
transportation.
THIS WARRANTY IS EXCLUSIVE, AND IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT
NOT LIMITED TO WARRANTY OF MERCHANTABILITY OR WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE.
Graco’s sole obligation and buyer’s sole remedy for any breach of warranty shall be as set forth above. The buyer agrees that no other
remedy (including, but not limited to, incidental or consequential damages for lost profits, lost sales, injury to person or property, or any
other incidental or consequential loss) shall be available. Any action for breach of warranty must be brought within two (2) years of the
date of sale.
Graco makes no warranty, and disclaims all implied warranties of merchantability and fitness for a particular purpose in connection
with accessories, equipment, materials or components sold but not manufactured by Graco. These items sold, but not manufactured
by Graco (such as electric motors, switches, hose, etc.), are subject to the warranty, if any, of their manufacturer. Graco will provide
purchaser with reasonable assistance in making any claim for breach of these warranties.
In no event will Graco be liable for indirect, incidental, special or consequential damages resulting from Graco supplying equipment
hereunder, or the furnishing, performance, or use of any products or other goods sold hereto, whether due to a breach of contract,
breach of warranty, the negligence of Graco, or otherwise.
FOR GRACO CANADA CUSTOMERS
The parties acknowledge that they have required that the present document, as well as all documents, notices and legal proceedings
entered into, given or instituted pursuant hereto or relating directly or indirectly hereto, be drawn up in English. Les parties reconnais-
sent avoir convenu que la rédaction du présente document sera en Anglais, ainsi que tous documents, avis et procédures judiciaires
exécutés, donnés ou intentés à la suite de ou en rapport, directement ou indirectement, avec les procedures concernées.
Graco Information
TO PLACE AN ORDER, contact your Graco distributor, or call this number to identify the distributor closest to you:
1-800-533-9655 Toll Free
612-623-6928
612-378-3590 Fax
All written and visual data contained in this document reflects the latest product information available at the time of publication.
Graco reserves the right to make changes at any time without notice.
Graco Headquarters: Minneapolis
International Offices: Belgium, Korea, China, Japan
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440-1441
www.graco.com
PRINTED IN USA 308667 10/1996, Revised 10/2004
