RTS 5640-000100 Series User manual

5640-000100-xx-xx
adjustable garden table
May 2011
Revision 00
User Instructions
1. Unpack the garden table from its box.
2c. Table divider set, consisting of a
long centre divider and two short width
dividers.
5. Insert the threaded end of the upper leg
section into the receiving pockets of the
table.
2. Contents should include: sealed bag of
hardware.
3. Flip the table over onto a solid surface.
6. Twist the leg clockwise to secure it in
place; stop when the thread has bottomed
out.
2b. A set of four (4) legs.
4. Remove the legs from its packaging,
each leg consist of a larger upper
sections, and a smaller lower section
inserted inside of the larger section.
7. Be aware of the threaded end of the
lower leg as shown. This end should be
pointing up when inserting it into the
lower leg.
RTS GARDEN TABLE ADJUSTABLE
USER INSTRUCTIONS
Read these instructions and general information to properly and safely
assemble a garden table with adjustable legs.
PAGE 1/2
RTS Companies Inc. | 1027 Industrial Place, P.O. Box 179, St. Clements, Ontario N0B 2M0 | 1-800-663-2803
RTS Companies US, Inc. | 2900 Industrial Park Drive, Austinburg, Ohio 44010-0183 | 1-888-641-3077

5640-000100-xx-xx
adjustable garden table
May 2011
Revision 00
User Instructions

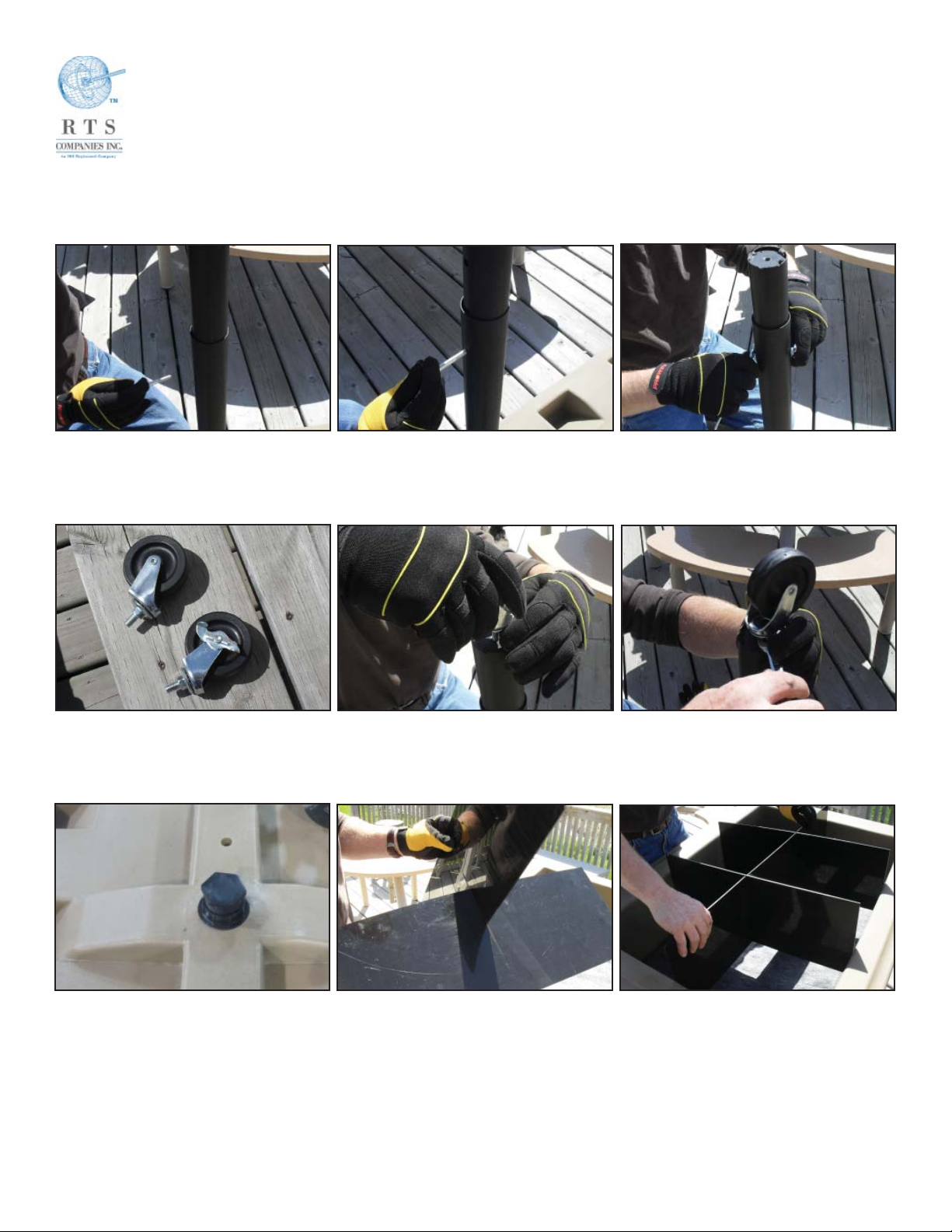

8. Insert the lower leg partially into the
upper leg.
The lower leg has 4 sets of holes to allow
for 9 inches of height adjustment.
11. The table comes with 4 castors:
two swivel (left), and two locking (right)
as shown above. When installing the
castors, ensure that the locking castors
are located in opposite corners.
15. Assemble the divider by sliding the
two short dividers into the long divider as
shown.
9. Line up the desired holes on the lower
leg to the holes on the outer leg and insert
the provided bolt all the way through.
12. Start by hand threading the castor
onto the leg, best done by griping it by the
threads.
13. Once the thread is started, tighten
the castor at the nut using an 9/16” or
adjustable wrench.
16. Finish the assembly by placing the
dividers into the table.
10. Tighten the hardware to secure the
leg in position and repeat for all legs.
Make note of the hole position used to
ensure that all legs are at the same height.
14. Note: There is a plug in the bottom
of the table. Make sure the plug is in the
table.
RTS GARDEN TABLE ADJUSTABLE
USER INSTRUCTIONS
Read these instructions and general information to properly and safely
assemble a garden table with adjustable legs.
PAGE 2/2
RTS Companies Inc. | 1027 Industrial Place, P.O. Box 179, St. Clements, Ontario N0B 2M0 | 1-800-663-2803
RTS Companies US, Inc. | 2900 Industrial Park Drive, Austinburg, Ohio 44010-0183 | 1-888-641-3077
RTS Companies Inc. warrants its products to be free from defects in materials and workmanship under normal use and service for the period of one year. All warranty periods begin on the date of
invoice. This warranty does not cover defects, which are merely cosmetic, but is limited to defects, which result in structural failure, including structural failure due to material corrosion or deterio-
ration. This warranty does not cover damage due to vandalism, abuse, lack of maintenance or improper installation. RTS Standard Terms and Conditions apply.
