RTS DV 2400 Series User manual

SERVICE MANUAL
CIRCUIT DESCRIPTION ............................ 1
PC BOARD..................................................30
SPECIFICATIONS...................................... 39
CONTENTS
© 2016 Jan.
PARTS LIST ............................................... 8
ADJUSTMENT ........................................ 28
BLOCK DIAGRAM..................................... 38
SCHEMATIC DIAGRAM............................ 34

DV-2400
1
CIRCUIT DESCRIPTION
Frequency configuration
The receiver utilizes double conversion. The first IF is 38.850 MHz and the second IF is 450kHz. The
first local oscillator signal is supplied from the PLL circuit.
The PLL circuit in the transmitter generates the necessary frequencies. Fig. 1 shows the frequencies.
ANTSW
MCF
38.850MHz
IFSYSTEM
450KHz
CF
AN T
AF
AMP SP
TC XO 19.200 MHz
POWER
AMP
RF
AMP
PLL
VC O MIC
MIC
AMP
RX
TX
1s t
MIX
RF
AMP
1/2
MULTIPLY
38.4MHz
X2
Fig. 1 Frequency configuration
Receiver
The receiver is double conversion super heterodyne, designed to operate in the frequency range of 400
to 490MHz.
The frequency configuration is shown in Fig. 1.
Front - end RF amplifier
An incoming signal from the antenna is applied to an RF amplifier (Q206) after passing through a
transmit/receive switch circuit (D213 are off) and a band pass filter (L207, L208, L211 and varactor diodes:
D207, D208). After the signal is amplified (Q206), the signal is filtered through a band pass filter (L205,
L206 and varactor diodes: D205, D206) to eliminate unwanted signals before it is passed to the first mixer.
The voltage of these diodes are controlled by tracking the D/A (U505) center frequency of the band
pass filter. (See Fig. 2.)
ANT SW IFsystem
(PLL)
CF201(wide)
ANT
1st Local OSC
BUFFERAMP
U501(4/4)
U200
IF AMP
Q204
MCF
XF200, XF201
MIXER
Q205
BPF
RFAMP
Q206
BPF
U505
D/A
TV
CPU
CF200(Narrow)
D/
D207, D208
L207, L208, L211 D205,D206
L205, L206
ACONVERTER
U505
W/NO
X2MULTIPLY
Q200
TCXO
X200
Fig. 2 Receiver section configuration

DV-2400
2
CIRCUIT DESCRIPTION
First Mixer
The signal from the RF amplifier is heterodyned with the first local oscillator signal from the PLL
frequency synthesizer circuit at the first mixer (Q205) to create a 38.850MHz first intermediate frequency
(1st IF) signal. The first IF signal is then fed through one pair of monolithic crystal filter (MCF : XF200 and
XF201) to further remove spurious signals.
IF amplifier
The first IF signal is amplified by Q204, and then goes to U200 (FM processing IC). The signal is
heterodyned again with a second local oscillator signal within U200 to create a 450kHz second IF signal.
The second IF signal is then fed through a 450kHz ceramic filter (Wide : CF201, Narrow : CF200) to
further eliminate unwanted signals before it is amplified and FM detected in U200.

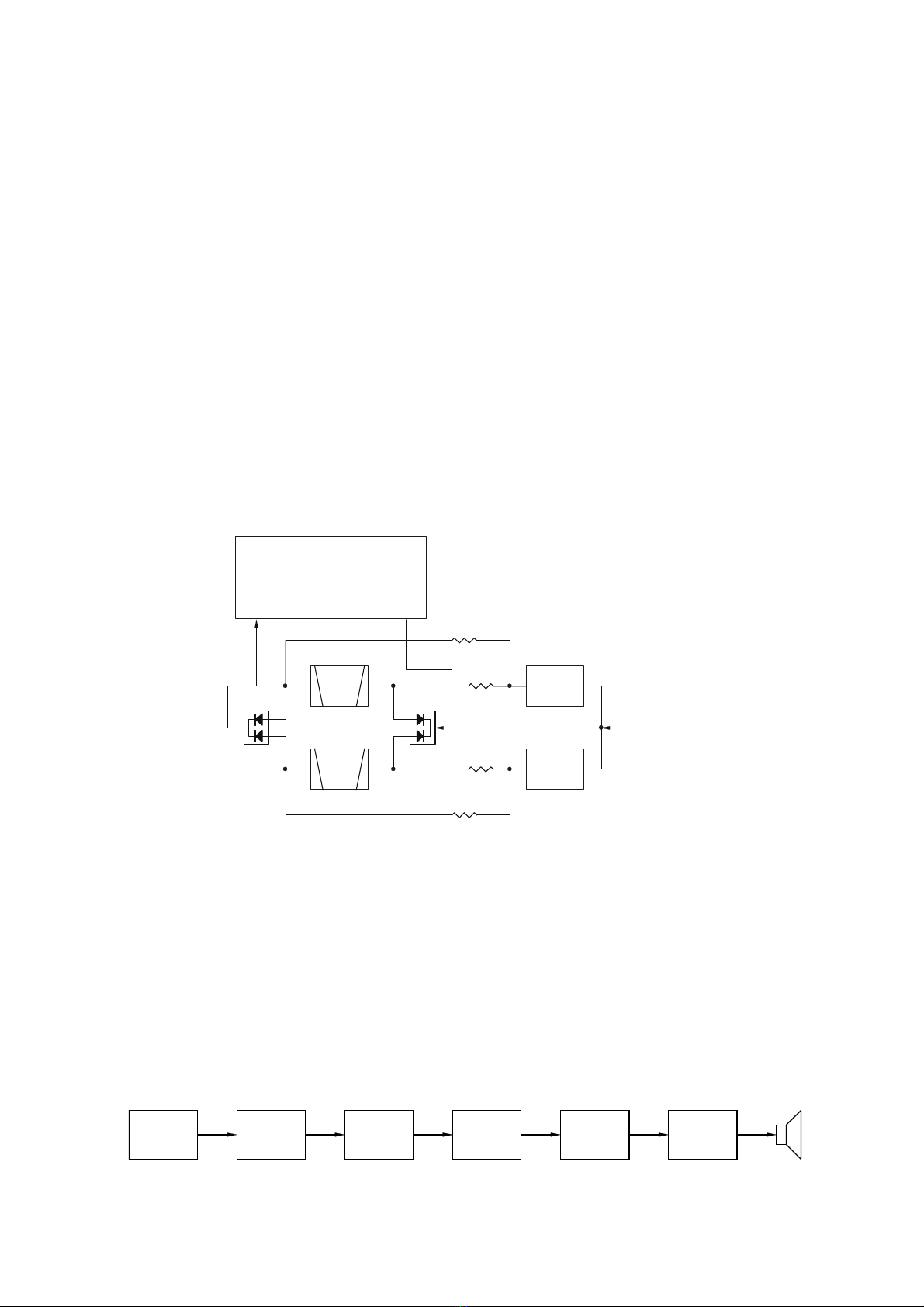

Wide/Narrow Switching Circuit
The Wide port and Narrow port (pin 35) of the CPU is used to switch between ceramic filters. When the
Wide port is high, the ceramic filter SW diodes (D200, D201) cause CF201 to turn on to receive a Wide
signal.
When the Narrow port is low, the ceramic filter SW diodes (D200, D201) cause CF200 to turn on to
receive a Narrow signal. (See Fig. 3.)
IF_IN
U200
IFSYSTEM
MIX_O
D201 D200
CF20 0
(NAR ROW)
CF20 1
(W ID E)
R2 27
R2 28
SW
SW
Q203
Q201 WIDE/NARROWS
W
U235pin
.
R2 29
R2 30
Fig. 3 Wide/Narrow Switching Circuit
AF Signal System
The detection signal from IF IC (U200) goes to D/A converter (U505) for adjusting the gain and is output
to AF filter (U502) for characterizing the signal. It is also amplified by entering compander amplifier (U500).
The AF signal output from U500 and the TONE signal are summed up and the resulting signal goes to the
D/A converter (U505). The AFO output level is adjusted by the D/A converter. The signal output from the
D/A converter is input to the audio power amplifier (U506). The AF signal from U505 was inputted into
(U506).The AF signal from (U506) switches between the internal speaker and speaker jack (J502) output.
(See Fig. 4.)
U501, U502
AF Filter
U505
D/A
CONV.
U200
IF IC
U505
D/A
CONV. AF PA
U506
U500
COMPANDE
S
P
Fig. 4 AF signal system

DV-2400
3
CIRCUIT DESCRIPTION
Squelch Circuit
The detection output from the FM IF IC (U200) passes through a noise amplifier (U201 2/2) to detect
noise. A voltage is applied to the CPU (U2). The CPU controls squelch according to the voltage (SQIN)
level. The signal from the RSSI pin of U200 is used for S-meter. The electric field strength of the receive
signal can be known before the SQIN voltage is input to the CPU, and the scan stop speed is improved.
U200
SYSTEM
CPU
U2
NOISEAMP
U201
IF
SQ
RSSI
SQIN
RSSI
P00
P04
Fig. 5 Squelch Circuit
PLL frequency synthesizer
The PLL circuit generates the first local oscillator signal for reception and the RF signal for transmission.
PLL
The frequency step of the PLL circuit is 5 or 6.25kHz. A 19.200MHz reference oscillator signal is divided
at U205 by a fixed counter to produce the 5 or 6.25kHz reference frequency. The voltage controlled
oscillator (VCO) output signal is buffer amplified by Q211, then divided in U205 by a dualmodule
programmable counter. The divided signal is compared in phase with the 5 or 6.25kHz reference signal in
the phase comparator in U205. The output signal from the phase comparator is filtered through a low-pass
filter and passed to the VCO to control the oscillator frequency. (See Fig. 6.)
VCO
The operating frequency is generated by Q217 in transmit mode and Q216 in receive mode. The
oscillator frequency is controlled by applying the VCO control voltage, obtained from the phase
comparator, to the varactor diodes (D219 and D221 in transmit mode and D218 and D220 in receive
mode). The TX/RX pin is set high in receive mode causing Q201 and Q218 to turn Q217 off, and turn
Q216 on. The TX/RX pin is set low in transmit mode. The outputs from Q216 and Q217 are amplified by
Q210 and sent to the RF amplifiers. (See Fig. 6.)
.
COMPARATOR
PHASE CHARGE
PUMP
U205:PLLIC
REFOSC
I/N
I/M
PLLDATA
LPF
Q211
TX VC O
Q217
BUFFAMP
Q210
AMP
19.200MHz
Q201,Q21 8
T/R SW
RXVCO
Q216
RFamp l ifier
s
P45(CPU)
D219,D221
D218,D220
5KHz/6.25KHz
5KHz/6.25KHz
Fig. 6 PLL circuit
UNLOCK Circuit
During reception, the RXC signal goes high, the TXC signal goes low, and Q108 turns on. Q101 turns
on and a voltage is applied to (8R). During transmission, the RXC signal goes low, the TXC signal goes

DV-2400
CIRCUIT DESCRIPTION
high and Q104 turns on. Q102 turns on and a voltage is applied to (8T).
The CPU in the control unit monitors the PLL (U205) LD signal directly. When the PLL is unlocked
during transmission, the PLL LD signal goes low. The CPU detects this signal and makes the TXC signal
low. When the TXC signal goes low, no voltage is applied to 8T, and no signal is transmitted. (See Fig. 7.)
SW
Q101 SW
Q102
SW
Q108 SW
Q104
U2 U205
CPU PLL
LD
RXC
8C
PLL lock
:LD"H"
TXC
8R 8T
.
Fig. 7 Unlock circuit
Transmitter
Outline
The transmitter circuit produces and amplifies the desired frequency directly. It FM-modulates the
carrier signal by means of a varicap diode.
Power Amplifier Circuit
The transmit output signal from the VCO passes through the transmission/reception selection diode
(D202) and amplified by Q208, Q219, Q212 and Q214. The amplified signal goes to the final amplifier
(Q215) through a low-pass filter. The low-pass filter removes unwanted high-frequency harmonic
components, and the resulting signal is transmitted through the antenna terminal. (See Fig. 8.)
D/A
U505
M62364F
CONVERTER
U504
COM PANDER
AMP
Q5
2SC1623
U500 U504
MIC/IDC
U504
SPLATTER
FILTER
U505
VCO
Q217
2SK1875
NJM2902
MC33111 NJM2902
NJM2902
D/A
M62364F
CONVERTER BUFFER
Q210
2SC4226
RFAMP
Q207,Q208
2SC4226
X200
192.0MHz
TCXO PLL
U205
LMX1511TM
RFAMP
Q211
2SC4226
RFAMP
Q219
2SC3356
DRIVESTAGE
Q212
2SK3078A
DRIVEAM P
Q214
AFT05MS FINALAMP
Q215
MRF7042
AN T
MIC
BUFFER
006NPB
Fig. 8 Transmitter system

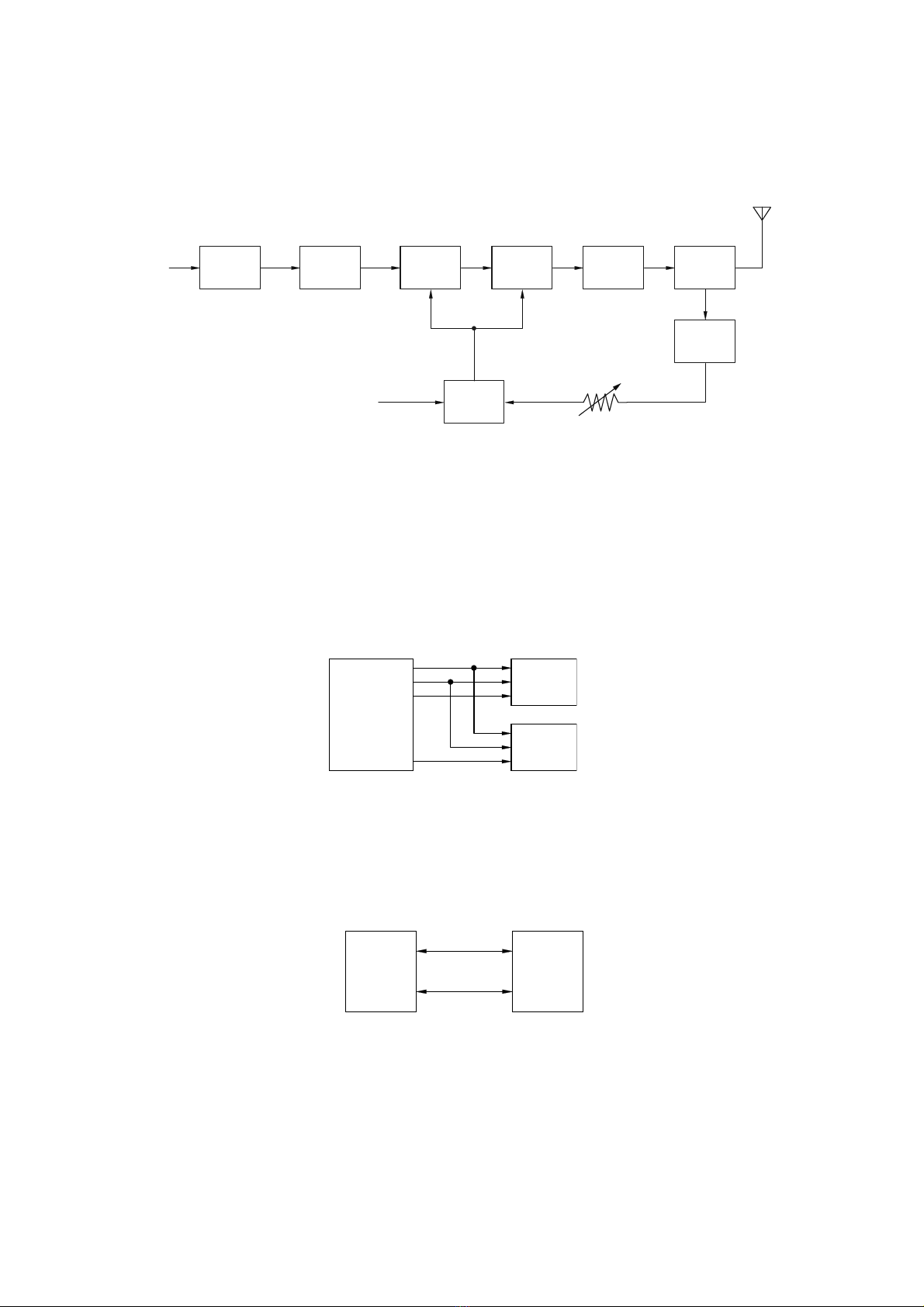

APC Circuit
The automatic transmission power control (APC) circuit detects part of a final amplifier output with a
diode (D228, D229) and applies a voltage to U202. U202 compares the APC control voltage (PC)
generated by the D/A converter (U505) with the detection output voltage. U202 generates the voltage to
control Q214 and Q215 and stabilizes transmission output.
The APC circuit is configured to protect over current of Q214 and Q215 due to fluctuations of the load
4

DV-2400
5
CIRCUIT DESCRIPTION
RFAM P
Q208an dQ219
DRIVESTAGE
Q212
DRIVEAMP
Q214
FINALAM P
Q215
ANT
ANTSW LPF
POWER
DET
D228 ,D22 9
APC
CONTROL
VR200
U202
14pin
U505
PC
D214 ,D21 5
D202
at the antenna end and to stabilize transmission output at voltage and temperature variations. (See Fig.
9.)
Fig. 9 APC Circuit
Control Circuit
The CPU carries out the following tasks (See Fig. 10.):
1) Controls the WIDE, NARROW, TX/RX outputs.
2) Controls the display unit.
3) Controls the PLL (U205).
4) Controls the D/A converter (U505) and adjusts the volume, modulation and transmission power.
CK
D/A
DT
LD
LE
U505
converter
U205
PLL
U2
CPU
Fig. 10 Control circuit
Memory Circuit
The transceiver has an 128k-bit EEPROM (U6). The EEPROM contains adjustment data. The CPU (U2)
controls the EEPROM through two serial data lines. (See Fig. 11.)
U6
EEPROM
U2
CPU
Fig. 11 APC Circuit

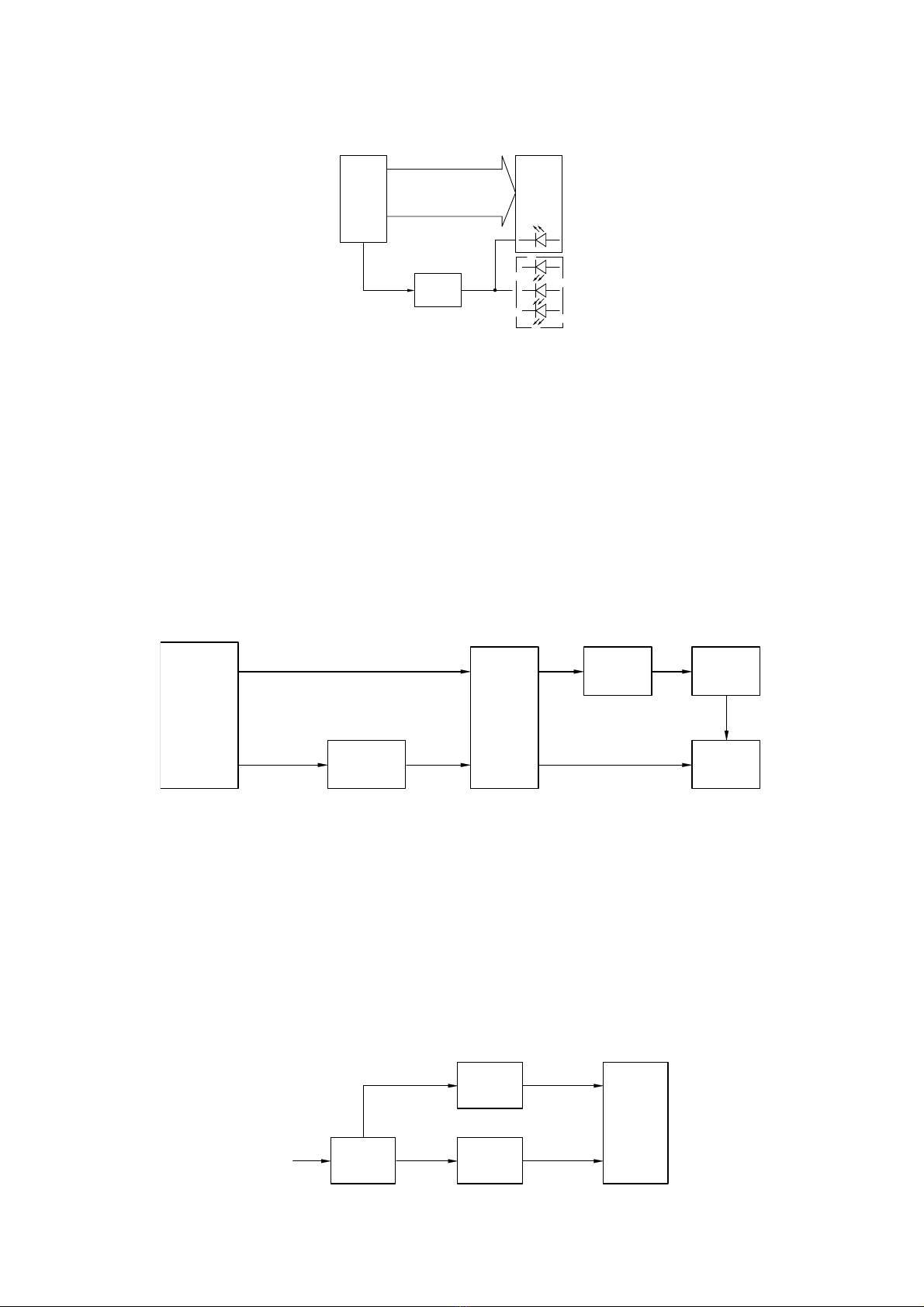

Display Circuit
The CPU (U2) controls the display LCD and LEDs. When power is on, the CPU will use the P07 line to
control the LCD illumination and key backlight LEDs.
The brightness function is controlled by the switch Q6 and Q7.
The LCD driver (DS1) and CPU (U2) communicate through the P14, P15, P16, P17, P85, P86 lines.
(See Fig. 12.)

DV-2400
CIRCUIT DESCRIPTION
CPU
U2
LCD
DS1
Q6,Q7
SW
P07
P14~P17
P85~P86
KEYBACK LIGHT
LCD BACK LIGHT
Fig. 12 Display circuit
Encode
DCS and CTCSS data is output through 42 PIN of CPU. The signal passes through low-pass CR filter,
and the signal attained goes into the D/A converter (U505). The high speed data of DTMF/2T/5T Tone is
output through 58 PIN of CPU, The signal passes through low-pass CR filter, providing TX and SP output
audio frequency, and has processed IDC after amplified by a U504(B/4). The signal then passes through a
low-pass filter (separation filter) U504 (C/4 and D/4), and filter the parts which are higher than 3kHz, and
the signal attained goes into the D/A converter (U505).
The D/A converter (U505) adjusts the balance between the MOD and DCS/CTCSS levels. Signal of
DCS/CTCSS port is summed with MOD and the resulting signal goes to the VCO. This signal is applied to
a varicap diode in the VCO for direct FM modulation. (See Fig. 13.)
Fig. 13 Encode circuit
Decode
DCS/CTCSS / DTMF/2T/5T
The signal from (AFWN) entering into AF signal and higher audio frequencies output by pin 1 of U501: A
are cut by low-pass filter U503. then led to pin 51 of CPU. The input signal is compared with the
programmed tone frequency code in the CPU. The squelch will open when they match.
The signal DTMF/2T/5T goes to P02 (pin 52) of CPU (U2). The DTMF input signal from the DTMF-DET
goes to compared and amplified U2008. The compared signal goes to the CPU for processing and be
decoded within the CPU (U2). (See Fig. 14.)
Fig. 14 Decode circuit
D/A
U505
U504(B/C/D/4)
U2
CPU
FILTER VCO
X200
TCXO U205
PLL
DTMF/2T/5T
DCS/CTCSS
LPF
P31
P06 VCOMOD
TCXO
MOD
AFWN LPF
CPU
U503
U2
FILTER
BUFFERAMP
U501A
U2008
DTMF-DET AMP P02
P01
DTMF/2T/5T
DCS/CTCSS
6

DV-2400
7
CIRCUIT DESCRIPTION
D/A Converter
The D/A converter (U505) is used to adjust MO modulation, AF volume, TV voltage, FC reference
voltage, and PC POWER CONTROL voltage level.
Adjustment values are sent from the CPU as serial data. The D/A converter has a resolution of 256 and
the following relationship is valid.

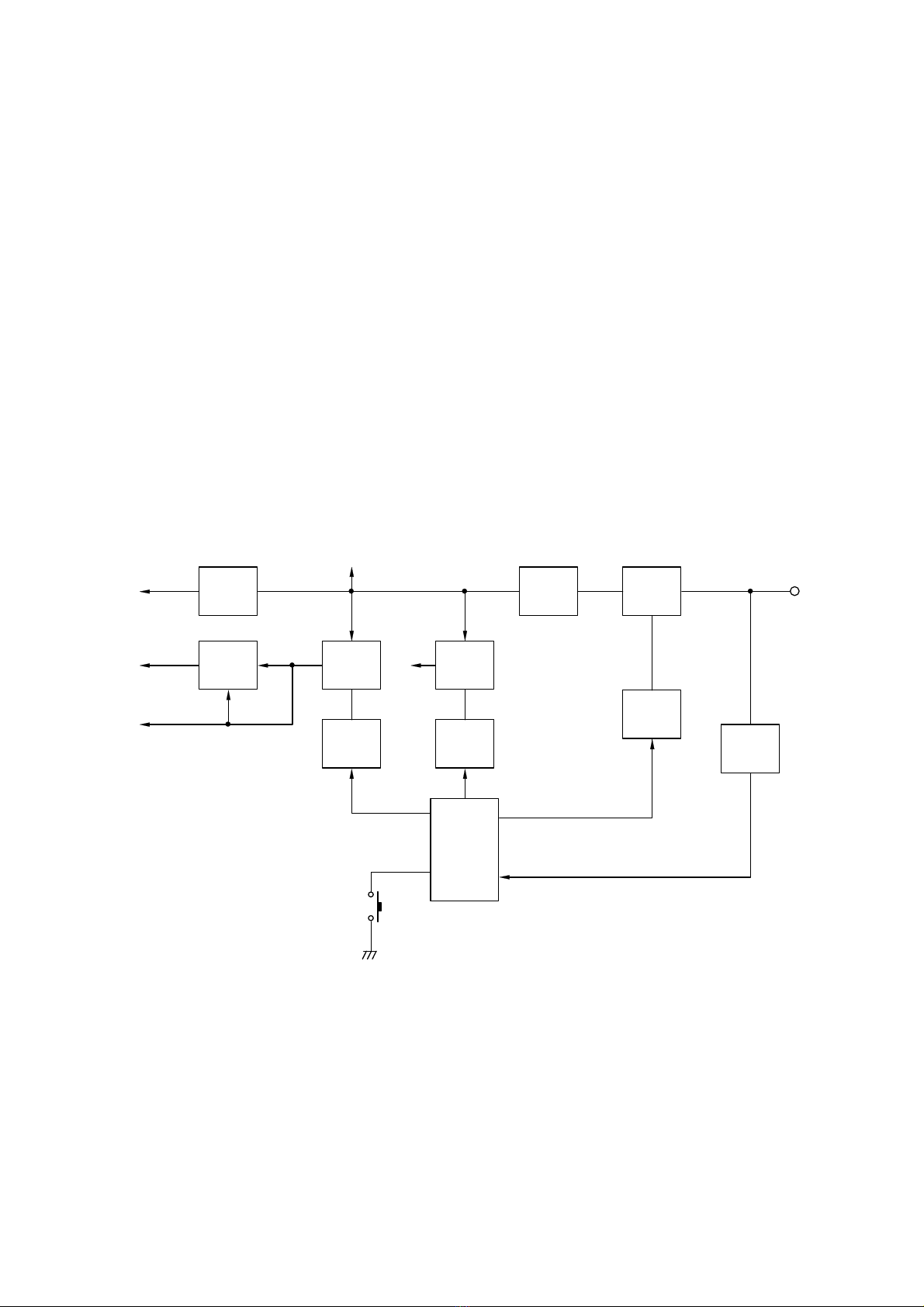

Power Supply Circuit
When the POWER switch on the display unit is pressed, the power port on the display unit which is
connected to CPU port 45 (P32), goes low, then CPU port 23 (P20) goes high, Q103 turns on, SBE SW
(Q100) turns on and power (SBE) is supplied to the radio.
When the DC power supplied to the radio, the voltage regulator IC (U1) supply into the CPU VDD.
During receiving, the CPU port 19 (P24) output "H" level. Q101 and Q108 turn on. and reception circuit
is supplied by 8V power supply (8R).
During transmitting, CPU port 18 (P25) output "H" level. Q102 and Q104 turn on. Transmitting circuit
output 8V power supply (8T). (See Fig. 15.)
U2
5M
CPU
Q100
SW
Q103
SW
U1
AVR
Q101
SW
Q108
SW
Q106
SW
VFM Q102
SW
Q104
SW
8R
8T
U100
AVR
U101
AVR
8C
8C
P20
P24
P25
F
B
POWER SW
P32
Fig. 15 Power supply circuit

DV-2400
8
PARTS LIST
DISPLAY UNIT
Ref. No Parts No. Description of item Size (LxW)(mm) Qty Specification
C1-C2 SMT CAPACITOR 0603 2 104±10% 50V
C3 SMT CAPACITOR 0603 1 102±10% 50V
C4 SMT CAPACITOR 0603 1 104±10% 50V
C5 SMT CAPACITOR 0603 1 102±10% 50V
C6 SMT CAPACITOR 0603 1 104±10% 50V
C7-C20 SMT CAPACITOR 0603 14 102±10% 50V
C21-C23 SMT CAPACITOR 0603 3 103±10% 50V
C24 SMT CAPACITOR 0603 1 102±10% 50V
C25-C27 SMT CAPACITOR 0603 3 103±10% 50V
C28 SMT CAPACITOR 0603 1 102±10% 50V
C29 SMT ZENER DIODE 0603 1 5.6V
C30 SMT CAPACITOR 0603 1 103±10% 50V
C31 SMT CAPACITOR 0603 1 NO USE
C32 SMT CAPACITOR 0603 1 105±10% 50V
C33-C34 SMT CAPACITOR 0603 2 473±10% 50V
C35-C36 SMT CAPACITOR 0603 2 273±10% 50V
C37 SMT CAPACITOR 0603 1 225±10% 50V
C38 SMT CAPACITOR 0603 1 103±10% 50V
C39 SMT CAPACITOR 0603 1 102±10% 50V
C40 SMT CAPACITOR 0603 1 22P±5% 50V
C41 SMT CAPACITOR 0603 1 102±10% 50V
C42 SMT CAPACITOR 0603 1 20P±5% 50V
C43-C44 SMT CAPACITOR 0603 2 103±10% 50V
C45 SMT CAPACITOR 0603 1 102±10% 50V
C46 SMT CAPACITOR 0603 1 103±10% 50V
C47 SMT CAPACITOR 0603 1 NO USE
C48 SMT CAPACITOR 0603 1 100P±10% 50V

DV-2400
9
PARTS LIST
Ref. No Parts No. Description of item Size (LxW)(mm) Qty Specification
C49 SMT CAPACITOR 0603 1 225±10% 50V
C50 SMT CAPACITOR 0603 1 104±10% 50V
C51 SMT CAPACITOR 0603 1 8P±0.1P 50V
C52 SMT CAPACITOR 0603 1 103±10% 50V
E1 ELECTRO 4×8 1 22uF25V
E2 ELECTRO 4×8 1 47uF/10V
E3 SMT TANTALUM CAPACITOR B type 1 22uF±20% 10V
R1 SMT RESISTOR 0603 1 NO USE
R2 SMT RESISTOR 0603 1 22K±5%
R3 SMT RESISTOR 0603 1 NO USE
R4-R7 SMT RESISTOR 0603 3 1K±5%
R8 SMT RESISTOR 0603 1 10K±5%
R9-R10 SMT RESISTOR 0603 2 1K±5%
R11 SMT RESISTOR 0603 1 10K±5%
R12 SMT RESISTOR 0603 1 1K±5%
R13 SMT RESISTOR 0603 1 100R±5%
R14-R16 SMT RESISTOR 0603 3 1K±5%
R17 SMT RESISTOR 0603 1 33K±5%
R18-R19 SMT RESISTOR 0603 2 10K±5%
R20 SMT RESISTOR 0603 1 1K±5%
R21 SMT RESISTOR 0603 1 47K±5%
R22 SMT RESISTOR 0603 1 33K±5%
R23-R26 SMT RESISTOR 0603 4 10K±5%
R27 SMT RESISTOR 0603 1 NO USE
R28-R34 SMT RESISTOR 0603 7 10K±5%
R35 SMT RESISTOR 0603 1 4.7K±5%
R36 SMT RESISTOR 0603 1 220K±5%
R37-R39 SMT RESISTOR 0603 3 47K±5%

DV-2400
10
PARTS LIST
Ref. No Parts No. Description of item Size (LxW)(mm) Qty Specification
R40 SMT RESISTOR 0603 1 4.7K±5%
R41 SMT RESISTOR 0603 1 1.5K±5%
R42 SMT RESISTOR 0603 1 680R±5%
R43 SMT RESISTOR 0603 1 10K±5%
R45 SMT RESISTOR 0603 1 15K±5%
R47 SMT RESISTOR 0603 1 12K±5%
R49 SMT RESISTOR 0603 1 1.5K±5%
R50 SMT RESISTOR 0603 1 10K±5%
R51-R52 SMT RESISTOR 0603 2 470R±5%
R53 SMT RESISTOR 0603 1 10R±5%
R54 SMT RESISTOR 0603 1 100R±5%
R55 SMT RESISTOR 0603 1 470R±5%
R56 SMT RESISTOR 0603 1 4.7K±5%
R57 SMT RESISTOR 0603 1 2.2K±5%
R58 SMT RESISTOR 0603 1 4.7K±5%
R59 SMT RESISTOR 0603 1 470K±5%
R60 SMT RESISTOR 0603 1 22K±5%
R61 SMT RESISTOR 0603 1 56K±5%
R62 SMT RESISTOR 0603 1 33K±5%
R63-R64 SMT RESISTOR 0603 2 56R±5%
R65 SMT RESISTOR 0603 1 100R±5%
R66 SMT RESISTOR 0603 1 10K±5%
R67 SMT RESISTOR 0603 1 39K±5%
R68 SMT RESISTOR 0603 1 560R±5%
R69 SMT RESISTOR 0603 1 10K±5%
RT1 SMT RESISTOR 0603 1 47K±5%
D1 SMT ZENER DIODE 0805 1 NO USE
D2 SMT ZENER DIODE 0805 1 5.1V

DV-2400
11
PARTS LIST
Ref. No Parts No. Description of item Size (LxW)(mm) Qty Specification
D3 LIGHTED DIODE 5*2 1 POWER(YELLOW)
D4 LIGHTED DIODE 5*2 1 RX(GREEN)
D5 SMT DIODE 0603 1 1SS400
D6 SMT DIODE SC70 1 1SS372
D7 SMT DIODE 0603 1 HSC277
D8 SMT LIGHTED DIODE 0603 1 YELLOW
D9 LIGHTED DIODE 5*2 1 TX(RED)
D10-D13 SMT DIODE SOT-323 4 DA221
D14-D15 SMT LIGHTED DIODE 0603 2 YELLOW
D16 SMT ZENER DIODE 0603 1 5.6V
DS1 LCD MOD 1 LCD
Q1 SMT DIGITAL TRANSISTOR EMT3 1 NO USE
Q2 SMT DIGITAL TRANSISTOR EMT3 1 DTC114EE
Q3 SMT DIGITAL TRANSISTOR EMT3 1 DTC144EE
Q4 SMT DIGITAL TRANSISTOR EMT3 1 DTC114EE
Q5-Q6 SMT TRANSISTOR SOT-23 2 2SC1623
Q7 TRANSISTOR SOT-89 1 2SD1664
Q8 SMT DIGITAL TRANSISTOR EMT3 1 DTC144TE
U1 SMT IC TO-92 1 CE6275A50
U2 SMT IC LQFP64 1 R8C/2A-2B
U5 SMT IC SOT-23 1 NO USE
U6 SMT IC SOP-8 1 AT24C128RM(8)
U2008 SMT IC SOT-25-5 1 TA75S01F
L1-L3 SMT FERRITE BEAD (BLACK) 0805 3 271T
L5 SMT FERRITE BEAD (BLACK) 0603 1 271T
J1 FLAT CABLE CONNECTOR SSOI32F 1 0.5S-1S-32PWB
J3 HAND MIC INTERFACE (Erection type) 1 RJ45
S3 ENCODERS SWITCH 1 PED09712M-FB18A9.5
Y2 CRYSTAL 49S 1 19.200MHz

DV-2400
12
PARTS LIST
MAIN UNIT
Ref. No Parts No. Description of item Size (LxW)(mm) Qty Specification
C100-C104 SMT CAPACITOR 0603 5 103±10% 50V
C105-C109 SMT CAPACITOR 0603 5 102±10% 50V
C110-C111 SMT CAPACITOR 0603 2 104±10% 50V
C112 SMT CAPACITOR 0603 1 102±10% 50V
C113 SMT CAPACITOR 0603 1 NO USE
C114 SMT CAPACITOR 0603 1 103±10% 50V
C200 SMT CAPACITOR 0603 1 18P±5% 50V
C201 SMT CAPACITOR 0603 1 22P±5% 50V
C202 SMT CAPACITOR 0603 1 20P±5% 50V
C203 SMT CAPACITOR 0603 1 24P±5% 50V
C204-C216 SMT CAPACITOR 0603 13 103±10% 50V
C217 SMT CAPACITOR 0603 1 NO USE
C218-C225 SMT CAPACITOR 0603 11 103±10% 50V
C226 SMT CAPACITOR 0603 1 27P±5% 50V
C227 SMT CAPACITOR 0603 1 NO USE
C228 SMT SMALL FIXED INDUCTOR 0603 1 150NH
C229 SMT CAPACITOR 0603 1 2P±0.1P 50V
C230 SMT CAPACITOR 0603 1 30P±5% 50V
C231 SMT CAPACITOR 1210 1 33P±5% 50V
C232 SMT CAPACITOR 1210 1 39P±5% 50V
C233-C244 SMT CAPACITOR 0603 12 102±10% 50V
C245-C246 SMT CAPACITOR 0603 2 47P±5% 50V
C247-C248 SMT CAPACITOR 0805 2 47P±5%50V
C249 SMT CAPACITOR 0805 1 22P±5%50V
C250-C258 SMT CAPACITOR 0603 9 104±10% 50V
C259 SMT CAPACITOR 0805 1 104±10% 50V
C260-C263 SMT CAPACITOR 0603 4 104±10% 50V

DV-2400
13
PARTS LIST
Ref. No Parts No. Description of item Size (LxW)(mm) Qty Specification
C264 SMT CAPACITOR 0603 1 103±10% 50V
C265-C268 SMT CAPACITOR 0603 4 104±10% 50V
C269 SMT CAPACITOR 0603 1 47P±5% 50V
C270-C271 SMT CAPACITOR 0603 2 180P±5% 50V
C272-C274 SMT CAPACITOR 0603 3 100P±5% 50V
C275 SMT CAPACITOR 0603 1 82P±5% 50V
C276-C279 SMT CAPACITOR 0603 4 NO USE
C280-C283 SMT CAPACITOR 1210 4 NO USE
C284 SMT CAPACITOR 1210 1 4P±0.25P 50V
C285 SMT CAPACITOR 1210 1 NOUSE
C286 SMT CAPACITOR 1210 1 6P±0.25P 50V
C287 SMT CAPACITOR 1210 1 NOUSE
C288 SMT CAPACITOR 0805 1 2P±0.1P 50V
C289 SMT CAPACITOR 1210 1 NOUSE
C290 SMT CAPACITOR 1210 1 1P±0.1P 50V
C291 SMT CAPACITOR 1206 1 NO USE
C292 SMT CAPACITOR 1210 1 NO USE
C293-C295 SMT CAPACITOR 0805 3 NO USE
C296-C297 SMT CAPACITOR 1206 2 NOUSE
C298 SMT CAPACITOR 0603 1 2P±0.1P 50V
C299 SMT CAPACITOR 0603 1 68P±5% 50V
C300-C301 SMT CAPACITOR 0603 2 2P±0.1P 50V
C302 SMT CAPACITOR 0603 1 1P±0.1P 50V
C303 SMT CAPACITOR 0603 1 12P±0.25P 50V
C304 SMT CAPACITOR 0603 1 13P±5% 50V
C305-C307 SMT CAPACITOR 0603 3 2.5P±0.1P 50V
C308 SMT CAPACITOR 0603 1 470P±10% 50V
C309 SMT CAPACITOR 0603 1 13P±5% 50V

DV-2400
14
PARTS LIST
Ref. No Parts No. Description of item Size (LxW)(mm) Qty Specification
C310 SMT CAPACITOR 0805 1 NO USE
C311-C330 SMT CAPACITOR 0603 20 470P±10% 50V
C331 SMT CAPACITOR 1206 1 470P±10% 50V
C332 SMT CAPACITOR 0603 1 470P±10% 50V
C333 SMT CAPACITOR 1210 1 470P±10% 50V
C334 SMT CAPACITOR 0603 1 NO USE
C335 SMT CAPACITOR 1210 1 470P±10% 50V
C336 SMT RESISTOR 0603 1 0R
C337-C351 SMT CAPACITOR 0603 15 470P±10% 50V
C352 SMT CAPACITOR 0805 1 470P±10% 50V
C353 SMT CAPACITOR 0603 1 470P±10% 50V
C354 SMT CAPACITOR 1206 1 470P±10% 50V
C355-C361 SMT CAPACITOR 0603 7 470P±10% 50V
C362-C363 SMT CAPACITOR 0603 2 0.5P±0.1P 50V
C364 SMT CAPACITOR 0603 1 2P±0.1P 50V
C365 SMT CAPACITOR 0603 1 3.5P±0.1P 50V
C366 SMT CAPACITOR 0603 1 470P±10% 50V
C367-C368 SMT CAPACITOR 0603 2 15P±5% 50V
C369 SMT CAPACITOR 0603 1 8P±0.25P 50V
C370 SMT CAPACITOR 0603 1 6P±0.1P 50V
C371 SMT CAPACITOR 0603 1 1.5P±0.1P 50V
C372-C374 SMT CAPACITOR 0603 3 0.5P±0.1P 50V
C375 SMT CAPACITOR 0603 1 1.5P±0.1P 50V
C376 SMT CAPACITOR 0603 1 0.75P±0.1P 50V
C377 SMT CAPACITOR 0603 1 1.5P±0.1P 50V
C378 SMT VARIABLE CAPACITANCE DIODE SC-79 1 HVC350
C379 SMT CAPACITOR 0603 1 6P±0.1P 50V
C380 SMT CAPACITOR 0603 1 3P±0.1P 50V

DV-2400
15
PARTS LIST
Ref. No Parts No. Description of item Size (LxW)(mm) Qty Specification
C381 SMT CAPACITOR 0603 1 3.6P±0.1P 50V
C382-C383 SMT CAPACITOR 0603 2 3P±0.1P 50V
C384 SMT CAPACITOR 0603 1 NO USE
C385-C386 SMT CAPACITOR 0603 2 3P±0.1P 50V
C387 SMT CAPACITOR 0603 1 2P±0.1P 50V
C388 SMT CAPACITOR 0805 1 9P±0.25P 50V
C389 SMT CAPACITOR 1210 1 27P±5% 50V
C390 SMT CAPACITOR 1210 1 47P±5% 50V
C391 SMT CAPACITOR 1210 1 39P±5% 50V
C392 SMT CAPACITOR 0805 1 474±10% 50V
C393 SMT CAPACITOR 1210 1 27P±5% 50V
C394 SMT CAPACITOR 1210 1 NO USE
C395-C396 SMT CAPACITOR 1210 2 4P±0.25P 50V
C397 SMT CAPACITOR 1210 1 3P±0.25P 50V
C398 SMT CAPACITOR 1210 1 1.5P±0.1P 50V
C399 SMT CAPACITOR 0603 1 0.5P±0.1P 50V
C400 SMT CAPACITOR 0603 1 1P±0.1P 50V
C401 SMT CAPACITOR 1210 1 5P±0.25P 50V
C402-C403 SMT CAPACITOR 0603 2 6P±0.1P 50V
C404 SMT CAPACITOR 0603 1 3.6P±0.1P 50V
C405 SMT CAPACITOR 0603 1 1.5P±0.1P 50V
C406 SMT CAPACITOR 0603 1 2P±0.1P 50V
C407 SMT CAPACITOR 0805 1 12P±5% 50V
C408 SMT CAPACITOR 0603 1 10P±5% 50V
C409-C509 SMT CAPACITOR 0603 14 103±10% 50V
C510-C513 SMT CAPACITOR 0603 4 102±10% 50V
C515 SMT CAPACITOR 0603 1 102±10% 50V
C516-C526 SMT CAPACITOR 0603 11 104±5% 50V

DV-2400
16
PARTS LIST
Ref. No Parts No. Description of item Size (LxW)(mm) Qty Specification
C527 SMT CAPACITOR 0603 1 82P±5% 50V
C528-C530 SMT CAPACITOR 0603 3 NOUSE
C531-C532 SMT CAPACITOR 0603 2 33P±5% 50V
C533 SMT CAPACITOR 0603 1 680P±10% 50V
C534-C535 SMT CAPACITOR 0805 2 474±10% 50V
C536-C537 SMT CAPACITOR 0603 2 390P±10% 50V
C538 SMT CAPACITOR 0603 1 273±5% 50V
C539 SMT CAPACITOR 0603 1 224±5% 50V
C540 SMT CAPACITOR 0603 1 152±5% 50V
C541 SMT CAPACITOR 0603 1 393±5% 50V
C542 SMT CAPACITOR 0603 1 103±5% 50V
C543-C544 SMT CAPACITOR 0603 2 123±5% 50V
C545-C551 SMT CAPACITOR 0603 7 103±5% 50V
C552 SMT CAPACITOR 0603 1 123±10% 50V
C553 SMT CAPACITOR 0603 1 473±5% 50V
C554 SMT CAPACITOR 0603 1 272±5% 50V
C555 SMT CAPACITOR 0603 1 152±5% 50V
C556 SMT CAPACITOR 0603 1 102±5% 50V
C557 SMT CAPACITOR 0805 1 105±10% 50V
C558 SMT CAPACITOR 0603 1 332±5% 50V
C559 SMT CAPACITOR 0603 1 560P±5% 50V
C560 SMT CAPACITOR 0603 1 152±5% 50V
C561 SMT CAPACITOR 0603 1 47P±5% 50V
C562 SMT CAPACITOR 0603 1 563±5% 50V
C563 SMT CAPACITOR 0603 1 103±10% 50V
C564-C565 SMT CAPACITOR 0603 2 104±5% 50V
C800-C807 SMT CAPACITOR 0603 8 NOUSE
CB200 CERAMIC FILTER 1 C24(450K)

DV-2400
17
PARTS LIST
Ref. No Parts No. Description of item Size (LxW)(mm) Qty Specification
CF200 CERAMIC FILTER 1 CFW450G
CF201 CERAMIC FILTER 1 CFW450E
CV200 SMT CAPACITOR 1206 1 2P±0.25P 50V
CV201 CERAMIC TRIMMER CAPVAR3 1 3-10P
E100-E101 ELECTRO 10×15 2 470uF25V
E102-E105 SMT TANTALUM CAPACITOR B type 4 22uF16V
E200 SMT TANTALUM CAPACITOR A type 1 0.22uF±20% 35V
E201 SMT TANTALUM CAPACITOR B type 1 22uF16V
E202 ELECTRO 5×8 1 47uF25V
E203 SMT TANTALUM CAPACITOR A type 1 10uF±20% 10V
E204 SMT TANTALUM CAPACITOR B type 1 33uF±20% 10V
E205-E207 SMT TANTALUM CAPACITOR A type 3 10uF±20% 10V
E208 SMT TANTALUM CAPACITOR A type 1 0.22uF±20% 35V
E209 SMT TANTALUM CAPACITOR A type 1 4.7uF±20% 16V
E210 SMT TANTALUM CAPACITOR A type 1 0.22uF±20% 35V
E211 SMT CAPACITOR 1206 1 82P±5% 50V
E500-E509 SMT TANTALUM CAPACITOR A type 10 1uF±20% 16V
E510-E515 SMT TANTALUM CAPACITOR A type 6 10uF±20% 10V
E516 SMT TANTALUM CAPACITOR A type 1 4.7uF±20% 6.3V
E517 SMT TANTALUM CAPACITOR A type 1 2.2uF±20% 16V
E518 SMT CAPACITOR 1206 1 683±10% 50V
E519 SMT TANTALUM CAPACITOR A type 1 4.7uF±20% 16V
E520 SMT TANTALUM CAPACITOR B type 1 10uF16V
E521 ELECTRO 8×15 1 470uF25V
E522 SMT TANTALUM CAPACITOR A type 1 2.2uF±20% 10V
E523 SMT TANTALUM CAPACITOR A type 1 2.2uF±20% 16V
R100 SMT RESISTOR 2010 1 470R±5%
R101 SMT RESISTOR 0603 1 4.7K±5%

DV-2400
18
PARTS LIST
Ref. No Parts No. Description of item Size (LxW)(mm) Qty Specification
R102 SMT RESISTOR 0603 1 10K±5%
R103 SMT RESISTOR 0603 1 3.3K±5%
R104-R105 SMT RESISTOR 0603 2 47K±5%
R106 SMT RESISTOR 0805 1 1K±5%
R200-R201 SMT RESISTOR 0603 2 100R±5%
R202 SMT RESISTOR 0603 1 NOUSE
R203 SMT RESISTOR 0603 1 180R±5%
R203-R206 SMT RESISTOR 0603 4 100R±5%
R207 SMT RESISTOR 2010 1 100R±5%
R208 SMT RESISTOR 0603 1 220K±5%
R209 SMT RESISTOR 0603 1 NOUSE
R210 SMT RESISTOR 0603 1 220K±5%
R211 SMT RESISTOR 0603 1 1K±5%
R212-R213 SMT RESISTOR 0603 2 NOUSE
R214-R221 SMT RESISTOR 0603 8 1K±5%
R222-R223 SMT RESISTOR 0603 2 15K±5%
R224 SMT RESISTOR 0603 1 10K±5%
R225 SMT RESISTOR 0603 1 3.3K±5%
R226-R241 SMT RESISTOR 0603 16 10K±5%
R242 SMT RESISTOR 0603 1 180K±5%
R243 SMT RESISTOR 0603 1 820R±5%
R244 SMT RESISTOR 0603 1 1.5K±5%
R245 SMT RESISTOR 0603 1 1K±5%
R246 SMT RESISTOR 0603 1 3.3K±5%
R247 SMT RESISTOR 0603 1 470K±5%
R248 SMT RESISTOR 0603 1 470R±5%
R249-R250 SMT RESISTOR 0603 2 680R±5%
R251 SMT RESISTOR 0603 1 470R±5%

DV-2400
19
PARTS LIST
Ref. No Parts No. Description of item Size (LxW)(mm) Qty Specification
R252 SMT RESISTOR 2010 1 470R±5%
R253-R254 SMT RESISTOR 0603 2 470R±5%
R255-R260 SMT RESISTOR 0603 6 100K±5%
R261 SMT RESISTOR 0603 1 82K±5%
R262 SMT SMALL FIXED INDUCTOR 0603 1 22NH
R263-R268 SMT RESISTOR 0603 6 100K±5%
R269 SMT RESISTOR 0603 1 220R±5%
R270 SMT RESISTOR 0603 1 68R±5%
R271-R275 SMT RESISTOR 0603 5 220R±5%
R276 SMT RESISTOR 0603 1 68R±5%
R277-R278 SMT RESISTOR 0603 2 240K±5%
R279-R281 SMT RESISTOR 0603 3 470K±5%
R282-R283 SMT RESISTOR 0603 2 NO USE
R284 SMT RESISTOR 0603 1 2.2K±5%
R285-R287 SMT RESISTOR 0603 3 NO USE
R288 SMT RESISTOR 0603 1 330R±5%
R289 SMT RESISTOR 0603 1 150R±5%
R290 SMT RESISTOR 0603 1 39K±5%
R291-R298 SMT RESISTOR 0603 8 47K±5%
R299 SMT RESISTOR 0603 1 27K±5%
R300-R304 SMT RESISTOR 0603 5 0R
R305 SMT RESISTOR 0603 1 1.8K±5%
R306-R307 SMT RESISTOR 0603 2 82K±5%
R308-R312 SMT RESISTOR 0603 5 NO USE
R313-R315 SMT RESISTOR 0603 3 10R±5%
R316 SMT RESISTOR 1206 1 10R±5%
R317 SMT RESISTOR 0603 1 470R±5%
R318 SMT RESISTOR 0603 1 47R±5%
