RTW TouchMonitor TM3-3G User manual

Data Sheet
TouchMonitor TM3-3G

The TouchMonitor TM3-3G is a compact and ver-
satile solution for metering, deembedding and
monitoring of 3G-SDI audio signals using a 4.3“
touch screen for vertical or horizontal use. With its
integrated 3G-SDI interface, it displays level and
loudness of any eight 3G-SDI audio channels.
Independently, the deembedder supplies up to 16
3G-SDI audio channels on eight AES3 outputs (op-
tional licence). The flexible user interface allows for
quick and simple preset selection as well as setting
the monitoring level (optional licence). Presets can
be configured in detail using the Devicer DC1 for
Mac OS X® or Windows®.
Flexible touch screen layout • Loudness: EBU, ITU, ATSC, ARIB • Loudness Range (LRA) • PPM/True Peak • SPL
Stereo/8-ch. operation • Dialnorm • 3G-SDI deembedder • Modular software • Monitoring/AES3 out/Moving Coil option
The Devicer’s GUI lets you select, configure and po-
sition the instruments you need in a convenient way.
The screen layout can be previewed at any time to
see how your preset will look like on the TM3.
Besides PPM and True Peak instruments, the TM3-
3G features comprehensive loudness measuring
features conforming to all relevant international
standards (EBU R128, ITU-R BS.1770-3/1771,
ATSC A/85, and ARIB). Loudness instruments
include single-channel and summing bargraphs,
loudness range and numerical displays. With the
Moving Coil licence option, stereo signals can also
be displayed on needle instruments.
TM3. Loudness Simplified.
TouchMonitor TM3-3G

3
© 06/2013 | Technical changes without notice. | RTW GmbH & Co.KG | Am Wassermann 25 | 50829 Köln | Fon +49 221. 70 913-0 | Fax [phone] | [email protected] | www.rtw.de
Hardware
TM3-3G
• 8-channel 3G-SDI version for Peak, TruePeak, correlation
and Loudness measurements
• Table-top unit with display unit and remote 3G-SDI inter-
face box (cable length 2 m), with mains adapter
• 4.3“ touch screen (272 x 480 pixel)
• Loudness metering acc. to EBU R128, ITU-R BS.1770-3/
1771, ATSC A/85, ARIB or customer specific
• Single channel and summing loudness bargraphs
• Loudness Test Time Control
• Loudness Range (LRA) with MagicLRA mode
• PPM & True Peak
• SPL
• Dialnorm measurement
• Correlation
• Numerical display
• Monitoring controller with onscreen level fader (optional
licence)
• Stereo headphone out
• Integrated 16-channel 3G-SDI deembedder for the SDI
formats
- SD (525i, 625i),
- HD (720p, 1035i, 1080i, 1080p, 1080SF)
- 3G (1080p),
with optional licence also output of the signals as 8 x AES3
(Bal.Out)
• Moving Coil instruments (optional licence)
• 3G-SDI input (BNC In) and output (BNC Through, signal
looped through without processing)
• Analog Stereo Monitor output (Line Out, 2 x RCA) and
headphone output (Phones, 3.5 mm jack)
• Analog input (Aux In, 1 x RCA), e. g. for external timecode
• USB 2.0, GPIO, 24 V DC connectors
• Comprehensive set of presets
• Personalizing with Devicer DC1 (Device Configurator
software for Windows®and Mac OS X®)

© 06/2013 | Technical changes without notice. | RTW GmbH & Co.KG | Am Wassermann 25 | 50829 Köln | Fon +49 221. 70 913-0 | Fax [phone] | [email protected] | www.rtw.de4
Software
Basic Software
Every TM3-3G comes with a basic software package. Beside
the signal processing and the control functions this software
includes a multi-channel Program Meter for measuring peak
level, True Peak and Loudness (digital scales, peak hold, peak
memory, Over indicators), the Loudness Sum instrument for
measuring the summed loudness (M, S, I values), the LRA
instrument for the graphical display of the Loudness Range,
numerical displays of all relevant loudness values, a phase
correlation meter, a Dialnorm meter, and a global keyboard for
simultaneous control of defined functions in multiple instru-
ments and for preset recall. It also allows the external control
with the integrated GP IO interface. Optionally, different soft-
ware modules are available as licences.
Windows is either registered trademark or trademark of Microsoft Corporation in the United States and/or other countries.
Mac OS is trademark of Apple Inc., registered in the U. S. and other coutries.
Devicer DC1
By default, the TM3-3G‘s preset memory contains a compre-
hensive set of factory presets covering many common appli-
cations. The Devicer DC 1 used to personalize the presets is
available free of charge on the RTW web site. The Devicer’s
GUI lets you select, configure and position the instruments
you need in a convenient way. The screen layout can be pre-
viewed at any time to see how your preset will look like on the
TM3. After having installed this Device Configurator software
on your Mac OS X® (10.6 or higher) or Windows® (XP, Vista,
7) computer, the TM3-3G is connected to it using an USB
cable (Mini-B / A). After all edits are performed and saved in
the Devicer DC1, the respective presets can be uploaded to
the TM3-3G.

5
© 06/2013 | Technical changes without notice. | RTW GmbH & Co.KG | Am Wassermann 25 | 50829 Köln | Fon +49 221. 70 913-0 | Fax [phone] | [email protected] | www.rtw.de
When a licences is needed at a later point in time, a device-
specific file for forwarding to RTW is created by the unit. RTW
will send back a corresponding file with the activated licence
for exactly this unit.
Software (continued)
Software Modules (Licences)
Current and future software modules can be ordered as licen-
ces either together with the ordered TM3-3G version or at a
later point in time.
Together with the order of the unit the licence will be activated
at delivery.
• TM3-SWMON: Monitoring
This option expands the feature set of the TM3-3G by a
Monitoring Control function which enables monitoring of
displayed audio signals.
Functions: Monitor level control with onscreen level fader
(can be calibrated), DIM, Mute, Solo, internal Downmix for
multichannel monitoring, audio output of monitoring signals
via RCA-, and 3.5 mm jack (analog).
• TM3-SWDEEM: Deembedded out
This option expands the feature set of the TM3-3G by an
output routing for deembedded audio signals.
Functions: Deembedded output of up to 16 audio channels
via the 8 x AES3 outputs of the 25-pin Sub-D connector.
• TM3-SWMC: Moving Coil (Software Licence)
This option expands the feature set of the TM3-3G with the
Moving Coil instrument for the display of needle instru-
ments for up to 2-channel Stereo with different scales.
Functions: L/R and M/S PPM modes (BR IIa/BR IIb
scales), VU mode, Loudness mode, dual or single (stereo)
displays horizontal or vertical, a combined mode with Dual-
PPM and Loudness sum display (BBC) is also available.

© 06/2013 | Technical changes without notice. | RTW GmbH & Co.KG | Am Wassermann 25 | 50829 Köln | Fon +49 221. 70 913-0 | Fax [phone] | [email protected] | www.rtw.de6
Dimensions
3 | Side view (left)
Display Unit TouchMonitor TM3-3G
2 | Side view1 | Front view
Interface Box TouchMonitor TM3-3G
2 | Side view (right)
Dimensions in mm (inch [”])
Common tolerance: ±0,5 mm (±0.02”)
1 | Top view
4 | Rear view
53.86 (2.12”)
138 (5.43”)
15°
82.5 (3.25”) Active
Area
95.04 (3.74”)
4.3 inch
85 (3.35”)146 (5.75”)
50 (1.97”)
146 (5.75”)85 (3.35”)
85 (3.35”)
2
(0.08”)
27
(1.06”)
2
(0.08”)
27
(1.06”)
2
(0.08”)
27
(1.06”)
21
(0.83”)

7
© 06/2013 | Technical changes without notice. | RTW GmbH & Co.KG | Am Wassermann 25 | 50829 Köln | Fon +49 221. 70 913-0 | Fax [phone] | [email protected] | www.rtw.de
Connectors
ATTENTION! - For operating the TM3-3G an appropriate mains adapter is required.
RTW recommends the use of the RTW wide voltage power supply 1168-R (100 - 240 V AC/24 V DC, 2.7 A)
approved for TouchMonitor. This power supply is included in the TM3-3G package.
Connection
Display Unit
Interface Box
GP IO
(RJ-11-6P6C)
4-pin locking
low voltage
connector
24 V DC
160 mA
(nominal)
8AES3 Out (Sub-D) *)
Analog Out L (RCA) *)
Aux In
(RCA) *)
Analog Out R (RCA) *)
Phones (3.5 mm jack) *)
USB 2.0 Mini-B
(USB interface
cable for the
exchange of
Devicer DC1 and
TM3 data required)
3G-SDI
(BNC In, BNC Through)
*) with corresponding
software licence

© 06/2013 | Technical changes without notice. | RTW GmbH & Co.KG | Am Wassermann 25 | 50829 Köln | Fon +49 221. 70 913-0 | Fax [phone] | [email protected] | www.rtw.de8

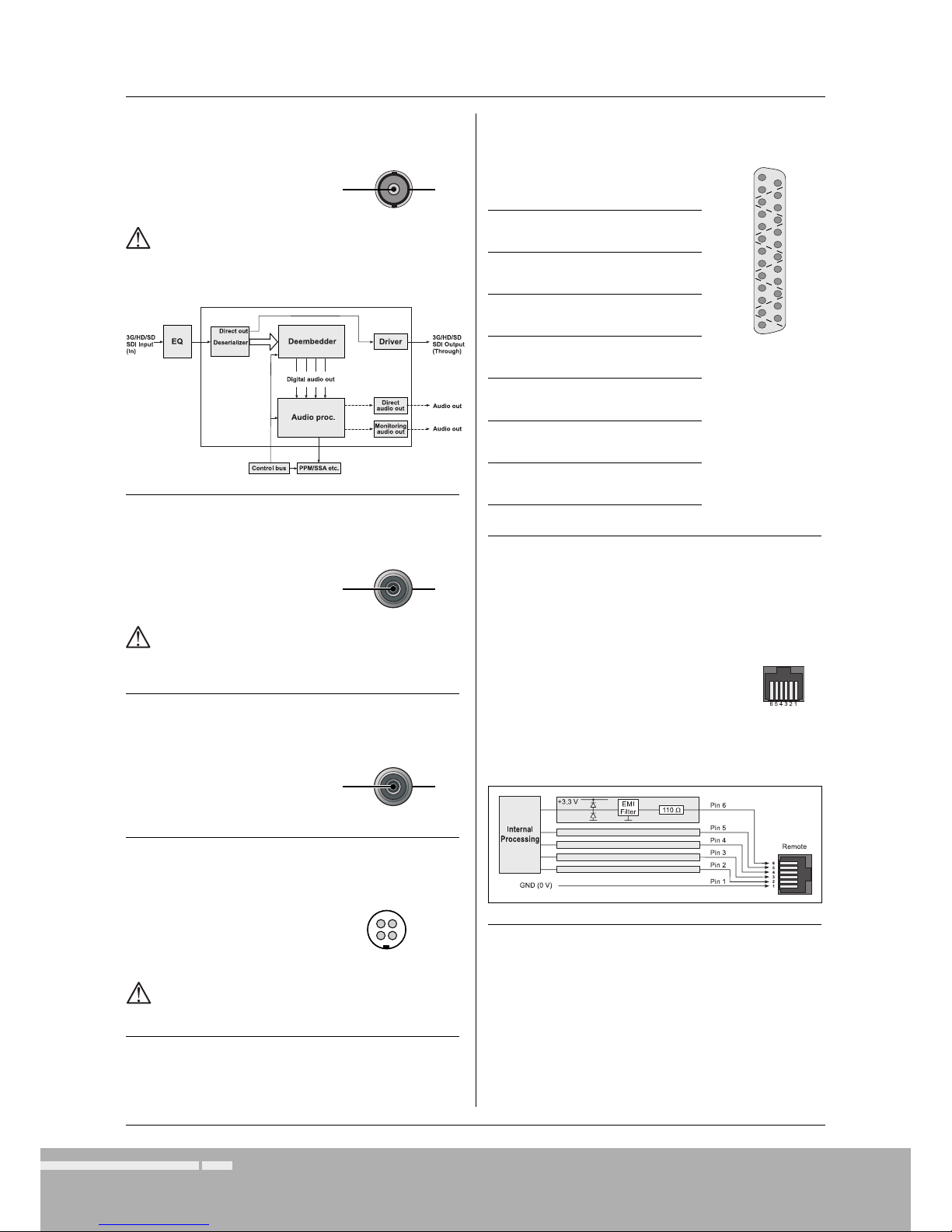

24 V DC (4-pin locking low voltage, type Binder 710)
Pin: Function:
1 +24 V DC
2 +24 V DC
3 0 V
4 0 V
NOTE - An external overcurrent protective device (2 A max.)
shall be installed when using an external 24 V DC power supply!
Line Out L, Line Out R (unbalanced, RCA-F)
Pin: Function:
Pin: Signal
Ring: Shield/chassis
NOTE - The analog signal outputs of the RCA connectors are in
parallel with the corresponding output signals of the phones connector.
Bal.Out (25-pin Sub-D-F)
Pin: Function:
1 Digital output 8 (+, hot)
14 Digital output 8 (–, cold)
2 Shield/chassis
15 Digital output 7 (+, hot)
3 Digital output 7 (–, cold)
16 Shield/chassis
4 Digital output 6 (+, hot)
17 Digital output 6 (–, cold)
5 Shield/chassis
18 Digital output 5 (+, hot)
6 Digital output 5 (–, cold)
19 Shield/chassis
7 Digital output 4 (+, hot)
20 Digital output 4 (–, cold)
8 Shield/chassis
21 Digital output 3 (+, hot)
9 Digital output 3 (–, cold)
22 Shield/chassis
10 Digital output 2 (+, hot)
23 Digital output 2 (–, cold)
11 Shield/chassis
24 Digital output 1 (+, hot)
12 Digital output 1 (–, cold)
25 Shield/chassis
13 not used
USB (Mini-B)
Full Speed USB 2.0 interface for connecting the TM3 unit to the com-
puter using a standard USB data cable. The USB interface is used for
the data exchange between Device Configurator software Devicer DC1
and TM3.
Pin Assignment
Pin 2
Pin 1
Pin 3
Pin 4
(External view of the connector)
(External view of the connector)
Pin Ring
Aux In (unbalanced, RCA-F)
Pin: Function:
Pin: Signal
Ring: Shield/chassis
(External view of the connector)
Pin Ring
GPIO (RJ-11-6P6C socket)
External control of functions and presets recall as defined in the
Global Keyboard menu. The inputs defined as „active low“ have to be
switched against 0 V (Pin 1).
Pin: Function:
1 GND
2 - 6 Function acc. to definition in the menu
Block diagram of the GPIO interface
3G-SDI In, 3G-SDI Through (unbalanced, BNC-F)
Pin: Function:
Pin: Signal
Ring: Shield/chassis
NOTE - The input signals are looped through without processing
Block diagram of the 3G-SDI deembedder interface
Phones (3.5 mm phones jack)
Standard 3.5 mm jack for monitoring deembedded audio signals inclu-
ded in 3G-SDI data streams with a headphone.
(External view of the connector)
Pin Ring
(External view of
the connector)
P i n 1 4
P i n 1 5
P i n 1 6
P i n 1 7
P i n 1 8
P i n 1 9
P i n 2 0
P i n 2 1
P i n 2 2
P i n 2 3
P i n 2 4
P i n 2 5
P i n 1
P i n 2
P i n 3
P i n 4
P i n 5
P i n 6
P i n 7
P i n 8
P i n 9
P i n 1 0
P i n 1 1
P i n 1 2
P i n 1 3
(External view of the connector)

9
© 06/2013 | Technical changes without notice. | RTW GmbH & Co.KG | Am Wassermann 25 | 50829 Köln | Fon +49 221. 70 913-0 | Fax [phone] | [email protected] | www.rtw.de
Specifications
System
General
Power requirements: +24 V DC (external 2 A max. overcurrent
protective device shall be installed!)
Current drain: 160 mA nominal, power-up current is much higher
Display: 4.3’’ touch screen (272 x 480 pixel)
Connectors: 1 x 4-pin locking low voltage connector
type Binder 710 (DC)
1 x USB Mini-B; USB 2.0 Full Speed con-
nectors for data exchange between Device
Configurator computer software Devicer DC1
and TM3-3G
1 x GPIO (RJ-11-6P6C) for defined functions
or preset recall
2 x BNC-F, 3G-SDI In, Through (unbal., digital)
2 x RCA-F, Line Out (unbal., analog)
1 x RCA-F, Aux In (unbal., analog)
1 x 25-pin Sub-D-F, Bal.Out (bal., 8 x AES3 out)
1 x 3.5 mm jack, Phones (unbal., analog)
Dimensions (W x H x D): Display unit: 82.5 x 138 x 50 mm
3G-SDI interface box: 146 x 29 x 85 mm
Weight: Display unit approx. 320 g, interface box approx.
460 g, w/o mains adapter
Operating temperature: +5° to +40° C
Functions
• Instruments can be scaled and freely positioned
• PPM up to 8 channels
• Loudness-Meter: ITU-R BS.1770-3/1771,
EBU R128, ATSC A/85, ARIB, custom mode
• Loudness Test Time Control
• Loudness Range instrument (LRA)
• SPL meter
• Stereo Correlator
• Dialnorm (w/o speech intelligence)
• SDI status monitor
• Numerical displays
• 16-ch. 3G/HD/SD-SDI deembedder
• Routing of deembedded audio signals to
AES3 outputs (optional licence)
• Monitoring Controller with onscreen level
fader (optional licence)
• Moving Coil (optional licence)
Digital Inputs
Inputs: 1 x 3G-SDI In (unbalanced), BNC-F
Outputs: 1 x 3G-SDI Through (unbalanced), BNC-F,
input signals are active looped through without
processing
Functions: • Detection of validity of the applied SDI signal
• Detection of frequency (SD/HD/3G)
• Detection of contained format
• Detection of validity of the contained and
applied audio groups and deembedding
Deembedding: • Single link (SD/HD/3G): max. 4 audio
groups with 4 audio channels each
• Dual link (3G): max. 8 audio groups with 4
audio channels each
• 3G: max. 4 audio groups with 4 audio ch. each
SDI formats:
- SD: 525i, 625i
- HD: 720p (23.98, 24, 25, 29.97, 30, 50, 59.94, 60 Hz)
1035i (59.94, 60 Hz)
1080i (50, 59.94, 60 Hz)
1080p (23.98, 24, 25, 29.97, 30 Hz)
1080SF (23.98, 24, 25, 29.97 Hz)
- 3G: 1080p (23.98, 24, 25, 29.97, 30, 50, 59.94, 60 Hz)
PPM/True Peak Display
General
Input sources: digital (3G/HD/SD-SDI)
Peakmeter: 2-channel Stereo up to 8 channels
Display: • Peak level
• Peak hold
• Numerical value of the display
Functions: • Gain (+20 dB, +40 dB acc. to standard)
• Peak hold on/off
• Memory
• Reset
Digital Peakmeter
Word width: 24 bit
Digital scales: • TP60: +3 .. –60 dB
• TP20: +3 .. –20 dB
• Dig60: 0 .. –60 dB
• Dig20: 0 .. –20 dB
• Dig0: +18 .. 0 dB
• Dig18: +18 .. –18 dB
• Dig40: +20 .. –40 dB
• ARD9: +9 .. –60 dB
• DIN5: +5 .. -50 dB,
• DIN10: +10 .. -50 dB,
• Nordic: +12 .. -42 dB,
• BR IIa: 7 .. 1 (British),
• BR IIb: +12 .. -12 dB (British),
• Zoom10: +10 .. –10,
• Zoom1: +1 .. –1,
Headroom/Headroom Ref: adjustable, 1 dB steps from 0 to –20 dB
Operation field: adjustable, 1 dB steps from 0 to –20 dB
Integration time (Attack): acc. to corresponding standard or selectable:
Sample, 20 ms, 10 ms, 1 ms, 0.1 ms
Gain: +20 dB, +40 dB (acc. to standard)
High-pass filter: Off, 5 Hz, 10 Hz, 20 Hz
Peak hold indicator: 1 s, 2 s, 4 s, 10 s, 20 s, 30 s, manual reset or off
Over indicator hold time: 1 s or manual
Over indicator PPM
- Threshold: Full Scale, Full Scale -1LSB, Full Scale -2LSB,
–0.1 dBFS, –0.5 dBFS, –1 dBFS, –2 dBFS,
–3 dBFS
- Attack time: 1 to 15 samples
- Word width: 16 to 24 bit, selectable
Over indicator True Peak
- Threshold: adjustable

© 06/2013 | Technical changes without notice. | RTW GmbH & Co.KG | Am Wassermann 25 | 50829 Köln | Fon +49 221. 70 913-0 | Fax [phone] | [email protected] | www.rtw.de10
SDI Status Monitor
Display: • channel data are displayed as plain text, hex
or binary
• Channel selectable
• Audio bit activity
• Hardware status
Global Keyboard
The Global Keyboard is used for control of de-
fined functions in multiple instruments, and for
preset recall. It also allows the external control
with the integrated GP IO interface.
Loudness and SPL Display
EBU R128 Loudness Mode
ITU-R BS.1771 Loudness Mode
ATSC A/85 Loudness Mode
ARIB Loudness Mode
Customer Specific Loudness Mode
Display: • Bargraphs for each single channel
(can be combined with PPM bargraphs)
• M bargraph (Momentary value)
• S bargraph (Short - shortterm value)
• I-Bargraph (Integrated - long term value)
Numerical display: • Short, Integrated, Momentary, LRA values
• Maximum values for True Peak (TPmax),
Momentary (Mmax), Short (Smax)
Scales: *) Loudness scales:
• EBU+9: +9 .. –18 LU
• EBU+18: +18 .. –36 LU
• EBU+9a: 14 .. –41 LUFS
• EBU+18a: –5 .. –59 LUFS
• EBU0: 0 .. –60 LUFS
• ITU+9: +9 .. –18 LU
• ITU0: 0 .. –30 LKFS
• ATSC0: 0 .. –60 LKFS
• ATSC0a: 0 .. –30 LKFS
Weighting filter: K filter acc. to ITU-R BS.1770
Target Level: *) –23 LUFS; adjustable from –10 to –30 LUFS
Time & Gate Momentary: *)
- Window Time (SQR): adjustable from 200 ms to 1000 ms in steps of
100 ms
- Integration (IIR): IEC 125 ms Fast, 250 ms (IRT), 500 ms, 750
ms, IEC 1000 ms Slow, 1500 ms, 2000 ms
selectable
Time & Gate Short: *)
- Integration Time: 3 s; time window adjustable from 1 to 20 s in
steps of 1 s
Time & Gate Integrated: *)
- Silence Gate: –70.0 LUFS; adjustable from –80.0 LUFS to
–40.0 LUFS in steps of 0.5 LUFS, switchable
- Relative Gate: –10.0 LU; adjustable from –40.0 LU to 0 LU in
steps of 0.5 LUFS, switchable
Level adjustment for the
summation: *) • 0.0 dB (L, R, C), adjustable between –3 and
+3 dB in steps of 0.5 dB
• +1.5 dB (LS, RS), adjustable between –3 dB
and +3 dB in steps of 0.5 dB
• Off (LFE), selectable: Off, 0 dB, 10 dB
*) Depending on the used loudness standard not all of the listed settings
are available.
Loudness Test Time Control
Settings for operating automatic, semi-automatic or manual loudness
measurements.
Start:
- Functions: Autostart after preset load, autostart with gate,
autostart with gate and autoreset, manually via
keys or GPI
- Level for gate: –70,0 LUFS/LKFS; adjustable from –85 to
–10 LUFS/LKFS in steps of 0.5 LUFS/LKFS
Stop:
- Functions: manually via keys or GPI, autostop with gate,
autostop with gate and time
- Level for gate: –70,0 LUFS/LKFS; adjustable from –85 to
–10 LUFS/LKFS in steps of 0.5 LUFS/LKFS
- Time for gate: 1 s; adjustable from 1 to 15 s in steps of 1 s
Loudness Range Instrument (LRA)
Display: Graphical display of the Loudness Range
Mode: selectable: LRA Bar, MagicLRA, MagicLRA + I,
MagicLRA + I + Num
Scale range: selectable: 6 LU, 10 LU, 20 LU, 30 LU
LRA low range: 2 LU; adjustable from 1 to 20 LU in steps of 1 LU
Comfort zone: 4 LU; adjustable from 1 to 20 LU in steps of 1 LU
LRA high range: depends on the selected scale range and the
spread of the comfort zone
Colors: selectable for each range
SPL Meter Mode
Display: • Bargraphs for each single channel
(can be combined with PPM bargraphs)
• Summation bargraph
Reference point: adjustable in the range from 68 dB to 88 dB in
steps of 1 dB
Weighting: Linear, A (Leq(A)), C, CCIR (Leq(M)), k
Integration time: Fast (125 ms), Slow (1 s)
TM3-SWMON: Monitoring (optional licence)
This option expands the feature set by a Monitoring Control function which
enables monitoring of displayed audio signals.
Functions: Monitor level control with onscreen level fader
(can be calibrated), DIM, Mute, Solo, internal
Downmix for multichannel monitoring, audio
output of monitoring signals via Line Out and
Phones connector.
Outputs: • Analog 2-ch. Stereo (unbal.), 2 x RCA
• Analog 2-ch. Stereo headphone (unbal.),
3.5 mm jack
TM3-SWDEEM: Deembedded out (optional licence)
This option expands the feature set by an output routing for deembedded
audio signals.
Functions: Deembedded output of up to 16 audio channels
via 8 x AES3 outputs
Outputs: 8 x AES3 (bal.), 25-pin Sub-D connector
TM3-SWMC: Moving Coil (Software Licence)
Expands the function set of TM3-3G with the Moving Coil instrument for
the display of needle instruments for up to 2-channel Stereo with different
scales.
Type: PPM (L/R), PPM (M/S), VU, Loudness, PPM +
Loudness (L/R; M, S, or I), selectable
PPM:
- Ch. arrangement: Dual, Dual + M/S horizontal, Dual + M/S verti-
cal, Stereo horizontal, Stereo vertical
Specifications (continued)

11
© 06/2013 | Technical changes without notice. | RTW GmbH & Co.KG | Am Wassermann 25 | 50829 Köln | Fon +49 221. 70 913-0 | Fax [phone] | [email protected] | www.rtw.de
- Scales: • BR IIa: 7. .1, BR IIa ext: 7. .1
• BR IIb: +12. .–12 dB, BR IIb ext: +12. .–12 dB
- Integration time: Sample (digital only), 0.1 ms, 1 ms, 10 ms, 20
ms, 150 ms
- Headroom Ref: available with digital sources only: –9 dB; adjus-
table from 0 to –20 dB in steps of 1 dB
- S mode: only available, if M/S type is selected: M3, M6
- Peak indicator: Off, Peak, True Peak, BR Peak
- BR Peak Threshold: 6 dB,
• BR IIa: adjustable from 4 to 7 dB in steps of
1 dB
• BR IIb: adjustable from 0 to 12 dB in steps of
1 dB
VU:
- Ch. arrangement: Stereo horizontal, Stereo vertical
- Scale analog: VU (–20 to +3 dB)
- Scale digital: VU Digital (–20 to + 3 dB)
- Lead: 0 dB, adjustable from 0 to 10 dB in steps of 1 dB
- Peak indicator: Off, Peak, True Peak
Loudness:
- Ch. arrangement: Dual, Stereo horizontal, Stereo vertical
- Scales: acc. to Loudness settings
- Integration time: acc. to standard
- Peak indicator: Off, no selectable option available
PPM + Loudness:
- Ch. arrangement: Dual-PPM (as described above) with additional
Loudness display (BBC) for M, S, or I (selectab-
le) in one instrument
- Scales: • PPM: see above
• Loudness: +9 to –9 LU fixed (mid of scale
corresponds to Target Level)
Numerical display: switchable
Items of Delivery
TouchMonitor TM3-3G: 2-channel Stereo up to 8-channel
• TM3 display unit with 4.3“ touch screen in
a table-top case with fixed connector cable
(approx. 2 m)
• 3G-SDI interface box, connected to display unit
• Mains adapter, manual
Order no.: TM3-3G
Optional Software Licence
• Software licence TM3-SWMON for the
upgrade with a Monitoring Control function to
monitor the displayed audio signals
• Software licence TM3-SWDEEM for the
upgrade with a AES3 output routing of the
deembedded audio signals
• Software licence TM3-SWMC for the upgrade
of TM3-3G with the Moving Coil instrument
Optional Accessories
• Extension cable 1161 for TM3 interface box,
10 m, to enlarge the distance between TM3
display unit and TM3 interface box up to
12 m. Set includes required f-f adapter
• Snake cable 1163 (2 m) for 3G-SDI inter-
face box, distributes 25-pin. Sub-D-M to
8 x XLR-M (AES3 outputs)
• Metal mounting plate 1166 for TM3 display
unit to be mounted with 3/8“ holds (e. g.
gooseneck, mic stand)
• Wide voltage power supply 1168-R
(100 - 240 V AC/24 V DC 2,7 A, table-top
unit with corresponding mains cable for
different power systems)
Specifications (continued)

RTW GmbH & Co. KG
Am Wassermann 25 | 50829 Köln | Germany
Phone: [phone] | Fax: [phone]
Internet: www.rtw.de | E-Mail: [e-mail]
© 06/2013 | Technical changes without prior notice.
Block Diagram
