Rubbermaid 5H80 User manual

Congratulations and thank you for the purchase of your Rubbermaid 7' x 7' storage building. Before you begin assembly please
be sure to check your local building codes, ordinances and restrictions, and applicable neighborhood governances.
BEFORE YOU BEGIN – SURFACE PREPARATION
To ensure proper assembly and performance your shed needs to be built on a solid, level surface. A cement or patio surface, or
a treated-wood platform is recommended.
BEFORE YOU BEGIN – LOCATION
When choosing a location in your yard make sure you choose an area with easy access and one that provides proper drainage
for water to run away from the shed location.
Prior to beginning the assembly please complete the following items:
•Thoroughlyreviewallassemblysteps(itisimportantthatthestepsarefollowedinthecorrectorder).
•Reviewthepartslistandmakesurethatnopartsaremissing.
IMPORTANT – DO NOT
RETURN TO THE STORE
For assistance with your
Rubbermaid® Storage Building
or for additional product
information call our toll-free
Consumer Service number:
1-888-895-2110
M–F 8:30AM to 5:00PM EST
or visit us online at:
www.rubbermaid.com.
5H80
94¼"
84"
85½"
1821375

Description Assembly Letter Quantity Required Tools
Two Person Assembly
Floor
Front Floor J 1
Back Floor K 1
Walls
Side Panel "A" A 2
Side Panel "B" B 2
Left Back Panel C 1
Right Back Panel D 1
Left Front Panel E 1
Right Front Panel F 1
Wall Connector Q 15
Doors
Left Door Panel G 1
Right Door Panel H 1
Door Reinforcement DR 2
Hinge Reinforcement HR 2
Door Window LL 2
Gasket for Door Window MM 2
Lock Hasp X 1
Door Handle T 1
Door Magnet KK 2
Barrel Bolt HH 2
Hardware
#14 x 3/4" Combo Pan Head Screw AA 138
#8 x 1/2" Combo Pan Head Screw BB 22
#8 SAE Flat Washer CC 22
¼-20 x 1.0" Hex Bolt DD 11
¼-20 Hex Nylon Lock Nut EE 11
Roof Pin FF 6
Roof Pin Assembly Tool GG 1
Roof
Lower Roof Panel – 7' M 2
Upper Roof Panel – Underlap – 7' N 1
Upper Roof Panel – Overlap – 7' P 1
Front Gable U 1
Back Gable R 1
Skylight L 4
Gasket for Skylight 4
Door Header Support DH 1
Truss Rafter TR 2
Truss Collar Tie TC 1
Truss Bracket TB 2
Purlin PL 4
Safety
Glasses
Phillips Screwdriver
Rubber
Mallet
Liquid
Soap
(2) Step Stools/
Stepladders
Drill
Gloves
Utility Knife
5H80
Rubbermaid®

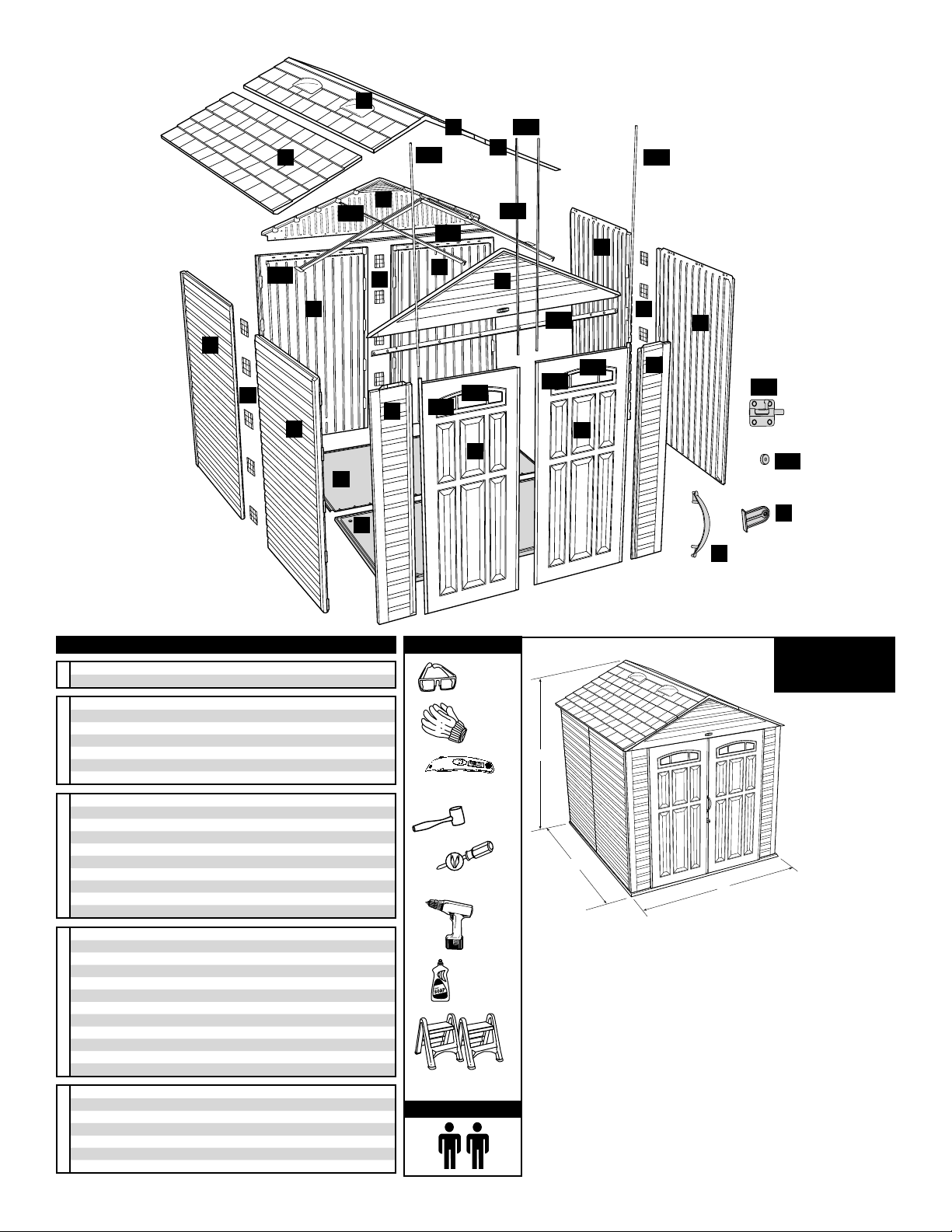

7' x 7' RESIN STORAGE BUILDING ASSEMBLY
Preassembly:
•ReviewALLassemblystepsbeforebeginningconstruction.
•Reviewthepartslistandmakesurethatnopartsaremissing.
NOTE:
•Tosimplifyassemblyandtoensureproperengagementofall
components, apply a mild detergent to dovetail and snap fits
before assembling.
94¼"
84"
85½"
J
A
K
E
B
Q
Q
Q
C
D
B
A
X
T
LL
LL
KK
DH
MM
MM
TR
TC
PL
TB
HH
DR
HR
HR
F
H
G
R
U
N
P
M
M

1
23

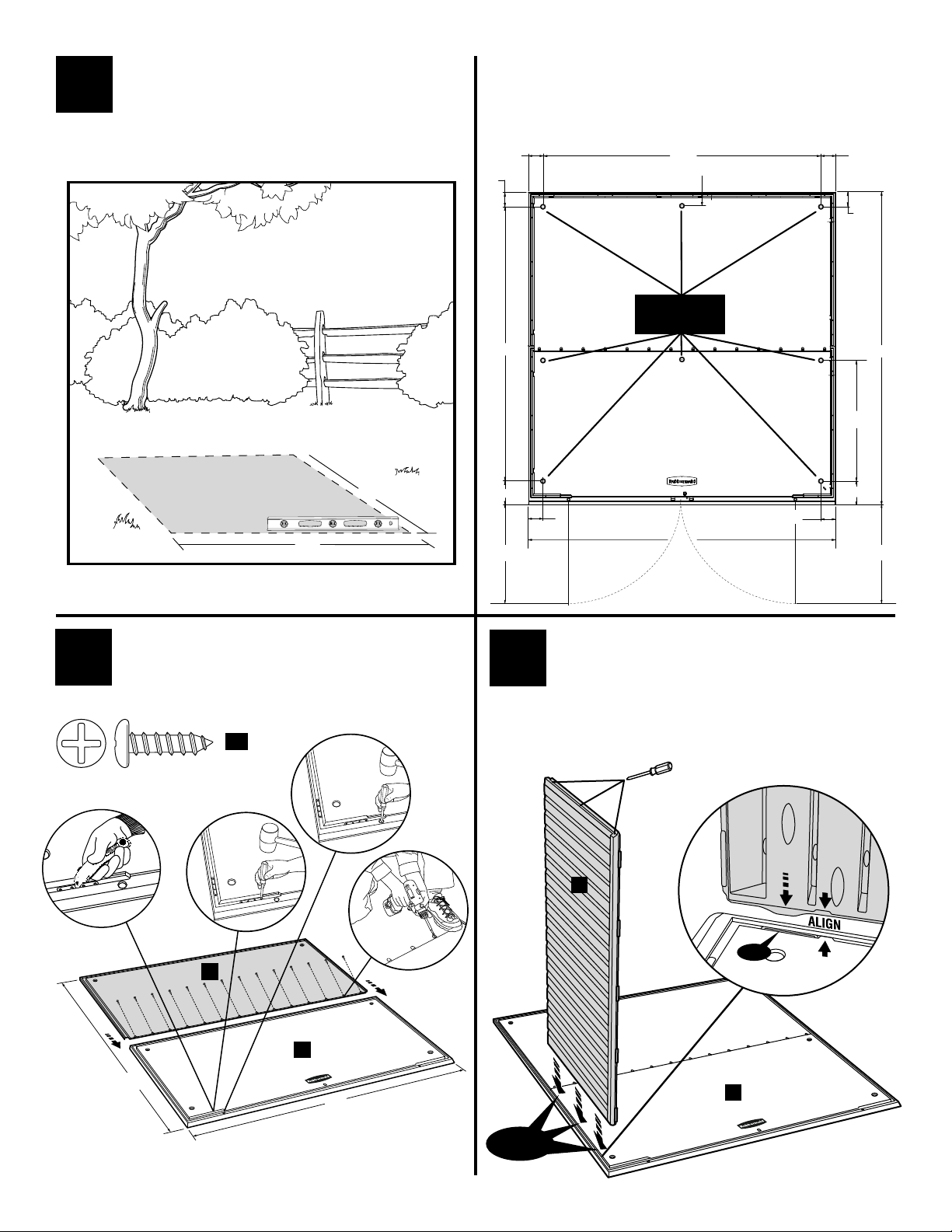

Build a solid, level surface for the shed foundation; minimum foundation dimensions are
shown. Consult your local building authority for ordinances or restrictions before building
any structure at your home.
Note:
Minimum dimensions for foundations shown.
Place the Front Floor (J) on the foundation. Connect Front Floor (J) to Back Floor (K),
install Screws (AA) 14 places. Using a screwdriver, knock out the tabs for the door hinge
2 places on Front Floor (J). Using a utility knife, cut the long sides of each wall slot tab
and then use a screwdriver to knock it out 8 places on Front Floor (J) and 12 places on
Back Floor (K).
Optional Step:
Ifdesired,recessedanchorlocations(8places)canbeusedtosecuretheFloortothe
Foundation, see Step 1.
Using a screwdriver, punch out the screw holes on the top of Side Panel (A) 3 places.
Snap Side Panel (A) into Front Floor (J). Hold Side Panel (A) to prevent it from falling.
FLOOR PLAN:
Size the construction site to fit the entire floor.
OPTIONAL STEP:
Ifdesired,recessedanchorlocations(8places)canbeusedtoanchortheshedoortoa
foundation after Step 2.
84"
86"
ANCHOR
LOCATIONS
84"
85
1
/ 2 "
76"
75"
6
1
/ 2 "
6
1/2"
4" 4"
4"
4"
4"
4"
30¼"
30¼"
33"
3¾ "
84"
85½"
Caution: When installing screws, do not overtighten.
Caution: Always use gloves when using the utility knife.
click
Screw Holes
click
J
J
A
K
AA (14)

4
7
Using a screwdriver, punch out the screw holes on the top of Left Front Panel (E)
3 places. Lubricate dovetails on Side Panel (A) 5 places with liquid soap. Connect
Left Front Panel (E) onto dovetails of Side Panel (A). Engage snap on bottom
of Left Front Panel (E) into Front Floor (J).
Lubricate dovetails on Side Panel (B) 5 places with liquid soap. Connect Left Back
Panel (C) onto dovetails of Side Panel (B). Engage snaps on bottom of Left Back
Panel (C) into Back Floor (K).
click
1
2
Screw Holes
1
2

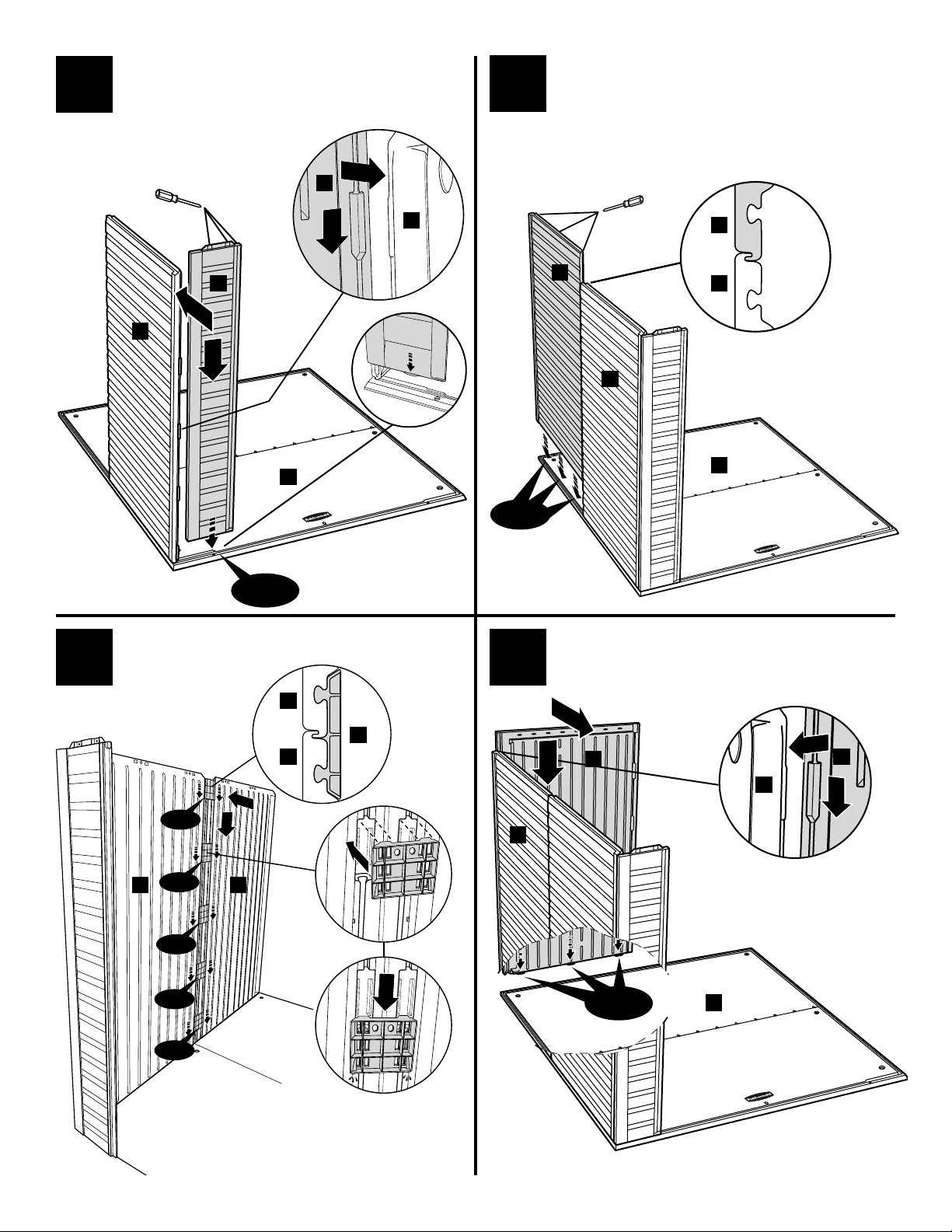

5Using a screwdriver, punch out the screw holes on the top of Side Panel (B) 3 places.
Align the lap joint between Side Panel (A) and Side Panel (B). Snap Side Panel (B) into
Back Floor (K).
click
Screw Holes
6Install Wall Connector (Q) 5 places.
1
2
1
2
click
click
click
click
click
click
2
1
2
1
E
E
J
Q
K
K
A
A
A
A
CC
B
B
B
B
A
A
B
B

89
10 11
Using a screwdriver, punch out the screw holes on the top of Right Front Panel (F)
3 places. Lubricate dovetails on Side Panel (B) 5 places with liquid soap.
Connect Right Front Panel (F) onto dovetails of Side Panel (B). Engage snap on bottom
of Right Front Panel (F) into Front Floor (J).
Using a screwdriver, punch out the screw holes on the top of Side Panel (B) 3 places.
Snap Side Panel (B) into Front Floor (J). Hold Side Panel (B) to prevent it from falling.
Using a screwdriver, punch out the screw holes on the top of Side Panel (A) 3 places.
Align the lap joint between Side Panel (A) and Side Panel (B). Snap Side Panel (A) into
Back Floor (K).
Install Wall Connector (Q) 5 places.
click
Screw Holes
click
1
2
Screw Holes
click
Screw Holes
click
1
2
1
2
click
click
click
click
click
1
2
J J
F
F
B
B
K
B
B
B
B
A
A
A
A
Q

12 13
14 15
Install Wall Connector (Q) 5 places.
Lubricate dovetails on Side Panel (A) 5 places with liquid soap. Connect Right Back
Panel (D) onto dovetails of Side Panel (A). Align the lap joint between Left Back
Panel (C) and Right Back Panel (D). Snap Right Back Panel (D) into Back Floor (K).
Using a screwdriver, punch out the screw holes around the perimeter of Back Gable (R) 22
places. If venting is desired, use the utility knife to cut out vent slots 3 places from inside
of gable before assembly. Connect Back Gable (R) onto the back wall, install Screws (AA)
10 places.
Set the Left Door Panel (G) face down. Slide the Hinge Reinforcement (HR) into the
hole on the top door pin. The Hinge Reinforcement (HR) will slide in until it is 1/8” above
the end of the door pin.
click
2
1
1
2
1
2
1
2
click
click
click
click
click
Screw Holes
Screw Holes
Screw Holes
Screw Holes
Caution: When installing screws, do not overtighten.
Caution: Make sure the screws hit the targets on the back wall panels.
Caution: Always use gloves when using the utility knife.
BACK GABLE (R)
BACK WALL
SCREW (AA)
A
A
C
C
D
D
D
R
G
K
C D
Q
CD
AA (10)
HRHR

16 17
18 19
Install the Gasket (MM) into the gasket groove in the door. Start at the top and middle
by pushing the gasket into the groove. Continue until the Gasket (MM) is fully installed.
There will be a small gap between the ends of the gasket.
Lubricate the inside of the Door Reinforcement (DR) along the full length with liquid soap.
Starting at the top of the door, slide the Door Reinforcement (DR) onto the groove located
on the handle side of the door. The Door Reinforcement (DR) will slide to the stop at the
bottom of the door.
Peel off the protective paper from Window (LL). Install Window (LL) onto the door by
matching up the holes and installing the Screws (BB) and Washers (CC) 11 places.
The “frosted” side of the window should be touching the gasket. Start all screws before
tightening any of them down. Make sure the window is free to move until all screws have
been started. Repeat steps 15–18 for Right Door Panel (H).

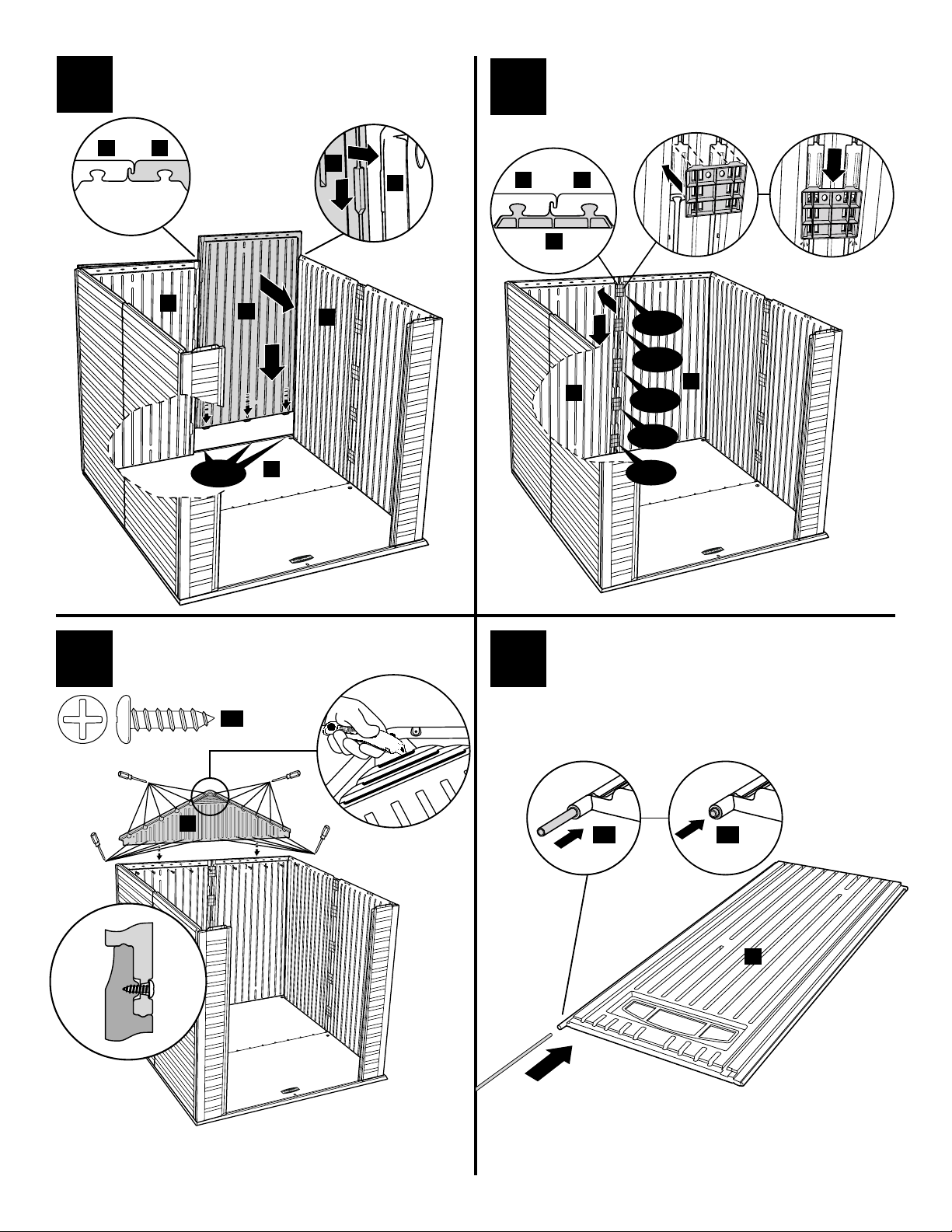

Using a screwdriver, punch out the screw holes around the perimeter of Front Gable (U)
12 places. If venting is desired, use the utility knife to cut out vent slots 3 places from
inside of gable before assembly. Fasten the Door Header (DH) to the bottom of the Front
Gable (U)usingScrew (AA)4places.
Caution: Tighten screws only enough to compress gasket. Do not overtighten.
Caution: When installing screws, do not overtighten.
Caution: Always use gloves when using the utility knife.
Screw Holes
Screw Holes
DR
DH
MM
MM
MM
DR
DR
BB (11)
CC (11)
LL
G
G
G
AA (4)
U
SCREW (AA)
DOOR HEADER (DH)
FRONT GABLE (U)

OUTSIDE VIEW RIGHT SIDE
20
21 Close both doors. From inside the shed, install Screws (AA) 4 places connecting
Front Gable (U) to Left Front Panel (E) and Right Front Panel (F).
One person MUST hold onto the Front Gable (U) during this entire step. Set the Front Gable (U) onto the front wall panels.
Install Left Door Panel (G) by inserting the lower hinge pin into the hole in Front Floor (J). Lift the left end of the Front Gable (U) enough
to insert the top hinge pin on Left Door Panel (G) into the Front Gable (U) channel. Close Left Door Panel (G).
Install Right Door Panel (H) by inserting the lower hinge pin into the hole in Front Floor (J). Lift the right end of the Front Gable (U) enough
to insert the top hinge pin on Right Door Panel (H) into the Front Gable (U) channel. With Right Door Panel (H) open, install Bolt (DD) and Nut
(EE) connecting Right Front Panel (F) and Door Header (DH).
Open Left Door Panel (G). Close Right Door Panel (H). Install Bolt (DD) and Nut (EE) connecting Left Front Panel (E) and Door Header (DH).
Caution: When installing screws, do not overtighten.
Caution: Tighten nut securely but DO NOT compress the Front Panel.
DD EE (2)
U
F
E
4
1
2
1
2
3
3
4
U
G
F
E H
H
F
U
U
JJ
AA (4)
OUTSIDE VIEW LEFT SIDE
G E
U

Screw Holes
Screw Holes
TR
TR
TC TB
TB
23 Fasten Upper Roof Panel (N) to Upper Roof Panel (P) using Screw (AA) 10 places.
Caution: When installing screws, do not overtighten.
N
P
P
24 Fasten 2 Truss Rafters (TR) together using Bolt (DD) and Nut (EE) 1 place. Fasten Truss Collar (TC) to each Truss Rafter (TR) using
Bolt (DD) and Nut (EE) 2 places. Fasten Truss Bracket (TB) to each Truss Rafter (TR) using Bolt (DD) and Nut (EE) 2 places.
Note: DO NOT completely tighten bolts and nuts, leave a 1/8" gap between the nut and the truss component.
TR
TC
TB
22 Using a screwdriver, punch out the screw holes around the 2 skylight openings on Upper
Roof Panel (P) 16 places. Fasten Skylight (L) 2 places to Upper Roof Panel (P), install
Screws (AA) 16 places. Repeat step for Upper Roof Panel (N).
Caution: When installing screws, do not overtighten.
L
AA (16)
AA (10)
DD EE (7)
N
P

26 Lift the Upper Roof Panel assembly onto the peak. Install Roof Pin (FF)2places.
If necessary, use the Roof Pin Assembly Tool (GG) to pull the roof down. Tighten
Bolt (DD) and Nut (EE) 7 places on the Truss Assembly.
DO NOT crush the truss component.
2
1
3
4
FF
GG
25 Install the Truss assembly. Fasten Truss Bracket (TB) 2 places to the wall panels using
Screw (AA) 4 places.
Caution: When installing screws, do not overtighten.
TB
TB
27 Attach Purlin (PL) 2 places. Fasten both Purlins (PL) to Truss Rafter (TR) using
Bolt (DD) and Nut (EE) 1 place. Repeat step for opposite side.
Note: Short end of Purlins (PL) should be over Gables and the long end
of Purlins (PL) should align with Truss Rafter. Tighten bolts and nuts
until they touch the truss component, DO NOT crush the truss component.
AA (4)
DD EE (2)
PL
PL
TR
PL
R
U
R
U
PL

29 30
While one person holds the edge of the Roof down, fasten the Front Gable (U) to the Roof
Panels using Screw (AA) 12 places.
While one person holds the edge of the Roof down, fasten the Front Gable (U) to the Roof
Panels using Screw (AA) 12 places.
Caution: When installing screws, do not overtighten. Caution: When installing screws, do not overtighten.
Screw Locations Screw Locations
Screw Holes Screw Holes
AA (12) AA (12)
U R
28
2
1
3
MPL
Screw Holes
1
2
3
4
M
GG
FF
Upper Roof Panel
Lower Roof Panel (M)
Purlin (PL)
Using a screwdriver, punch out the screw holes on the top of Lower Roof Panel (M) 10
places. While one person pushes up on the bottom of the Upper Roof Panel, slide the Lower
Roof Panel (M) over the Purlin (PL) and under the Upper Roof Panel. Install Roof Pin (FF) 2
places. Repeat step for opposite side.

31 32
While one person holds the seam of the Roof down, fasten the Lower Roof Panel (M)to
the Upper Roof Panel using Screw (AA) 10 places. Repeat step for opposite side.
While one person holds the bottom of the Roof down, fasten the Wall Panels to the Roof
Panels using Screw (AA) 12 places.
Caution: When installing screws, do not overtighten.
Caution: When installing screws, do not overtighten.
Caution: When installing screws, do not overtighten.
AA (10) AA (12)
33 Snap Lock Hasp (X) into the interior of Right Door Panel (H). Fasten Barrel Bolt (HH)
2 places onto the interior of Right Door Panel (H) using supplied screws 8 places.
Note: Lock Hasp accepts padlocks with ¼" diameter and smaller shackle.
HH
HH
H
X
P
P
M
E
U
U
M
A
M
INSIDE VIEW

94¼"
84"
85½"
34 Fasten Door Magnet (KK) onto the interior of Left Door Panel (G) 2 places
using supplied screws. Fasten Door Handle (T) onto Left Door Panel (G) using
Screw (AA) 4 places.
AA (4)
KK KK
G
G T
Maintenance & Safety
•Periodicallycheckshedtoassureitremainsstableandthesiteremainslevel.
•Inareasofextremehighwindsitisrecommendedtoanchorshedtoplatform
or ground by drilling holes in floor at designated location and secure with the
 properfasteners(notincluded).
•Washshedwithgardenhoseoramilddetergentsolution.Usinganabrasive
cleaner could damage your building.
•Hotitemssuchasrecentlyusedgrillsorrepitsshouldnotbestoredinthebuilding.
•Heavyitemsshouldnotbeleanedagainstthewalls,asthismaycausedistortion.
•Keepdoorsclosedwhennotinusetopreventwinddamage.
•Donotclimbontoroof.
•Shedisnotdesignedforhabitation.
Imprimé aux États-Unis
D.R. © 2011 Rubbermaid Incorporated,
Huntersville, NC U.S.A. 28078-1801
Service à la clientèle
Sans frais : 1-888-895-2110
L-V8:30hà17h(heuredel'est)
ou visitez notre site Web
www.rubbermaid.com
Printed in U.S.A.
© 2011 Rubbermaid Incorporated,
Huntersville, NC U.S.A. 28078-1801
Customer Service
Toll Free: 1-888-895-2110
M-F 8:30AM to 5PM EST
or visit us at
www.rubbermaid.com
Impreso en los EEUU.
D.R. © 2011 Rubbermaid Incorporated,
Huntersville, NC U.S.A. 28078-1801
Servicio al cliente
Llamada gratuita: 1-888-895-2110
L–V 8:30AM a 5PM EST
o vea nuestro sitio en la Internet
www.rubbermaid.com
