Ruby 48bh 3SD User guide

ruby 48bh 3SD
01 2019
Use and maintenance
Warning! Please read the instructions before use.

TECHNICAL DESCRIPTION ruby 48bh
3SD
Cleaning width
mm
508
in
20
Squeegee width
mm
770
in
30
Working capacity, up to
m2/h
2030
sqft/h
21.851
Brushes diameter
mm
1 x 508
in
1 x 20
Brushes rpm rpm 155
Pressure on the brushes
kg
30
lbs.
66
Brushes motor
W
450
A
18.5
Suction motor
W
450
A
18.8
Suction vacuum
mbar
120
water lift
48
Traction motor
W
120
A
48
Type of drive automatic
Movement speed
km/h
4
mph
2.5
Maximum gradient % 2
Water/Solution tank
l
40
gal
10.6
Detergent solution tank (3SD)
l
3
gal
0,8
Recovery tank
l
42
gal
11.1
Machine length
mm
1207
in
47,5
Machine height
mm
1068
in
42
Machine width (without squeegee)
mm
560
in
22
Weight of the machine (empty and without
batteries )
kg
91
lbs.
200.6
Gross weight of the machine
(in conformity with EN 60335-2-72 art. 5.z102)
kg
205
lbs.
452
Tension of the batteries V 24
Capacity of the batteries Ah5110
Weight of the batteries
kg
74
lbs.
163
Compartment of the batteries
mm
350x342x310
in
13,8x13,5x12
Acoustic pressure level (in conformity with
EN 60704-1) Lpa dB (A) <70
Class
Protection level IP 23
Weight packed machine
kg
105
lbs.
231,5
Packing dimensions (LxDxH)
cm
118x67x119
in
46.5x26.4x47
III

3
INTRODUCTION

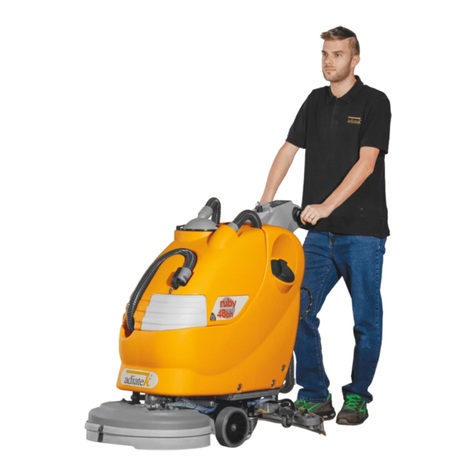

Thank you for having chosen our machine. This floor cleaning machine is used for the industrial and civil cleaning and is able to clean any type of
floor. During its advance movement, the combined action of the brush and the detergent solution removes the dirt which is aspirated through the
rear suction assembly, giving a perfectly dry surface.
The machine must be used only for such purpose. It gives the best performance if it is used correctly and maintained in perfect efficiency. We
therefore ask you to read this instruction booklet carefully whenever difficulties arise in the course of the machine’s use. In case of need, we ask you
to contact our service department for all advice and servicing as may prove necessary.
SUMMARY
INTRODUCTION 3
GENERAL RULES OF SAFETY 4
Transfer 4
Storage and disposal 4
Correct use 4
Maintenance 4
GENERAL RULES OF THE BATTERIES 4
LEGEND CONTROL PANEL 5
LEGEND MACHINE 5
DISPLAY READING 6
Visualization while switching on 6
Battery setting 6
Software release 6
Hourmeter 6
Visualization controls 6
NAVIGATION CONTROLS 7
General setting 7
Display language selection 7
Display tune (display contrast) 7
To change the battery setting 7
Display brightness 7
SYMBOLOGY ON THE MACHINE 8
SYMBOLOGY ON THE MANUAL 8
BEFORE USE 9
Handling the packed machine 9
Unpacking of the machine 9
Battery installation 9
On-board battery charger 9

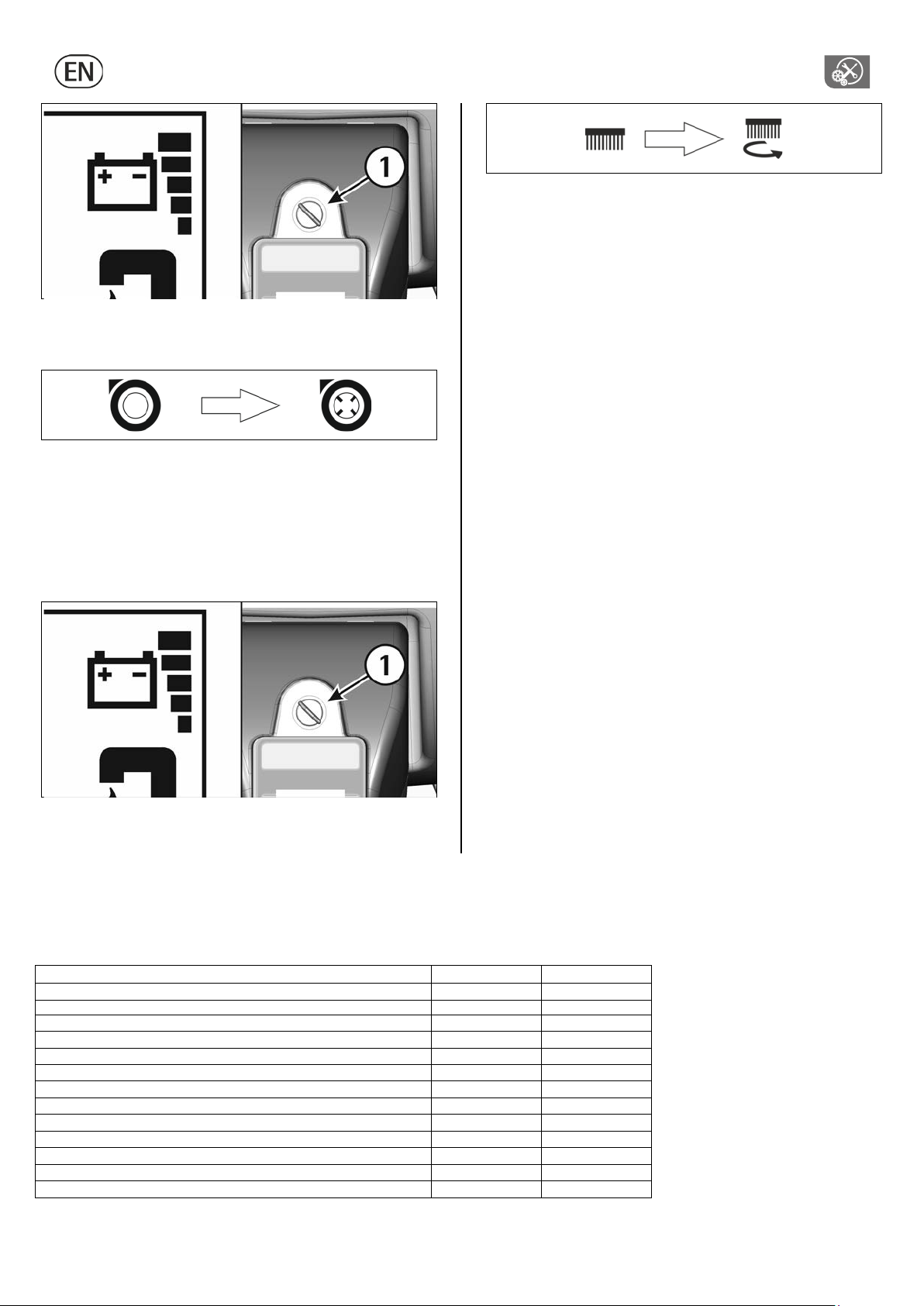

Battery charge level indicator 9
Charging the batteries 9

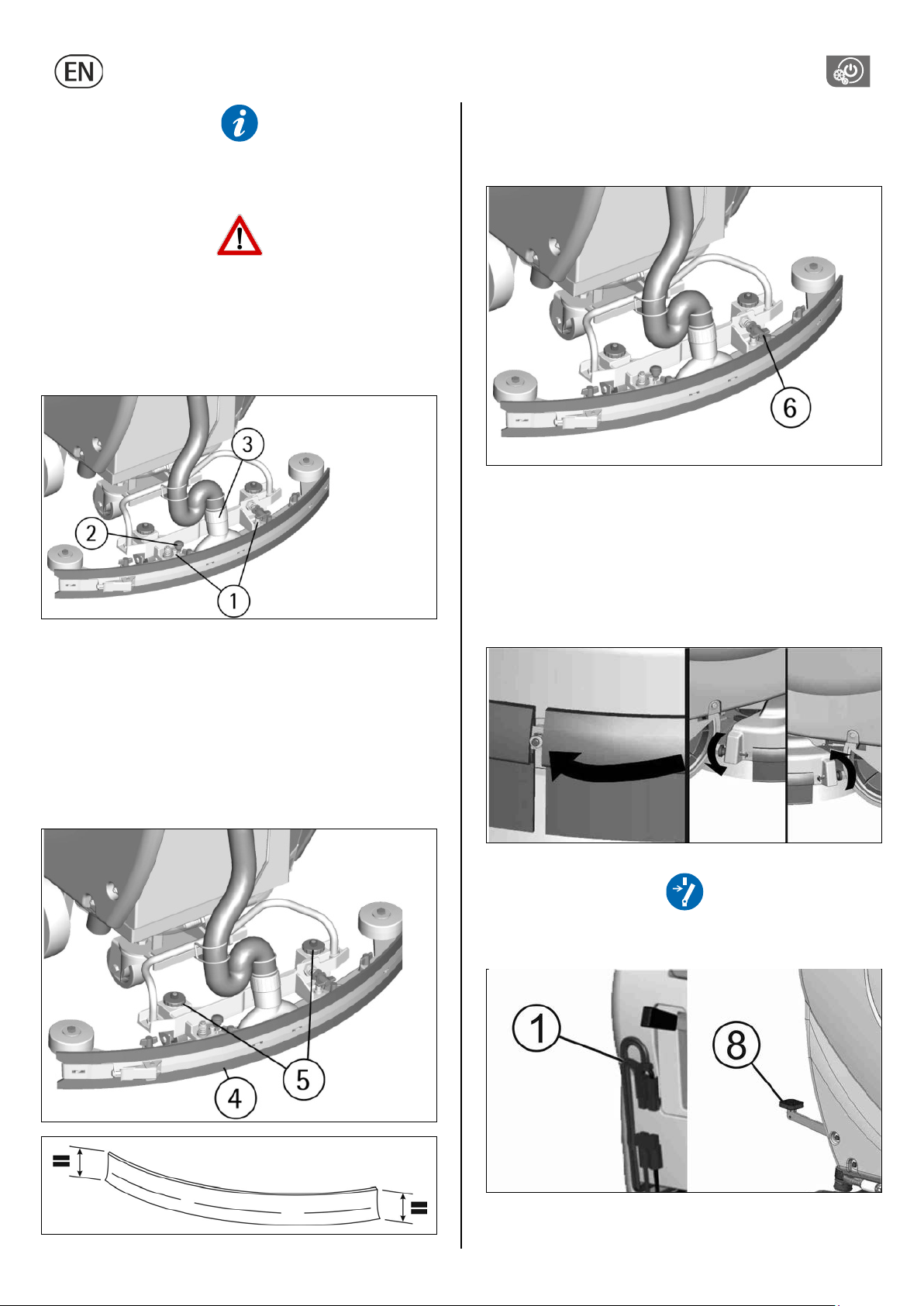

Squeegee assembly 10
Adjustment of the squeegee height 10
Adjustment of the squeegee inclination 10
Splash guard assembly 10
Brush assembly 10
Recovery tank 11
Clean water tank 11
Detergent solution tank 11
PRE-CLEANING OPERATIONS 12
Connection of the batteries to the machine 12
Water carriage adjustment 12
Detergent solution carriage adjustment 12
Selecting the manual adjustment of the detergent solution 12
STARTING THE MACHINE 12
Working with the manual detergent solution adjustment 13
Suction motor silent mode 13
Working brake 13
Detergent solution reserve signal (H2O on the display) 13
Overflow device 13

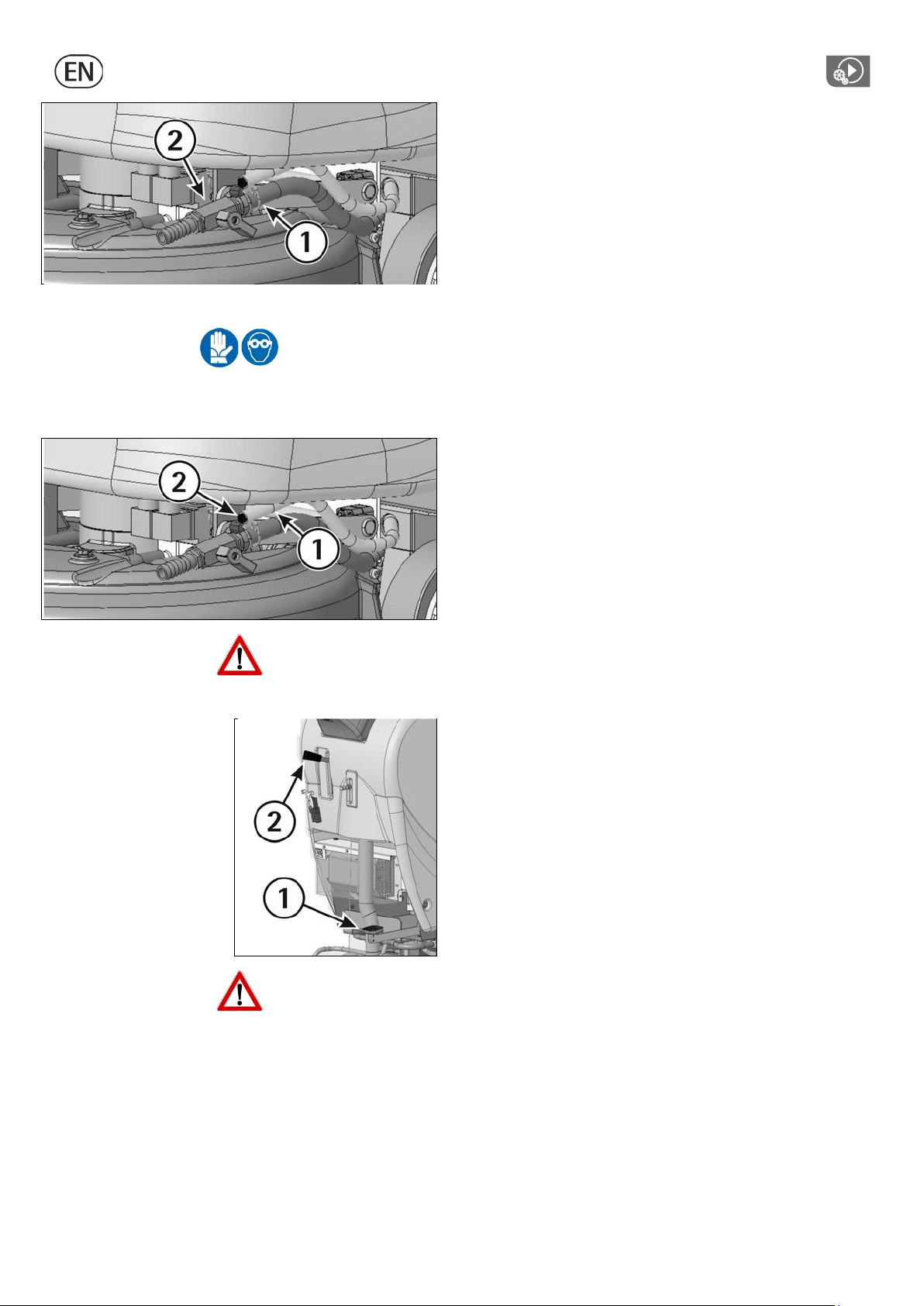

Draining the water (3SD) 13
Draining the detergent solution 14
STOPPING THE MACHINE BY THE END OF THE WORK 14
DAILY MAINTENANCE 15
Recovery tank cleaning 15
Suction filter cleaning 15
Manual disassembly of the brush 15
Automatic unlocking the brush 15
Brush cleaning 15
Squeegee cleaning 15
WEEKLY MAINTENANCE 16

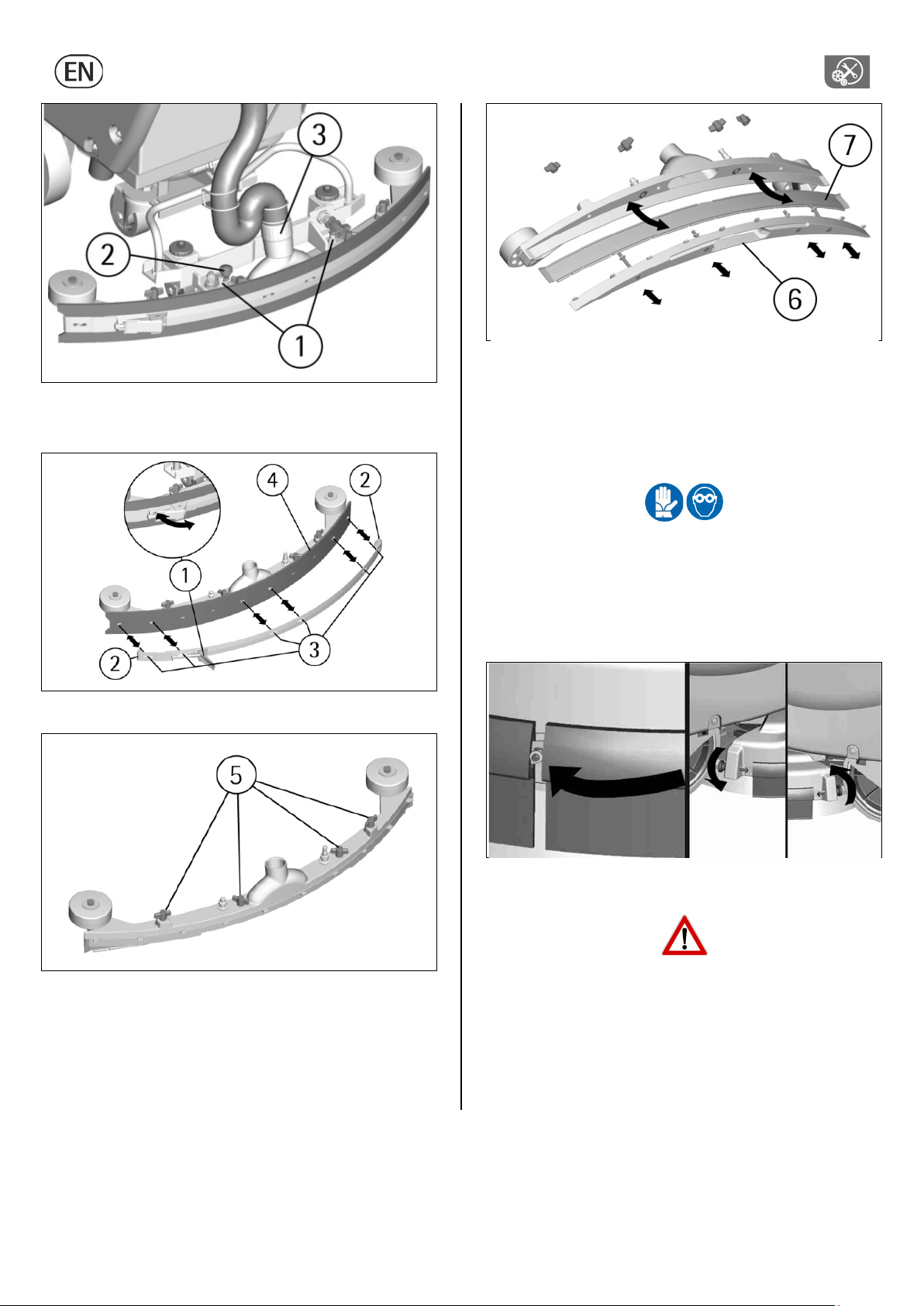

Rear squeegee rubber replacement 16
Squeegee hose cleaning 16
Cleaning of water tank and filter 16
TWO-MONTHLY MAINTENANCE 16
Front squeegee rubber replacement 16
SIX-MONTHLY MAINTENANCE 17
Splash guard replacement 17
TROUBLESHOOTING GUIDE 17
The suction motor does not work 17
The brush motor does not work 18
The machine does not clean properly 18
The squeegee does not dry perfectly 18
Excessive foam production 18
PROGRAMMED MAINTENANCE 18
Periodic ordinary maintenance chart 18

4
GENERAL RULES OF SAFETY
The rules below have to be followed carefully in order to avoid injury
to the operator and damage to the machine.
−Read the labels carefully on the machine. Do not cover them for
any reason and replace them immediately if damaged.
−ATTENTION: The machine must be used exclusively by authorized
staff that have been instructed on its correct and proper use.
−ATTENTION: Do not use the machine on areas having a higher
gradient than the one stated on the number plate.
−ATTENTION: The machine is not to be used by persons, children
included, with reduced physical, sensorial or mental capabilities, or
with lack of experience or knowledge, unless they could benefit,
through the intermediation of a responsible person for their safety,
by a supervision or instructions concerning to its use.
−During the operation of the machine, pay attention to other people
and especially to the children.
−Children shall not play with the machine.
−Children cannot carry out cleaning and maintenance of the
machine.
TRANSFER
−Do not strike shelvings or scaffoldings where there is danger of
falling objects.
−Do not use the machine as a means of transport.
−Adapt the working speed to the adhesion conditions: particularly,
slow down before narrow curves have to be faced.
STORAGE AND DISPOSAL
−Storage temperature: between 0°C and +55°C (32°F and 131°F).
−Perfect operating temperature: between 0°C and +40°C (32°F and
104°F).
−The humidity should not exceed 95%.
−Provide for the scrapping of the material of normal wear following
strictly the respective rules.
When your machine has to stop activity, provide for the appropriate
waste disposal of its materials, especially oils, batteries and electronic
components, and considering that the machine itself has been, where
possible, constructed using recyclable materials.
CORRECT USE
−Do not use the machine on surfaces covered with inflammable
liquids or dusts (for example hydrocarbons, ashes or soot).
−In case of fire, use a powder based fire-extinguisher. Do not use
water.
−Do not use the machine in explosive atmosphere.
−The machine has to carry out simultaneously the operations of
washing and drying. Different operations must be carried out in
restricted areas prohibited to non-authorized personnel and the
operator has to wear suitable shoes.
−Signal the areas of moist floors with suitable signs.
−Do not mix different detergents, avoiding harmful odours.
−Avoid brush operation when the machine is standing still in order
to prevent floor damages.
−Before lifting the recovery tank, make sure that it is empty.
MAINTENANCE
−If the machine does not work properly, check by conducting simple
maintenance procedures. Otherwise, as for technical advice from
an authorized assistance centre.
−For any cleaning and/or maintenance operation take off the power
supply from the machine.
−Where parts are required, ask for ORIGINAL spare parts from the
distributor and/or from an authorized dealer.
−Do not take off the protections which require the use of tools for
their removal.
−Do not wash the machine with direct water, jets or with high water
pressure nor with corrosive material.
−Every 200 working hours have a machine check by an authorized
service department.
−Before using the machine, check that all panels and coverings are
in their position as indicated in this use and maintenance
catalogue.
−Restore all electrical connections after any maintenance operation.
GENERAL RULES OF THE BATTERIES
−At any intervention on the batteries, use suitable acid-proof gloves
and glasses.
−Do not smoke near the batteries and do not approach them with
free flames.
−Check that a fire-extinguisher is available on site.
−Be very careful in case of leakages or liquid outlets because
corrosive.
−Do not place any metallic tools onto the batteries. Risk of short
circuit!
−It is compulsory to hand over exhaust batteries, classified as
dangerous waste, to an authorized institution according to the
current laws.

5

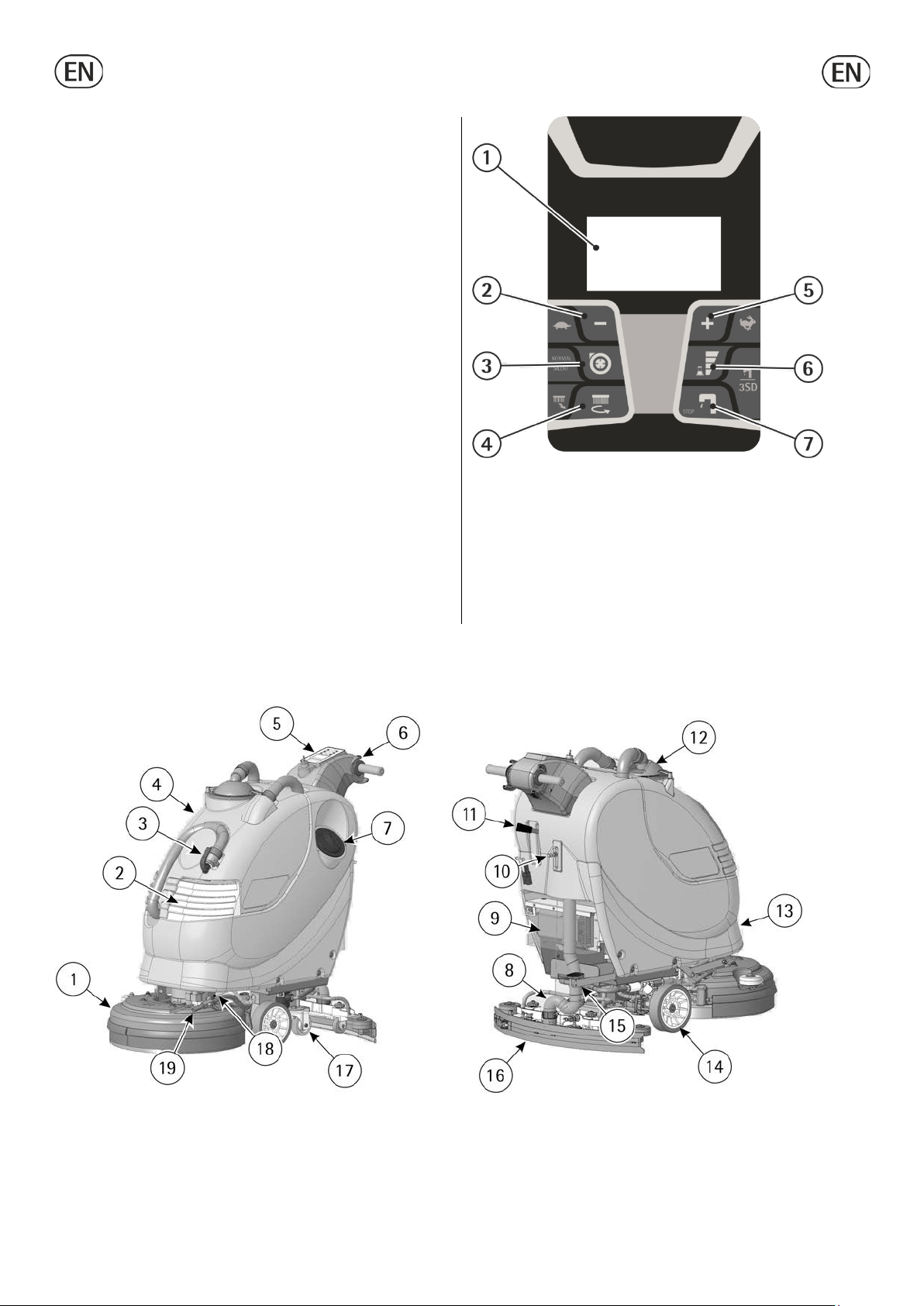

LEGEND CONTROL PANEL
1. DISPLAY
2. BUTTON MAXIMUM SPEED REDUCTION
3. BUTTON SUCTION MOTOR
BUTTON SUCTION MOTOR SILENT MODE
4. BUTTON BRUSHES-ON
BUTTON AUTOMATIC BRUSHES UNLOCK
5. BUTTON MAXIMUM SPEED INCREASE
6. BUTTON DETERGENT SOLUTION ON/OFF
BUTTON SOLENOID VALVE ON/OFF
LEGEND MACHINE
1. BRUSH BASE GROUP
2. DETERGENT SOLUTION TANK
3. RECOVERY TANK DRAIN HOSE CAP
4. RECOVERY TANK
5. DASHBOARD
6. DRIVE CONTROL LEVERS
7. DETERGENT SOLUTION DRAIN HOSE CAP
8. SQUEEGEE HOSE
9. ON BOARD BATTERY CHARGER
10. VALVE LEVER
11. SQUEEGEE LEVER
12. SUCTION COVER
13. SOLUTION WATER TANK
14. WHEELS
15. BRUSH BASE PEDAL
16. SQUEEGEE ASSEMBLY
17. CASTOR WHEELS
18. SOLUTION WATER DRAIN HOSE
19. SOLUTION TANK DRAIN HOSE

6

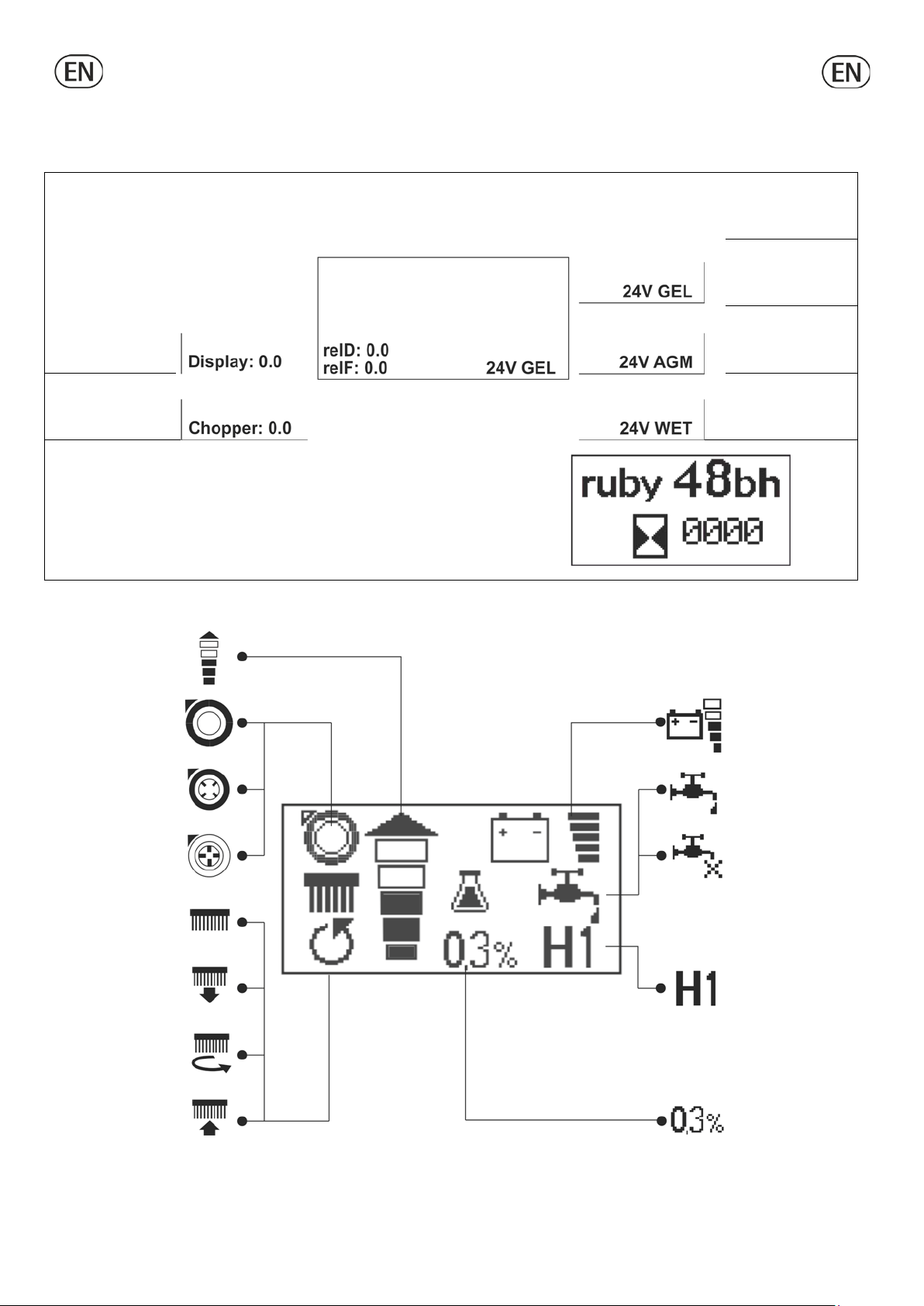

DISPLAY READING
VISUALIZATION WHILE SWITCHING ON
When the machine is switched on, the display shows the following screen which indicates the software release and the battery setting.
BATTERY SETTING
Setting for gel
batteries
Setting for AGM
batteries
SOFTWARE RELEASE
Setting for lead/acid
batteries
HOURMETER
In the second screen the hourmeter is visualized.
To display this screen in any other moment press simultaneously buttons 2 and 5 (see
under
"LEGEND CONTROL PANEL”).
VISUALIZATION CONTROLS
Maximum speed
indicator
Suction motor off Battery level
Suction motor on Solenoid valve on
Suction motor in
silent mode Solenoid valve off
Brush up
Brush lowering
Water carriage
(3SD version only)
Brush working
Brush lifting Detergent solution %
used
(3SD version only)

7

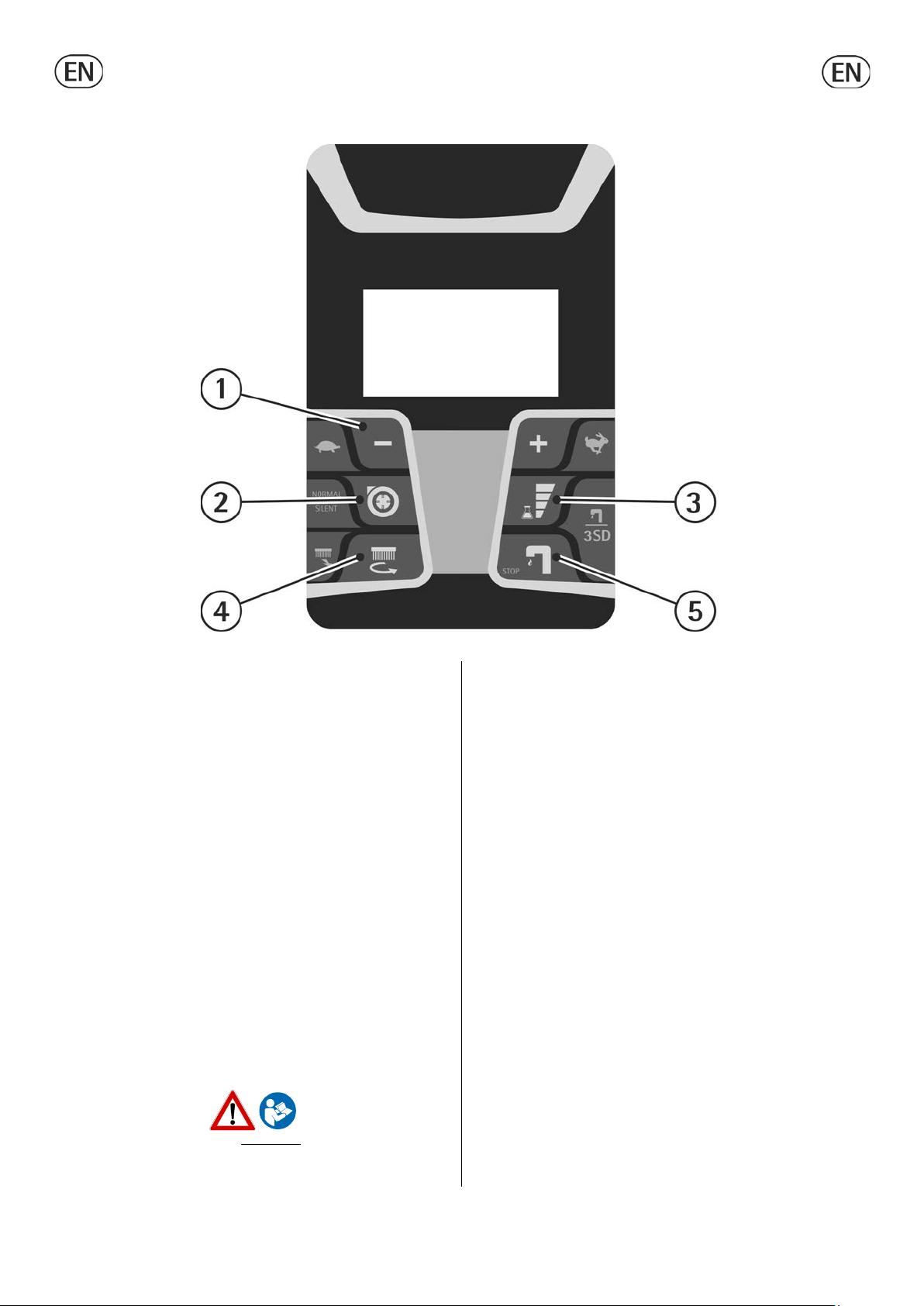

NAVIGATION CONTROLS
Scroll up
Enter Increase
Scroll down
Decrease
GENERAL SETTING
To enter the menu for the setting, use the keyboard of the instrument
board and proceed as follows:
Keep the buttons (1) and (5) pressed simultaneously.
Turn the key to switch on the machine.
When “ID CHECK” is shown on the display, press the enter button (2).
Once entered in GENERAL SETTING it will be possible to change the
following default settings by simply scrolling through the menu using
buttons (1) and (4).
DISPLAY LANGUAGE SELECTION
English is the default language; it is possible to change it into Italian.
To select the language just
visualize first "Language", then select it
scrolling with the buttons (3) and (5).
Once the language is chosen, confirm using button (2).
DISPLAY TUNE (DISPLAY CONTRAST)
Once entered in General Setting, it is possible to improve the display
contrast us
ing the button (3) to increase it and the button (5) to
decrease it.
Once selected the contrast, confirm using button (2).
TO CHANGE THE BATTERY SETTING
Once entered “General Setting”, it is possible to set the machine
depending on the batteries installed (AGM / GEL / LEAD-ACID).
To select the proper setting, just visualize first "BATTERY", then select it
by scrolling with the buttons (3) and (5).
Once the setting is chosen, confirm using button (2).
An incorrect setting may damage irreparably the battery.
ALWAYS verify to have set the correct parameter.
The defined battery setting is visible when the machine is turned on
(see "BATTERY SETTING or DISPLAY READING").
DISPLAY BRIGHTNESS
Once entered in General Setting, it is possible to increase or decrease
the display brightness using buttons (3) and (5).
Once selected the brightness, confirm using button (2).

8
SYMBOLOGY ON THE MACHINE
Symbol denoting the solution valve.
Indicates the solution valve lever.
Indication of the maximum temperature of the
solution detergent.
It is placed near the charging hole of the
solution tank.
Symbol denoting the lifting of the squeegee.
Symbol denoting the crossed bin.
Indicates that at the end of its activity, the
machine has to be disposed conforming to the
laws in force.
Symbol denoting the lowering of the squeegee.
SYMBOLOGY ON THE MANUAL
Symbol denoting the open book.
Indicates that the operator has to read the
manual before the use of the machine.
Symbol that indicates the obligation of wearing
safety glasses.
Symbol denoting the open book.
For the good functioning of the battery
charger, read the manual of the constructor.
Symbol that indicates the obligation of wearing
safety gloves.
Warning symbol.
Read carefully the sections marked with this
symbol, for the security of both the operator
and the machine.
Symbol that precedes an important information
about the proper use of the machine.
Symbol that indicates the obligations of
disconnecting the system from the batteries by
disconnecting the connector before operating
on the machine.
Symbol that indicates operations that have to
be carried out only by qualified personnel.
Símbolo que indica la parte del manual para el
desembalaje, la preparación y el encendido de la
máquina.
Símbolo que indica la parte del manual para la
utilización de la máquina.
Símbolo que indica la parte del manual para el
mantenimiento de la máquina.

9
BEFORE USE
HANDLING THE PACKED MACHINE
The machine is supplied with suitable packing foreseen for fork lift
truck handling.
For the packing dimensions see the “TECHNICAL DESCRIPTION” chart
Do not place more than 2 packings on top of each other.
UNPACKING OF THE MACHINE
1. Remove the external packing.
2. Unscrew the brackets that secure the machine to the pallet.
3. Move the machine backwards, as indicated in figure, avoiding
heavy contacts to mechanical parts.
4. Keep the pallet for eventual transport.
The portable slope is not included in the packaging.
BATTERY INSTALLATION
The machine is equipped either with batteries in serial connection or
elements of DIN-type assembled together and connected in series,
placed in its appropriate compartment under the recovery tank and
must be handled using suitable lifting equipment (due to weight,
considering the type of batteries chosen, and coupling system).
The batteries must be in accordance with CEI 21-5 Norms.
The machine foresees the standard use of traditional lead/acid
batteries.
CHECK SETTING ON THE INDICATOR (see under paragraph "BATTERY
CHARGE LEVEL INDICATOR").
In case of GEL or AGM batteries installation, it is necessary to modify
the setting (see under “TO CHANGE THE BATTERY SETTINGS”).
Strictly follow manufacturer/distributor indications for the
maintenance and charge of the batteries. All installation and
maintenance operations must be executed by specialized staff, using
suitable protection accessories.
ON-BOARD BATTERY CHARGER
The machine is equipped with the on-board battery charger, please
refer to the instructions of the constructor of this accessory what the
charging operations concern.
The battery charger is connected directly to the battery poles.
During the charging operations a device is activated which does not
permit the machine's functioning.
The main cable of the battery charger has a maximum length of two
meters and must be connected to a single-phase socket.
BATTERY CHARGE LEVEL INDICATOR
The battery charge level is visualized on the display with its respective
symbol (see "VISUALIZATION CONTROLS").
When the last segment of charge starts blinking, the
battery is almost low and the suction and brushes
functions are disabled.
The battery signal blinks on the whole display: also the traction stops.
CHARGING THE BATTERIES
Take the machine to a plain surface.
Plug in batteries connector (1) placed in the rear part of the machine,
to connector (2) of the battery charger.
Never charge a GEL battery with a non-suitable recharger. Strictly
follow the instructions supplied by the batteries and recharger
manufacturer.
In order not to cause permanent damages to the batteries, it is
necessary to avoid their complete discharge, providing for the
recharging within a few minutes after batteries discharge signal
starts blinking.

10
Never leave batteries completely discharged even if the machine is
not used. In case of traditional batteries, please check the electrolyte
level every 20 recharging cycles and eventually fill them up with
distilled water after having carried out a complete recharge.
Danger of gas exhalations and emission of corrosive liquids. Fire
danger: do not approach with free flames.
SQUEEGEE ASSEMBLY
With the squeegee support lowered, slide the two stud bolts (1)
placed on the upper part of the squeegee inside the slots on the
support. Block the squeegee by rotating the lever (2) clockwise.
Insert the squeegee hose (3) into its coupling, respecting its position
as indicated in the figure.
ADJUSTMENT OF THE SQUEEGEE HEIGHT
The squeegee must be adjusted in height depending on the rubber
wear. In order to guarantee a perfect drying during the operation, the
lower blade of the rear squeegee rubber (4) must work slightly bent
backwards (operator side) in uniformed way in all its length.
Acting clockwise upon the two registers (5) it is possible to increase
the bending of the rubber. Acting counterclockwise it is possible to
decrease the rubber bending.
A label placed near the two registers (5) indicates rotation sense to
increase or reduce the height.
Note: The wheels of the squeegee support must be adjusted through
the registers (5) at the same height so that the squeegee works
parallel to the floor.
ADJUSTMENT OF THE SQUEEGEE INCLINATION
In case of need, to increase the rubber bending in the central part, it
is necessary to tilt the squeegee rotating counterclockwise the
register (6). To increase the rubber bending on the squeegee
extremities, rotate the register clockwise.
SPLASH GUARD ASSEMBLY
The two splash guards have to be assembled onto the brush base
group. Insert the metal strips inside the suitable slots present on the
rubber. Place the round hole at the flat extremity of the strip onto
the screw placed in the front part of the brush base group. Secure the
strips through the nut blocking it.
Screw down the knobs in the rear part of the cover in the free
extremity of the metal strips. The operation has to be carried out for
both splash guards.
With the brush assembled, the splash guard must slightly touch the
floor.
BRUSH ASSEMBLY
1. Take off the electric supply to the brush motor unplugging the
batteries connector (1).
2. Acting upon the pedal (8) lift the brush base group.
3. With the brush base group in lifted position, insert the brush
into its plate seat underneath the brush base turning it until the
three metal buttons are properly seated in their slots; rotate

11
energically the brush to push the button towards the coupling
spring until it gets blocked.
The figure shows the rotating sense for the brush coupling.
RECOVERY TANK
Check that the cover of the suction filter (1) is correctly secured, after
rotating the levers and that the suction motor hose (2) is correctly
connected.
Verify also that the squeegee hose is correctly inserted into the seats
(3 and 4) and that the exhaust hose plug (5) placed in the front part
of the machine, is closed.
CLEAN WATER TANK
The clean water tank is provided with an inspection opening. This
permits to clean the exit point of the water.
Be sure that the cap is well tightened after the cleaning.
The capacity of the clean water tank is indicated in the technical
data.
Open the screw plug (1) placed in the rear left part of the machine
and fill the clean water tank with clean water at a maximum
temperature of 50°C.
DETERGENT SOLUTION TANK
The machine is equipped with a tank for the detergent solution.
To load the detergent solution, take off the recovery tank and
unscrew the cap (1).
To drain the detergent solution at the end of the operations, see
chapter “DRAINING THE DETERGENT SOLUTION”.

12
PRE-CLEANING OPERATIONS
CONNECTION OF THE BATTERIES TO THE MACHINE
Plug in the batteries connector (1) to the machine connector (2),
placed in the rear part of the machine
WATER CARRIAGE ADJUSTMENT
The machine comes out of the factory in 3SD mode, this makes
possible to adjust the water carriage on 7 levels depending on the
machine speed.
To adjust the carriage from H1 to H7 keep pressed button (1) and the
symbol (2) will start blinking.
By pressing again button (1) the carriage level will be selected, the
carriage will be confirmed once the symbol (2) will stop blinking.
DETERGENT SOLUTION CARRIAGE ADJUSTMENT
The machine comes out of the factory with the 3SD configuration,
this makes possible to adjust the detergent solution on 5 levels.
Turn on or off the pump press once the button (1).
The detergent symbol will switch from disactivated to activated.
To adjust the detergent solution carriage keep button (1) pressed so
the symbol (2) will start blinking.
It will be possible to choose between 5 levels of detergent solution %,
depending on the water carriage (0.3%-0.6%-1.2%-2.4%-4.5%) by
pressing button (1) once.
When the symbol (2) stops blinking the % is selected.
A long usage of the machine with the empty detergent solution tank
might compromise the good operativity of the machine.
SELECTING THE MANUAL ADJUSTMENT OF THE DETERGENT
SOLUTION
The system is made of a parallel circuit which allows the manual
adjustment of the detergent solution flow, for a standard operation.
To switch from a mode to
another press for a few seconds
buttons (1) and (2)
simultaneously.
On the display will be shown the
symbol related to the mode
which has being selected
Press once button (2) to change
mode.
When the symbol stops blinking the mode is selected.
STARTING THE MACHINE
Every control is visualized on the display (1).
1. Turn the key (2) clockwise.
2. Check the battery type and the charge level on the display (1).
3. Press the suction motor push button (3); the suction motor
symbol changes from off to on and the motor starts suck up.
4. Press the solenoid valve push button (4); the solenoid valve
symbol changes from closed to open.
5. Lower the brush base onto the floor by pressing the pedal (5).
6. Turn on the brush by pressing button (6), on the display is
visualized first the down symbol and then the one of the brushes
motor activation.
7. Acting upon the squeegee lifting lever (7) lower the squeegee.

13
8. Acting upon the levers drive control (8) the machine starts to
move, the brush starts to rotate and the water begins to flow
automatically.
Releasing the drive control levers will stop the flow.
9. During the first metres check that the squeegee adjustment
guarantees a perfect drying action and that the detergent
solution flow is appropriate. It has to be sufficient to wet the
floor uniformly avoiding the leakage of detergent from the
splash guards. Always consider that the correct quantity of
solution detergent depends on the type of floor, dirtiness and
machine speed.
Moving the machine backwards, make sure that the squeegee is
lifted.
WORKING WITH THE MANUAL DETERGENT SOLUTION
ADJUSTMENT
If
the manual adjustment mode
is selected (see cha
pter (MANUAL
ADJUSTMENT OF THE DETERGENT
SOLUTION CARRIAGE) the
detergent solution carriage is
being adjusted using the valve
lever (1)
.
MOVEMENT AND SPEED ADJUSTMENT
The traction of the machine is given through an electronically
controlled motor.
To move the machine, act upon
the key (1) and then rotate the
levers drive control (2) placed on
the handle bar, in forward for
the forward drive, in reverse for
the backward drive. The control
acts in a
progressive way,
therefore it is possible to
graduate the speed depending
on each requirement rotating
the levers whatever it is
necessary.
Furthermore it is possible to adjust the maximum speed acting upon
the push button (3) to increase it and on the button (4) to decrease it.
Every change will be visualized through its symbol on the display.
During reverse motion the speed is reduced.
SUCTION MOTOR SILENT MODE
It is possible to start the
silent mode of the suction
motor by pressing for a
few
seconds the switch
-on
button (1) of the suction
motor.
When the silent mode is on, the symbol on the display changes.
WORKING BRAKE
To stop the machine during
normal working situation, it is
sufficient to release the levers
drive control (1), as the
machine is equipped with an
electronic braking system. The
brush and the detergent
solution stop automatically
.
DETERGENT SOLUTION RESERVE SIGNAL (H2O ON THE DISPLAY)
When the indication H2O on the display appears, this means that the
detergent is getting low corresponding to 10% of the maximum
capacity of the solution tank.
OVERFLOW DEVICE
In order to avoid serious damages to the suction motor, the machine
is equipped with a float that intervenes when the recovery tank is
full, closing the suction hose and stopping the suction.
When this happens, it is necessary to empty the recovery tank.
1. Hold the exhaust hose placed in the front part of the machine.
2. Take off the exhaust plug acting upon its lever and empty the
recovery tank into appropriate containers, according to the
standard norms for the liquid disposal.
DRAINING THE WATER (3SD)
To drain the water left in the tank:
1. Bring the machine to an appropriate place for tanks draining.
2. Take off the drain hose (1) from its support.
3. Turn the valve (2) the drain the water.

14
DRAINING THE DETERGENT SOLUTION
To drain the detergent left in the detergent tank:
1. Take off the drain hose (1) from its support.
2. Take off the cap (2).
3. Collect the detergent solution on its proper bin.
Do not mix different chemical detergent solutions.
STOPPING THE MACHINE BY THE END OF THE WORK
Before performing any
maintenance:
1.
Turn off the brush motor,
the suction motor and the
solenoid valve
2.
Lift the brush base by
pressing the pedal (1).
1.
Lift the squeegee through
the lever (2).
2.
Take the machine to the
place where it has to be
drained.
The machine is not provided with brake so do not leave it on inclined
surfaces.

15
DAILY MAINTENANCE
RECOVERY TANK CLEANING
1. Hold the exhaust hose placed in the front part of the machine.
2. Take off the exhaust plug acting upon its lever and empty the
recovery tank into appropriate containers (see under
"OVERFLOW DEVICE").
3. Take off the suction cover (1) after rotating the blocking levers
(2).
4. Take off the filter and filter protection.
5. Rinse the tank with a water jet.
SUCTION FILTER CLEANING
1. Take off suction cover (1) after rotating the blocking levers (2).
2. Take off the filter and filter protection.
3. Clean all parts with a water jet especially inside surfaces and
filter bottom.
4. Carry out carefully the cleaning operations.
5. Reassemble all parts.
MANUAL DISASSEMBLY OF THE BRUSH
1. Lift the brush base lowering the pedal (8).
2. Take off the electric supply to the brush motor unplugging the
battery connector (1).
3. With the brush base in lifted position, turn the brush in its rotating
sense, until it is released from the brush holder plate seat as indicated
in the figure.
The following figure shows the rotating sense for brush release.
AUTOMATIC UNLOCKING THE BRUSH
1. Lift the brush base by pressing pedal (1).
2. Turn on the machine by turning the key (2) clockwise.
3. With the brush base lifted keep the button (3) pressed for a few
seconds.
Before collecting the brush, to avoid hands injuries, move the
machine.
BRUSH CLEANING
Disassemble the brush and clean it with a water jet (for the
disassembly see under “BRUSH DISASSEMBLY”).
SQUEEGEE CLEANING
Keeping the squeegee clean guarantees always the best drying action.
For the cleaning it is necessary to:
1. Take off the squeegee hose (3) from its coupling.
2. Disassemble the squeegee from its support by rotating the lever
(2) counterclockwise and making slide the stud bolts (1) in their
slots up to their release.
3. Clean with care the internal part of the squeegee inlet
eliminating eventual dirt residuals.
4. Clean with care the squeegee rubbers.
5. Reassemble all parts.

16
WEEKLY MAINTENANCE
REAR SQUEEGEE RUBBER REPLACEMENT
Check the squeegee rubber wear and eventually turn or replace it.
For the replacement it is necessary to:
1. Lift the squeegee acting upon the lever.
2. Uncouple the hook (1) of the rubber holder blade, release the
extremities (2) from the squeegee body and take off the rubber
(4).
3. Turn the rubber (4) to a new side or replace it.
To reassemble the squeegee repeat reverse the operations above-
mentioned, inserting the rubber (4) on the guides (3), couple the
extremities (2) of the rubber holder blade onto the squeegee body
and finally block the hook (1).
SQUEEGEE HOSE CLEANING
Weekly or in case of insufficient suction, it is necessary to check that
the squeegee hose is not obstructed. Eventually, to clean it, proceed
as follows:
1. Take off the hose from the squeegee coupling (1) and release the
guide spring of the suction hose (2).
2. Wash the inside of the hose with a water jet, from the squeegee
hose side.
3. To reassemble the hose repeat reverse the operations above-
mentioned.
CLEANING OF WATER TANK AND FILTER
1. Bring the machine to an appropriate place for tanks draining.
2. Unscrew the solution tank cap (1).
3. Unscrew the exhaust plug (2) being careful not to lose or to
damage the gasket.
4. Rinse with a water jet the tank.
5. Rinse the solution tank filter placed inside the exhaust plug,
under the machine.
TWO-MONTHLY MAINTENANCE
FRONT SQUEEGEE RUBBER REPLACEMENT
Check the wear of the squeegee rubber and eventually replace it.
For the replacement it is necessary to:
1. Take off the squeegee hose (3) from its coupling.
2. Disassemble the squeegee from the support rotating the lever (2)
counterclockwise and sliding the stud bolts (1) in their slots.

17
3. Uncouple the hook (1) of the rubber holder blade, release the
extremities (2) from the squeegee body and take off the rubber
(4).
4. Unscrew the wing nuts (5) in the upper part of the squeegee.
5. Slip off the lower part (6) of the squeegee body, so to take off
the front rubber (7).
6. Replace the front rubber.
7. To reassemble the squeegee repeat reverse the operations above-
mentioned.
SIX-MONTHLY MAINTENANCE
SPLASH GUARD REPLACEMENT
1. Unscrew the knobs in the rear part of the brush base group from
the extremity of the metal strips. The operation has to be carried
out on both splash guards.
2. Unscrew the nut on the front part of the brush base group and
take off the metal strips.
3. Replace the splash guard rubbers and follow the assembling
instructions at “SPLASH GUARD ASSEMBLY” paragraph.
With the brush assembled, the splash guard must slightly touch the
floor.
TROUBLESHOOTING GUIDE
The checking of all the other foreseen machine operations is left
to the authorized technical assistance.
Never leave the batteries completely discharged for a long time.
In case of alarm visualizations contact the technical assistance.
THE SUCTION MOTOR DOES NOT WORK
1. Verify that the key switch (1) is in the correct position.
2. Check the charge level of the batteries on the display.

18
3. Check that the battery connector is correctly plugged in.
4. Check on the display that the starting signal of the suction
motor is on.
5. Check that the red connector of the suction motor is correctly
plugged in.
If the problem persists, please contact the authorized technical
assistance.
THE BRUSH MOTOR DOES NOT WORK
1. Verify that the key switch (1) is in the correct position. Switch
off and on again the machine.
2. Check the charge level of the batteries on the display.
3. Check on the display that the activation signal of the brush
motor is on.
4. Check that the battery connector is correctly plugged in.
5. Act upon the levers drive control (3).
If the problem persists, please contact the authorized technical
assistance.
THE MACHINE DOES NOT CLEAN PROPERLY
1. The brush does not have the suitable bristle dimension: use only
original brushes. For advice, contact the authorized technical
assistance.
2. The brush has got worn bristles. Check the brush wear condition
and eventually replace it (the brush has to be replaced when the
bristles have reached a height of about 15mm).
To replace the brush, see instructions at paragraph “BRUSH
DISASSEMBLY” and “BRUSH ASSEMBLY”.
3. The solution detergent is insufficient: open more the solution
valve.
4. Check that the liquid detergent is in the recommended
percentage.
Contact the authorized technical assistance for advice.
THE SQUEEGEE DOES NOT DRY PERFECTLY
1. Check that the squeegee rubbers are clean.
2. Check the height and inclination of the squeegee (see under
“SQUEEGEE” in “BEFORE USE”).
3. Check that the suction hose is correctly inserted in the proper
seat on the recovery tank.
4. Clean the suction filter.
5. Replace the rubbers if worn out.
6. Check that the suction motor switch is on.
7. Check that the recovery tank is empty.
EXCESSIVE FOAM PRODUCTION
Check that low foam detergent has been used. Eventually add small
quantities of anti foam liquid into the recovery tank.
Please be aware that a bigger quantity of foam is produced when the
floor is not very dirty. In this case please dilute detergent solution.
PROGRAMMED MAINTENANCE
PERIODIC ORDINARY MAINTENANCE CHART
INTERVENTION
DAILY
PERIODIC
RECOVERY TANK CLEANING
•
SUCTION FILTER CLEANING
•
FILTER CLEANING WATER
•
BRUSH CLEANING
•
BRUSH DISASSEMBLY AND CLEANING
•
SQUEEGEE CLEANING
•
FRONT SQUEEGEE RUBBER CHECK
•
REAR SQUEEGEE RUBBER CHECK
•
SPLASH GUARD RUBBER CHECK
•
CHECK SQUEEGEE ADJUSTMENT
•
SQUEEGEE HOSE CLEANING
•
WATER TANK CLEANING
•
CHECK BATTERIES ELECTROLYTE
•
