Dear customer,
The RUCK®MOBIL SYSTEM Tech Unit is the practical bag for all technical products for
professional mobile foot care. The timeless professional exterior of the bag is made of
sturdy, water-repellent lorry tarpaulin. The insert with integrated rotatable trays made of
shock-proof ABS plastic is hygienic and easy to clean. Unpack – connect – and you’re
ready! By concentrating on the essentials and dispensing with unnecessary storage
space, we have kept the weight of the Tech Unit to a minimum. Thanks to the compact
dimensions, it can be conveniently placed wherever it is needed.
The RUCK®MOBIL SYSTEM Tech Unit has space for all PODOLOG foot care drils, the pro-
fessional magnifying lamp PODOLOG CIRCLE S mobil, the oce folder set and a 3-metre
extension cable.
Please read the following instructions for use carefully all the way through before using
the product. If you have any further questions, please do not hesitate to contact us.
We sincerely thank you for the trust you have placed in our company and extend our best
wishes for success in your daily work with your new Tech Unit.
Kind regards, HELLMUT RUCK GmbH
Convenient storage for
technical equipment
All the supplies
you need
2The Working Units
1123501 Working Unit S
1118801 Working Unit M
3 The Supplies Unit
1118601 Supplies Unit
1The Tech Unit options
1118401 Bag for PODOLOG NOVA 3/3s
1118501 Bag for PODOLOG ECO/ONE
1114001 Bag backpack for PODOLOG NOVA 3/3s
1114002 Bag backpack for PODOLOG ECO/ONE
1116001 Case backpack for PODOLOG NOVA
1116002 Case backpack for PODOLOG ECO/ONE
Everything you need
whatever the scenario
8013602 | Instructions for use for RUCK®MOBIL SYSTEM Tech Unit
REV 08 | Revision status 27/03/2023
4
Table of contents
Table of contents
General information 5
Product description 6
Inserting the foot care drill into the Tech Unit 8
Mounting the magnifying lamp and handpiece holder 14
Cleaning and disinfecting the Tech Unit 15
Warranty 18
Technical specications 19
Easy to pack
Video at
hellmut-ruck.de
8013602 | Instructions for use for RUCK®MOBIL SYSTEM Tech Unit
REV 08 | Revision status 27/03/2023
5
General information
Declaration relating to these instructions for use
HELLMUT RUCK GmbH reserves all rights to modify and supplement these instructions for
use. HELLMUT RUCK GmbH has taken great care to keep these instructions free of inac-
curacies and omissions. Please contact us if you nd any errors or inaccuracies. However,
HELLMUT RUCK GmbH assumes no liability for mistakes in these instructions for use or
consequential damage resulting from the provision of these instructions for use or their
application when using the product.
These instructions for use must not be disseminated or supplemented without the express
approval of HELLMUT RUCK GmbH.
Symbols used
This symbol identies a potential point of danger for people or for the product
itself. It must be taken note of.
This symbol identies useful information. Additional information about the
product and how to use it is provided here.
Packaging
The packaging has been designed to protect the product while in transit. The packaging
materials used have been selected with due regard for environmental issues and can be
recycled.
Convenient storage for
technical equipment
All the supplies
you need
2The Working Units
1123501 Working Unit S
1118801 Working Unit M
3 The Supplies Unit
1118601 Supplies Unit
1The Tech Unit options
1118401 Bag for PODOLOG NOVA 3/3s
1118501 Bag for PODOLOG ECO/ONE
1114001 Bag backpack for PODOLOG NOVA 3/3s
1114002 Bag backpack for PODOLOG ECO/ONE
1116001 Case backpack for PODOLOG NOVA
1116002 Case backpack for PODOLOG ECO/ONE
Everything you need
whatever the scenario
8013602 | Instructions for use for RUCK®MOBIL SYSTEM Tech Unit
REV 08 | Revision status 27/03/2023
6
Product description
01
02
03
04
05
06
17
1.1
07
08
09
11
12 13 15
16
10
14
01
02
03
04
05
06
17
1.1
07
08
09
11
12 13 15
16
10
14
19
18
8013602 | Instructions for use for RUCK®MOBIL SYSTEM Tech Unit
REV 08 | Revision status 27/03/2023
7

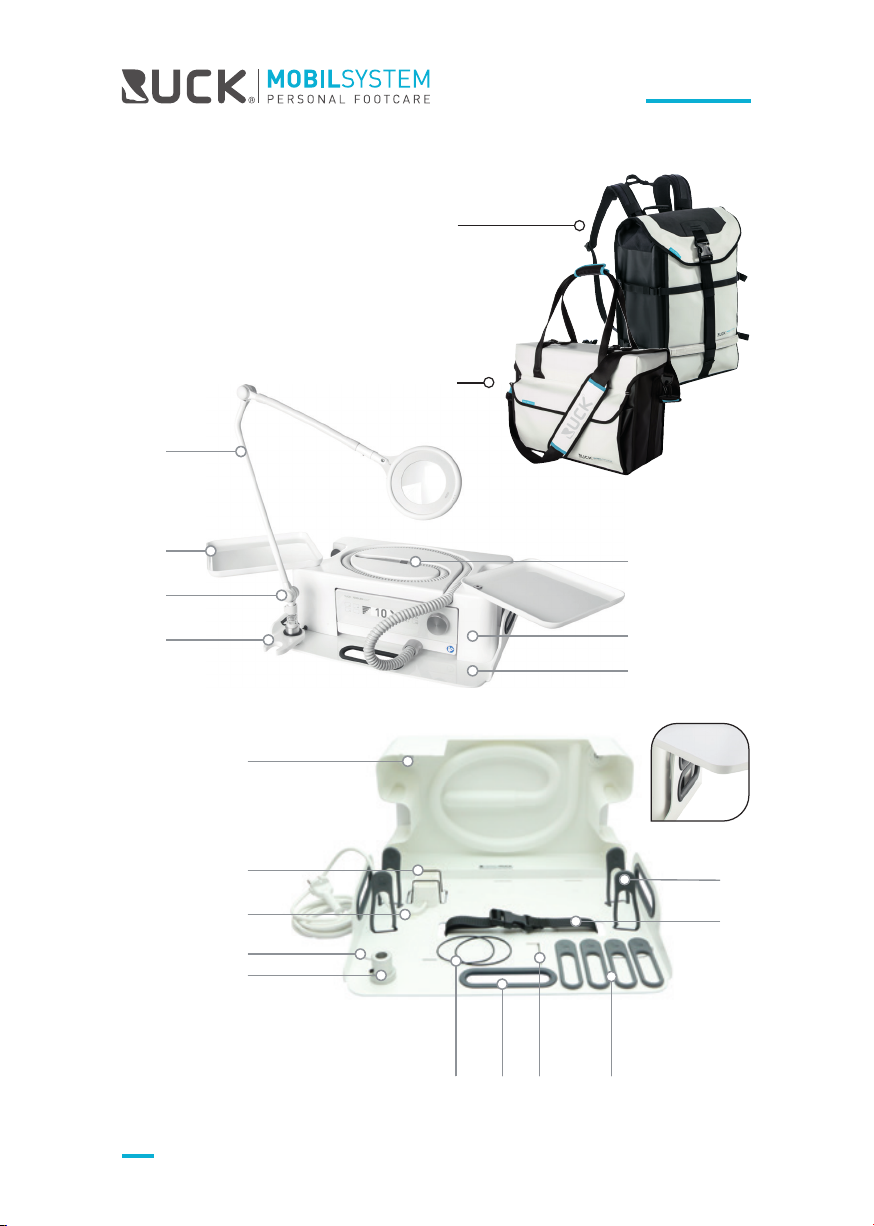

Product description
01 PODOLOG CIRCLE S mobil Magnifying Lamp (optional)
1.1 Joint cap
02 Rotatable instrument trays
03 Rotatable handpiece holder
04 Handpiece storage location
05 Drill housing
06 Base plate
07 Drill housing
08 Multi-socket outlet secured with O-ring
09 Cable xing
10 Guide groove for drill housing
11 Lamp bracket with headless screw
12 O-ring (1 x for the power supply of the PODOLOG CIRCLE S, 1 x spare)
13 Silicone grip insert for handle
14 Allen key for lamp brackets
15 4 x Silicone strap (spares)
16 Fixation strap for foot care drill
17 Silicone straps for drill housing
18 Tech Unit Bag
19 Tech Unit Bag backpack
8013602 | Instructions for use for RUCK®MOBIL SYSTEM Tech Unit
REV 08 | Revision status 27/03/2023
8

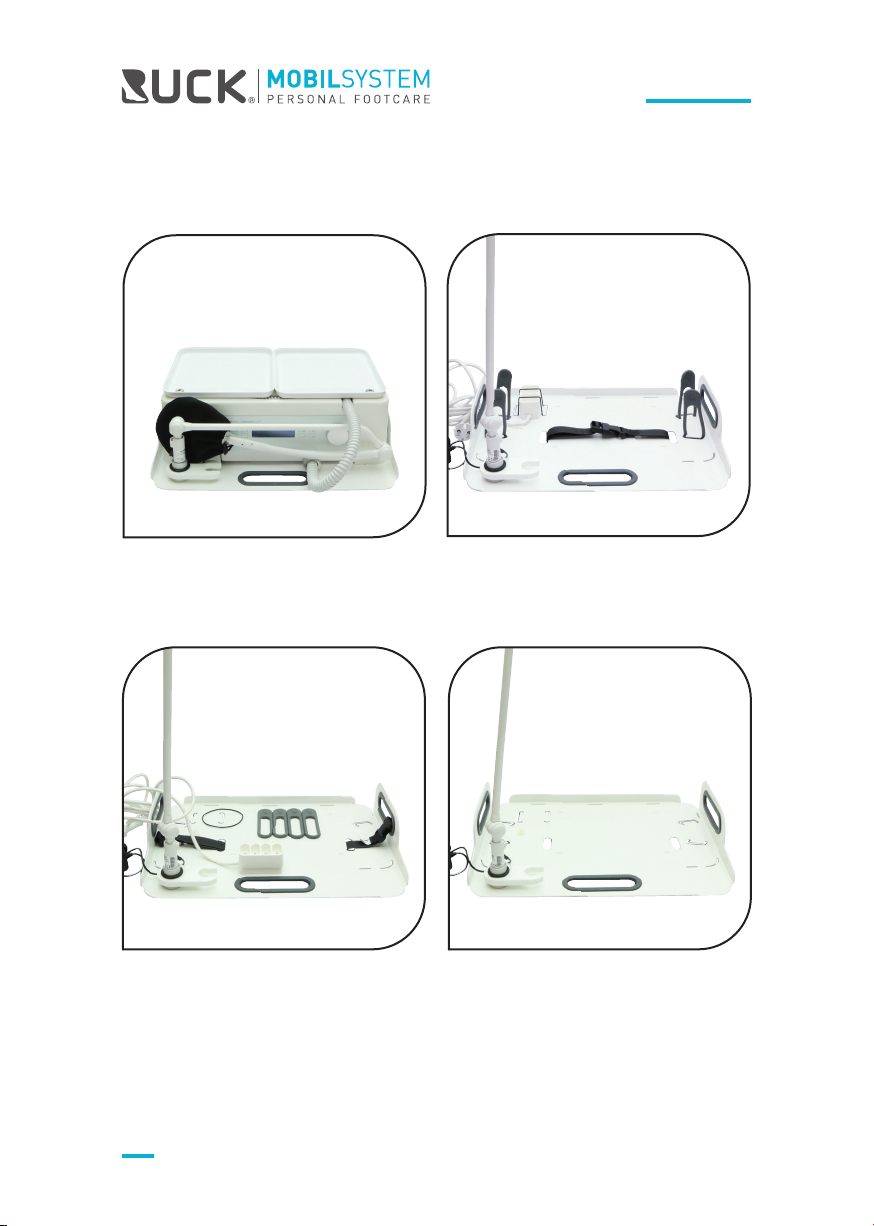

1. Release silicone straps. 2. Release silicone straps.
3. Release silicone straps. 4. Remove drill housing.
Inserting the foot care drill into the Tech Unit
Inserting the foot care drill
into the Tech Unit
8013602 | Instructions for use for RUCK®MOBIL SYSTEM Tech Unit
REV 08 | Revision status 27/03/2023
9
5. Base plate with four recesses for the
drill feet.
6. Place the foot care drill directly into the
four recesses for the drill feet.
7. Foot care drill rests properly in its
position.
8.
Strap the foot care drill to the base plate
with the xation strap. If necessary, re-
open the xation strap and tighten it.
Inserting the foot care drill
into the Tech Unit
8013602 | Instructions for use for RUCK®MOBIL SYSTEM Tech Unit
REV 08 | Revision status 27/03/2023
10

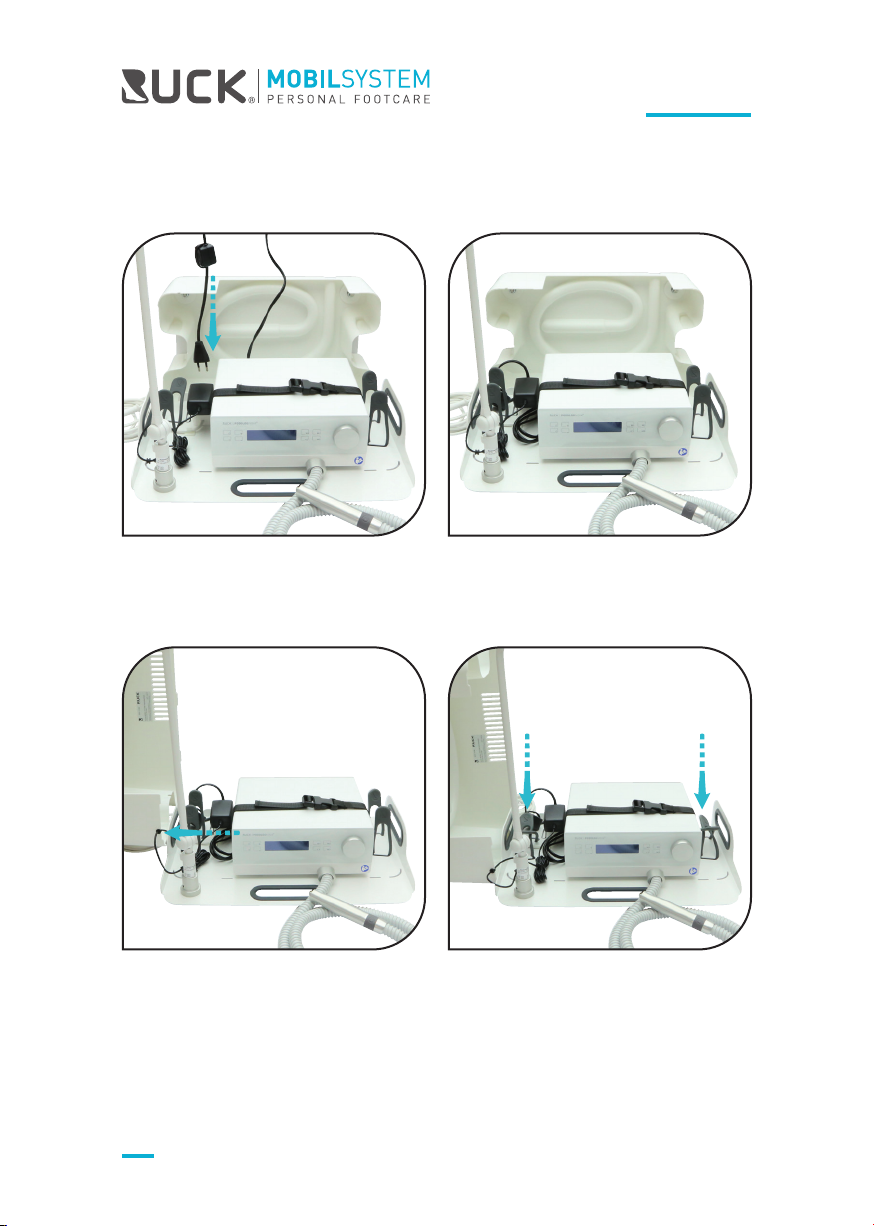

9. Plug power cable of the foot care drill
into the multi-socket outlet.
10. Stow the power cable to the left of the
foot care drill.
11. Insert the black cable bushing into the
front recess of the drill housing.
12. Interlock the silicone straps into each
other.
Inserting the foot care drill
into the Tech Unit
8013602 | Instructions for use for RUCK®MOBIL SYSTEM Tech Unit
REV 08 | Revision status 27/03/2023
11

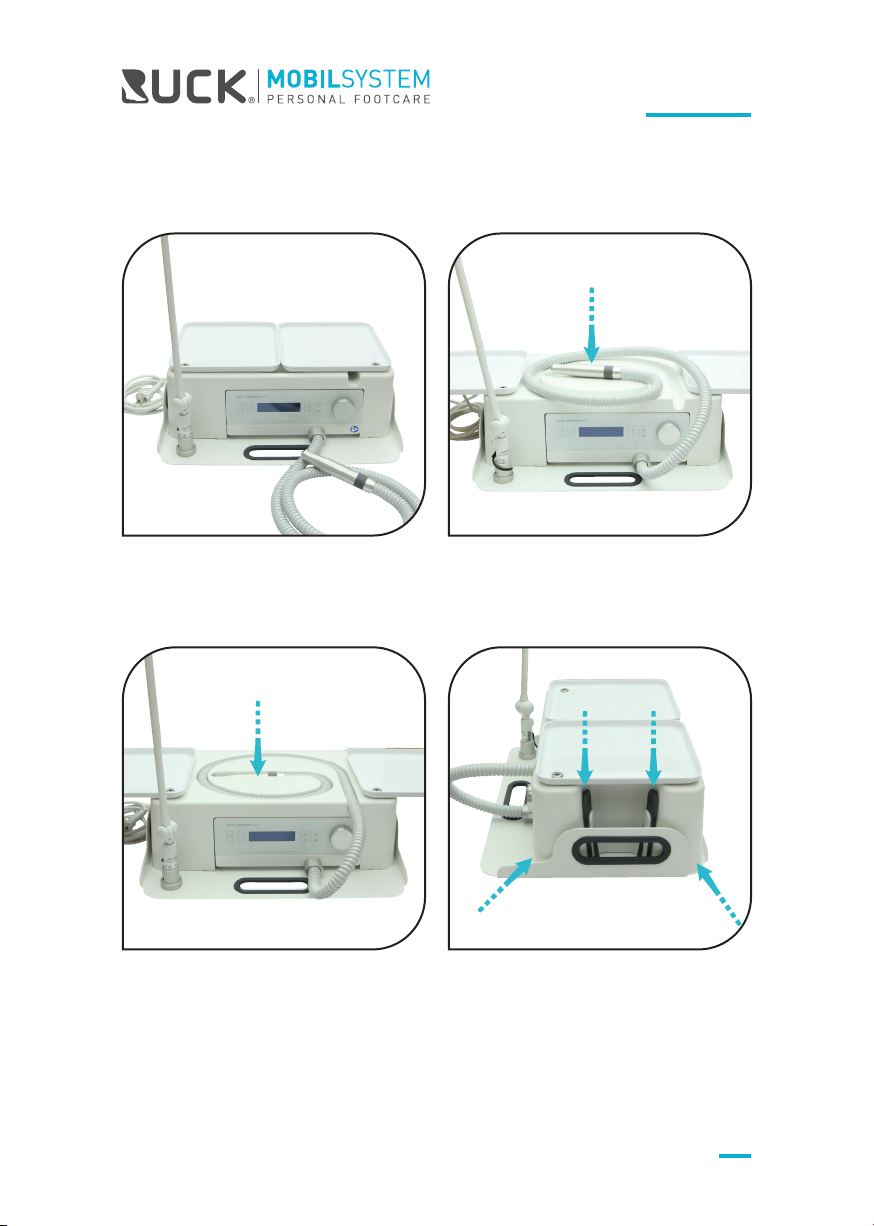

13. Insert the drill housing into the guide
grooves of the base plate.
14. Align the suction hose of the foot care
drill.
15. Insert the handpiece into the handpi-
ce storage location.
16. On the right side, connect and secure
the silicone straps to the drill housing.
Secure the drill housing into the guide
grooves of the base plate.
Inserting the foot care drill
into the Tech Unit
8013602 | Instructions for use for RUCK®MOBIL SYSTEM Tech Unit
REV 08 | Revision status 27/03/2023
12
Inserting the foot care drill
into the Tech Unit

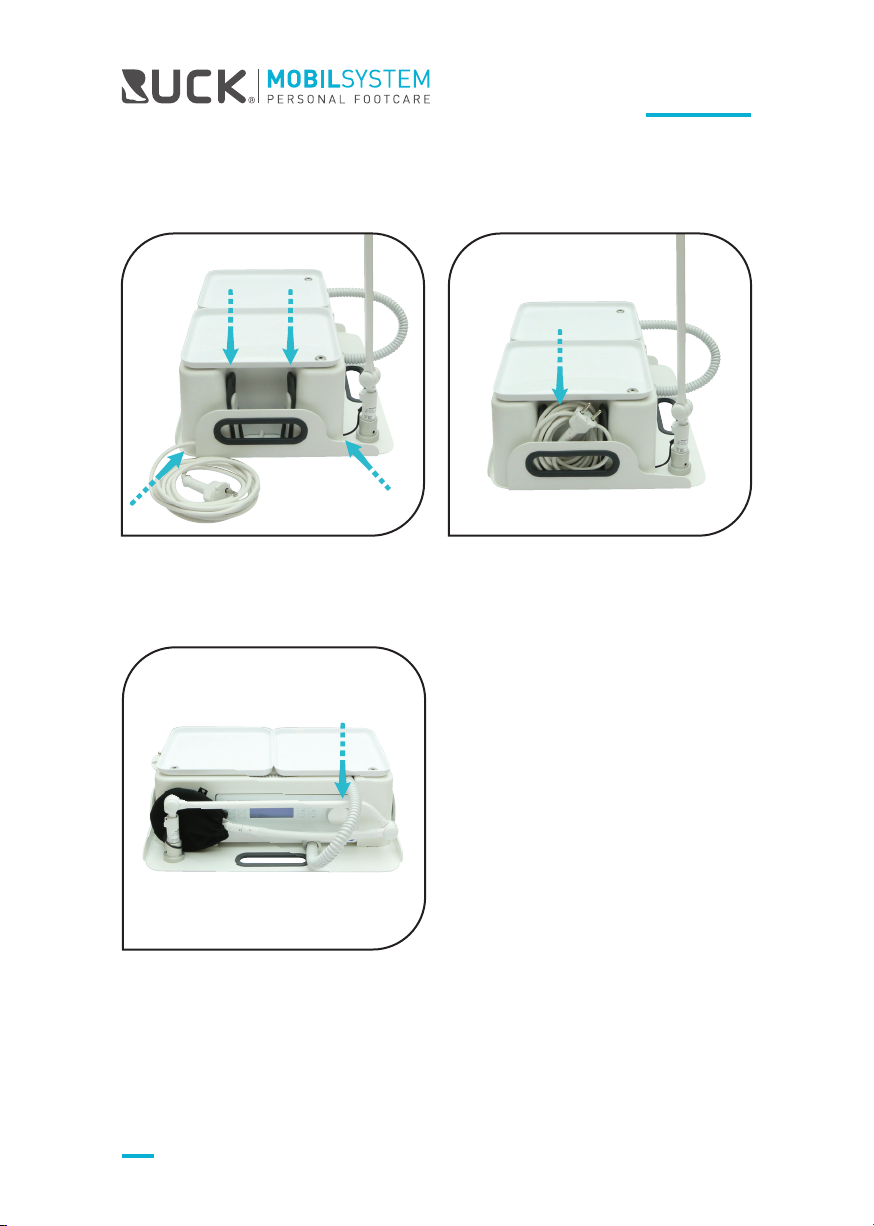

17. On the left side, connect and secure
the silicone straps to the drill housing.
Secure the drill housing into the guide
grooves of the base plate.
18. Roll up the extension cable of the
multi-socket outlet and place it in the
designated space.
19. Move the magnifying lamp through the
suction hose.
8013602 | Instructions for use for RUCK®MOBIL SYSTEM Tech Unit
REV 08 | Revision status 27/03/2023
13
Mounting the magnifying lamp
and handpiece holder

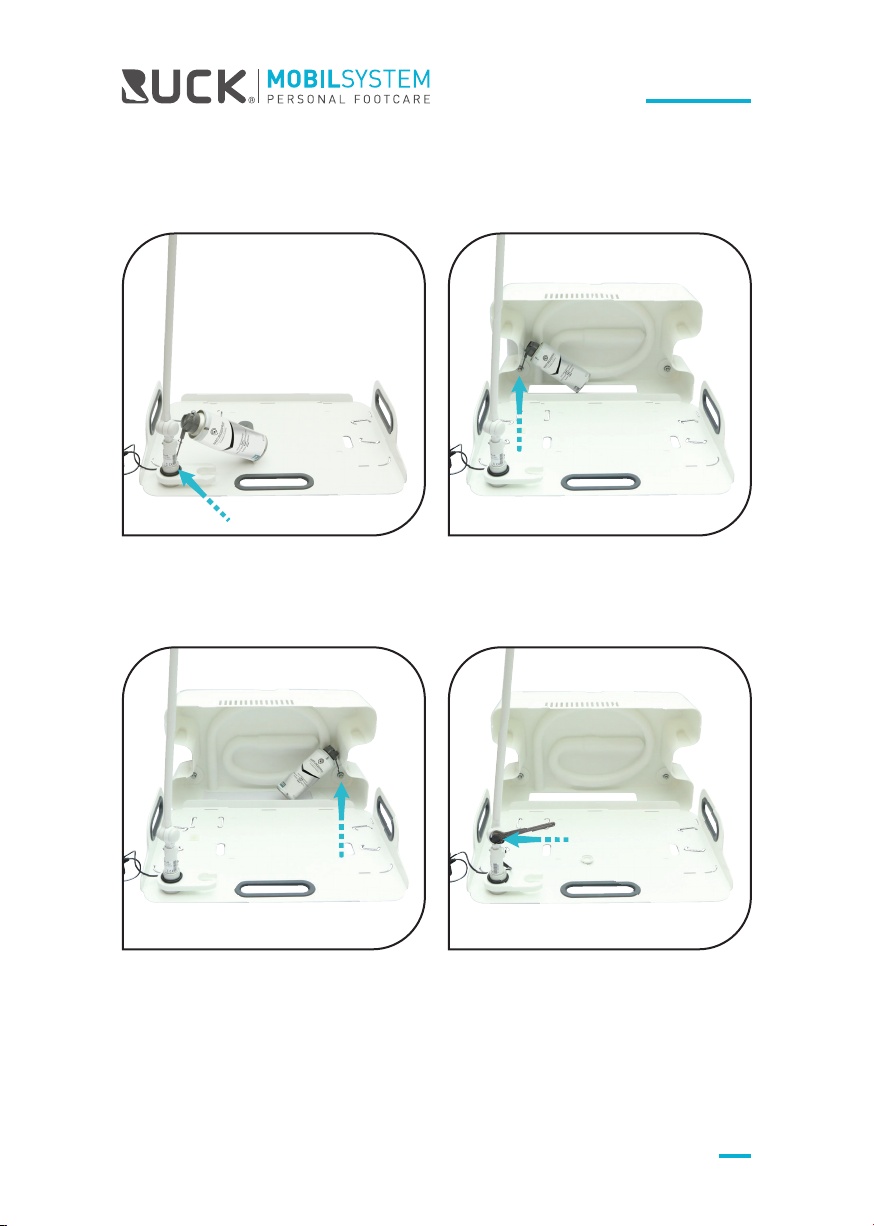

1. Remove the drill housing. 2. Unscrew the headless screw from the
lamp bracket.
3. Put the handpiece holder and then the
O-ring over the lamp base.
4. Thighten the headless screw of the
lamp bracket. The lamp should still be
able to turn easily.
Mounting the magnifying lamp and handpiece holder
8013602 | Instructions for use for RUCK®MOBIL SYSTEM Tech Unit
REV 08 | Revision status 27/03/2023
14
Mounting the magnifying lamp
and handpiece holder

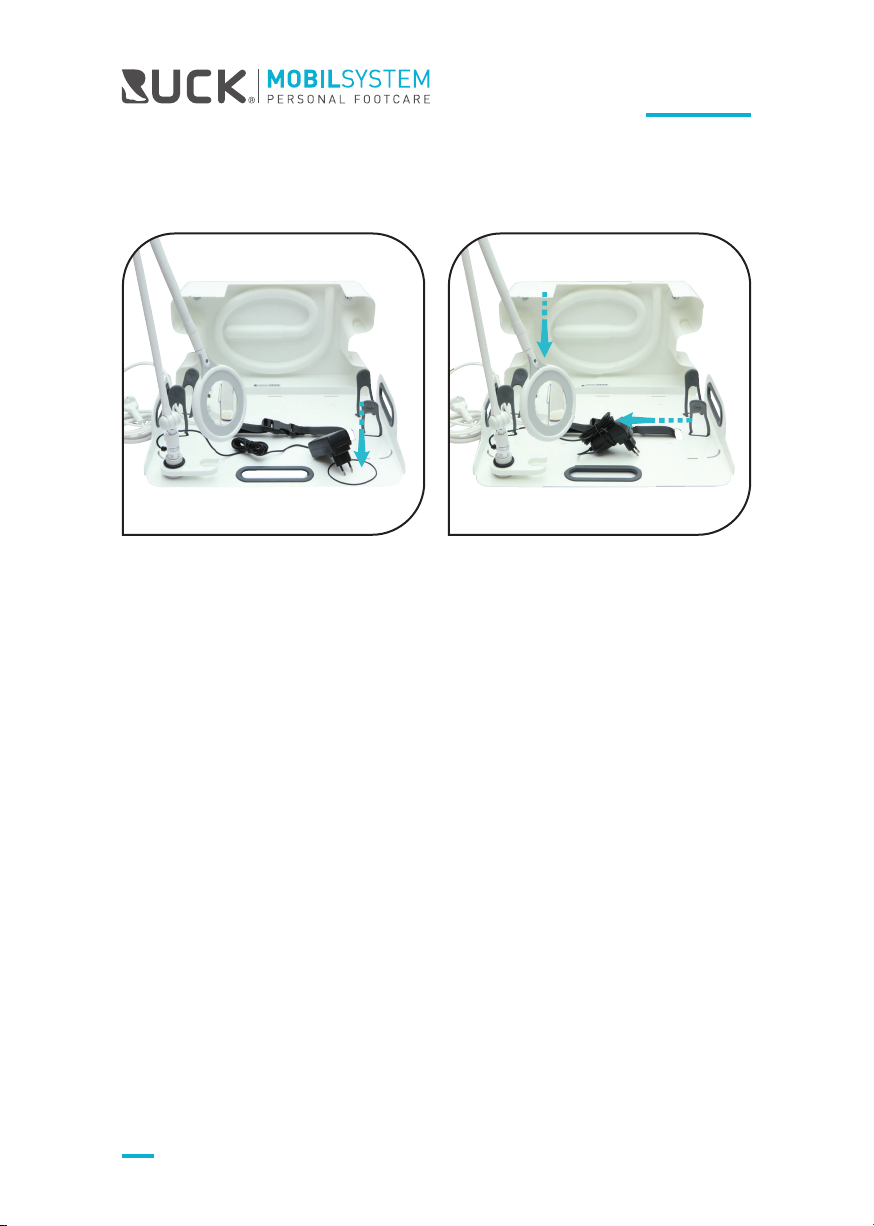

5. Use the O-ring to secure the power
cable (use two if necessary).
6. Secure the power cable on the power
adapter and plug it into the multi-
socket outlet.
8013602 | Instructions for use for RUCK®MOBIL SYSTEM Tech Unit
REV 08 | Revision status 27/03/2023
15
Always unplug the mains plug before cleaning and/or disinfecting.
Do not spray cleaning and disinfecting agents into the multi-socket outlet.
Cleaning and disinfection
Disinfect the contact surfaces after each treatment with RUCK
®
alcohol-free surface
disinfection wipes, (item no. 2967002, item no. 2967102 or item no. 2967202) for
medical devices. Please observe the exposure times of the disinfectants according to
the product labelling.
Danger of damage due to improper care of surfaces. Do not use any concentrated
disinfectants, solvents, cleaning agents or liquids that contain alcohol (> 50 % alcohol
content). Do not use spray disinfectant.
Take great care to ensure that the cleaning utensils used are clean. If mineral con-
taminants such as grains of sand or dust are embedded in the cleaning agents, this
can destroy the surface. Do not use any scouring agents, such as abrasive cleaners,
cleaning sponges or similar items that may contain abrasive particles. Residues of
leaked uids must be removed from the surface immediately with a soft cloth.
For gentle cleaning of the surfaces, use a soft cotton cloth or the RUCK® microbre
cloth which is gentle on surfaces (item no. 29616). Caution: Other cleaning cloths with
plastic bres can have an abrasive eect and consequently they can damage the
surface.
Over time, traces of use can appear on the surfaces. These are more or less noticeable
depending on the lighting. They do not constitute a loss of function. As is the case
with all surfaces over the long term, due to the wear involved in the daily routine of the
medical practice, they cannot be avoided. Spots or stains caused by liquids that may
corrode the surface (such as propolis, tea tree oil, cleaners that contain chlorine or
similar substances) are categorically excluded from the warranty.
Danger due to disease transmission!
Insucient disinfection can lead to transmission of disease. Always comply with the
requirements of the responsible national body for hygiene and disinfection. Use the
RUCK®alcohol-free surface disinfection wipes (item no. 2967002, item no. 2967102 or
item no. 2967202). Do not use any spray disinfectants. It must be possible to eectively
evaporate surface disinfectants before the next treatment; allow surface disinfectants
to thoroughly dry as specied by the manufacturer, but do not wipe surfaces dry.
Cleaning, disinfecting and caring for the Tech Unit
Cleaning, disinfecting and
caring for the Tech Unit
8013602 | Instructions for use for RUCK®MOBIL SYSTEM Tech Unit
REV 08 | Revision status 27/03/2023
16
Cleaning the Tech Unit
2. Remove the drill housing.
3. Remove all components from the base
plate.
4. The Tech Unit can now be completely
cleaned. In addition, the silicone straps
may be removed for cleaning.
1. Remove the Tech Unit from the bag.
8013602 | Instructions for use for RUCK®MOBIL SYSTEM Tech Unit
REV 08 | Revision status 27/03/2023
17
Cleaning the Tech Unit
5. Lubricate the magnifying lamp socket
in the light bracket regularly with RUCK
®
maintenance spray (item no. 2969001).
6. Lubricate the locking nuts on the
rotatable instrument trays regularly
with RUCK®maintenance spray
(item no. 2969001).
7. Readjust lamp hinges. For this, remove
joint cap and secure with open end
wrench (included with all lamps).
8013602 | Instructions for use for RUCK®MOBIL SYSTEM Tech Unit
REV 08 | Revision status 27/03/2023
18
Warranty
Warranty
The product comes with a 2-year warranty.
Normal wear and tear of surfaces, handles, straps and/or moving components such as
rollers, bearings, plug connections, suction hoses, and so on, are excluded from this
warranty. Traces of use and signs of wear and tear due to age, service life and operation
which are based on normal use corresponding to the performance specications and/
or the nature of the product are in accordance with the contract and are not defects
from a legal standpoint.
The warranty is valid from the date of purchase when the product was rst bought. The
date of purchase must be conrmed by the sales receipt. Within the scope of the war-
ranty, HELLMUT RUCK GmbH will, at no charge, either repair or replace the defective
products, at RUCK’s discretion. This requires carriage-paid shipment of the defective
product together with the purchase receipt. The local agent is responsible for claims
made outside of Germany. In case of doubt, please check with RUCK before returning
the product.
The warranty becomes null and void if we nd that the problem was caused by improp-
er or incorrect installation, assembly or usage, by non-observance of the instructions
for use, by external intervention or as a result of a unauthorised repair or modication.
The warranty is limited to repair or replacement of the product. Further liability (loss of
revenue or earnings in particular) is excluded. However, if it is determined that it is a
problem that is not covered by the terms of the warranty or that the period of the guar-
antee has elapsed, any costs for inspection and repair must be borne by the customer.
We reserve the right to make changes to and deviations from the technical design.
8013602 | Instructions for use for RUCK®MOBIL SYSTEM Tech Unit
REV 08 | Revision status 27/03/2023
19
Technical specications
Technical specications
RUCK®MOBIL SYSTEM Tech Unit Bag
Dimensions W/D/H: 47/18/35 cm
1118401 Bag for PODOLOG NOVA 3/3s
1118501 Bag for PODOLOG ECO/ONE
RUCK®MOBIL SYSTEM Tech Unit Bag backpack
Dimensions W/D/H: 35/22/48 cm
1114001 Bag backpack for PODOLOG NOVA 3/3s
1114002 Bag backpack for PODOLOG ECO/ONE
RUCK®MOBIL SYSTEM Tech Unit Case backpack
Dimensions W/D/H: 39/26/46 cm
1116001 Case backpack for PODOLOG NOVA
1116002 Case backpack for PODOLOG ECO/ONE
HELLMUT RUCK GmbH
Daimlerstraße 23
DE -75305 Neuenbürg
fon +49 (0)7082. 944 20
fax +49 (0)7082. 944 22 22
kontakt@hellmut-ruck.de
HELLMUT RUCK LTD
Raceside Barn, Kirksanton
Millom, GB-LA18 4NW
hellmut-ruck.de
4 255621 508206
This manual suits for next models
9
Table of contents
