SmartZone 300
Spare Hard Disk Drive
Quick Setup Guide
This Quick Setup Guide provides basic instructions for
ordering and installing a spare hard disk drive (HDD) into the
Ruckus SmartZone 300 (SZ300) controller.
For information on advanced configuration and management
options, see the Getting Started Guide and other appropriate
documents, which are available for download from the Ruckus
Wireless Support website:
https://support.ruckuswireless.com/documents.
This Guide in Other Languages
请从以下网站获得该指南的简体中文版 https://
support.ruckuswireless.com.
Vous trouverez la version française de ce guide à l'adresse
suivante https://support.ruckuswireless.com.
このガイドの日本語版は https://support.ruckuswireless.com
でご覧ください。
이가이드의 한국어 버전은 웹사이트 (https://
support.ruckuswireless.com) 에서 확인하시기 바랍니다.
Veja a versão em português (Brasil) deste guia em https://
support.ruckuswireless.com.
Puede ver la versión en español (América Latina) de esta guía
en https://support.ruckuswireless.com.
Hard Disk Drive Ordering Information
To order a spare hard disk drive for the SmartZone 300
controller, contact Ruckus Wireless Support.
For information on how to contact Ruckus Wireless Support,
visit https://support.ruckuswireless.com/contact-us. When
asked for the part number, provide the information in the
following table.
Part Number Description
902-S350-0000 Kit, Spare (FRU), hard disk drive, SZ300
Opening the Front Bezel
The front bezel helps prevent accidental access to the
controller's modules. Before you can install a module, you
must open the front bezel.
NOTE: If the controller is mounted in a rack with adjacent
units below the unit where a module needs to be serviced,
Ruckus Wireless recommends extracting the controller from
the rack approximately 5cm (2 in.). This will provide
clearance of the bezel when rotated out towards you.
Follow these steps to open the front bezel.
1. With the controller in front of you, place your fingers on
both sides of the front bezel.
2. Pull the bezel toward you until it opens.
3. Gently lower the bezel to expose the controller's
replaceable modules.

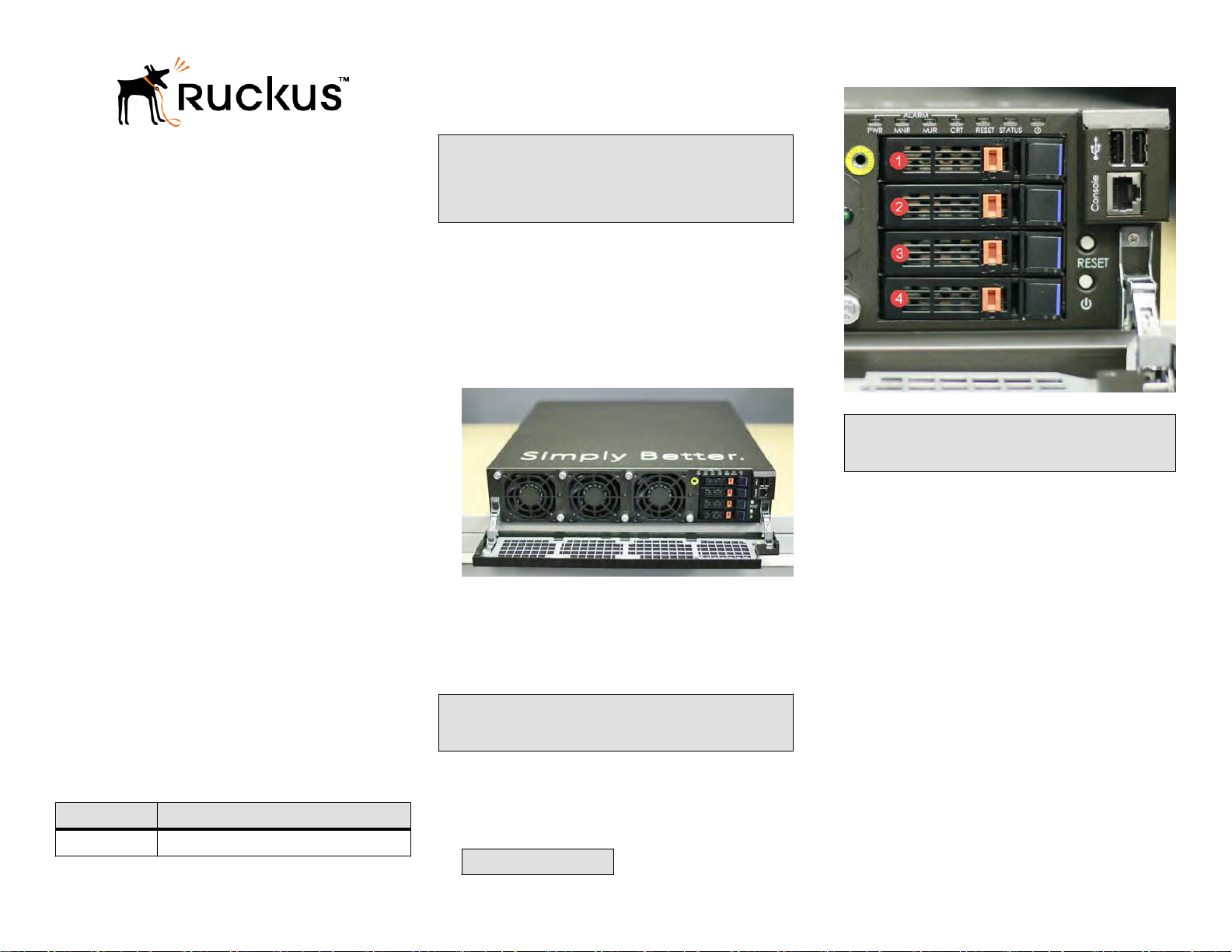

FIGURE 1 Controller with the front bezel open
Installing a Spare Hard Disk Drive
After you have obtained a spare hard disk drive and opened
the front bezel of the SmartZone 300 controller, you are ready
to install the drive.
NOTE: Both hard disk drives (HDDs) are redundant and
hot-swappable. You do not need to power off the controller
to swap a single failed HDD.
Follow these steps to install the hard disk drive.
1. On the front panel, identify the HDD that you want to
replace. From the top of the front panel, disk tray 1 is for a
solid state drive (SSD), and disk trays 2 and 3 are for
HDDs (see the following figure).
NOTE: Tray 4 is unused.
FIGURE 2 Disk trays on the front panel of the controller
NOTE: If you are replacing a failed disk, check the LED
of each tray. A red or amber LED indicates that the disk
is not operational.
2. Unlock the disk tray by moving the orange disk tray lock
to the left (unlock) position.
3. Press the black/blue tray button to open the tray handle.
Copyright ©2017 Brocade Communications, Inc. Page 1 of 2
Published 27 October 2017, Part Number 800-71716-001 Rev A

FIGURE 3 An open disk tray
4. Hold the tray handle, and firmly pull it toward you until the
disk tray, along with the HDD, comes out of the chassis
completely. Put the disk tray assembly aside.
5. Unpack the replacement HDD. The replacement HDD
comes assembled with its own disk tray.
6. Insert the disk tray (with the replacement HDD) into the
disk bay until the drive locks in the connector on the SAS
backplane.
7. Close the handle, and lock the tray by moving the orange
disk tray lock to the right (lock) position.
8. Verify that the new drive's status LED flashes green. This
indicates that the controller is rebuilding the RAID array.
When the controller completes rebuilding the RAID array,
the drive's status LED shows solid green.
You have completed replacing a spare HDD in the SmartZone
300 controller.
Closing the Front Bezel
After you complete installing a module, remember to close the
front bezel to prevent access to the modules and protect
them from dust and dirt.
If the controller is mounted in a rack, before completing the
following steps, grab the side handles on the controller, and
push the controller back into the rack. Secure the controller to
the rack using the rack fasteners.
Perform the following steps to close the front bezel.
1. With the controller in front of you, gently lift the bezel and
push it back onto the front panel of the controller.
2. Gently press the bezel against the front panel until it clicks
into place.
The bezel should now be flush against the front panel,
completely covering it.
