Rugged Computing Advantage User manual

INSTRUCTION MANUAL AND PARTS GUIDE
CAUTION: Read the instruction manual before using the machine
Rugged Industries Pty Ltd
ABN: 59154866878
12 / 51 Owen Street
Glendenning NSW 2761 Australia
Postal: PO Box 1076 Dundas NSW 2117
Ph: [phone]
Email: [e-mail]
www: ruggedindustries.com.au
Model No.:15721000T & 15721000M
Advantage
Bagless Cyclonic Backpack
Vacuum Cleaner

Safety Instructions
Read this manual before using the back pack and always follow the
Safety and Maintenance Instructions
CAUTION: Store this vacuum cleaner indoors only
•This machine is for domestic and light commercial indoor use only
•Do not leave the appliance when plugged in. Unplug from the power point when not in use and before
servicing.
•For domestic use:
oThe appliance is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety
•For commercial use:
oThe appliance is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge
•Children should be supervised to ensure that they do not play with the appliance.
•Use only as described in this manual. If appliance is not working as it should, has been dropped,
damaged, left outdoors, or dropped into water, return it to a service centre.
•Extension Cord MUST be secured in the smart cord restraint on the side of the vacuum cleaner
•Do not pull or carry by cord or plug, use cord as a handle, close a door on cord, or pull cord around
sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.
•If the cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly
qualified person in order to avoid a hazard.
•Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
•Do not handle plug or appliance with wet hands.
•Do not put any object into openings. Do not use with any opening blocked.
•Keep hair, loose clothing, fingers and all parts of body away from openings and moving parts.
•Turn off all controls before unplugging.
•Do not use to pick up flammable or combustible liquids, such as petrol, or use in areas where they may
be present.
WARNINGS
oDo not vacuum anything that is burning or smoking such as cigarettes, matches or hot ashes
oDo not use the machine in areas where flammable or combustible liquids, vapors or gas are present.
oDo not vacuum wet surfaces, damp areas or suck up water Do not use machine if water has been
picked up by the vacuum system without an electrical inspection by a qualified person
oDo not operate near explosive materials such as
osolvents, thinners, fuels or grain dust.
oDo not vacuum hard, sharp, abrasive objects such as glass, gravel and metal objects
oDo not vacuum large amounts of powders, chalk dust, or powder spills these can be vacuumed in small
amounts as contained in carpet.
oDo not vacuum plastic bags or large paper objects that block the Mesh Filter
•Do not use with Tank Assembly detached from Motor Housing Assembly, or without filters in place
•Do not fill above the “Max” level marked on the Bin Wall DO NOT OVER FILL
•Do not operate with fluff build up on Mesh Filter, remove fluff with Duster to avoid airflow loss used for
cyclonic filtration.
•Do not operate with a blockage. Stop the vacuum clear the blockage and clean / replace the filter
•Do not transport the vacuum without first emptying. Transport only in an upright position.
SAVE THESE INSTRUCTIONS
1 | 1 0Advantage Manual Instructions Revision 23-09-2023

Packaging
•Advantage backpack vacuum cleaner models comes with the following accessories:
Part No.
Description
Advantage
Turbo
Advantage
Megapro
Advantage
Hako
16707000
Hose BEP Tank Fitting
1
1
1
16007003 Hose Bent End Piece
1
1
1
16007005 Hose Connector 75A
1
1
1
16019002
Tool Crevice Slotted 32mm
1
1
1
16019003
Tool Swivel Dusting Brush 32mm
1
1
1
16019004
Tool EZ2GO 32mm
1
16019005
Tool Turbo Brush 32mm
1
16019016
Tool Hard Floor Tool 36cm 32mm
1
1
16019007
Tool Upholstery 32mm
1
1
1
16019008
Tool Caddy 3 x 32mm
1
1
1
16019014
Tool Mega Gulper Pro 385 Wide 32mm
1
1
16022005
Rods Stainless Steel 32mm x 495mm L
2
2
2
16005005
Filter Advantage H10
10
10
5
16002018
Carabiner D shape 58mm
1
1
1
16003000
Duster Microfibre 385mm
1
1
1
2 | 1 0Advantage Manual Instructions Revision 23-09-2023

Assembly
•The vacuum cleaner is supplied for right-handed operators. You can change
to left-handed configuration by turning the tank assembly 180°. Release the
Tank Lock at the top of the machine to change configuration or to remove
the tank.
•Attach hose end into the tank inlet bayonet turn anticlockwise to secure
bayonet fitting.
•Connect both rods together to create one length.
•Connect rod with Tool Caddy to the Bent End Piece attached to the hose end
•Attach EZ2GO floor tool to the opposite end of rod.
Start Up
•Unwind power supply cord and leave uncoiled on floor.
•Plug the cord into an electrical socket and switch power ON at the power point.

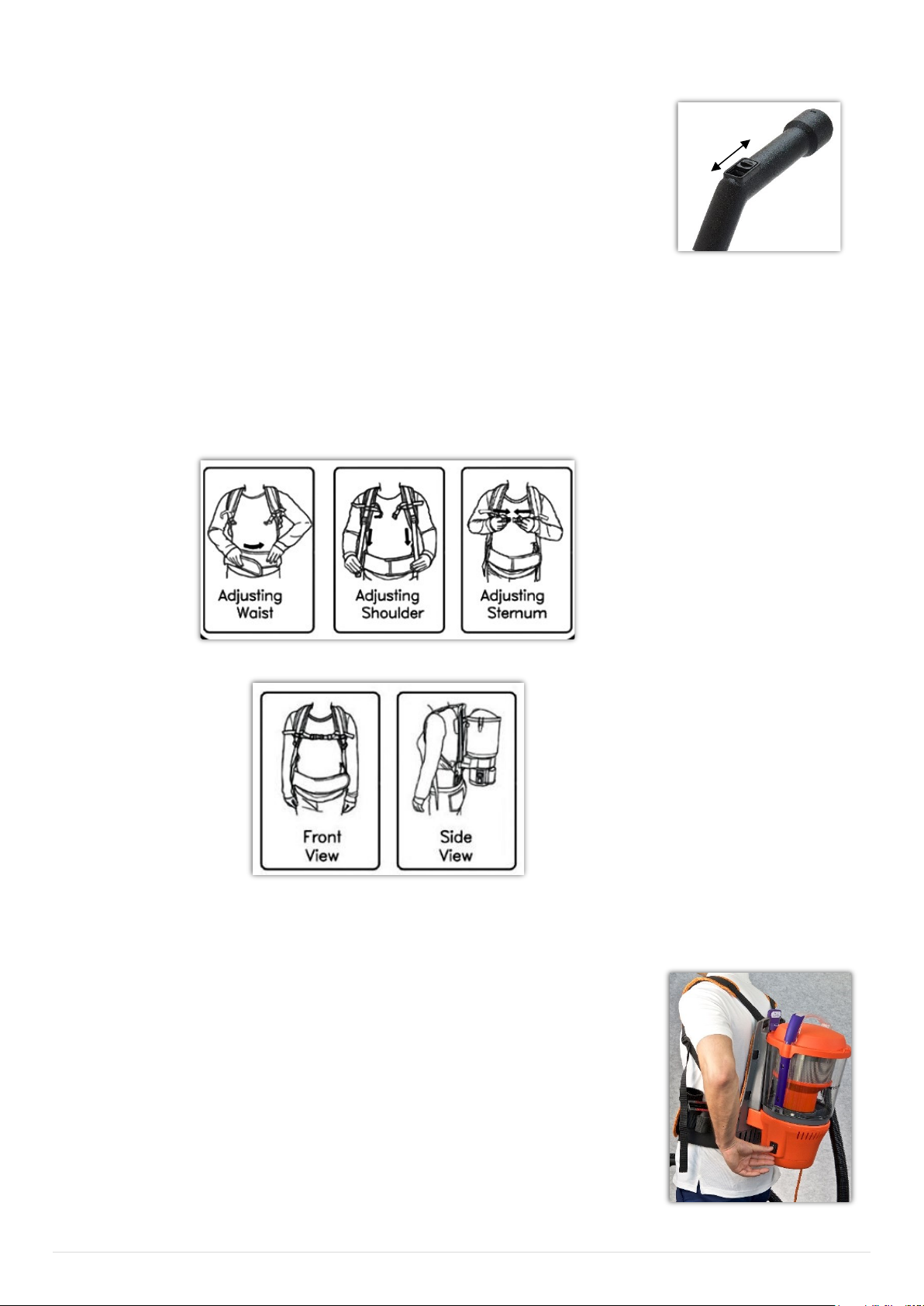

Adjusting
Wearing
Controls
•The power switch is located at the left-hand side at waist level.
•The vacuum cleaner is fitted with an over temperature safety thermostat to
prevent over heating in case of blockage or clogged filter. In the event of
nuisance shut down, remove the blockage immediately and clean the filter
regularly. In the event of shut down, turn the Power Switch OFF at the
machine and wait approximately 15 minutes for the thermostat to reset.
•The slide regulator on the bent end piece (BEP) controls the airflow at the
nozzle. Opening the slide regulator diverts some air flow from the nozzle to
the BEP regulator.
Adjust the regulator to an open position to reduce suction/airflow when
vacuuming loose coverings e.g., curtains, light mats or loose rugs.
Adjust the regulator to the closed position for full suction/airflow e.g., when
using a Turbo brush or floor tools.
3 | 1 0Advantage Manual Instructions Revision 23-09-2023

Applications
1.The Crevice Tool is used for
crevice, corner, upholstery or spot
cleaning.
2. With the swivel neck Dusting Brush,
you can vacuum deep into corners,
and by rotating the neck, vacuum flat
surfaces.
3.The upholstery tool is used for
vacuuming upholstery, narrow gaps
and carpeted steps.
4. The Tool Caddy fits to the rod and
allow you to conveniently carry 3
32mm tools at arm’s reach.
5. The EZ2GO tool is used on both
hard and carpeted floors. It can
vacuum bulky materials, and reach
under low recesses
6. The 36cm Mega Pro tool is used on
both hard and carpeted floors. The
extra width provides 30% more
productivity than a standard low profile
floor tool.
7. The 36cm Hard Floor tool is used on
hard and timber floors. The floor tool
bristles aid in removing dust on irregular
surfaces and along grout lines on tiled
surfaces when vacuuming.
8. The Turbo Brush aids in the
removal of hair and dust deep in the
carpet pile using agitation from a brush
roller driven by vacuum air.
4 | 1 0Advantage Manual Instructions Revision 23-09-2023

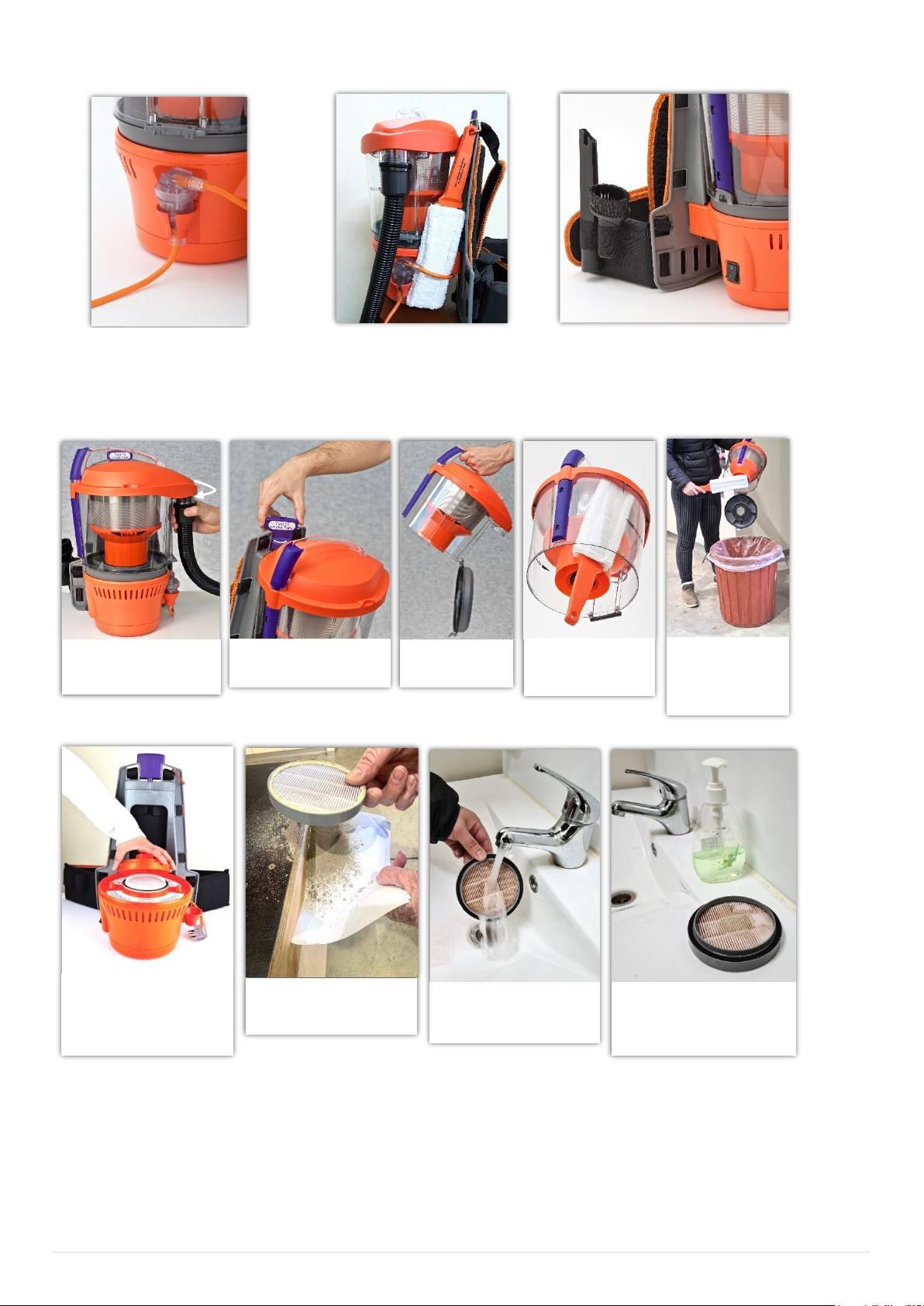

On Board Convenience
Emptying and Cleaning the Bin
Changing and Cleaning the Motor Filter
1. Smart cord restraint eliminates
cord strain, and provides easy
access for cord replacement
2. Unclip the microfibre duster
from the carabiner to clean the
bin and return after use
3. Carry your favourite tools on the
Waist Pad
2. Rotate Tank Lock and
remove tank.
3. Press button to
empty tank.
4. Using Duster
remove
all fluff
build
up on Mesh Filter
5. Wack all dust
from outer bin until
clean, wipe all dust
off the bin seals.
remove all fluff
1.The Motor Filter is
located below the Bin.
Turn Filter Cap clockwise to
remove.
4.Add liquid hand soup to the
top-side pleat only to aid
cleaning. Let it soke for 1
minute.
2.Tap out loose dust from
Motor Filter.
3.Rinse filter in luke warm
water, until rinse, water is
clear.
5 | 1 0
1. Rotate Tank Fitting and
remove hose by rotating it
in a clockwise direction.
Advantage Manual Instructions Revision 23-09-2023

Storage and Carrying
Trouble Shooting Guide
Problem
Possible Cause
Solution
Machine does not operate
•Not plugged into power point
•Plug into Power socket
•No power at the power point
•Move to a functional
power point.
•Machine switch or power switch OFF
•Turn switch ON
•Damaged Cord or Coupling Cord
•Replace Cord
•Faulty Switch or Motor
•Contact Service Centre
Loss of Suction
•Blockage
•Check for blockage and
clear
•Suction Regulator open
•Close Suction
Regulator
•Bin Full
•Empty Bin
•Motor Filter Blocked
•Mesh Filter Blocked
•Bin Seal pulled out
•Clean Filter
•Clean Filter
•Replace Seal
•Poppet Valve loose
•Tighten Poppet Valve
5. Rinse filter until there are
no soap bubbles
in the
filter pleats or rinse water.
6. Leave the filter to dry for up to 5
days. The filter should pass light when
clean.
7. For correct use and maintenance, scan
the QR code and watch the 4 videos.
2. To tidy the waist pad
connect it to the front of the
vacuum cleaner
3. Carry the vacuum
cleaner by the handle
after emptying the bin
1.Loop the extension cord
and drape over the frame
6 | 1 0Advantage Manual Instructions Revision 23-09-2023

Product Specifications
Note: Advantage vacuum cleaner design incorporates,
Australian Patent No.: 2015904843,
Registered Design App. No.: 201612860
Innovative Patent No.: 201601477
Trade Mark.: EZ2GO™No. 1787984
Wiring Diagram
General
Packaging
•Size: 36 x 36 x 50 cm
•Weight: 10.3 kg
Vacuum
•Type: Dry Class: Type 2 Double Insulated
•Capacity: 5 Litre Rated: 1200W
•Hose Length: 1.2m Approval: RCM
•Rods: 2 x 500mm Stainless Steel Noise: 72 dBA at 1.5m
•Accessories Dia: 32mm Air Flow at Nozzle: 30l/s
•Weight: 4.9 kg - not including cord and rods Suction: 25 kPa
Filtration
Primary
•Size: 5 Litre
•Type: Multi-cyclone
•Overall Efficiency: 99.94 ± 0.2%
Motor Filter
•Type: 108mm Dia x 21mm High, Pleated / Rinseable
•Class: H10 HEPA
Electrical
Power Supply
220 - 240V.a.c., 50 –60 Hz
Current
5.2A at 240V
Electrical Cord
18 m, 10 A, 3 core ordinary duty
Thermal Protection
100°C auto-reset thermostat
Motor
Vacuum Motor
•Type: Single stage Thru-Flo
•Brand: Domel Model 463.3.409-15
•Rated: 1450w,
•Dimensions: Fan Case Dia 120mm Overall Height 114mm
•Output Performance: Air flow 56.5 l/s, Suction 29.8kPa, Air Watts 641
•Carbon Brush Life: 800h
Warranty
1 year
THERMOSTAT
100ºC
SWITCH DPST
POWER INLET
COUPLING CORD
EXTENSION CORD
0.22µF CAPACITOR
VACUUM MOTOR
7| 1 0Advantage Manual Instructions Revision 23-09-2023

Parts Diagram

General Warranty Policy
Vacuum cleaners manufactured by Rugged Industries Pty Ltd are to the highest quality standards. We
encourage you to care for your product and follow the instructions in this manual, and in turn, you will
benefit from a product that provides performance and long life.
The following statement is a requirement under Australian Consumer Law and applies to consumer sales of
goods and services. In this statement “Our” means Rugged Industries and “you” means original purchaser.
“Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are
entitled to a replacement or refund for a major failure and compensation for any other reasonably
foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to
be of acceptable quality and the failure does not amount to a major failure”
In addition to guarantees under Australian Consumer Law, Rugged Industries warrants the Advantage
vacuum cleaner and model variants against faulty material and/or workmanship for one year, from the date
of purchase by the consumer, when operated and maintained following the instructions in this Manual.
The following explains the conditions and what to do in the event of a claim:
Rugged Industries or an authorized Service Agent or person will replace parts determined as faulty, but this
does not apply to normal consumable, worn, and rotating parts that require replacement under normal use,
including but not limited to rubber parts, filters, hoses, power cords, floor tools, dusting brush, crevice tools,
upholstery tool, tool caddy, turbine brush, etc.
If a difficulty develops with this equipment, you should contact the dealer from whom it was originally
purchased.
Warranty does not cover any machine or component that has been altered, abused, neglected, modified, or
used with non-genuine Rugged Industry resulting in, property damage, or loss of income due to malfunction
of the Equipment.
Warranty does not cover damage by transportation, freight, delivery, product return, accident,
misapplication, improper service or maintenance, blockages, vacuuming water or bulk powder, moist
carpet, use, or other instructions not in this instruction Manual.
All repairs and servicing during the warranty period must be carried out by Rugged Industries Pty Ltd or an
authorized Rugged Industries Service Agent or person. Rugged Industries Pty Ltd or an authorized Service
Agent who may request you to complete a Warranty Claim / Stock Return Form or other similar form before
returning any goods. All reasonable expenses associated with any transportation in returning goods for a
warranty claim are the consumer’s responsibility, and in all instances, the product is transported at the
owner’s risk.
Rugged Industries will not be responsible for the cost of repairs or damages caused by unauthorized
persons.
Warranty claims must be made within the warranty period and proof of purchase must be supplied with the
claim.
This warranty applies only to the original purchaser. Rugged is not responsible for costs or repairs
performed by persons other than those specifically authorized by Rugged Industries Pty Ltd
To the extent permitted by law, all other warranties whether implied or otherwise, not set out in these
warranty, terms and conditions are excluded and Rugged is not liable in contract, tort (including, without
limitation, negligence or breach of statutory duty) or otherwise to compensate you for:
•Any increased costs or expenses;
•Any loss of profit, revenue, business, contracts or anticipated savings;
•Any loss or expense resulting from a claim by a thrird party; or
•Any special indirect or consequential loss or damage of any nature whatsoever caused by Rugged’s
failure in complying with it’s obligations
The benefits given to you in this warranty are in addition to other rights and remedies under a law in relation
to the equipment or services to which this warranty applies.
REFUNDS
Please choose your purchase carefully as a refund may not be provided if you simply change your mind.
Repairs, refunds, or exchanges will not be accepted or provided unless the goods are faulty.
9 | 1 0Advantage Manual Instructions Revision 23-09-2023

Products purchased cannot be returned without prior written confirmation from Rugged Industries Pty Ltd
We endeavour to process all refunds within 7 business days of approval.
CHANGE OF MIND
If you simply change your mind, and the product(s) are unopened and still in their original packaging, you
may return them to our warehouse within 30 days of purchase at your own cost less a 10% restocking fee.
You must call Rugged Industries Pty Ltd before returning orders for instructions on how to do this.
RETURNS
If,
•A product is damaged or faulty through no fault of your own and you can provide evidence of the
damage/fault;
•Incorrect goods were supplied.
Rugged Industries Pty Ltd will, upon return of the product, offer you a refund, repair, or exchange following
the Competition and Consumer Act 2010 within a reasonable time if you can provide a receipt or other
satisfactory proof of purchase
CUSTOMER REQUESTED RETURNS
Please consider carefully your request for product return for performance loss. Service fees and freight
charges will apply if in the sole assessment of our service department, product performance loss is
contributable to inadequate maintenance, lack of filter replacement, product negligence, misuse, or
inappropriate application.
If in the assessment of our service department part failure is not contributable to inadequate maintenance,
lack of filter replacement, product negligence, misuse, or inappropriate application, and the vacuum cleaner
is returned cleaned, parts, labor, and return freight will be provided free of charge. Cleaning fees apply for
vacuums returned in a dirty condition.
WARRANTY REGISTRATION DETAILS
Purchaser: Purchase Date:
Address:
State: Post Code: Contact: Ph:
Model No: Serial No:
Purchased From:
Address:
10 | 1 0Advantage Manual Instructions Revision 23-09-2023
