RuggedBook 350 Series User manual

I
User’s Guide
350 Series
Semi-Rugged Tablet PC

1
Preface
© Copyright 2012. All Rights Reserved.
The information in this document is subject to change without prior
notice in order to improve reliability, design and function and does not
represent a commitment on the part of the manufacturer.
In no event will the manufacturer be liable for direct, indirect, special,
incidental, or consequential damages arising out of the use or inability
to use the product or documentation, even if advised of the possibility
of such damages.
This document contains proprietary information protected by copyright.
All rights are reserved. No part of this manual may be reproduced by
any mechanical, electronic, or other means in any form without prior
written permission from the manufacturer.
SAMWELL INTERNATIONAL INC.
317-1, Sec.2, An Kang Rd., Hsintien, Taipei 231, Taiwan
Tel: [phone]
Fax: [phone]
www.samwellg.com
Trademarks
SAMWELL and 350 are of Sand Dune Ventures, Inc. IBM, OS/2, and
VGA are trademarks of International Business Machines Corp.
Windows, Word, MS-DOS, and Microsoft are trademarks of Microsoft
Corp. VESA is a trademark of Video Electronics Standards
Association.
Other product names mentioned herein are used for identification
purposes only and may be trademarks and/or registered trademarks of
their respective companies in the USA and worldwide.
Limitation of Liability
While reasonable efforts have been made to ensure the accuracy of this
manual, the manufacturer and distributor assume no liability resulting
from errors or omissions in this manual, or from the use of the
information contained herein.
User Guide rev. 001 – 6/01/2012

2
Before you Start
CONVENTIONS OF THIS MANUAL
This manual is intended to help you get the most from your new 350
Series Semi-Rugged Tablet Personal Computer.
If you are an experienced user of computers and / or
Microsoft’s Windows operating systems, you might find it
useful to read the Getting Started Guide that is included in
your package.
If you are a less experienced user, we recommend that you
read through this manual carefully before using your system.
Whether or not you are an experienced user, you should refer to the
Troubleshooting chapter if you encounter any problems with 350.
SAFETY PRECAUTIONS
This section is designed to assist you in identifying potentially unsafe
conditions while working with this product. Required safety features
have been installed in the computer to protect you from injury.
However, you should use good judgment to identify potential safety
hazards:
1. Please read these safety instructions carefully.
2. Please keep this User's Guide for later reference.
3. Please disconnect this equipment from AC outlet before cleaning.
Don't use liquid or sprayed detergent for cleaning. Use moisture
sheet or cloth for cleaning.
4. For pluggable equipment, that the socket-outlet shall be installed
near the equipment and shall be easily accessible.
5. Please keep this equipment from excessive humidity.
6. Handle with care. A drop or fall could cause damage.
7. Make sure to use the right voltage for the power source when
connecting the equipment to the power outlet.
8. Place the power cord in such a way that people can not step on it.
Do not place anything on top of the power cord.
9. All cautions and warnings on the equipment should be noted.
10. If the equipment is not use for a long time, disconnect the
equipment from the main power outlet to avoid being damaged by
transient over voltage.
11. Never pour any liquid into the opening, this could cause fire or
electrical shock.
12. Never open the equipment. For safety reasons, the equipment
should only be opened by a qualified service personnel.

3
13. If any of the following situations arise, have the equipment checked
by a service personnel:
a. The Power cord or plug is damaged.
b. Liquid has penetrated into the equipment.
c. The equipment has been exposed to moisture.
d. The equipment has not worked well or you cannot get it
working according to the user's guide.
e. The equipment has dropped and is damaged.
f. If the equipment has obvious signs of breakage.
14. Do not leave this equipment in an environment unconditioned,
storage temperature above 60℃(140℉), it may damage the
equipment.
15. The unit can be operated at a maximum ambient temperature of 35°
C (95° F).
16. The sound pressure level at the operators position according to IEC
704-1：1982 is equal or less than 70 dB(A).
17. Power Cord Requirements
The power cord set used with the AC adapter must meet the
requirements of the country where you use the AC adapter, whether
it is 100-120 or 200-240 Vac. The following information explains the
requirements for power cord set selection.
5The cord set must be approved for the country in which it is
used.
5The appliance coupler must have a configuration for mating
with a CEE22/EN6032/IEC 320 appliance inlet.
A. For U.S. and Canada:
5The cord set must be UL Listed and CSA Certified.
5The minimum specifications for the flexible cord are No. 18
AWG.
18. When using the unit in conjunction with telephone equipment, basic
safety precautions should always be followed to reduce the risk of
fire, electric shock and injury to persons. These precautions includes
the following:
5Do not use this product near water, for example, near a
bathtub, washbowl, kitchen sink or laundry tub, in a wet
basement or near a swimming pool.
5Avoid using a telephone (other than a cordless type) during
an electrical storm. There may be a remote risk of electric
shock from lightning.
5Do not use the telephone to report a gas leak in the vicinity of
the leak.
5Use only the power cord indicated in this manual.
19. Do not use the AC adapter near open water or other liquids. Never
spill liquid into the AC adapter.

4
20. Laser Warning: Laser Class I Product Caution - Invisible laser
radiation when open avoid exposure to beam.
21. Danger of explosion if battery is incorrectly replaced. Replace only
with the same or equivalent type recommended by the manufacturer.
Dispose of used batteries according to the manufacturer's instructions
or in accordance with local law. Never remove the battery pack while
the power is on as this may result in data loss when the system loses
power.
22. The input receptacle is used as the main disconnecting device.

5
THINGS YOU MUST REMEMBER BEFORE WORKING ON YOUR
COMPUTER
LET YOUR COMPUTER ACCLIMATE ITSELF
Your computer can easily stand temperature extremes but it doesn’t
like rapid changes in temperature, like going from the cold outdoors to
a warm office. Rapid changes in temperature can cause water droplets
to condense inside your case, threatening to damage the electronic
parts inside.
After receiving your computer when it’s hot or cold outside, try not
to power up the computer immediately, let the computer adjust to the
room temperature gradually at least for three to four hours.
If your system arrives in cold weather, do not apply power
to the computer until it has been allowed to warm to room temperature.
HEAT, COLD, HUMIDITY, AND GLARE
Find a suitable place for your computer that’s not too hot, too cold,
too dark, or too bright. Glare can make it hard to read the screen.
This computer’s components can be damaged or destroyed if
over heated, so try to allow plenty of room for air to circulate
around the case.
Do not block the ventilation opening.
Do not place your computer in direct sunlight.
SUITABLE PLACE TO WORK
Your computer will run well wherever you’re comfortable but
extremes of temperature and humidity can be challenging to your
system’s parts. There are some things you can tolerate that the
computer can’t – things like static electricity, dust, water, steam and oil.
In case you decide to pull over for roadside computing, try to choose a
clean, comfortable work area for your system.
The included battery pack will provide the necessary power when you
are traveling. If you are running your system for the first time on
battery power, remove the battery from the package, install it into the
system (the battery should already be preinstalled in the unit when it
arrives from the dealer) and recharge the battery to fully prepare for
service.

6
Introduction
WELCOME
Congratulations on purchasing your new 350 Series Semi-Rugged
Tablet PC. Your computer features some of the latest advances in
mobile computing technology.
POWERING UP THE 350 Tablet PC
On the top of the 350, locate the power button and press it for a few
seconds to power up the system.

7

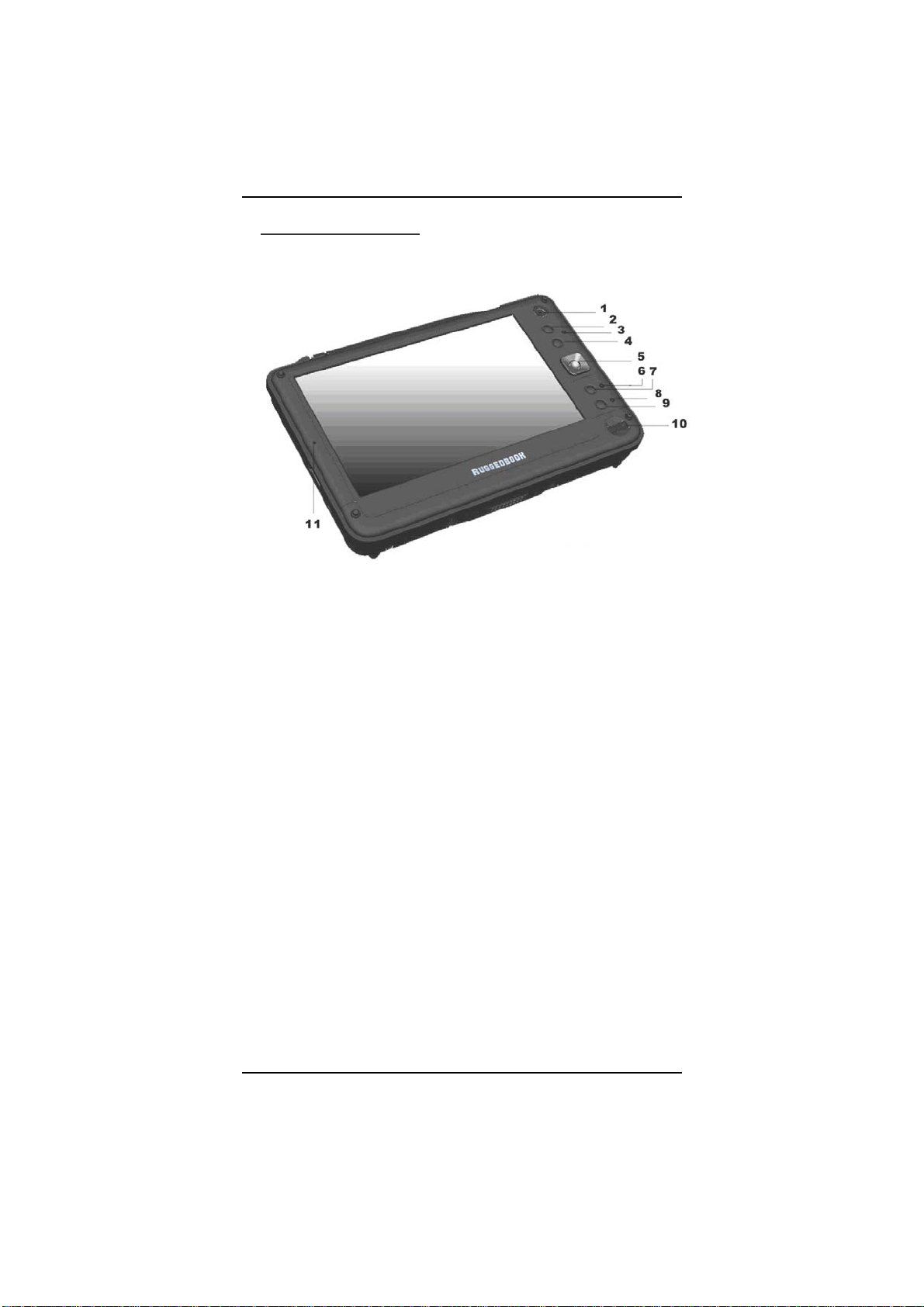

FRONT SIDE FEATURES
1. Camera (option 1)
2. Function Key 1
3. POWER LED Indicator
4. Function Key 2
5. Five-way Track Point
6. Battery Charge LED Indicator
7. Function Key 3
8. WIFI LED Indicator
9. Function Key 4
10. Fingerprint
11. Internal MIC

8

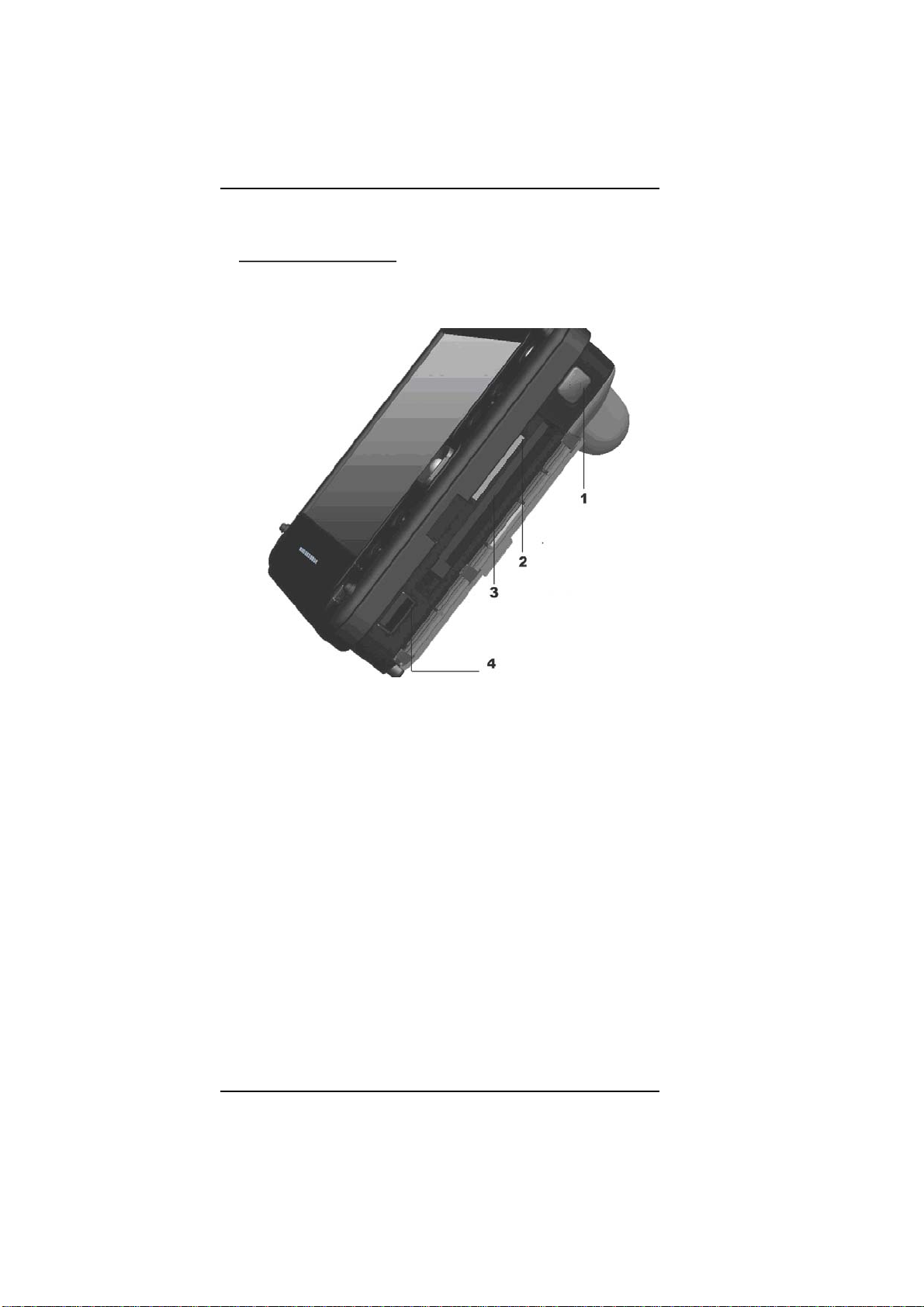

RIGHT SIDE FEATURES
1. Power Button
2. SD card slot
3. PCMCIA Slot
4. USB Port
