Ruige Action HL-701HM User manual

Size：7"
Resolution：1920(H) × 1200(V)
Brightness：500cd/m
Sampling ratio：10bit
Dimension：L192.0×H132.0×D27.5mm
Voltage input：DC 12V
Power consumption：≤15W
Weight：around 450g
2
Viewing angle： 89/89 / 89/ 8 9
Quick Guidance
Specification
Format
3G-SDI 1080/50p/60p
HD-SDI 1080/24p/24psf/25p/30p/50i/60i
720/50p/60p
SD-SDI 480i/576i
HDMI
1080/24p/24psf/25p/30p/50i/60i
50p/60p 720/50p/60p 480i/576i
Special material declaration
Hazardous material name and content
Monitor
Adapter
Parts
Parts
Name Pb Hg Cd Cr6+ PBBs PBDEs
Hazardous material
×
×
×
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
The table is made based on SJ/T 11364
Comply to the EU RoHS environmental protection
standard.
2160/24p/30p/50p/60p

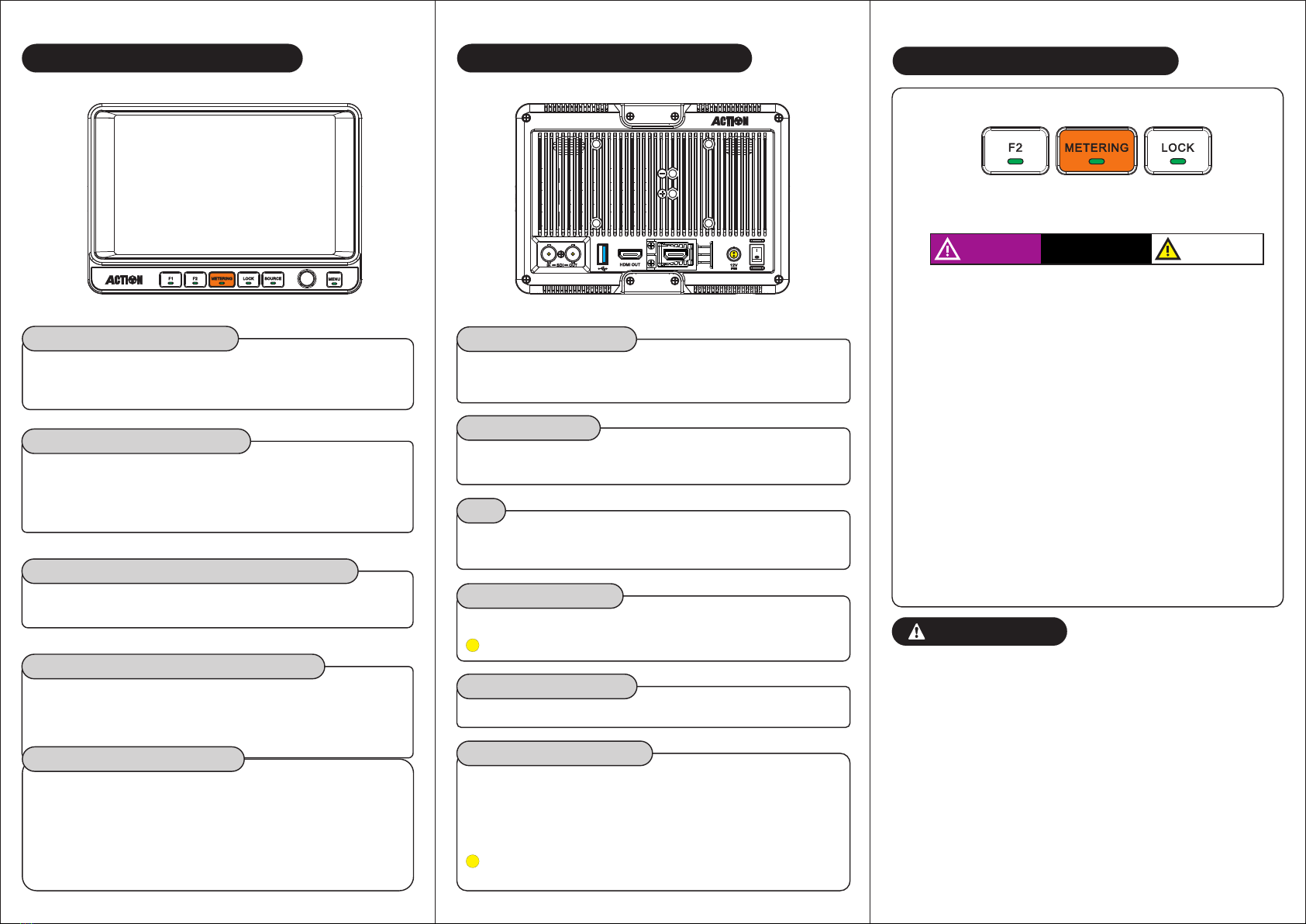

Introduction of key functions Interface function introduction
3G-SDI IN/OUT
This interface is used for input and output of 3G-SDI
signals.
USB
This interface is used to debug and upgrade the
monitor's own system , 3D-LUT load.
3.5mm Earphone jack
The interface is used for headphone sound monitoring
Important tips
※Please make sure the accessories
matched with the equipment and
acknowledged by the maker.
※Do not repair the product by yourself,
provided this product has any quality
issue, please refer to our authorized
after service center.
※Upgrade this equipment system, please
upgrade through official after-sales
service network.
Multifunctional knob button
This knob is mainly used for the selection and
confirmation of the main menu options of the system.
Press the key to get the menu of lmage adjustment.
Turn the knob to adjust the image parameter.
F1 F2 Shortcut key
F1(Waveform) F2(Aspect Marker)
F1\F2 is the syatem default shortcut key.
Press key(SOURCE),switch among selecting
input signal formats.
SOURCE(input signal source switchkey)
Press the LOCK button continuously for 3 seconds
to achieve the key locking function.
In menu mode, the LOCK key can be used as a
quick return key.
LOCK ( Lock up buttons and knobs)
METERING(metering key)
When pressing the metering light function key , the
screen prompts "underexposure", "normal exposure"
and"overexposure" ,turn the multi-function knob to
customize the upper and lower warning limits , and
press the knob to switch between the upper and lower
limits.
When pressing the metering light function key ,
the screen prompts "Underexposure", "Normal
exposure", and "Overexposure".
In the image, the display below the lower limit set
value is "purple", which means the image is under-
-exposed . and the exceeding the upper limit set
value displays as "white", which means the image
is overexposed, and the picture between the upper/
lower limit set displays as "black", which represents
the video is safe area;
Mode 1: The safe area of the video image is in
black and completely blanked out, allowing you to
focus more on the underexposure/overexposure
part of the picture, prompting you to adjust the ligh
-ting of the scene in time to ensure the filming effect.
Mode 2: The original image of the safe area of the
video image is displayed semi-transparently, so
that you can clearly locate the specific position of
the exceeding part in the video .
Intelligent brightness control
Under Exposure
Normal Exposure Over Exposure
MENU ( main menu key)
Press key(MENU)to get zhe main menu.
Press to press to confirm/return after option
selected.
HDMI 2.0 IN/OUT
This interface is used for input of HDMI 2.0 signal.
HDMI adapter(Optional).
The interface is used for mounting the DV battery
plate：
BP-U series of battery model BP-U30/60/90,
SONY PANASONIC JVC DV batteries
Pay attention to battery polarity when installing by
yourself
DV battery mount plate
