Ruige TL-S701HD User manual

Thin Type HD Field Monitor
Model number: TL-S701HD/TL-S701HDA
Over view
Ruige Thin Type HD LCD monitors can work with all brands of HDSLR and HDV, like Nikon, Canon
5D MARKII, Canon 7D cameras, and Sony, Panasonic video cameras which with HDMI output.
Ruige Thin Type HD LCD monitors possess high brightness, high picture quality and high contrast
features. Clear and sharp picture and exact color temperature correction represent the real color of the
original signals. Multi-professional functions possessed can meet different professional needs.
Applications
WorkwithHDSLRcamera
Following application is Canon EOS 5D MARK II)
Cannon7D Sony:α900 Nikon: D7000
RUIGE OPTIC-ELECTRONIC
www.ruige.com Page 1 of 11

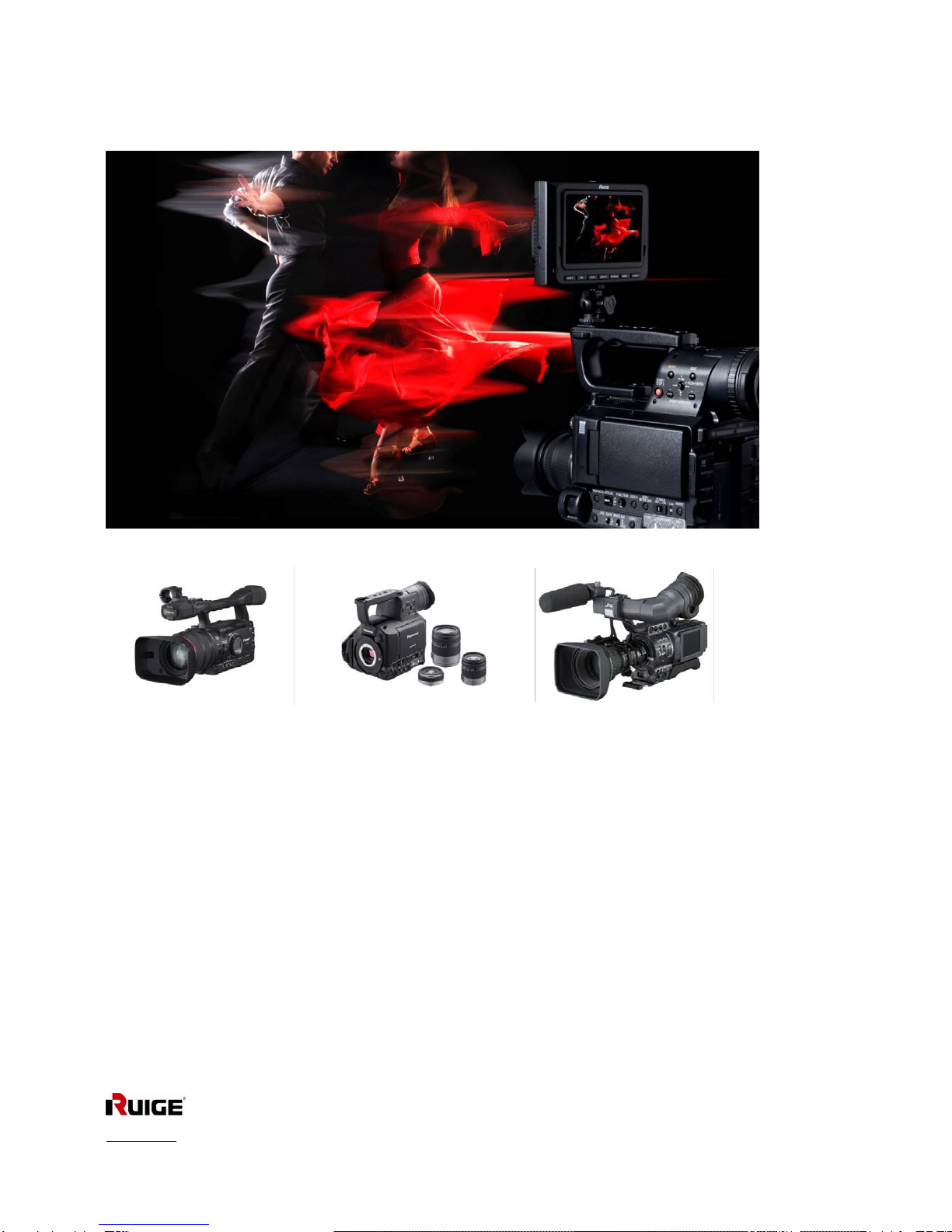

WorkwithHDSLRvideocameras
(Following application is Panasonic 103 video camera)
Other Video cameras as
Sony: F65 NEX-FS100 HXR-NX301 HVR-Z5C PMW-F3
Panasonic: AG-AF103MC AG-HMC153MC
Canon: XF305 XF300 XF105 XF100 XLH1S XLH1A
JVC GY-HM100EC GY-HD111EC GY-HD201EC
RUIGE OPTIC-ELECTRONIC
www.ruige.com Page 2 of 11

Product Details
FRONT VIEW
1 Aspect Ratio switch: 4:3/16:9/Auto/Letter box
2. Monochrome/color switch
3. Menu/Enter
4 .Safety Marker/Upward adjustment
5 safety marker options: 80%,85%,90%,93%,96%,off
Upward move in Menu operation
Switch among Brightness-Contrast-Saturation-Sharpness
5. Camera/ Downward adjustment
Camera is specially for Canon Eos 5D Mark II.
Downward move in Menu operation
Switch among Sharpness-Saturation-Contrast-Brightness
6. Vol-/Value down adjustment
Volume Down
Value down when adjust monitor parameters
7. Vol+/Value up adjustment
Volume Up
Value up when adjust monitor parameters
8. Built-in speaker
9. Convertible Sun hood
RUIGE OPTIC-ELECTRONIC
www.ruige.com Page 3 of 11

BACK VIEW
TL-S701HDA
HDMI input and output
RUIGE OPTIC-ELECTRONIC
www.ruige.com Page 4 of 11
HDMI Plug Lock (Optional)
(Patent application number
201120010975.4 /US patent
Application number 13/068,528)
7.2V DV Battery Plate (Optional)
Compatible with Sony, Canon, Panasonic, JVC batteries

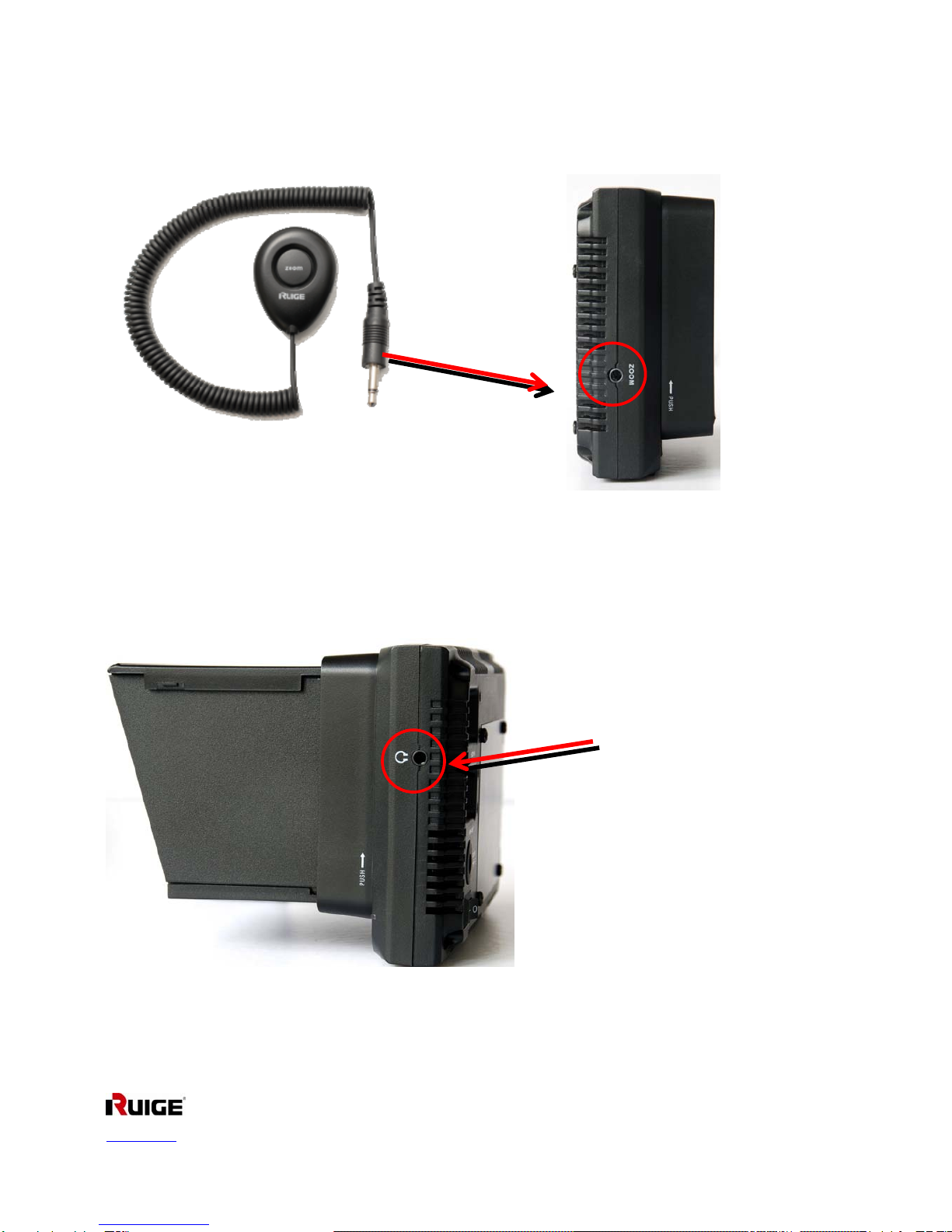

SIDE VIEW
Left side
RUIGE OPTIC-ELECTRONIC
www.ruige.com Page 5 of 11
Linear zoom trigger (Optional)
(Patent application number: 201120010973.5/
US patent application number: 13/066,406)
Right side
HeadphoneJack(Φ3.5mm)
Headphone Jack (Φ3.5mm)

Key function introduce
Aspect ratio switch
AUTO: It automatically identifies the
corresponding screen display ratio
according to the input signal format
4:3：It is for the analog and SD signal.
16:9：It is for HD signal input Letter Box：It is used when we display
4:3 image (analog and SD signal) into
16:9 screen and getting full screen. (It
will show the top and low out-of-shape,
this is a special function but not design
defect)
Black /White (Monochrome)
Switch between B/W and color.
The Usage of monochrome
Easy for focusing, reduces color disturb and easy to watch the lightning effects
Photo Flip
RUIGE OPTIC-ELECTRONIC
www.ruige.com Page 6 of 11

Camera--- for Canon EOS 5D Mark II
When Canon EOS 5D Mark II is in video mode, the image in standby status and recording status cannot be
fully displayed on the monitor. It will downgrade the original 1080i HD (16:9) image to 480p (4:3) image. In
this case, the image will be smaller. After you press CAMERA button, it can fully display any output format
during the shooting process on the screen within the safety marker.
Scale
When the program is for broadcasting, most of the TVs will cut off part of the outer edge of the image, so we
need a security zone to ensure that the image we take is in the screen without cutting off. The most common
used security zone will be set as 96%.
80
Volume
RUIGE OPTIC-ELECTRONIC
www.ruige.com Page 7 of 11
in speaker and headphone jack.
can mode
It has built-
S
Standard: Original image Under scan: 105% of original image Over scan: 95% of original image

RUIGE OPTIC-ELECTRONIC
www.ruige.com Page 8 of 11
Menu
3 Color temperature options: D65, D93, User define
3 Scan mode options: Standard, over scan, under scan
3 Menu language options: Chinese, English, Japanese

Accessories
Convertible Sun hood( Standard)
Patent number: ZL200830141225.4
It can reduce the hightlight
interference during outdoor
shooting, and protect the
LCD screen when folded.
Linear Zoom trigger(Optional)
Patent application number: 201120010973.5
It can zoom in image in 1:1
pixel for monitoring. Pressing
ZOOM key first time enters
1:1 pixel zoom in, second
press enters peak focus
status, third press returns
normal size and status. This
makes focus easier and
faster, which solved off-focus
problem in HD video
shooting
RUIGE OPTIC-ELECTRONIC
www.ruige.com Page 9 of 11

HDMI plug lock (Optional)
(Patent application number 201120010975.4 )
It is innovatively designed
from alligator clip. It can lock
different types of HDMI plug,
and solve HDMI plug
dropping problem when
doing the dolly shot and
frequent monitor viewing
angle adjustment.
7.2V DV battery plate (Optional)
Specially designed for 7.2v
DV battery. It is compatible
with Canon, Sony,
Panasonic and JVC DV
batteries.
Rubber Protective Cover(Optional)
Unique innovation design,
We use the environmental
and friendly rubber protective
housing to protect the
monitor avoid dropping and
any impacting trouble
RUIGE OPTIC-ELECTRONIC
