RUNTEQ SRS HR User manual
RUNTEQ SMART RUNNING SENSOR HR
USER GUIDE
RUNTEQ SRS HR USER GUIDE
ENv001(Jan 2019)
Page 2 of 9
1. Welcome
Thank you for purchasing RUNTEQ Smart Running Sensor! RUNTEQ has the smallest
Bluetooth®!LE compatible heart rate and running kinematics sensor on the market. The
device is manufactured by Suunto and is based on their Movesense platform.
RUNTEQ Smart Running Sensor measures your heart rate with great comfort and
accuracy while reports also amazing number of running technique metrics. The sensor is
compatible with soft, comfortable Movesense heart rate belts. The sensor module can
also be attached to other Suunto Movesense compatible sports apparel.
2. Safety
Safety precautions
WARNINGS
§ ALLERGIC REACTIONS OR SKIN IRRITATIONS MAY OCCUR WHEN PRODUCT
IS IN CONTACT WITH SKIN, EVEN THOUGH OUR PRODUCTS COMPLY WITH
INDUSTRY STANDARDS. IN SUCH EVENT, STOP USE IMMEDIATELY AND
CONSULT A DOCTOR.
§ ALWAYS CONSULT YOUR DOCTOR BEFORE BEGINNING AN EXERCISE
PROGRAM. OVEREXERTION MAY CAUSE SERIOUS INJURY.
§ PEOPLE WHO HAVE A PACEMAKER, DEFIBRILLATOR, OR OTHER IMPLANTED
ELECTRONIC DEVICE USE THE TRANSMITTER BELT AT THEIR OWN RISK.
BEFORE STARTING THE INITIAL USE OF THE TRANSMITTER BELT, WE
RECOMMEND AN EXERCISE TEST UNDER A DOCTOR’S SUPERVISION. THIS
WILL ENSURE THE SAFETY AND RELIABILITY OF THE PACEMAKER AND
TRANSMITTER BELT WHEN BEING USED SIMULTANEOUSLY. EXERCISE MAY
INCLUDE SOME RISK, ESPECIALLY FOR THOSE WHO HAVE BEEN
SEDENTARY. WE STRONGLY ADVISE YOU TO CONSULT YOUR DOCTOR PRIOR
TO BEGINNING A REGULAR EXERCISE PROGRAM.
§ THE DEVICE AND APP ARE ONLY FOR RECREATIONAL USE.
CAUTIONS
§ DO NOT APPLY SOLVENT OF ANY KIND TO THE PRODUCT, AS IT MAY
DAMAGE THE SURFACE.
§ DO NOT APPLY INSECT REPELLENT ON THE PRODUCT, AS IT MAY DAMAGE
THE SURFACE.
§ TREAT IT AS ELECTRONIC WASTE TO PRESERVE THE ENVIRONMENT.
§ DO NOT KNOCK OR DROP THE DEVICE, AS IT MAY BE DAMAGED.
!
RUNTEQ SRS HR USER GUIDE
ENv001(Jan 2019)
Page 3 of 9
3. Getting started
RUNTEQ Smart Running Sensor is easy to use. Follow the steps below, and you get
accurate feedback about your exercise intensity and technique.

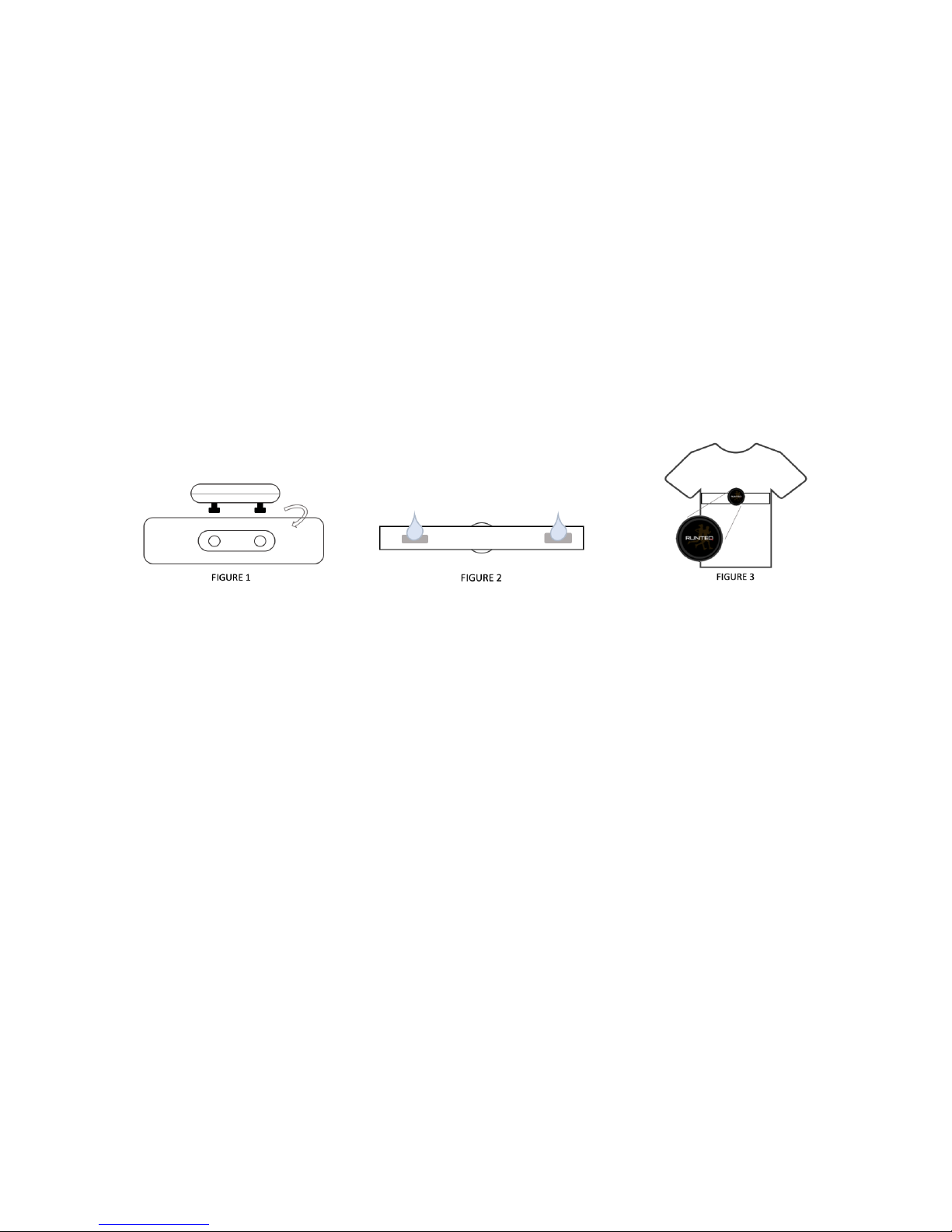

3.1. Wearing belt
To start using RUNTEQ Smart Running Sensor unit and belt:
1. The sensor unit turns on automatically when it detects movement
2. Snap the sensor unit firmly into the belt connector (Figure 1)
3. Adjust the belt length as needed.
4. Moisten the belt electrode areas with water or electrode gel (Figure 2)
5. Wear the belt against your bare skin for best results. Put the belt on so that it fits
snugly, and the sensor unit’s RUNTEQ logo facing up and forward (Figure 3)
!
!
TIP:
RUNTEQ Smart Sensor can also be used with Movesense compatible sports clothing
available from other brands.
3.2. Pairing with watches and mobile devices
RUNTEQ Smart Running Sensor is compatible with BluetoothR!Low Energy, such as
sports watches or mobile devices with sports apps.
Connecting procedures may vary so please refer to the instructions of your mobile
application or sports watch for guidance. When pairing the first time, it is recommended
that you are at least 10 m (33 ft) away from other Bluetooth sensors. You can pair the
belt with multiple sports watches and apps, but only one connection can be active at a
time.
4. Using RUNTEQ Smart Sensor
You can use your RUNTEQ Smart Running Sensor to record your heart rate and get
accurate information about running technique kinematics.
RUNTEQ SRS HR USER GUIDE
ENv001(Jan 2019)
Page 4 of 9
To use your RUNTEQ Smart Running Sensor:
1. Wear the Sensor (see 3.1. Wear belt).
2. Start your recording in the paired sports watch (see 3.2. Pairing with …).
3. Complete your activity and stop the recording in your sports watch.
4. Rinse off your heart rate belt or other Movesense garment (see 6.1. Handling
guidelines).
NOTE: Dry skin under the belt electrodes, a loose belt, and synthetic shirt materials
can cause abnormally high heart rate readings. Moisten the belt electrodes well and
tighten the belt to avoid heart rate peaks. If you are otherwise concerned about your
heart rate, please consult a doctor.
5. Updating Firmware
RUNTEQ Smart Running Sensor firmware can be updated through RUNTEQ app (coming
available later). If an update is available, you are prompted to do the update through the
app.
6. Care and support
6.1. Handling guidelines
Both the RUNTEQ Smart Sensor module and belt should be rinsed with fresh water after
each use.
CAUTION: Do not pull the RUNTEQ Smart Running Sensor module off the belt. This may
damage the belt connectors. Unsnap one side at a time. The belt should be machine
washed in 40° C after every 2-3 exercises. See the belt tag for further washing
instructions.
CAUTION: Do not never machine wash the RUNTEQ Smart Running Sensor module.
Machine washing may damage the module.
6.2. Troubleshooting
The transmission range of the RUNTEQ Smart Running Sensor can be three meters or
more under ideal conditions. However, for best results, minimize obstructions between
the Sensor module and your sports watch or mobile device. Keep the watch or mobile in
front of you or to one side in a pocket or on a belt. If you keep your arms behind your
back or put your mobile device in a fanny pack, for instance, the transmission signal from
the Smart Sensor may be interrupted.
RUNTEQ SRS HR USER GUIDE
ENv001(Jan 2019)
Page 5 of 9
If the RUNTEQ Smart Running Sensor does not seem to be sending heart rate data even
without obstructions, try any of the following:
1. Ensure the belt contact areas (electrodes) are wet.
2. Adjust the belt so that it fits tighter against your chest.
3. If your skin tends to remain dry during a workout, use electrode gel.
4. Check that Bluetooth is on in the device your belt is paired with.
5. Change the battery in the sensor and re-pair with your sports watch or mobile
device.
If the RUNTEQ Smart Running Sensor seems to send incorrect data, try any of the
following:
1. Ensure that the sensor is attached correctly to the belt with both snaps snugly
fitted.
2. Pair the belt again with your Bluetooth-enabled device.
6.3. Battery
RUNTEQ Smart Running Sensor uses a 3-Volt lithium cell (CR 2025) battery. With
RUNTEQ app, you can check the battery status from the device information when the
sensor is connected.
To replace the battery:
1. Remove the sensor from the belt.
2. Open the battery cover
3. Replace the battery.
4. Firmly close the battery cover.
6.4. Getting support
To get additional support, visit www.runteq.com/support. There you will find a
comprehensive range of support materials, including Questions and Answers and
instruction videos. You can also post questions directly to Runteq or email/call Runteq
support professionals.
We recommend registering your product to get the best personalized support from
Runteq.
To get support from Runteq:
1. Register at www.runteq.com/support
2. Visit runteq.com (www.runteq.com/support) to see if you question has been asked/
answered already.
name, serial number and a detailed description of the issue. RUNTEQ’s qualified
customer support staff will help you and, if needed, troubleshoot your product
during the call.
RUNTEQ SRS HR USER GUIDE
ENv001(Jan 2019)
Page 6 of 9
7. Reference
7.1. Technical specifications
Module
• Weight: 10 g/0.35 oz (battery included)
• Diameter: 36.6 mm/1.44 in
• Thickness: 10.6 mm/0.42 in
• Operating temperature: -20° C to +60° C/-5° F to +140° F
• Storage temperature: -30° C to +60° C/-22° F to +140° F
• Water resistance: 30 m/100 ft
• Battery type: CR2025
• Battery life: ~ 300 hours
• Transmission frequency: 2.4GHz (Bluetooth Smart)
Belt
• Weight: 31.2 g/1.10 oz
• Width: 30 mm/1.18 in
• Length: Small 56-82 cm, Medium 70-110 cm, and Large 96-160 cm
Radio transceiver
• Bluetooth®!LE compatible
• Communication frequency: 2402-2480 MHz
• Maximum transmission power: <0 dBm (conducted)
• Range: ~3 m/9.8 ft
Manufacturer
Suunto Oy, Tammiston kauppatie 7 A FI-01510 Vantaa FINLAND
7.2. Compliance
7.2.1. CE
The device manufacturer, Suunto Oy, declares that this product is in compliance with the
essential requirements and other relevant provisions of Directive 1999/5/EC. For more
information, please go to Suunto pages: www.suunto.com/EUconformity.
7.2.2. FCC compliance
This device complies with Part 15 of the FCC Rules.
7.3. Patent notice
This product is protected by the following patents and pending patent applications and
their corresponding national rights: US 13/071,624, US 13/832,049, US 13/832,598, US
13/917,668, US 13/397,872, USD 667,127, US 8,386,009, US 8,750,959, US 8,814,574,
US 8,886,281. Additional patent applications have been filed.
RUNTEQ SRS HR USER GUIDE
ENv001(Jan 2019)
Page 7 of 9
7.4. Trademarks
Runteq, its logos and other Runteq brand trademarks and made names are registered or
unregistered trademarks of Runteq Oy. All rights are reserved.
Suunto, Movesense and their logos and other Suunto brand trademarks and made names
are registered or unregistered trademarks of Suunto Oy. All rights are reserved.
7.5. Warranty
Coverage
Runteq warrants that during the warranty period Runteq or a Runteq authorized service
will, at its sole discretion, remedy defects in materials or workmanship free of charge
either by a) repairing, or b) replacing, or c) refunding, subject to the terms and conditions
of this Limited Warranty. This limited Warranty is only valid and enforceable in the country
of purchase, unless local law stipulates otherwise.
Warranty Period
The Limited Warranty Period starts at the date of original retail purchase. The Warranty
Period is one (1) year.
Exclusions and Limitations
This Limited Warranty does not cover:
1. a) normal wear and tear such as scratches, abrasions, or alteration of the color
and/or material of non-metallic straps, b) defects caused by rough handling, or c)
defects or damage resulting from use contrary to intended or recommended use,
improper care, negligence, and accidents such as dropping or crushing;
2. printed materials and packaging;
3. defects or alleged defects caused by use with any product, accessory, software
and/or service not manufactured or supplied by Runteq;
4. non-rechargeable batteries.
Runteq does not warrant that the operation of the product will be uninterrupted or error
free, or that the Product or accessory will work with any hardware or software provided
by a third party.
This limited warranty is not enforceable if the product:
1. has been opened beyond intended use;
2. has been repaired using unauthorized spare parts; modified or repaired by
unauthorized Service Center;
3. serial number has been removed, altered or made illegible in any way, as
determined at the sole discretion of Runteq and Suunto; or
4. has been exposed to chemicals including but not limited to sunscreen and
mosquito repellents.
RUNTEQ SRS HR USER GUIDE
ENv001(Jan 2019)
Page 8 of 9
Access to Runteq warranty service
You must provide proof of purchase to access Runteq warranty service. For instructions
how to obtain warranty service, visit www.runteq.com/support, contact your local
authorized Runteq retailer, or contact Runteq by email.
Limitation of Liability
To the maximum extent permitted by applicable mandatory laws, this Limited Warranty is
your sole and exclusive remedy and is in lieu of all other warranties, expressed or implied.
Runteq shall not be liable for special, incidental, punitive or consequential damages,
including but not limited to loss of anticipated benefits, loss of data, loss of use, cost of
capital, cost of any substitute equipment or facilities, claims of third parties, damage to
property resulting from the purchase or use of the item or arising from breach of the
warranty, breach of contract, negligence, strict tort, or any legal or equitable theory, even
if Runteq knew of the likelihood of such damages. Runteq shall not be liable for delay in
rendering warranty service.
7.6. Copyright
Copyright © Runteq Oy Ltd. All rights reserved.
Runteq, its logos and other Runteq brand trademarks and names are registered or
unregistered trademarks of Runteq Oy. This document and its contents are proprietary to
Runteq Oy and are intended solely for the use of clients to obtain knowledge and
information regarding the operation of Runteq. Its contents shall not be used or
distributed for any other purpose and/or otherwise communicated, disclosed or
reproduced without the prior written consent of Runteq Oy.
Suunto, Suunto product names, their logos, Movesense and other Suunto brand
trademarks and names are registered or unregistered trademarks of Suunto Oy.
While we have taken great care to ensure that information contained in this
documentation is both comprehensive and accurate, no warranty of accuracy is
expressed or implied. This document content is subject to change at any time without
notice. The latest version of this documentation can be downloaded at www.runteq.com.
RUNTEQ SRS HR USER GUIDE
ENv001(Jan 2019)
Page 9 of 9
RUNTEQ CUSTOMER SUPPORT!
Web page www.runteq.com/support
Twitter www.twitter.com/runteq
Facebook www.facebook.com/Runteq
!
© Runteq Ltd
RUNTEQ is a trademark of Runteq Ltd. All Rights reserved.
Table of contents
