Ruris BRAVO 240 User manual

EN
RURIS RR240, 241, 242
BRAVO BRUSHCUTTER

EN
Content
1. Introduction...............................................................................................................3
2. Safety instructions.....................................................................................................4
2.1 Labels on the machine.......................................................................................4
3. Brushcutter overview.................................................................................................5
4. Technical data...........................................................................................................6
5. Assembly..................................................................................................................7
6. Fuel supply .............................................................................................................12
6.1 The mixture......................................................................................................12
6.2 Supply..............................................................................................................13
6.2 Fuel handling safety.........................................................................................14
7. Commissioning .......................................................................................................14
7.1 Running-in........................................................................................................17
8. Pre-operation checks..............................................................................................17
9. Brushcutter using....................................................................................................18
9.1 Mowing methods..............................................................................................19
9.2 Blade Types.....................................................................................................23
9.3 Warnings..........................................................................................................24
9.4 Digital Monitoring .............................................................................................25
10. Maintenance.........................................................................................................31
10.1.1 Maintenance table.......................................................................................32
11. Storage of the BRUSHCUTTER............................................................................33
12. Declarations of conformity.....................................................................................34

EN
3
1. INTRODUCTION
Dear Customer!
Thank you for your decision to purchase a RURIS product and for your trust in our
company! RURIS has been on the market since 1993 and during all this time it has
become a strong brand, which has built its reputation by keeping promises, but also by
continuous investments aimed at helping customers with reliable, efficient and quality
solutions.
We are confident that you will appreciate our product and enjoy its performance for a long
time. RURIS does not offer its customers only machines, but complete solutions. An
important element in the relationship with the customer is the counselling both before and
after the sale, as RURIS customers have at their disposal a whole network of partner
stores and service points.
To enjoy the purchased product, please read the user manual carefully. By following the
instructions, you will be guaranteed a long use.
The RURIS company is continuously working on the development of its products and
therefore reserves the right to modify, among other things, their form, appearance and
performance, without having the obligation to communicate this in advance.
Thank you once again for choosing RURIS products!
Customer information and support :
Phone: [phone]
e-mail: [e-mail]

EN
4
2. SAFETY INSTRUCTIONS
2.1 LABELS ON THE MACHINE
Danger!
Do not use the brushcutter at a distance of less than 15 m
near other people!
Risk of bodily injury to people near the brushcutter!
Attention to the blade or trimmer head!
Read the user manual!
Use protective helmets!
Use protective gloves!

EN
5
Use protective boots or shoes !
3. BRUSHCUTTER OVERVIEW
1. Air filter
2. Handles
3. Handle support
4. Transmission pipe
5. Protective shield
6. Reducer head
7. Blade
8. Throttle lever
9. On/off switch
10. Electric wiring
11. Engine
12. Starter
13. Fuel tank

EN
6
14. Transmission fixing clamp
4. TECHNICAL DATA
Model
240 BRAVO
241 BRAVO
242 BRAVO
Engine
Khumma concept, 2
strokes
Khumma concept, 2
strokes
Khumma concept, 2
strokes
Maximum
engine power
1 hp
1 hp
1 hp
Cylinder
capacity
24 cc
24 cc
24 cc
Fuel
Unleaded gasoline
Unleaded gasoline
Unleaded gasoline
Fuel mixture
25 ml of oil/ liter of
gasoline
25 ml of oil/ liter of
gasoline
25 ml of oil/ liter of
gasoline
Fuel tank
capacity
600 ml
600 ml
600 ml
Start-up
Manual
Manual
Manual
Transmission
shaft
Flexible
Rigid
Rigid, modular –Ergo
Comfort

EN
7
Digital
monitoring
Yes, with 6 functions:
Total working time,
partial working time,
hour, rpm, counter
with air filter
cleaning/change
warning, counter with
spark plug change
warning, counter with
reducer greasing
warning
Yes, with 6 functions:
Total working time,
partial working time,
hour, rpm, counter
with air filter
cleaning/change
warning, counter with
spark plug change
warning, counter with
reducer greasing
warning
Yes, with 6 functions:
Total working time,
partial working time,
hour, rpm, counter
with air filter
cleaning/change
warning, counter with
spark plug change
warning, counter with
reducer greasing
warning
Accessories
Trimmer head
and 2 teeth blade
Trimmer head
and 3 teeth blade
Trimmer head, 2
teeth blade and 3
teeth blade
Cutting width
255 mm
255 mm
255 mm
Harness
Single belt
Single belt
Single belt
Handle support
With axial adjustment
With axial adjustment
With axial adjustment
Weight
3.8 kg
3.9 kg
4.0 kg
Maximum power is the power of the engine, at idle, without air filter and muffler.
Net weight is without fuel, without cutting tools, without shields, without command and
control elements.
5. ASSEMBLY
Before installation and commissioning, you must ensure that the brushcutter is correctly
assembled accordingto the assembly plan and follow the instructions in this user manual.
Only then you can proceed to actual commissioning.

EN
8
Coupling the transmission to the engine unit (for models that do not have a
coupled transmission)
Connect the transmission to the engine unit using the screws and washers provided.
Fitting the handles
Loosen the screws located on the clamp, by unthreading, until it is free from the thread,
then fix the handles in the working position.

EN
9
Mounting the protective shield
Fit the protective shield to the fixing points and firmly tighten the locking screw.
This has the role of protecting the user from hard bodies that can bounce during use as
well as as the role of load limiter.
Careful! Do not use the brushcutter without this protection shield.
Transmission coupling

EN
10
For modular transmissions that come in two segments, they must be joined together
using the fixing clamp and lock nut.
Assembly - disassembly of the blade and trimmer head
To proceed properly you will need to have the following necessary tools at hand: the hex
key with blocker and the wrench in the brushcutter equipment.

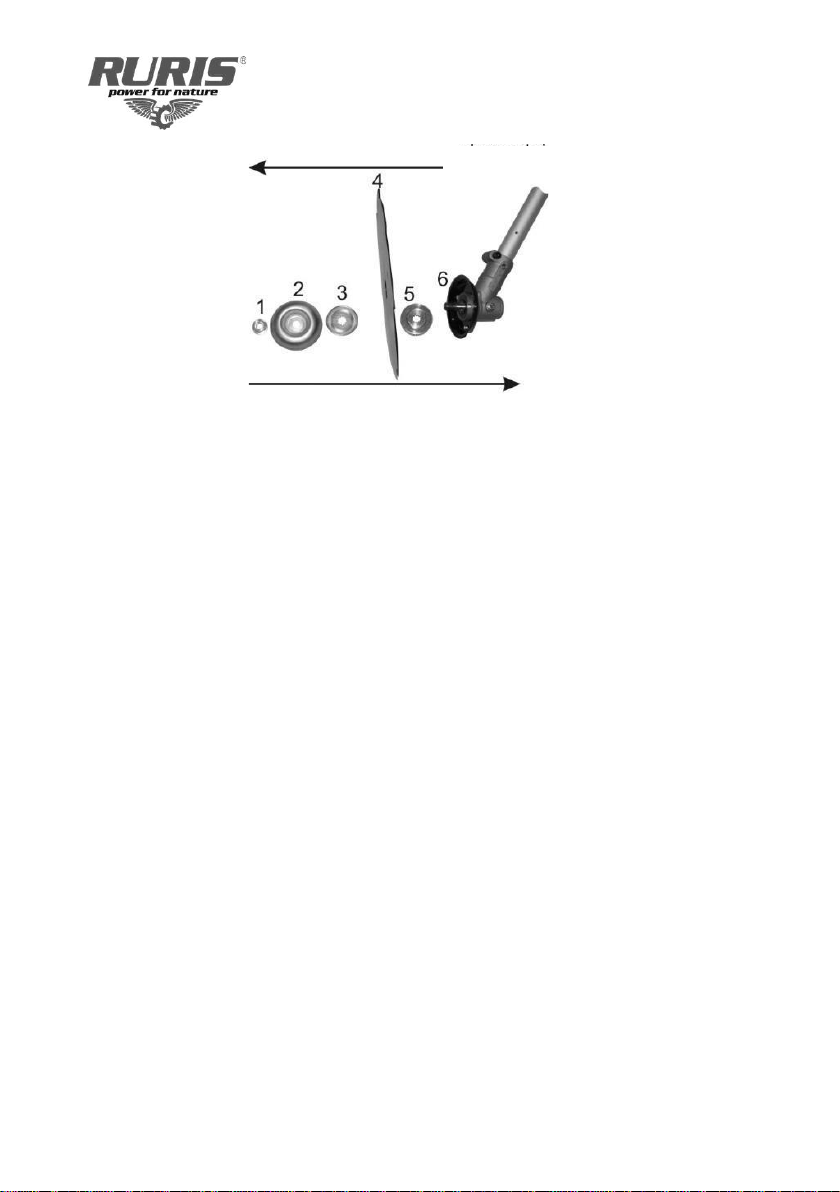

The assembly-disassembly order is shown in fig. 7
Use the hex key with blocker supplied with the brushcutter and position it in the locking
hole of the reducer head and in the locking hole of the spacer in fig. 7 poz. 5.
Use the wrench supplied with the bruhcutter, secure the lock nut and turn
counterclockwise to tighten, or clockwise to loosen.
The 3-teeth blade (item 4 Fig. 7) can be installed on any side with double cutting edge.

EN
11
Fig. 7
Check that the whole assembly is correctly installed and that the blade is firmly tightened
without axial or transverse play.
When installing the trimmer head, items 1, 2, 3 and 4 in Fig. 7 are not used. The hex key
with blocker (pos. 5, Fig. 7) is used, which helps locking the shaft of the reducer head,
and the trimmer head is then threaded, counterclockwise, by hand, with the help of the
wrench and tighten strongly.
If you fail to do so, you should immediately visit your nearest Ruris authorized service
point to have this problem solved.
Harness assembly
To install the harness you will need to position it on the shoulders and then secure it.
The harness can be easily attached to the user's body by means of fast-type adjusting
elements, without the user wasting time or discomfort during operation.
With rapid adjustment, the user can start working immediately.
Disassembly
Assembly

EN
12
In order to position the brushcutter correctly in the harness, make sure that it is in balance
and does not touch the ground.
To balance the brushcutter in relation to the harness and height
of the user, you will need to perform the following maneuvers:
- make sure that the belt is located one palm width below the
user's hip
- position the brushcutter in the safety of the harness and leave
it free
- if the brushcutter is not in balance and touches the ground surface with the blade or the
brushcutter tends to be tilted towards the engine you will need to reposition the located
fixing system on the transmission pipe of the brushcutter to the engine or the blade until
you find the balance point of the brushcutter.
In this case the operation will be done easily without supporting the brushcutter on the
hands.
6. FUEL SUPPLY
6.1 THE MIXTURE
ATTENTION!
1. Gasoline is flammable. Avoid open flames near fuel. Stop the engine and let it
cool before refueling.
2. RURIS engines are lubricated with oil specially made for air-cooled 2-stroke
gasoline engines. If you do not use an API TC class oil or a higher class, during
the warranty period, you risk losing the warranty.
mixture ratio : 1l gasoline + 25ml oil 2 strokes. Gas emissions are controlled by the
fundamental parameters and components of the engine (eg: carburetor, ignition
timing, muffler)
3. These engines are certified to run on unleaded gasoline.

EN
13
4. Make sure you use gasoline with a minimum octane number of 95.
5. Unleaded gasoline is recommended to reduce air pollution in order to protect
the environment.
6. Poor quality gasoline or oils can damage the sealing rings, fuel intake hoses,
piston, rings, cylinder or engine fuel tank.
Recommended mixing rate
Mixing rate
Gasoline liters 1 2 3 4 5
Ml oil for 2-stroke engines 25 50 75 100 125
▪measure exactly the amount of gasoline and for oil we recommend using a
graduated syringe.
▪homogenization is done by stirring the mixture in a fuel container without
impurities.
▪put the gasoline in a clean fuel container.
▪pour in all the oil and mix well.
▪place a clear label on the outside of the container to avoid confusion with other
containers.
6.2 SUPPLY
Place the brushcutter on a work table, unscrew the
fuel tank cap and pour in the fuel mixture. You can
find information about the volume of the fuel tank
in the table in the "TECHNICAL DATA" chapter. Do
not use fuelstored inthe tank formore than 7days.
NOTE: Do not use the machine until the fuel in the
tank is completely finished. Refuel before it is
completely finished. If you find that the engine is running at a high speed and the fuel in
the tank is about to run out, stop the engine and refuel. Start the engine and let it idle, or
at a low speed, for 30 seconds. These are the basic requirements for using a two-stroke
engine.

EN
14
6.2 FUEL HANDLING SAFETY
This fuel is extremely flammable. Do not smoke or bring flame or
sparks near fuel.
1. Stop the engine before refueling.
2. Using the wrong oil can lead to clogging of the spark plug, clogging of the muffler or
sticking of the piston rings.
3. Move at least 3 meters away from the fuel point before starting the engine.
4. Using an improper fuel will cause severe damage to the internal parts of the engine in
a short time.
7. COMMISSIONING
Before putting the mower into operation, you must ensure that the following conditions
are met:
▪within a radius of 5 meters on either side of the brushcutter, there are no
persons or objects with which it could come into contact;
▪the brushcutter is placed in a horizontal position on the ground;
▪the cables are assembled correctly;
▪the handles are correctly installed and fixed;
▪the reducer head has Vaseline graffitiated on the screw;
CAUTION

EN
15
▪the mixture of Ruris 2tt Max oil or an API classification oil: TC or higher and
fuel is correctly proportioned 25 ml oil / 1 liter fuel ( unleaded gasoline );
▪the mixture is made in a special container and homogenized for 1 minute, the
mixture cannot be used with an age of more than 7 days in optimal conditions.
▪the engine has enough fuel to start;
▪the throttle lever is fully operated and in the intermediate position for cold start
and locked;
▪the switch on - off is positioned “I” ( start )
▪the blade is installed and fixed correctly, provided with the safety nut;
▪the protection shield is installed correctly
▪all the screws of the brushcutter are tightened firmly.
Starting the engine
Prime the gasoline carburetor by 5-7 successive presses of the gasoline pump.
Place the shock flap in the closed position and the switch in the ON position

EN
16
Hold the brushcutter firmly with your left hand and pull the starter rope with your right
hand.
The pulling of the rope must be done in two stages. The first stage will be done by gently
pulling the starter until the rope is pre-tensioned. The second stage will be by constant
pulling. The pull is performed until you hear the first start symptom. After the first starting
symptom stop pulling the starter rope and switch the shock flap to the open position
At this point pull the starter rope in the same manner previously explained until the engine
starts at full speed.
To idle the engine, press the throttle lever and then release.
ATTENTION! Do not pull suddenly the starter because you risk damaging the entire
starter assembly.
Pulling is always done by pretentioning the starter rope.
Stopping the engine
Stopping the brushcutter engine is done as follows:
▪Release the throttle lever and allow the engine to run for about 1 minute.
▪Turn the switch to the OFF position.
Checks required if the brushcutter does not respond to commands
When theenginewon't start:
When the engine does not start:
1. Check that the on / off switch is in the “I” position.
2. Check if there is enough fuel.
3. Check that the priming pump is full of gasoline.
4. Check the spark plug for spark.

EN
17
5. Check that the fuel mixture is not older than 7 days in optimal conditions.
WARNING: If the brushcutter does not respond to commands or does not work properly,
you must contact an authorized Ruris service immediately.
7.1 RUNNING-IN
Running-in should be done at idle and not under load. Three tanks of gasoline at idle, no
load. At intervals of 10-15 min, it accelerates to maximum, for 10-15 sec, to evacuate the
unburnt oil from the muffler
8. PRE-OPERATION CHECKS
Make sure that:
•The brushcutter is installed correctly and completely.
•The fuel mixture respects the indicated proportion of oil and gasoline: 25 ml
of oil/1 liter of gasoline
•The oil used is RURIS brand: RURIS 2TT -MAX or an API classification oil:
TC or higher
•The reducer head is filled with RURIS vaseline, the indicated level is given by
the vaseline located on the top of the screw in the supply area according to
the installation method shown below according to figure 1. Its capacity is
approx. 20 grams
●Installing the blade or trimmer head is done correctly according to the
information in Fig 1.1
Reducer
Vaseline supply hole
Vaseline

EN
18
•The drive of the reduction transmission is done by operating the throttle lever
at maximum.
•Check that the protection shield is fixed correctly.
Fig. 1.1
Assembly - disassembly of the blade and trimmer head
Careful! When assembling the cutting blade, use the lock hex key to unscrew the
tightening nut clockwise. After installing the cutting blade, make sure that the nut is well
tightened and the cutting blade is well fixed, guided and has no deformations or cracks
on its surface, otherwise replace it.
9. BRUSHCUTTER USING
RURIS brushcutters brand are products that allow you to easily choose the mowing
mode, without having to perform successive adjustment or maintenance maneuvers.
Brushcutters create a unitary body with the user and provide maximum comfort and
perfect operation.
In order to be able to use the brushcutter in optimal working conditions, you will need to
check before starting the mowing operation if there are objects wood stumps, stones,
Blade
Protection cap
Nut
Blade spacer
washer
Lock
washer
Trimmer head

EN
19
wires, mosses, etc. on the mowing surface, objects with which the cutting disc may come
into contact.
If you find such objects you will have to remove them from the surface to be mowed. At
the same time, unevenness or other elements that could endanger your safety during
exploitation will have to be highlighted by markings in those areas.
Careful! To be able to operate the brushcutter safely, you will have to read the user
manual and follow the markings on the parts of the brushcutter.
It is forbidden to use the brushcutter without a harness.
Make sure that before starting the operation, there are no people or
animals within a radius of at least 15 meters that you could injure because
at the maximum speed of the cutting disc through contact with the gravel
in the ground or other objects they can be projected .
After you have started the mower and positioned it in the safety of the harness, you can
proceed to its operation. For your safety, avoid contact of the blade with stones or hard
objects.
The transmission start-up is done by operating the throttle lever to the maximum, during
the mowing process, without fluctuations that create shocks in the transmission and
cause its premature wear.
9.1 MOWING METHODS
1. Spiral mowing method or number 9
•Start mowing from the outside of the surface, at the same time
choose your mowing mode, you can mow to the right or left. It is
recommended not to mow in both directions, as you risk stepping on
the mowed hay in the direction of return, according to the fig. 10

EN
20
Fig. 10
2. Straight mowing method
Before you start mowing, set a point of reference to which you are going to move. The
mowing can be done by orienting the handles consecutively to the right or left
depending on the actual way of mowing
