Russell Hobbs RHI628 Installation guide

INSTRUCTIONS AND WARRANTY
RHI628
RUSSELL HOBBS STEAM, SPRAY, DRY IRON

Congratulations on purchasing our Russell Hobbs Steam, Spray, Dry Iron. Each unit is
manufactured to ensure safety and reliability. Before using this appliance for the first time,
please read the instruction manual carefully and keep it for future reference.
FEATURES OF THE RUSSELL HOBBS STEAM, SPRAY, DRY IRON
2200W
Dry, steam and spray ironing
Powerful burst of steam
Variable steam control
Convenient swivel cord with cord wrap area
Overheat safety protection circuit
Stainless steel soleplate
Includes water measuring cup
With indicator light and heel rest
Water spray feature

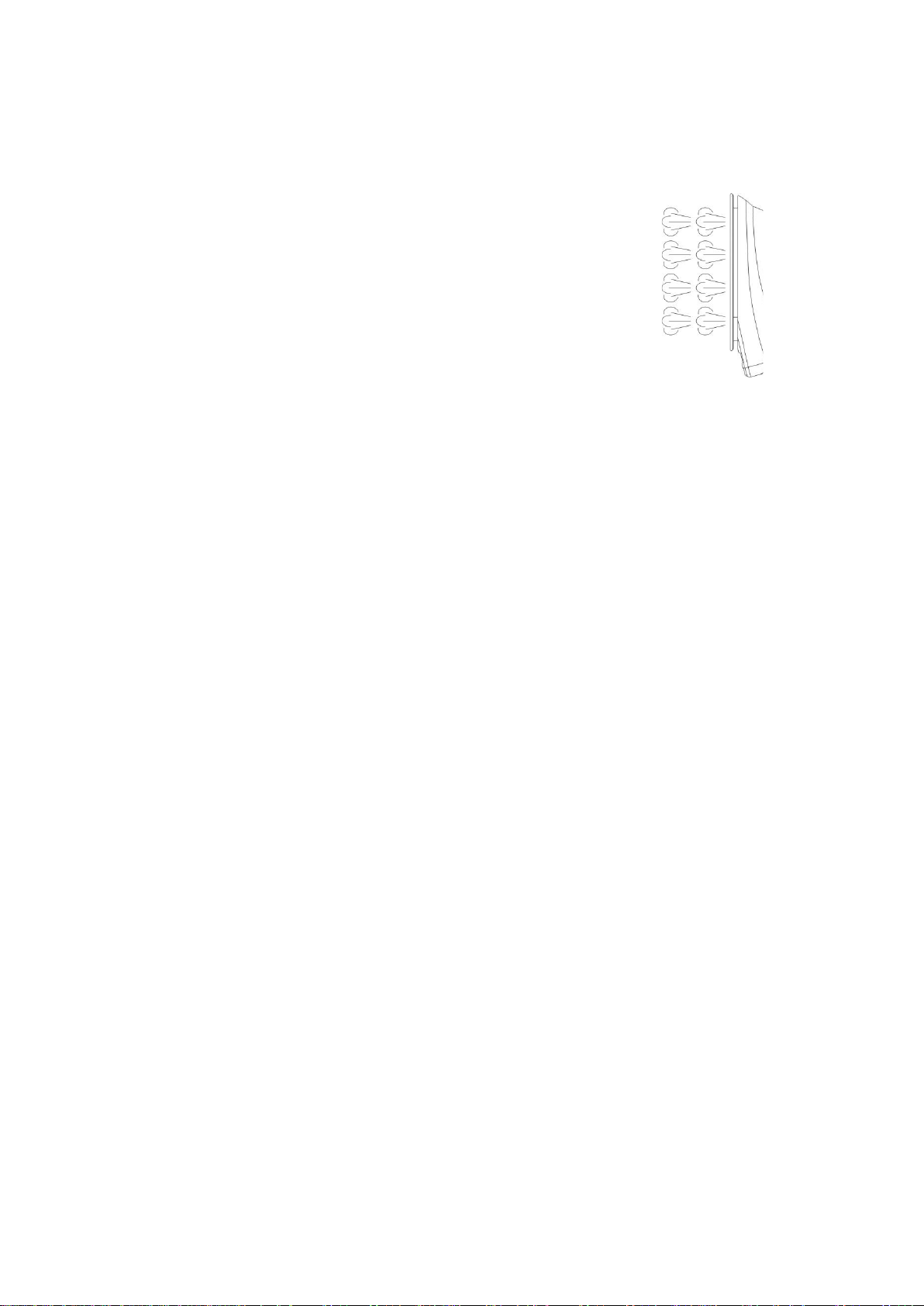

Vertical steam feature, ideal for suits, dresses and delicate fabrics
High wattage for faster heat-up time and performance –time saving on those
dreaded laundry days
Adjustable thermostat control
Fabric temperature guide
Self-cleaning
Soft grip handle
Water tank capacity: 220ml
For domestic use only
1 year warranty
IMPORTANT SAFEGUARDS
When using any electrical appliance, basic safety precautions should always be followed
including the following:

1. Please read the instructions carefully before using any appliance.
2. Always ensure that the voltage on the rating label corresponds to the mains voltage
in your home.
3. Incorrect operation and improper use can damage the appliance and cause injury to
the user.
4. The appliance is intended for household use only. Commercial use invalids the
warranty and the supplier cannot be held responsible for injury or damage caused
when using the appliance for any other purpose than that intended.
5. Avoid any contact with moving parts.
6. This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
7. Children should be supervised to ensure that they do not play with the appliance.

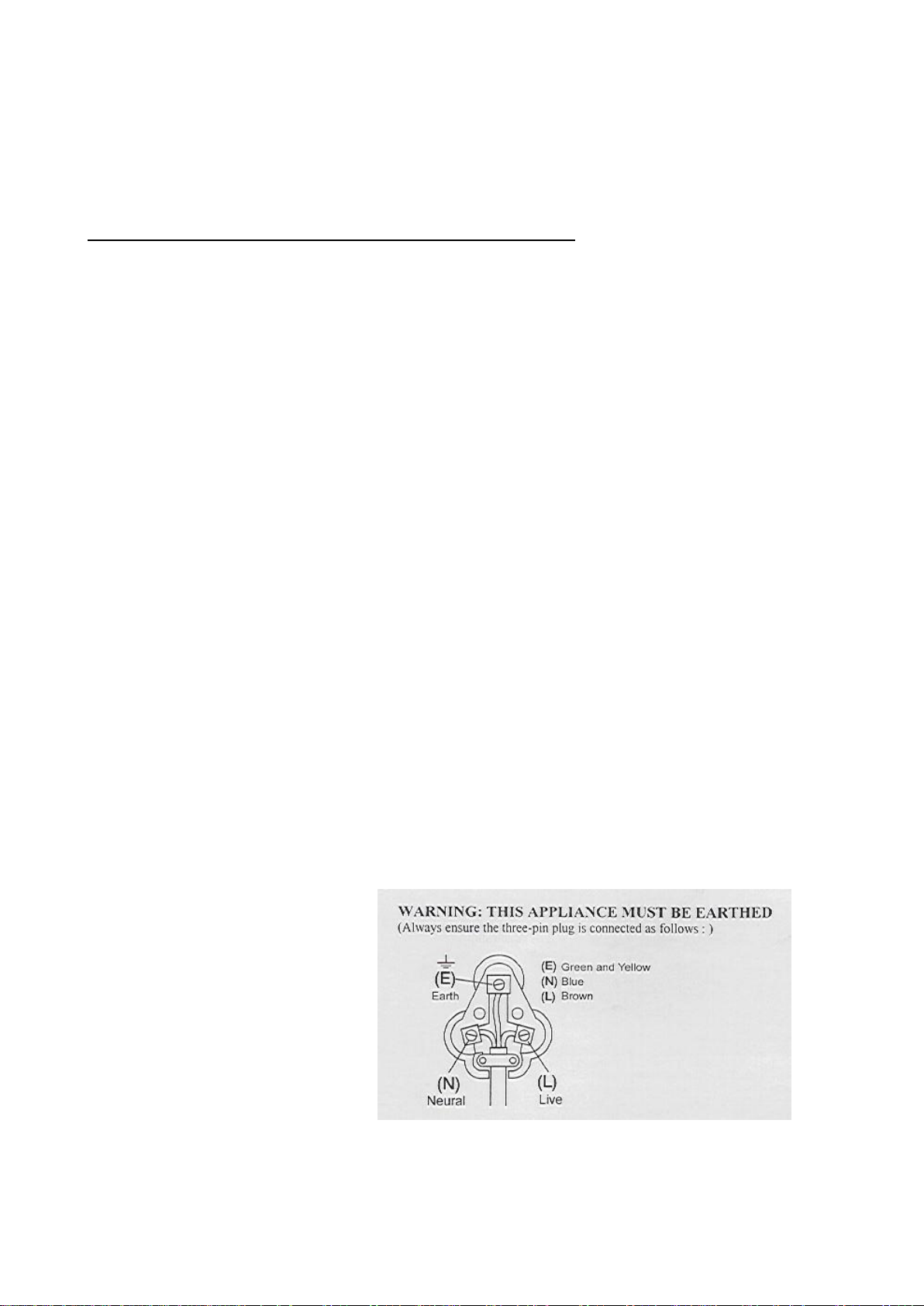

8. Check the power cord and plug regularly for any damage. If the cord or the plug is
damaged, it must be replaced by the manufacturer or a qualified person in order to
avoid an electrical hazard.
9. Do not use the appliance if it leaks, has been dropped or damaged in any way. In
case of damage, take the unit in for examination and/or repair by an authorised
service agent
10.To reduce the risk of electric shock, do not immerse or expose the motor/ electrical
assembly, plug or the power cord to water or any other liquid.
11.Never immerse the unit in water or any other liquid for cleaning purposes.
12.Remove the plug from the socket by gripping the plug. Do not pull on the cord to
disconnect the appliance from the mains. Always unplug the unit when not in use,
before cleaning or when adding or removing parts.
13.The use of accessory attachments that are not recommended or supplied by the
manufacturer may result in injuries, fire or electric shock.
14.A short cord is provided to reduce the hazards resulting from becoming entangled in
or tripping over a longer cord.
15.Do not let the cord hang over the edge of a table or counter. Ensure that the cord is
not in a position where it can be pulled on inadvertently.
16.Do not allow the cord to touch hot surfaces and do not place on or near flammable
goods, near an open flame, hot gas or electric burner or a heated oven.

17.Use of an extension cord with this appliance is not recommended. However, if it is
necessary to use an extension lead, ensure that the lead is suited to the power
consumption of the appliance to avoid overheating of the extension cord, appliance
or plug point. Do not place the extension cord in a position where it can be pulled on
by children or animals or tripped over.
18.This appliance is not suitable for outdoor use. Do not use this appliance for anything
other than its intended use.
19.DO NOT carry the appliance by the power cord.
20.Always operate the appliance on a smooth, even, stable surface. Do not place the
unit on a hot surface.
21.Ensure that the switch is in the “0” or “OFF” position after each use.
22.Don’t iron clothing while it’s being worn – you’ll burn or scald the wearer.
23.Don’t touch the soleplate and keep away from the steam emitting from it.
24.Take care when emptying the iron –it may contain hot water.
25.Don’t use the iron in the vicinity of children.
26.Use the iron on a stable, level, heat-resistant surface, preferably an ironing board.
27.Don’t leave the iron unattended while plugged in, or while it’s standing on the
ironing board. It could be knocked over by you, by a child or by a pet.
28.Don’t fill the iron directly from the tap, use the water beaker provided.
29.Don’t fill past the MAX level mark shown on the water tank or water leak from the
iron during use.
30.Deposits or minerals in the water supply will generate scale and block the steam
holes in the soleplate. It is advisable to use distilled water when filling your iron. Do
not use chemically distilled water.
31.Leave the iron upright to cool down fully before cleaning and storing away.
32.Don’t use the iron for any purpose other than those described in these instructions.
33.Take care not to scratch the soleplate –avoid buttons, zips, etc.
34.When placing the iron on its heel rest, ensure that the surface on which is has been
placed is clean and stable.
35.The iron has a protective thermal fuse, which will blow if it overheats. If this
happens, the iron will stop working and must be returned for repair.
36.Always unwind and straighten the power cord before use.
37.Unplug the iron from the mains electrical supply before:
Cleaning
Filling with water or emptying the water tank

Immediately after use
When not in use
When moving
38.The appliance generates high temperature steam. Always handle with care and
warn other users of potential danger.
39.Don’t let the power cord touch the soleplate as it may result in damage as well as a
potential fire hazard.
40.Empty the water tank after each use.
41.Do not add perfume, vinegar or other chemical liquids into the water tank as they
may result in damage to the appliance.
42.Do not operate this appliance by means of an external timer.
43.The manufacturer does not accept responsibility for any damage or injury caused
by improper or incorrect use, or for repairs carried out by unauthorised personnel.
44.In case of technical problems, switch off the appliance and do not attempt to repair
it yourself. Return the appliance to an authorised service facility for examination,
adjustment or repair. Always insist on the use of original spare parts. Failure to
comply with the above mentioned pre-cautions and instructions, could affect the
safe operation of this appliance.

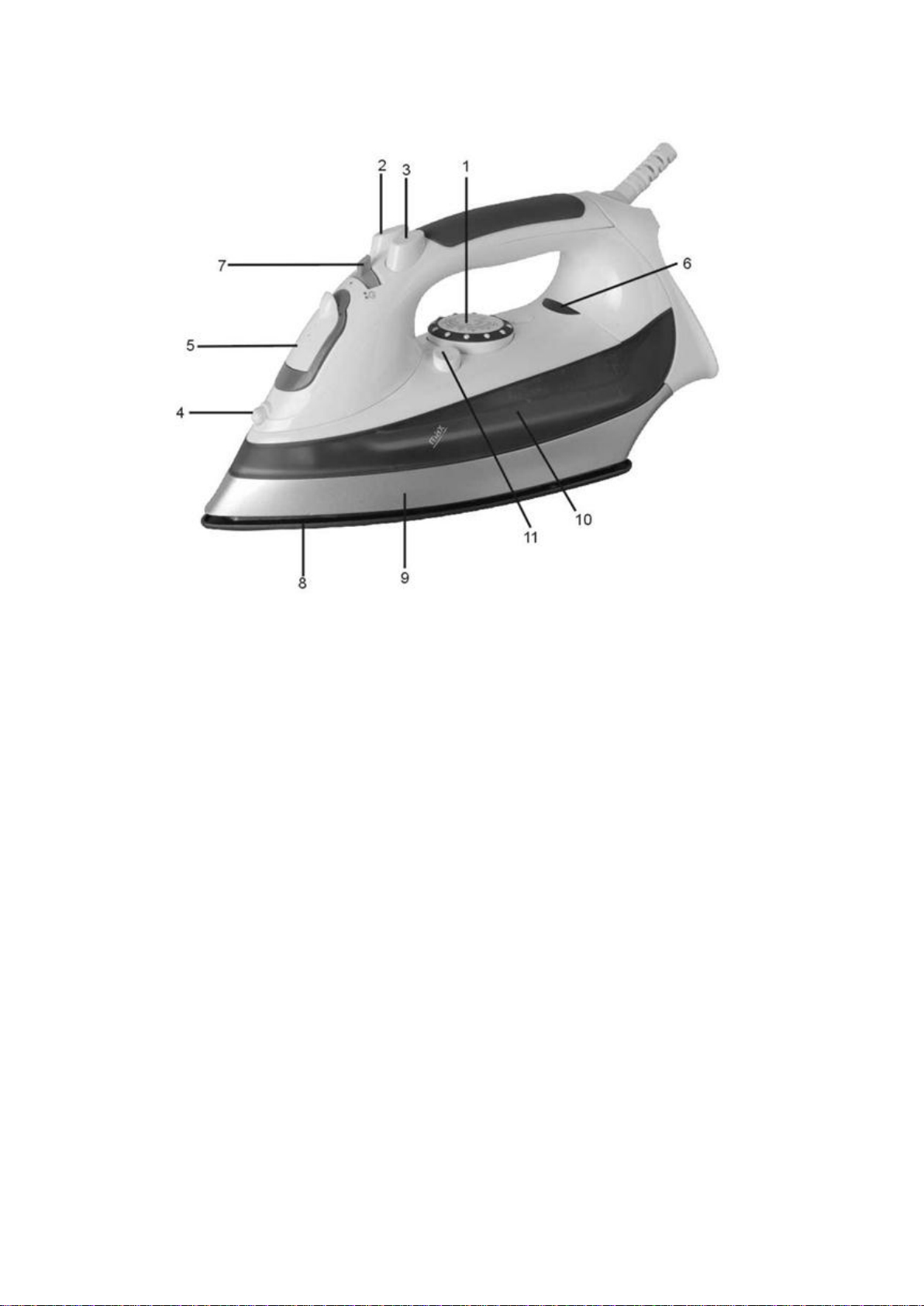

PARTS DIAGRAM
1. Temperature Dial
7. Steam Knob
2. Steam Button
8. Soleplate
3. Spray Button
9. Skirt
4. Spray Nozzle
10. Water Tank
5. Water Inlet Cover
11. Self-Clean Button
6. Pilot Light Indicator
OPERATING INSTRUCTIONS
BEFORE FIRST USE
Remove any protective films or stickers from the soleplate and the Iron’s body. Wipe the
soleplate with a dry soft cloth. Unwind and straighten the power cord. Fill the iron as
described in the section “How to Fill the Water Tank”. Connect the appliance to a
suitable mains power supply outlet. Turn the Temperature Dial to the MAX position; the
pilot light will glow to indicate that the iron is heating up. Once the pilot light goes off, then
the required temperature is reached. Move the steam knob to the ON position - steam
L

starts to come out from the vents on the soleplate. Begin first time ironing with an old
towel. When the water tank is empty and there is no more steam that can be produced;
the preparation work is completed. The iron is now ready for proper use.
Note: It is normal for small amount of smoke to be produced the first time you use the
iron, this will quickly disappear. When using the steam function for the first time, do not
direct the steam towards the laundry, as there could be debris from the steam vents.
HINTS AND TIPS FOR IRONING
1. Sort the articles to be ironed according to the type of fabric. This will minimize the
frequency of temperature adjustment for different garments.
2. Start ironing the fabrics requiring the lowest temperature and progress to the higher
ones because the iron heats up quicker than it cools down.
3. “Test iron” a small area on the backside or inside of the garment if you are unsure
about the type of fabric. Start with a low temperature and increase gradually.
4. Wait for about three (3) minutes before ironing heat sensitive fabrics. ‘Temperature
adjustment’ will need a certain time to reach the required level no matter if it is
higher or lower.
5. Delicate fabrics such as silk, wool, velour, etc. are best ironed with an ironing cloth
to prevent shine marks.
6. You may need to press the steam button a few times to activate the burst of steam
function.
7. Always keep the soleplate smooth –avoid contact with sharp, hard, metal objects.

READ THE GARMENT LABELS AND FOLLOW THE MANUFACTURER’S IRONING
INSTRUCTIONS THAT ARE OFTEN SHOWN BY SYMBOLS SIMILAR TO THE
FOLLOWING:
IRONING LABEL
TEXTILE TYPE
FABRICS
Synthetic
Acrylic
Polypropylene
Polyurethane
Synthetic
Acetate
Triacetate
Synthetic
Polyamide (Nylon)
Polyester
Viscose(Rayon)
Silk
Silk
Wool
Wool
Cotton
Cotton
Linen
Linen
NOTE: If the fabric consists of various kinds of fabrics, always select the temperature
required by the most delicate fabrics.
HOW TO FILL THE WATER TANK
1. Disconnect the appliance from main power supply outlet.
2. Ensure that the temperature dial and steam knob are in the “0” and “OFF”
positions.

3. Open the water inlet cover.
4. Place the iron on its heel rest and tilt forward approximately at a 45 degree angle.
5. Fill water through the water-filling inlet hole up to the MAX level mark indicated on
the side of the iron/ water tank. Never fill above this mark.
6. Close the water inlet cover and wipe off any spillages on Iron.
Note: For the best result, it is advisable to use de-mineralized water or distilled water. Do
not use chemically de-scaled water or any other liquids.
WATER SPRAY FUNCTION
This function can be used at any time and it does not affect other functions. Press the
spray button to spray water on clothes, as often as required.
NOTE: When using the water spray function, ensure that there is enough water in the
water tank. You may have to pump the spray button several times during first use in order
to start the spraying function.
DRY IRONING
This function irons without the use of steam.
1. Connect the iron with a suitable mains power supply outlet.
2. Set the steam knob to position “0”/ “no steam”.
3. Turn the temperature dial to the correct ironing temperature according to the
recommendation of the garment label.
4. The pilot light will glow to indicate that the iron is heating up.
5. When the required temperature is reached, the pilot light goes off. The iron is ready
to use.
6. After use, turn the temperature dial to the “0”/ “OFF” position to switch off.
7. Disconnect the iron from mains power supply outlet.
8. Follow cleaning and maintenance instructions.

STEAM IRONING
This function can only be used at a higher ironing temperature –moderate or max position.
1. Fill the iron as described in "How to Fill the Water Tank".
2. Connect the iron to a suitable mains power supply outlet.
3. Turn the temperature dial to the MAX position.
4. The pilot light will glow to indicate that the iron is heating up.
5. The pilot light will go off when the required temperature is reached. During ironing,
the pilot light on the iron automatically switches on/off as the thermostat maintains
the set temperature (you may continue ironing during this process).
6. The iron is ready for use.
7. Set the steam knob correctly. Increase steam output by pushing the steam knob to
the right and decrease steam output by pushing the steam knob to the left.
Caution: Synthetic fabric, Nylon, Synthetic Silk and Silk cannot be steam ironed as
it will damage the finish of the fabric.
8. After use, turn the temperature dial to the “0”/ “OFF” position - the iron is now
switched off.
9. Disconnect the iron from mains power supply outlet.
10.Follow the cleaning and maintenance instructions.
Note: Water may leak from the soleplate if too low a temperature has been selected. If this
happens, turn the temperature dial to the advised position. Steam will recommence as
soon as the appropriate temperature has been reached.
BURST OF STEAM
This function works well for tough wrinkles and heavy fabrics. By pressing the steam
button, an intense burst of steam is emitted from the soleplate. This can be very useful
when removing stubborn creases. This function can be used once the iron has reached
maximum temperature. For optimal results, there should be a five (5) second interval
between presses of the steam button. To prevent leaking water from the soleplate, do not
press the steam button continuously for more than three (3) seconds. Allow at least a one
(1) minute interval before press the steam button again. Stubborn creases should be
