55cm Wide Fridge Freezer
with Water Dispenser
Instruction Manual

Contents
Safety Instructions ………………………………………. 3-4
Electrical Safety ………………………………………. 4
Transportation & Handling ………………………………………. 5
Installing & Switching on your Appliance ………………………………………. 5
Before Switching On ………………………………………. 6
Product Overview ………………………………………. 7
Unit & Spare Parts ………………………………………. 7
Usage ………………………………………. 8-12
Temperature Selection ………………………………………. 8
Water dispenser ………………………………………. 9-12

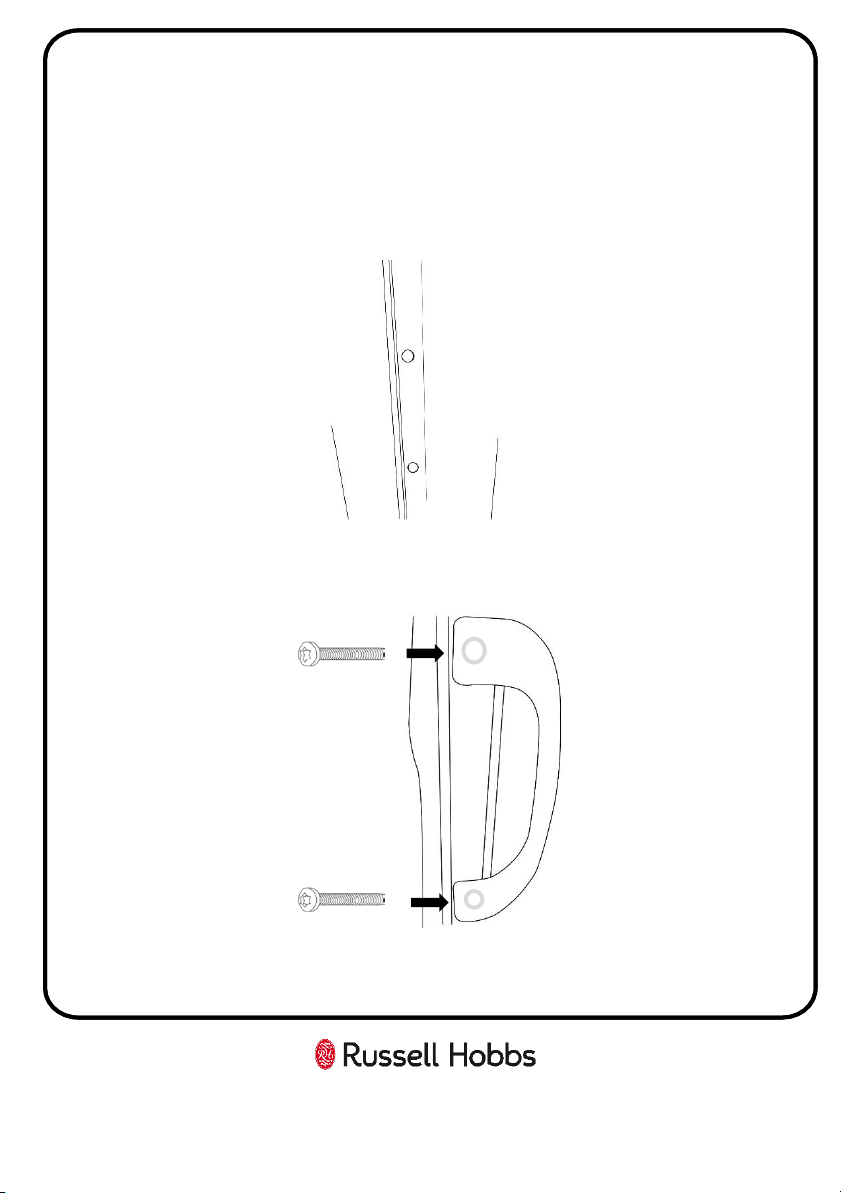

Handle assemble ………………………………………. 13

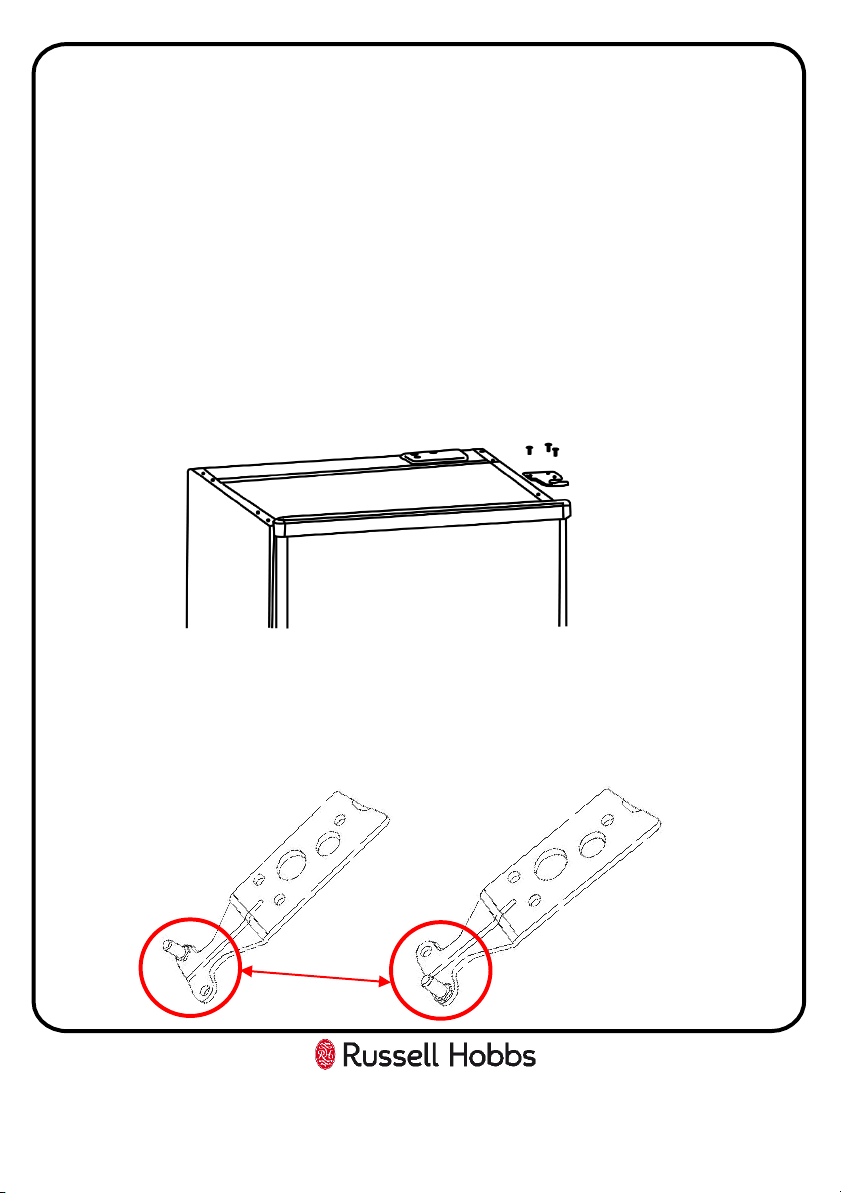

Door Reversal ………………………………………. 14-17
Replacing the Light ………………………………………. 17
Energy Saving Advice ………………………………………. 18
Freezer Storage Advice ………………………………………. 18
Power Failure ………………………………………. 19
Maintenance & Cleaning ………………………………………. 20-21
Internal Cleaning ………………………………………. 20
External Cleaning ………………………………………. 20
When not in Use ………………………………………. 20
Defrosting ………………………………………. 21
Trouble Shooting ………………………………………. 22-23
Connection to the Mains Supply ………………………………………. 24
Guarantee ………………………………………. 25
Technical Specification ………………………………………. 26
Notes ………………………………………. 27

Safety Instructions
Important note: Please read this booklet before installing and switching on this
appliance. The manufacturer assumes no responsibility for incorrect installation
and usage as described in this booklet.
•This model uses natural refrigerant gas as part of its cooling system. This
gas is known as R600a (Isobutene) and is environmentally friendly but can be
combustible. Care should therefore be taken when handling or transporting the
product to ensure that none of the refrigeration circuit components are
damaged,
•Do not obstruct ventilation openings in the appliance
•The appliance must not be placed or rested on its power cord.
•Do not use mechanical devices or other artificial means to accelerate the
defrosting process, such as a heater or a hair dryer.
•Do not use electrical appliances in the refrigerator compartment of the
appliance.
•If this appliance is to replace an old refrigerator with a lock, the lock must be
removed as a safety measure before storing it or disposing of it.This is to
protect children from locking themselves inside the appliance.
•Old refrigerators and freezers contain insulation gases and refrigerant, they
must be disposed of properly. Contact your local authority or your dealer if
you have any questions. Please ensure that you do not damage the scrapunit
prior to being picked-up by the relevant waste disposal service.
•Do not use adaptors or extension leads when connecting the appliance to the
electrical power supply
•Do not plug in damaged plugs
•Do not pull, twist or damage the power cable.
•Do not plug-in or un-plug the appliance with wet hands to prevent electrical
shock.
For Customer Services & Spare Parts please call 0345 208 8750
Opening times: Monday - Friday 8am –8pm & Saturday 9am –1pm
or visit us at www.productcare.co.uk
3

•This appliance can be used by childrenaged from 8 years and above and
persons with reduced physical, sensoryor mental capabilitiesor lack of
experience and knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards
involved. Children should not play with the appliance.
•This appliance is designed to be used by adults, do not allow childrento play
with the appliance or letthem hang over the door.
•Do not place explosive or flammable material in your appliance for your own
safety.
•Bottles containing a high percentage of alcohol must be sealedwell and placed
vertically in the refrigerator.
•Do not cover the body or the top of the appliance
•Fix down the accessories in the appliance during transportation to prevent
damage to them.
Electrical Safety
THIS APPLIANCE MUST BE PLUGGED INTO AN EARTHED SOCKET
•Before switching on, make sure that the voltage of your electricity supply is the
same as that indicated on the rating plate. This product is designed to operate
on 220 –240V AC; 50Hz. Connection to any other power source may damage
the unit.
•This product may be fitted with a non re-wireable plug. If it is necessary to
change the fuse in the plug, the fuse cover must be refitted. If the fuse cover
becomes lost or damaged, the plug must not be used until a suitable
replacement is obtained.
•If the plug has to be changed because it is not suitable for your socket, or
becomes damaged in any way, it should be cut off and an appropriate plug
fitted following the wiring instructions. This should be carried out by a qualified
electrician. The plug removed must be disposed of safely, as insertion into a 13
Amp socket is likely to cause an electrical hazard.
For Customer Services & Spare Parts please call 0345 208 8750
Opening times: Monday - Friday 8am –8pm & Saturday 9am –1pm
or visit us at www.productcare.co.uk
4

Transportation and Handling
For safe lifting, tilt the appliance backwards by no more than 45 degrees, hold the
base and rear corners of cabinet. Lift the refrigerator carefully. Never use the door
handles for lifting. To move the refrigerator on a flat level surface, tilt it slightly
backwards and push backwards.
This unit is heavy and could cause injury –ensure there are adequate people
present to move the appliance.
Installing and Switching on Your Appliance
•Operating voltage for your appliance is 220-240Vat 50Hz.
•Before plugging in the power supply, ensure that the voltage on the rating label
corresponds to the working voltage of your electrical system in your home.
•Insert the plug into an efficient Ground (Earth) connection. If the socket hasno
Ground (Earth) contact or the plug does not match, we suggestyou call an authorised
electrician for assistance.
•Place your appliance in an area that is not exposed to direct sunlight.
•Your appliance should be placed at least 10cm away from stoves, ovens and other
heating cores.
•This appliance should never be used outdoors or left in the rain.
•When your appliance is placed nextto achest freezer or freezer, there should be at
least 10cms between them to prevent humidityon the outer surface.
•Do not place anything on your appliance and install the unit in a suitable place so that
there is at least 30cm clearance above the appliance.
•If placing your appliance nextto kitchen cabinets, leave 10cm between them.
•The rear of the appliance should be at least 7.5cm away from the back wall.
•The appliance must be used in the vertical position and on a flat surface.
•To level the appliance, use the adjustable feet on the appliance.
•Do not place your appliance on a carpeted surface as this will prevent adequate
ventilation.
For Customer Services & Spare Parts please call 0345 208 8750
Opening times: Monday - Friday 8am –8pm & Saturday 9am –1pm
or visit us at www.productcare.co.uk
5

•This appliance should only be placed on a flat, firm surface.
•Choose a dry and well-ventilated space.
•The appliance should be positioned so that the plug is easily accessible.
•If you need help or are unsure how to install the unit, please contact
Customer Services on 0345 208 8750 or visit www.productcare.co.uk.
Before SwitchingOn
•Before using your appliance, add a teaspoon of bicarbonate of soda to warm
water and with a damp cloth wipe down all parts of the new appliance, then
repeat the process with a clean damp cloth and dry. (ensure the appliance is
not connected to the power when performing this task).
•Remove all transport tapes and foam protection pieces . Clean the interior with
a cloth dampened in lukewarm soap and water. Wipe with clean water and
wipe dry.
•There may be an odour when you first switch on the appliance, it will disappear
when the appliance starts to cool.
•When the appliance has been positioned, adjust the feet to ensure the unit is
stable. This is essential to ensure quiet running and proper door opening
/closing.
•Connect to the electrical socket but do not switch the power to the refrigerator
on for at least 3 hours. The coolant within the product needs time to settle after
it has been transported and put in to position, failure to do this will affect the
cooling performance of your appliance.
•Once the appliance has settled locate the thermostat knob on the product and
set between “Med” and “Max” and switch on the power. The compressor will
begin to work. Close the door.
•You may hear faint gurgling or bubbling sounds when the refrigerant is pumped
to the cooling system and through the coils or tubing at the rear of the
appliance. When the compressor is in operation you may hear a slight whirring
sound or pulsating noise. The thermostat controls the operation of the
compressor, and you may hear a slight click as it cycles in and out (this is
normal).
•To save energy, you should minimize the frequency and duration of door
opening.
For Customer Services & Spare Parts please call 0345 208 8750
Opening times: Monday - Friday 8am –8pm & Saturday 9am –1pm
or visit us at www.productcare.co.uk
6

Unit Parts & Spare Parts
Before installation, check that all parts detailed in the product overview are
present. If any parts are missing, please contact the Product Care Customer Service
team on 0345 208 8750 or visit us at www.productcare.co.uk
For Customer Services & Spare Parts please call 0345 208 8750
Opening times: Monday - Friday 8am –8pm & Saturday 9am –1pm
or visit us at www.productcare.co.uk
7

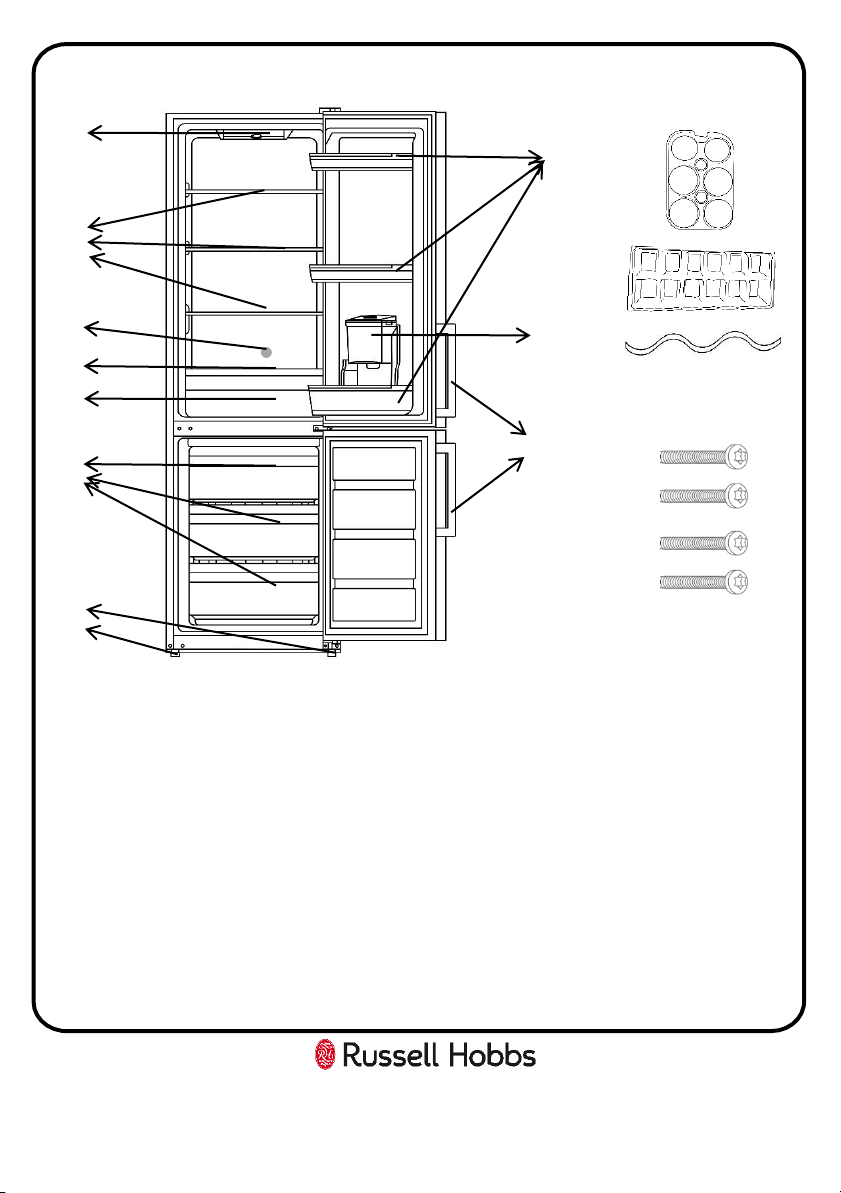

Product Overview
1. Light & thermostat
2. Adjustable shelves
3. Drainage hole
4. Non-adjustable shelf
5. Crisper
6. Freezer drawers
7. Adjustable Feet
8. Door racks
9. Water dispenser
10. Door handles (assemble required)
11. 1 x egg tray, 1 x ice cube tray & 1 x
wine rack
12. Screws
1
2
5
4
3
6
7
8
9
12
10
11

For Customer Services & Spare Parts please call 0345 208 8750
Opening times: Monday - Friday 8am –8pm & Saturday 9am –1pm
or visit us at www.productcare.co.uk
8
Allow to stand for a minimum of 3 hours before plugging in to the mains
The temperature in the appliance is controlled by the temperature control knob
located inside the fridge. Rotate the control knob left or right to regulate the
temperature inside the fridge.
On the temperature control, Min is the warmest setting, Med is the average
setting and Max is the coldest setting. Under normal conditions the
temperature control should be set between Med and Max. The Max setting
should be used as a rapid cool/freeze setting and should only be set 2 hours
before a large amount of food is placed in the fridge. The temperature control
should be put back between Med and Max after the food has been placed in the
fridge, if this is not done the temperature in the fridge compartment could fall
below 0ºC as the compressor will run continuously.
Once the temperature control has been set, close the door and plug in the
appliance. We recommend that the door is not opened for a minimum of 4
hours to allow the appliance to reach the standard operating temperature.
Note: The standard operating temperature for the fridge compartment should
be between 0ºC and 4ºC and the standard operating temperature for the freezer
compartment should be between -18°C and -25°C.
Note: The temperature of the freshly stored food and how often the door is
opened affects the temperature in the refrigerator compartment. If
required, change the temperature setting.
Usage

For Customer Services & Spare Parts please call 0345 208 8750
Opening times: Monday - Friday 8am –8pm & Saturday 9am –1pm
or visit us at www.productcare.co.uk
9

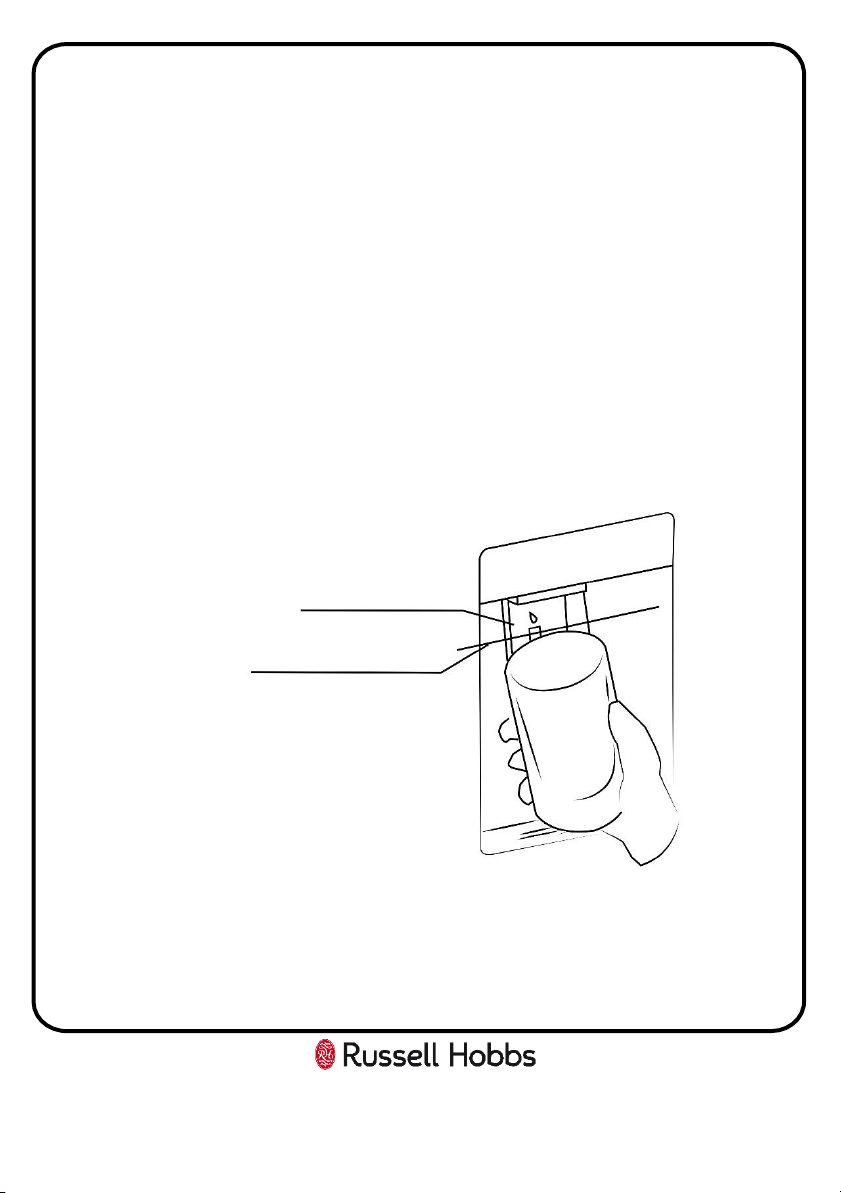

Cleaning & Assembly
Before using the water dispenser clean all parts of water tank and the
dispensers with hot soapy water. To clean the water tank you will need to
remove it, to do this hold both sides of the water tank tightly and lift it carefully
away from the door.
Unscrew the head of the water tank and clean it and the tank with hot soapy
water, then rinse thoroughly and dry. It is recommended to clean the water tank
and the dispenser in this way at least once a month.
Water Dispenser

For Customer Services & Spare Parts please call 0345 208 8750
Opening times: Monday - Friday 8am –8pm & Saturday 9am –1pm
or visit us at www.productcare.co.uk
10
Water Dispenser
Reattach the head and refit the water tank back into the door. When fitting the
water tank, ensure the head is inserted into the hole on the door first, then hold
both sides of the water tank tightly and fit it on to the door.

Filling with water
Note:
•The maximum capacity of the water tank is 2.2 litres, do not exceed this
maximum limit.
•Do not touch other parts when filling water, which can cause water leakage.
•Water must be left in the water tank with the appliance door closed for at
least 4 hours to enable it to cool down.
It is recommended that you fill the water tank when it is in the appliance in 1 of
the following 2 ways. The water tank and dispenser should only be removed when
they are being cleaned.
1. Lift the small cover and fill water into the tank through the opening in the large
cover.
2. Remove the large cover by unclipping the clips at the side of large cover, then
fill the water directly .
For Customer Services & Spare Parts please call 0345 208 8750
Opening times: Monday - Friday 8am –8pm & Saturday 9am –1pm
or visit us at www.productcare.co.uk
11
Water Dispenser
Small cover
Large cover
Head

For Customer Services & Spare Parts please call 0345 208 8750
Opening times: Monday - Friday 8am –8pm & Saturday 9am –1pm
or visit us at www.productcare.co.uk
12
Dispensing water
Note: Water must be left in the water tank with the appliance door closed for at
least 4 hours to enable it to cool down.
Note: When the water dispenser is locked, do not push the dispenser lever
strongly as this can damage the mechanism.
Note: Do not touch the dispenser lever without a cup underneath the dispenser.
Before dispensing the water you must ensure all covers are correctly fitted and
that the door of the appliance is closed.
Place an appropriately sized container or cup into the dispenser and push the
dispenser lever, once a sufficient amount of water has been dispensed remove
the container or cup away from the dispenser lever.
Water Dispenser
Dispenser
lever
Recommended
position

Handle Assembly
Tools Required: Cross headed screwdriver and a flat headed screwdriver.
1. Remove the screw hole caps on the side of the door you require the handle to
be installed.
2. Align the holes on the handle with those on the side of the door and fix in
place with the screws provided.
For Customer Services & Spare Parts please call 0345 208 8750
Opening times: Monday - Friday 8am –8pm & Saturday 9am –1pm
or visit us at www.productcare.co.uk
13

Door Reversal
To reverse the door you will need to tilt the appliance backward to access the
lower hinge which holds screws. Do not tilt the appliance more than 45 degrees
and do not lay the appliance flat on its side.
For your own safety, a minimum of 2 people should lift or tilt this product.
Tools Required: Cross headed screwdriver, flat headed screwdriver and hexagonal
spanner.
1. Remove the hinge cover and the screws from the hinge bracket, take off the
hinge bracket and remove the fridge door by lifting it up and away.
2. If required remove the handle by reversing the steps detailed in the handle
assembly instruction and install it on the opposite side.
3. Remove the pin that is in the hinge and fix it on to the opposite side Do not fix
the hinge to the opposite side at this stage, please see step 10.
For Customer Services & Spare Parts please call 0345 208 8750
Opening times: Monday - Friday 8am –8pm & Saturday 9am –1pm
or visit us at www.productcare.co.uk
14

Door Reversal
4. Take off the middle hinge by removing the screws. Lift the freezer door up and
move it away.
5. If required remove the handle by reversing the steps detailed in the handle
assembly instruction and install it on the opposite side
6. Remove the hinge plug from the top of the fridge door and the door stopper
(you need to remove a screw from each of the door stoppers) and hinge plug from
the top and bottom of the freezer door. Move all of them both to the opposite
side and ensure they are fixed securely.
For Customer Services & Spare Parts please call 0345 208 8750
Opening times: Monday - Friday 8am –8pm & Saturday 9am –1pm
or visit us at www.productcare.co.uk
15

Door Reversal
7. Tilt the appliance carefully, no more than 45 degrees and remove the adjustable
feet from both sides. Take off the bottom hinge by removing the screws.
8. Reattach the hinge to the left side of the appliance, reinstall the adjustable feet
and place the freezer door back on.
9. Flip over the middle hinge (by 180°) and put the bottom pin of the middle hinge
into the top of the freezer door and screw the middle hinge back onto the
opposite side the fridge. You must ensure the freezer door is aligned horizontally
and vertically, so that the seals are closed on all sides before finally tightening.
For Customer Services & Spare Parts please call 0345 208 8750
Opening times: Monday - Friday 8am –8pm & Saturday 9am –1pm
or visit us at www.productcare.co.uk
16
Flip 180°
Pin

For Customer Services & Spare Parts please call 0345 208 8750
Opening times: Monday - Friday 8am –8pm & Saturday 9am –1pm
or visit us at www.productcare.co.uk
17
Door Reversal
10. Place the fridge door back on to the middle hinge, put the pin of the top hinge
into the top of the door and fix the hinge in to place by screwing it to the top of
the fridge (use a spanner to tighten it if necessary) and refit the hinge cover.
Ensure the fridge door is aligned horizontally and vertically so that the seals are
closed on all sides before finally tightening the top hinge.
Replacing the Light
The light is an energy efficient, long life LED. Therefore should not need replacing
throughout the life of the product however if it does it has to be replaced by a
qualified engineer.
Please call the service team on 0345 208 8750.
.

For Customer Services & Spare Parts please call 0345 208 8750
Opening times: Monday - Friday 8am –8pm & Saturday 9am –1pm
or visit us at www.productcare.co.uk
18
Energy Saving Advice
•Do not install the appliance close to sources of heat, such as a cooker,
dishwasher or radiator.
•Locate the appliance in a cool well-ventilated room and make sure that the air
vents are clear.
•Try to avoid keeping the doors open for a long time, as warm air will enter the
cabinet and may cause a build-up of ice as well as affecting the energy
consumption. Ensure there are no obstructions preventing the doors from
closing properly.
•Ensure that the door seals are clean and there are no tears or splits.
•Keep the most perishable foods, (those with a short shelf-life, such as cooked
meats), in the coldest part of the fridge. The Salad Crisper Box is the warmest
part of your fridge and should be used for vegetables, salads and fruits etc.
•Do not overload the appliance: the cooling air that circulates and keeps the
appliance cold gets blocked, and pockets of warm air form.
•Do not put hot food into the fridge or freezer –let it cool down first.
Freezer Storage Advice
•Store fresh food in airtight boxes or wrap in bags or foil which are suitable for
freezing.
•Do not allow frozen food to come n to direct contact with food to be frozen.
•Pre-frozen food must be placed in the freezer as quickly as possible after
purchasing.
•To prevent frost damage to fresh vegetables or fruits they must be processed
appropriately before being placed into the freezer compartment.
•You must always follow the storage guidelines printed on all food packaging.
However, below is some suggested maximum storage times at -18°C (4 star
freezer rating) for a variety of foods:
•Fresh meat & poultry –up to 12 months
•Cooked meat –up to 2 months
•Fresh fish –up to 6 months
•Fruit & vegetables –up to 12 months
•Bread & cakes –up to 6 months

For Customer Services & Spare Parts please call 0345 208 8750
Opening times: Monday - Friday 8am –8pm & Saturday 9am –1pm
or visit us at www.productcare.co.uk
19
Power Failure
If there is a power failure during the storage of frozen foods, keep the door closed.
If the temperature within your freezer should rise, do not refreeze the food
without checking it's condition.
•Ice Cream: Once thawed should be discarded.
•Fruit and Vegetables: If soft should be cooked and used up.
•Bread and Cakes: Can be refrozen without danger.
•Shellfish: Should be refrigerated and used up quickly.
•Cooked Dishes: i.e. casseroles should be refrigerated and used up.
•Large Pieces of Meat: Should be refrigerated and used up quickly
•Small Joints: Should be refrigerated and used up quickly
•Chicken: Should be refrigerated and used up quickly

For Customer Services & Spare Parts please call 0345 208 8750
Opening times: Monday - Friday 8am –8pm & Saturday 9am –1pm
or visit us at www.productcare.co.uk
20
Maintenance & Cleaning
Disconnect the appliance from the power supply before cleaning.
Internal Cleaning
•Do not pour water over the appliance.
•The cavity should be cleaned periodically using a solution of bicarbonate of
soda and lukewarm water (5ml to 0.5 litre of water)
•Clean the accessories separately with soap and water. Do not put them in the
dishwasher.
•Do not use abrasive products, detergents or soaps.
•After washing, rinse with clean water and dry carefully.
•When you have finished cleaning reconnect the plug with dry hands.
External Cleaning
•Wash the outer cabinet with warm soapy water. Do NOT use abrasive products.
•There are sharp edges on the underside of the product so care should be taken
when cleaning.
•Once or twice a year dust the rear of the appliance and the compressor at the
back of the appliance, with a brush or vacuum cleaner, as an accumulation of
dust will affect the performance of the appliance and cause increased energy
consumption.
When the appliance is not in use
When the appliance is not in use for long periods, disconnect from the electricity
supply, empty all of the food and clean the inside. Leave the door open to prevent
the build-up of odours.
