Russell Hobbs RHBU60FRIDGE-N User manual

Model number(s):
RHBU60FRIDGE-N
For Customer Services & Spare Parts please call 0345 2088750
or visit us at https://mda.russellhobbs.com
IMPORTANT:
RETAIN FOR FUTURE REFERENCE
Built Under 60cm Wide
Fridge
Instruction Manual

Contents
Safety Instructions ………………………………………. 3-5
Electrical Safety ………………………………………. 5
Transportation & Handling ………………………………………. 5
Installing & Switching on your Appliance ………………………………………. 6
Before Switching On ………………………………………. 7
Product Overview ………………………………………. 8
Unit & Spare Parts ………………………………………. 8
Usage ………………………………………. 9-10
Temperature Selection ………………………………………. 9-10

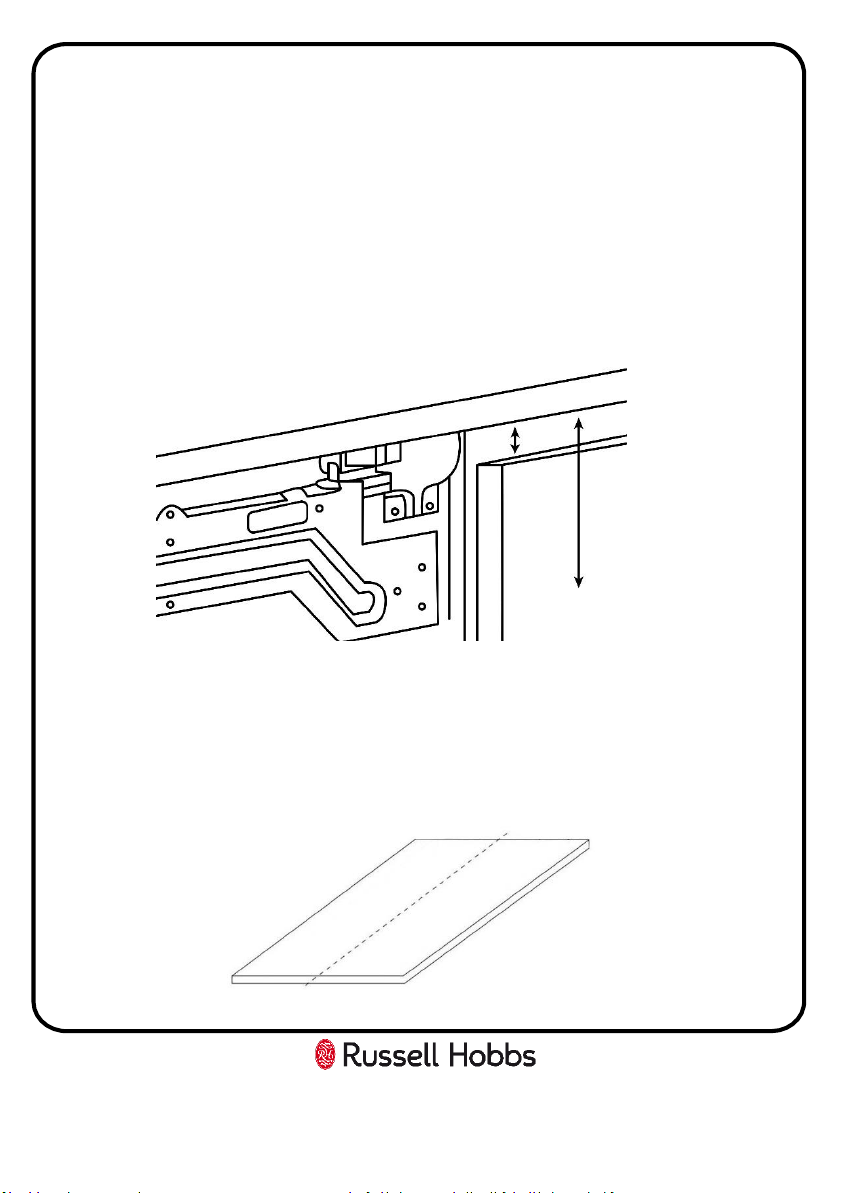

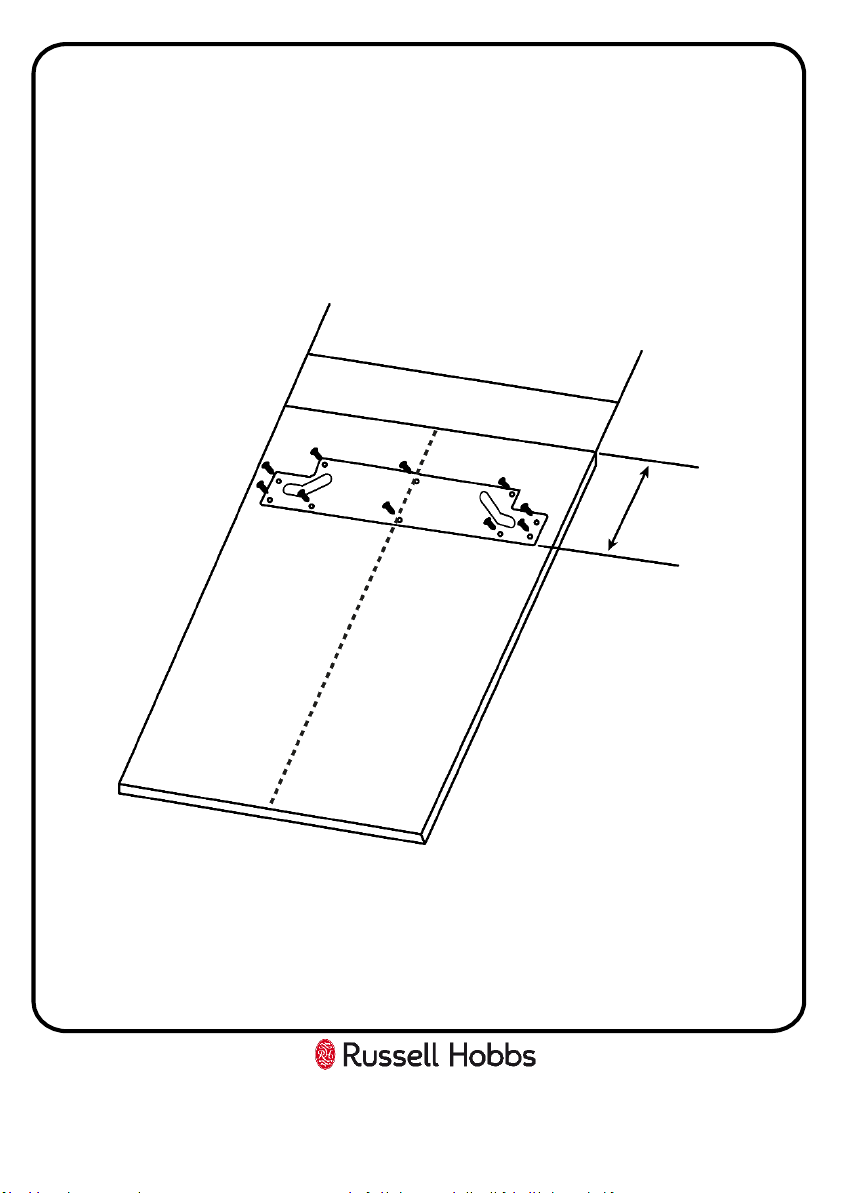

Installation ………………………………………. 11 -17

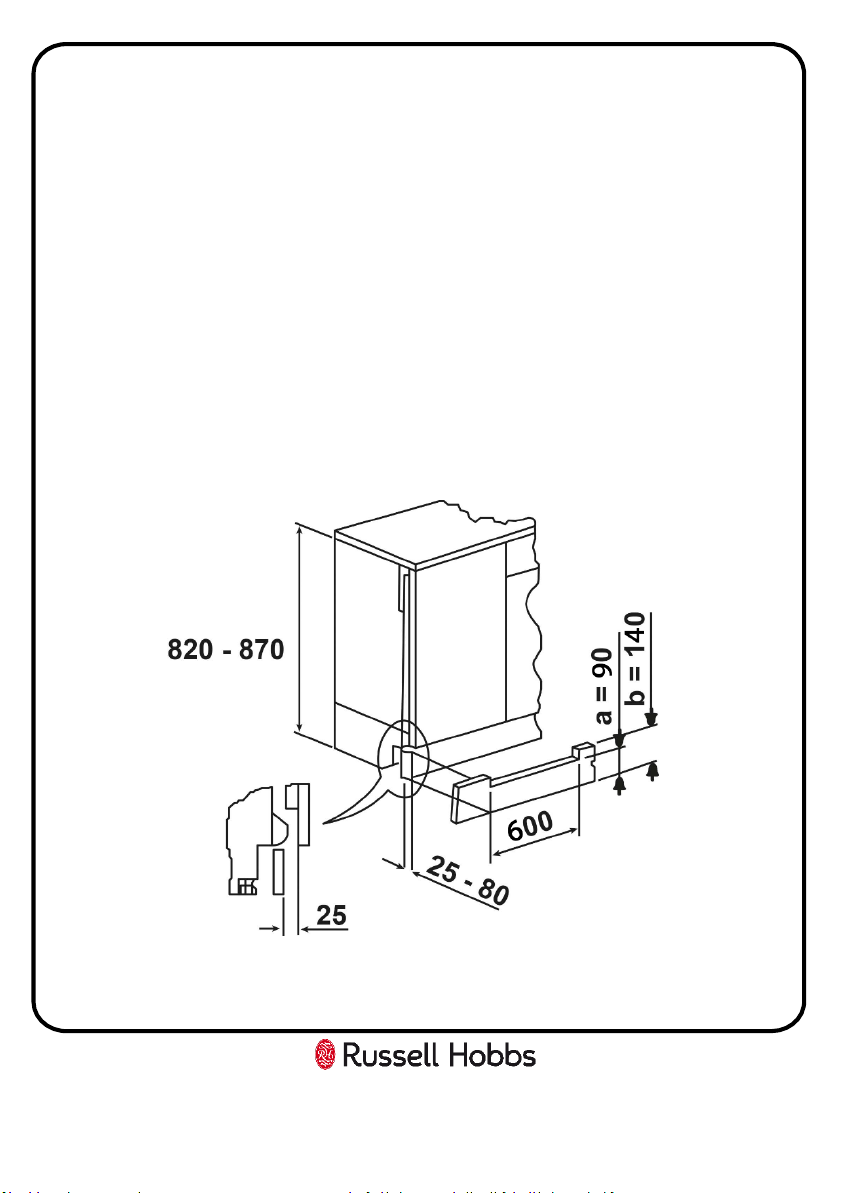

Fitting the Plinth ………………………………………. 18
Door Reversal ………………………………………. 19 -22
Replacing the Light ………………………………………. 22
Energy Saving Advice ………………………………………. 23
Food Storage Advice ………………………………………. 24
Maintenance & Cleaning ………………………………………. 25
Internal Cleaning ………………………………………. 25
External Cleaning ………………………………………. 25
When the appliance is not in Use ………………………………………. 25
Defrosting ………………………………………. 26
Trouble Shooting ………………………………………. 27 -28
Connection to the Mains Supply ………………………………………. 29
Guarantee ………………………………………. 30
Technical Specification ………………………………………. 31

Safety Instructions
Important note: Please read this booklet before installing and switching on this
appliance. The manufacturer assumes no responsibility for incorrect installation
and usage as described in this booklet.
Warning: When positioning the appliance, ensure the supply cord is not
trapped or damaged.
Warning: Do not locate multiple portable socket-outlets or portable power
suppliers at the rear of the appliance.
•This model uses natural refrigerant gas as part of its cooling system. This
gas is known as R600a (Isobutene) and is environmentally friendly but can be
combustible. Care should therefore be taken when handling or transporting the
product to ensure that none of the refrigeration circuit components are
damaged,
•Do not obstruct ventilation openings in the appliance
•The appliance must not be placed or rested on its power cord.
•Do not use mechanical devices or other artificial means to accelerate the
defrosting process, such as a heater or a hair dryer.
•Do not use electrical appliances in the refrigerator compartment of the
appliance.
•If this appliance is to replace an old refrigerator with a lock, the lock must be
removed as a safety measure before storing it or disposing of it. This is to
protect children from locking themselves inside the appliance.
•Old refrigerators and freezers contain insulation gases and refrigerant, they
must be disposed of properly. Contact your local authority or your dealer if
you have any questions. Please ensure that you do not damage the scrapunit
prior to being picked-up by the relevant waste disposal service.
•Do not use adaptors or extension leads when connecting the appliance to the
electrical power supply
•Do not plug in damaged plugs.
3

•Do not pull, twist or damage the power cable.
•Do not plug-in or un-plug the appliance with wet hands to prevent electrical
shock.
•This appliance can be used by childrenaged from 8 years and above and
persons with reduced physical, sensoryor mental capabilitiesor lack of
experience and knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards
involved. Children should not play with the appliance.
•Children aged from 3 to 8 years are allowed to load and unload this appliance.
•This appliance is designed to be used by adults, do not allow childrento play
with the appliance or letthem hang over the door.
•Do not place explosive or flammable material in your appliance for your own
safety.
•Bottles containing a high percentage of alcohol must be sealedwell and placed
vertically in the refrigerator.
•Do not cover the body or the top of the appliance
•Fix down the accessories in the appliance during transportation to prevent
damage to them.
•To avoid contamination of food, please respect the following instructions
•Opening the door for long periods can cause a significant increase of
the temperature in the compartments of the appliance.
•Clean regularly surfaces that can come in contact with food and
accessible drainage systems.
•Clean water tanks if they have not been used for 48h; flush the water
system connected to a water supply if water has not been drawn for 5
days.
•Store raw meat and fish in suitable containers in the refrigerator, so
that it is not in contact with or drip onto other food.
•Two-star frozen-food compartments(if they are presented in the
appliance) are suitable for storing pre-frozen food, storing or making
ice-cream and making ice cubes.
4

•One-, two- and three -star compartments (if they are presented in the
appliance) are not suitable for the freezing of fresh food.
•If the appliance is left empty for long periods, switch off, defrost, clean,
dry and leave the door open to prevent mount developing within the
appliance.
Electrical Safety
THIS APPLIANCE MUST BE PLUGGED INTO AN EARTHED SOCKET
•Before switching on, make sure that the voltage of your electricity supply is the
same as that indicated on the rating plate. This product is designed to operate
on 220 –240V AC; 50Hz. Connection to any other power source may damage
the unit.
•This product may be fitted with a non re-wireable plug. If it is necessary to
change the fuse in the plug, the fuse cover must be refitted. If the fuse cover
becomes lost or damaged, the plug must not be used until a suitable
replacement is obtained.
•If the plug has to be changed because it is not suitable for your socket, or
becomes damaged in any way, it should be cut off and an appropriate plug
fitted following the wiring instructions. This should be carried out by a qualified
electrician. The plug removed must be disposed of safely, as insertion into a 13
Amp socket is likely to cause an electrical hazard.
Transportation and Handling
For safe lifting, tilt the appliance backwards by no more than 45 degrees, hold the
base and rear corners of cabinet. Lift the refrigerator carefully. Never use the door
handles for lifting. To move the refrigerator on a flat level surface, tilt it slightly
backwards and push backwards.
This unit is heavy and could cause injury –ensure there are adequate people
present to move the appliance.
5

Installing and Switching on Your Appliance
•Operating voltage for your appliance is 220-240Vat 50Hz.
•Before plugging in the power supply, ensure that the voltage on the rating label
corresponds to the working voltage of your electrical system in your home.
•Insert the plug into an efficient Ground (Earth) connection. If the socket hasno
Ground (Earth) contact or the plug does not match, we suggestyou call an authorised
electrician for assistance.
•Place your appliance in an area that is not exposed to direct sunlight.
•Your appliance should be placed at least 10cm away from stoves, ovens and other
heating cores.
•This appliance should never be used outdoors or left in the rain.
•When your appliance is placed nextto achest freezer or freezer, there should be at
least 10cms betweenthem to prevent humidityon the outer surface.
•Do not place anything on your appliance and install the unit in a suitable place so that
there is at least 30cm clearance above the appliance.
•If placing your appliance nextto kitchen cabinets, leave 5cm betweenthem.
•The rear of the appliance should be at least 6cm away from the back wall.
•The appliance must be used in the vertical position and on a flat surface.
•To level the appliance, use the adjustable feet on the appliance.
•Do not place your appliance on a carpeted surface as this will prevent adequate
ventilation.
•This appliance should only be placed on a flat, firm surface.
•Choose a dry and well-ventilated space.
•The appliance should be positioned so that the plug is easily accessible.
•If you need help or are unsure how to install the unit, please contact Customer
Services on 0345 208 8750 or visit https://mda.russellhobbs.com.
WARNING! During using, service and disposal the appliance,
pease pay attention to symbol similar to one shown, which is located on
rear of appliance (rear panel or compressor) and with a yellow or orange
colour. It’s risk of fire warning symbol. There are flammable
materials in refrigerant pipes and compressor. Please be far away
fire source during using, service and disposal.
6

Before Switching On
•Before using your appliance, add a teaspoon of bicarbonate of soda to warm
water and with a damp cloth wipe down all parts of the new appliance, then
repeat the process with a clean damp cloth and dry. (ensure the appliance is
not connected to the power when performing this task).
•Remove all transport tapes and foam protection pieces . Clean the interior with
a cloth dampened in lukewarm soap and water. Wipe with clean water and
wipe dry.
•There may be an odour when you first switch on the appliance, it will disappear
when the appliance starts to cool.
•When the appliance has been positioned, adjust the feet to ensure the unit is
stable. This is essential to ensure quiet running and proper door opening
/closing.
•Connect to the electrical socket but do not switch the power to the refrigerator
on for at least 3 hours. The coolant within the product needs time to settle after
it has been transported and put in to position, failure to do this will affect the
cooling performance of your appliance.
•Once the appliance has settled locate the thermostat dial on the product and
set to “5" and switch on the power. The compressor will begin to work. Close
the door.
•You may hear faint gurgling or bubbling sounds when the refrigerant is pumped
to the cooling system and through the coils or tubing at the rear of the
appliance. When the compressor is in operation you may hear a slight whirring
sound or pulsating noise. The thermostat controls the operation of the
compressor, and you may hear a slight click as it cycles in and out (this is
normal).
•To save energy, you should minimize the frequency and duration of door
opening.
7

Unit Parts & Spare Parts
Before installation, check that all parts detailed in the product overview are
present. If any parts are missing, please contact the Customer Service team on
0345 208 8750 or visit us at https://mda.russellhobbs.com
8

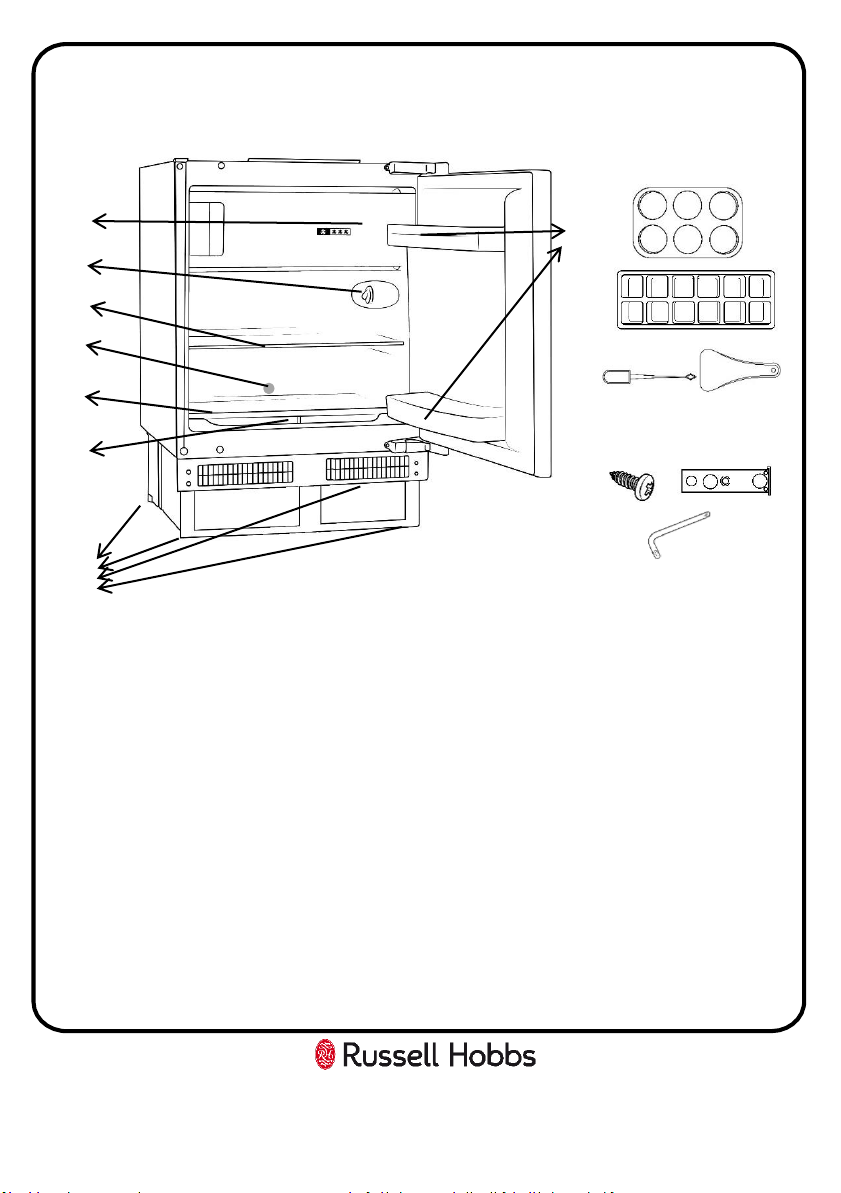

Product Overview
1. Freezer compartment
2. Light & thermostat
3. Adjustable shelf
4. Drainage hole
5. Non-adjustable shelf
6. Crispers (under shelf)
1. Adjustable feet
2. Door racks
3. 1 x egg tray, 1 x ice cube tray, 1 x
ice scrapper & drainage hole plug

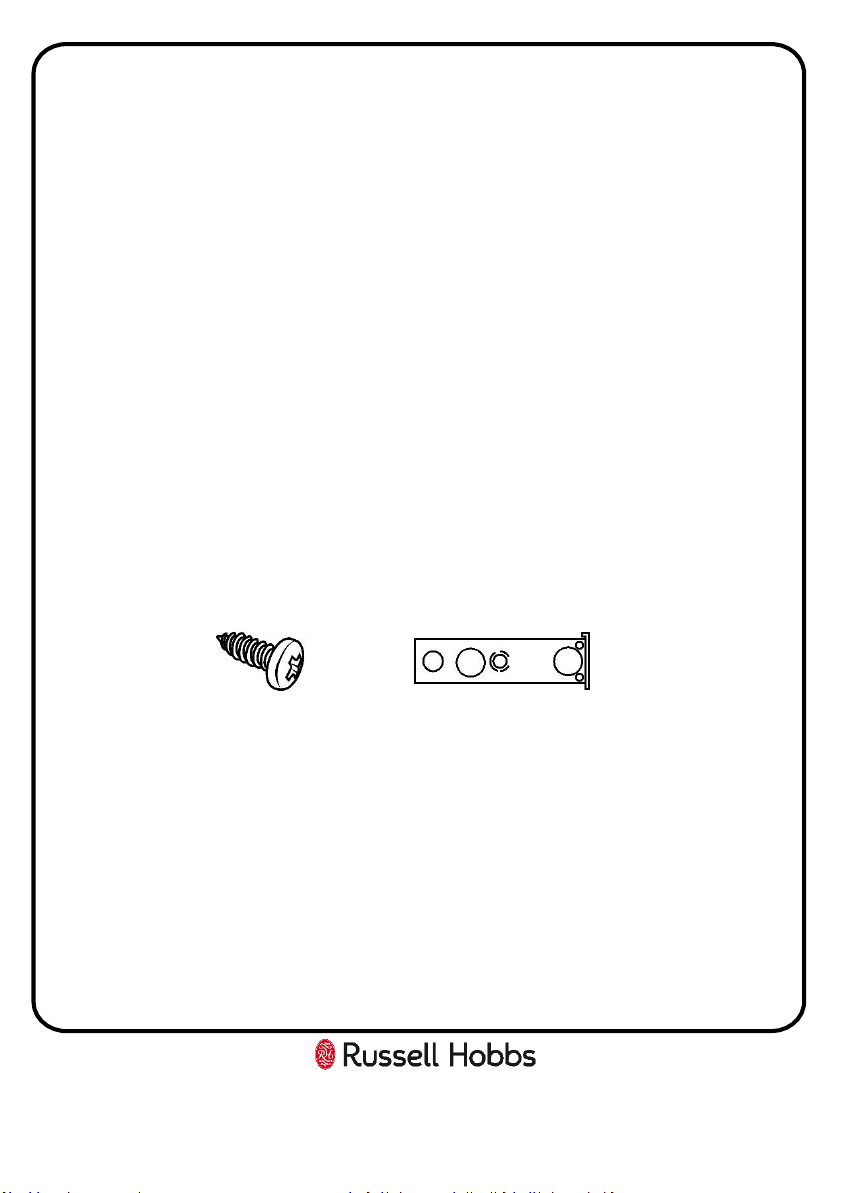

4. Installation accessories
1
2
5
3
6
7
9
10
8
4

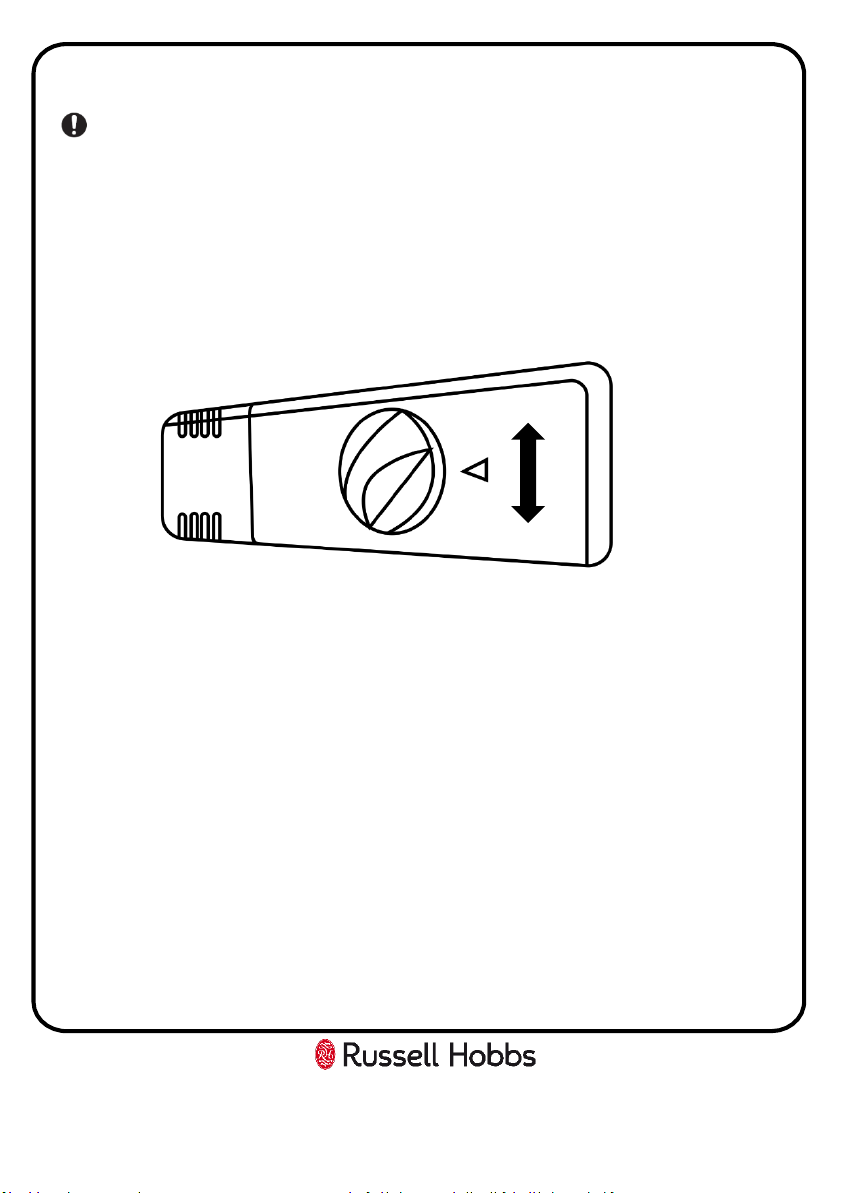

The temperature in the appliance is controlled by the temperature control dial
or thermostat located inside the fridge. Rotate the control dial up or down to
regulate the temperature inside the fridge.
On the temperature control, 0 is the off setting, 1 is the warmest setting and 6 is
the coldest setting. Under normal conditions for a product used in the majority
of UK homes the temperature control should be set to setting 5.
Depending on the ambient temperature of the room the appliance is situated in,
you may need to adjust the temperature control dial; in a room with a high
ambient temperature the temperature control dial may need to be adjusted to a
colder setting (moved towards setting 6) or in a room with a low ambient
temperature the temperature control dial may need to be adjusted to a warmer
setting (moved towards setting 4 ).
Setting 6 should be used as a rapid cool/freeze setting and should only be set 2
hours before a large amount of food is placed in the fridge. The temperature
control should be put back to setting 5 after the food has been placed in the
fridge, if this is not done the temperature in the fridge compartment could fall
below 0ºC as the compressor will run continuously.
Once the temperature control has been set, close the door and plug in the
appliance. We recommend that the door is not opened for a minimum of 4
hours to allow the appliance to reach the standard operating temperature.
9
Allow to stand for a minimum of 3 hours before plugging in to the mains
Usage

10
Allow to stand for a minimum of 3 hours before plugging in to the mains
Note: The standard operating temperature for the fridge compartment should
be between 0ºC and 4ºC and the standard operating temperature for the freezer
compartment should be between -18°C and -25°C.
Note: The temperature of the freshly stored food and how often the door is
opened affects the temperature in the refrigerator compartment. If
required, change the temperature setting.
Usage
