Russound V-PS-2 User manual

Product Manual
V-PS-2
60W Power Supply

INTRODUCTION
Thank you for purchasing the Russound V-PS-2 power supply. It’s designed to provide crisp, audio-quality power for up to two Russound V-KP-1
amplied touchpads with Alexa Built-in™. Note: All wiring connections must be made with the system powered o and the V-PS-2 power cord
disconnected from the electrical mains (unplugged from the wall outlet).
Installation of the power supply may be done locally in the
same room as a V-KP-1 or may be run to a central wiring
location using CL-2 rated cable from the room where the
V-KP-1 is installed. The V-PS-2 can be put on a shelf and is
also wall-mountable if desired.
Replacing An Existing Audio System
The majority of existing installed audio systems utilize a “home
run” of speaker wires from some central location to a volume
control or keypad in each of the rooms of the home. If your
system uses this type of “home run” wiring, you can use the
existing wiring to carry the power from the V-PS-2 Power
Supply to the V-KP-1, making installation quick and easy.
The V-PS-2 includes important safety features such as over-
current, over-temperature and short-circuit protection and can
even indicate trouble in an existing wiring conguration which
is especially critical when utilizing existing wiring in a home to
ensure a proper electrical connection.
Examples of common wiring congurations in
existing installations.
The following diagrams show (A) a common wiring scheme
for a keypad based audio system that uses Cat5 wiring from a
central location to each room and then speaker wire from the
keypad to the room’s speakers and (B) a standard “homerun”
wiring system that uses speaker wire from the central location
to each room’s volume control and then additional speaker
wire from the volume control to the room’s speakers. Both of
these wiring congurations can be re-utilized with the V-PS-2
when powering your V-KP-1 touchpads.
16/2 or Similar Speaker Wire
CAT5 Cable
16/2 Speaker Wire
16/2 Speaker Wire
A-BUS (A)
Old New
Old New
Volume Control (B)
16/2 Speaker Wire
16/2 Speaker Wire
A-BUS (A)
Old New
Old New
Volume Control (B)
16/2 or Similar Speaker Wire

New Installation
For a new installation, the location of the V-PS-2 power supply will be
based on the wiring being done in the room and around the home at any
other rooms. Depending on the wiring that will be done in the home, it
might be best to locate your power supplies in a central wiring location
for the entire home, or in a central location for each oor or section of a
home, or in a wiring closet near adjacent rooms, etc.
Wiring
Be sure to observe proper polarity. The positive and negative terminals
on the V-KP-1 must correspond with the positive and negative terminals
on the V-PS-2.
The connection between the V-PS-2 and the V-KP-1 can be made using
multiple wire types. If running the wire inside any walls, use CL-2 rated
wire or other wiring as required to meet any local building codes.
New Wiring or Replacing a Speaker Wire-based System
Follow these instructions when using new wiring or if you are re-using
any existing speaker wiring to connect the V-PS-2 with the V-KP-1. For
new installations, we recommend using 18/2 stranded cable as it is
inexpensive and readily available. If re-using existing speaker wiring,
this is usually either 18/2 or 16/2 and either can be used.
With the V-PS-2 disconnected from electrical power, strip ¼” (about
6mm) from each of the two wiring conductors and insert them into
the removable screw-down terminal on the V-PS-2, making sure to
match the proper polarity of each connection. Tighten the screw-down
connections securely and make sure that there are no exposed strands
that might cause a short-circuit.
Replacing a Cat5 Wire-Based System
If using an existing Cat5 wire to connect the V-PS-2 to the V-KP-1, use
a wire stripper to take o as much of the outer insulation sleeve as you
need to fan out the wires. Untwist about 2 inches (5 cm) of each of the
conductor pairs. Then strip 3/8” (about 1 cm) from each of the individual
conductors. You are going to twist together 2 sets of 4 conductors
to make the Cat5 wire into a 2-conductor wire. To make things easy
to remember, we recommend twisting all of the striped conductors
together to serve as your negative wire and twisting all of the solid
colored conductors together to serve as your positive wire.
1 - Blue, Solid
2 - Orange, Solid
3 - Green, Solid
4 - Brown, Solid
Conductor Set 1
1 - Blue, Striped
2 - Orange, Striped
3 - Green, Striped
4 - Brown, Striped
Conductor Set 2
Conductor Set 1
Conductor Set 2
Powering On
Once the connections have been made, connect the V-PS-2 power
supply to the electrical mains to power up the system. You will see a
green light on the front of the V-PS-2 when it is plugged in.
Troubleshooting
The Fault LEDs on the front of the V-PS-2 are designed to help
troubleshoot any possible wiring problems which is especially useful
when re-using existing wiring. If either Fault LED illuminates red,
it indicates that there is a short-circuit somewhere in that wiring
connection. Power down the V-PS-2 and check that wiring to nd and
resolve the issue and then re-connect all wiring and power up the V-PS-
2 when the wiring issue has been resolved. The Fault LEDs should both
illuminate green when everything is connected properly.
Insert the new wires into the removable screw-down terminal on the V-PS-2, making
sure to match the proper polarity of each connection. Tighten the screw-down
connections securely and make sure that there are no exposed strands that might
cause a short-circuit.

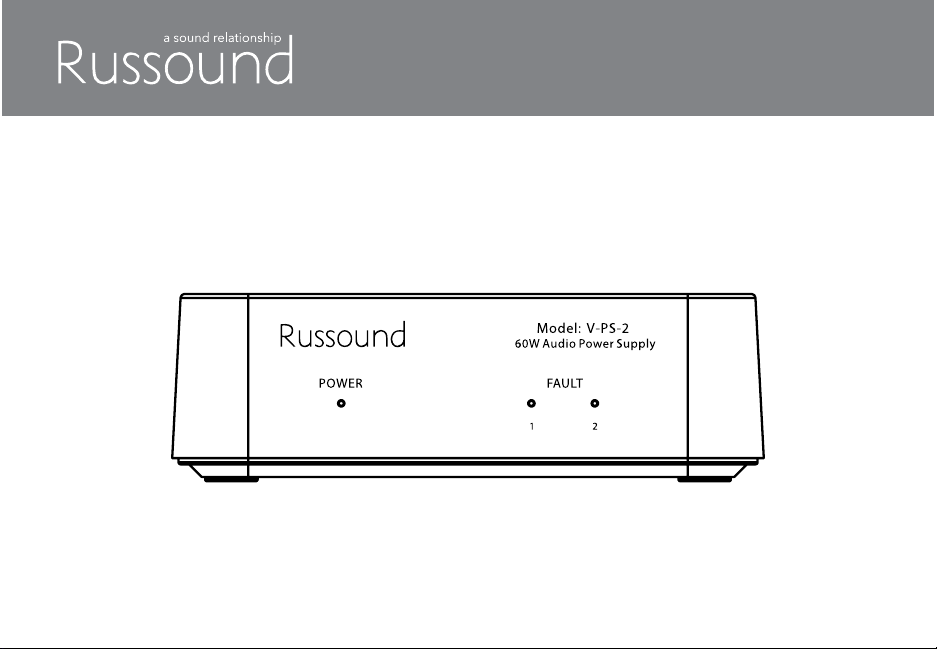

FAULT
1 2
Mo del: V -PS- 2
60W Audio Power Supply
POWER
ZONE 1
TOTAL ZONE POWER (24VDC / 60W )
ZONE 2
MADE IN CHINA
100 ~240V 50~ 60Hz 60W
CONNECT TO V-KP-1
Power SupplyConnect up to 2
V-KP-1

LIMITED WARRANTY
Russound/FMP, Inc. warrants to the original retail purchaser that this product will be free of
manufacturing defects in material and workmanship for the following periods (“Warranty
Period”) and subject to the limitations and exclusions set forth below:
Lifetime
Volume controls, in-wall and in-ceiling speakers, Flexbox speaker back boxes
Ten years from the date of purchase
Speaker selectors and impedance matching devices
Five years from the date of purchase
Landscape speakers, Outback™ speakers
Two years from the date of purchase
Multiroom controllers, keypads, source equipment, A-BUS devices, ComPoint devices,
D-Series ampliers, infrared products, 70V/100V ampliers
One year from the date of purchase
P-Series ampliers, touchscreens
Ninety days from the date of purchase
All B-Stock or factory-refurbished items
This Warranty is not transferable to subsequent purchasers/owners of the product.
This Warranty does not include service or parts to repair damage caused by improper use or
handling, including but not limited to damage caused by accident, mishandling, improper
installation, shipping damage, power surges, lightning strikes, abuse, negligence, or normal
wear and tear, or any defect caused by repair to the product by anyone other than Russound or
Russound’s authorized repair facility.
Certain Russound products may permit access to third-party content providers and/or may
support third- party technologies such as specic codecs or le formats. Russound reserves
the right to discontinue support and/or access to such third-party content or technologies at
any time and for any reason. Russound makes no representations or warranties whatsoever
regarding ongoing support for any such third-party content or technologies.
This Warranty does not cover reimbursement for the costs of removing and transporting the
product for warranty service evaluation, re-installation, or installation of any replacement
product provided under this Warranty.
To obtain warranty service, contact the authorized Russound dealer/installer where you
purchased your product or take the unit to the nearest authorized Russound dealer. Proof
of purchase must be provided – claims made without proof of purchase will not be covered
under this Warranty. The authorized Russound dealer/installer will test the product and if
necessary, make arrangements with Russound for service. If there are no authorized Russound
dealers in your area, you must contact Russound to receive a factory Return Authorization
Number and shipping instructions. Purchaser is responsible for any shipping and handling
charges for shipping the product to Russound. DO NOT RETURN ANY UNIT WITHOUT FIRST
RECEIVING WRITTEN AUTHORIZATION AND SHIPPING INSTRUCTIONS FROM RUSSOUND.
ANY PRODUCTS RECEIVED WITHOUT FOLLOWING THIS PROCEDURE WILL BE REFUSED AND
RETURNED UNOPENED.
Upon examination, Russound will, at its sole option and expense, repair or replace any
product found to be defective. Russound will return the repaired or replaced unit to you via
its usual shipping method from the Russound repair center to your address in the United
States of America or Canada only. Any shipping costs for addresses outside of the United
States or Canada or any expedited shipping charges requested by the purchaser shall be the
responsibility of the purchaser. In the event that a particular product is no longer available
and cannot be repaired eectively, Russound, at its sole option, may replace it with a dierent
model of equal or greater value, or refund the original purchase price paid. THE FOREGOING
ARE YOUR EXCLUSIVE REMEDIES FOR BREACH OF WARRANTY.
This Warranty will be void if:
• the serial number on the product has been removed, tampered with, or defaced.
• the product was not purchased from an authorized dealer or reseller.
THE FOREGOING WARRANTIES ARE EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESSED AND
IMPLIED WARRANTIES. RUSSOUND EXPRESSLY DISCLAIMS ALL SUCH OTHER WARRANTIES,
INCLUDING BUT NOT LIMITED TO IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS
FOR A PARTICULAR PURPOSE AND NON-INFRINGEMENT, WITH RESPECT TO THE PRODUCT.
TO THE MAXIMUM EXTENT PERMITTED BY LAW, RUSSOUND SHALL NOT BE RESPONSIBLE
FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES EXCEPT TO THE EXTENT PROVIDED
(OR PROHIBITED) BY APPLICABLE LAW, EVEN IF IT HAS BEEN ADVISED OF THE POSSIBILITY
OF SUCH DAMAGES.
Not withstanding the above, if you qualify as a “consumer” under the Magnuson-Moss
Warranty Act, or applicable state laws, then you may be entitled to any implied warranties
allowed by law for the Warranty Period. Further, some states do not allow limitations on how
long an implied warranty lasts or allow the exclusion or limitation of consequential damages,
so such limitations may not apply to you. This warranty gives you specic legal rights, and you
may also have other rights which vary from state to state.
For the name of your nearest authorized Russound dealer, contact: Russound, 1 Forbes Road,
Newmarket, NH 03857, or call 1 [phone]. Please be advised that Russound products
are only sold via the Internet through a select group of authorized Internet dealers. These are
listed at www.russound.com. Products oered on the Internet through unauthorized Internet
dealers are not covered by this warranty and may be either:
1) goods acquired on a secondary or grey market
2) counterfeit or stolen goods
3) damaged, or defective goods

Changes or modications not expressly approved
by the party responsible for compliance could void
the user’s authority to operate the equipment.
This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation. This
equipment generates uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However,
there is no guarantee that interference will not occur
in a particular installation. If this equipment does
cause harmful interference to radio or television
reception, which can be determined by turning the
equipment o and on, the user is encouraged to try
to correct
the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment
and receiver.
• Connect the equipment into an outlet on a
circuit dierent from that to which the receiver
is connected.
• Consult the dealer or an experienced radio/TV
technician for help.
Under Industry Canada regulations, this radio
transmitter may only operate using an antenna of a
type and maximum (or lesser) gain approved for the
transmitter by Industry Canada. To reduce potential
radio interference to other users, the antenna type
and its gain should be so chosen that the equivalent
isotropically radiated power (e.i.r.p.) is not more than
that necessary for successful communication.
Conformément à la réglementation d’Industrie
Canada, le présent émetteur radio peut fonctionner
avec une antenne d’un type et d’un gain maximal
(ou inférieur) approuvé pour l’émetteur par Industrie
Canada. Dans le but de réduire les risques de
brouillage radioélectrique à l’intention des autres
utilisateurs, il faut choisir le type d’antenne et son
gain de sorte que la puissance isotrope rayonnée
équivalente (p.i.r.e.) ne dépasse pas l’intensité
nécessaire à l’établissement d’une communication
satisfaisante.
MPE Reminding
To satisfy FCC / IC RF exposure requirements, a
separation distance of 20 cm or more should be
maintained between the antenna of this device
and persons during device operation.To ensure
compliance, operations at closer than this distance is
not recommended.

Danger
Exposure to extremely high noise levels may cause a permanent hearing loss. Individuals vary considerably to noise induced
hearing loss but nearly everyone will lose some hearing if exposed to suciently intense noise for a sucient time. The U.S.
Government’s Occupational Safety and Health Administration (OSHA) has specied the following permissible noise level
exposures:
According to OSHA, any exposure in the above permissible limits could result in some hearing loss. Earplugs or protectors
in the ear canal or over the ears must be worn when operating this amplication system in order to prevent a permanent
hearing loss. If exposure in excess of the limits as put forth above, to insure against potentially harmful exposure to high
sound pressure levels, it is recommended that all persons exposed to equipment capable of inducing high sound pressure
levels, such as this amplication system, be protected by hearing protectors while this unit is in operation.
THIS SYMBOL IS INTENDED TO ALERT THE
USER TO THE PRESENCE OF NON-INSULATED
"DANGEROUS VOLTAGE" WITHIN THE
PRODUCT'S ENCLOSURE THAT MAY BE OF
SUFFICIENT MAGNITUDE TO CONSTITUTE A
RISK OF ELECTRIC SHOCK TO PERSONS.
THIS SYMBOL IS INTENDED TO ALERT THE
USER TO THE PRESENCE OF IMPORTANT
OPERATING AND MAINTENANCE
(SERVICING) INSTRUCTIONS IN THE
LITERATURE ACCOMPANYING THE UNIT.
APPARATUS SHALL NOT BE EXPOSED TO
DRIPPING OR SPLASHING AND THAT NO
OBJECTS FILLED WITH LIQUIDS, SUCH AS
VASES, SHALL BE PLACED ON THE
APPARATUS.
DURATION PER DAY (HOURS) 8 6 4 3 2 1
SOUND LEVEL (dB) 90 93 95 97 100 103
Apparatets stikprop skal tilsluttes en stikkontakt med jord, som giver forbindelse til
stikproppens jord.Apparaten skall anslutas till jordat uttagApparatet må tilkoples jordet
stikkontaktLaite on liitettävä suojakoskettimilla varustettuun pistorasiaan
1. Read all safety and operating instructions before using this product.
2. All safety and operating instructions should be kept for future reference.
3. Read and understand all warnings listed on the operating instructions.
4. Follow all operating instructions to operate this product.
5. This product should not be used near water, i.e. Bathtub, sink, swimming pool, wet basement,
etc.
6. Only use dry cloth to clean this product.
7. Do not block any ventilation openings, It should not be placed at against a wall or placed in a
built-in enclosure that will impede the ow of cooling air.
8. Do not install this product near any heat sources; such as, radiators, heat registers, stove or
other apparatus (including heat producing ampliers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has
two blades with one wider than the other. A grounding-type plug has two blades and a third
grounding prong. The wide blade or the third prong are provided for your safety if the provided
plug does not t into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord being walked on or pinched, particularly at Plugs, convenience
receptacles and the point where they exit from the apparatus. Do not break the ground pin of
the power supply cord.
11. Only use attachments specied by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specied by the manufacturer or sold
with the apparatus. When a cart is used, use caution when moving cart/apparatus combination
to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Care should be taken so that objects do not fall and liquids are not spilled into the unit through
the ventilation ports or any other openings.
15. Refer all servicing to qualied service personnel. Servicing is required when the apparatus
has been damaged in any way; such as, power-supply cord or plug is damaged, liquid has been
spilled or objects have fallen into the apparatus, the apparatus has been
16. WARNING: To reduce the risk of re or electric shock, do not expose this apparatus to rain or
moisture.
17. When the MAINS plug, or an appliance coupler is used as the disconnect device, the
disconnect device shall remain readily operable.
18. Protective Ground Terminal: The apparatus shall be connected to an AC main socket with a
protective
IMPORTANT SAFETY INFORMATION

Danger- L‘exposition a des niveaux eleves de bruit peut provoquer une perte permanente de l’audition, Chaque organisme humain
reagit dieremment quant a la perte de l’audition, mais quasiment tout le monde subit une diminution de I’acuite auditive lors d’une
exposition susamment longue au bruit
intense. Les autorites competentes en reglementation de bruit ont deni les expositions tolerees aux niveaux de bruits:
Selon les autorites, toute exposition dans les limites citees cidessus, peuvent provoquer certaines pertes d’audition. Des bouchons
ou protections dans l’appareil auditif ou sur l’oreille doivent etre portes lors de l’utilisation de ce systeme d’amplication an de
prevenir le risque de perte permanente de l’audition, Dans le cas d’expositions superieures aux limites precitees il est recommande,
an de se premunir contre les expositions aux pressions acoustiques eIevees potentielIement dangeureuses, aux personnes
exposees aux equipements capables de delivrer de telles puissances, tels ce systeme d’amplication en fonctionnement, de
proteger l’appareil auditif.
DURATION PER DAY (HOURS) 8 6 4 3 2 1
SOUND LEVEL (dB) 90 93 95 97 100 103
IMPORTANT SAFETY INFORMATION
1. Lire avec attention toutes les recommandations et précautions d’emploi avant d’utiliser ce produit.
2. Toutes les recommandations et précautions d’emploi doivent être conservées an de pouvoir s’y
reporter si nécessaire.
3. Lire et comprendre tous les avertissements énumérés dans les précautions d’emploi.
4. Suivre toutes les précautions d’emploi pour utiliser ce produit.
5. Ce produit ne doit pas être utilisé près d’eau, comme par exemple baignoires, éviers, piscine,
sous-sol humides ETC.
6. Utiliser exclusivement un chion sec pour nettoyer ce produit.
7. Ne bloquér aucune ouverture de ventilation. Ne pas placer le produit tout contre un mur ou dans
une enceinte fernée, cela gênerait le ux d’air nécessaire au refroidissement.
8. Ne pas placer le produit près de toute source de chaeur telle que radiateurs, arrivées d’air chaud,
fourneaux ou autres appareils générant de la chaleur (incluant les amplicateurs producteurs de
chaleur).
9. Ne pas négliger la sécurité que procure un branchement polarisé ou avec raccordement à la
terre, Un branchement polarisé comprend deux ches dont l’une est plus large que l’autre. Un
branchement à la terre comprend deux ches plus une troisième reliée à la terre. Si la che secteur
fournie ne s’insert pas dans votre prise de courant. consulter un ‘électricien an de remplacer votre
prise obsolète.
10. Protéger le cordon d’alimentation de tout écrasement ou incement, particulièrement au niveau
des ches, des réceptacles utilisés et à l’endroit de sortie de l’appareil. Ne pas casser la che de
terre du cordon d’alimentation.
11. Utiliser uniquement les accessoires spéciés par le constructeur.
12. Utiliser uniquement avec le chariot de transport, le support, le trépied, la console ou la table spéciés
par le constructeur ou vendus avec l’appareil. Lors de l’utilisation d’un chariot, bouger avec précaution
l’ensemble chariotlappareil an d’éviter les dommages d’un renversement.
13. Débrancher cet appareil lors d’orages ou s’il n’est pas utilisé pendant une longue période.
14. Des précautions doivent être prises an qu’aucun objet ne tombe et qu’aucun liquide ne se répande à
l’intérieur de l’appareil par les orics de ventilation ou n’importe quelle autre ouverture.
15. Pour toutes interventions techniques s’adresser à un technicien qualié.L’intervention technique
est nécessaire lorsque l’appareil a été endommagé de n’importe quelle façon, comme par exemple
si le cordon secteur ou sa che sont détériorés,si du liquide a coulé ou si des objets sont tombés
à l’intérieur de l’apparei1,si l’appareil a été exposé à la pluie ou à l’humidité, s’il ne fonctionne pas
normalement ou s’il est tombé.
16. ATTENTI0N: Pour réduire le risque d’incendie ou de choc electrique ne pas exposer l’appareil à la
pluie ou à l’humidité.
17. Quand La prise MAINS, au coupler, est utilisé pour la source d’alimentation êlectrique. Il est conseillê
de garder cette prise facilement accessible.
18. Borne de terre de protection: L’appareil doit être connecté à un connecteur AC principale avec un
raccordement à la
Laite on liitettävä suojakoskettimilla varustettuun pistorasiaan. Apparatet må tilkoples jordet stikkontakt. Apparaten skall
anslutas till jordat uttag Apparatets stikprop skal tilsluttes en stikkontakt med jord, som giver forbindelse til stikproppens
jord.
CE SYMBOLE A POUR BUT D'AVERTIR
L'UTILISATEUR DE LA PRESENCE DE VOLTAGE
DANGEREUX NON-ISOLE A L'INTERIEUR DE CE
PRODUIT QUI PEUT ETRE DE PUISSANCE
SUFFISAMMENT IMPORTANTE POUR
PROVOQUER UN CHOC ELECTRIQUE AUX
PERSONNES.
CE SYMBOLE A POUR BUT D'AVERTIR
L'UTILISATEUR DE LA PRESENCE
D'INSTRUCTIONS D'UTILISATION ET DE
MAINTENANCE DANS LES
DOCUMENTS FOURNIS AVEC CE PRODUIT.
AFIN DE REDUIRE LES RISQUÉ D'INCENDIE
ET DE DECHARGE ELECTRIQUE, NE PAS
EXPOSER CET APPAREIL A LA PLUIE OU A
L'HUMIDITE.

V-PS-2 Specications:
Power Supply Model: V-PS-2
Supplies Power For: Up to Two V-KP-1
Power Output: 60W / 24VDC
Protection: Over Voltage, Over Current, Over Temperature
(All are self-resetting)
Dimensions (HxWxD): 2” x 4” x 6” (50.8mm x 101.6mm x 152.4mm) 218.21 - Rev. 7
