Ruud UPRL- JEZ User manual

FORM NO. P22-770 REV. 4
Supersedes Form No. P22-770 Rev. 3
The Ruud Ultra Series™UPRL- JEZ Two-Stage Heat Pump
Outdoor Units can provide year-round heating and cooling com-
fort for residential, multi-family and light commercial applications.
They are designed to operate with Ruud indoor units with cooling
and heating capacities certified under the ARI Certification
program.
These units also contain the most advanced alternate refrigerant
which contains no chlorofluorocarbons (CFCs), or hydrochloroflu-
orocarbons (HCFCs), or other compounds that may leak from air-
conditioning systems and potentially harm the protective ozone
layer of the Earth’s atmosphere.
The Ruud Ultra Series™UHPL- Air Handler, equipped with auxil-
iary heating elements for supplementary heat was designed espe-
cially for use with Ultra Series™heat pumps. Together they pro-
vide systems capable of delivering a maximum HSPF (Heating
Seasonal Performance Factor) of 9.50 in the heating mode or a
maximum standard S.E.E.R. (Seasonal Energy Efficiency Ratio)
of 17.00 in the cooling mode.
The following additional features, plus its energy-saving character-
istics, make the UPRL- JEZ Heat Pump outdoor unit an excellent
choice for new construction or upgrading your present system.
■The Comfort Control System™ provides on-board diagnostics and
fault history for heat pump units with single-phase compressors by
detecting system and electrical problems without adding sensors.
It can also communicate “fault codes” to enabled “L terminal”
thermostats. The integrated diagnostics with Active Protection pre-
vents compressor operation when damage would occur.
■7-Segment LED Display is exclusive only to Ruud products. The
information-display quickly and accurately shows technicians the
source of malfunctions.
■Dependable Two-Stage Scroll®Compressor for precise temper-
ature control providing ultimate comfort.
■Attractive, louvered wrap-around jacket protects coil from
weather extremes and yard hazards. Top grille is steel rein-
forced for extra strength. Cabinet is powder painted for all
weather protection.
■Exclusive Combination Grille/Motor Mount secures the fan
motor to the underside of the discharge grille. The grille pro-
tects the motor windings and bearings from rain and snow.
■Features a ten-year conditional unit replacement warranty when
properly installed with a new Ruud Ultra Series™Air Handler or
Ruud Indoor Coil with a Ruud Ultra Series™Gas Furnace. See
product warranty card for additional information.
■All controls are accessible by removing one service panel.
Removable top grille provides access to the outdoor fan motor
and outdoor coil.
■Compressor compartment offers additional protection from the
elements and reduces operating noise.
■GE®ECM fan motor is designed for low speed, quieter, energy-
saving operation.
■Non-cycling reversing valve and demand defrost.
■All models meet or exceed a 1000-hour salt spray test per
ASTM B117 Standard Practice for Operating Salt Spray Testing
Apparatus.
■Dual-Fuel capable with select thermostats.
■The following “3 Heat/2 Cool” Ruud Thermostats are recom-
mended for maximum comfort: UHC-TST302UNMS, UHC-
TST303UNMS or UHC-TST402DFMS.
HEAT PUMPS
16.0
earth friendly refrigerant
Equipped with
the Award Winning
Comfort Control System™
• Increased Reliability
• On-Board Diagnostics
• Fault Recall
• Active Protection™
UPRL- JEZ
Two-Stage
Four Models
Efficiencies ranging up to 17 SEER
in certain matched systems.
Nominal Sizes 2, 3, 4 & 5 Tons
[7.03, 10.5, 14.07 & 17.6 kW]

2 Ruud Heating, Cooling and Water Heating
TWO-STAGE SCROLL®
COMPRESSOR
The scroll compressor is the key to efficiency for this Ruud
model. It’s the latest in high-efficiency compressor technology.
The advanced scroll compressor
offers low noise and vibration
characteristics and features
tolerance to liquid refrigerant and
system contamination. The scroll
also has low start torque,
eliminating start problems in the
field. And its unique design
enables the UPRL- JEZ Heat
Pump to perform efficiently,
quietly and reliably. All models
have a 10-year compressor
warranty as standard.
STANDARD FEATURES
UPRL- JEZ Heat Pumps
1. 2-stage operation in both cooling and heating mode.
2. Scroll compressor is hermetically sealed and incorporates
internal high temperature motor overload protection, and
durable insulation on the motor windings. It is externally
mounted on rubber grommets to reduce vibration and noise.
3. Compressors have an internal pressure relief assembly to
protect against excessive pressure differential.
4. All refrigerant connections are on the exterior of the unit,
located close to the ground for neat appearing installations.
5. Cabinet is constructed of powder painted galvanized
steel. The full wraparound louvered grille protects the coil
from damage.
6. Copper Tube—Aluminum Fin coils are used on all models.
7. The control box is located in the top corner of the cabinet
providing for easy access through a service panel.
8. Service valves are standard on all models.
9. Field connections for power and control wiring are kept
separate.
10. Every unit is factory charged and run-tested.
11. Separate compressor compartment for easy service access.
12. Drawn, painted base pan for extra corrosion resistance and
sound reduction.
13. The UPRL- JEZ has a 10 year limited parts warranty, plus a
10 year conditional unit replacement warranty. See the
General Terms of Limited Warranty for more details.
14. Hard Start Kits—Standard on all JEZ models.
15. Enhanced compressor sound wrap is standard.
16. Control Box Cover.
17. The UPRL- JEZ is shipped with a liquid line filter drier,
(not-installed).
18. The UPRL- JEZ features factory-installed auto-reset low and
high pressure controls.
FEATURES & BENEFITS OF THE COMFORT CONTROL SYSTEM ™
■The Ruud Exclusive 7 Segment LED Display easily shows
system status codes and conditions.
■A Sealed Switch replaces the standard
contactor and features optical control
and latching
mechanism. The
sealed switch pre-
vents infiltration of
insects and dust.
A minimal switch-
ing arc, by the
optical control, offers greater reliability.
The latching mechanism consumes less
power while reducing chatter.
■The Status Indication and System Diagnostics feature ther-
mostat communication capability, built-in diagnostics, high
& low voltage monitoring and high & low switch monitoring.
The thermostat communication capability alerts the homeowner
of any necessary service requirements. Faster, more accurate
service is provided with the built-in
diagnostics, by providing the HVAC
professional with dependable infor-
mation. Compressor reliability is
increased with the high and low
voltage monitoring feature. In addi-
tion, high and low pressure-switch
monitoring prevents the system from
operating when damage could occur.
■The Fault Recall feature will allow for the last six fault-codes
to be displayed, and will retain these codes even if power
failure occurs.
■Built-in short-cycle protection allows the compressor to
restart easily without removing the oil from the compressor.
■A 30-second minimum run-time for every compressor call
allows the oil to return to the compressor.
■Active Protection prevents the compressor from operating if
damage could occur.
■The compressor and fan are
controlled independently,
which reduces the starting load
and light dimming.
■A manual push-button is
offered to operate the compres-
sor and fan for 5 seconds to
allow for an operation check.
■In order to save time and
money, replacement automotive fuses can be utilized
instead of replacing the entire control board.
All controls and compressor
are accessible for servicing by
removal of the service panel.

Ruud Heating, Cooling and Water Heating 3
Accessories
■Outdoor Thermostats—
RXPT-A01—One outdoor thermostat in box.
RXPT-A02—One outdoor thermostat for mounting in box for use
with RXPT-A01 or A03.
RXPT-A03—One outdoor thermostat with emergency Heat Relay
wired and mounted in box.
RXPT-A04—Two outdoor thermostats with emergency Heat Relay
wired and mounted in box.
■Thermostats
s
■Blower Time Delay Control—RXMD-C06.
■Fossil Fuel Kits—Not required. See Ruud Thermostats Specification
Sheet (T22-001).
■Low Ambient Control—Cycles outdoor fan to maintain adequate
condensing pressures assuring liquid refrigerant flow to the coil.
Allows low temperature operation in the cooling cycle down to 0°F
[-17.8°C] outdoor temperature. It is recommended that this control be
installed in units to be operated at outdoor ambient temperatures
under 70°F [21°C] (Model No. RXAD-A08)
U P R L 024 J E Z
RUUD REMOTE
HEAT PUMP
EFFICIENCY
16 SEER
DESIGN
SERIES
R-410A
ELECTRICAL
DESIGNATION
J = 208/230V-1-6
Ø
VARIATIONS
E = EQUIPPED
WITH THE COMFORT
CONTROL SYSTEM ™
COOLING
CONNECTION
FITTING
Z = SWEAT W/SCROLL
COOLING
CAPACITY
024 = 24,000 BTU/HR [7.03 kW]
036 = 36,000 BTU/HR [10.55 kW]
048 = 48,000 BTU/HR [14.07 kW]
060 = 60,000 BTU/HR [17.58 kW]
—
Model Number Identification
[ ] Designates Metric Conversions
For all season home comfort, performance and energy conservation, choose a Ruud Ultra Series™ UPRL- JEZ Series Heat Pump and
with an UHPL- Series Air Handler.
More than a reverse cycle air conditioner, it’s a specially designed combination Winter/Summer comfort system using an indoor coil for
heating and cooling.
To choose an UHPL- Air Handler designed for use with the UPRL- JEZ Heat Pump, refer to the Performance Data Tables and/or the air
handler specification sheet.
Ruud Heat Pump System
NOTE: Requires “3 Heat/2 Cool” thermostat for Maximum Comfort.

4 Ruud Heating, Cooling and Water Heating
Outdoor
Unit
UPRL-
Model Numbers
Stage
ARI Cooling Performance
80° [26.5°C] / 67°F [19.5°C] WB Indoor Air
95°F [35°C] DB Outdoor Air
024JEZ
RCSM-H*2421A* ➀
114,500 [4.2] 4,100 [1.2]
17.0024,000 [7.0] 13.05
71 16,600 [4.9] 3.84 9,900 [2.9] 2.56
625 [295]
UHPL-HM2421
22,200 [6.5] 13,400 [3.9] 9.50
ID Coil SEER
Total
Capacity BTU/H [kW] COP BTU/H [kW] COP
ID Air Mover BTU/H [kW] BTU/H [kW]
Outdoor Air
47°F [8.5°C] DB/
43°F [6°C] WB
Outdoor Air
17°F [-8.5°C] DB/
15°F [-9.5°C] WB
47°F [8.5°C] DB/
43°F [6°C] WB
17°F [-8.5°C] DB/
15°F [-9.5°C] WB DOE
Region IV
HSPF
ARI Ratings
Net Latent
BTU/H [kW]
Net Sensible
BTU/H [kW]
Indoor Airflow
CFM [L/s]
Sound
Rating
dB
EER
217,850 [5.2] 6,150 [1.8] 74 22,200 [6.5] 13,400 [3.9]775 [366]
1 - dehumid 13,800 [4.0] 3,700 [1.1] 71550 [260]
RCFM-H*2417A*
114,450 [4.2]
2 - dehumid
4,050 [1.2] 16.5023,800 [7.0] 12.55 71 16,600 [4.9 3.76 9,900 [2.9] 2.54
600 [283]
UGFD-06?MCK?
17,250 [5.1]
22,400 [6.6] 13,600 [4.0] 9.50
6,150 [1.8]
217,750 [5.2] 6,050 [1.8] 74
74
675 [319]
22,400 [6.6] 13,600 [4.0]
800 [378]
217,800 [5.2] 1
6,200 [1.8] 74 22,400 [6.6] 13,500 [4.0]
800 [378]
14,450 [4.2] 4,050 [1.2]
114,450 [4.2]
16.50
4,150 [1.2]
24,000 [7.0]
17.0024,000 [7.0] 12.85 71
12.65 71 16,600 [4.9] 3.78 9,900 [2.9] 2.54
600 [283]
UGFD-07?MCK?
16,600 [4.9] 3.82 9,900 [2.9] 2.58
600 [283]
UGGD-06?MCK? 22,200 [6.5] 13,400 [3.9] 9.50
114,450 [4.2] 2
4,050 [1.2] 17.0024,000 [7.0] 12.75 71 16,600 [4.9] 3.80 9,900 [2.9] 2.56
625 [295]
UGGD-07?MCK?
17,850 [5.2]
22,200 [6.5] 13,500 [4.0] 9.50
6,150 [1.8]
217,800 [5.2] 6,200 [1.8] 74
74 22,200 [6.5] 13,400 [3.9]
800 [378]
22,200 [6.5] 13,500 [4.0]
800 [378]
22,400 [6.6] 13,500 [4.0] 9.50
217,850 [5.2] 1
6,150 [1.8] 74 22,200 [6.5] 13,400 [3.9]
800 [378]
14,450 [4.2] 4,150 [1.2]
114,450 [4.2]
17.00
4,050 [1.2]
24,000 [7.0]
17.0024,000 [7.0] 12.75 71
12.85 71 16,600 [4.9] 3.82 9,900 [2.9] 2.58
600 [283]
UGJD-06?MCK?
16,600 [4.9] 3.80 9,900 [2.9] 2.56
625 [295]
UGJD-07?MCK? 22,200 [6.5] 13,500 [4.0] 9.50
114,500 [4.2] 2
4,100 [1.2] 17.0024,000 [7.0] 13.00 71 16,500 [4.8] 3.84 9,800 [2.9] 2.60
600 [283]
UGLR-07?AMK?
17,800 [5.2]
22,200 [6.5] 13,400 [3.9] 9.50
6,200 [1.8]
217,900 [5.2] 6,100 [1.8] 74
74 22,200 [6.5] 13,500 [4.0]
800 [378]
22,200 [6.5] 13,400 [3.9]
800 [378]
114,400 [4.2] 4,100 [1.2] 16.5024,000 [7.0] 12.80 71 17,100 [5.0] 3.80 10,400 [3.0] 2.56
600 [283]
UGPR-05?BMK? 22,200 [6.5] 13,500 [4.0] 9.50
RCFM-H*2417A*+RXMD-C06 113,900 [4.1]
2
4,100 [1.2] 14.5023,600 [6.9] 11.65 71 16,600 [4.9] 3.58 9,900 [2.9] 2.44
625 [295]
Coil Only
17,850 [5.2]
22,800 [6.7] 13,900 [4.1] 8.50
6,150 [1.8]
217,450 [5.1] 6,150 [1.8] 74
74 22,800 [6.7] 13,900 [4.1]
775 [366]
22,400 [6.6] 13,500 [4.0]775 [366]
22,200 [6.5] 13,400 [3.9] 9.50
Rev.
3/28/2008
Performance Data ARI Standard Conditions Note: Only these combinations of indoor/outdoor units are approved and any other combinations should not be used.
➀Highest sales volume tested combination required by DOE test procedures. [ ] Designates Metric Conversions

Ruud Heating, Cooling and Water Heating 5
Outdoor
Unit
UPRL-
Model Numbers
Stage
ARI Cooling Performance
80° [26.5°C] / 67°F [19.5°C] WB Indoor Air
95°F [35°C] DB Outdoor Air
ARI Heating Performance (70°F [21°C] Indoor)
024JEZ
RCFM-H*2421A*
114,450 [4.2] 4,050 [1.2] 16.5023,800 [7.0] 12.55 71 16,600 [4.9] 3.78 9,900 [2.9] 2.54
600 [283]
UGFD-06?MCK? 22,400 [6.6] 13,500 [4.0] 9.50
ID Coil SEER
Total
Capacity BTU/H [kW] COP BTU/H [kW] COP
ID Air Mover BTU/H [kW] BTU/H [kW]
Outdoor Air
47°F [8.5°C] DB/
43°F [6°C] WB
Outdoor Air
17°F [-8.5°C] DB/
15°F [-9.5°C] WB
47°F [8.5°C] DB/
43°F [6°C] WB
17°F [-8.5°C] DB/
15°F [-9.5°C] WB DOE
Region IV
HSPF
ARI Ratings
Net Latent
BTU/H [kW]
Net Sensible
BTU/H [kW]
Indoor Airflow
CFM [L/s]
Sound
Rating
dB
EER
217,750 [5.2] 6,050 [1.8] 74 22,400 [6.6] 13,500 [4.0]
800 [378]
Rev.
3/28/2008
UGFD-07?MCK? 114,450 [4.2] 4,050 [1.2] 24,000 [7.0] 16.50 12.65 600 [283] 71 16,600 [4.9] 3.80 9,900 [2.9] 2.56 22,200 [6.5] 13,500 [4.0] 9.50
217,800 [5.2] 6,200 [1.8] 800 [378] 74 22,200 [6.5] 13,500 [4.0]
UGGD-06?MCK? 114,450 [4.2] 4,150 [1.2] 24,000 [7.0] 17.00 12.90 600 [283] 71 16,500 [4.8] 3.84 9,800 [2.9] 2.58 22,200 [6.5] 13,400 [3.9] 9.50
217,850 [5.2] 6,150 [1.8] 800 [378] 74 22,200 [6.5] 13,400 [3.9]
UGGD-07?MCK? 114,450 [4.2] 4,050 [1.2] 24,000 [7.0] 17.00 12.75 625 [295] 71 16,600 [4.9] 3.82 9,900 [2.9] 2.56 22,200 [6.5] 13,400 [3.9] 9.50
217,850 [5.2] 6,150 [1.8] 800 [378] 74 22,200 [6.5] 13,400 [3.9]
UGJD-06?MCK? 114,450 [4.2] 4,150 [1.2] 24,000 [7.0] 17.00 12.90 600 [283] 71 16,500 [4.8] 3.84 9,800 [2.9] 2.58 22,200 [6.5] 13,400 [3.9] 9.50
217,850 [5.2] 6,150 [1.8] 800 [378] 74 22,200 [6.5] 13,400 [3.9]
UGJD-07?MCK? 114,450 [4.2] 4,050 [1.2] 24,000 [7.0] 17.00 12.75 625 [295] 71 16,600 [4.9] 3.82 9,900 [2.9] 2.56 22,200 [6.5] 13,400 [3.9] 9.50
217,850 [5.2] 6,150 [1.8] 800 [378] 74 22,200 [6.5] 13,400 [3.9]
UGLR-07?AMK? 114,500 [4.2] 4,100 [1.2] 24,000 [7.0] 17.00 13.05 600 [283] 71 16,500 [4.8] 3.86 9,800 [2.9] 2.60 22,200 [6.5] 13,300 [3.9] 9.50
217,900 [5.2] 6,100 [1.8] 800 [378] 74 22,200 [6.5] 13,300 [3.9]
UGPL-07?BRK? 114,500 [4.2] 4,100 [1.2] 24,000 [7.0] 17.00 12.95 600 [283] 71 16,500 [4.8] 3.84 9,800 [2.9] 2.58 22,200 [6.5] 13,400 [3.9] 9.50
217,900 [5.2] 6,100 [1.8] 800 [378] 74 22,200 [6.5] 13,400 [3.9]
UGPR-05?BMK? 114,400 [4.2] 4,100 [1.2] 24,000 [7.0] 16.50 12.80 600 [283] 71 16,600 [4.9] 3.82 9,900 [2.9] 2.58 22,200 [6.5] 13,400 [3.9] 9.50
217,850 [5.2] 6,150 [1.8] 775 [366] 74 22,200 [6.5] 13,400 [3.9]
UGPR-07?AMK? 114,500 [4.2] 4,100 [1.2] 24,000 [7.0] 17.00 12.95 600 [283] 71 16,500 [4.8] 3.84 9,800 [2.9] 2.58 22,200 [6.5] 13,400 [3.9] 9.50
217,900 [5.2] 6,100 [1.8] 800 [378] 74 22,200 [6.5] 13,400 [3.9]
RCFM-H*2421A*+RXMD-C06 Coil Only 113,900 [4.1] 4,100 [1.2] 23,600 [6.9] 14.50 11.65 625 [295] 71 17,100 [5.0] 3.58 10,400 [3.0] 2.44 22,800 [6.7] 13,900 [4.1] 8.50
217,450 [5.1] 6,150 [1.8] 775 [366] 74 22,800 [6.7] 13,900 [4.1]
Performance Data ARI Standard Conditions (con’t.) Note: Only these combinations of indoor/outdoor units are approved and any other combinations should not be used.
[ ] Designates Metric Conversions

6 Ruud Heating, Cooling and Water Heating
Outdoor
Unit
UPRL-
Model Numbers
Stage
ARI Cooling Performance
80° [26.5°C] / 67°F [19.5°C] WB Indoor Air
95°F [35°C] DB Outdoor Air
ARI Heating Performance (70°F [21°C] Indoor)
036JEZ
RCSM-H*3621A* ➀
119,350 [5.7] 6,450 [1.9]
16.5035,400 [10.4] 12.75
71 24,000 [7.0] 3.68 14,900 [4.4] 2.38
875 [413]
UHPL-HM3621
33,400 [9.8] 21,400 [6.3] 8.70
ID Coil SEER
Total
Capacity BTU/H [kW] COP BTU/H [kW] COP
ID Air Mover BTU/H [kW] BTU/H [kW]
Outdoor Air
47°F [8.5°C] DB/
43°F [6°C] WB
Outdoor Air
17°F [-8.5°C] DB/
15°F [-9.5°C] WB
47°F [8.5°C] DB/
43°F [6°C] WB
17°F [-8.5°C] DB/
15°F [-9.5°C] WB DOE
Region IV
HSPF
ARI Ratings
Net Latent
BTU/H [kW]
Net Sensible
BTU/H [kW]
Indoor Airflow
CFM [L/s]
Sound
Rating
dB
EER
225,700 [7.5] 9,700 [2.8] 72 33,400 [9.8] 21,400 [6.3]1200 [566]
Rev.
3/28/2008
1 - dehumid 16,050 [4.7] 2,650 [0.8] 750 [354] 71 2 - dehumid 23,000 [6.7] 6,800 [2.0] 950 [448] 72
RCFM-H*3617A*
UGFD-06?MCK? 119,000 [5.6] 6,400 [1.9] 34,600 [10.1] 15.00 11.50 875 [413] 71 24,400 [7.1] 3.48 15,300 [4.5] 2.38 34,000 [10.0] 22,200 [6.5] 8.25
225,100 [7.4] 9,500 [2.8] 1175 [554] 72 34,000 [10.0] 22,200 [6.5]
UGFD-07?MCK? 119,050 [5.6] 6,350 [1.9] 34,400 [10.1] 15.00 11.40 900 [425] 71 24,400 [7.1] 3.46 15,200 [4.5] 2.38 34,200 [10.0] 22,200 [6.5] 8.70
225,050 [7.3] 9,350 [2.7] 1200 [566] 72 34,200 [10.0] 22,200 [6.5]
UGGD-06?MCK? 119,100 [5.6] 6,300 [1.8] 34,600 [10.1] 15.50 11.55 900 [425] 71 24,200 [7.1] 3.50 15,100 [4.4] 2.40 34,000 [10.0] 22,000 [6.4] 8.70
225,150 [7.4] 9,450 [2.8] 1225 [578] 72 34,000 [10.0] 22,000 [6.4]
UGGD-07?MCK? 119,050 [5.6] 6,350 [1.9] 34,600 [10.1] 15.00 11.45 925 [437] 71 24,200 [7.1] 3.48 15,200 [4.5] 2.38 34,000 [10.0] 22,200 [6.5] 8.70
225,050 [7.3] 9,550 [2.8] 1225 [578] 72 34,000 [10.0] 22,200 [6.5]
UGJD-06?MCK? 119,100 [5.6] 6,300 [1.8] 34,600 [10.1] 15.50 11.55 900 [425] 71 24,200 [7.1] 3.50 15,100 [4.4] 2.40 34,000 [10.0] 22,000 [6.4] 8.70
225,150 [7.4] 9,450 [2.8] 1225 [578] 72 34,000 [10.0] 22,000 [6.4]
UGJD-07?MCK? 119,050 [5.6] 6,350 [1.9] 34,600 [10.1] 15.00 11.45 925 [437] 71 24,200 [7.1] 3.48 15,200 [4.5] 2.38 34,000 [10.0] 22,200 [6.5] 8.70
225,050 [7.3] 9,550 [2.8] 1225 [578] 72 34,000 [10.0] 22,200 [6.5]
UGLR-07?AMK? 119,200 [5.6] 6,400 [1.9] 35,000 [10.3] 16.00 12.00 925 [437] 71 24,200 [7.1] 3.58 15,000 [4.4] 2.44 33,800 [9.9] 21,800 [6.4] 8.70
225,350 [7.4] 9,650 [2.8] 1200 [566] 72 33,800 [9.9] 21,800 [6.4]
UGPR-05?BMK? 119,000 [5.6] 6,400 [1.9] 34,600 [10.1] 15.00 11.50 900 [425] 71 24,400 [7.1] 3.48 15,300 [4.5] 2.38 34,000 [10.0] 22,000 [6.4] 8.25
225,100 [7.4] 9,500 [2.8] 1200 [566] 72 34,000 [10.0] 22,000 [6.4]
RCFM-H*3617A*+RXMD-C06 Coil Only 118,150 [5.3] 6,450 [1.9] 34,200 [10.0] 14.00 11.85 875 [413] 71 24,800 [7.3] 3.52 15,600 [4.6] 2.40 33,200 [9.7] 21,600 [6.3] 8.25
224,700 [7.2] 9,500 [2.8] 1070 [505] 72 33,200 [9.7] 21,600 [6.3]
Performance Data ARI Standard Conditions (con’t.) Note: Only these combinations of indoor/outdoor units are approved and any other combinations should not be used.
➀Highest sales volume tested combination required by DOE test procedures. [ ] Designates Metric Conversions

Ruud Heating, Cooling and Water Heating 7
Outdoor
Unit
UPRL-
Model Numbers
Stage
ARI Cooling Performance
80° [26.5°C] / 67°F [19.5°C] WB Indoor Air
95°F [35°C] DB Outdoor Air
ARI Heating Performance (70°F [21°C] Indoor)
ID Coil SEER
Total
Capacity BTU/H [kW] COP BTU/H [kW] COP
ID Air Mover BTU/H [kW] BTU/H [kW]
Outdoor Air
47°F [8.5°C] DB/
43°F [6°C] WB
Outdoor Air
17°F [-8.5°C] DB/
15°F [-9.5°C] WB
47°F [8.5°C] DB/
43°F [6°C] WB
17°F [-8.5°C] DB/
15°F [-9.5°C] WB DOE
Region IV
HSPF
ARI Ratings
Net Latent
BTU/H [kW]
Net Sensible
BTU/H [kW]
Indoor Airflow
CFM [L/s]
Sound
Rating
dB
EER
036JEZ
RCFM-H*3621A*
UGFD-09?ZCM? 119,250 [5.6] 6,350 [1.9] 34,800 [10.2] 16.00 12.30 850 [401] 71 24,000 [7.0] 3.64 14,900 [4.4] 2.48 33,400 [9.8] 21,600 [6.3] 8.70
225,300 [7.4] 9,500 [2.8] 1150 [543] 72 33,400 [9.8] 21,600 [6.3]
UGFD-10?ZCM? 119,250 [5.6] 6,350 [1.9] 35,000 [10.3] 16.00 12.20 850 [401] 71 24,000 [7.0] 3.62 15,000 [4.4] 2.46 33,600 [9.8] 21,600 [6.3] 8.70
225,450 [7.5] 9,550 [2.8] 1175 [554] 72 33,600 [9.8] 21,600 [6.3]
UGGD-09?ZCM? 119,300 [5.7] 6,500 [1.9] 35,200 [10.3] 16.50 12.35 800 [378] 71 24,000 [7.0] 3.64 14,900 [4.4] 2.48 33,400 [9.8] 21,600 [6.3] 8.70
225,500 [7.5] 9,700 [2.8] 1175 [554] 72 33,400 [9.8] 21,600 [6.3]
UGGD-10?ZCM? 119,300 [5.7] 6,500 [1.9] 35,200 [10.3] 16.50 12.40 825 [389] 71 24,000 [7.0] 3.64 14,900 [4.4] 2.48 33,400 [9.8] 21,600 [6.3] 8.70
225,550 [7.5] 9,650 [2.8] 1175 [554] 72 33,400 [9.8] 21,600 [6.3]
UGJD-09?ZCM? 119,300 [5.7] 6,500 [1.9] 35,200 [10.3] 16.50 12.35 800 [378] 71 24,000 [7.0] 3.64 14,900 [4.4] 2.48 33,400 [9.8] 21,600 [6.3] 8.70
225,500 [7.5] 9,700 [2.8] 1175 [554] 72 33,400 [9.8] 21,600 [6.3]
UGJD-10?ZCM? 119,300 [5.7] 6,500 [1.9] 35,200 [10.3] 16.50 12.40 825 [389] 71 24,000 [7.0] 3.64 14,900 [4.4] 2.48 33,400 [9.8] 21,600 [6.3] 8.70
225,550 [7.5] 9,650 [2.8] 1175 [554] 72 33,400 [9.8] 21,600 [6.3]
UGLR-10?BRM? 119,250 [5.6] 6,350 [1.9] 35,200 [10.3] 16.00 12.55 925 [437] 71 24,000 [7.0] 3.66 14,900 [4.4] 2.48 33,400 [9.8] 21,400 [6.3] 8.70
225,600 [7.5] 9,600 [2.8] 1200 [566] 72 33,400 [9.8] 21,400 [6.3]
UGPR-07?AMK? 119,150 [5.6] 6,450 [1.9] 35,000 [10.3] 15.50 12.00 900 [425] 71 24,200 [7.1] 3.58 15,100 [4.4] 2.44 33,800 [9.9] 21,800 [6.4] 8.70
225,350 [7.4] 9,650 [2.8] 1200 [566] 72 33,800 [9.9] 21,800 [6.4]
UGPR-07?BRQ? 119,300 [5.7] 6,500 [1.9] 35,200 [10.3] 16.50 12.55 875 [413] 71 24,000 [7.0] 3.66 14,900 [4.4] 2.50 33,400 [9.8] 21,400 [6.3] 8.70
225,600 [7.5] 9,600 [2.8] 1200 [566] 72 33,400 [9.8] 21,400 [6.3]
UGPR-10?BRM? 119,200 [5.6] 6,400 [1.9] 35,200 [10.3] 16.00 12.30 925 [437] 71 24,000 [7.0] 3.64 15,000 [4.4] 2.46 33,600 [9.8] 21,600 [6.3] 8.70
225,500 [7.5] 9,700 [2.8] 1225 [578] 72 33,600 [9.8] 21,600 [6.3]
Coil Only 118,350 [5.4] 6,450 [1.9] 34,400 [10.1] 14.50 11.70 875 [413] 71 24,800 [7.3] 3.50 15,600 [4.6] 2.38 33,800 [9.9] 21,800 [6.4] 8.25
224,800 [7.3] 9,600 [2.8] 1150 [543] 72 33,800 [9.9] 21,800 [6.4]
Rev.
3/28/2008
RCFM-H*3621A*+RXMD-C06
Performance Data ARI Standard Conditions (con’t.) Note: Only these combinations of indoor/outdoor units are approved and any other combinations should not be used.
[ ] Designates Metric Conversions

8 Ruud Heating, Cooling and Water Heating
Outdoor
Unit
UPRL-
Model Numbers
Stage
ARI Cooling Performance
80° [26.5°C] / 67°F [19.5°C] WB Indoor Air
95°F [35°C] DB Outdoor Air
ARI Heating Performance (70°F [21°C] Indoor)
ID Coil SEER
Total
Capacity BTU/H [kW] COP BTU/H [kW] COP
ID Air Mover BTU/H [kW] BTU/H [kW]
Outdoor Air
47°F [8.5°C] DB/
43°F [6°C] WB
Outdoor Air
17°F [-8.5°C] DB/
15°F [-9.5°C] WB
47°F [8.5°C] DB/
43°F [6°C] WB
17°F [-8.5°C] DB/
15°F [-9.5°C] WB DOE
Region IV
HSPF
ARI Ratings
Net Latent
BTU/H [kW]
Net Sensible
BTU/H [kW]
Indoor Airflow
CFM [L/s]
Sound
Rating
dB
EER
048JEZ
RCSM-H*4824A* ➀UHPL-HM4824
126,650 [7.8] 8,750 [2.6]
47,000 [13.8] 16.00 12.25
1200 [566] 71 33,200 [9.7] 3.66 18,500 [5.4] 2.54 44,500 [13.0] 26,200 [7.7] 9.50
235,100 [10.3] 11,900 [3.5] 1625 [767] 72 44,500 [13.0] 26,200 [7.7]
1 - dehumid 24,000 [7.0] 9,800 [2.9] 1000 [472] 71 2 - dehumid 33,450 [9.8] 14,050 [4.1] 1275 [602] 72
RCFM-H*4821A*
UGFD-09?ZCM? 126,300 [7.7] 8,700 [2.5] 46,000 [13.5] 14.50 11.20 1150 [543] 71 33,600 [9.8] 3.96 18,900 [5.5] 2.42 45,500 [13.3] 27,000 [7.9] 9.00
234,500 [10.1] 11,500 [3.4] 1600 [755] 72 45,500 [13.3] 27,000 [7.9]
UGFD-10?ZCM? 126,250 [7.7] 8,550 [2.5] 46,000 [13.5] 14.00 10.90 1175 [554] 71 33,600 [9.8] 3.88 19,000 [5.6] 2.38 45,500 [13.3] 27,400 [8.0] 9.00
234,250 [10.0] 11,750 [3.4] 1625 [767] 72 45,500 [13.3] 27,400 [8.0]
UGGD-09?ZCM? 126,300 [7.7] 8,700 [2.5] 46,000 [13.5] 14.50 11.00 1175 [554] 71 33,600 [9.8] 3.88 18,900 [5.5] 2.38 45,500 [13.3] 27,400 [8.0] 9.00
234,450 [10.1] 11,550 [3.4] 1675 [790] 72 45,500 [13.3] 27,400 [8.0]
UGGD-10?ZCM? 126,300 [7.7] 8,700 [2.5] 46,000 [13.5] 14.50 11.05 1175 [554] 71 33,600 [9.8] 3.92 18,900 [5.5] 2.40 45,500 [13.3] 27,200 [8.0] 9.00
234,350 [10.1] 11,650 [3.4] 1625 [767] 72 45,500 [13.3] 27,200 [8.0]
UGJD-09?ZCM? 126,300 [7.7] 8,700 [2.5] 46,000 [13.5] 14.50 11.00 1175 [554] 71 33,600 [9.8] 3.88 18,900 [5.5] 2.38 45,500 [13.3] 27,400 [8.0]
45,000 [13.2] 26,800 [7.9] 9.00
234,750 [10.2] 11,750 [3.4] 1625 [767] 72 45,000 [13.2] 26,800 [7.9]
9.00
234,450 [10.1] 11,550 [3.4] 1675 [790] 72 45,500 [13.3] 27,400 [8.0]
UGJD-10?ZCM? 126,300 [7.7] 8,700 [2.5] 46,000 [13.5] 14.50 11.05 1175 [554] 71 33,600 [9.8] 3.92 18,900 [5.5] 2.40 45,500 [13.3] 27,200 [8.0] 9.00
234,350 [10.1] 11,650 [3.4] 1625 [767] 72 45,500 [13.3] 27,200 [8.0]
UGLR-10?BRM? 126,400 [7.7] 8,600 [2.5] 46,500 [13.6] 14.50 11.55 1200 [566] 71 33,400 [9.8] 4.06 18,800 [5.5] 2.46 45,000 [13.2] 26,800 [7.9] 9.00
234,550 [10.1] 11,950 [3.5] 1575 [743] 72 45,000 [13.2] 26,800 [7.9]
UGPR-07?BRQ? 126,400 [7.7] 8,600 [2.5] 46,500 [13.6] 14.50 11.60 1225 [578] 71 33,400 [9.8] 4.06 18,800 [5.5] 2.46 UGPR-10?BRM? 126,300 [7.7] 8,700 [2.5] 46,500 [13.6] 14.50 11.35 1200 [566] 71 33,600 [9.8] 4.00 18,800 [5.5] 2.44 45,000 [13.2] 27,000 [7.9] 9.00
234,600 [10.1] 11,900 [3.5] 1625 [767] 72 45,000 [13.2] 27,000 [7.9]
RCFM-H*4821A*+RXMD-C06 Coil Only 125,050 [7.3] 8,750 [2.6] 45,500 [13.3] 13.50 11.45 1200 [566] 71 34,200 [10.0] 3.98 19,500 [5.7] 2.44 44,500 [13.0] 26,600 [7.8] 8.50
233,800 [9.9] 11,700 [3.4] 1475 [696] 72 44,500 [13.0] 26,600 [7.8]
Rev.
3/28/2008
Performance Data ARI Standard Conditions (con’t.) Note: Only these combinations of indoor/outdoor units are approved and any other combinations should not be used.
➀Highest sales volume tested combination required by DOE test procedures. [ ] Designates Metric Conversions

Ruud Heating, Cooling and Water Heating 9
Outdoor
Unit
UPRL-
Model Numbers
Stage
ARI Cooling Performance
80° [26.5°C] / 67°F [19.5°C] WB Indoor Air
95°F [35°C] DB Outdoor Air
ARI Heating Performance (70°F [21°C] Indoor)
ID Coil SEER
Total
Capacity BTU/H [kW] COP BTU/H [kW] COP
ID Air Mover BTU/H [kW] BTU/H [kW]
Outdoor Air
47°F [8.5°C] DB/
43°F [6°C] WB
Outdoor Air
17°F [-8.5°C] DB/
15°F [-9.5°C] WB
47°F [8.5°C] DB/
43°F [6°C] WB
17°F [-8.5°C] DB/
15°F [-9.5°C] WB DOE
Region IV
HSPF
ARI Ratings
Net Latent
BTU/H [kW]
Net Sensible
BTU/H [kW]
Indoor Airflow
CFM [L/s]
Sound
Rating
dB
EER
048JEZ
RCFM-H*4824A*
UGFD-09?ZCM? 126,300 [7.7] 8,700 [2.5] 46,000 [13.5] 14.50 11.20 1150 [543] 71 33,600 [9.8] 3.96 18,900 [5.5] 2.42 45,500 [13.3] 27,000 [7.9] 9.00
234,500 [10.1] 11,500 [3.4] 1600 [755] 72 45,500 [13.3] 27,000 [7.9]
UGFD-10?ZCM? 126,250 [7.7] 8,550 [2.5] 46,000 [13.5] 14.00 10.90 1175 [554] 71 33,600 [9.8] 3.88 19,000 [5.6] 2.38 45,500 [13.3] 27,400 [8.0] 9.00
234,250 [10.0] 11,750 [3.4] 1625 [767] 72 45,500 [13.3] 27,400 [8.0]
UGFD-12?RCM? 126,250 [7.7] 8,550 [2.5] 46,500 [13.6] 14.50 11.45 1225 [578] 71 33,600 [9.8] 4.00 18,900 [5.5] 2.44 45,000 [13.2] 27,000 [7.9] 9.00
234,650 [10.2] 11,850 [3.5] 1650 [779] 72 45,000 [13.2] 27,000 [7.9]
UGGD-09?ZCM? 126,300 [7.7] 8,700 [2.5] 46,000 [13.5] 14.50 11.00 1175 [554] 71 33,600 [9.8] 3.88 18,900 [5.5] 2.38 45,500 [13.3] 27,400 [8.0] 9.00
234,450 [10.1] 11,550 [3.4] 1675 [790] 72 45,500 [13.3] 27,400 [8.0]
UGGD-10?ZCM? 126,300 [7.7] 8,700 [2.5] 46,000 [13.5] 14.50 11.05 1175 [554] 71 33,600 [9.8] 3.92 18,900 [5.5] 2.40 45,500 [13.3] 27,200 [8.0] 9.00
234,350 [10.1] 11,650 [3.4] 1625 [767] 72 45,500 [13.3] 27,200 [8.0]
UGGD-12?RCM? 126,350 [7.7] 8,650 [2.5] 46,000 [13.5] 14.50 11.25 1225 [578] 71 33,600 [9.8] 3.96 18,800 [5.5] 2.42 45,500 [13.3] 27,000 [7.9] 9.00
234,500 [10.1] 11,500 [3.4] 1650 [779] 72 45,500 [13.3] 27,000 [7.9]
UGJD-09?ZCM? 126,300 [7.7] 8,700 [2.5] 46,000 [13.5] 14.50 11.00 1175 [554] 71 33,600 [9.8] 3.88 18,900 [5.5] 2.38 45,500 [13.3] 27,400 [8.0] 9.00
234,450 [10.1] 11,550 [3.4] 1675 [790] 72 45,500 [13.3] 27,400 [8.0]
UGJD-10?ZCM? 126,300 [7.7] 8,700 [2.5] 46,000 [13.5] 14.50 11.05 1175 [554] 71 33,600 [9.8] 3.92 18,900 [5.5] 2.40 45,500 [13.3] 27,200 [8.0] 9.00
234,350 [10.1] 11,650 [3.4] 1625 [767] 72 45,500 [13.3] 27,200 [8.0]
UGJD-12?RCM? 126,350 [7.7] 8,650 [2.5] 46,000 [13.5] 14.50 11.25 1225 [578] 71 33,600 [9.8] 3.96 18,800 [5.5] 2.42 45,500 [13.3] 27,000 [7.9] 9.00
234,500 [10.1] 11,500 [3.4] 1650 [779] 72 45,500 [13.3] 27,000 [7.9]
UGLR-10?BRM? 126,400 [7.7] 8,600 [2.5] 46,500 [13.6] 14.50 11.55 1200 [566] 71 33,400 [9.8] 4.06 18,800 [5.5] 2.46 45,000 [13.2] 26,800 [7.9] 9.00
234,550 [10.1] 11,950 [3.5] 1575 [743] 72 45,000 [13.2] 26,800 [7.9]
UGLR-12?ARM? 126,400 [7.7] 8,600 [2.5] 46,500 [13.6] 14.50 11.65 1200 [566] 71 33,400 [9.8] 4.06 18,800 [5.5] 2.48 45,000 [13.2] 26,600 [7.8] 9.00
234,800 [10.2] 11,700 [3.4] 1600 [755] 72 45,000 [13.2] 26,600 [7.8]
UGPR-07?BRQ? 126,400 [7.7] 8,600 [2.5] 46,500 [13.6] 14.50 11.60 1225 [578] 71 33,400 [9.8] 4.06 18,800 [5.5] 2.46 45,000 [13.2] 26,800 [7.9] 9.00
234,750 [10.2] 11,750 [3.4] 1625 [767] 72 45,000 [13.2] 26,800 [7.9]
UGPR-10?BRM? 126,300 [7.7] 8,700 [2.5] 46,500 [13.6] 14.50 11.35 1200 [566] 71 33,600 [9.8] 4.00 18,800 [5.5] 2.44 45,000 [13.2] 27,000 [7.9] 9.00
234,600 [10.1] 11,900 [3.5] 1625 [767] 72 45,000 [13.2] 27,000 [7.9]
UGPR-12?ARM? 126,350 [7.7] 8,650 [2.5] 46,500 [13.6] 14.50 11.65 1250 [590] 71 33,400 [9.8] 4.06 18,800 [5.5] 2.48 45,000 [13.2] 26,600 [7.8] 9.00
234,600 [10.1] 11,900 [3.5] 1575 [743] 72 45,000 [13.2] 26,600 [7.8]
RCFM-H*4824A*+RXMD-C06 Coil Only 125,050 [7.3] 8,750 [2.6] 45,500 [13.3] 13.50 11.45 1200 [566] 71 34,200 [10.0] 3.98 19,500 [5.7] 2.44 44,500 [13.0] 26,600 [7.8] 8.50
233,800 [9.9] 11,700 [3.4] 1475 [696] 72 44,500 [13.0] 26,600 [7.8]
Rev.
3/28/2008
Performance Data ARI Standard Conditions (con’t.) Note: Only these combinations of indoor/outdoor units are approved and any other combinations should not be used.
[ ] Designates Metric Conversions

10 Ruud Heating, Cooling and Water Heating
Outdoor
Unit
UPRL-
Model Numbers
Stage
ARI Cooling Performance
80° [26.5°C] / 67°F [19.5°C] WB Indoor Air
95°F [35°C] DB Outdoor Air
ARI Heating Performance (70°F [21°C] Indoor)
ID Coil SEER
Total
Capacity BTU/H [kW] COP BTU/H [kW] COP
ID Air Mover BTU/H [kW] BTU/H [kW]
Outdoor Air
47°F [8.5°C] DB/
43°F [6°C] WB
Outdoor Air
17°F [-8.5°C] DB/
15°F [-9.5°C] WB
47°F [8.5°C] DB/
43°F [6°C] WB
17°F [-8.5°C] DB/
15°F [-9.5°C] WB DOE
Region IV
HSPF
ARI Ratings
Net Latent
BTU/H [kW]
Net Sensible
BTU/H [kW]
Indoor Airflow
CFM [L/s]
Sound
Rating
dB
EER
060JEZ
RCSM-H*6024A* ➀UHPL-HM6024
131,900 [9.3] 11,300 [3.3]
58,000 [17.0] 15.50 12.15
1375 [649] 76 43,000 [12.6] 3.78 26,600 [7.8] 2.74 58,000 [17.0] 36,800 [10.8] 9.00
241,000 [12.0] 17,000 [5.0] 1675 [790] 78 58,000 [17.0] 36,800 [10.8]
1 - dehumid 29,550 [8.7] 12,550 [3.7] 1125 [531] 76 2 - dehumid 37,850 [11.1] 18,950 [5.6] 1350 [637] 78
RCFM-H*6024A*
UGFD-09?ZCM? 131,800 [9.3] 11,200 [3.3] 57,000 [16.7] 15.00 11.45 1150 [543] 76 43,000 [12.6] 3.66 26,800 [7.9] 2.66 58,500 [17.1] 37,400 [11.0] 9.00
240,200 [11.8] 16,800 [4.9] 1600 [755] 78 58,500 [17.1] 37,400 [11.0]
UGFD-10?ZCM? 131,700 [9.3] 11,300 [3.3] 57,000 [16.7] 15.00 11.20 1175 [554] 76 43,000 [12.6] 3.62 26,800 [7.9] 2.62 59,000 [17.3] 37,600 [11.0] 9.00
240,100 [11.7] 16,900 [5.0] 1625 [767] 78 59,000 [17.3] 37,600 [11.0]
UGFD-12?RCM? 131,750 [9.3] 11,250 [3.3] 57,500 [16.8] 15.00 11.70 1225 [578] 76 43,000 [12.6] 3.68 26,800 [7.9] 2.68 58,500 [17.1] 37,200 [10.9] 9.00
240,700 [11.9] 16,800 [4.9] 1650 [779] 78 58,500 [17.1] 37,200 [10.9]
UGGD-09?ZCM? 131,800 [9.3] 11,200 [3.3] 57,000 [16.7] 15.00 11.35 1175 [554] 76 43,000 [12.6] 3.62 26,800 [7.9] 2.64 59,000 [17.3] 37,600 [11.0] 9.00
240,400 [11.8] 16,600 [4.9] 1675 [790] 78 59,000 [17.3] 37,600 [11.0]
UGGD-10?ZCM? 131,800 [9.3] 11,200 [3.3] 57,000 [16.7] 15.00 11.35 1175 [554] 76 43,000 [12.6] 3.64 26,800 [7.9] 2.64 58,500 [17.1] 37,400 [11.0] 9.00
240,250 [11.8] 16,750 [4.9] 1625 [767] 78 58,500 [17.1] 37,400 [11.0]
UGGD-12?RCM? 131,800 [9.3] 11,200 [3.3] 57,500 [16.8] 15.00 11.60 1225 [578] 76 43,000 [12.6] 3.68 26,600 [7.8] 2.66 58,500 [17.1] 37,400 [11.0] 9.00
240,600 [11.9] 16,900 [5.0] 1650 [779] 78 58,500 [17.1] 37,400 [11.0]
UGJD-09?ZCM? 131,800 [9.3] 11,200 [3.3] 57,000 [16.7] 15.00 11.35 1175 [554] 76 43,000 [12.6] 3.62 26,800 [7.9] 2.64 59,000 [17.3] 37,600 [11.0] 9.00
240,400 [11.8] 16,600 [4.9] 1675 [790] 78 59,000 [17.3] 37,600 [11.0]
UGJD-10?ZCM? 131,800 [9.3] 11,200 [3.3] 57,000 [16.7] 15.00 11.35 1175 [554] 76 43,000 [12.6] 3.64
1625 [767] 78 58,000 [17.0] 37,000 [10.8]
UGPR-10?BRM? 131,800 [9.3] 11,200 [3.3] 57,000 [16.7] 15.00 11.60 76 43,000 [12.6] 3.70 26,600 [7.8] 2.68 58,500 [17.1] 37,200 [10.9] 9.00
240,450 [11.9] 16,550 [4.8] 1625 [767] 78 58,500 [17.1] 37,200 [10.9]
UGPR-12?ARM? 131,850 [9.3] 11,150 [3.3] 57,000 [16.7] 15.00 11.80 1250 [590] 76 43,000 [12.6] 3.74 26,600 [7.8] 2.72 58,000 [17.0] 37,000 [10.8] 9.00
240,400 [11.8] 16,600 [4.9] 1575 [743] 78 58,000 [17.0] 37,000 [10.8]
RCFM-H*6024A*+RXMD-C06 Coil Only 130,700 [9.0] 11,300 [3.3] 57,500 [16.8] 14.00 11.45 1375 [649] 76 44,000 [12.9] 3.64 27,600 [8.1] 2.64 59,000 [17.3] 37,600 [11.0] 9.00
26,800 [7.9] 2.64 58,500 [17.1] 37,400 [11.0] 9.00
240,250 [11.8] 16,750 [4.9] 1625 [767] 78 58,500 [17.1] 37,400 [11.0]
UGJD-12?RCM? 131,800 [9.3] 11,200 [3.3] 57,500 [16.8] 15.00 11.60 1225 [578] 76 43,000 [12.6] 3.68 26,600 [7.8] 2.66 58,500 [17.1] 37,400 [11.0] 9.00
240,600 [11.9] 16,900 [5.0] 1650 [779] 78 58,500 [17.1] 37,400 [11.0]
UGLR-10?BRM? 131,900 [9.3] 11,100 [3.3] 57,000 [16.7] 15.50 11.75 1200 [566] 76 43,000 [12.6] 3.74 26,600 [7.8] 2.70 58,000 [17.0] 37,000 [10.8] 9.50
240,400 [11.8] 16,600 [4.9] 1575 [743] 78 58,000 [17.0] 37,000 [10.8]
UGLR-12?ARM? 131,900 [9.3] 11,100 [3.3] 57,500 [16.8] 15.50 11.85 1200 [566] 76 43,000 [12.6] 3.74 26,600 [7.8] 2.72 58,000 [17.0] 37,000 [10.8] 9.50
240,500 [11.9] 17,000 [5.0] 1600 [755] 78 58,000 [17.0] 37,000 [10.8]
UGPR-07?BRQ? 131,850 [9.3] 11,150 [3.3] 57,500 [16.8] 15.50 11.80 1225 [578] 76 43,000 [12.6] 3.72 26,600 [7.8] 2.70 58,000 [17.0] 37,000 [10.8] 9.50
240,600 [11.9] 16,900 [5.0] 240,500 [11.9] 17,000 [5.0] 1675 [790] 78 59,000 [17.3] 37,600 [11.0]
Rev.
3/28/2008
1200 [566]
➀Highest sales volume tested combination required by DOE test procedures. [ ] Designates Metric Conversions
Performance Data ARI Standard Conditions (con’t.) Note: Only these combinations of indoor/outdoor units are approved and any other combinations should not be used.

Ruud Heating, Cooling and Water Heating 11
Model Number
UPRL-
Height “H”
(Inches) [mm]
Length “L”
(Inches) [mm]
Width “W”
(Inches) [mm]
024JEZ/036JEZ/
048JEZ/060JEZ 33 [838] 443/8[1127] 311/2[800]
Model
Number
UPRL-
ELECTRICAL PHYSICAL
Phase
Frequency (Hz)
Voltage (Volts)
Fan Motor
Full Load
Amperes
(FLA)
Minimum
Circuit
Ampacity
Amperes
Fuse or HACR
Circuit Breaker Outdoor Coil R-410A
Oz. [g]
Weight
Locked Rotor
Amperes
(LRA)
Minimum
Amperes
Maximum
Amperes
Face Area
Sq. Ft. [m2]
No.
Rows CFM [L/s] Net Lbs. [kg]
Shipping
Lbs. [kg]
024JEZ 1-60-208/230 52 0.5 14/14 20/20 20/20 23.00 [2.14] 1HS* 2800 [1321] 152
[4309]
256
[116.1]
266
[120.7]
036JEZ 1-60-208/230 82 1.0 22/22 30/30 35/35 22.22 [2.06] 2HS* 3700 [1746] 245
[6946]
319
[144.7]
329
[149.2]
048JEZ 1-60-208/230 96 1.0 28/28 35/35 45/45 22.22 [2.06] 2HS* 3500 [1652] 256
[7258]
308
[139.7]
318
[144.2]
Compressor
10.3/10.3
16.7/16.7
21.2/21.2
25.6/25.6060JEZ 1-60-208/230 118 1.1 34/34 40/40 22.22 [2.06] 23800 [1794] 284
[8051]
335
[152]
345
[156.5]
50/50
Rated Load
Amperes
(RLA)
LS* 2300 [1085]
LS* 2800 [1321]
LS* 2800 [1321]
Rev. 3/28/2008
AIR DISCHARGE
ALLOW 60[1524 mm] CLEARANCE
ACCESS
PANEL
ALLOW 24[610 mm]
ACCESS CLEARANCE
AIR INLETS
(LOUVERS)
ALLOW 12[305 mm]
MIN. CLEARANCE
3 SIDES
W
L
H

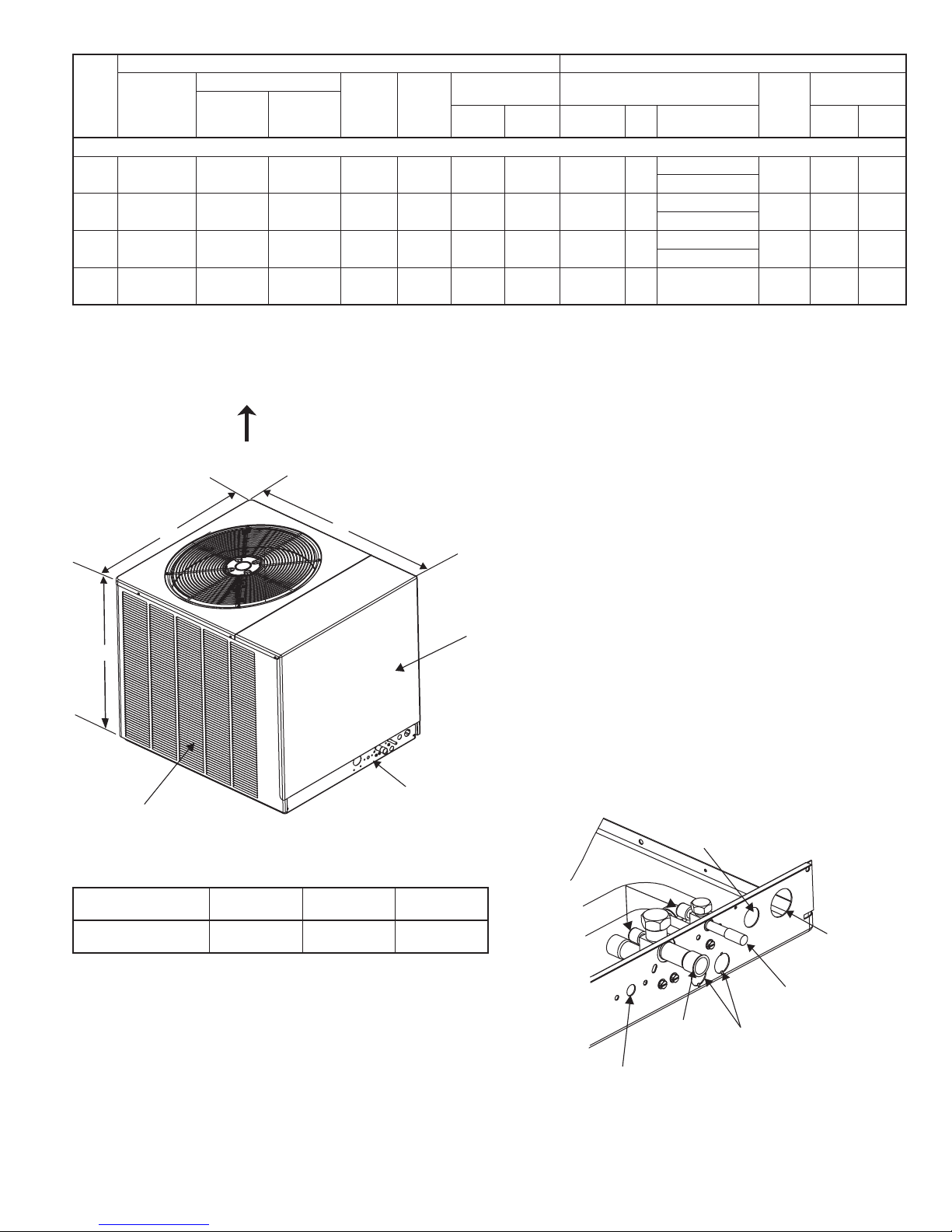

Unit Dimensions
[ ] Designates Metric Conversions
SERVICE
FITTINGS
LOW VOLTAGE
CONNECTION
7/80[22 mm]
HIGH VOLTAGE
CONNECTION
111/320[34 mm]
LIQUID LINE
CONNECTION
SERVICE ACCESS
TO ELECTRICAL &
VALVES ALLOW
240[610 mm]
CLEARANCE
ONE SIDE
27/80[73 mm] DIA.
ACCESSORY
KNOCKOUTS
VAPOR LINE
CONNECTION
HIGH PRESSURE
CONTROL
MANUAL RESET
(FIELD INSTALLED
ACCESSORY)
A-00003
Electrical and Physical Data
NOTES: *HS = High Speed
*LS = Low Speed

Suction Line Run—Feet [m]
Optional
Standard
Optional
Optional
Standard
Optional
Optional
Standard
Optional
Optional
Standard
Optional
5/8" [15.88 mm] O.D. Optional*
3/4" [19.05 mm] O.D. Standard*
—
3/4" [19.05 mm] O.D. Optional*
7/8" [22.23 mm] O.D. Standard*
—
25' [7.62]
—
1.00
1.00
.99
1.00
—
1.00
1.00
—
0.99
1.00
—
50' [15.24]
—
.99
1.00
.98
.99
—
.98
.99
—
.98
.99
—
100' [30.48]
—
.97
.98
.95
.97
—
.95
.97
—
.94
.97
—
150' [45.72]
—
.95
.97
.91
.95
—
.93
.95
—
.91
.95
—
—
5/8" [15.88 mm] O.D. Standard*
3/4" [19.05 mm] O.D. Optional*
Suction Line Length/Size vs. Capacity Multiplier (2-Stage R-410A)
3/4" [19.05 mm] O.D. Optional*
7/8" [22.23 mm] O.D. Standard*
—
7/8" I.D.7/8" I.D.3/4" I.D.3/4" I.D.Suction Line Connection Size
5 Ton4 Ton3 Ton2 TonUnit Size
2-Stage
R-410A
System
Capacity
Model
Liquid Line
Connection Size
(Inch O.D.)
[mm]
Liquid Line Size
Outdoor Unit Above or Below Indoor Coil
Total Equivalent Length—Feet [m]
25 [7.62] 50 [15.24] 75 [22.86] 100 [30.48] 125 [38.10] 150 [45.72]
5/16 [7.94] 25 [7.62] 50 [15.24] 40 [12.19] 35 [10.67] 29 [8.84] 22 [6.71]
2 Ton
1/4* [6.35] 25 [7.62] 10 [3.05] N/A N/A N/A N/A
3 Ton 5/16* [7.94] 25 [7.62] 39 [11.89] 28 [8.53] 16 [4.88] 5 [1.52] N/A
3/8 [9.53] 25 [7.62] 50 [15.24] 51 [15.54] 48 [14.63] 44 [13.41] 40 [12.19]
3/8*[9.53] 25 [7.62] 47 [14.33] 40 [12.19] 32 [9.75] 24 [7.32] 17 [5.18]
1/2 [12.7] 25 [7.62] 50 [15.24] 56 [17.07] 54 [16.46] 52 [15.85] 50 [15.24]
5 Ton 3/8* [9.53] 25 [7.62] 41 [12.50] 30 [9.14] 20 [6.10] 10 [3.05] 0 [0.00]
4 Ton 5/16* [7.94] 25 [7.62] 15 [4.57] N/A N/A N/A N/A
Maximum Vertical Separation—Feet [m]
3/8 [9.53] 25 [7.62] 50 [15.24] 45 [13.72] 42 [12.80] 39 [11.89] 37 [11.28]
Liquid Line
Connection Size
(Inch I.D.)
5/16″
5/16″
3/8″
3/8″
NOTES: Using suction line larger than shown in chart will result in poor oil return and is not recommended.
*Standard line size.
[ ] Designates Metric Conversions
Heat Pump Refrigerant Line Size Information
NOTES: N/A – Application not recommended.
*Standard line size.
GENERAL TERMS OF LIMITED WARRANTY
Ruud will furnish a replacement for any part of this product
which fails in normal use and service within the applicable
period stated, in accordance with the terms of the limited
warranty.
For Complete Details of the Limited Warranty, Including Applicable Terms
and Conditions, See Your Local Installer or Contact the Manufacturer for
a Copy.
Limited Parts Warranty:
Ruud Ultra Series™ equipment features a 10-year limited
parts warranty.*
*This ten-year limited parts warranty is applicable only to single-phase
products installed in residential applications.
UPRL- JEZ Conditional Replacement Warranty:
Ruud will provide a replacement UPRL-JEZ Heat Pump to
the original purchaser if the compressor fails within 10 years
(providing the unit is installed with a new Ruud Ultra
Series™ Air Handler OR Ruud Indoor Coil with a Ruud Ultra
Series™ Gas Furnace, and is properly matched according to
Ruud specifications), and if additional conditions are satis-
fied. See product warranty card for additional information.
Before proceeding with installation, refer
to installation instructions packaged
with each model, as well as complying
with all Federal, State, Provincial, and
Local codes, regulations, and practices.
Ruud Heating,
Cooling and
Water Heating
P.O. Box 17010, Fort Smith, AR 72917
“In keeping with its policy of continuous progress and product improvement, Ruud reserves the right to make changes without notice.”
PRINTED IN U.S.A. 4-08 DC FORM NO. P22-770 REV. 4
Supersedes Form No. P22-770 Rev. 3
