RW Flame RS-S32001 User manual

NAVINE
ASSEMBLY INSTRUCTIONS
OUTDOOR FIREPLACE
Model No:RS-S32001
Item No:46S32-BLACK
Warning:
READ INSTRUCTION MANUAL BEFORE ATTEMPTING TO ASSEMBLE OR
OPERATE THIS PRODUCT.
Keep the screws and parts out of reach of children.
(Made in China)
Please keep this instruction manual for future reference

TABLE OF CONTENTS
Table of Contents..........................................................................................2
Warning and Cautions. ............................................................................ 3-5
Tools and Parts. .........................................................................................6-9
Lighting Operation. ................................................................................10-11
Maintenance and Storage. .................................................................. 12-13
Troubleshooting. ........................................................................................ 14
Assembly. ....................................................................................................15
REMINDER
BEFOREASSEMBLY
Verify that all parts are included with your gas fire pit BEFORE you begin assembly by
checking the Parts and Hardware List. For your convenience, some parts may be pre-
assembled or attached to heater components.
Leave hardware installed HALF-TIGHTENED on the gas fire pit during assembly until unit is
completely assembled, then finish tightening all hardware installed.
YOUR OWNER’S MANUAL
Keep and store this Owner’s Manual for future reference - It contains important instruction
and procedures for safety and maintenance.
2

4
You must provide propane gas and a propane cylinder. Use a standard 20 lb. propane
cylinderonly.
Use this appliance only with a propane vapor withdrawal supply system. See Chapter 5 of
the Standard for Storage and Handling of Liquefied Petroleum Gas， ANSI/NFPA 58. Your
local library or fire department should have this book.
The pressure regulatorand hose assembly supplied with the appliancemust be used.
The installation must conform with local codes， or in absence of local codes ， withNational
Fuel Gas Code， ANSI Z223.1.
A dented, rusted, or damaged propane cylinder may be hazardous and should be checked by
your cylinder supplier. Never use a propane cylinder with a damaged valve connection.
The LP-gas supply cylinder must be constructed and marked in accordance with the
U.S. Department of Transportation (D.O.T) Specifications for LP-Gas Cylinders,or the
standard for Cylinders,Spheres and Tubes for Transportation of Dangerous Good and
Commission, CAN/CSA -8339,as applicable .
The LP-gas supply cylinder must be provided with a cylinder connection device
compatible with the connection for the appliance.
The cylinder used must include a collar to protect
the cylinder valve.
The LP-gas supply cylinder must be provided
with a listed overfill protection device (OPD).
Do not store a spare LP Gas cylinder under or
near this appliance.
Never fill the cylinder beyond 80 percent full.
For appliances designed to use a CGA No.
791 QCC connection.
Place the dust cap on the cylinder valve outlet
whenever the cylinder is not in use.
Other
leakage
types of caps or plugsmay result in
of propane.
Note: Gas supply pressure: 25 to 250 PSI.

5
PLEASE READ THE FOLLOWING SAFETY RULES
WARNING:
.leufdilo sshtiwesuroftonsiecnailppaehT
The installation must conform with local
codes or， in the absence of local codes，with
the National Fuel Gas Code，ANSI Z223. 1/
NFPA 54， NFPA58 Natural Gas and
Propane Installation Code，
CSA B149.1，or Propane Storage and
Handling CODE，
B149.2.
The appliance，when installed，must be
electrically grounded in accordance with
local codes
or， in the absence of local codes，
with the National Electrical Code，ANSI/
NFPA
70， or the Canadian Electrical Code，
CSA C22.1.
Before use，check for damaged parts such
as hoses，regulators，pilot, or burner.
Inspect the fuel supply connection for signs
of leakage (including the hose for LP
models) before each use of the appliance.
All leak tests should be done withasoapy
solution. NEVER USE AN OPEN FLAME TO
CHECK FOR LEAKAGE.
Children and adults should be alerted to
the hazards of high surface temperatures
and should stay away to avoid burns or
clothing ignition.
Young children should be carefully supervised
when they are in the area of the appliance.
Clothing or other flammable materials should
not be hung from the appliance，or placed
on or near the appliance.
Any guard or other protective device
removed for servicing the appliance must
be replaced prior to operating the
appliance.
Installation and repair should be done by
a qualified service person. The appliance
should be inspected before use and at
least annually by a qualified service
person.
More frequent cleaning may be required
as necessary. It is imperative that control
compartment，burners, and circulating air
passageways of the appliance be kept
clean.
Keep the appliance area clear and free
from combustible materials，gasoline and
other flammable vapors and liquids.
DO NOT OBSTRUCT the flow of
combustion and ventilation air.
Keep the ventilation opening(s) of the
cylinder enclosure free and clear from
debris.
The appliance shall be used only in a
well-ventilated space and shall not
be used in a building, garage or any
other enclosed area.
An appliance may be installed with
shelter no more inclusive than: With
walls on all sides，but with no
overhead cover.
Within apartial enclosure which includes
an overhead cover and no more than two
side walls，these side walls may be
parallel，as in abreezeway，or at right
angles to each other.

6

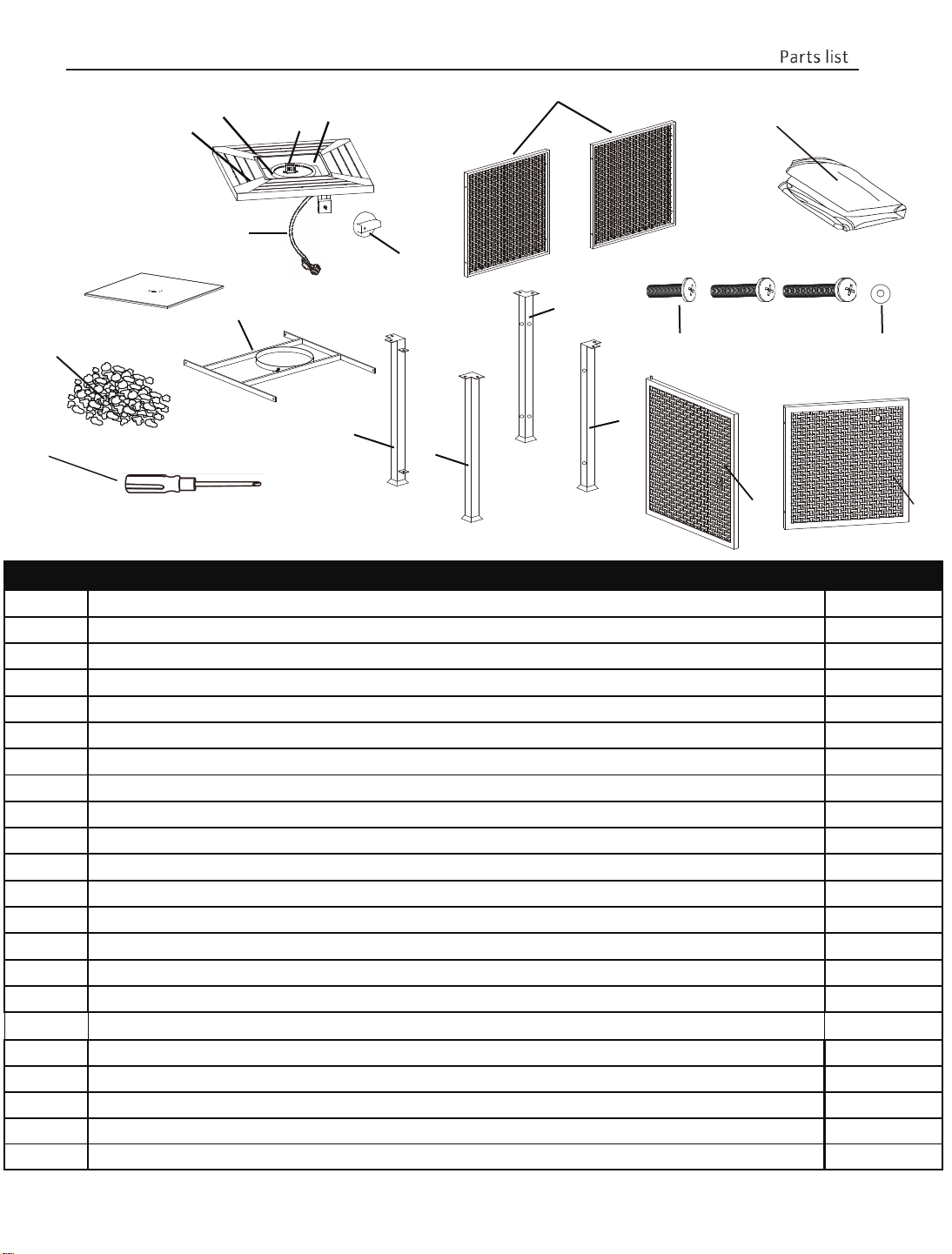

Item
Description
Qty
A
Lid
1
B
Table Top
1
C Door 1
D
Front Panel
1
E
Side Panel
2
F
Left Back Leg
1
G Left Front Leg
1
H
Right Front Leg
1
I Right Back Leg 1
J
Metal Stand
1
K
Lava Rocks
（
16.6lbs
）
M
Control Knob (preassembled)
1
N
Guard (preassembled)
1
O
Fire bowl (preassembled)
1
P
Burner (preassembled)
1
QRegulator Hose (preassembled) 1
R
Screwdriver
1
S
1
A
CC
AM6 * 12 Screw
1
BB M6 * 16 Screw 8
M6 * 25 Screw 16
DD
M6 Washer
24
K
B N
M
Q
A
CD
E
F
R
BB CC DD
G
H
I
J
AA
OPS
Protective cover

7
1.
DD *12
CC *12
2.H
I
DD *4
CC *4
FJG
G
H
F
DD*8
B
I
4.
AA * 1
C
F
*

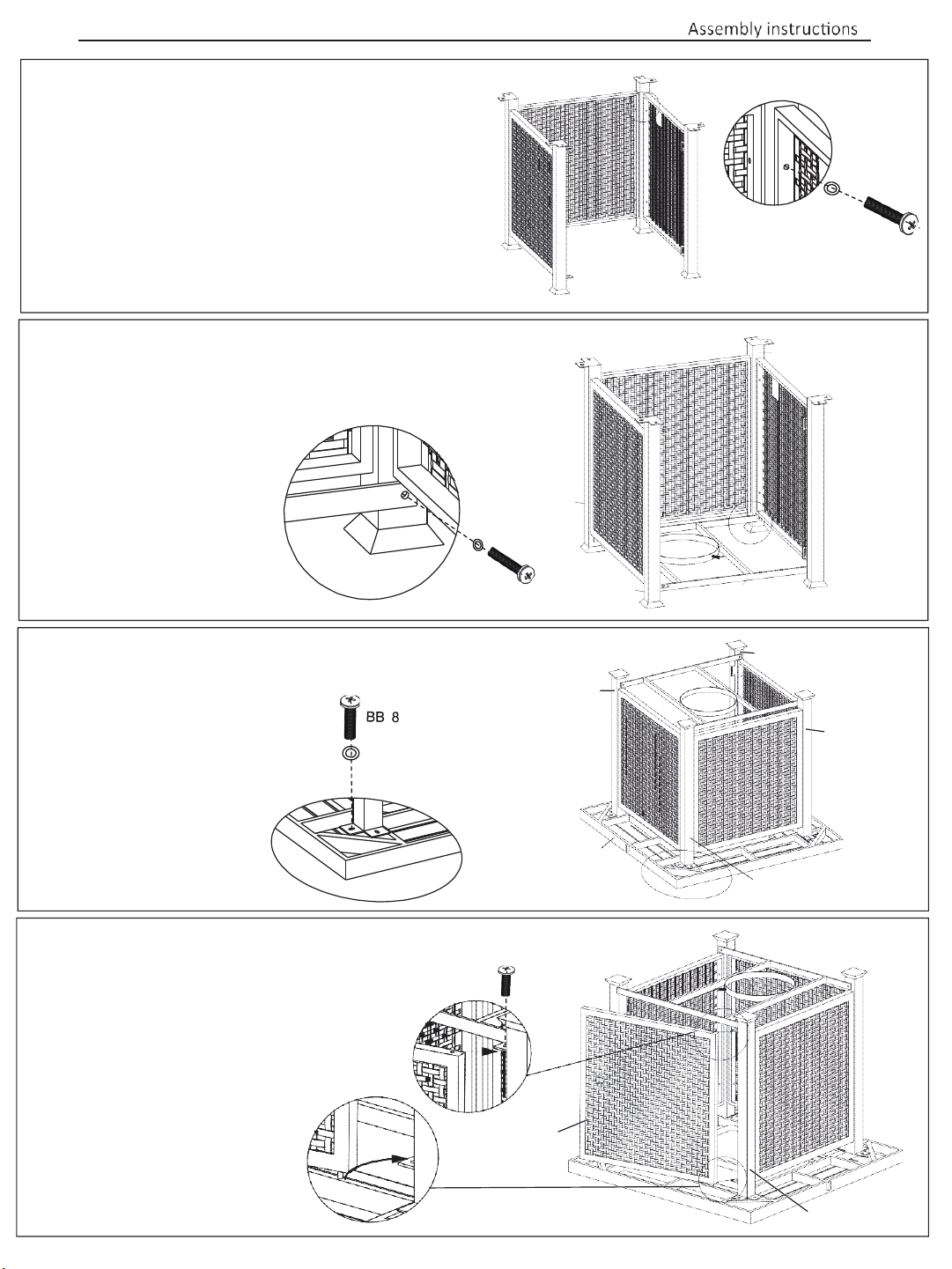

Attach the 2 side panels (E) and front
panel (D) to the legs using screws (CC)
and washers (DD).
Note:Do not tighten screws completely at this
step.
Attach right front leg (H), rignt back
leg (I), left front leg (G) and left back
leg (F) to the metal stand (J) using
screws (CC) and washers (DD).
Attach the door (C) to left back leg (F) using
1 pc screw (AA).
Note:Do not tighten screws
completely at this step.
Attach legs (F) (G) (H) (I) to the
bottom part of the table top (B)
using sceresw (BB) and
washers (DD).
Note:Tighten all the screws
completely after assembly.
3.

8
5.Place the control knob (M) on the valve stem of
control panel.
Forming a D
shape
6.
M
7.Place propane gas tank (not included) into the
metal stand J ). Make sure the gas tank sits on
the metal stand (J) completely. Turn the
preassembled wing screw on the outer part of
metal stand(J) clockwise to secure the propane
gas tank tightly.
J
Check that the control knob(M) for the
gas supply system is turned to the
“OFF” position before starting any
assembly.

9
Turn the cylinder valve on the tank clockwise to
close the propane tank. Attach the preassembled
regulator from the table top (B) to the cylinder
valve by turning the regulator coupling nut
clockwise. Make sure it is fastened securely and
tighten connections by hand only.
Cylinder valve
Black coupling nut
turn clockwise to connect
Regulator
Pressure
reliefvalve
Bleed-off
valve
turn clockwise
to reseal
K
CAUTION
To ensure proper function , the guard on this
burner should be free of lava rocks at all times.
10.When the gas furnace is not used
outside, it should be covered with a
protective cover(S) to prevent the
product from oxidization caused by
exposure to sun and rain.
9.Pour the box of lava rocks (K) to
the firebowl.
8.

10
• Children and adults should be alerted to the hazards of high surface temperatures and
should stay away from the appliance to avoid burns or clothing ignition.
•Children should be carefully supervised when they are in the area of the appliance.
•Clothing or other flammable materials should not be hung from the appliance, or placed
on or near the appliance. The area above the enclosure may be extremely hot. Direct
contact with these surfaces should be avoided in order to prevent burns or clothing ignition.
•Any guards or protective devices removed for servicing the appliance must be replaced
prior to operating the appliance.
•Installation and maintenance should be done by a qualified service person.
•The appliance should be inspected before each use and at least annually by a qualified
service person. More frequent cleaning may be required necessary. It is imperative that the
control compartment, burners, and circulating air passageways of the appliance be kept
clean.
WARNING:
•Never use the appliance while it is raining. Always turn the appliance off when raining.
•Never use the appliance if the burner is damaged. Inspect the burner before each use.
•Ensure that no debris such as leaves; grass or other objects have entered or are on the
appliance. If the burner is damaged, it must be replaced with the manufacturer's specified
burner before using the equipment.
•Inspect the hose assembly before each use. If there is evidence of excessive abrasion or
wear, or if the hose is damaged it must be replaced prior to using the appliance with a
replacement hose assembly specified by your manufacturer.
WARNING: Any modification to the appliance may compromise the safety
of this appliance. Special concern are ass follows:
Do not bypass thermocouple safety.
Do not operate the appliance if any parts have been underwater. Call a qualified service
technician immediately to check the equipment and replace any flooded control system and
gas control components.
OPERATION

11
Lighting Instructions
1. cinortcele edlo hhdnasserP
igniter butt
t
on.
2. Turn the burner control to the high
position; press and hold in. When
the burner lights，release the
electronic igniter button.
3. Continue to depress the burner
control knob for 30 seconds and
then release. If the flame goes
out, repeat the procedure.
4. Adjust the flame to the desired
height with the burner control
knob.
5. If the burner will not light with the
electronic igniter，holdalit long
match or lit long butane lighter to
the ignition area of the burner and
continue with step 2.
6.
To shut down the burner, turn the
burner control knob clockwise to
the off position. Then turn the gas
off at the source (propane cylinder
valve or natural gas supply valve).
WARNING
FOR YOUR SAFETY:
Keep your face and body away from
burner area when lighting.
Ensure burner controls are in the
off position. Slowly turn on the
gas supply valve.
WARNING
FOR YOUR SAFETY:
The propane cylinder is equipped
with an excess flow device.
Unless burners are turned off
prior to turning the cylinder on，
only small flames and low heat
will be achievable.
WARNING
FOR YOUR SAFETY:
If the burner does not light within
10 seconds，turn the valve off and
wait for5 minutes for any gas to
dissipate before repeating the
procedure.

12
MAINTENANCE AND STORAGE
MAINTENANCE：
To enjoy years of outstanding performance from your appliance, make sure you perform the
following maintenance activities on a regular basis:
•At least once a year, the unit should be inspected for spiders, cobwebs, or other
insects.
•Air flow must be unobstructed. Keep controls, burner, and circulating air passageways
clean. Signs of possible blockage include:
Gas odor with extremely tilted yellow flames.
Appliance does NOT reach the desired temperature.
•Excessive unevenness of heat.
•Popping sounds when heating.
•Spiders and insects can nest in burner or orifices. This dangerous condition can damage
appliance and render it unsafe for use. Clean burner holes by using the liquid clog remover.
Compressed air may help clear away smaller particles.
•Carbon deposits may create a fire hazard. Clean reflector, thermocouple, and emitter
screen with a dry cloth if any carbon deposits develop.
•The burner is made fo stainless steel, but extreme heat and a corrosive environment
can cause surface corrosion to occur. Inspect the burner at least annually for cracks, insect
nests, excessive corrosion, or any other damage. If the burner is damaged, it must be
replaced with a burner specified by the manufacturer before the appliance is put into
operation.

13
STORAGE:
Between use
•Turn the control knob to the "OFF" position.
•Disconnect the LP source.
•Store the appliance upright in an area sheltered from direct contact with inclement
weather (such as rain, sleet, hail, snow dustand ).
•Cover the appliance to protect exterior surfaces and to help prevent build-up in air
passages.
NOTE: Wait until the appliance has cooled down before covering it.
During periods of extended inactivity or when transporting
•Turn the control knob to the "OFF" position.
•Disconnect the LP source and move to a secure, well ventilated, and outdoor location.
DO NOT store in a location that will exceed 125°F.
•Store the appliance upright in an area sheltered from direct contact with inclement
weather (such as rain, sleet, hail, snow dustand ).
•Cover the appliance to protect exterior surfaces and to help prevent build-up in air
passages.
NOTE: Wait until the appliance has cooled down before covering it.

滚GLASS 滚长江东逝水
14
TROUBLESHOOTING
PROBLEM
P
ROBABLE CAUSE SOLUTION
Low heat / Low flame
when valve turned to
high.
Incorrect lighting operation.
Ensure e lighh tt ing procedure is followed carefully.
equalize. See lighting instructions.
Pipe must be sized according to installation code.
Burners burn with yellow
flame, accompanied by
the smell of gas.
Possible cobwebs or other debris.
Thoroughly clean the burner venturi. See general
maintenance instructions.
Burners will not light with
the igniter, but will light
with a match.
Loose electrode wire or switch
terminal wires.
Check whether the electrode wire is firmly pushed onto the
terminal on the back of the igniter. Check that the lead
wires from the module to the ignition switch (if equipped)
are firmly pushed onto their respective terminals.
Knob not being held in long eno
Too windy.
Lava glass or debris in ignition
area of the burner preventing
thermocouple from being fully
engulfed in flame.
Dirty thermocouple or thermocouple
connection.
Faulty thermocouple or valve.
Thermocouple mush have time to heat up - hold the knob in
for 30 seconds after the burner lights, then release.
If the wind speed is greater than 10 mph (16 km/h), the unit
will shut down automatically. Either place it in a different
area or use it when the wind is low.
the
Ensure that there are no lava glass or other debris in
the ignition area, and that the small hole below the
thermocouple is unobstructed.
Clean the thermocouple and clean the connection between
the valve and thermocouple. Ensure the connection is
properly tightened.
Replace thermocouple and / or valve.
Humming regulator.
Normal occurrence on hot days. This is not a defect. It is caused by internal vibrations in the
regulator and does not affect the performance or safety of
the appliance.
Humming regulators will not be replaced.
Burner output on "high"
setting is too low.
(Rumbling noise and
fluttering blue flame at
burner surface.)
Lack of gas.
Supply hose is pinched.
Dirty or clogged orifice.
Cobwebs or other substances in
the venturi tube.
Propane regulator in "low flow”
state.
Check gas level in the propane cylinder.
Reposition the supply hose to suit needs.
Clean burner orifice.
Clean out venturi tube.
Ensure the lighting procedure is followed carefully. All
valves must be in the off position when the tank valve is
turned on. Turn the tank on slowly to allow pressure to
equalize. See lighting instructions.
1
turned on. Turn the tank on slowly to allow the pressure to
The valve must be in the off position when the tank valve is
Burners will not stay lit
when control knob is
released.
ugh.
the
the

15
Assembly

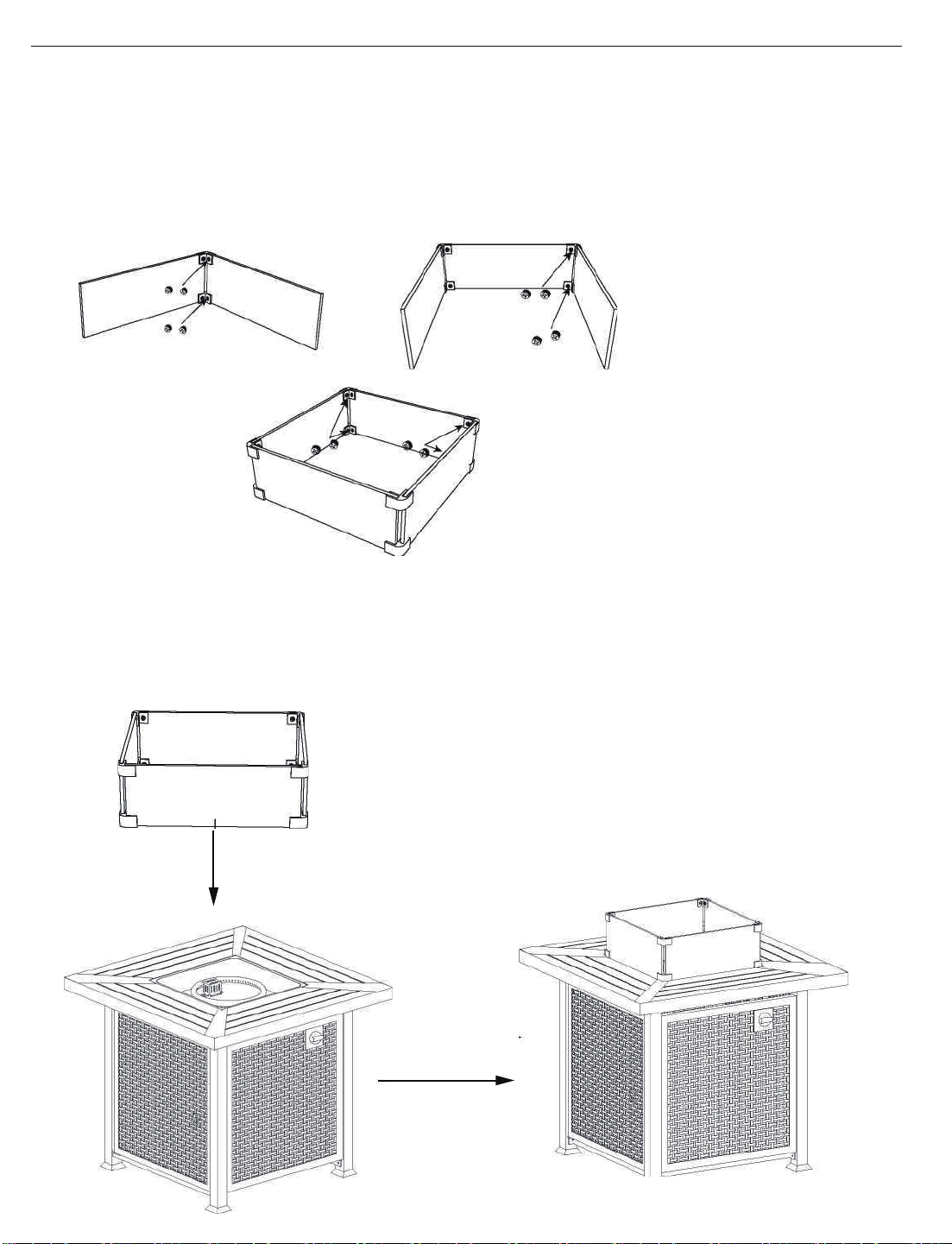

Assembling the glass
□Unscrew all preassembled screws on the glass clamps.
Next, assemble one glass panel to the other glass panel, and repeat this step for the rest of the two glass panels. Then,
assemble the two glass panel pieces together with the final glass clamps as shown below.
2
1
Putting on the glass
口Put the glass assembly made in step 1 on the top of the fire table body ・

16
Thank you for purchasing this product! If you have any questions about
the product, such as missing parts, damaged products, product
assembling, and operation, please contact us via Amazon Message or
customer service number: 213-4467172 or 661-4358826
IMPORTANT
Please call our customer service department for any consulting:
213-4467172
661-4358826
(8:30am - 5:30pm P.S.T.)
DATED PROOF OF PURCHASE IS REQUIRED FOR WARRANTY
SERVICE.
AVIS
Veuillez appeler le service à la clientèle pour toutes questions au:
213-4467172
661-4358826
(8:30am - 5:30pm P.S.T.)
PREUVE D’ACHAT ORIGINALE REQUISE POUR SERVICE DE
GARANTIE.
IMPORTANTE
Sólo hay que llamar nuestro departamento de servicio
al cliente en caso de tener preguntas o inquietudes:
213-4467172
661-4358826
(8:30am - 5:30pm P.S.T.)
SE REQUIERE PRUEBA DE COMPRA CON FECHA PARA SERVICIO
BAJO GARANTÍA.
Address : 9733 Topanga Canyon Blvd. APT310, Chatsworth, CA 91311
Phone: [phone] or 661-4358826
