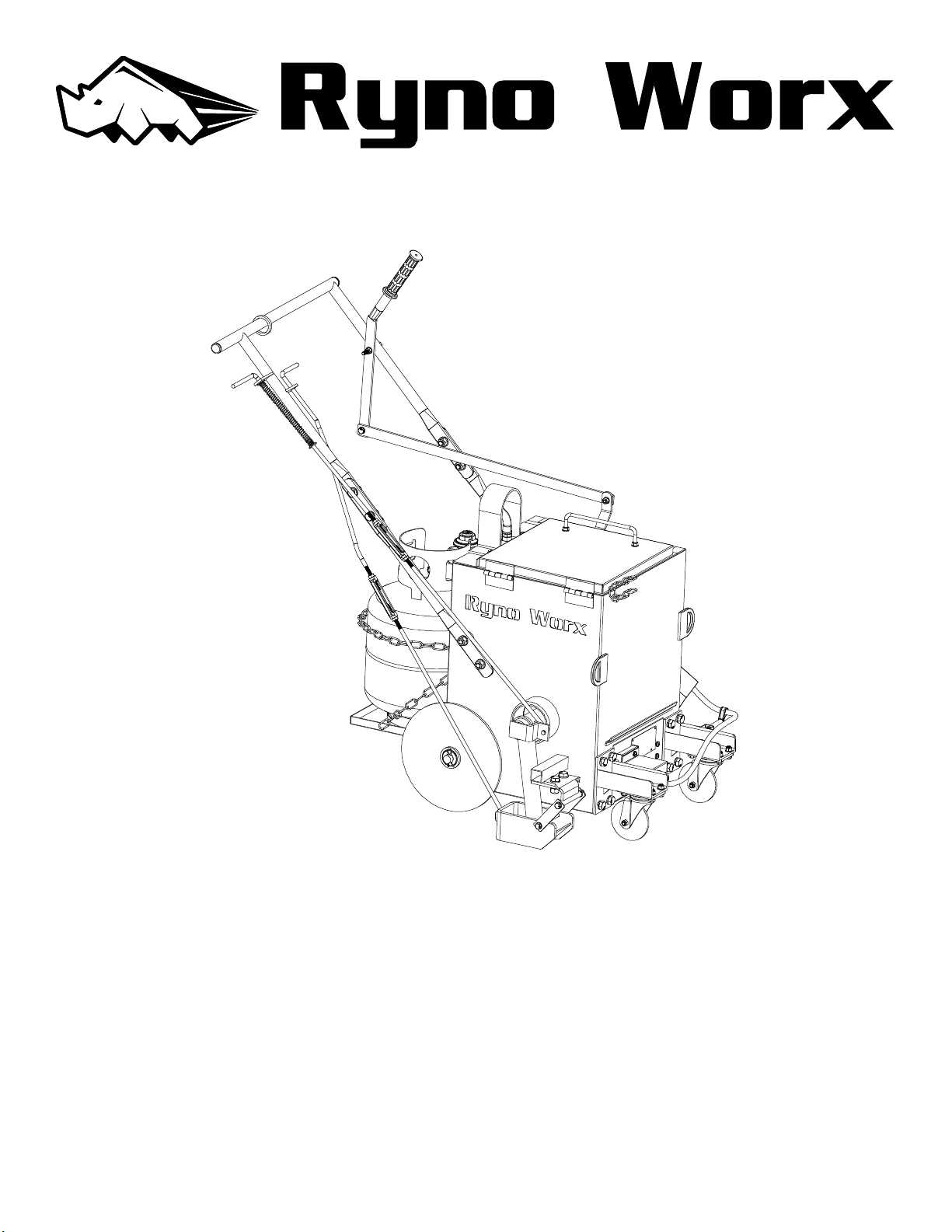

RYNO WORX RY10MA-Pro User manual

Operator's Manual
Model: RY10MA-Pro
MPN: RA-MLT-0005
10 Gallon Direct Fire Melter Applicator
Burner Model with Flame-Out Sensor
U.S. Patent No. 9,739,021
For Technical Support Please Visit www.RynoWorx.com or Call 1-855-382-9611

⚠WARNING
⚠Read all instructions and warnings in this manual before attempting to operate this equipment.
⚠This equipment is designed for outdoor use only.
⚠Be sure to always wear personal protective equipment when operating this equipment.
⚠Improper assembly may be dangerous. Please follow the assembly instructions in this manual. Make sure all parts are
assembled and hardware is fully tightened before using. Make sure that there are no leaks in the liquid propane cylinder
connection or lines.
⚠Do not operate the equipment if a gas leak is present. (check for leaks and connections with every use)
⚠Do not attempt to disconnect the gas regulator from the tank or any gas fitting while the equipment is in use.
⚠A dented or rusty liquid propane tank may be hazardous and should be checked by your liquid propane supplier. Do
not use a liquid propane tank with a damaged valve.
⚠Do not store spare liquid propane cylinders within 10 feet (3m) of this equipment.
⚠Do not store or use gasoline or other flammable liquids or vapors within 25 feet (8m) of this equipment.
⚠Before servicing, make sure the unit is fully cooled and the liquid propane cylinder is disconnected.
⚠Only genuine Ryno Worx replacement parts should be used for any replacements or repairs. Do not attempt to
modify or alter this product in any way.
⚠Do not attempt to make any repairs to gas carrying, gas burning, igniter components or structural components. Your
actions, if you fail to follow this warning, may cause a fire, an explosion, or structural failure resulting in serious personal
injury or death as well as damage to property.
⚠This equipment should only be used with "Direct Fire" hot melt crack sealant.
⚠Failure to follow these instructions could result in fire or explosion which could cause property damage, personal
injury or death.

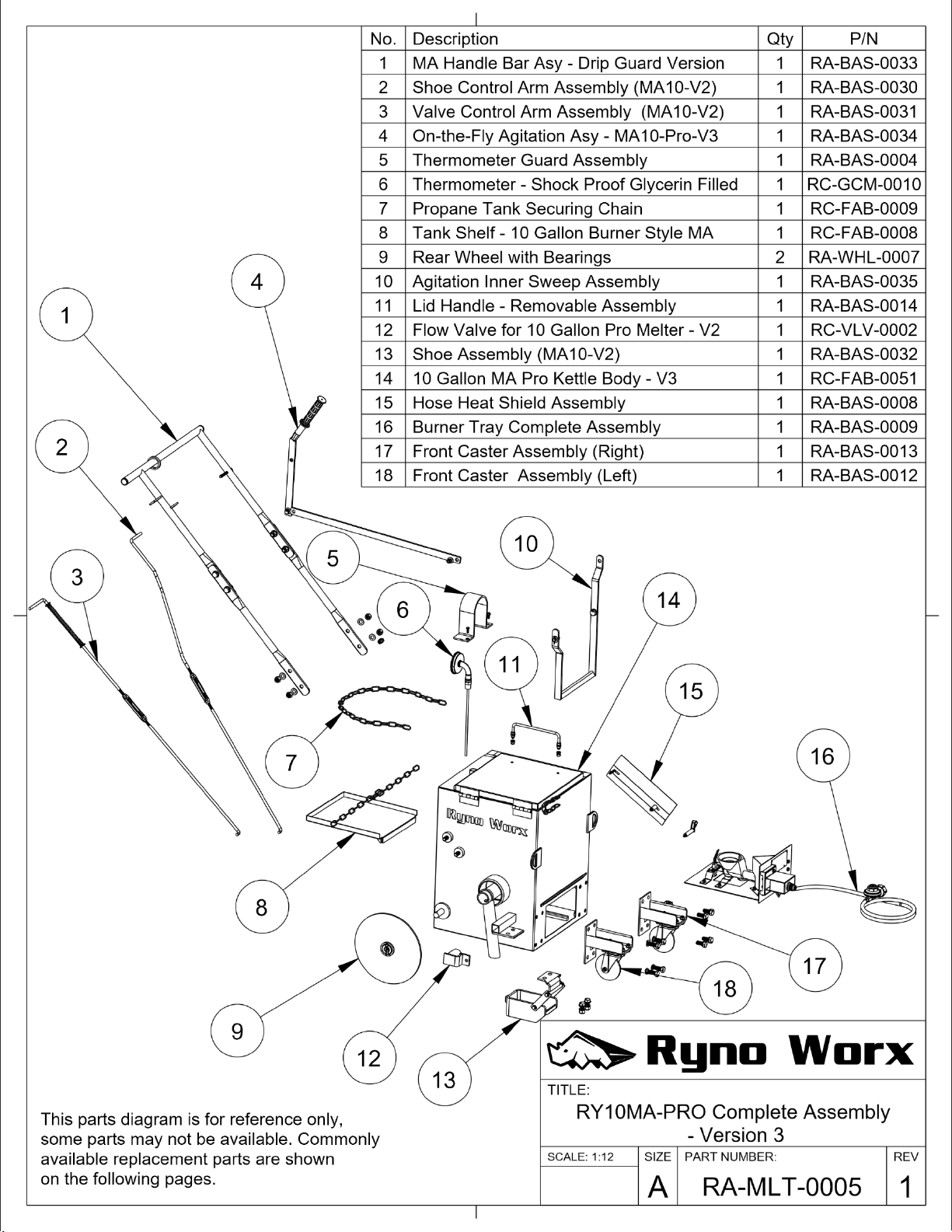

RC-VLV-0002 - Flow Valve
RC-BRG-0001 - Wheel Bearing for Melter Applicator Rear
Wheel
RA-WHL-0008 - Rear Wheel with Bearings
RC-GCM-0010 - Thermometer - Shock Proof Glycerin
Filled
RA-WHL-0005 - Front Caster with Wheel
RC-WHL-0014 - 4 Bolt Caster Swivel
RK-GCM-0050 - Torch Upgrade Kit with Propane Splitter

RA-BAS-0009 - Burner Tray Complete Assembly
RA-GCM-0005 - Electronic Ignitor Switch Assembly
RC-GCM-0004 - Ignitor Electrode Probe Assembly
RC-GCM-0029 - Propane Hose and Regulator for Burner
RC-GCM-0030 - Flame-Out Valve Assembly
RC-GCM-0009 - Flame-Out Thermocouple with
Connecting Wire

Introduction
Forward
Thank you very much for purchasing Ryno crack maintenance equipment. We pride ourselves in being different
from other equipment manufacturers with a relentless focus on innovation, simplicity, and quality.
RY Series Melter / Applicators are designed to effectively melt and apply direct-fire type crack sealant to joints
and cracks found in hard aggregate surfaces. This melter is powered by a liquid propane gas burner, which
effectively melts crack sealants within the kettle.
This melter was designed to be used with ‘Direct Fire’ crack sealants only. Please be sure to purchase the correct
material to ensure safe and effective operation.
Within this document are complete instructions for how to assemble, use and care for your equipment.
Please make sure you read and follow all instructions provided.
Within this document you will find the following resources:
Assembly Instructions –These instructions will assist you in assembling and preparing your melter for
first time use.
Operation Guide –This guide will explain the controls and functions of the melter and how to use them.
Maintenance Guide –This guide will provide you with suggested maintenance tips and techniques to
ensure proper function and optimal performance.
Troubleshooting Guide –This guide will provide you with the most commonly reported problems,
possible causes, and known solutions.

Assembly Instructions

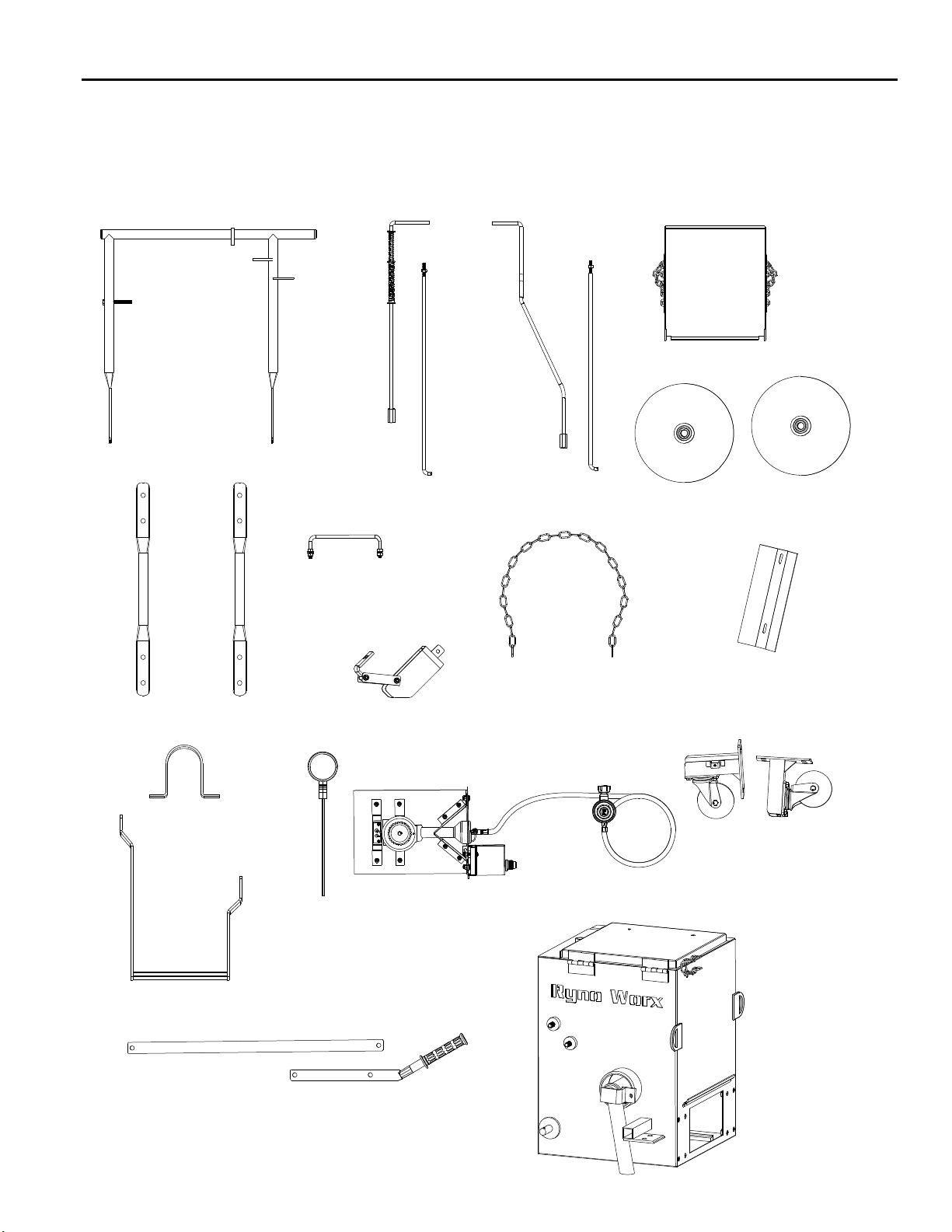

Part 1 –Remove Parts and Packaging and Verify Contents
Carefully remove all parts from their packaging and layout on a flat working surface. You should have all the
required parts as illustrated on the drawing below as well as the required hardware to complete assembly:
Upper Handle Bars
Lid Handle
On The Fly Agitation Bars
Valve Control Arm Shoe Control Arm
Lower Handle Bars
Shelf for Propane Tank
Front Casters
Rear Wheels
Thermometer Guard Burner Tray Assembly
Thermometer
Agitation Sweep Bar
Tank Chain
Shoe Assembly
Heat Shield
Kettle

Assembly Instructions
Part 2 –Assemble Melter According to the Illustrations and Instructions
With all the parts laid out on a flat working surface, follow the assembly illustrations below to complete the
assembly of the melter. A socket set, rubber mallet, needle nose pliers and open-ended wrench set are
required in order to complete the assembly.
1. Rear Wheel Assembly
2. Front Caster Mount
KIT C - Rear Wheels
RK-FAS-0007
KIT B - Caster Mount
RK-FAS-0016

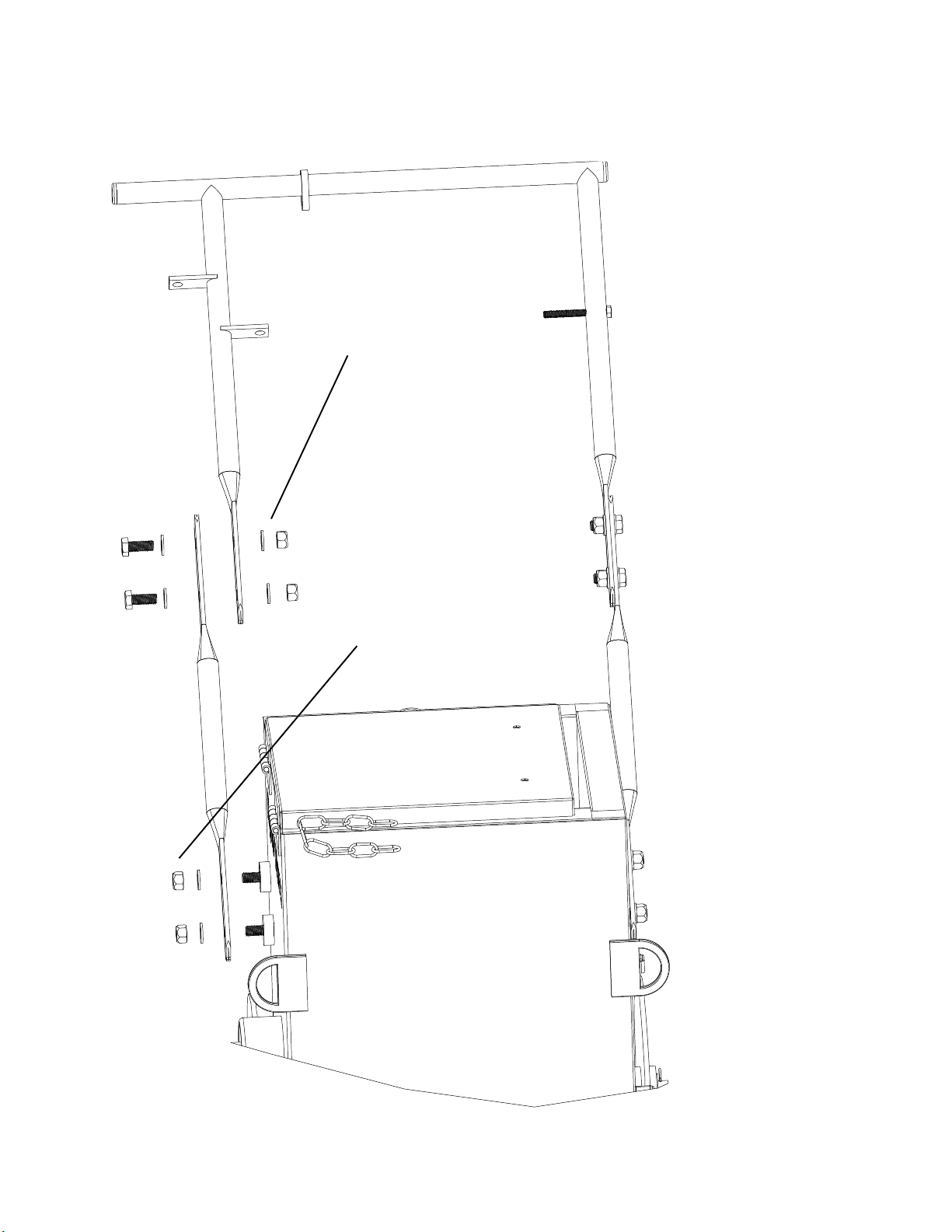

3. Handle Bar Assembly
KIT F - Handle Bar Assembly
RK-FAS-0001
KIT E - Handle Bar Mount
RK-FAS-0002

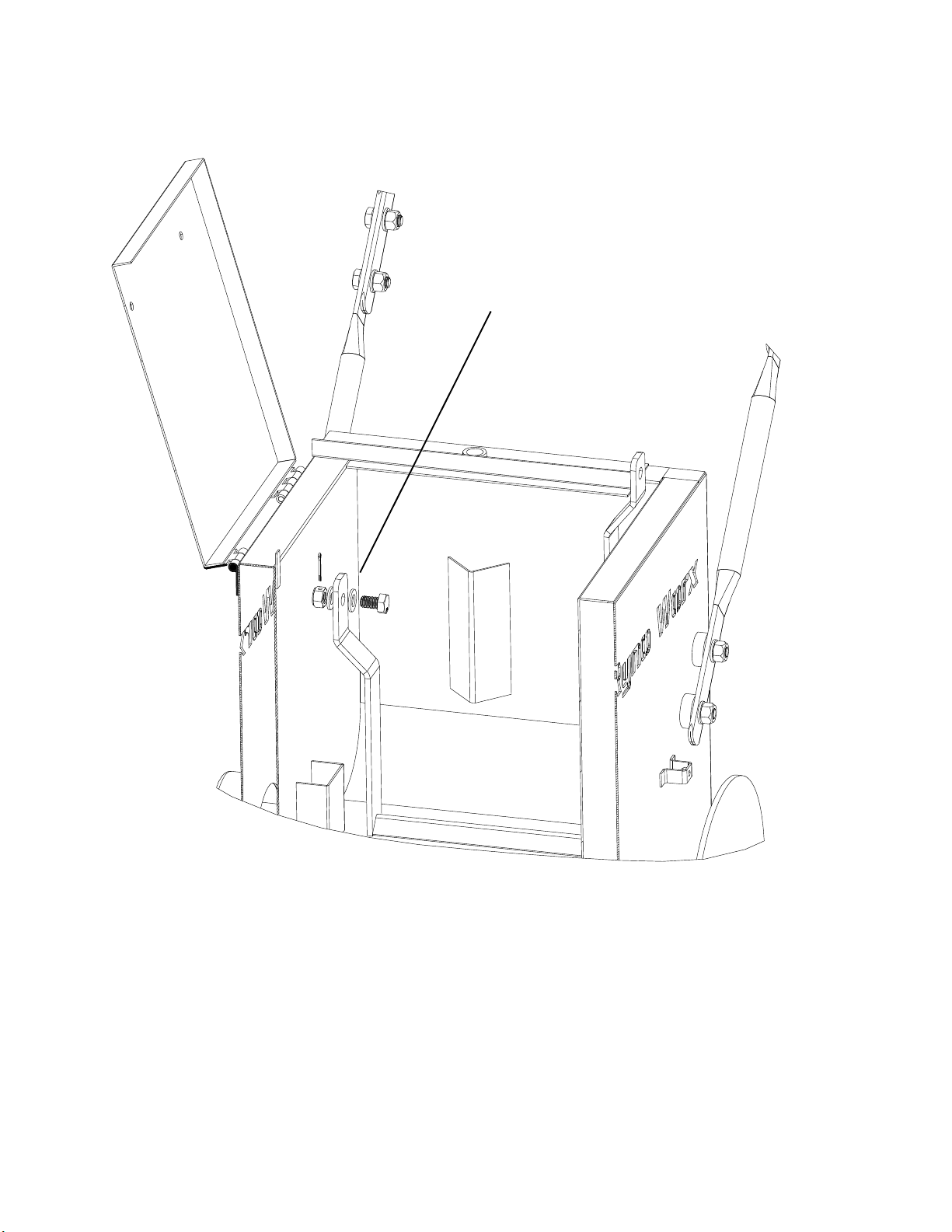

4. Agitation Sweep Bar Installation
KIT K - Agitation Sweep Bar
RK-FAS-0006

5. On the Fly Agitation Installation
KIT H - Agitation Fasteners Handle Bars
RK-FAS-0005
KIT J - Agitation Bars
RK-FAS-0005

6. On the Fly Agitation Installation
KIT J - Agitation Bars
RK-FAS-0005

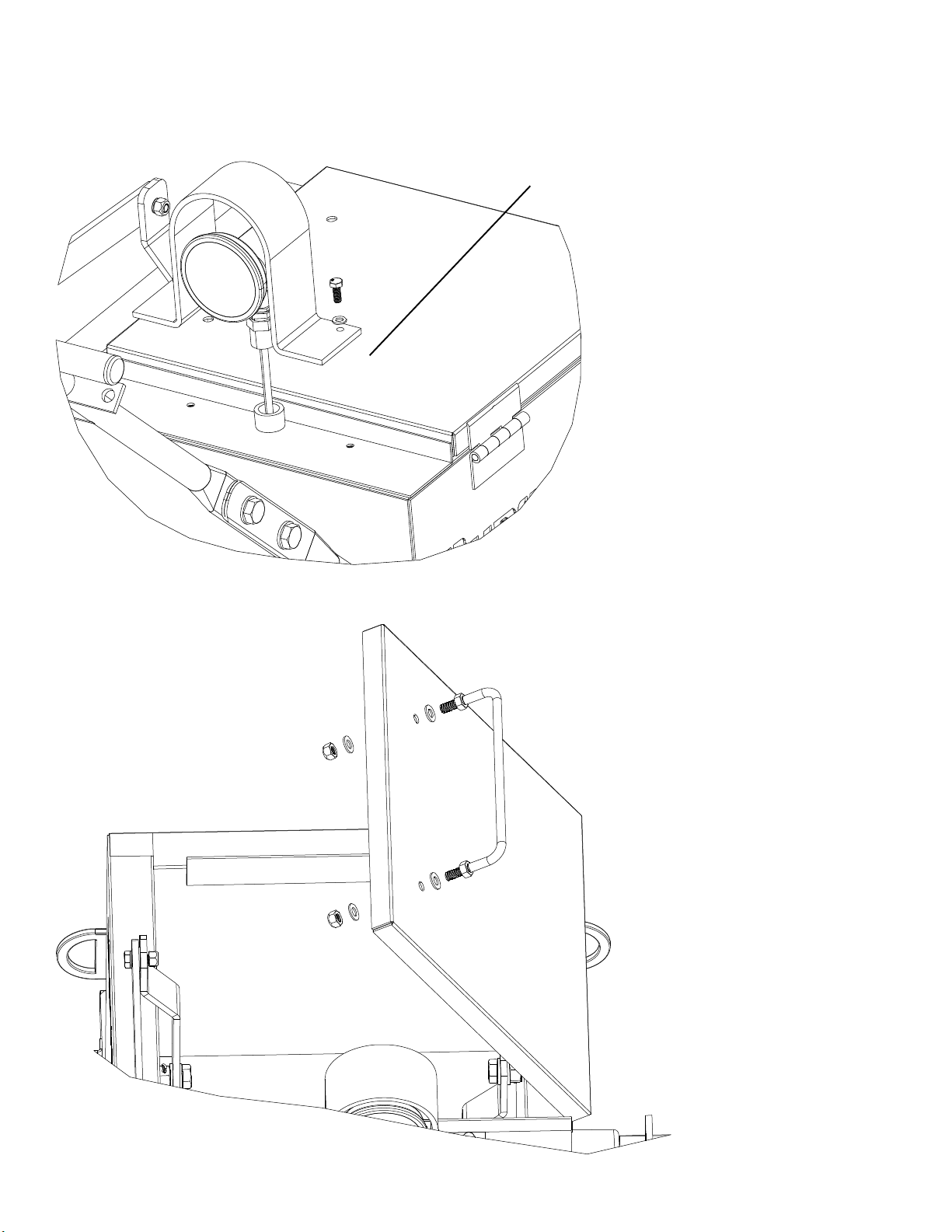

7. Thermometer and Thermometer Guard
Installation
8. Lid Handle Installation
KIT D - Thermometer Guard
RK-FAS-0004

9. Shoe Installation
KIT I - Shoe Mount
RK-FAS-0027

10. Control Arm Assembly
There are 2 types of control arm sets that could have been included with your machine. Please follow the
instructions for the type that was shipped with your machine.

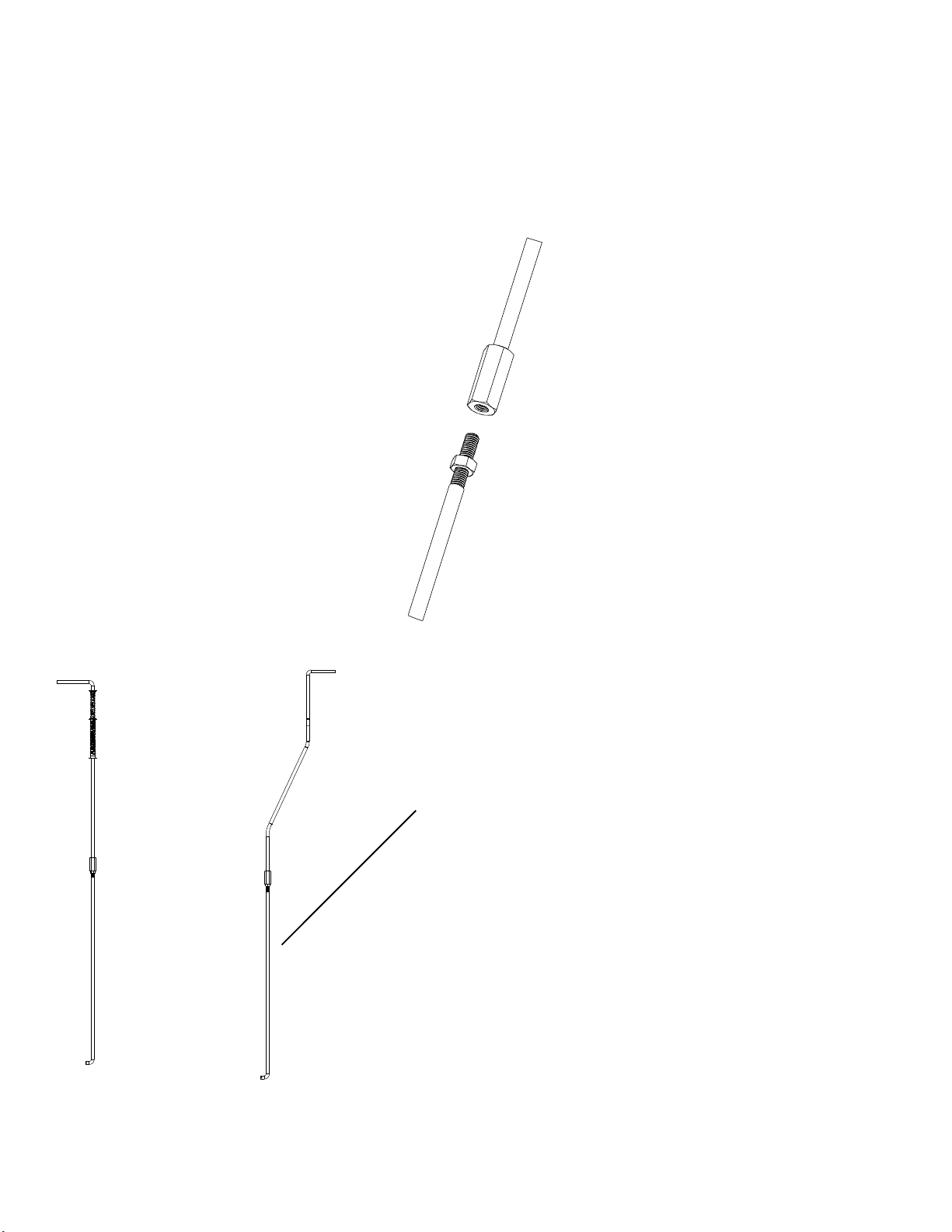

Type 1 - with one threaded end, goes together as shown:
Each set of control arms is shipped as a pair of upper
and lower halves. Be careful not to switch the valve
and shoe lower half of the control arm.
If the lower halves of the control arms are mixed up,
the shorter of the two is for the shoe control arm.

Type 2 - has 2 threaded ends with a turnbuckle connecting them and goes together as shown below:
Left Hand
Thread
Right Hand
Thread
Once the control arms are
assembled proceed to the next step
for installation and adjustment.
Thread each rod an
equal amount into the
turnbuckle with gaps
between the nuts and
turnbuckle to allow
for adjustment.

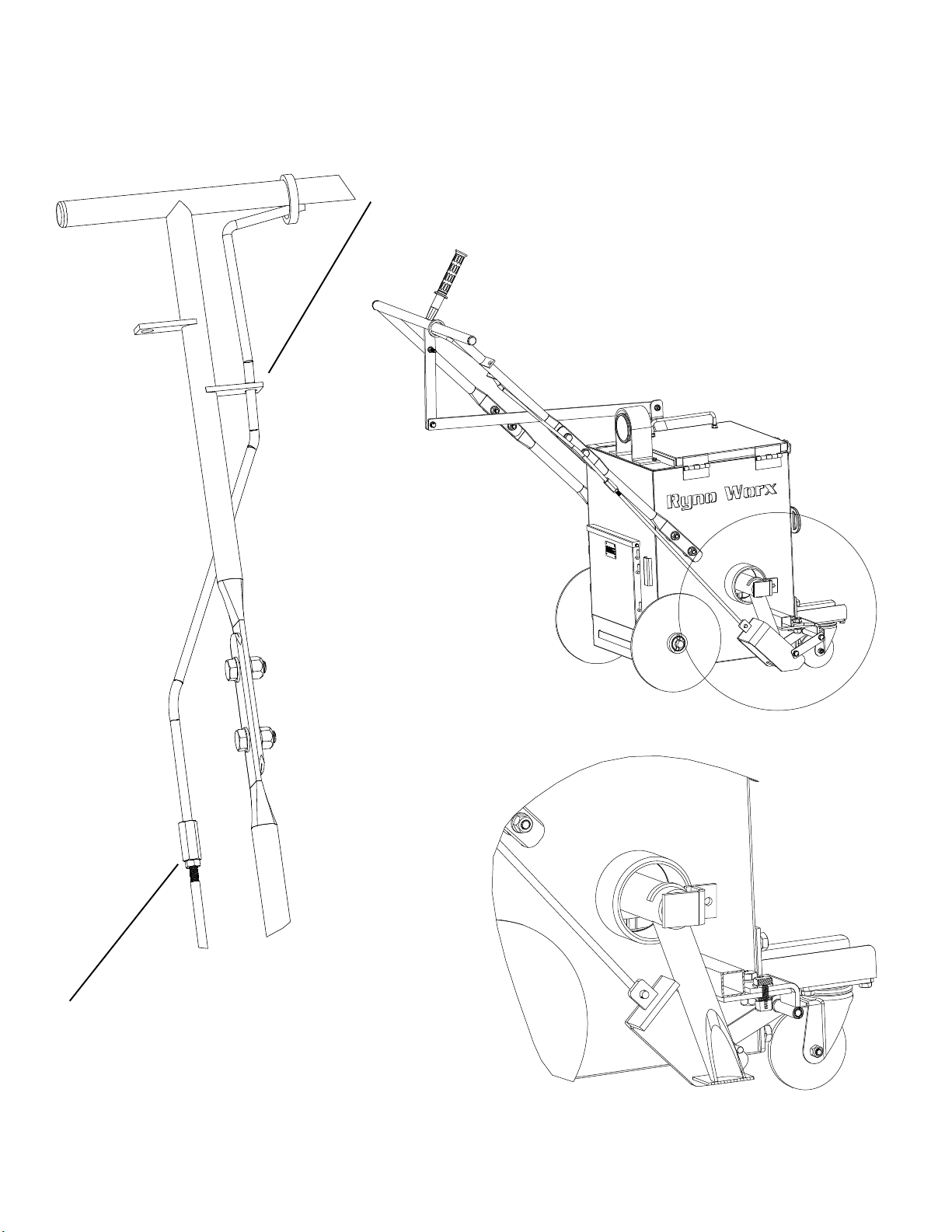

11. Shoe Control Arm Installation and Adjustment
Type 1:
Install the shoe control arm through the guide hole (handle end first)
Adjust the length of the control arm by threading the
lower half of the arm into the upper half. The final
length of the arm should allow the drip guard to fully
cover the bottom of the transfer tube when the shoe is
in the raised position (shown to the right). Once the
final length is set tighten the adjustment nut.

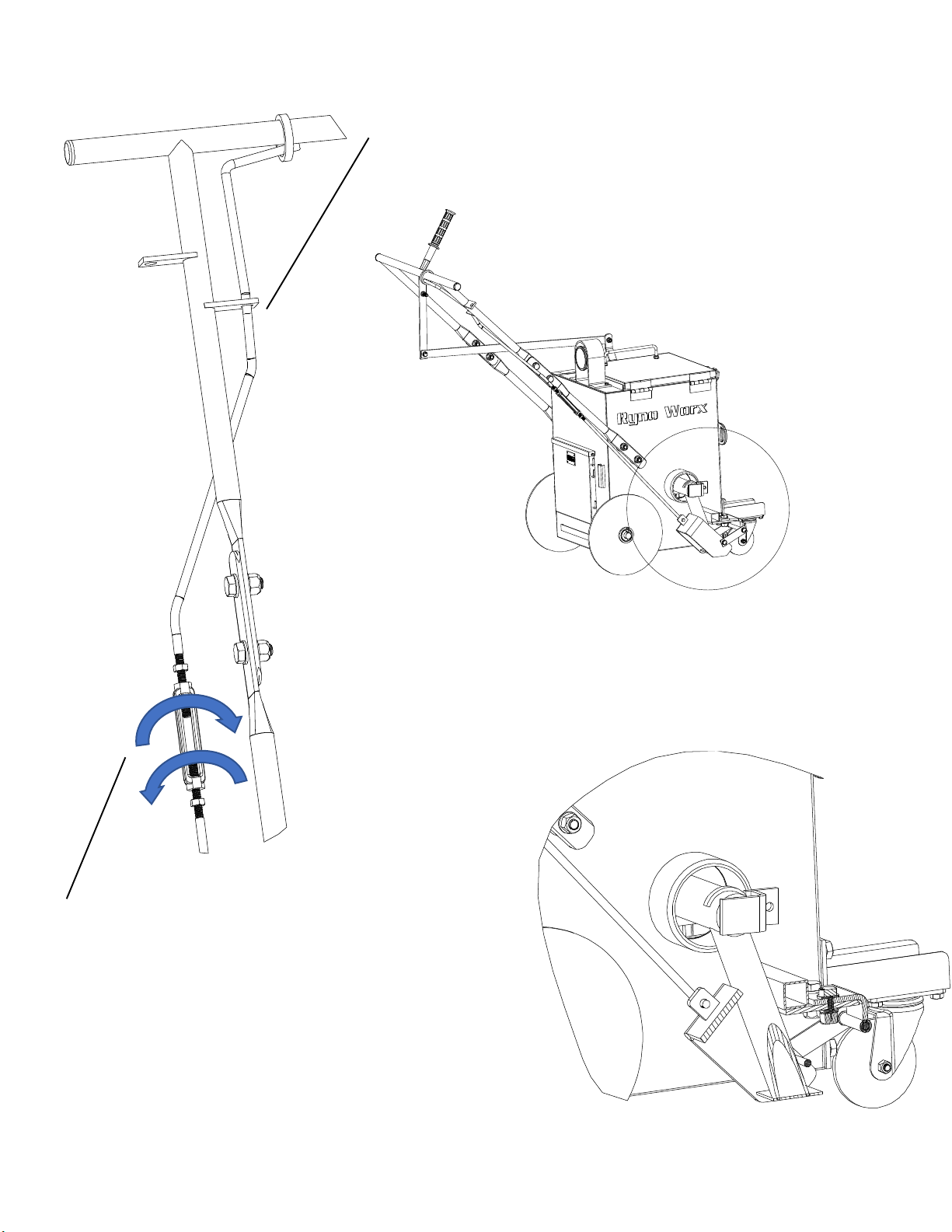

Type 2:
Install the shoe control arm through the guide hole (handle end first)
Turn to Make Arm Longer
Turn to Make Arm Shorter
Adjust the length of the control arm by turning the
turnbuckle in the appropriate direction (shown above).
The final length of the arm should allow the drip guard
to fully cover the bottom of the transfer tube when the
shoe is in the raised position (shown to the right).
Once the final length is set, hold the turnbuckle in
position with an adjustable wrench and tighten both
nuts against the turnbuckle.

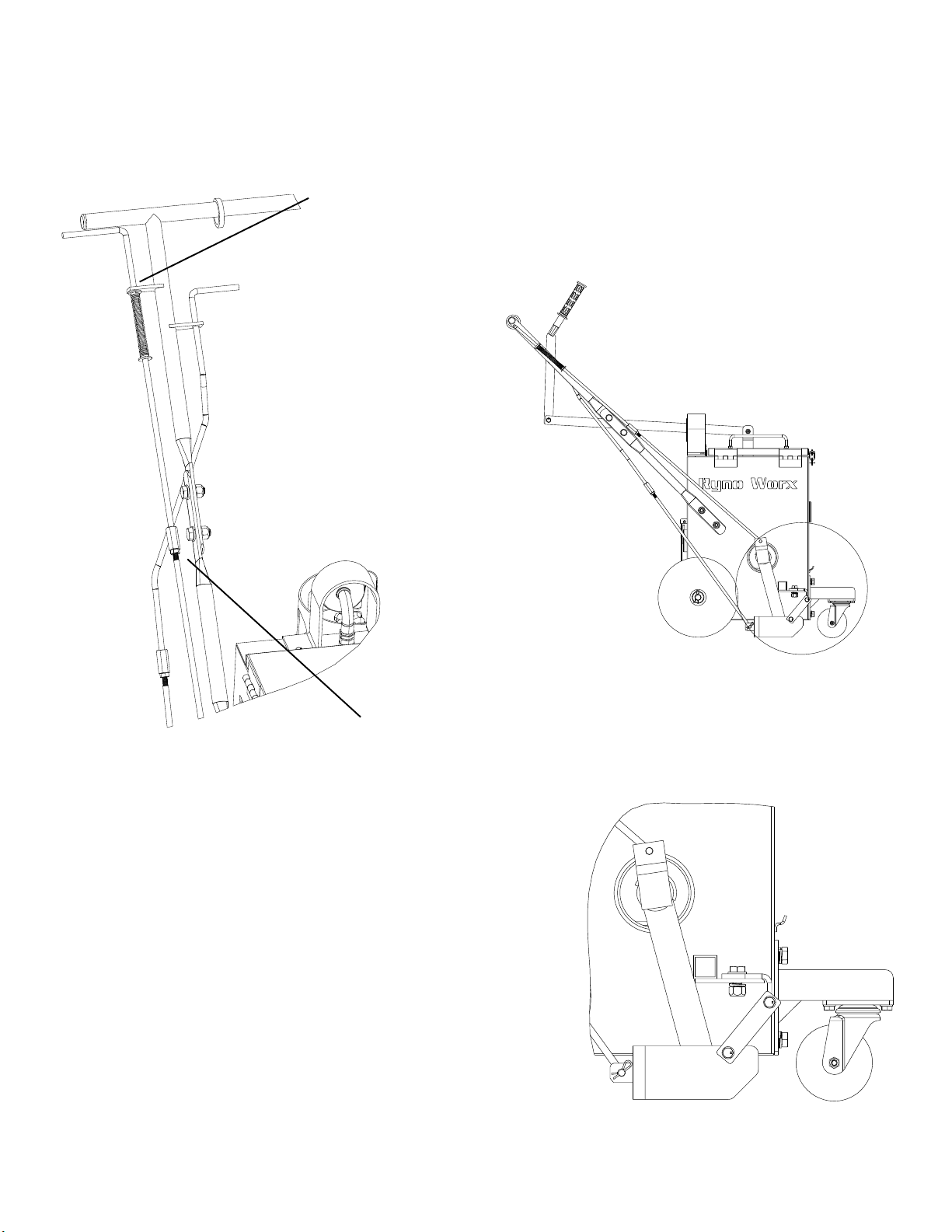

12. Valve Control Arm Installation and Adjustment
Type 1:
Install the valve control arm through the guide hole (handle end first).
Ensure that the retainer washer is in place to prevent the spring from
pulling through the guide hole.
Adjust the length of the control arm by threading the
lower half of the arm into the upper half. The final
length of the arm should result in the valve being
fully open (fully open valve position below) when the
arm is fully retracted (shown above/left).
⚠WARNING
Setting the control arm to a length that is too short will
cause over-rotation of the valve which could lead to
the valve jamming or falling out.
The valve should NEVER be rotated more than a few
degrees past the vertical position. The maximum
valve rotation is shown on the right.
Make sure to test and verify that your setup is free
from jams and over-rotations before using your
machine.

Type 2:
Turn to Make Arm Longer
Turn to Make Arm Shorter
Install the valve control arm through the guide hole (handle end first).
Ensure that the retainer washer is in place to prevent the spring from
pulling through the guide hole.
Adjust the length of the control arm by turning the
turnbuckle in the appropriate direction (shown on
the left) to make it longer or shorter.
The final length of the arm should result in the valve
being fully open (fully open valve position below)
when the arm is fully retracted (shown above/left).
Once the final length is set, hold the turnbuckle in
position with an adjustable wrench and tighten both
nuts.
⚠WARNING
Setting the control arm to a length that is too short will
cause over-rotation of the valve which could lead to
the valve jamming or falling out.
The valve should NEVER be rotated more than a few
degrees past the vertical position. The maximum
valve rotation is shown on the right.
Make sure to test and verify that your setup is free
from jams and over-rotations before using your
machine.
