Saeco EXPRELIA HD8854 User manual

Service
Service
Service
Coffee Machine
HD8854 / HD8856
Exploded View
Contents Table
External / Electronical components 1/8
Front panel / User interface 2/8
Coffee dispenser 3/8
Water container 4/8
Milk carafe 5/8

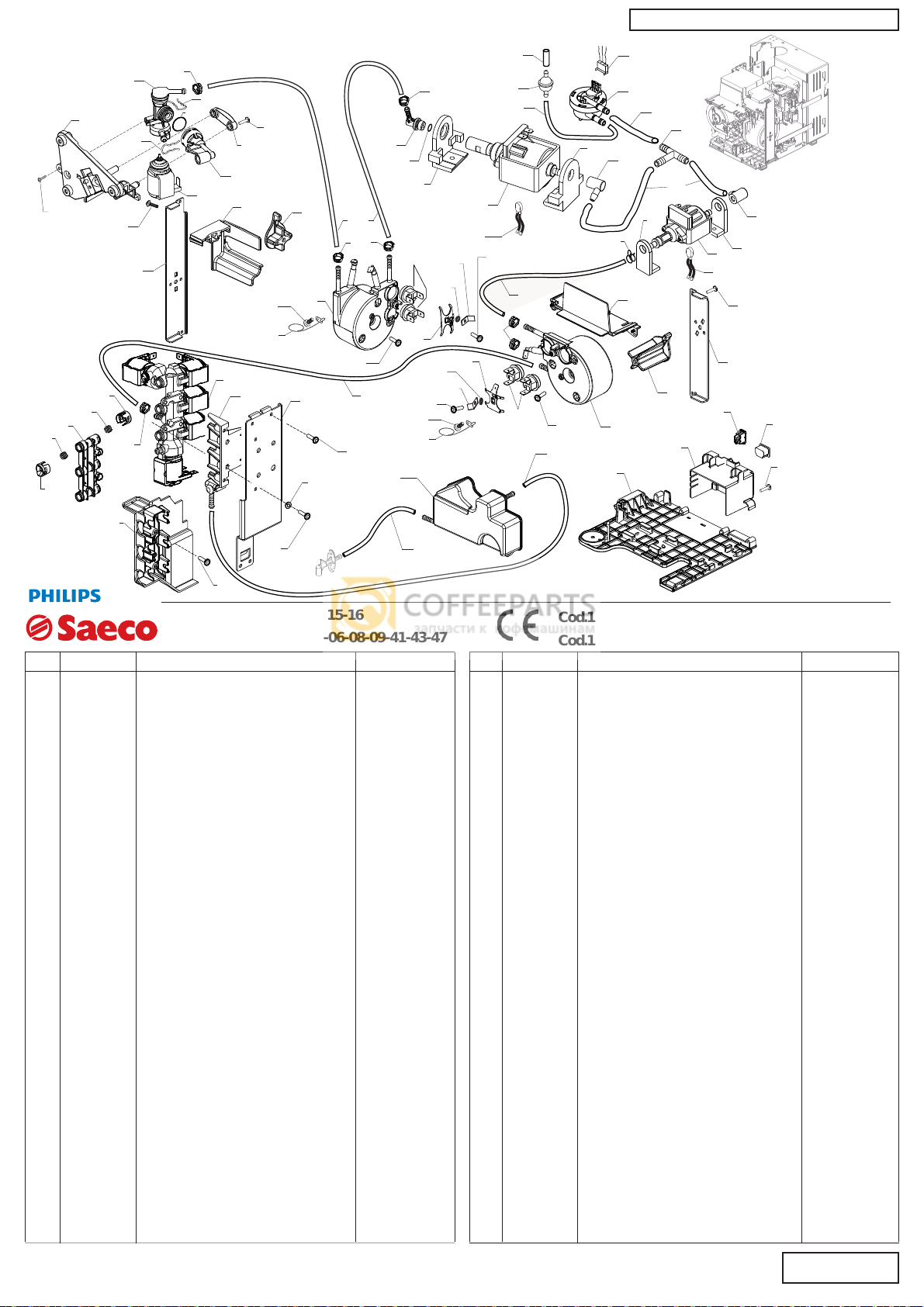

Water system with slim boiler 6/8
Coffee grinder assembly 7/6
Gear motor / Brewing unit 8/8
All rights reserved. No part of this publication may be reproduced, stored in a
retrieval system or transmitted, in any form or by any means, electronic, mechanical,
photocopying, or otherwise without the prior permission of Saeco.
Published by Saeco International Group Subject to modication EN 4219 400 00003.4
2012-Apr-04

HD8854/01-02-03-09-14-15-16
HD8856/01-02-03-04-05-06-08-09-41-43-47
PSA EXPRELIA
Exp. E74153 Rev.04 - 04/04/12
Cod.10003286-87-3521-22-23-24-25-26-78-79
Cod.10003738-39-60-61-3808-78-4089-90
24
37
48
12
38
28
16
21
42
17
23
12
50
12
26
27
29
30
31
51
34
33
39
40
44
32
15
35
36 13
14
18
11
1
2
3
4
5
6
7
8
9
12
12
46
47
45
12
25
49
19
22
20
43
10
41
POS CODE DESCRIPTION NOTE
DESCRIPTION
CODEPOS NOTE
01 15001997 MANUAL PSAHD8854/HD8856 MDS IT
15001998 MANUAL PSAHD8854/HD8856 MDS DE
15001999 MANUAL PSAHD8854/HD8856 MDS GB
15002047 MANUAL PSAHD8854/HD8856 MDS FR
15002330 MANUAL PSAHD8854/HD8856 MDS ES
15002331 MANUAL PSAHD8854/HD8856 MDS PT
15002332 MANUAL PSAHD8854/HD8856 MDS NL
15002333 MANUAL PSAHD8854/HD8856 MDS SV
15002334 MANUAL PSAHD8854/HD8856 MDS NO
15002335 MANUAL PSAHD8854/HD8856 MDS FI
15002336 MANUAL PSAHD8854/HD8856 MDS DA
15002337 MANUAL PSAHD8854/HD8856 MDS GR
15002338 MANUAL PSAHD8854/HD8856 MDS PL
15002339 MANUAL PSAHD8854/HD8856 MDS RU
15002340 MANUAL PSAHD8854/HD8856 MDS UA
15002341 MANUAL PSAHD8854/HD8856 MDS HU
15002342 MANUAL PSAHD8854/HD8856 MDS CS
15002343 MANUAL PSAHD8854/HD8856 MDS SK
15002344 MANUAL PSAHD8854/HD8856 MDS RO
15002345 MANUAL PSAHD8854/HD8856 MDS BG
15002346 MANUAL PSAHD8854/HD8856 MDS CR
15002347 MANUAL PSAHD8854/HD8856 MDS SL
15002348 MANUAL PSAHD8854/HD8856 MDS SR
15002582 MANUAL PSAHD8854/HD8856 MDS CHN
15002584 MANUAL PSAHD8854/HD8856 MDS KOR
15002585 MANUAL PSAHD8854/HD8856 MDS TWN
15003143 MANUAL PSAHD8854/HD8856 MDS PT/BRA
02 146680850 BLACK COFFEE MEASURE SMART
03 127390100 BRUSH FOR CLEANING
04 11028379 PSA KLUBER TRIBOSTAR SIL 2 TUBE 5GR.
05 21001404 ACC SAE BRITAUNI.WAT.FILTERX1 EUR-ASIA
06 0301.961 STICKER FOR WATER HARDNESS TEST
07 183911050 BLACK POWER CABLE SCHUKO L=1200MM
183940650 BLACK POWER CABLEAUSTRALIA L=1200
11004247 BLACKPOWER CABLERVV3X1 CHINAL=1200MM
183930650 POWER CABL.CH BLACK 3X1 H05VV-F L=1200
11001985 BLACK POWER CABLE KOREA3X1 L=1200
183970350 BLK POWER CABLE 3X1 H05VV-F UK L=1200MM
11004246 BLACK POWER CABLE TAIWAN HVCTF L=1200
183921950 POWER CABLE SJT3 USABLACK UL L=1200
183921950 POWER CABLE SJT3 USABLACK UL L=1200
17800330 BLACK POWER CABLE BRAZIL L=1200
17800019 BLACK POWER CABLE BRAZIL L=1200
08 13001097 BAND FOR LIFTING L=1800 H=300 MM MYB9
09 20006892 KIT PS-E INSERTFOR BOX MDS
10 17000111 BLACK COVER CONDUCTING SEAL MDS
11 13001130 DISPLAY BOX MDS PSAEXPRELIA WE
13001252 DISPLAY BOX MDS PSAEXPRELIA CEE
13001358 DISPLAY BOX MDS PSAEXPRELIA USA
13001358 DISPLAY BOX MDS PSAEXPRELIA USA
12 12000450 SCREW TCBR TORX 10 3,5X12 PLAST.ZN-N
13 17000399 SB/SS GROUND CONT.DOOR COVER MDS/H ASSY.
UP TO S/N
TU901208034135
TU901208034135
11026338 SB/SS GROUND CONT.DOOR COVER MDS/H ASS
FROM S/N
TU901208034136
TU901208034136
11024933 BLACK GROUND CONTAINER DOOR S/SCR.MDS/P
14 17000398 SB/SS WATER CONT.DOOR COVER MDS/HASSY.
UP TO S/N
TU901208034135
TU901208034135
11026339 SB/SS WATER CONT.DOOR COVER MDS/HASSY.
FROM S/N
TU901208034136
TU901208034136
11023040 BLACK WATER CONTAINER DOOR MDS/P
15 11028990 SB/SS LEFT SIDE PANELV2 MDS/H ASSY.
FROM S/N
TU901208034136
TU901208034136
UP TO
TU901208034135 SEE POSITION 51
TU901208034135 SEE POSITION 51
11022955 BLACK LEFT SIDE PANELMDS/P
17000804 SB/SS LEFT SIDE PANELW/FAST.MDS/HASSY. ONLY USA
17000804 SB/SS LEFT SIDE PANELW/FAST.MDS/HASSY. ONLY USA
UP TO S/N
TU901208034135
TU901208034135
11028929 SB/SS LEFT SIDE PANELW/FAST.MDS/HASSY. ONLY USA
FROM TO S/N
TU901208034136
TU901208034136
16 11023035 SS SPRING FOR WATER CONTAINER LEVER MDS
17 11022425 YELLOW LEVER FOR WATER CONTAIN.S/SC.MYB9
18 17000400 SB/SS BEAN CONTAIN.DOOR COVER MDS/HASSY
UP TO S/N
TU901208034135
TU901208034135
11026340 SB/SS BEAN CONTAIN.DOOR COVER MDS/HASS
FROM TO S/N
TU901208034136
TU901208034136
11023046 BLACK BEAN CONTAINER DOOR MDS/P
19 12001330 TRANSP.ROUND ADHESIVE FOOT SJ-5382
20 17000113 BLACK COVER CASING V2 MDS
21 11022950 BLACK GROUND COFFEE HOPPER PLATE MDS
22 11023060 BLACK HORIZONTAL MOUNTING PLATE MDS
23 11022938 BLACK STEEL CASING MDSASSY.
24 11000651 WATER LEVEL SENSOR BOARD P124
25 11024263 PWR BOARD MDS 230V
11021342 PWR BOARD MYB9/MDS 120V 120V
11021342 PWR BOARD MYB9/MDS 120V 120V
26 11023061 BLACK PWR BOARD COVER MDS
TABLE 1a/8

HD8854/01-02-03-09-14-15-16
HD8856/01-02-03-04-05-06-08-09-41-43-47
PSA EXPRELIA
Exp. E74153 Rev.04 - 04/04/12
Cod.10003286-87-3521-22-23-24-25-26-78-79
Cod.10003738-39-60-61-3808-78-4089-90
24
37
48
12
38
28
16
21
42
17
23
12
50
12
26
27
29
30
31
51
34
33
39
40
44
32
15
35
36 13
14
18
11
1
2
3
4
5
6
7
8
9
12
12
46
47
45
12
25
49
19
22
20
43
10
41
POS CODE DESCRIPTION NOTE
DESCRIPTION
CODEPOS NOTE
27 11022984 BLK/SB-SS REAR FRAME MDSASSY.
UP TO S/N TU901210043090
11025064 BLK/BLK REAR FRAME MDSASSY.
UP TO S/N TU
901128094834
901128094834
28 11022956 BLACK REAR PANEL WHITLOGO SAECO MDS
29 11028928 SB/SS RIGHT SIDE PANELV2 MDS/H ASSY.
FROM S/N
TU901208034136
TU901208034136
UP TO
TU901208034135 SEE POSITION 51
TU901208034135 SEE POSITION 51
11022954 BLACK RIGHT SIDE PANELMDS/P
17000806 SB/SS RIGHT SIDE PANELW/FAST.MDS/HASSY ONLY USA
17000806 SB/SS RIGHT SIDE PANELW/FAST.MDS/HASSY ONLY USA
UP TO S/N
TU901208034135
TU901208034135
11028927 SB/SS RIGHT SIDE PANELW/FAST.MDS/HASSY
ONLY USA
ONLY USA
FROM S/N
TU901208034136
TU901208034136
30 11021829 BLACK/TRANSP.RIGID FOOT MYB9
31 11021769 BLACK RIGID FOOT FIXING PIN MYB9
32 11023034 BLACK DUMP BOX MDSASSY.
33 11023032 BLK DRIP TRAY COFF.BREW UNIT COVER MDS
34 11023031 BLACK DRIP TRAY COFFEE BREW UNIT MDS
35 11023166 40POLES FLAT CABLE BOARDS LINK MDS UL
36 11013806 BLACK FLAT-CABLE PROTECTION MYB9
37 17000064 BLACK CAPACITIVE SENSOR INSERT XSM
38 11022971 BLACK SCREW HOLE COVER CAP MDS
39 17000363 TRANSPARENTINFRAREDS PLATE MDS
40 11021976 GALV.PLATE FOR DOOR CLOSURE MYB9
41 129913202 SCREW TCB TORX 10 3X8 PLAST.ZN-B
42
9161.111 MAGNET FOR FLOAT SUPERAUTOM.
9161.111 MAGNET FOR FLOAT SUPERAUTOM.
43 186401220 BENT TABS 6,3 D=3,3 <=90° 4001851000
44 11006740 BRONZE SPRING FOR FRONT CASING G0053
45 17001087 BLACK.UPPER REAR FRAME INSERT MDS
45 17001087 BLACK.UPPER REAR FRAME INSERT MDS
FROM S/N.TU901128094835
FROM S/N.TU901128094835
11025802 CHROM.UPPER REAR FRAME INSERT MDS
11025802 CHROM.UPPER REAR FRAME INSERT MDS
FROM
FROM S/N TU901210043091
46 17001088 BLACK.LEFT LATERAL REAR FRAME INSERT MDS
46 17001088 BLACK.LEFT LATERAL REAR FRAME INSERT MDS
FROM S/N.TU901128094835
FROM S/N.TU901128094835
11025804 CHROM.LEFT LATERAL REAR FRAME INS.MDS
11025804 CHROM.LEFT LATERAL REAR FRAME INS.MDS
FROM
FROM S/N TU901210043091
47 17001089 BLK RIGHT LATERAL REAR FRAME INSERT MDS
47 17001089 BLK RIGHT LATERAL REAR FRAME INSERT MDS
FROM S/N.TU901128094835
FROM S/N.TU901128094835
11025803 CHROM.RIGHT LATERALREAR FRAME INS.MDS
FROM
FROM S/N TU901210043091
48 129914002 SCREW TCB TORX 10 3,5X16 PLAST.ZN-B
49 11023304 PWR ELECTR.BOARD INSULATE SHEET MYB9 ONLY USA
50 17000007 COMPONENTS SUPPORT INSULATE SHEET MYB9 ONLY USA
TABLE 1b/8
51 20007080 KIT SPARES SB/SS RIGHT+LEFT PANELMDS/H
UP TO S/N
TU901208034135
TU901208034135

HD8854/01-02-03-09-14-15-16
HD8856/01-02-03-04-05-06-08-09-41-43-47
PSA EXPRELIA
Exp. E74153 Rev.04 - 04/04/12
Cod.10003286-87-3521-22-23-24-25-26-78-79
Cod.10003738-39-60-61-3808-78-4089-90
PHILIPS
11
10
37
42
38
35 36
7
9
13
16 26
8
14
17
12
20 21
23
22
26
27
25
24
46
45
3
28
44
30
49 50 51
52 53
54
51
55 32
29
33
48
47
43
18
56
57
58
4
32
31
2
19
34
6
41
40
39
15
1
5
18
POS CODE DESCRIPTION NOTE
DESCRIPTION
CODEPOS NOTE
01
01
11026136 SB/SS FRONTAL PANEL V2 S/SCR.MDSASSY.
11026136 SB/SS FRONTAL PANEL V2 S/SCR.MDSASSY.
UP TO S/N TU901208034135
UP TO S/N TU901208034135
11029322 SB/SS FRONTAL PANEL V3 S/SCR.MDSASSY.
11029322 SB/SS FRONTAL PANEL V3 S/SCR.MDSASSY.
FROM S/N TU901208034136
FROM S/N TU901208034136
11025135 SB/SS FRONTAL PANELV2 MDS ASSY. ONLY USA
11025135 SB/SS FRONTAL PANELV2 MDS ASSY. ONLY USA
UP TO S/N TU901208034135
UP TO S/N TU901208034135
11026334 SB/SS FRONTAL PANELV2 MDS ASSY. ONLY USA
11026334 SB/SS FRONTAL PANELV2 MDS ASSY. ONLY USA
FROM S/N TU901208034136
FROM S/N TU901208034136
02 11023433 BLACK FRONTALPANEL INSERT MDS
02 11023433 BLACK FRONTALPANEL INSERT MDS
03 11022981 STEEL FRONT FRAME MDS
03 11022981 STEEL FRONT FRAME MDS
04 17000363 TRANSPARENTINFRAREDS PLATE MDS
04 17000363 TRANSPARENTINFRAREDS PLATE MDS
05 11029324 BLACK DRIP TRAY SUPPORT V2 MDS
05 11029324 BLACK DRIP TRAY SUPPORT V2 MDS
06 11022986 BLK CARAFFE BOARD SUPPORT GEN.MDSASSY.
06 11022986 BLK CARAFFE BOARD SUPPORT GEN.MDSASSY.
07 11023913 CHROM.TOUCH PANELSUPPORT MDS
07 11023913 CHROM.TOUCH PANELSUPPORT MDS
UP TO S/N TU901126079436
UP TO S/N TU901126079436
11025809 CHROM.TOUCH PANELSUPPORT MDS ASSY.
11025809 CHROM.TOUCH PANELSUPPORT MDS ASSY.
FROM S/N TU9011260779347
FROM S/N TU9011260779347
08 11011406 ADHES.SILVER PLATE LOGO SAECO P0057
08 11011406 ADHES.SILVER PLATE LOGO SAECO P0057
09 17000989 TRANSPAR.GLASS FOR DISPLAY S/SCR.MDS
09 17000989 TRANSPAR.GLASS FOR DISPLAY S/SCR.MDS
10 17000325 BLKDISPLAYFUNC.BUTTONSCOVERS/SCR.MDS
10 17000325 BLKDISPLAY FUNC.BUTTONS COVER S/SCR.MDS
11 11023018 TRANSP.TOUCH PANEL MDS
11 11023018 TRANSP.TOUCH PANEL MDS
12 12001490 GRAPHIC DISPLAY128 X 64 MDS
12 12001490 GRAPHIC DISPLAY128 X 64 MDS
13 11022396 CPU+SW MBM
13 11022396 CPU+SW MBM
14 11024301 ADHES.SILVER PLATE LOGO PHILIPS
14 11024301 ADHES.SILVER PLATE LOGO PHILIPS
15 11023819 TF/CHROM.STEAM TUBE MDS ASSY.
15 11023819 TF/CHROM.STEAM TUBE MDS ASSY.
16 11022983 BLACK DISPLAY SUPPORT MDS
16 11022983 BLACK DISPLAY SUPPORT MDS
17 11023021 CHROM.EXTERNAL STEAM TUBE INSERT MDS
17 11023021 CHROM.EXTERNAL STEAM TUBE INSERT MDS
18 11022985 BLK/SB-SS INSIDE COVER FRON.PANELMDS AS
18 11022985 BLK/SB-SS INSIDE COVER FRON.PANELMDS AS
UP TO S/N TU901210043090
UP TO S/N TU901210043090
17001093 BLK INSIDE COVER FRONT PANEL V2 MDS
17001093 BLK INSIDE COVER FRONT PANEL V2 MDS
FROM S/N TU901210043091
FROM S/N TU901210043091
19 17000062 WHT PREFORM.TEFLON TUBES SUPP.MDS ASSY.
19 17000062 WHT PREFORM.TEFLON TUBES SUPP.MDS ASSY.
20 17000006
20 17000006
TWOWAYTEFLON TUBESSUPPORTSPRINGMYB9
TWO WAY TEFLON TUBES SUPPORTSPRING MYB9
21 11013785 TEFLON TUBES SUPPORT SPRING MYB9
21 11013785 TEFLON TUBES SUPPORT SPRING MYB9
22 140328059 OR 2015 IN SILICONE PTFE/FDA
22 140328059 OR 2015 IN SILICONE PTFE/FDA
23 9011.144 SS FORK FOR TUBE D.4
23 9011.144 SS FORK FOR TUBE D.4
24 11014215 BLACK BUTTON FOR DOOR RELEASE MYB9
24 11014215 BLACK BUTTON FOR DOOR RELEASE MYB9
25 11014218
25 11014218
BLACK COVERBUTTON FOR DOORRELEASE MYB9
BLACK COVER BUTTON FOR DOOR RELEASE MYB9
26 12000450 SCREW TCBR TORX 10 3,5X12 PLAST.ZN-N
26 12000450 SCREW TCBR TORX 10 3,5X12 PLAST.ZN-N
27 11021747 SPRING FOR DOOR RELEASE BUTTON MYB9
27 11021747 SPRING FOR DOOR RELEASE BUTTON MYB9
28 17000094 DOOR LOWER HINGE V2 MYB9
28 17000094 DOOR LOWER HINGE V2 MYB9
29 128310402 WASHER UNI 8842A4 ZINCATA
29 128310402 WASHER UNI 8842A4 ZINCATA
30 12001591 GALV.SCREW TCB 4,2X13 DIN 7985 F
30 12001591 GALV.SCREW TCB 4,2X13 DIN 7985 F
31 17000048 BLACK FLAT-CABLE COVER MDS
31 17000048 BLACK FLAT-CABLE COVER MDS
32 12000895 SCREW TSP 3x10 INOX
32 12000895 SCREW TSP 3x10 INOX
33 17000106 DOOR UPPER HINGE V2 MYB9
33 17000106 DOOR UPPER HINGE V2 MYB9
34 11023368 CHROM.CONNECT.CAP FOR CARAFE MDSASSY.
34 11023368 CHROM.CONNECT.CAP FOR CARAFE MDSASSY.
35 17000549 BLACK ESPRESSO BUTTON S/SCR.MDS
35 17000549 BLACK ESPRESSO BUTTON S/SCR.MDS
36 17000550 BLACK COFFEE BUTTON S/SCR.MDS
36 17000550 BLACK COFFEE BUTTON S/SCR.MDS
37 17000551 BLACK LONG COFFEE BUTTON S/SCR.MDS
37 17000551 BLACK LONG COFFEE BUTTON S/SCR.MDS
38 17000552 BLACK SPECIAL BUTTON S/SCR.MDS
38 17000552 BLACK SPECIAL BUTTON S/SCR.MDS
39 17000553 BLACK CAPPUCCINO BUTTON S/SCR.MDS
39 17000553 BLACK CAPPUCCINO BUTTON S/SCR.MDS
40 17000554 BLACK CLEAN BUTTON S/SCR.MDS
40 17000554 BLACK CLEAN BUTTON S/SCR.MDS
41 17000591 BLACK STAND-BY BUTTON S/SCR.MDS
41 17000591 BLACK STAND-BY BUTTON S/SCR.MDS
42 17000110 BLACK STEAM TUBE HANDGRIP MDS
42 17000110 BLACK STEAM TUBE HANDGRIP MDS
43
43 11000651 WATER LEVEL SENSOR BOARD P124
44 129823821 TCB SCREW M4X8 UNI 7687 SS
44 129823821 TCB SCREW M4X8 UNI 7687 SS
45 9161.111 MAGNET FOR FLOAT SUPERAUTOM.
45 9161.111 MAGNET FOR FLOAT SUPERAUTOM.
46 11014016 SS.INSERT FOR MAGNET MYB9
46 11014016 SS.INSERT FOR MAGNET MYB9
47 128310321
WASHER UNI 8842A3 INOX
WASHER UNI 8842A3 INOX
48 129912902 SCREW TCB TORX 10 2,9X6,5 SHEET ZN-B
48 129912902 SCREW TCB TORX 10 2,9X6,5 SHEET ZN-B
49 11023238 BLACK CARAFFE BOARD COVER MYB9
49 11023238 BLACK CARAFFE BOARD COVER MYB9
50 11013368 MILKCARAFFE BOARD V2 MYB9
50 11013368 MILKCARAFFE BOARD V2 MYB9
51 17000002 BLACK CARAFE MICRO INSERT V2 MYB9
51 17000002 BLACK CARAFE MICRO INSERT V2 MYB9
52 17000019 SS CARAFE MICRO INSERT SPRING MYB9
52 17000019 SS CARAFE MICRO INSERT SPRING MYB9
53 11013328 BLACK CARAFFE BOARD COVER MYB9
53 11013328 BLACK CARAFFE BOARD COVER MYB9
54 12001330 TRANSP.ROUND ADHESIVE FOOTSJ-5382
54 12001330 TRANSP.ROUND ADHESIVE FOOTSJ-5382
55 17000045 BLK PRESENCE CARAFE MICRO INSERT V2 MYB9
55 17000045 BLK PRESENCE CARAFE MICRO INSERT V2 MYB9
56 11025799 CHROM.UPPER FRONT FRAME INSERT MDS
56 11025799 CHROM.UPPER FRONT FRAME INSERT MDS
FROM S/N TU901210043091
FROM S/N TU901210043091
57 11025800 CHROM.RIGHT LATERALFRONT FRAME INS.MDS
57 11025800 CHROM.RIGHT LATERALFRONT FRAME INS.MDS
FROM S/N TU901210043091
FROM S/N TU901210043091
58 11025801 CHROM.LEFT LATERALFRONT FRAME INS.MDS
58 11025801 CHROM.LEFT LATERALFRONT FRAME INS.MDS
FROM S/N TU901210043091
FROM S/N TU901210043091
TABLE 2/8

HD8854/01-02-03-09-14-15-16
HD8856/01-02-03-04-05-06-08-09-41-43-47
PSA EXPRELIA
Exp. E74153 Rev.04 - 04/04/12
Cod.10003286-87-3521-22-23-24-25-26-78-79
Cod.10003738-39-60-61-3808-78-4089-90
2
2
20
18 19
2
6
5
1
8
10
9
7
4
3
13
14
2
11
12
15
16
17
POS CODE DESCRIPTION NOTE
DESCRIPTION
CODEPOS NOTE
01 11023024 CHROM.COFFEE DISPENSER MDS ASSY.
01 11023024 CHROM.COFFEE DISPENSER MDS ASSY.
WITH PART. N° 02 - 03 - 04 - 05 - 06 - 07
WITH PART. N° 02 - 03 - 04 - 05 - 06 - 07
02 12000450 SCREW TCBR TORX 10 3,5X12 PLAST.ZN-N
02 12000450 SCREW TCBR TORX 10 3,5X12 PLAST.ZN-N
03 11025081 BLACK REAR COVER COFFEE DISPENSER MDS
03 11025081 BLACK REAR COVER COFFEE DISPENSER MDS
04 11013003 BLACK INNER BODY COFFEE DISPENS.MYB9
04 11013003 BLACK INNER BODY COFFEE DISPENS.MYB9
05 11023814
05 11023814
CHROM.COFFEE DISPENSER UPPERINSERTMDS
CHROM.COFFEE DISPENSER UPPER INSERT MDS
06 11023019 BLACK EXT.MOBILE PART COF.DISPENSER MDS
06 11023019 BLACK EXT.MOBILE PART COF.DISPENSER MDS
07 11023812
07 11023812
CHROM.FRONT COVER COFFEE DISPENSER MDS
CHROM.FRONT COVER COFFEE DISPENSER MDS
08 11023012 CHROM.CREAM ADJUSTMENT KNOB S/SCR.MDS
08 11023012 CHROM.CREAM ADJUSTMENT KNOB S/SCR.MDS
09 126772518
09 126772518
SS.SPRING FOR COF.CREAM ADJUSTMENT SHAFT
SS.SPRING FOR COF.CREAM ADJUSTMENT SHAFT
10 11013324 BLACK CREAM ADJUSTMENT KNOB RING MYB9
10 11013324 BLACK CREAM ADJUSTMENT KNOB RING MYB9
11 140326661 BLACK OR METRIC 0040-20 IN EPDM
11 140326661 BLACK OR METRIC 0040-20 IN EPDM
12 140640200 WHITE COFFEE CREAMADJUSTMENT SHAFT
12 140640200 WHITE COFFEE CREAMADJUSTMENT SHAFT
13 11022919 CHROM.COFFEE DISPENSER SUPPORT MDS
13 11022919 CHROM.COFFEE DISPENSER SUPPORT MDS
14 12000897 SCREW TCB TORX 10 3,5X20 PLAST.SS
14 12000897 SCREW TCB TORX 10 3,5X20 PLAST.SS
15 11013072 BLACK SEAL FOR COFFEE DISPENSER MYB9
15 11013072 BLACK SEAL FOR COFFEE DISPENSER MYB9
16 11013013 BLACK COFFEE DISPENSER TUBE MYB9
16 11013013 BLACK COFFEE DISPENSER TUBE MYB9
17 12000070 OR METRIC 0060-15 IN SILICONE
17 12000070 OR METRIC 0060-15 IN SILICONE
18 149360200 SILICONE TUBE 5X8 70SR IN ROLL
18 149360200 SILICONE TUBE 5X8 70SR IN ROLL
19 11013364 BLACK DISPENSER COFF.INLET CONNECT.MYB9
19 11013364 BLACK DISPENSER COFF.INLET CONNECT.MYB9
20 11012926 BLACK COFFEE DISPENSER CONNECTOR MYB9
20 11012926 BLACK COFFEE DISPENSER CONNECTOR MYB9
TABLE 3/8

HD8854/01-02-03-09-14-15-16
HD8856/01-02-03-04-05-06-08-09-41-43-47
PSA EXPRELIA
Exp. E74153 Rev.04 - 04/04/12
Cod.10003286-87-3521-22-23-24-25-26-78-79
Cod.10003738-39-60-61-3808-78-4089-90
1
34
5
6
7
9
10
11
12
13
2
8
17
22
23
19
20
21
15
16 24
14
18
POS CODE DESCRIPTION NOTE
DESCRIPTION
CODEPOS NOTE
01 11023037 NATURAL/GREY WATER CONTAINER MDSASSY.
01 11023037 NATURAL/GREY WATER CONTAINER MDSASSY.
02 11023155 BLACK HANDLE WATER CONTAINER MDS
02 11023155 BLACK HANDLE WATER CONTAINER MDS
03 140328461 EPDM OR METRIC 0190-10
03 140328461 EPDM OR METRIC 0190-10
04 224640200
04 224640200
EXTERNAL FILTER FOR WATER CONTAINERASSY
EXTERNAL FILTER FOR WATER CONTAINERASSY
05 140324362 OR METRIC 0060-30 IN SILICONE
05 140324362 OR METRIC 0060-30 IN SILICONE
06 126764718 SPRING FOR WATER CONTAINER VALVE
06 126764718 SPRING FOR WATER CONTAINER VALVE
07 147660562 GREY WATER VALVE CONTAINER PISTON
07 147660562 GREY WATER VALVE CONTAINER PISTON
08 11023039 NAT/GREY WATER CONTAINER LID S/SCR.MDS
08 11023039 NAT/GREY WATER CONTAINER LID S/SCR.MDS
09 0701.031.150 SEAL COVER GREY
09 0701.031.150 SEAL COVER GREY
10 145842900 WATER CONTAIN.VALVE SEAL GACO DIM14
10 145842900 WATER CONTAIN.VALVE SEAL GACO DIM14
11 0701.014.150 SEAL CONTAINER GREY
11 0701.014.150 SEAL CONTAINER GREY
12 140320461 OR ORM 0080-20 IN TERMOIL
12 140320461 OR ORM 0080-20 IN TERMOIL
13 129535721 SCREW TSPTORX 10 3,5X9,5 SHEET SS
13 129535721 SCREW TSPTORX 10 3,5X9,5 SHEET SS
14 11023044 NAT/GRYBEAN COF.CONT.LID S/SCR.MDS ASSY
14 11023044 NAT/GRYBEAN COF.CONT.LID S/SCR.MDS ASSY
15 149213059 GREY CAP FOR KNOBS BEAN CONTAINER
15 149213059 GREY CAP FOR KNOBS BEAN CONTAINER
16 120350604 SHAFT 6 UNI 7434
16 120350604 SHAFT 6 UNI 7434
17 11022951 BLACK GRIND.ADJUSTMENT KNOB MDS
17 11022951 BLACK GRIND.ADJUSTMENT KNOB MDS
18 11022924 5POLES CONNECTOR MC SENSORS MDS UL
18 11022924 5POLES CONNECTOR MC SENSORS MDS UL
19 11023025 SS DRIPTRAYGRATE MDS
19 11023025 SS DRIPTRAYGRATE MDS
20 17000147 BLACK GRATE SEALV3 MYB9/H-P
20 17000147 BLACK GRATE SEALV3 MYB9/H-P
21 11023030 BLACK DRIPTRAYCOVER MDS
21 11023030 BLACK DRIPTRAYCOVER MDS
22 11023029 SB/SS-BLACK DRIP TRAY MDSASSY.
22 11023029 SB/SS-BLACK DRIP TRAY MDSASSY.
23 17000001 RED FLOAT FOR DRIP TRAY MDS
23 17000001 RED FLOAT FOR DRIP TRAY MDS
24 17000204 BLACK REED SENSOR SUPPORTMDS
24 17000204 BLACK REED SENSOR SUPPORTMDS
TABLE 4/8

HD8854/01-02-03-09-14-15-16
HD8856/01-02-03-04-05-06-08-09-41-43-47
PSA EXPRELIA
Exp. E74153 Rev.04 - 04/04/12
Cod.10003286-87-3521-22-23-24-25-26-78-79
Cod.10003738-39-60-61-3808-78-4089-90
2
7
8
10
9
27 24
24 25
26
17
16
21
18
19
20
12
11
13
15
14
23
5
6
4
22
3
1
28
POS CODE DESCRIPTION NOTE
DESCRIPTION
CODEPOS NOTE
01 11023077 TRANSP/BLK GEN.CARAFE MYB9/MDS PSAASSY.
02 11023235 CHR.CARAFE CAPP.COVER V2 S/SC.MYB9 ASSY.
03 11022498 CHR.UPPER CARAFE SUPPORT V2 S/SCR.MYB9
04 11012812 VENTURI TUBE FOR CAPPUCCINATORE MYB9
05 11012678 BLACK CARAFE MILK DISPENSER TUBE MYB9
06 11013163 BLACK UPPER TUBE CARAFE CONNECT.MYB9
07 11022496 CHROM.LOWER CARAFE SUPPORT V2 MYB9
08 11012816 BLACK UPPER COVER PART CARAFE MYB9
09 12000550 SCREW TCBTORX 10 3X25 PLAST.SS
10 11021893
BLACK LOWER COVER PART CARAFE MYB9ASSY.
11 11013466 CHROMED REAR PART HILT CARAFE MYB9
12 11023158 CHROMED FRONT PART HILT CARAFE V2 MYB9
13 149360200 SILICONE TUBE 5X8 70SR IN ROLL
14 129911721 SCREW TSP TORX 4X16 PLAST STEEL
15 11013164 BLACK LOWER TUBE CARAFE CONNECT.MYB9
16 129910921 SCREW TCBTORX 10 3X10 SS
17 9161.111 MAGNET FOR FLOAT SUPERAUTOM.
18 11014016 SS.INSERT FOR MAGNET MYB9
19 12000895 SCREW TSPTORX 10 3X10 PLAST.SS
20 11024104 TRANSP.CARAFE V3 S/SCREEN MYB9
21 17000004
BLK CARAFE CAPPUCCIN.CASING W/CAPS MYB9
22 11026779 WHITE MILK TUBE CONNECTOR V2 MYB9
23 11012814 SILICONE TUBE 3,5X6 L=140 MM
24 11013765 STEEL SPRING FOR CARAFE LEVER MYB9
25 11022522 BLACK CAM FOR CARAFE LEVERS V2 MYB9
26 11013832 CARAFE SPRING WITH INSERT MYB9ASSY.
27 17000131 BLACK LEVER FOR CARAFE CAM V3 MYB9
28 11028534 PSA MILKACCESSORY PACKASSY.
TABLE 5/8

HD8854/01-02-03-09-14-15-16
HD8856/01-02-03-04-05-06-08-09-41-43-47
PSA EXPRELIA
Exp. E74153 Rev.04 - 04/04/12
Cod.10003286-87-3521-22-23-24-25-26-78-79
Cod.10003738-39-60-61-3808-78-4089-90
C
S
29
6
8
33 7
9
5
10
11
11
50
11
18
19
11
12
15
13
15
20
28
53
32
27
28
52
26
26 24
25
25 20
23
37 39
40
41
43
44
42
42
31
5
5
45
21
54
55
55
54
21
1
2
43
5
35
36
46
22
22
22
23
22
29
5
24
17
25
26
25
30
48
43
49
47
34
29
38
25
16
14 7
51
26
26
POS CODE DESCRIPTION NOTE
DESCRIPTION
CODEPOS NOTE
01 11023066 BLACK COMPONENTS SUPPORT MDS
01 11023066 BLACK COMPONENTS SUPPORT MDS
02 11023074 BLACK SOCKET-SWITCH SUPPORTMDS
02 11023074 BLACK SOCKET-SWITCH SUPPORTMDS
03 12000280 CUP SOCKET EN 60320 C 13
03 12000280 CUP SOCKET EN 60320 C 13
04 NE03.038 BIPOLAR SWITCH FUSIT C1250AR
04 NE03.038 BIPOLAR SWITCH FUSIT C1250AR
05 12000450 SCREW TCBR TORX 10 3,5X12 PLAST.ZN-N
05 12000450 SCREW TCBR TORX 10 3,5X12 PLAST.ZN-N
06 12001212 ULKA PUMP MF 230V-50HZ
06 12001212 ULKA PUMP MF 230V-50HZ
12001348 ULKA PUMP MF 220V-50/60HZ
12001348 ULKA PUMP MF 220V-50/60HZ
12001346 ULKAPUMP MF 120V-60HZ
12001346 ULKAPUMP MF 120V-60HZ
07 11012194 BLACK ULKAMF PUMP SUPPORT
07 11012194 BLACK ULKAMF PUMP SUPPORT
08 11022888 2 POLES CONNECTOR STEAM PUMP MDS UL
08 11022888 2 POLES CONNECTOR STEAM PUMP MDS UL
09 11012193 90° INLETCONNECTOR FOR PUMP ULKAMF
09 11012193 90° INLETCONNECTOR FOR PUMP ULKAMF
10 147920300 TEE CONNECTOR D=8ART.80.26.047 KA.461
10 147920300 TEE CONNECTOR D=8ART.80.26.047 KA.461
11 JS01.022 SILICONE TUBE 5X10 60 SHORE IN ROLL
11 JS01.022 SILICONE TUBE 5X10 60 SHORE IN ROLL
12 147920150 90° INLET CONNECTOR PUMP
12 147920150 90° INLET CONNECTOR PUMP
13 12000140 ULKA PUMP EP5/S GW 230V-50HZ
13 12000140 ULKA PUMP EP5/S GW 230V-50HZ
12000182 ULKA PUMP EP5/S GW 220V-60HZ
12000182 ULKA PUMP EP5/S GW 220V-60HZ
12000142 ULKAPUMP EAP5/S 120V-60HZ
12000142 ULKAPUMP EAP5/S 120V-60HZ
14 11022885 2 POLES CONNECTOR COFFEE PUMP MDS UL
14 11022885 2 POLES CONNECTOR COFFEE PUMP MDS UL
15 11022857 BLACK PUMP SUPPORT GMYB
15 11022857 BLACK PUMP SUPPORT GMYB
16 140321961 OR 2031 IN TERMOIL
16 140321961 OR 2031 IN TERMOIL
17 11001054 90°CONNECTOR PUMP OUTLET P0049/B
17 11001054 90°CONNECTOR PUMP OUTLET P0049/B
18 NV99.099 TURBINE D=1,2 932-8521/00 ASSY.
18 NV99.099 TURBINE D=1,2 932-8521/00 ASSY.
19 11022925 6POLES CONNECTOR FLOWMETER MDS UL
19 11022925 6POLES CONNECTOR FLOWMETER MDS UL
20 11013735 SLIM TUB.BOILERASSY. 230V-1300W
20 11013735 SLIM TUB.BOILERASSY. 230V-1300W
11023153 AS.CALD.TUB.SLIM 1300W 120V
11023153 AS.CALD.TUB.SLIM 1300W 120V
21 11001751 THERMOSTATES SPRING FOR BOILER
21 11001751 THERMOSTATES SPRING FOR BOILER
22 129573402 SCREW TAPT M4X10 DIN 7985 GALV
22 129573402 SCREW TAPT M4X10 DIN 7985 GALV
23 190800100 TEMPERATURE SENSOR NTC UL L=280MM
23 190800100 TEMPERATURE SENSOR NTC UL L=280MM
24 12001033 THERMOSTAT ONE SHOT 190°
24 12001033 THERMOSTAT ONE SHOT 190°
25 12000892 OETIKER CLAMP D=9,5 16700004
25 12000892 OETIKER CLAMP D=9,5 16700004
26 16000380 5X8,9 SILICONE TUBE IN ROLL
26 16000380 5X8,9 SILICONE TUBE IN ROLL
27 11023069 STEEL COFFEE TUBOL.BOILER SUPPORT MDS
27 11023069 STEEL COFFEE TUBOL.BOILER SUPPORT MDS
28 11023282 BLACK BOILERS SUPPORT V2 MYB9
28 11023282 BLACK BOILERS SUPPORT V2 MYB9
29 12001369 SCREW TSP TORX 5X30 PLAST.ZN-B
29 12001369 SCREW TSP TORX 5X30 PLAST.ZN-B
30 20006558 BLOWDOWN VALVE CASING MYB9 ASSY.
30 20006558 BLOWDOWN VALVE CASING MYB9 ASSY.
31 129914302 SCREW TORX M4X10 TESTA D=8X1,5 GALV
31 129914302 SCREW TORX M4X10 TESTA D=8X1,5 GALV
32 11023071 BLK COFFEE BOILER INSULATING COVER MDS
32 11023071 BLK COFFEE BOILER INSULATING COVER MDS
33 184320200 SPRING HOSE CLAMP D=9,5MM
33 184320200 SPRING HOSE CLAMP D=9,5MM
34 11012206 BLACK BLOWDOWN VALVE SUPPORT MYB9
34 11012206 BLACK BLOWDOWN VALVE SUPPORT MYB9
35 129913902 SCREW TCB TORX 10 3X12 PLAST.ZN-B
35 129913902 SCREW TCB TORX 10 3X12 PLAST.ZN-B
36 11013711 BLACK VALVE FIXING FLANGE MYB9
36 11013711 BLACK VALVE FIXING FLANGE MYB9
37 11023049 DIFFUSER VALVE MDS ASSY.
37 11023049 DIFFUSER VALVE MDS ASSY.
38 11023052 BLACK DIFFUSER VALVE SUPPORT MDS
38 11023052 BLACK DIFFUSER VALVE SUPPORT MDS
39 11023914 BLACK STEEL DIFFUSER VALVE SUPPORTMDS
39 11023914 BLACK STEEL DIFFUSER VALVE SUPPORTMDS
40 11023053
40 11023053
BLACK DOOR TUBES COUPLING CONNECTOR MDS
BLACK DOOR TUBES COUPLING CONNECTOR MDS
41 11023048 BLACK EV CONNECTOR INSERTMDS
41 11023048 BLACK EV CONNECTOR INSERTMDS
42 11013789 BLACK EV CONNECTOR SEALMYB9
42 11013789 BLACK EV CONNECTOR SEALMYB9
43 11013788 BLACK EV CONNECTOR INSERTMYB9
43 11013788 BLACK EV CONNECTOR INSERTMYB9
44 11023054
44 11023054
BLACK DOOR TUBES COUPLING PROTECTION MDS
BLACK DOOR TUBES COUPLING PROTECTION MDS
45 11021842 SOLENOID VALVE CONNECT.INSUL.WASHER MYB9
45 11021842 SOLENOID VALVE CONNECT.INSUL.WASHER MYB9
46 20000590 BLOWDOWN VALVE COILP0049 ASSY. 230V
46 20000590 BLOWDOWN VALVE COILP0049 ASSY. 230V
20000920 BLOWDOWN VALVE COILP0049 ASSY. 220V-60HZ
20000920 BLOWDOWN VALVE COILP0049 ASSY. 220V-60HZ
20000680 AS.GEN.BOB.VALV.SCARICO P0049 120V
20000680 AS.GEN.BOB.VALV.SCARICO P0049 120V
47 11007565 BLOWDOWN VALVE CONNECTOR V2 P0049
47 11007565 BLOWDOWN VALVE CONNECTOR V2 P0049
48 11005096 FORK SPRING FOR VALVE P0049
48 11005096 FORK SPRING FOR VALVE P0049
49 12000620 OR ORM 0130-20 IN EPDM
49 12000620 OR ORM 0130-20 IN EPDM
50 12001595 TRANSP/WHITEASPIRATION FILTER MDS
50 12001595 TRANSP/WHITEASPIRATION FILTER MDS
51 17000408
51 17000408
BLACK STEAM BLOWDOWN CONDENSER MDSASSY.
BLACK STEAM BLOWDOWN CONDENSER MDSASSY.
52 11023070 STEEL STEAM TUBOL.BOILER SUPPORT MDS
52 11023070 STEEL STEAM TUBOL.BOILER SUPPORT MDS
53 17000226 BLACK COVER CASING FRONT INSERT MDS
53 17000226 BLACK COVER CASING FRONT INSERT MDS
54 124390520 BRASS BENT FASTON 45° 6,3X0,8
54 124390520 BRASS BENT FASTON 45° 6,3X0,8
55 128310402 GALV.WASHER UNI 8842A4
55 128310402 GALV.WASHER UNI 8842A4
11006995 V2 BLOWDOWN VALVE MYB9ASSY. 230V
11006995 V2 BLOWDOWN VALVE MYB9ASSY. 230V
11021989 BLOWDOWN VALVE V2 MYB9ASSY. 220V-60HZ
11021989 BLOWDOWN VALVE V2 MYB9ASSY. 220V-60HZ
11022038 BLOWDOWN VALVE V2 MYB9ASSY 120V
11022038 BLOWDOWN VALVE V2 MYB9ASSY 120V
WITH PART. N°30-46-47-48-49
WITH PART. N°30-46-47-48-49
11026313 SLIM TUB.BOIL.STD C2 T190° ASSY. 230V-1300W
11026313 SLIM TUB.BOIL.STD C2 T190° ASSY. 230V-1300W
11026314 SLIM TUB.BOIL.STD C2 T190° AS 120V-1300W
11026314 SLIM TUB.BOIL.STD C2 T190° AS 120V-1300W
WITH PART. N°20-21-22-23-24
WITH PART. N°20-21-22-23-24
TABLE 6/8

HD8854/01-02-03-09-14-15-16
HD8856/01-02-03-04-05-06-08-09-41-43-47
PSA EXPRELIA
Exp. E74153 Rev.04 - 04/04/12
Cod.10003286-87-3521-22-23-24-25-26-78-79
Cod.10003738-39-60-61-3808-78-4089-90
1
2
3
5
7
8
9
12
13 14
15
16 17
18
19 20
22
23
21
24
25
26
27
28
32
31
30
29
10
11
6
4
POS CODE DESCRIPTION NOTE
DESCRIPTION
CODEPOS NOTE
01 11011205 TEA ZAMAINCREASE SCREW GRINDER
01 11011205 TEA ZAMAINCREASE SCREW GRINDER
02 149198250 UPPER GRINDER SUPPORT COFFEEGRINDER
02 149198250 UPPER GRINDER SUPPORT COFFEEGRINDER
03 140328960 NBR FDA OR METRIC 0530-15
03 140328960 NBR FDA OR METRIC 0530-15
04 146520100 BAKED CLAYGRINDER 48X28
04 146520100 BAKED CLAYGRINDER 48X28
05 149198350 LOWER GRINDER SUPPORT COFFEEGRINDER
05 149198350 LOWER GRINDER SUPPORT COFFEEGRINDER
06 123030300 AXIAL BEARING EKKO 342.35252
06 123030300 AXIAL BEARING EKKO 342.35252
07 140360500 FELT RING 45,4X39,4X4
07 140360500 FELT RING 45,4X39,4X4
08 12000450 SCREW TCBRTORX 10 3,5X12 PLAST.ZN-N
08 12000450 SCREW TCBRTORX 10 3,5X12 PLAST.ZN-N
09 11026355 BLK GROUNDCOFF.OUTLETCONVEYOR V4ASSY.
09 11026355 BLK GROUND COFF.OUTLET CONVEYOR V4ASSY.
10 145854462 GROUND COFFEE CONT.SEAL LOWER SMART1
10 145854462 GROUND COFFEE CONT.SEAL LOWER SMART1
11 11023063
11 11023063
COFFEE GRINDER SOUNDPROOFING COVER MDS
COFFEE GRINDER SOUNDPROOFING COVER MDS
12 226000300 GEAR SX Z=38 FOR GRINDER MOTION ASSY.
12 226000300 GEAR SX Z=38 FOR GRINDER MOTION ASSY.
13 149214800 CAP FOR WORM SCREW MC/V3 CENTRING
13 149214800 CAP FOR WORM SCREW MC/V3 CENTRING
14 129661702 SCREW TCB TORX 3,5X30 PLAST.ZN-B
14 129661702 SCREW TCB TORX 3,5X30 PLAST.ZN-B
15 128381902 GALVAN.FLATWASH.DI=4,3 DE=14 SP=1,5
15 128381902 GALVAN.FLATWASH.DI=4,3 DE=14 SP=1,5
16 129574802 SCREW TCB TORX 20 M4X30 ZN-B
16 129574802 SCREW TCB TORX 20 M4X30 ZN-B
17 11000597 COFFEE GRINDER SUPPORT SPRING P124
17 11000597 COFFEE GRINDER SUPPORT SPRING P124
18 128310402 GALV.WASHER UNI 8842A4
18 128310402 GALV.WASHER UNI 8842A4
19 11002873 INSULATOR BUSH FOR GRINDER MOTOR P124
19 11002873 INSULATOR BUSH FOR GRINDER MOTOR P124
20 149199050 SENSOR SUPPORT FOR COFF.GRIND.MOTOR
20 149199050 SENSOR SUPPORT FOR COFF.GRIND.MOTOR
21 11000513 MOTOR COFFEEGRINDER/V3.1ASSY 230V
21 11000513 MOTOR COFFEEGRINDER/V3.1ASSY 230V
11000511 MOTOR COFFEEGRINDER V3.1ASSY. 120V
11000511 MOTOR COFFEEGRINDER V3.1ASSY. 120V
22 17800040 2POLES CONNECTOR GRINDER MOTOR MDS UL
22 17800040 2POLES CONNECTOR GRINDER MOTOR MDS UL
23 11000194 BLACK GRINDER MOTOR SUPPORT P124
23 11000194 BLACK GRINDER MOTOR SUPPORT P124
24 181540900 ELECTRONIC BOARD WITH SENSOR HAL506
24 181540900 ELECTRONIC BOARD WITH SENSOR HAL506
25 123030200 RADIAL BEARING 61900.2RS1
25 123030200 RADIAL BEARING 61900.2RS1
26 128381800 CRINKLE WASHER 21,8X15,8X0,2
26 128381800 CRINKLE WASHER 21,8X15,8X0,2
27 142905450 UPPER BODY WITH COFFE.GROUND OUTLET
27 142905450 UPPER BODY WITH COFFE.GROUND OUTLET
28 11002613 LOWER COFFEEGRINDER GEAR SUPPORT P124
28 11002613 LOWER COFFEEGRINDER GEAR SUPPORT P124
29 11002572 COFFEEGRINDER REGULATION SPRING P124
29 11002572 COFFEEGRINDER REGULATION SPRING P124
30 11003784 COFFEE GRINDING ADJUSTMENTGEAR P0049
30 11003784 COFFEE GRINDING ADJUSTMENTGEAR P0049
31 11002508 UPPER COFFEEGRINDER GEAR SUPPORT P124
31 11002508 UPPER COFFEEGRINDER GEAR SUPPORT P124
32 129914002 SCREW TCB TORX 10 3,5X16 PLAST.ZN-B
32 129914002 SCREW TCB TORX 10 3,5X16 PLAST.ZN-B
11023062 GENERAL MOTOR MC MDSASSY. 230V
11023062 GENERAL MOTOR MC MDSASSY. 230V
11025469 GEN.MOTOR COFFEE GRINDER MDSASSY. 120V
11025469 GEN.MOTOR COFFEE GRINDER MDSASSY. 120V
TABLE 7/8

HD8854/01-02-03-09-14-15-16
HD8856/01-02-03-04-05-06-08-09-41-43-47
PSA EXPRELIA
Exp. E74153 Rev.04 - 04/04/12
Cod.10003286-87-3521-22-23-24-25-26-78-79
Cod.10003738-39-60-61-3808-78-4089-90
1
2
3
456
78
9
10
15
24
22
13
11
12
31
23
25
32
16
16
27 29 20
21
21
27
30
27
14 14
28
26
17
18
19
16
POS CODE DESCRIPTION NOTE
DESCRIPTION
CODEPOS NOTE
01 11005060 PIN V2 FOR BOILER P119ASSY.
01 11005060 PIN V2 FOR BOILER P119ASSY.
02 9011.132 SPRING FOR PIN
02 9011.132 SPRING FOR PIN
03 11003820 CAP V2 FOR PIN BOILER P119
03 11003820 CAP V2 FOR PIN BOILER P119
04 11009019 TEA/BRASS PISTON L=20,9ASSY.
04 11009019 TEA/BRASS PISTON L=20,9ASSY.
05 140324459 OR ORM 0060-20 IN SILICONE PTFE/FDA
05 140324459 OR ORM 0060-20 IN SILICONE PTFE/FDA
06 140328059 OR 2015 IN SILICONE PTFE/FDA
06 140328059 OR 2015 IN SILICONE PTFE/FDA
07 11003801 NATURAL PIN V2 FOR BOILER P119
07 11003801 NATURAL PIN V2 FOR BOILER P119
08 11005099 NATURAL CURSOR V2 FOR BOILER P119
08 11005099 NATURAL CURSOR V2 FOR BOILER P119
09 NM01.035 OR ORM 0090-20 SILICONE
09 NM01.035 OR ORM 0090-20 SILICONE
10 NM01.057 OR ORM 0050-20 IN SILICONE
10 NM01.057 OR ORM 0050-20 IN SILICONE
11 11012337 WATER DRAIN CONNECTOR MYB9
11 11012337 WATER DRAIN CONNECTOR MYB9
12 NV99.087 BAND D=11/11,6
12 NV99.087 BAND D=11/11,6
13 11013514 BLACK COVER MOUNTING PLATE SEAL MYB9
13 11013514 BLACK COVER MOUNTING PLATE SEAL MYB9
14 NE05.038 MICROSWITCH
14 NE05.038 MICROSWITCH
15 11023064 BLACK MOUNTING PLATE WITH PIN MDSASSY.
15 11023064 BLACK MOUNTING PLATE WITH PIN MDSASSY.
16 12000450 SCREW TCBRTORX 10 3,5X12 PLAST.ZN-N
16 12000450 SCREW TCBRTORX 10 3,5X12 PLAST.ZN-N
17 140325462 OR METRIC 0070-20 IN SILICONE
17 140325462 OR METRIC 0070-20 IN SILICONE
18 11023055
18 11023055
BLACK STEAM BLOWDOWN 90° CONNECTOR MDS
BLACK STEAM BLOWDOWN 90° CONNECTOR MDS
19 11003661 REED SENSOR MK3-1A66-BV16451
19 11003661 REED SENSOR MK3-1A66-BV16451
20 129913902 SCREW TCBTORX 10 3X12 PLAST.ZN-B
20 129913902 SCREW TCBTORX 10 3X12 PLAST.ZN-B
21 9161.132 MYLAR WASHER FOR RATIOMOTOR
21 9161.132 MYLAR WASHER FOR RATIOMOTOR
22 9121.044 ANTIVIBRATION FOR MOTOR
22 9121.044 ANTIVIBRATION FOR MOTOR
23 9121.046 SINTERED BUSH FOR MOTOR
23 9121.046 SINTERED BUSH FOR MOTOR
24 11003037 MOTOR FOR RATIOMOTORASSY.
24 11003037 MOTOR FOR RATIOMOTORASSY.
25 148380200 WASHER BAKELIZZATE D=5,5
25 148380200 WASHER BAKELIZZATE D=5,5
26 20000900 SPARES KIT GEARS FOR RATIOMOTOR V2
26 20000900 SPARES KIT GEARS FOR RATIOMOTOR V2
27 129914102 SCREW TSPTORX 10 3,5X12 PLAST.ZN-B
27 129914102 SCREW TSPTORX 10 3,5X12 PLAST.ZN-B
28 17000049 BLACK COVER MOUNTING PLATE MDS
28 17000049 BLACK COVER MOUNTING PLATE MDS
29 147920150 90° INLET CONNECTOR PUMP
29 147920150 90° INLET CONNECTOR PUMP
30 142856550 BLACK COVER FOR VAIN BOILER P119
30 142856550 BLACK COVER FOR VAIN BOILER P119
31 JS01.022 SILICONE TUBE 5X10 60 SHORE IN ROLL
31 JS01.022 SILICONE TUBE 5X10 60 SHORE IN ROLL
32 11012810 BLACK BREW UNIT 8GR.SBS MYB9
32 11012810 BLACK BREW UNIT 8GR.SBS MYB9
SEE COD. ESPL. E90071 NEXT PAGE
SEE COD. ESPL. E90071 NEXT PAGE
TABLE 8/8

Cod. 11012810
NOTA
POS CODICE DESCRIZIONE NOTE
Esp. E90071 Rev.00
SUP038
GRUPPO CAFFE’ XELSIS
Rev. 00 - 22/09/09 TAVOLA 1/1
1
3
11
2
4
5
8
6
12
13
14
15 16 17
18
19
2
20
21
23
24
25
9
7
22
10
17
26
27
28
29
30
31
POS CODE DESCRIPTION
01 11010660 AS.VALVOLASAECO BREWING SYSTEM STD
02 12000550 VITE TCB 3X25 PLAST.INOX
03 11009276 TUBO X CONTROPIST.GRUPPO S0053 NERO
04 11001840 CONTROPISTONE GRUPPO P124 8GR. NERO
05 NM01.044 OR ORM 0320-40 IN SILICONE PTFE/FDA
06 9161.268 DOCCIADE=35,8 ELFO
07 20000440 GRUPPO RICAMBIO MANICOTTO NERO
08 9161.064.050 MANICOTTO ENTRATAACQUA GRUP.CAFF.NERO
09 NM02.007 OR 2025 TERMOIL
10 9161.375.050 PIASTRAPOSTERIORE GRUPPO SMARTNERO
11 145899250 INSERTO CENTRAGGIO RAC.USCITA CAF.P124
12 11001556 MOLLARASATORE H=49 X GRUPPO CAF.SMART
13 9161.094.050 BLOCCHETTO FORATO GRUP.CAFFE’ PA/NERO
14 9161.066.050 ALBEROAGOMITO X GRUPPO NERO
15 9161.373.050 PIASTRINAAGGANCIO GRUP.CAF.SMART NERO
16 149261350 TRAMOGGIAGRUPPO CAFFE’ SMART1 NERO
17 12000895 VITE TSP3X10 PLAST.INOX
18 9161.374.050 PIASTRAFISS.TRAMOG.GRUP.CAF.SMARTNERO
19 9161.378 MOLLATRAMOGGIAGRUPPO CAFFE’SMART
20 11004161 RASATORE X GRUPPO CAFFE’NERO
21 11003077 AS.PISTONE INTEGRALE GRUP.P124 8GR.NERO
22 9161.198 MOLLA PISTONE GRUPPO CAFFE’ M5000
23 9161.191 BOCCOLAPISTONE GRUP.CAFF.M5000 NEUTRO
24 11023086 AS.GEN.PISTONE INTEGR.GRUP.CAF.8GR.NER.
25 9161.046 MOLLA X RASATORE GRUPPO
26 11003075 AS.CONT.CAF.C/BOCC.SALD.GRUP.P124 8G.NER
27 11003078 BIELLAX GRUPPO P124 8GR.NERO
28 11005920 PIASTRAANT.GRUPPO SMART S/F.NER.SER.NEW
29 12000897 VITE TCB 3,5X20 PLAST.INOX
30 129912521 VITE TCBR 3,5X14 PLAST.INOX
31 145857962 GUARNIZ.INSERTO RACC.USCITA CAF.P124 NER
11012810 GRUPPO CAFFE’8GR/SBS MYB9 NER.
01 11010660 SAECO BREWING SYSTEM VALVE STD ASSY.
02 12000550 SCREW TCBTORX 10 3X25 PLAST.SS
03 11009276 TUBE FOR COUNTER PISTON BREW UNIT S0053
04 11001840 BLACK COUNTER PISTON BREW UNIT 8GR.P124
05 NM01.044 OR ORM 0320-40 IN SILICONE PTFE/FDA
06 9161.268 PERCOLATOR DE=35,8 ELFO
07 20000440 BLACK SPARE SLEEVE UNIT
08 9161.064.050 BLACK WATER INLET SLEEVE BREW UNIT
09 NM02.007 OR 2025 TERMOIL
10 9161.375.050 BLACK REAR PLATE FOR BREW UNIT SMART
11 145899250 CONNECTION COFFEE FOR P124 GROUP
12 11001556 SPRING H=49 FOR COFFEE BREW UNIT SMART
13 9161.094.050 BLACK DRILLED BLOCK BREW UNIT
14 9161.066.050 ELBOW SHAFT FOR UNITBLACK
15 9161.373.050 BLACK COUPLING PLATE BREW UNIT SMART
16 149261350 BLACK HOPPER DOSER BREW UNIT SMART1
17 12000895 SCREW TSPTORX 10 3X10 PLAST.SS
18 9161.374.050 BLACK HOPPER BLOCKING PLATE UNIT SMART
19 9161.378 SPRING HOPPER SMART BREW UNIT
20 11004161 BLACK SCRAPER FOR COFFEE UNIT
21 11003077 BLACK INTEGRALPISTON UNIT P124 8GR.ASS
22 9161.198 PISTON SPRING BREW UNIT M5000
23 9161.191 NEUTRAL PISTON BUSH BREW UNITM5000
24 11023806 BLK 8GR.BREW UNIT NTEGR.PISTON GEN.ASSY.
25 9161.046 SPRING FOR UNIT SCRAPER
26 11003075 BLACK COFFEE CONTAINER BREW UNIT P124
27 11003078 BLACK CONNECTING ROD FOR UNIT P124 8GR.
28 11005920 BLACK FRONT PLATE BREW UNIT SMART S.SCR.
29 12000897 SCREW TCBTORX 10 3,5X20 PLAST.SS
30 129912521 SCREW TCBR TORX 10 3,5X14 PLAST.SS
31 145857962 BLACK INSERT SEALP124
11012810 BLACK BREW UNIT 8GR.V2 P124/SBS
