CHAPTER 1
INTRODUCTION
Page
1. Documents required 1
2. Equipment 1
3. Material 1
4. Safety instructions 1
5. Overview of product range 2

INCANTO S-CLASS 1. INTRODUCTION
Saeco International Group REV.1 FEB.2005 Page 1/2
1. Requirements for operation
•Service manual
•Operating instructions where available
2. Equipment
In addition to an electrical workshop, the following standard tools are necessary:
Qty Description
Comments
1 Special screwdriver (Pozi) Size: PZ1
1 Special screwdriver (Pozi) Size: PZ2
1
Temperature measuring device Temperature range > 200ºC
Suitable for point measurements
3. Material
Description Comments Brand
Heat conductive paste Temperature resistance ≥2ŖŖǚ User's choice
Bolt adhesive Temperature resistance ≥2ŖŖǚȱ
ǻȱȱǼȱ
User's choice
Descaler Saeco
Grease solvent User's choice
Silicone grease
(food safe)
Saeco
Grease for grinder gear ! Saeco
4. Safety instructions
All prescriptions and regulations in force regarding the repair of electrical equipment must be
observed!
The machine must be disconnected from the main power supply before performing repair work.
Switching the machine off is not an adequate measure.
The Incanto coffee machine is classified under Protection Class 1. Protective devices must be
tested once the repair work has been completed (HG 701).

1. INTRODUCTION INCANTO S-CLASS
Page 2/2 REV.1 FEB.2005 Saeco International Group
5. Overview of product range (Incanto S-CLASS)
Pre-
brewing
Rapid
steam
Powder coffee
compartment
Cup
warmer
Display SBS
INCANTO rondo black x
INCANTO rondo SBS x x
INCANTO classic x x x x x
INCANTO de luxe x x x x x x
INCANTO sirius x x x x x x
Incanto rondo
Incanto
classic
Incanto sirius
Incan
to de luxe

Saeco International Group REV.1 FEB.2005
CHAPTER 2
TECHNICAL DATA
Page
1. Technical data (Incanto rondo) 1
2. Technical data (Incanto classic)
(Incanto de luxe)
(Incanto sirius) 2

INCANTO S-CLASS 2. TECHNICAL DATA
Saeco International Group REV.1 FEB.2005 Page 1/2
1. Technical data (Incanto rondo)
INCANTO rondo
Technical data
Power supply/output: 230V 50Hz 1250W
Safety system: 170°C Safety thermostat for instantaneous water heater
Temperature monitoring: PTC - KTY Temperature sensors transmit respective
temperatures to electronic system
Heating system: Instantaneous water heater (1090 W) for coffee, hot
water and steam dispensing.
Pump:
Ulka reciprocating piston pump,
230V, 50 Hz, 48 W, Type EX5, 20 l/h, approx. 15 bar
Safety valve: Defibration safety valve (17 bar) connected directly to
pump.
Water filter: In water tank, installed at outlet.
Gearmotor: Direct current, 30 - 35 V
Gear resistor:
Approx. 437W / 130ȍon instantaneous water heater
Cup warmer: -
Grinder: Flat milled grinder (ceramic discs)
Grinder motor: 230V Direct current
Second doser: Pulse control (approx. 6-12g)
Power consumption: During heating - approx. 4.5 A
Pump pressure: Max. 15 bar
Dimensions W x D x H in mm: 285/400/375
Weight: Approx. 9kg
Capacity of coffee bean container: Approx. 300g
Capacity of water tank:
Approx. 1.7l max.
Boiler capacity: Approx. 1.0 ccm, 10 ml volume
De-aeration time: Approx. 10 for initial start-up
Heating time: About 45 sec.
Steam heating time: About 25 sec.
Coffee dispensing temperature: Approx. 86° C
Grinding time: 8 sec. /10g
Time to make expresso: Approx. 28 sec. for 50 ml
Time to make cup of coffee: Approx. 40 sec. for 100 ml

2. TECHNICAL DATA INCANTO S-CLASS
Page 2/2 REV.1 FEB.2005 Saeco International Group
2. Technical data (Incanto classic, de luxe, sirius)
INCANTO classic, de luxe, sirius
Technical data
Power supply/output:
230V 50Hz 1250W
Safety system: 170°C Safety thermostat for instantaneous water heater
Temperature monitoring: PTC - KTY Temperature sensors transmit respective
temperatures to electronic system
Heating system: Instantaneous water heater (1090 W) for coffee and
hot water dispensing.
Pipe heating (1090 W) for steam dispensing
Pump: Ulka reciprocating piston pump,
230V, 50 Hz, 48 W, Type EX5, 20 l/h, approx. 15 bar
Safety valve: Defibration safety valve (17 bar) connected directly to
pump.
Water filter: In water tank, installed at outlet.
Gearmotor: Direct current, 30 - 35 V
Gear resistor: Approx. 437W / 130ȍon instantaneous water heater
Cup warmer: Foil heating (approx. 8 W / 6.3 Kȍat room
temperature)
Grinder: Flat milled grinder (ceramic discs)
Grinder motor: 230V Direct current
Second doser:
Pulse control (approx. 6-12g)
Power consumption: During heating - approx. 4.5 A
Pump pressure: Max. 15 bar
Dimensions W x D x H in mm: 285/400/375
Weight: Approx. 10kg
Capacity of coffee bean container: Approx. 300g
Capacity of water tank: Approx. 1.7l max.
Boiler capacity: Approx. 1.0 ccm, 10 ml volume
De-aeration time: Approx. 10 for initial start-up
Heating time: About 45 sec.
Steam heating time:
About 25 sec.
Coffee dispensing temperature: Approx. 86° C
Grinding time: 8 sec. /10g
Time to make expresso: Approx. 28 sec. for 50 ml
Time to make cup of coffee: Approx. 40 sec. for 100 ml

Saeco International Group REV.1 FEB.2005
CHAPTER 3
OPERATION
Page
1. Operation (Incanto rondo)
1.1. Control panel 1
1.2. Operating instructions 2
2. Operation (Incanto classic)
2.1. Control panel 4
2.2. Operating instructions 5
2.3. User programme 8
3. Operation (Incanto de luxe)
3.1. Control panel 9
3.2. Operating instructions 10
3.3. User programme 14
4. Operation (Incanto sirius)
4.1. Control panel 16
4.2. Operating instructions 16
4.3. User programme 20

INCANTO S-CLASS 3. OPERATION
Saeco International Group REV.1 FEB.2005 Page 1/21
1. Operation (Incanto rondo)
1.1. Control panel

3. OPERATION INCANTO S-CLASS
Page 2/21 REV.1 FEB.2005 Saeco International Group
1.2. Operating instructions (quick reference)
Action
Comments
LED 1
Coffee
LED 2
Coffee
Steam
LED
Getting started
1
Unpack machine. Check for damage.
2 Install Aqua Prima filter.
3 Fill water tank Wait for 30 min.
4
Fill coffee beans container.
5 Connect mains plug.
6 Turn on main switch. Flashes Flashes
7
De-aerate water circuit. Open hot water pressure
valve until water flows.
Flashes Flashes
Heating stage (approx.
45 sec.)
Flashes Flashes
Ready ON ON
Reset filter counter
8 Press steam button. Filter LED flashes
briefly.
Making coffee
9 Pre-select cup fill volume with
setting button.
Depending on cup size. ON ON
10
Place cup under dispenser.
Button 1 Coffee Flashes
11 Press start button (coffee
button).
Button 2 Coffee Flashes
Coffee dispensing / Powder coffee
12 No powder dispensed
Dispensing steam
13 Press steam button. Heating stage. Flashes
14 Ready ON
15 Steam dispensing.
Open HWS valve
To warm coffee.
To froth milk.
ON
16 Press steam button / deactivate
steam function.
Cool by de-aerating. Flashes Flashes Flashes
Ready (to make coffee) ON ON
Hot water dispensing
17
Open HWS valve Immediate ON ON
Cleaning
Empty dregs drawer Storage capacity 12 tabs.
Empty drip tray After 12 tabs.
Clean water tank As required.
Clean coffee bean container As required.
Clean the housing As required.
Rinse brewing unit 1 x per week
Clean brewing unit and lubricate
Clean filter
1 x per month
Descale Depending on water hardness.

INCANTO S-CLASS 3. OPERATION
Saeco International Group REV.1 FEB.2005 Page 3/21
Descaling frequency
Water hardness
Without Aqua Prima With Aqua Prima
Very hard water (over 21ºdH) About every 4 weeks About every 6 weeks
Hard water (15º-21ºdH) About every 6 weeks About every 2 months
Medium water (15º-21ºdH) About every 2 months About every 3 months
Soft water (4-7ºdH) About every 3 months About every 6 months
Soft water (0-3ºdH) About every 6 months About every 6 months
Descaling procedure
Action Comments
1 Remove Aqua Prima filter from water tank.
2 Fill water tank with descaler according to
the relevant instructions (Saeco descaler).
Place an appropriately sized container under the
HWS nozzle.
3 Open HWS valve Remove approx. 1/4 litre
4 Turn machine off. Allow descaler to act for 10 min.
5 Turn machine on and repeat Points 3 to 5
until the descaler mixture is used up.
6 Close HWS valve
7 Fill tank with fresh water. Open HWS valve
8 Rinse (until tank is empty) Descaling complete
9 Re-install Aqua Prima filter in water tank /
Fill tank.
Troubleshooting
Fault Remedy
No display
No power supply to machine.
Check mains fuses / Is machine plugged in? / Is
main switch turned on?
- Pre-heat cups
- Clean brewing unit if necessary
Coffee is not hot enough
- Descale if necessary
No hot water/steam
Hot water/steam nozzle blocked
- Clean nozzle out with needle
(with machine turned off and closed rotary
valve/HWS valve).
Heating time too long, water quantity
insufficient
- Descale machine
The brewing unit cannot be removed.
- Close service door.
- Turn machine on (brewing unit moves to home
position)
Cannot dispense
LED 1 Coffee, LED 2 Coffee and Steam
LED flash
- Overheating: Remove hot water until only expresso
and coffee buttons are lit.
Filter warning LED lights up
(MACHINE NOT LOCKED)
- Install Aqua Prima filter.
Reset: Press steam button until filter warning LED
flashes
Warning LED lights up
- Fill water tank.
- Fill coffee beans container.
- Empty grinds container
Warning LED flashes
- Dregs drawer/drip tray not installed.
- Brewing unit not installed.
- Doors not closed.
- Grinder obstructed.
- Gears obstructed
- Contact an authorised service centre.

3. OPERATION INCANTO S-CLASS
Page 4/21 REV.1 FEB.2005 Saeco International Group
2. Operation (Incanto classic)

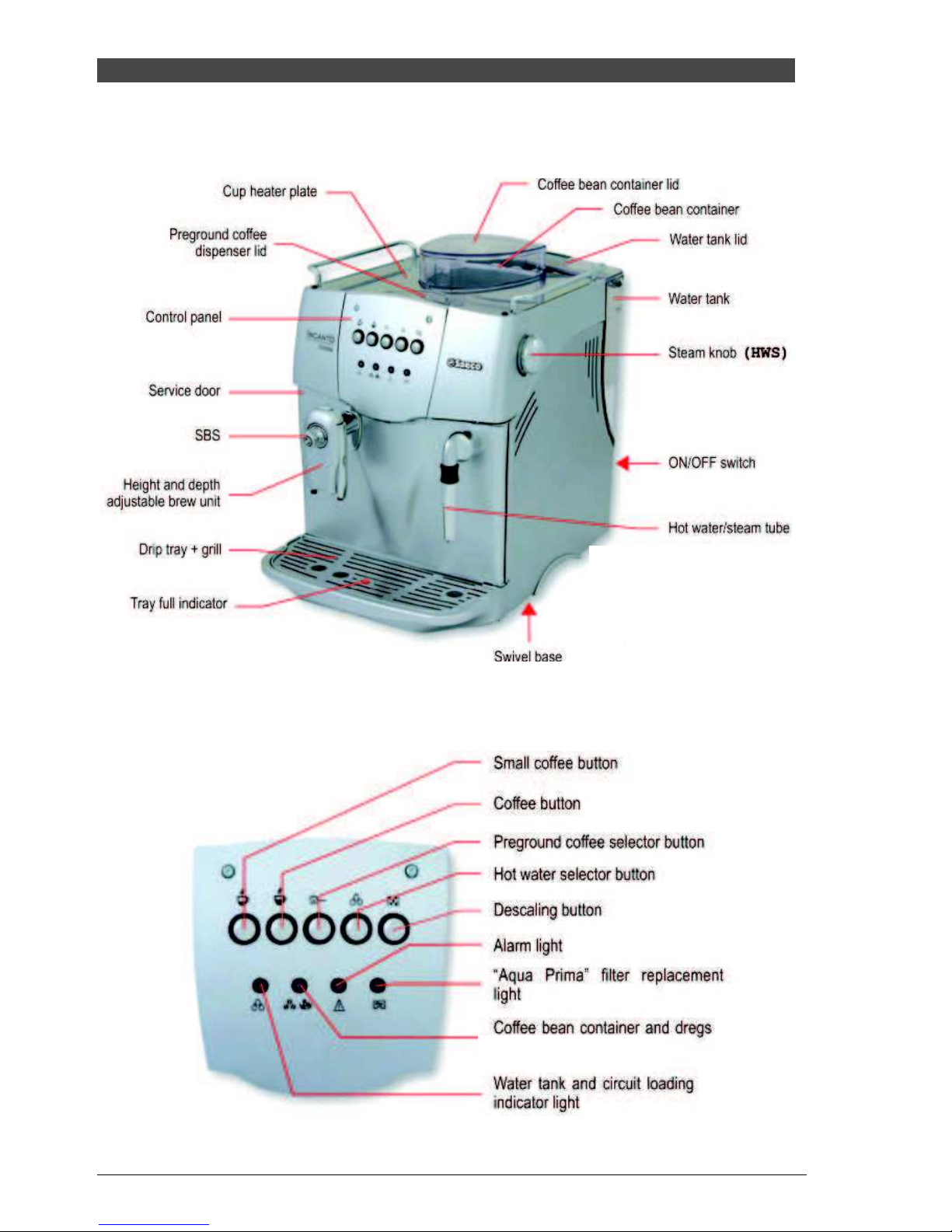

2.1 Control panel
