Saeco TALEA User manual

TALEA - ODEA
SERVICE
MANUAL
Revision 04 December 2012
Revision 04 December 2012
TALEA - ODEA
SERVICE
MANUAL
Saeco International Group Rev. 04 December 2012 Talea / Odea - Line
All parts of this document are the property of Saeco International Group. All rights reserved. The manufac-
turer shall not accept responsibility for possible errors or omissions in this document. Any reproduction or use by
third parties is prohibited without the prior written approval of the manufacturer or through an agreement clause.

Saeco International Group Talea / Odea - Line
Page
1. Introduction
1.1 Documents required 1
1.2 Tools and resources 1
1.3 Materials 1
1.4 Safety precautions 1
1.5 Service Policy 2
1.6.1 External appliance components 3
1.6.2 Internal appliance components 4
2. Technical specifications 1
2.1 Technical specifications
2.2 Specification for the measurement of the
coffee products temperature. 2
3. Operating
3.1 User interfaces 1
3.1.1 Odea Go 2
3.1.2 Odea Giro, Talea Giro 3
3.1.3 Talea Giro Plus 3
3.1.4 Talea Ring, Ring Plus 4
3.1.5 Talea Touch 8
3.2 Use, cleaning, maintenance 12
3.3 Messages - Troubleshooting 13
4. Functional principles
4.1.1 Odea Go water system 1
4.1.2 Talea, Odea Giro water system 2
4.2 Solenoid valve, multi-way valve 3
4.3 Hot water / steam faucet 4
4.4 Coffee cycle 5
4.5 Brewing unit’s gear mechanism 6
4.6 Temperature sensor (control) 6
4.7 SBS 7
4.8 Coffee grinder 8
4.9 Dosing quantity control, coffee grinder blockage when
machine is low on beans 8
4.10 Autodose (automatic dosing quantity control) 9
Table of contents

Saeco International Group Talea / Odea - Line
nternational Group Talea / Odea - Line
Table of contents
Page
4. Functional principles
4.11 Water level detection of fresh water tank 10
4.12 Limescale filter 10
4.13 Water level detection of residual water tray 11
4.14 “Empty dreg drawer” message 11
4.15 Descaling request 12
4.16 Electronical configuration (DIP-switch setting) 12
4.17 Cup lift 13
4.18 Milk Island 13
5. Service modality
5.1.1 Test mode - Talea Giro and Odea 1
5.1.2 Special function mode - Talea Giro and Odea 2
5.2.1 Test mode - Talea Ring and Ring Plus 3
5.2.2 Diagnosis menu - Talea Ring and Ring Plus 6
5.3.1 Test mode - Talea Touch 9
5.3.2 Diagnosis menu - Talea Touch 13
5.4 Error messages 17
6. Standard controls
6.1 Repair plan 1
6.2 Service plan 1
6.3 Final control 2
7. Disassembly
7.1 SBS / dispenser 1
7.2 Housing 1
7.3 Electronics 3
7.4 Boiler pin 3
7.5 Gear motor device 4
7.6 Boiler 5

Saeco International Group Talea / Odea - Line
nternational Group Talea / Odea - Line
Table of contents
Page
7. Disassembly
7.7 Solenoid valve / multi-way valve 6
7.8 Pump 7
7.9 Hose connections (assembly) 7
7.10 Coffee grinder 9
7.11 Grinders 10
7.12 Adjustment of coffee grinder 11
7.13 Cup lift 12
8. Notes 1
9. Water system diagrams
Odea Go
Odea Giro Plus, Giro
Talea
10. Wiring diagrams
Odea Go
Odea Giro
Talea Giro Plus
Talea Ring
Talea Ring Plus
Talea Touch Plus

Saeco International Group Talea / Odea - Line
nternational Group Talea / Odea - Line
CHAPTER 1
INTRODUCTION

TALEA / ODEA - LINE 01 INTRODUCTION
Saeco International Group Page 1 / 4
1.1 Documents required
The following documents are needed for repair work:
• Instruction booklet for the related model
• Technical documentation for specific model (diagrams, exploded view, sympton cure and
service manual).
1.2 Tools and resources
As well as the standard equipment, the following is required:
Pieces Description Comment
1 Special screwdriver Torx T 10
1 Pliers for Oetiker clamps
1 Tester CC - A - VDC
1 Digital temperature meter Temperature range > 150°C
1 SSC (Saeco Service Center) Interface for programming
1.3 Materials
Description Comment
Thermal conductance paste Temperature resistance > 200°C
Descaler Saeco descaler
Fat solvent Personal choice
Silicone grease Food-safe
1.4 Safety precautions
We recommend you consult this Service Manual of the machine before performing any mainte-
nance work.
Observe all applicable standards relating to the repair of electrical appliances.
Always disconnect the power plug from the mains before beginning repair work.
Simply turning off the main machine power switch is not an adequate safety precaution.
This domestic appliance is rated as insulation class I.
On completion of the repair work, insulation and dielectric rigidity tests must be performed.

Page 2 / 4 Saeco International Group
01 INTRODUCTION TALEA / ODEA - LINE
Components Assembly use Single components available
COFFEE
GRINDER Only for OOW repairs YES, to consult the specific exploded-view of the machine or of the Coffee Grinder on website
BREWING UNIT Only for OOW repairs YES, to consult the specific exploded-view of the
machine or of the Brewing unit on website
BOILER Only for OOW repairs YES, to consult the specific exploded-view of the
machine on website
GEAR
MOTOR Only for OOW repairs YES, to consult the specific exploded-view of the machine on website
FILTER
HOLDER Only for OOW repairs YES, to consult the specific exploded-view of the machine on website
MILK
CARAFE Only for OOW repairs YES, to consult the specific exploded-view of the machine on website
THERMAL
CARAFE Only for OOW repairs YES, to consult the specific exploded-view of the Thermal Carafe on website
MILK ISLAND Only for OOW repairs YES, to consult the specific exploded-view of the
Milk Island on website
List of principal assembly present in all our coffee machines
1.5 Service POLICY grid as used for coffee machine
For IN WARRANTY repairs is mandatory to use the single components (not the assembly) avail-
able in the exploded views of the coffee machines or of the specific components. If you find the
information “SEE THE EXPLODED VIEW E........” in the assembly description field, it means that
the single components of the assembly are available in the other pages of the exploded view. It’s
possible to use the assembly only if there is a specific Symptom Cure that include this possibility or
when the single components are not available for the order.

TALEA / ODEA - LINE 01 INTRODUCTION
Saeco International Group Page 3 / 4
Button for lifting/lowering the drip
tray (motor controlled function,
with Touch/Ring Plus only)
1.6.1. External appliance components
Coffee bean hopper
Coffee bean hopper
lid
Funnel for ground
coffee
Service door
Dreg drawer
Brewing unit
Residual water
Socket for power
cord
Milk Island connection
port
Water tank
Hot water / steam
wand
Cup warming surface
Control panel
Dispensing head
Drip tray + grill
Hot water / steam
knob
Main switch
Saeco Brewing System SBS

Page 4 / 4 Saeco International Group
01 INTRODUCTION TALEA / ODEA - LINE
Pump
Unblocking
filter
Flowmetre
Boiler
Coffee grinder
Power board
Control
board
Electrical cup lift’s motor
*Touch/Ring Plus only
Multi-way valve (not odea Go)
1.6.2. Internal appliance components

Saeco International Group Talea / Odea - Line
CHAPTER 2
TECHNICAL
SPECIFICATIONS

Saeco International Group Page 2 / 2
TALEA / ODEA - LINE 02 TECHNICAL SPECIFICATIONS
Connection values / power
consumption:
230 V~, 50/60 Hz, 1500 W
Temperature control: Temperature sensor (NTC, 20°C approx. 61 kOhm)
Safety equipment: 2 safety thermostats, can resist 175°C
Power output of stainless boiler: 1300 W - to dispense coffee, hot water and steam
Electrical cup lift
*Talea Touch and Ring Plus only
Stepping motor 24VDC
Tank water level and
residual water tray sensor
Capacitive sensor
Gear motor: DC motor with 2 rotating directions (24VDC)
Actively heated cup warmer:
*Talea Touch and Ring Plus only
PTC control
Pump: Ulka reciprocating piston type pump with thermal safety
100°C
48 W, 230V, 50 Hz, Type EP5 approx. 13-15 bar
Safety valve: Opens at approx. 18-20 bar
Water filter: in tank
Coffee grinder: DC motor with
ceramic grinders
Multi-way valve: 15 W
Coffee dose control Hall sensor - pulse control. Adjustable
coffee dosage from approx. 7 - 10.5 g set via program.
Power consumption: During heating phase - approx. 5.6 A
Dimensions: W x H x D in mm: 300/375/410
Weight: approx. 10 kg
Water tank capacity: approx. 1.7 l.
Coffee container filling capacity approx. 250g coffee beans
Dreg drawer capacity 14
Continuous-flow heater capacity: approx. 10 ccm
Water circuit filling time: approx. 15 seconds for first filling cycle
Heating time: approx. 45 seconds
Grinding time: approx. 8-10 seconds
2.1. Technical specifications

Page 3 / 2 Saeco International Group
02 TECHNICAL SPECIFICATIONS TALEA / ODEA - LINE

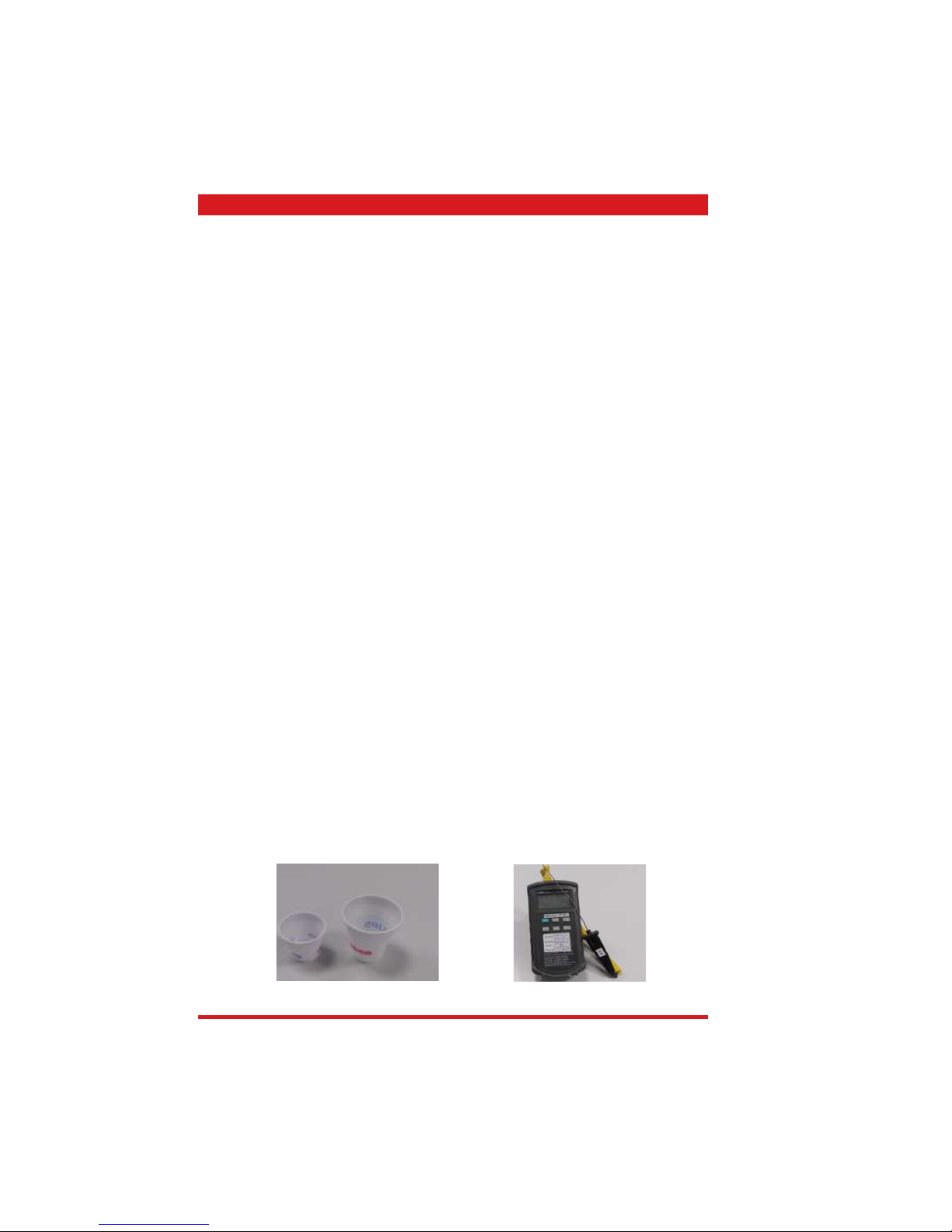

2.2. Specification for the measurement of the coffee products temperature.
The temperature is influenced by the flow from the dispenser and stratification of temperatures in the
glass. In order to consider these phenomena and to introduce measures that allow comparisons in con-
trolled conditions, below guidelines must be followed:
Conditions:
a) Water temperature in tank: 23°C (+/-2°C).
b) It must be used a plastic cup (see picture N°1).
c) It must be used a thermocouple thermometer (e.g. type K - see picture N°2).
d) The coffee machine is tested without any change of parameters or calibrations, which may
affect the temperature of products, so the measurement of temperature must be done with
machine in default factory setting.
Procedure:
1. The temperature must be measured in the cup, immediately after dispensing. Cup has to be
placed on a non-metal surface using a thermocouple thermometer.
2. The temperature in the cup is measured by immersing the probe of the thermometer up to
touch the bottom.The probe then must be moved in a circular motion for 5/6 rotations. At the
of the rotations, stop in the center of the cup.
3. The highest temperature measured during the rotations is the value we are searching for, and
that must be reported;
4. Test measurement: from end of dispensing to the end of rotations must be completed within 12
seconds.
Limits of acceptability
The acceptance limits are divided by features and products and are the following:
Espresso Coffee Italy Q.ty 25/40 gr.
Temperature of 1st product 69°C ≤ 85°C
Temperature of 2nd product 72°C ≤ 85°C
Coffee Q.ty 70/120 gr.
Temperature of 1st product 69°C ≤ 85°C
Temperature of 2nd product 72°C ≤ 85°C
Picture 1 Picture 2

Saeco International Group Talea / Odea - Line
CHAPTER 3
OPERATING

TALEA / ODEA - LINE 03 OPERATING
Saeco Internationa Group Page 1 / 13
and LEDs flashing alternately: turn off the appliance. Turn the appliance back on after 30 secon-
ds and wait until the movements stop. Then turn the appliance off again. Remove the brewing unit and
clean thoroughly (see page 29). If the display reappears when you turn the machine back on, contact the
Service Centre.
Reset: Press the steam key for 10 seconds
3.1. User interfaces
3.1.1 Odea Go
“Appliance ready” LED:
• Permanently on: The appliance is ready for use.
• Flashing: The appliance has to finish the heating-up phase.
“Empty dreg drawer” LED:
• Permanently on: Empty the dreg drawer. The appliance must be switched on for this procedure.
“Descaling” LED:
• Flashing: Start the descaling cycle.
Control to set how much coffee is dispensed into the cup.
Coffee dispensing key:
• Flashing slowly: 1 coffee selected (key pressed once).
• Flashing rapidly: 2 coffees selected (key pressed twice).
“Hot water” key:
• On: The appliance dis-
penses steam.
• Off: The appliance dis-
penses hot water.
Alarm LED:
• Permanently on (one or more causes): No coffee left, water tank is empty, empty the residual water
tray is full (in this case the dreg drawer also has to be emptied to prevent problems).
• Flashing slowly (one or more causes): Brewing unit is missing, dreg drawer has not been inserted,
coffee container cover has not been inserted, service door is open, rotary knob for opening the hot
water / steam is not in the right position.
• Flashing rapidly: Ventilate the water system.

Page 2 / 13 Saeco International Group
03 OPERATING TALEA / ODEA - LINE
Reset: Press the hot water key for 10 seconds
3.1.2 Odea Giro,Talea Giro
“Appliance ready” LED:
• Permanently on: The appliance is ready for use.
• Flashing: The appliance has to finish the heating-up phase.
“Empty dreg drawer” LED:
• Permanently on: Empty the dreg drawer. The appliance must be switched on for this procedure.
“Descaling” LED:
• Flashing: Start the descaling cycle.
Alarm LED:
• Permanently on (one or more causes): No coffee left, water tank is empty, the residual water tray is
full (in this case the dreg drawer also has to be emptied to prevent problems).
• Flashing slowly (one or more causes): Brewing unit is missing, dreg drawer has not been inserted,
coffee container cover has not been inserted, service door is open, rotary knob for opening the hot
water / steam is not in the right position.
• Flashing rapidly: Ventilate the water system.
Coffee dispensing key:
• Flashing slowly: 1 coffee selected (key pressed once).
• Flashing rapidly: 2 coffees selected (key pressed twice).
“Hot water” key:
• Off: The appliance dispenses
steam.
• On: The appliance dispenses hot
water.
Ground coffee quantity (Opti-dose)
key.
Control to set how much coffee is dispensed into the cup.
and LEDs flashing alternately: turn off the appliance. Turn the appliance back on after 30 secon-
ds and wait until the movements stop. Then turn the appliance off again. Remove the brewing unit and
clean thoroughly (see page 29). If the display reappears when you turn the machine back on, contact the
Service Centre.

TALEA / ODEA - LINE 03 OPERATING
Saeco Internationa Group Page 3 / 13
3.1.3 Talea Giro Plus
.
Reset: Press the hot water key for 10 seconds
“Appliance ready” LED:
• Permanently on: The appliance is ready for use.
• Flashing: The appliance has finished the heating-up phase.
“Empty dreg drawer” LED:
• Permanently on: empty the dreg drawer. The appliance must be switched on for this procedure.
“Descaling” LED:
• Flashing: Start the descaling cycle.
Alarm LED:
• Permanently on (one or more causes): No coffee left, water tank is empty, the residual water tray is full
(in this case the dreg drawer also has to be emptied to prevent problems).
• Flashing slowly (one or more causes): Brewing unit is missing, dreg drawer has not been inserted,
coffee container cover has not been inserted, service door is open, rotary knob for opening the hot water
/ steam is not in the right position.
• Flashing rapidly: Ventilate the water system.
Control to set how much coffee is dispensed into the cup.
Coffee dispensing key:
• Flashing slowly: 1 coffee selected (key pressed once).
• Flashing rapidly: 2 coffees selected (key pressed twice).
“Hot water” key:
• Off: The appliance dispenses
steam.
• On: The appliance dispenses
hot water.
“Descaling cycle” key
• On: Press for 3 seconds.
• Off: Press for 3 seconds.
Ground coffee quantity (Opti-dose) key.
and LEDs flashing alternately: turn off the appliance. Turn the appliance back on after 30 secon-
ds and wait until the movements stop. Then turn the appliance off again. Remove the brewing unit and
clean thoroughly (see page 29). If the display reappears when you turn the machine back on, contact the
Service Centre.

TALEA / ODEA - LINE 03 OPERATING
Saeco Internationa Group Page 4 / 13
,
.
Go to
customer
menu
Activate steam function
Switch to
hot water
Coffee start key
Press once for 1 coffee
Press twice for 2 coffees
Press down longer =
quantity programming
Coffee product
selection
Selection:
Powder coffee
mild aroma
medium aroma
strong aroma
Back to the previous
level
Turn to scroll through
the menu levels and
change the parameters
Reset factory parameters
To program the following parameters for each
product (Espresso, Coffee and Large Coffee):
Aroma
Prebrewing
Press to enter the
selected menu level
or to save changed
parameters
Customer programming menu
3.1.4 Talea Ring, Ring Plus
....... aroma
coffee time
1 beverage settings

Page 5 / 13 Saeco International Group
03 OPERATING TALEA / ODEA - LINE
2.
Main menu levels
Dosage quantity
Temperature
Prebrewing
Language
Water hardness
Acoustic signal / alarm
Filter alarm
Rinsing
Cup warmer (Ring Plus)
Time setting (Ring Plus)
Aqua Prima
Descaling
Clean brewing unit
Switch-off time (standby)
Timer (switching time)
Restore settings (factory settings)
Cancel:
Press the menu key several times until
you see “cancel” in the display, then
confirm with the start key
1 beverage settings
2 machine settings
3 maintenance
4 energy saving
5 special functions
Exit

Menu key
1. Beverage settings
1.1.Espresso 1.2. Coffee 1.3. Large coffee
Short press
Cup capacity Aroma
+/-
mild medium strong preground
Long press
Temperature Prebrew
low normal medium long high off
2. Machine settings
2.1 Language 8 languages 2.2 Water hardness 1,2,3,4 2.3 Signal alarms On/Off 2.4 Water filter alarm On/Off 2.5 Rinsing On/Off 2.6 Cup warmer ** On/Off 2.7 Clock setting **
Time setting
Hours - Minutes
Time format 24hr - am/pm Date setting dd/mm/yyyy
Customer menu table

Menu key
Date setting dd/mm/yyyy Date format dd/mm/yy
3. Maintenance
3.1 Water filter
Remaining water quantity Filter status On/Off
Activate filter Activate
3.2 Descaling
Remaining water quantity Carry out immediately
3.3 Clean brewing unit Carry out immediately
4. Energy saving
mode
4.1 Switch-off time 15 - 180 minutes 4.2 Timer setting ** On/Off 4.3 Monday - 4.9 Sunday ** Turn on Time
Turn off Time
5. Special
case
5.1 Restore settings immediately Restore settings,
are you sure?
** Available with Ring Plus only
