Safe-n-Sound BS090GA-020133 Series User manual

Instructions for Installation & Use
Series No. BS090GA-020133
HARNESSED SEAT
Suitable from 6 months to 8 years (approx)
IMPORTANT:
KEEP THIS BOOKLET IN THE PLACE PROVIDED ON THE CHILD RESTRAINT

SEATBELT QUICK SETUP REARWARD FACING
2Instructions for Installation & Use
25mm
Pull
Lift
Check/Adjust
buckle height
Unlock
Remove
Mid
Length
Shortest
Length
Longest
Length
Adjust headrest
Re-thread and attach
Lock
1
4
7
2
5
8
3
6
10
9
Lock

SEATBELT QUICK SETUP REARWARD FACING
Instructions for Installation & Use 3
1
Attach
Pull remove slack Store
Click
Pull
PUSH
Adjust
recline if
required
Thread
across
seat
Pull to remove slack
Engage
buckle
Check
11
14
18
12
15
16
19
13
17
20

INTRODUCTION
4Instructions for Installation & Use
6
8







Να χρησιμοποιείται στραμμένο προς τα εμπρός μόνο από ένα παιδί του οποίου οι ώμοι είναι πάνω
από τον χαμηλότερο δείκτη ύψους ώμου (περίπου 6 μηνών) μέχρι οι ώμοι του παιδιού να φτάσουν
στον ανώτερο δείκτη ύψους ώμου (περίπου 8 ετών).
Συνεχίστε να χρησιμοποιείτε αυτή την παιδική διάταξη συγκράτησης μέχρι το παιδί να φτάσει σε
αυτό το όριο.
Μην χρησιμοποιείτε αυτό το σύστημα συγκράτησης παιδιού μέχρι οι ώμοι του παιδιού να είναι
πάνω από τον χαμηλότερο δείκτη ύψους ώμων.
Τα βρέφη κινδυνεύουν με σοβαρό τραυματισμό αν το κάθισμα κοιτάζει προς τα εμπρός πολύ νωρίς.
Τα παιδιά διατρέχουν κίνδυνο σοβαρού τραυματισμού, εάν μετακινηθούν σε βοηθητικά καθίσματα
πολύ νωρίς.
Η χρήση μόνο μιας ζώνης ασφαλείας δεν συνιστάται για παιδιά που έχουν ξεπεράσει αυτό το
σύστημα συγκράτησης. Τα παιδιά είναι ασφαλέστερα σε ένα βοηθητικό κάθισμα μέχρι οι ώμοι
τους να φθάνουν το ανώτερο δείκτη ύψους ώμου στο βοηθητικό κάθισμα.
To be used only in a forward-facing position by a child whose shoulders are above
the lower shoulder height marker (approximately 6 months of age) until the child’s
shoulders reach the upper shoulder height marker (approximately 8 years of age).
Continue to use this child restraint until the child reaches this limit.
Do not use this child restraint until child’s shoulders are above the lower shoulder
height marker.
Infants are at risk of serious injury if they face forward too early.
Children are at risk of serious injury if they move to booster seats too early.
Just using a seatbelt is not recommended for children that have outgrown this restraint.
Children are safest in a booster seat until their shoulders reach the upper shoulder
height marker of the booster seat.

INTRODUCTION
Instructions for Installation & Use 5
Da utilizzare solo nel senso di marcia da un bambino le cui spalle sono sopra l'indicatore di altezza
inferiore della spalla (circa 6 mesi di età) fino a quando le spalle del bambino raggiungono il
marcatore di altezza della spalla superiore (circa 4 anni di età).
Continuare a utilizzare questo sistema di ritenuta del bambino fino a quando raggiunge questo limite.
Non utilizzare il seggiolino fino a quando le spalle del bambino sono al di sopra del marcatore di
altezza inferiore.
I neonati sono a rischio di lesioni gravi se messi in posizione frontale troppo presto.
I bambini sono a rischio di lesioni gravi se si muovono dal seggiolino troppo presto.
Usare soltanto la cintura di sicurezza non è raccomandato per i bambini che hanno superato
questo limite.
I bambini sono più sicuri in un seggiolino fino a quando le loro spalle raggiungono il marcatore di
altezza superiore del seggiolino.
Chỉ được sử dụng ở vị trí hướng mặt về phía trước cho em nào có vai ở trên vạch ghi độ cao
của vai ở dưới cùng (khoảng 6 tháng tuổi) cho đến khi vai của em cao tới vạch ghi độ cao của
vai ở trên cùng (khoảng 8 tuổi).
Hãy tiếp tục sử dụng ghế em bé này cho đến khi em cao tới giới hạn này.
Không sử dụng ghế em bé này cho đến khi vai của em ở trên vạch ghi độ cao của vai ở dưới cùng.
Bé sơ sinh có nguy cơ bị chấn thương nghiêm trọng nếu hướng mặt về phía trước quá sớm.
Các em có nguy cơ bị chấn thương nghiêm trọng khi đổi sang ghế trẻ em (booster) quá sớm.
Chỉ sử dụng dây nịt an toàn không được đề nghị cho các em lớn hơn ghế em bé này. Trẻ em
được an toàn nhất trong ghế trẻ em cho đến khi vai của em cao tới vạch ghi độ cao của vai ở
trên cùng của ghế trẻ em (booster).
僅可前向安裝使用，適用於肩膀超過靠下的肩高度標記的孩子（大約6個月大），
直至其肩膀達到靠上的肩高標記（大約8歲大）。
繼續使用此座椅直至孩子達到此安全座椅的上限。
孩子肩膀超過靠下的肩高標記之前，切勿使用此座椅。
孩子若過早乘坐前向式汽車座椅，可能會對其造成嚴重的傷害。
急於讓孩子過早地乘坐墊高椅，可能會對其造成嚴重的傷害。
孩子因長大超出墊高椅的上限時，不推薦僅僅使用安全帶。孩子在其肩膀超過靠上的
肩高標記之前，使用墊高椅是最安全的做法。

INTRODUCTION
6Instructions for Installation & Use
肩膀超过靠下肩高标记的婴儿（大约6个月的宝宝）只采用前向式安装，直到儿童肩膀达到
靠上的肩高标记（大约8岁的儿童）。
在儿童达到该座椅上限以前必须不断使用这一安全座椅。
在儿童肩膀超过靠下的肩高标记前不得使用该儿童安全座椅。
婴儿若过早乘坐前向式座椅则可能受到严重的伤害。
儿童过早使用垫高椅则可能受到严重的伤害。
不建议个子比该座椅大儿童仅仅使用安全带。儿童肩膀达到该垫高椅靠上的肩高标记以前
最安全的办法是使用垫高椅。
Magagamit lamang sa isang nakaharap pasulong na posisyon ng isang bata na ang mga balikat
ay lampas sa ibabang marka ng taas ng balikat (humigit-kumulang 6 na buwang edad) hanggang
sa maabot ng mga balikat ng bata ang itaas na marka ng taas ng balikat (humigit-kumulang 8 na
taong gulang).
Ipagpatuloy ang paggamit ng pampigil ng bata na ito hanggang sa maabot ng bata ang
limitasyong ito.
Huwag gamitin ang pampigil sa bata na ito hanggang sa ang mga balikat ng bata ay lumampas sa
ibabang marka ng taas ng balikat.
Ang mga sanggol ay nasa seryosong peligro ng pagkapinsala kung sila ay haharap ng masyadong
maaga.
Ang mga bata ay nasa seryosong peligro ng pagkapinsala kung sila ay masyadong maagang
ililipat sa mga upuang booster.
Ang paggamit lamang ng seatbelt ay hindi inirerekomenda para sa mga bata na nakalakhan na
ang pampigil na ito. Ang mga bata ay pinakaligtas sa isang upuang booster hanggang sa maabot
ng kanilang mga balikat ang itaas na marka ng taas ng balikat ng upuang booster.

INTRODUCTION
Instructions for Installation & Use 7
                      
   ( 6    )                  
 ( 8    )
             
                      
                 
                 
                        
                       
   
Sólo debe utilizarse orientado hacia adelante para un niño cuyos hombros sobrepasen el
marcador de altura inferior (aproximadamente a los 6 meses de edad) hasta que los hombros del
niño alcancen el marcador de altura superior (aproximadamente a los 8 años de edad).
Utilice este sistema de seguridad infantil hasta que el niño alcance ese límite.
No utilice este sistema de seguridad hasta que los hombros del niño no sobrepasen el marcador
de altura inferior.
El niño corre el riesgo de sufrir lesiones graves si se utiliza la silla orientada hacia adelante antes
de tiempo.
El niño corre el riesgo de sufrir lesiones graves si se lo traslada antes de tiempo a un
asiento elevador.
No se recomienda utilizar sólo un cinturón de seguridad para el niño que ya no quepa en este
asiento. El niño estará más seguro en un asiento elevador hasta que sus hombros alcancen el
marcador de altura superior del asiento elevador.

8Instructions for Installation & Use
INTRODUCTION
Carefully read all the instructions for installation in this book. If in doubt about
the method of installation, consult Safe-n-Sound®or agent or a child restraint
fitter or, in New Zealand, to consult the agent for the vehicle.
This car seat is suitable for toddlers and older children as a harnessed child
restraint from 6 months to 8 years of age (approximately).
TO BE USED WITH A LAP-SASH OR LAP ONLY SEATBELT IN THE BACK
OF MOST CARS WITH FORWARD FACING SEATS.
The child should not sit in this forward facing child restraint until their neck
muscles are able to support their head. Safe-n-Sound®recommends that you
keep your child in a rearward facing restraint for as long as possible
(up to approximately 12 months or more).
Regional Road Rules may prohibit the use of a restraint in the front seat of a vehicle
until the child is 4 years of age. Check your Regional Rules for exemptions.
No child restraint can guarantee absolute protection from injury in every crash.
However, to ensure that your child gets all the protection designed into the
restraint. PLEASE READ AND FOLLOW THESE INSTRUCTIONS EXACTLY
and use only Safe-n-Sound®recommended parts and accessories.
THIS RESTRAINT MUST BE ATTACHED TO A CHILD RESTRAINT UPPER
ANCHORAGE POINT IN THE CAR. REFER TO CAR OWNER'S HANDBOOK
FOR LOCATION OF UPPER ANCHORAGE POINTS. REFER TO A CHILD
RESTRAINT FITTING STATION IF NO UPPER ANCHORAGE POINTS ARE
IN THE MOTOR CAR. Refer to pages 37.
Follow these instructions so that the protection to the occupant is not reduced.
The seat belt, tether strap, headrest and harness must be adjusted correctly
and the restraint reclined as instructed. For particular advice refer to the index
on the next page.
This child restraint is not suitable for use on an aircraft.
Always store the instruction book in the pocket provided on the side of the cover.

INDEX
Instructions for Installation & Use 9
WARNINGS
SPECIAL FEATURES

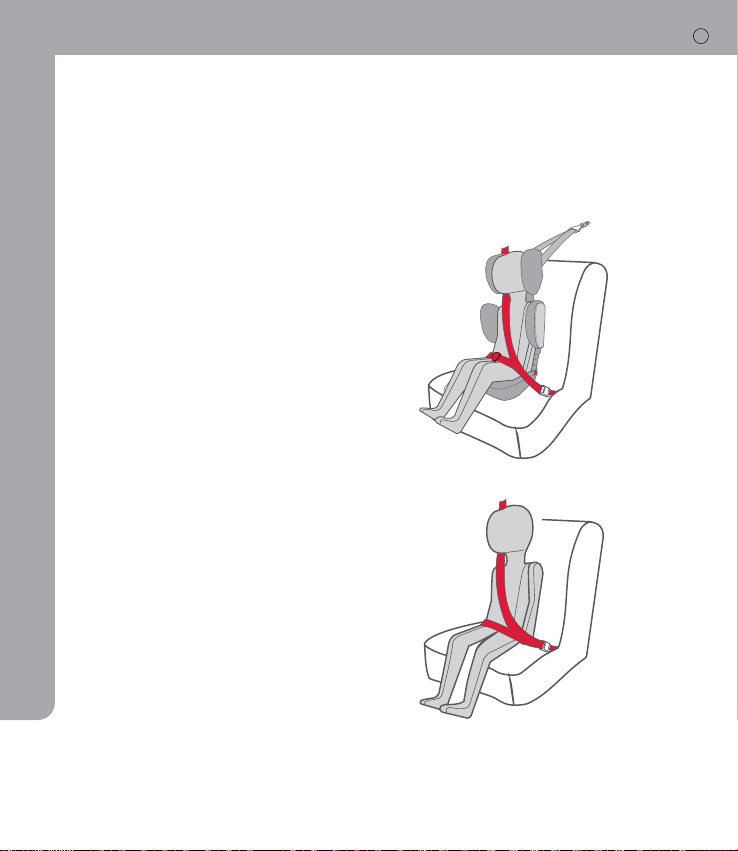

SHOULDER HEIGHT MARKERS & A GROWING CHILD
SHOULDER HEIGHT LABELS & THE NEXT STEP
SUITABLE FOR USE
HOW TO SETUP
HOW TO INSTALL
HOW TO USE
HOW TO REMOVE
CARE AND MAINTENANCE
ACCESSORIES AND FEATURES
INSTALLATION OF CARS UPPER ANCHOR FITTING
IN CASE OF ACCIDENT
10
17
30
14
24
34
12
18
31
16
28
37
41

10 Instructions for Installation & Use
IMPORTANT INFORMATION AND WARNINGS
• Fit the restraint firmly to the car seat.
• Fit the harness firmly to the child.
• A loose restraint or harness is dangerous.
• Supervision of children is needed because they may be able to undo
buckles and adjusters.
• Use the restraint exactly as shown in the instructions.
• DO NOT LEAVE CHILDREN UNATTENDED IN THE CAR.
• Do not alter or modify this restraint.
• Repairs must only be done by the manufacturers or agent.
• Do not allow the restraint to come into contact with polishes, oils,
bleach and other chemicals.
• Destroy the restraint if it has been in a severe crash, even if no damage
is visible. See page 41.
• DO NOT USE THIS RESTRAINT WITHOUT THE COVER.
• Always secure the loose end of the top tether strap. Do not use the child
restraint where this strap may fall into the seat back or o the side of the seat.
• ALWAYS ATTACH HOOK AND REMOVE SLACK.
• DO NOT ATTACH THIS CHILD RESTRAINT TO ANY ISOFIX LOW ANCHORAGE.
ISOFIX low anchorages in cars are designed to withstand only those loads
imposed by children aged up to approximately 4 years of age in a correctly
fitted and approved ISOFIX compatible child restraint. This child restraint is
not approved for use with the car's ISOFIX low anchorages.

IMPORTANT INFORMATION AND WARNINGS
Instructions for Installation & Use 11
• Regularly check the restraint components, straps and other fitments
for correct function and condition. Seek prompt repair.
• IF AN AIRBAG IS FITTED IN THE SEATING POSITION WHERE
THE CHILD RESTRAINT IS TO BE FITTED, FOLLOW THE VEHICLE
MANUFACTURERS WARNINGS AND INSTRUCTIONS.
• Protect all webbing from abrasion and cutting by sharp corners and
edges.
• The restraint should not be purchased or sold as a second hand item.
It is recommended not to use child restraints older than 10 years as
the protection in an accident may be reduced.
• This restraint must be used in conjunction with a lap or lap-sash seatbelt.
• The restraint should not be purchased or sold as a second hand item.
It is recommended not to use child restraints older than 10 years as
the protection in an accident may be reduced.
• This restraint must be used in conjunction with a lap or lap-sash seatbelt.
• THIS RESTRAINT IS NOT SUITABLE FOR USE WHERE THE TOP
TETHER STRAP MAY FALL INTO A SPLIT IN THE SEAT BACK OR
OFF THE SIDE OF THE SEAT.
• Seatbelt extenders are not recommended to be used if the seatbelt
is not long enough to secure the child restraint. If seatbelts are too
short then seek advice from a child restraint fitter and consider their
recommendations before using a seatbelt extender. If you use a
seatbelt extender then ensure that the seatbelt buckle does not
contact the child.
IMPORTANT:

12 Instructions for Installation & Use
SPECIAL FEATURES
Harness
Tongues
Harness
Buckle

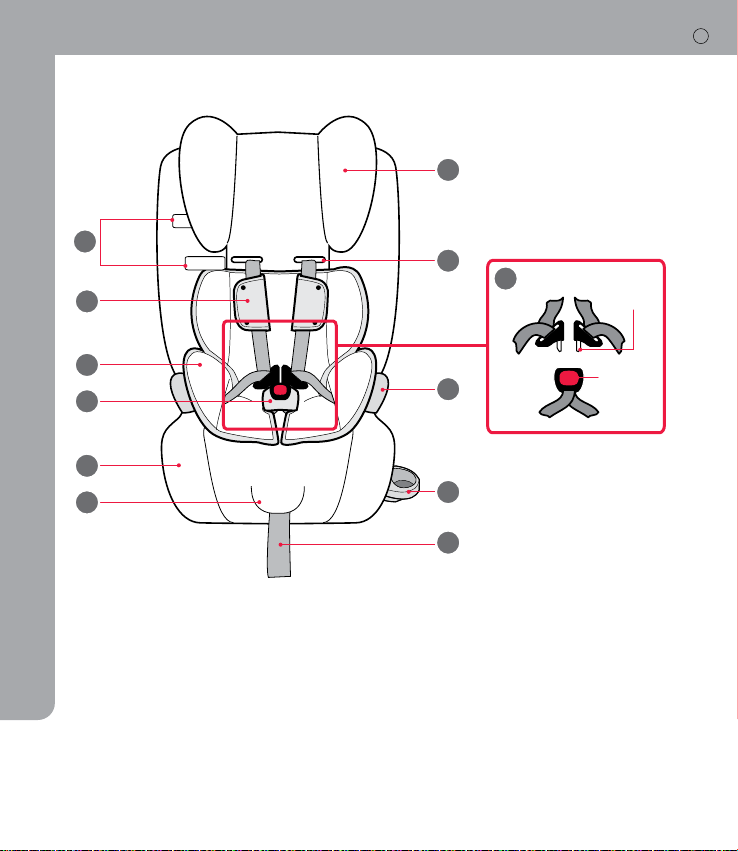

1. Adjustable Headrest
2. Harness Slots
3. Armrests
4. Harness Tongues and Buckle
(Red button)
5. Cup Holder (if fitted)
6. Harness Adjustment Strap
7. Harness Adjustment Lever
(under flap)
8. Padded cover for comfort
9. Crotch Pad (If fitted)
10. Padded Insert (If fitted)
11. Shoulder Pads (If fitted)
12. Shoulder Height Markers
1
2
3
5
6
7
8
9
10
11
12
4

SPECIAL FEATURES
Instructions for Installation & Use 13
NOTE: Not all features are supplied on some models.“if fitted” is used to
indicate some of the features that may not be on the child restraint supplied.
13. Headrest Lever
14. Forward Facing Belt Path
15. Adjustable Recline Foot
16. Adjustable Top Tether Strap
17. Attachment Clip
18. Car's Upper Anchorage fitting
19. Top Tether Strap Adjuster
20. Top Tether Storage Pocket
(attached to cover)
18 17
16
13
14
15
2019

14 Instructions for Installation & Use
SHOULDER HEIGHT MARKERS & A GROWING CHILD
YOUNG CHILD
Commence use when shoulders must not
be below the lowest shoulder height marker.
From approximately 6 months of age.
However, Safe-n-Sound®recommends that you
keep your child in a rearward facing restraint for
as long as possible (up to approx 12 months).
OLDER CHILD
Discontinue use when shoulders
are in-line with highest marker.
To approximately 8 years
of age.
Front of Vehicle
Shoulder height
marker B is visible
when the headrest
in fully raised.
Change to the next type of booster seat or vehicle seatbelt when shoulders reach
the upper shoulder height marker when the headrest is in the highest position.
If a child no longer physically fits in the seat then move to the next form of child restraint.
Marker B
Marker A
Marker A Marker A
Marker B

SHOULDER HEIGHT MARKERS & A GROWING CHILD
Instructions for Installation & Use 15
The child’s shoulders must be in-line or above this marker. If the child’s
shoulders are below then the child should remain in their previous child
restraint. Approximately 6 months.
When the child’s shoulders reach this upper marker, or the child no longer
fits in the child restraint, approximately 8 years of age, then the child must
be moved to the next form of child restraint, see next page.
MARKER A SMALLER TODDLER - LOWER SHOULDER HEIGHT MARKER
MARKER B LARGER CHILD - UPPER SHOULDER HEIGHT MARKER
IMPORTANT: Follow this advice.

16 Instructions for Installation & Use
SHOULDER HEIGHT LABELS & THE NEXT STEP
• Use a booster seat suitable for children
up to 8-10 years of age with the car's
seatbelt.*
OR
• A child may use the vehicle seat and
seatbelt without a booster seat if the
child’s legs hang over the seat edge.
Otherwise if the child’s legs do not hang
over the edge of the vehicle seat then
they need to use a booster seat so that
the seatbelt fits correctly and so the
child does not slump. A lap seatbelt on
the child's abdomen is dangerous.
NOTE: This child restraint includes a
booster seat configuration for children 4
years to approximately 6 to 8 years.
Next type of restraint that can be used in the car for your child.
When your child has outgrown this seat, you can use:

SUITABLE FOR USE
Instructions for Installation & Use 17
TO BE USED WITH A LAP SASH OR LAP ONLY SEAT BELT IN THE BACK
OF MOST CARS WITH FORWARD-FACING SEATS.
To be used only in a forward-facing position by a child whose shoulders are above
the lower shoulder height marker (approximately 6 months of age) until the child’s
shoulders reach the upper shoulder height marker (approximately 8 years of age).
This child restraint uses a top tether strap and needs to be placed in a car seating
position with a child restraint anchor fitting or anchorage point. If there is no anchor
fitting see pages 36 to 38.
Infants are at risk of serious injury if they face forward too early.
The child should not sit in this forward facing child restraint until their neck muscles
are able to support their head. Stay in a rear facing child restraint.
Regional Road Rules may prohibit the use of a restraint in the front seat of a vehicle
until the child is 4 years of age. Check your Regional Rules for exemptions.
• Fit the restraint firmly to the car seat and then fit the harness firmly to the child.
• A loose restraint or harness is dangerous.
• Do not use this restraint if the child's shoulders are below the lowest shoulder height marker.
• Do not use in a front seat, unless it has a child restraint anchorage point.
• Do not use the restraint without the Top Tether Strap correctly attached.
• Do not use on any vehicle seat which faces sideways or rearwards.
• WHERE AN AIRBAG IS FITTED IN THE SEATING POSITION WHERE THE CHILD
RESTRAINT IS TO BE FITTED, FOLLOW THE VEHICLE MANUFACTURERS
WARNINGS AND INSTRUCTIONS.
Use lap or lap-sash seat belt and upper anchorage strap to attach
the child restraint to the vehicle seat when using the in-built harness.
IMPORTANT:

18 Instructions for Installation & Use
HOW TO SETUP
SETTING UP THE HARNESS
A. Put the restraint on a flat ground and supported from behind so that it will not tip over.
B. Sit the child comfortably in position.
C. Check the height of the buckle and adjust if necessary as detailed on page 23.
D. Determine the desired headrest position, just above the child's shoulders.
E. Remove the child and adjust the shoulder straps if necessary as detailed on page
19 and 22.
F. Repeat steps A-D to confirm the correct set-up of the built-in harness.
ADJUSTING THE BUCKLE POSITION
The buckle needs to
be positioned as shown.
If the buckle is too low
it will be uncomfortable
and needs to be lengthened.
See next page for adjusting
to a better position.
You must adjust the crotch strap to the correct length for your child before installing
the restraint as it cannot be adjusted in the car. The crotch strap should only be
extended if the harness tongues are located low against your child's legs, thus
creating discomfort.
Always return the crotch strap to its shorter length when using the seat with a smaller child.
The buckle should always be positioned low down on your child's abdomen.
IMPORTANT:
Center of button on buckle,
level with top of legs (with
all slack removed from
crotch strap.)
Buckle Position
OK

HOW TO SETUP
Instructions for Installation & Use 19
ADJUSTING SHOULDER HARNESS STRAPS
Correct fitment of the harness is very important to protect the child.
The harness must fit firmly around the upper torso of the child and
be positioned so as to leave the child’s arms and legs free.
25mm
The shoulder straps must be in the slots which
are nearest to the child’s shoulders, but not
more than 25mm below the child’s shoulders.
Always adjust the height of the shoulder straps
and crotch straps as the child grows.
6
7
13
8
9 9
10
1111
12 12
1. Lower shoulder strap slots
2. Mid shoulder strap slots
3. Upper shoulder strap slots
4. Top slots in seat back
5. Headrest clamp
6. Lower Height Marker
7. Upper Height Marker
8. Harness Slots in Headrest
9. Shoulder harness straps
10. Harness tongues & buckle
11. Lap strap slots
12. Crotch strap slots
13. Harness adjustment strap
11
22
33
44 5

20 Instructions for Installation & Use
HOW TO SETUP
Pull
Lift
A. To adjust harness strap height and/or
adjust headrest, lengthen the harness
by lifting the lever and pull the harness
to lengthen.
B. At the rear of the restraint, remove
both harness shoulder straps from
metal Strap Connector by slipping
strap through open slot.
C. Pull the shoulder straps through
slots at the front of the restraint.
Strap
Connector
ADJUSTING HARNESS STRAP HEIGHT & HEADREST:
STEPS IN CHANGING SHOULDER STRAP SLOTS
