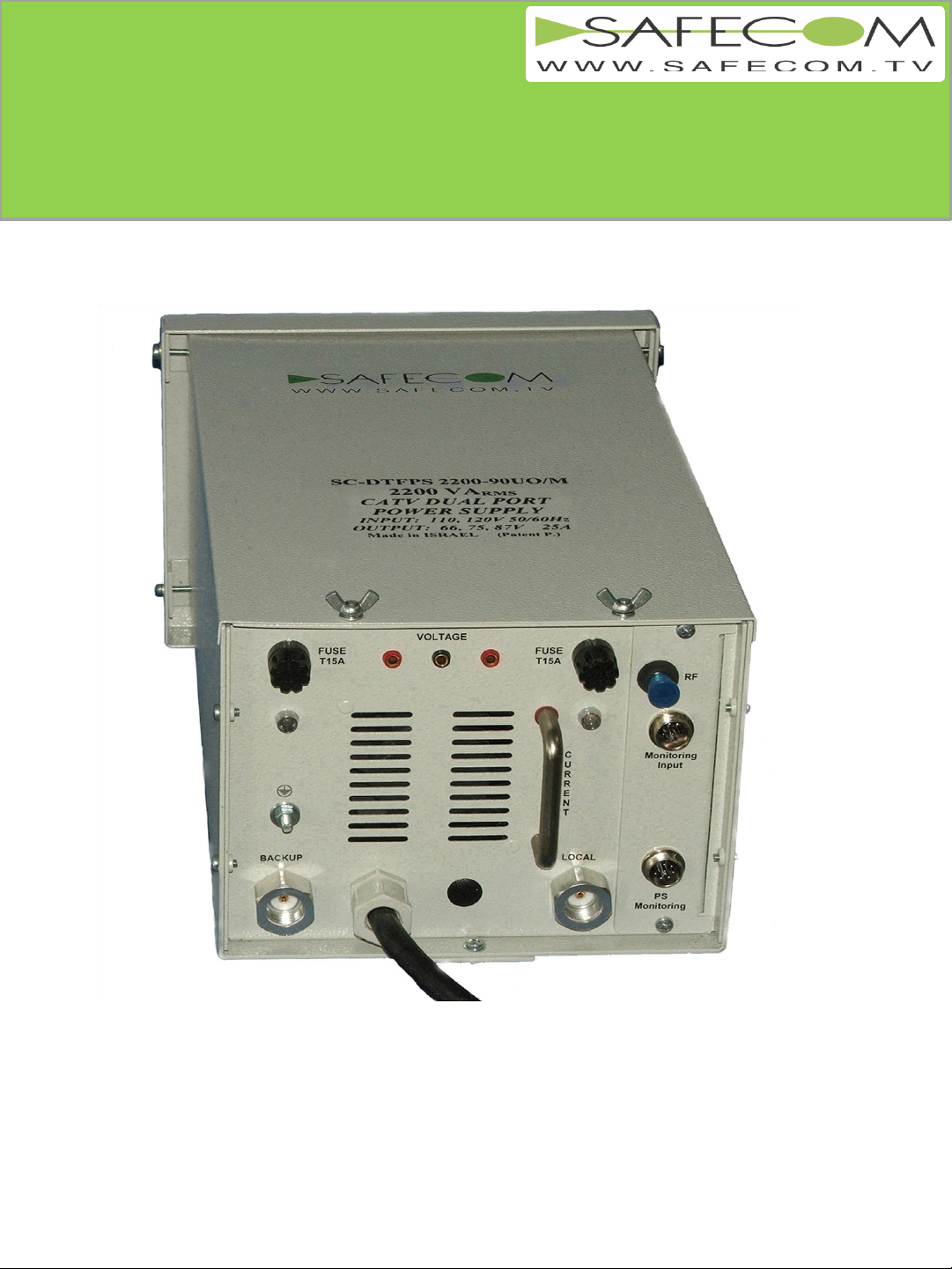

SafeCom T-Former Series User manual

Power Safecom T-Former Series
Stabilized pure sine voltage technology ( US Patent 8,415,822 )
Safecom TFPS Series
Installation Manual
FEB-2015
SAFECOM US Patent 8,415,822.
1

Table of Contents
Page 3: About T-former Technology & advantages.
Page 4: Safety Instructions
Page 5 : overview
Page 6: Specification
Page 7 : Technology
Page 8 : Inside view
Page 9 : Voltage configuration
Page 10: Bottom view –Connecting panel
Page 11: Back View bracket open & Mounting template
Page 12: back View bracket locked
Page 13 : Safecom T-former P.S ordering information
Page 14 : Connecting Power Cable to T-former AC OUTPUT
Page 15 : Troubleshooting and Repair
2

T-Former - High efficiency Power supply
•Lower Operating Costs - saves at least 5% energy compared to Ferro systems
•Lower Capital Cost per unit - compared to traditional Ferro-resonant devices
•Longer Life -Unique technology enables almost unlimited lifetime
•No Noise, No Vibration - No environmental disturbance when installed on, or near
buildings
•Slow Start prevents fall of current breakers after power-out or during ignition
•Automatic overload protection

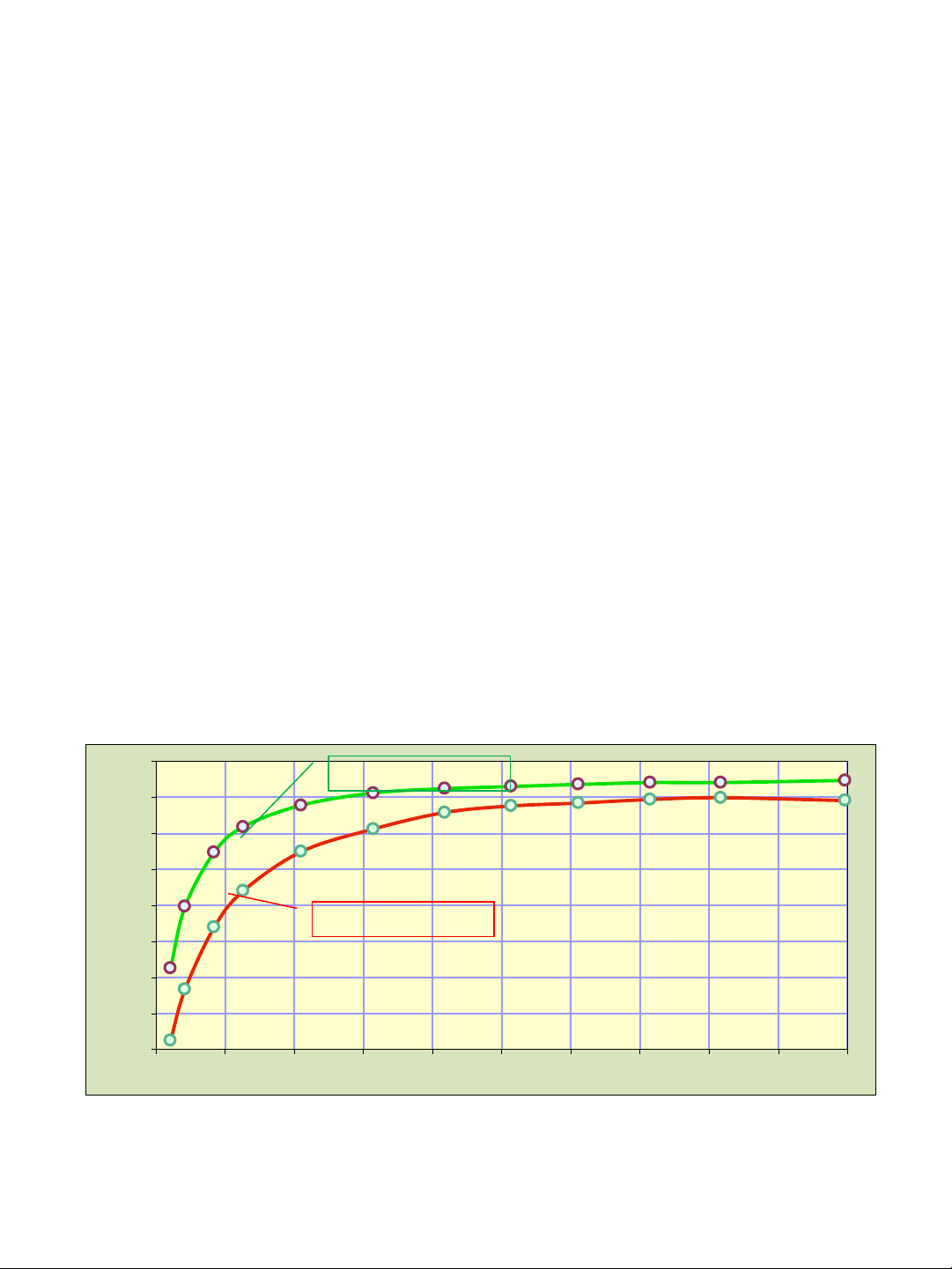

EFFICIENCY : T-Former Vs traditional Ferro
20
30
40
50
60
70
80
90
100
010 20 30 40 50 60 70 80 90 100
Efficiency (%)
Load Pout (%)
T-former P.S
Common Ferro
Pure Sine Wave Stabilizer Technology
3

Safety Instructions
Review the Installation Manual before proceeding.
If there are any questions regarding safe installation or operation &
performance please contact us at: [e-mail].
Prior to any handling, the Power Supply must be disconnected from the
Mains.
Only an experienced and authorized technician or electrician, who is
qualified to work on the electrical grid while taking necessary
precautions that comply with the electrical code should perform
installation.
Before Installation:
Make sure that P.S input voltage configuration matches the standard
utility voltage level.
Make sure that P.S output voltage configuration matches the CATV
voltage requirements.
Recheck circuit breaker and earth leakage circuit breaker (ELCB).
Connect grounding cable between P.S grounding to utility grounding
point.
Safety:
Prior to installation or removal recheck that utility circuit breaker is OFF
and that there is no voltage at the P.S.
Only a licensed electrician should install the P.S.
Ensure that all cables are dry and wet-protected.
4

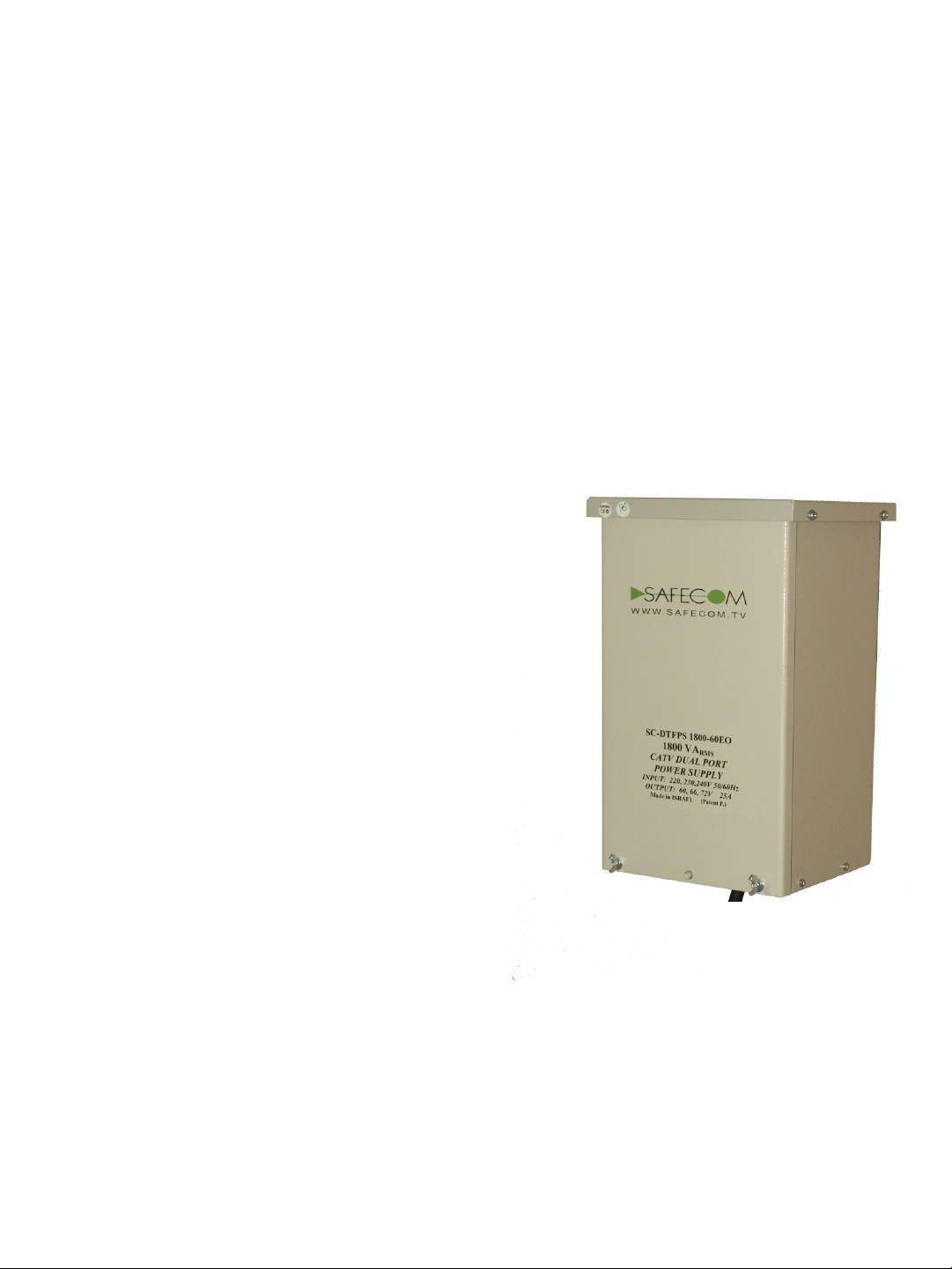

Overview:
T-Former is a pure stabilizer sine wave P.S with the highest- efficiency, and
most reliable technology, specifically developed for the advanced operation of
line amplifiers in CATV distribution systems. With about double the lifetime of
legacy Ferro-resonant products, it delivers at least 5% energy savings
compared with standard systems. Its modular optional design enables an
upgrade of the T-Former to UPS by adding a compatible ONLINE DC-AC inverter
/Charger. This helps Operators reduce network expenditure at capital, as well
as operational levels.
Thanks to its patent-pending sine wave
stabilizer technology, the T-Former's
advanced electronic controller
automatically monitors the line voltage
and compensates for any changes,
eliminating negative Inrush current side
effects resulting from utility power
recovery. In addition, the T-Former
operates in complete silence - solving
noise and vibration problems inherent in
existing products. This is increasingly
important in highly populated areas
where power supply devices are often
mounted near buildings. T-Former is
designed to work at a wide range of
temperatures and humidity without
maintenance, at full power capacity. 100%
of Safecom's T-Formers undergo rigorous
and repeated quality testing.
5

Model SC-DTFPS 1050-60EO/I
Electrical
Input Voltage Taps (
Vac)
230
±15% EUROPE
Input Frequency (Hz)
50
/60
Input Current (A)
<
5.5A
Input inrush current
<
10 A In single pulse of 5ms
Input Power Factor
0.95 at full load
Output Voltage Taps (
Vac)
60
, 66, 72V -25A (87V -25A )
Total Output Current (A)
25A (15A max each port)
Short circuit time response (ms)
<
10
Recovery safety time
delay (sec)
>
3
Output Power (VA)
1050
Load Regulation (%)
<
2%
Output Protection Fuse
T
15A
Efficiency (%)
95
% at full load
Mechanical
Dimensions ( L , W , H ) mm
375
x 220 x 215
Weight (Kg/lbs)
20
kg
Housing Finish
White
zinc / epoxy plating
Environment
Operating Temperature
-
20ºC ÷+60ºC
Storage Temperature
-
20ºC ÷+70ºC
Humidity
0
÷100% non condensing
Standard Features
Power Mains Cable
√
Mains Transients Protection
√
Quick Connection Output Coax socket
√
Output Fuse
√
Output Voltage Test Points
√
Output Current Measurement Loop
√
Power Indication Green LED
√
Optional Features
Output
Screw Terminals
√
DC/AC inverter for UPS
√
6

•Technology
•The TFPS series Dual Port CATV P.S with utilizes novel & US Patent AC/AC variable
ratio transformation provide ultimate voltage regulation and pure sine voltage
output at all loads. Input & output Voltage are completely isolated line
conditioning enabling changing gears at O time "zero crossing". This smooth online
transformation between gears provides clean AC pure sine voltage without any RF
noise.
•An extra feature of the T-former Novel P.S is its SOFT STARTUP, solving the most
hazard problem of Ferro based P.S: the Inrush current. This innovative solution
controls the current level during start-up and prevents the circuit breaker from
falling during startup or utility power interruption.
•The system also has electronic overload protection, protecting the network and
minimizing fuse blow when momentary short circuits occur.
•Safecom T-Former P.S offers the most efficient technology with almost 95% efficacy
at a wide range of loads. It saves electricity and maintains the transformer and its
electronic parts at cold temperature, making it the most reliable P.S with unlimited
lifetime.
•Unlike the Ferro P.S, characterized by noise and vibration, the new T-former P.S is
completely silent, with no vibrations, making it suitable for installation near

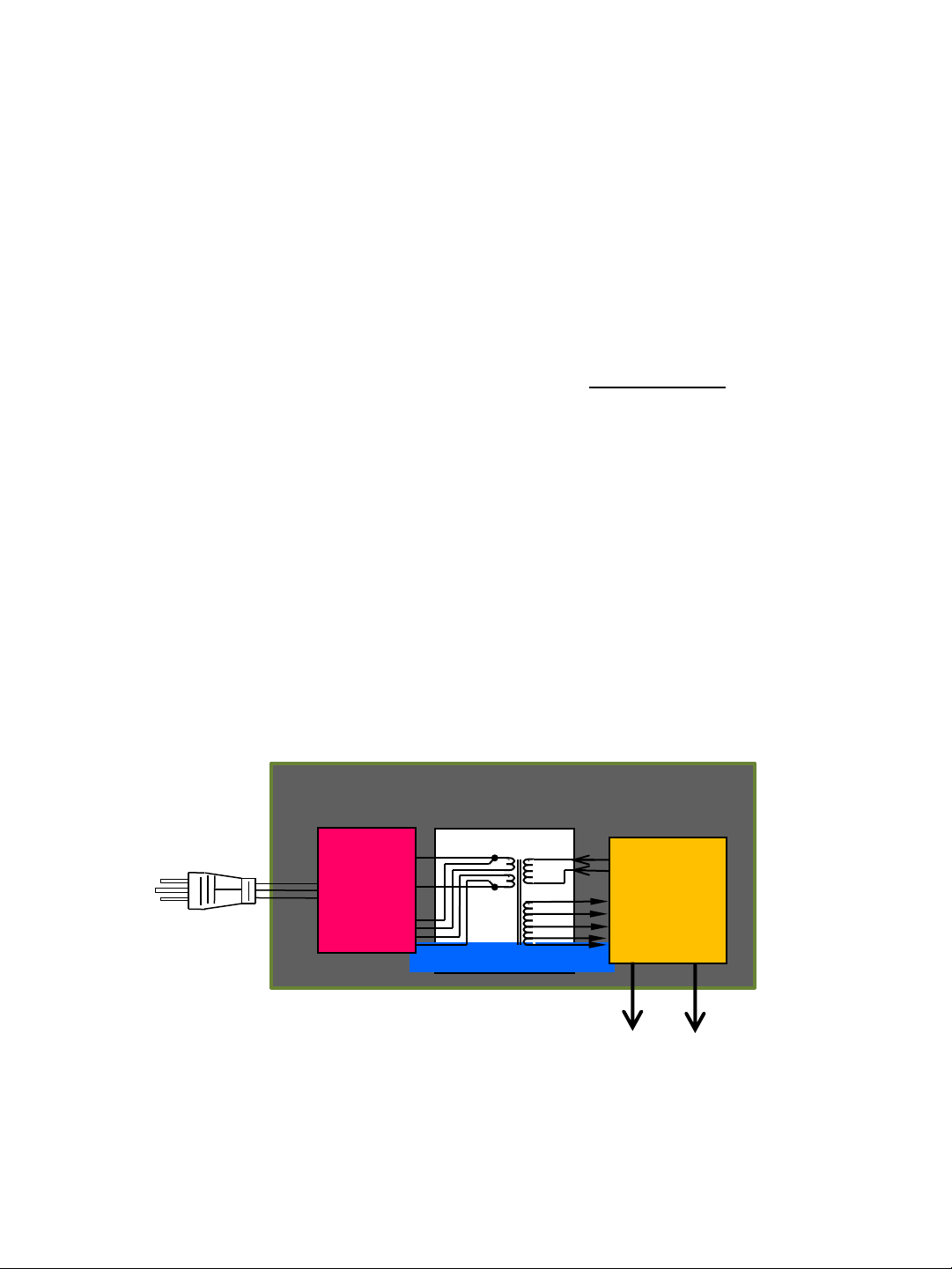

buildings and homes. Block Diagram T-Former P.S
Multi Outputs
60, 66 , 72 / 87Vac
15A
Utility power
120 V 60Hz
230 V 50Hz
Multi outputs
transformer
Outputs
Control
Board
Start
Control
Board
7

Inside view : T-former outdoor 87V -15A
8

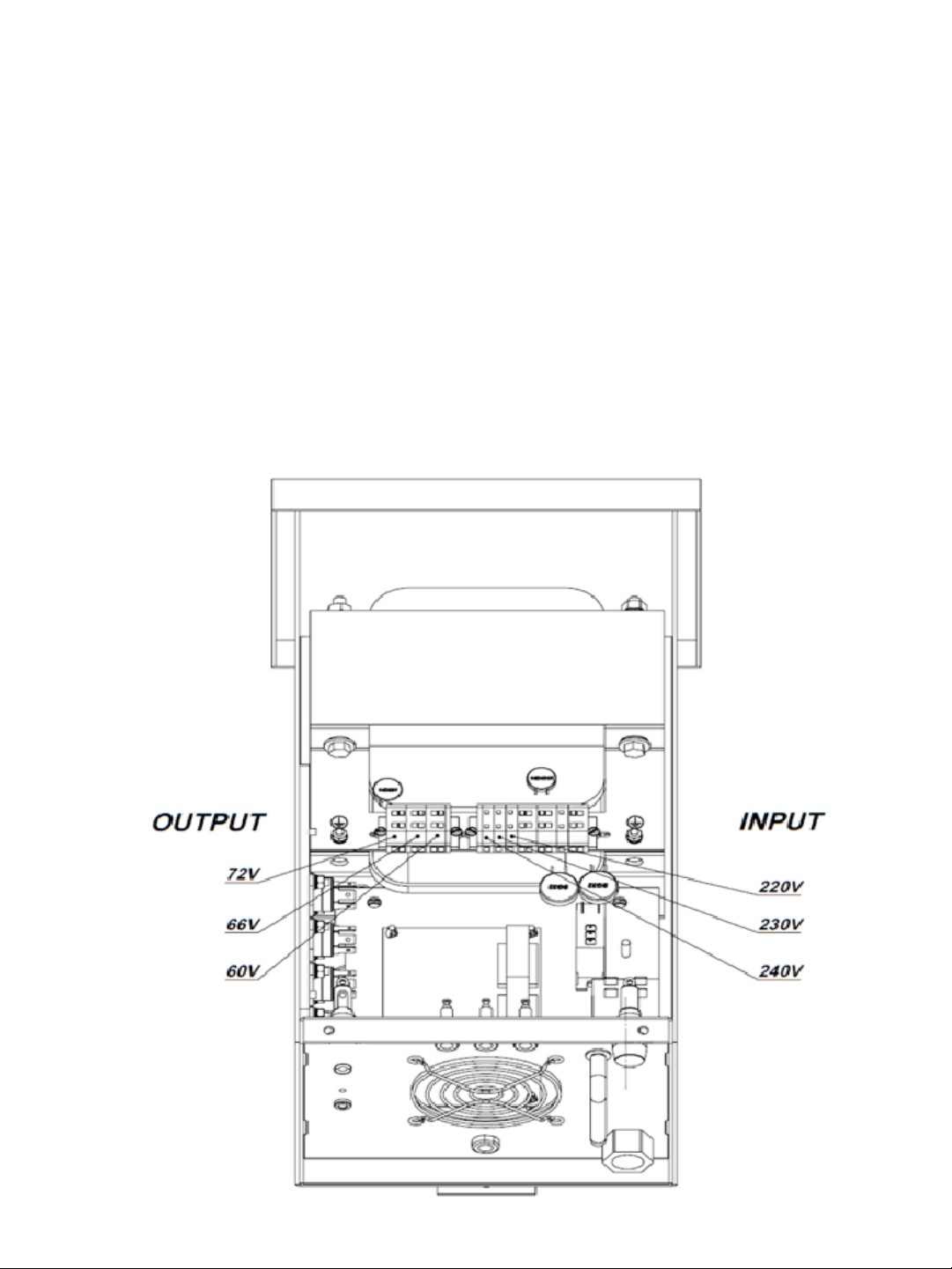

Voltage configuration
Safecom TF-PS series offers input & output voltage-level flexibly. Technicians can
easily configure the optimal input voltage level and recommend output
voltage levels for supplying power to the network.
1) Ensure utility power is OFF when changing voltage configuration at input &
output.
2) Changing the settings is done by moving input & output cables from one port
to another. The cable is fastened by a powerful spring. To release it, simply press
the lower point using a screw driver.
3) This configuration insures reliable connections for life, without any possibility
of losing the connection.
9

Bottom view
Output Testing
point
Clamp Meter
current test
Power output
Quick type RF
connector
Output
indicator LED
Green /Red
Ground
Connector
10
Power output
Quick type RF
connector
RF port –IP
monitoring
External
monitoring
Input port

Installing TFPS –Outdoor
The SC-TFPS outdoor series non-standby power supplies are designed to be
mounted by separate brackets on a wall or on a pole.
When installing a TF-PS on a pole, an approved mounting strap must run through
the mounting slots of the back bracket. When installing on a wall, use two >8 mm
screws to fasten the bracket to the wall.
After bracket is fastened to the wall, hang the PS on the bracket and tighten the
screw at the bottom of the P.S in order to lock it.
Back View
Hanging Bracket Closed Cabinet Installed with special bracket
for hanging or shelf-lain mounting
Hanging
Bracket
Mounting slot
Mounting slot Screw hole
Locking Screw
Hanging Bracket
fastened by
mounting strap
Hanging Bracket
fastened by
screws to the wall
11

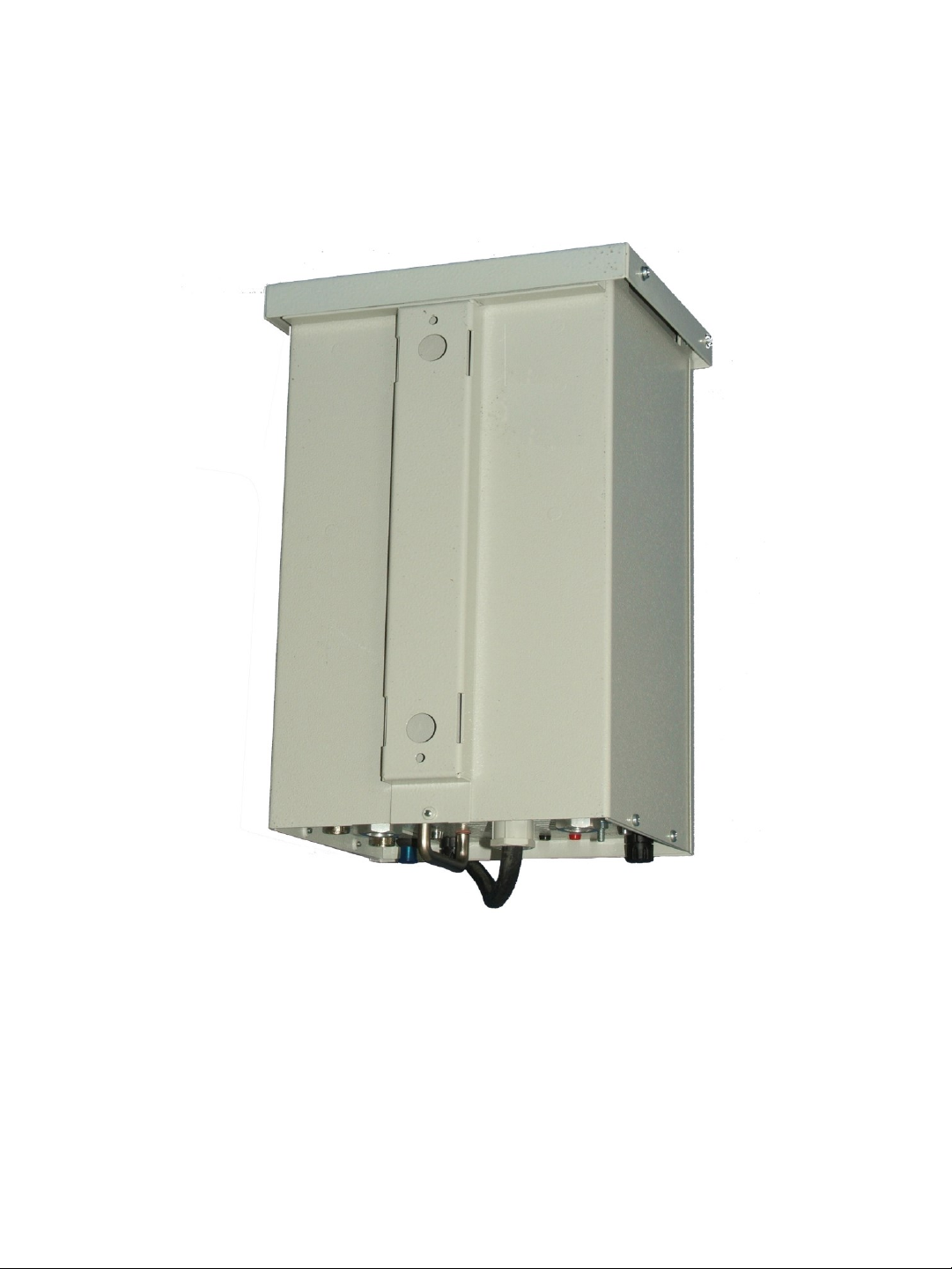

Back view TF-PS Bracket locked
12

SC TFPS
“M” : Monitoring
“I” :indoor housing
“O” :outdoor housing
“E” :Europe standard 230V +/- 15% 50Hz
“U” :USA standard 120V +/- 15% 60Hz
“2200” : 2200 VA (rms)
“1800” : 1800 VA (rms)
“1300” : 1300 VA (rms)
“1080” : 1080 VA (rms)
“ 300” : 300 VA (rms)
“D” : Dual output port.
“S” : Single output port.
“M” : Mini P.S.
“60” : 60V CATV voltage standard.
“90” : 87V CATV voltage standard.
Safecom T-former P.S ordering information
Model Output
Port
Output
Voltage
Output
Current [A]
Input
Voltage[V]
Frequency
[Hz]
Housing Monitoring
SC S TFPS 1080 60UI Single 66,72 15 110,120 45 ÷ 65 Indoor -
SC S TFPS 1080 60UO Single 66,72 15 110,120 45 ÷ 65 Outdoor -
SC D TFPS 1800 60UI Dual 66,72 25 110,120 45 ÷ 65 indoor -
SC D TFPS 1800 60UO Dual 66,72 25 110,120 45 ÷ 65 outdoor -
SC S TFPS 1300 90UI Single 60,75,87 15 110,120 45 ÷ 65 Indoor -
SC STFPS 1300 90UO Single 60,75,87 15 110,120 45 ÷ 65 Outdoor -
SC D TFPS 2200 90UI Dual 60,75,87 25 110,120 45 ÷ 65 indoor -
SC D TFPS 2200 90UO Dual 60,75,87 25 110,120 45 ÷ 65 outdoor -
SC D TFPS 2200 90UOM Dual 60,75,87 25 110,120 45 ÷ 65 outdoor 
SC S TFPS 1080 60EI Single 66,72 15 220,230,240 45 ÷ 65 Indoor -
SC S TFPS 1080 60EO Single 66,72 15 220,230,240 45 ÷ 65 Outdoor -
SC D TFPS 1800 60EI Dual 66,72 25 220,230,240 45 ÷ 65 indoor -
SC D TFPS 1800 60EO Dual 66,72 25 220,230,240 45 ÷ 65 outdoor -
SC S TFPS 1300 90EI Single 60,75,87 15 220,230,240 45 ÷ 65 Indoor -
SC STFPS 1300 90EO Single 60,75,87 15 220,230,240 45 ÷ 65 Outdoor -
SC D TFPS 2200 90EI Dual 60,75,87 25 220,230,240 45 ÷ 65 indoor -
SC D TFPS 2200 90EO Dual 60,75,87 25 220,230,240 45 ÷ 65 outdoor -
SC D TFPS 2200 90EOM Dual 60,75,87 25 220,230,240 45 ÷ 65 outdoor 
13

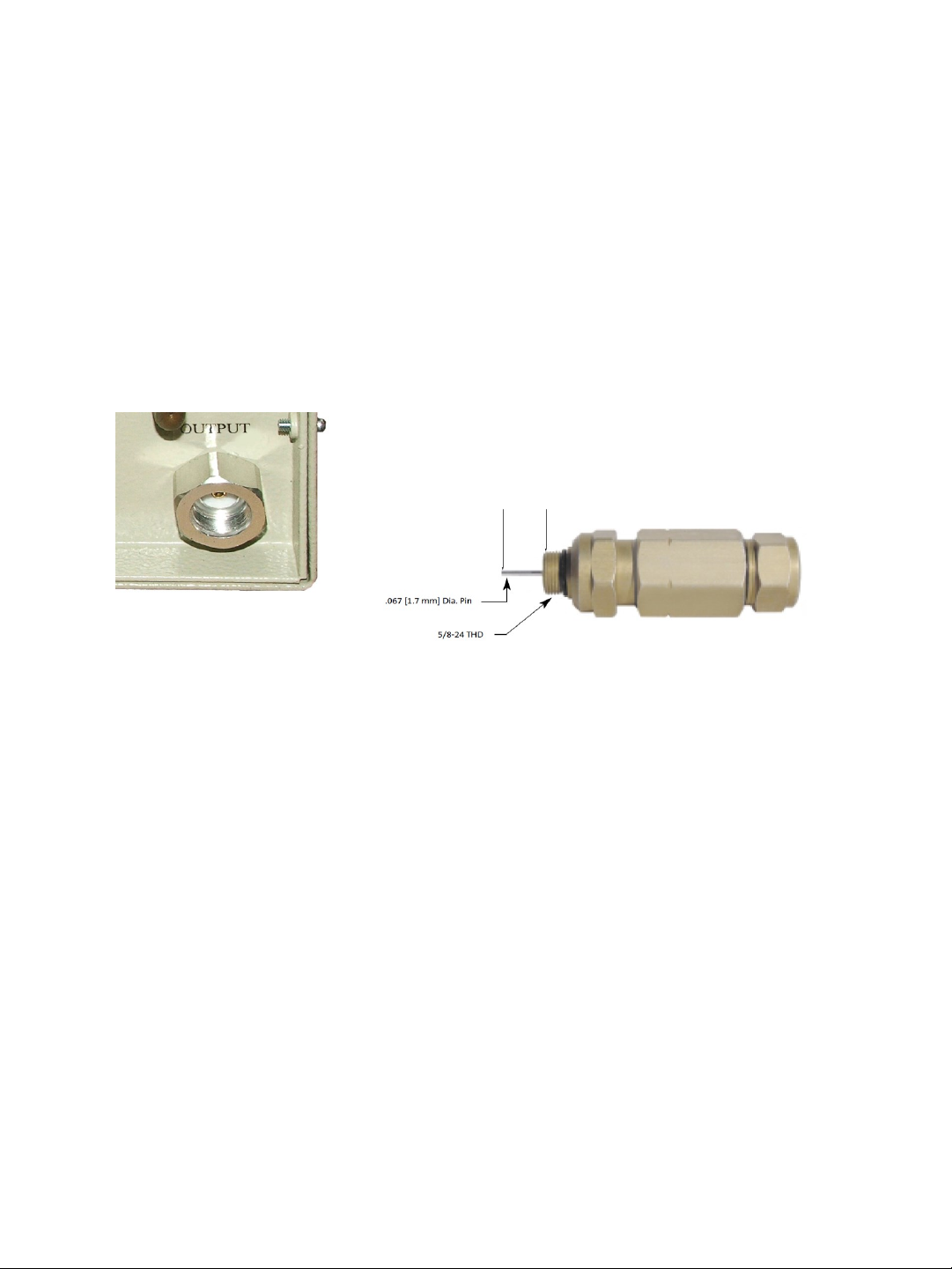

Connecting Power Cable to
T-former AC OUTPUT
All Safecom power supplies have high current output quick type
connectors without seizure screws.
Simply plug in connector at the front panel.
Connection is made quickly and reliably from outside.
Beryllium, cooper contact.
10 mm
Note : The center conductor may be cut
clean to allow for complete fit.
The length of the center conductor must be
10 mm.
14

Troubleshooting and Repair
The T-former P.S is designed to be the most reliable P.S that can be used for
unlimited time at all weather conditions, even at maximum load.
The Power supply has slow-start circuit and overload protection to prevent the
most common failure at the network such as inrush current that switches OFF
the circuit breaker, or blows the fuse as a result of overload or short circuit.
This guide explains the possible, yet rare symptoms:
15
Solution Reason Symptom
The network must be
monitored and the failure
cause must be removed
1) P.S. was shut down due
to overload current short-
circuit or a burnt fuses.
No Voltage at output
RED LED “ON”
Replace fuses and restart. 2) Fuse blow
Turn on Circuit breaker. Circuit breaker down / No
Power at the Main
No voltage at output LED
“OFF”
Check polarity of output
connection.
Neutral wire must be
connected to the connector
marked “0”.
The fuse blows out upon
activation of the power
supply
Reduce the load under 15A
.
Overload protection >15A
activated
Output voltage exists but
the LED is still Red.
