Safera Siro IN-Line Stove Guard
Powered by SAFERA
PCU6.3-F PCU6.3-PPCU6.1-F PCU6.1-SPCU6.1-P

32
Contents
1. Preparations
2. Installation
3. Troubleshooting
4. Optional: Installing the Water Leak-
age Sensor
Follow these instructions carefully and
pay particular attention to the instruc-
tions marked in the following way:
ѥWARNING
Follow instructions marked with a
warning accurately to prevent injury
to persons and damage to property.
⚐ATTENTION
Follow instructions marked with a
note carefully to prevent damage to
property.
ѧHINT
Hints give you useful advices on us-
ing the appliance.
Warnings
ѥWARNING
Read user and installation manual be-
fore using or installing the appliance.
Install and check the application ac-
cording to the instructions. Safera
is not liable for any damages or ex-
penses caused by inappropriate in-
stallation.
Check that the Stove Guard is com-
patible with the cooker (see section
1.1).
If the network cable is damaged, it
must be replaced by the service per-
sonnel of the manufacturer or their
representative to avoid hazards.
All electrical connections must be
carried out by a qualiied electrician.
⚐ATTENTION
If the appliance was stored in a cold
space, it must be allowed to warm
up to room temperature before con-
necting it to electric network.
1. Preparations
Check the product and the contents of
the package before installation:
• Central Unit Ⓐ (pre-installed into a
cooker hood)
• Power Supply Ⓓ
• Power Control Unit Ⓒ
• User and Installation Guides
• Declaration of Conformity
ѥWARNING
Please contact your vendor if you no-
tice anything unusual about the ap-
pliance.
Ⓒ
Ⓐ
Ⓓ
Ⓔ
Ⓕ

54
Install the cooker hood with Central Unit Ⓐaccording to the dimensions:
⚐ATTENTION
The Central Unit Ⓐis plugged into
the wall socket with its own power
supply Ⓓ.
ѥWARNING
The extinguishing area is approx. 60
cm in diameter, when the installation
height is in accordance with the ta-
ble. The installation height has an ef-
fect on the size of the extinguishing
area and the extinguishing capacity.
With extinguisher:
Cooker
width
Inst. height
Max. 60 cm 45 - 55 cm
Without extinguisher:
Cooker
width
Inst. height
Max. 60 cm 45 - 75 cm
60 - 90 cm 60 - 75 cm
Width
Align the Central Unit
±15 mm with the centre
of the cooktop.
Depth
Align the Central Unit with the centre
of the cooktop:
With extinguisher: ±30 mm
Without extinguisher: ±100 mm
1.1 Compatibility
Safera Stove Guard is compatible with
most electrical cookers, hobs and ovens
meant for household use:
• Traditional cast-iron cookers and
hobs
• Ceramic cookers and hobs
• Induction cookers and hobs
• Cookers and hobs equipped with
a timer, afterheat indicator, child
proof lock or integrated switch-o
system
Safera Siro is compatible with cookers
no wider than 90 cm, see Installation
step 1/6.
1.2 Central Unit Ⓐ
❶ Child proof lock button
❷ OK button
❸ Indicator light for child proof lock
❹ Indicator light for normal activity
❺ Warning light for cooktop hazard
❻ Warning light for water leakage
❼ Adjustment mode button
❽ Indicator light panels
❾ Sensor
Installation - Step 1/6 Mount the Central Unit Ⓐ
8
91
3
72
4
5 6
Nozzle
(optional
accessory for
Siro IN-line)

76
Install extinguishing unit Ⓔon top of the
cooker hood according to the igures
below (either A or B) and steps 1-9 on
the igures on the right.
Option
Option
ѥWARNING
Ensure that the extinguisher unit is
connected to the connection hub Ⓕ
and power supply Ⓓ.
ѧHINT
With some of the cooker hood mod-
els the extinguishing unit Ⓔis prein-
stalled in the factory: in that case en-
sure that the hose and the cable are
properly connected.
ѥWARNING
Read user manual before installing or
replacing the extinguishing unit.
Service and replacement of the ex-
tinguishing unit Ⓔ may only be done
by service authorized by Safera.
Make sure that the hose is not
squeezed after the installation. Mini-
mum radius for the hose is 50 mm.
Highest allowed operation tempera-
tre for extinguishing unit Ⓔis 50°C.
Max.
T<50°C
Min.
R>50mm
E
E
A
B1
2
3
5
4
6
7
8
9
Connection Hub Ⓕ
Power supply Ⓓ
Installation - Optional Install the extinguishing unit Ⓔ

98
Install the Power Control Unit according to the following instructions.
Installation - Step 2/6 Mount the Power Control Unit Ⓒ
PCU6.1P
1-phase, 3-pin plug OUT.
See pages 16-17.
PCU6.3P
Perilex-connectors.
See pages 12-13.
PCU6.1F
Fixed 1-phase connection.
See pages 14-15.
PCU6.3F
Fixed 3-phase connection.
See pages 10-11.
PCU6.1S
Schuko-connectors.
See pages 18-19.

1110
ѥWARNING
Make sure that there is no power sup-
ply to the cooker and the oven by re-
moving their fuses. Also ensure that
the cooker is switched o.
OUT-wires are always energized when
the power control unit is connected
to the electrical network. If a wire is
loose, it must be properly covered.
Do not install the power control unit
to excessive heat: See operational
ambient temperature on the power
control unit Ⓒ.
⚐ATTENTION
Install the power control unit Ⓒ so
that it is not exposed to moisture.
Check that all cables can move freely.
If you are replacing a cooker, press
the adjustment mode button ❼for
ive seconds until you hear a signal.
Continue the installation according
to step 3/6 point 3.
PCU6.3F - Installation
Fixed 3-phase connection.
7
Optional
water sensor
connection.
See chapter
4.
2
6
4
3
4xA
A
A
A
B
2xB
IN
5 x 2,5 mm2
Don’t reconnect
the power to the
cooker yet.
OFF
1
42 mm
239 mm
113 mm
OUTIN
PE
N
L1
L2
L3
PE
N
L
L
L
MAX 16A
MAX 16A
MAX 16A
MICRO DISCONNECTION
225,5 mm
78 mm
60 mm
60 mm
95 mm
L1
L2
L3
OUT
IN
OUT
IN
OUT
IN
N
PE
OUT
5 x 2,5 mm2
5
IN
Phase order can be freely chosen. If only two phases
are used, connect them to the terminals L2 and L3.

1312
225,5 mm
95 mm
L = 700 mm
51 mm
+ Perilex
239 mm
113 mm
OUTIN
PE
N
L1
L2
L3
PE
N
L
L
L
MAX 16A
MAX 16A
MAX 16A
MICRO DISCONNECTION
4Don’t reconnect the
power to the cooker yet.
PCU6.3P - Installation
3-phase, Perilex-connectors.
Optional
water sensor
connection.
See chapter 4.
A
Mount the power con-
trol unit Ⓒ on the wall
behind the cooker or
into the cabinet next to
the cooker.
2
4xA
A
A
3
OUT
IN
OFF
1
ѥWARNING
Make sure that there is no power sup-
ply to the cooker and the oven by re-
moving their fuses. Also ensure that
the cooker is switched o.
OUT-wires are always energized when
the power control unit is connected
to the electrical network. If a wire is
loose, it must be properly covered.
Do not install the power control unit
to excessive heat: See operational
ambient temperature on the power
control unit Ⓒ.
⚐ATTENTION
Install the power control unit Ⓒ so
that it is not exposed to moisture.
Check that all cables can move freely.
If you are replacing a cooker, press
the adjustment mode button ❼for
ive seconds until you hear a signal.
Continue the installation according
to step 3/6 point 3.

1514
PCU6.1F - Installation
Fixed 1-phase connection. OFF
1
Optional water
sensor connection.
See chapter 4.
2
6
4xA
A
A
A
B
42xB
3
7Don’t reconnect
the power to the
cooker yet.
ѥWARNING
Make sure that there is no power sup-
ply to the cooker and the oven by re-
moving their fuses. Also ensure that
the cooker is switched o.
OUT-wires are always energized when
the power control unit is connected
to the electrical network. If a wire is
loose, it must be properly covered.
Do not install the power control unit
to excessive heat: See operational
ambient temperature on the power
control unit Ⓒ.
⚐ATTENTION
Install the power control unit Ⓒ so
that it is not exposed to moisture.
Check that all cables can move freely.
If you are replacing a cooker, press
the adjustment mode button ❼for
ive seconds until you hear a signal.
Continue the installation according
to step 3/6 point3.
* Check speciications on the cover
of the Power Control Unit.
OUTIN
PE
L/N
L
PE
N
L
230 V MAX. 25 / 32 A *
MICRO DISCONNECTION
42 mm
239 mm
113 mm
225,5 mm
78 mm
60 mm
60 mm
95 mm
5
OUT
3 x 6 mm2
L OUT
N
N
L
OUT
IN
IN
PE
X
IN
3 x 6 mm2

1716
PCU6.1P - Installation
1-phase, 3-pin plug.
Optional water
sensor connection.
See chapter 4.
4
3
6
4xA A
A
A
B
2xB
Connect
the stove
with 3-pin
plug.
7
2
8Don’t reconnect
the power to the
cooker yet.
OFF
1
ѥWARNING
Make sure that there is no power sup-
ply to the cooker and the oven by re-
moving their fuses. Also ensure that
the cooker is switched o.
OUT-wires are always energized when
the power control unit is connected
to the electrical network. If a wire is
loose, it must be properly covered.
Do not install the power control unit
to excessive heat: See operational
ambient temperature on the power
control unit Ⓒ.
⚐ATTENTION
Install the power control unit Ⓒ so
that it is not exposed to moisture.
Check that all cables can move freely.
If you are replacing a cooker, press
the adjustment mode button ❼for
ive seconds until you hear a signal.
Continue the installation according
to step 3/6 point3.
239 mm
40 mm
113 mm
* Check speciications on the cover
of the Power Control Unit.
OUTIN
PE
L/N
L
PE
N
L
230 V MAX. 25 / 32 A *
MICRO DISCONNECTION
226 mm
99 mm
95 mm
L
N/L
PE
IN
5

1918
PCU6.1S - Installation
1-phase, Schuko-connectors.
Optional
water sensor
connection.
See chapter
4.
A
A
A
Mount the power control unit Ⓒ on
the wall behind the cooker or into
the cabinet next to the cooker.
2
4xA
3
OUT
IN
4Don’t reconnect
the power to the
cooker yet.
OFF
1
ѥWARNING
Make sure that there is no power sup-
ply to the cooker and the oven by re-
moving their fuses. Also ensure that
the cooker is switched o.
OUT-wires are always energized when
the power control unit is connected
to the electrical network. If a wire is
loose, it must be properly covered.
Do not install the power control unit
to excessive heat: See operational
ambient temperature on the power
control unit Ⓒ.
⚐ATTENTION
Install the power control unit Ⓒ so
that it is not exposed to moisture.
Check that all cables can move freely.
If you are replacing a cooker, press
the adjustment mode button ❼for
ive seconds until you hear a signal.
Continue the installation according
to step 3/6 point3.
225,5 mm
95 mm
L = 700 mm
46,5 mm
+ Schuko
239 mm
113 mm
OUTIN
PE
L/N
L
PE
N
L
230 V MAX. 16 A
MICRO DISCONNECTION

2120
Connect the power supply Ⓓ to the Sensor unit Ⓐ: indicator light panels ❽are
lit in purple.
Press the adjustment mode but-
ton ❼: indicator light panels ❽
start blinking purple-blue.
2
1
Without extinguisher unit Ⓔ:With optional extinguisher unit Ⓔ:
Ensure that the connection hub Ⓕis
connected between sensor unit Ⓐand
power supply Ⓓ.
When the indicator light panels ❽start blinking yellow-green, you need to cali-
brate the system. Choose from the two options:
Check that the indicator light for normal activity ❹blinks every ive seconds.
Option 1:
Cooker and oven are connected
to the Power Control Unit Ⓒ.
1
2
Option 2:
Only cooktop is connected to
the Power Control Unit Ⓒ.
Turn on the biggest cooker plate with
maximum power and press the OK-
button ❷. When you hear
a sound signal, turn o the
cooker.
ѧHINT
With induction cooker, use a compat-
ible dish.
Turn on the oven and press the child
proof lock button ❶. When you hear
a sound signal, turn o the
oven.
Ⓒ
ⒸⒸ
tai
or
Put back the fuses for the cooker
and the oven. The Power Control
Unit Ⓒ will now contact the Sen-
sor unit Ⓐwhich gives a sound signal
(•••).
3
ѧHINT
You can re-start the installation pro-
cess from step 3/6 point 3 anytime
by pressing the adjustment mode
button ❼for ive seconds until you
hear the signal.
ON
Installation - Step 3/6 Set up the wireless connection Installation - Step 4/6 Calibrate the system

2322
Adjust the alarm limit according to the reference table above. The default alarm
limit is 6.
First, go to the adjustment mode:
2
Check the clos-
est recommended
alarm limit from the
reference table on the
right.
The range is 112:
1 = reacts fastest
12 = reacts slowest
Then, adjust the alarm limit:
Lower the alarm
limit (-1): press the
lock button ❶.
Raise the alarm
limit (+1): press the
OK-button ❷.
= default
1
Press the adjustment
mode button ❼:
indicator light panels ❽
lit white.
12
11
10
9
8
7
6
5
4
3
2
1
Installation - Step 5/6 Adjust the alarm limit
When you adjust
the alarm limit, the
new alarm limit is
indicated as shown in the
table on the right.
3
ѥWARNING
Do not set the alarm limit higher than
9 during the installation.
If the alarm limit is set too high, the
appliance may fail to detect a hazard-
ous situation in time.
ѧHINT
You may check the
alarm limit by pressing
the adjustment mode
button ❼twice.
Location of the
Cooker
Installation
Height
Alarm Limit
(112)
In a corner 75 cm 6*
65 cm 7
55 cm 8
45 cm 9
Next to a wall 75 cm 5
65 cm 6*
55 cm 7
45 cm 8
In an island 75 cm 4
65 cm 5
55 cm 6*
45 cm 7
* Default
Color of the indicator
light panels ❽
Number of
beeps Alarm Limit
Red
••• ••• 12
••• •• 11
••• • 10
••• 9
•• 8
• 7
Blue
••• ••• 6 (default)
••• •• 5
••• • 4
••• 3
•• 2
• 1

2524
Check the working order of the appliance and ill in the installation checklist:
≅All the burners of the cooker cause a child proof
lock alarm.
≅The oven (if connected) causes the child proof
lock alarm. The sound signal is lower than the
signal from the cooker child proof lock.
≅The child proof lock turns o the oven and all the
burners.
≅The indicator light panels ❽are not lit red after
installation.
≅The alarm limit is set according to the cooker
location.
≅With optional extinguisher unit : Ensure that the
connection hub Ⓕis connected between sensor
unit Ⓐand power supply Ⓓby pressing OK-but-
ton: the stove guard should beep once and the
light panels ❽blink green three times.
_______________________________
Installation date
_______________________________
Installation place
_______________________________
Installer
Installation - Step 6/6 Check-list 3. Installation troubleshooting
Problem Remedy
Installation is not
proceeding as expected.
You can re-start the installation process anytime by
pressing the adjustment mode button ❼for ive
seconds until you hear the signal and continue from
step 3/6.
The sensor unit Ⓐis not
responding to any button
and none of the indicator
lights are lit.
Ensure that the power supply Ⓓis connected
correctly to the wall socket and that the socket has
power.
None of the cooker plates
cause a child proof lock
alarm.
The wireless connection has not been properly
made: redo the installation starting from step 3/6.
The appliance turns o the
power from the cooker, but
the power comes back on
immediately.
Make sure that the Power Control Unit Ⓒis
connected correctly – in other words, the cooker is
connected to the OUT cable.
If the light panels ❽are
constantly lit red after the
installation, the appliance
is faulty.
See user manual chapter 5. Troubleshooting

2726

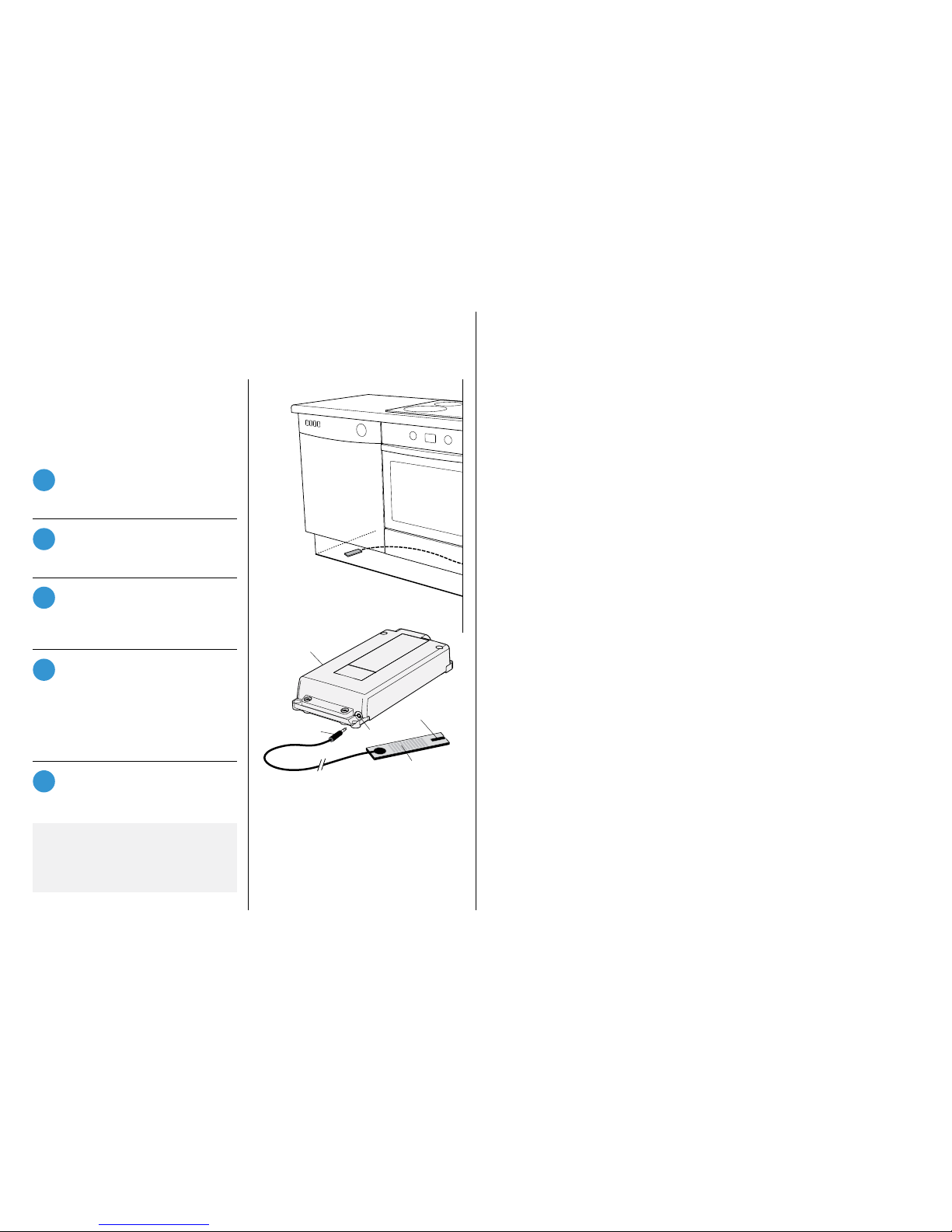

4.Installing the Water Leakage Sensor
(optional)
Stove Guard can be equipped with max.
four Safera Water Leakage Sensors. The
sensors are placed in the typical leak-
age areas, e.g. under the dishwasher or
sink.
Attach the sensors Ⓕin place.
1
ѧHINT
If the sensor is left wet, the appliance
will give another alarm in an hour af-
ter signing o the previous one.
Attach the plug Ⓖ of the leakage
sensor to the Power Control Unit
Ⓗ.
2
If there is an extra sensor, its plug
Ⓖis connected to the connector
Ⓘof the previous sensor.
3
Check the operation of the fur-
thest sensor Ⓕby placing a damp
paper towel against it for 15 sec-
onds. When the water is detected, the
Sensor unit Ⓐgives a sound signal, the
warning light for water leakage ❻blinks
and light panels ❽blink blue.
4
Reset the leakage alarm by press-
ing the OK button ❷. Clean and
dry the sensor.
5
Ⓒ
Ⓕ
ⒼⒽ
Ⓘ

28
