Saflok LPI User manual

Lock Programmer-Interrogator/
Emergency Lock Power Supply
(LPI/ELPS)
Lock Battery
Override Instructions
For DeskLinc™
All information contained herein, including but not limited to product pricing and other intellectual property, is confidential and
intended for the sole use of the addressee(s) so named. Any misuse of this confidential information contained herein may result in
legal action by Computerized Security Systems dba SAFLOK and its parent company.
© SAFLOK™, all rights reserved. WL 4/21/2009

Lock Battery Override Instructions – DeskLinc™ Pg. 2 of 6
Introduction
When connected to the handheld unit, the Lock Programmer-Interrogator/Emergency Lock Power Supply
(LPI/ELPS) is used to program locks, interrogate locks, and open locks that have dead internal batteries.
This device is used more frequently for lock programming and interrogation.
The emergency power battery pack is not required for lock programming and interrogation and is only
necessary when unlocking a lock with a dead battery. The battery pack is therefore removable when not
required, as it is connected with Velcro. It is also the same as a lock battery pack, which may be
substituted.
Note: A lock with a dead battery will not flash any lights after a keycard is used. If a lock displays flashing
lights after a keycard is used, please consult your lock or system manual to troubleshoot other conditions.

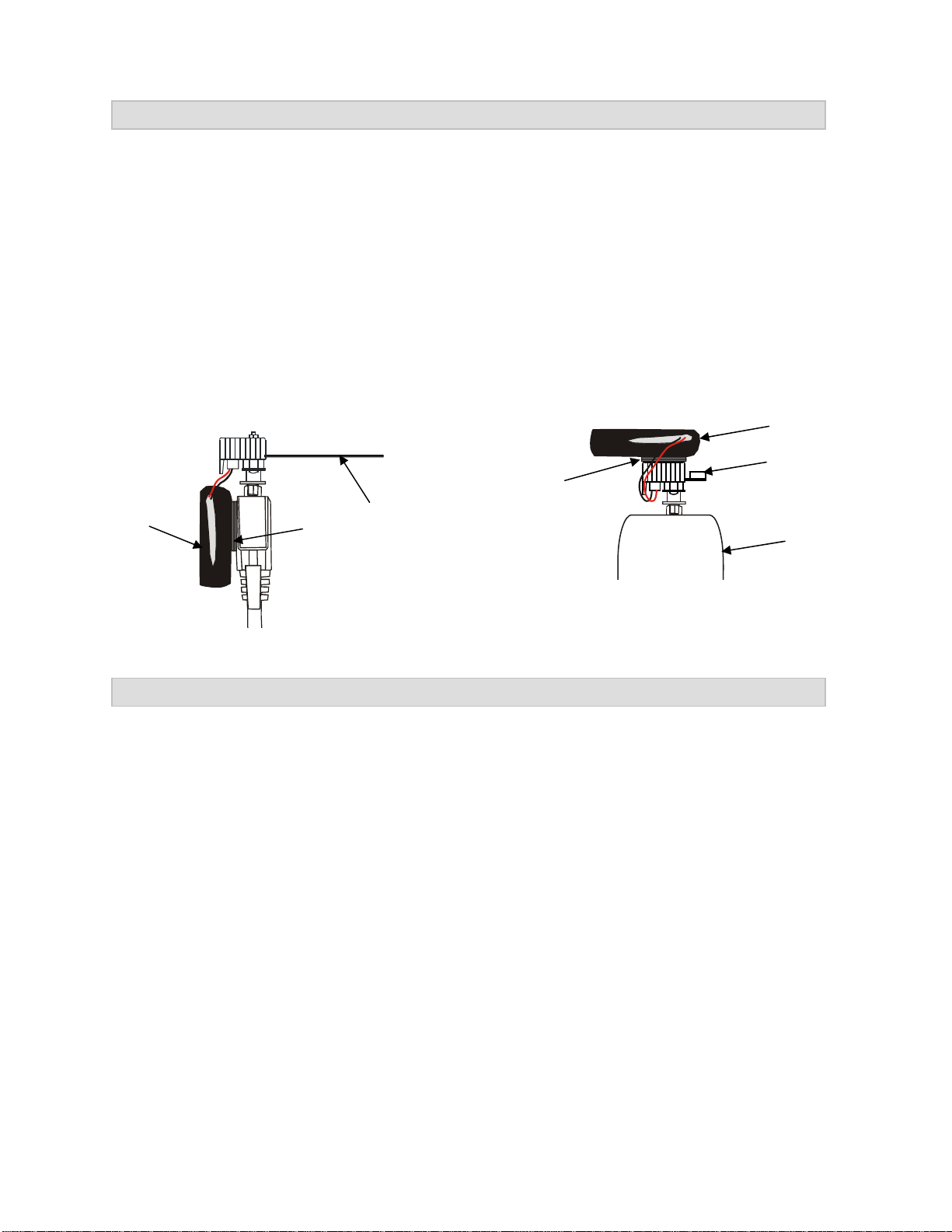

Battery Pack
LPI/ELPS Device for RFID Locks
Velcro
Battery Pack Probe
LPI/ELPS Device for Magstripe and Smart Card Locks
USB Cord
Connection
Velcro
Handheld Unit
Required Equipment
For Magstripe/Smartcard Locks:
•Kit 72410-B
oLPI/ELPS device (p/n 72410)
oSAFLOK battery pack (p/n A28110)
oMale DB25 parallel cable (p/n 754380)
oVelco (p/n A27760-Black)
•DeskLinc™ handheld module (p/n 701510-X)
•SAFLOK SL2500 ASIC or MT series locks (software version 81305 or higher)
For RFID Locks:
•Kit 72400-B
oLPI/ELPS device (p/n 72400)
oMini USB Cable (p/n 71490)
oSAFLOK battery pack (p/n A28110)
oVelco (p/n A27760-Black)
•DeskLinc™ handheld module (p/n 701510-X)
•SAFLOK SL2500 ASIC or MT series locks (software version 81305 or higher)
© SAFLOK™, all rights reserved. WL 4/21/2009

Lock Battery Override Instructions – DeskLinc™ Pg. 3 of 6
Overriding Dead Lock Batteries with the LPI/ELPS
1. At the DeskLinc Sign On screen, type your 3-10 character
password (if needed) and press ENTER. Password__________
Room #________
Checkout in 1 days
Make 1 keys –max 99
1.NEW ROOM KEY
2.DUPL ROOM KEY
3.NEW SUITE KEY
4.DUPL SUITE KEY
More Options
2. At the initial screen, press ENTER three times to move the cursor
to the transaction menu item.
Room #________
Checkout in 1 days
Make 1 keys –max 99
4.DUPL SUITE KEY
5.LIMITED USE KEY
6.ADDITIONAL MENU
7.PROGRAM LOCKS
More Options
3. Press 7or use the DOWN ARROW (▼) key to move the cursor
to “7. PROGRAM LOCKS.” Press ENTER.
S010: SELECT OPTION
0.Not programming
1.Completely Program
2.Use ELPS to Unlock
or ESC to EXIT
4. Press 2or use the DOWN ARROW (▼) key to move the cursor
to “2. Use ELPS to UNLOCK.” Press ENTER.
Select Master Key:
1)1
Enter 1-1, 0=more 0_
5. Press 1, then press ENTER.
© SAFLOK™, all rights reserved. WL 4/21/2009

Lock Battery Override Instructions – DeskLinc™ Pg. 4 of 6
Overriding Dead Lock Batteries with the LPI/ELPS (continued)
6. Connect the LPI/ELPS to the top of the handheld, be sure that
the battery pack is connected, and then press ENTER to
continue.
M254: Disconnect
Terminal Cables and
Connect LPI Probe
** PRESS ANY KEY **
7. Press 6or use the DOWN ARROW (▼) key to move the cursor
to “6. Open With ELPS Key.” Then press ENTER. S003: PROGRAM MENU 1
1.Program Lock
2.Update Lock Clock
3.Connect to Station
4.Lock Vers/LED Diag
6.Open With ELPS Key
8. At the M252 screen, connect the probe to the DeskLinc
handheld, plug in the battery, and then press ENTER. M252: Press Any Key
and THEN Insert LPI
Probe into Lock!
(Press esc to Abort)
•For magstripe and smart locks, insert the LPI/ELPS device into
the lock’s card reader slot.
•For RFID locks, plug in the probe’s USB cable to the port on the
lock.
9. The M251 screen will display until lock programming is
complete. M251: Please Wait
Programming the Lock
10. As soon as the M236 screen appears, turn the lock’s handle to
open the door with the LPI/ELPS inserted. M236:ELPS is powered
and the lock is open
Please turn handle
Press Any Key
© SAFLOK™, all rights reserved. WL 4/21/2009

Lock Battery Override Instructions – DeskLinc™ Pg. 5 of 6
Overriding Dead Lock Batteries with the LPI/ELPS (continued)
11. After the door has been opened, remove the LPI/ELPS, then
press ESC.
M243: REMOVE PROBE
Press Any Key to
Program More Locks
or ESC to Stop
12. Press ANY KEY if you want to open more locks. You will then return to Step 8 for programming
another lock.
S003: PROGRAM MENU 1
1.Program Lock
2.Update Lock Clock
3.Connect to Station
4.Lock Vers/LED Diag
6.Open With ELPS Key
13. When you are done opening the lock, press 3 or use the
DOWN ARROW (▼) key to move the cursor to “3. CONNECT
TO STATION” from the Screen 003 Program Menu 1. The 253
screen will appear.
M253: Disconnect LPI
Probe and Reconnect
Terminal Cables
** PRESS ANY KEY **
14. Unplug the battery and disconnect the LPI/ELPS Probe from
the handheld device.
15. Replace the handheld device into its base and reconnect the
RS232 Cable. Connect the printer cable if a printer is used.
16. Press ANY KEY. The M237 screen indicates that the handheld
device is re-establishing communications with its encoder. M237: PLEASE WAIT
Terminal is Signing
Onto Station
*** ESC to Abort ***
•If you are using your main DeskLinc computer terminal and it is connected to an encoder, the M237
screen will display very quickly. You can proceed to Step 17.
•If you are using your spare DeskLinc computer terminal and it is not connected to an encoder, press
ESC at the M237 screen If you press ESC at the M237 screen, the terminal will skip
communications. You can then proceed to Step 17.
© SAFLOK™, all rights reserved. WL 4/21/2009

Lock Battery Override Instructions – DeskLinc™ Pg. 6 of 6
Overriding Dead Lock Batteries with the LPI/ELPS (continued)
17. At S004 screen, press 1or use the DOWN ARROW (▼) key to move
the cursor to “1. Exit Transaction,” then press ENTER. The handheld
device will return to the Password screen.
S004: PROGRAM MENU 2
1.Exit Transaction
2.Collect Lock Data
3.Program More Locks
4.Make Program Keys
18. At this point the ELPS feature has been disabled and the handheld device should be returned to its
base.
Important: The battery pack will be drained of its power if it stays connected to the handheld. Please
remove the battery pack from the LPI/ELPS when it is not in use.
Questions? Call Customer Service at 800.999.6213 and select option 3.
© SAFLOK™, all rights reserved. WL 4/21/2009
