Sage Smart Oven Pro BOV820 User manual

EN USER GUIDE
the Smart Oven®Pro
BOV820 / SOV820

6

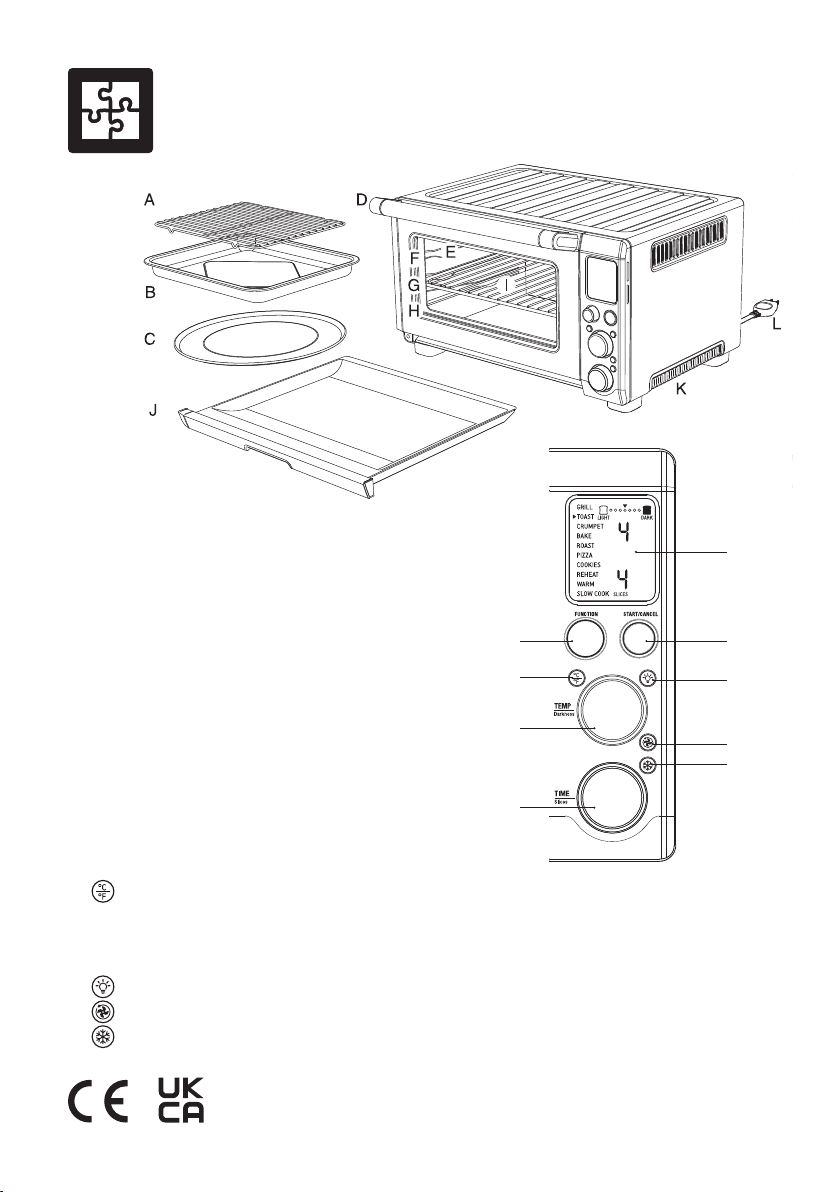

A. Grilling rack
B. 28 x 33.5cm enamel roasting pan
C. 30cm non-stick pizza pan
D. Door handle
E. Oven light
F. Top rack height position: GRILL function.
G. Middle rack height position:TOAST, Crumpet,
PIZZA and COOKIES functions.
H. Bottom rack height position: BAKE, ROAST,
REHEAT, WARM and SLOW COOK functions.
I. Wire rack
J. Crumb tray
K. Ventilation slots
L. Power Plug
M. LCD screen
N. START/CANCEL button
O. FUNCTION dial
P. TEMPERATURE conversion button
Q. TEMPERATURE dial/toast and crumpet
darkness control
R. TIME dial/toast and crumpet slice selection
S. OVEN LIGHT button
T. CONVECTION button
U. FROZEN FOOD button
M
N
S
T
U
O
P
Q
R
Rating Information
220–240V ~ 50Hz 2000–2400W
Components

7
EN
Quick Start Guide
This Quick Guide is designed for rst time use.
For safety and more information, refer to rest of the Instruction Booklet.
PREPARING THE OVEN
In order to remove any protective substances
on the heating elements, it is necessary to run
the oven empty for 15 minutes. Ensure the area
is well ventilated as the oven may emit vapours.
These vapours are safe and are not detrimental
to the performance of the oven.
1. Remove and safely discard any packing
material, promotional labels and tape from
the oven.
2. Remove the crumb tray, wire rack, grilling rack,
roasting pan and pizza pan from the polyfoam
packaging.Wash them with a soft sponge in
warm, soapy water then rinse and dry thoroughly.
3. Wipe the interior of the oven with a soft,
damp sponge. Dry thoroughly.
4. Place the oven on a at, dry surface. Ensure
there is a minimum distance of 10cm of space
on both sides of the appliance and 15cm above.
5. Insert the crumb tray into the oven.
6. Unwind the power cord completely and insert
the power plug in to a grounded power outlet.
7. The oven alert will sound and the LCD screen
will illuminate.The function options will appear
with an indicator on the BAKE setting.
8. Turn the FUNCTION dial to the right until the
indicator reaches the PIZZA function.
9. Press the START/CANCEL button.The button
backlight will illuminate red, the LCD screen will
illuminate orange and the oven alert will sound.
10.The LCD screen will indicate a blinking
‘PREHEATING.’ Once the oven has reached the
set temperature, the temperature alert will sound.
11.The timer will be displayed and automatically
begin to count down.
12.At the end of the cooking cycle, the oven
alert will sound, the START/ CANCEL button
backlight will go out and the LCD screen
will illuminate blue.
13.The oven is now ready to use.

8
Functions
OPERATING YOUR OVEN
1. Position the wire rack so the spokes face
upward and insert it into the desired rack
position.The rack positions are conveniently
printed on the right-hand side of the oven
door window.
2. Turn the FUNCTION dial until the indicator on
the LCD screen reaches the desired setting.
3. Turn the TEMPERATURE dial to the left
to reduce the temperature or to the right
to increase the temperature.
4. The bottom gure on the LCD screen indicates
the preset cooking time for the selected setting.
For theTOAST and CRUMPET settings it
indicates the number of slices.Turn the TIME
dial to the left to reduce the cooking time
or to the right to increase the cooking time.
5. For settings without a preheat cycle (TOAST,
CRUMPET, GRILL, REHEAT, WARM),
place the food directly on the wire rack or on
the included pizza pan, grilling rack and/or
roasting pan. Ensure the food is centred
in the oven for the most even cooking.
a) Close the oven door.
b) Press the START/CANCEL button.
The button backlight will illuminate red,
the oven alert will sound, and the LCD
screen will illuminate orange.
c) The timer will be displayed and begin to count
down.The cooking temperature and time
can be adjusted during the cooking cycle.
6. For settings that feature a preheat cycle
(BAKE, ROAST, PIZZA, COOKIES, SLOW
COOK), press the START/CANCEL button
before placing food in the oven.The button
backlight will illuminate red, the oven alert
will sound and the LCD screen will indicate
a blinking ‘PREHEATING’ while the oven
is heating up.
a) When the oven is ready for use, the blinking
‘PREHEATING’ will go out, the oven alert will
sound and the timer will start counting down.
Place the food in the oven, either directly
on the wire rack or on the included pizza pan,
grilling rack and/or roasting pan. Ensure the
food is centred in the oven for the most
even cooking.
b) Close the oven door.
c) The timer will continue to count down.
The cooking temperature and time can
be adjusted during the cooking cycle.
7. At the end of the cooking cycle, the oven
alert will sound, the START/ CANCEL button
backlight will go out and the LCD screen
will illuminate blue.
MAGNETIC AUTO-EJECT RACK
When the wire rack is inserted into the middle
rack position, it will automatically eject halfway
out of the oven when the door is opened so
you can easily remove your toasted items.
Always open the door slowly when the wire rack
is in this position to prevent the rack from ejecting
too quickly.
NOTE
The top of the oven is very hot during and after
operation. As a result, storing items on top
of the oven is not recommended.
The Sage Bamboo Cutting Board ts
in the ribbed section on top of the oven.Visit
www.sageappliances.com for more information.

9
EN
Always unplug oven and let cool before replacing
bulb. Only use a 25-Watt, 220–240V, G9 type
oven bulb.
1. Remove the wire rack from the oven before
replacing the light.
2. The light is positioned on the left-hand side
of the oven cavity. Position your ngers on the
outside of the light housing and gently pull the
glass cover away from the oven wall to remove
it. If you are unable to pull the cover o, slide
a spoon into the left side of the light housing
and gently lever the glass cover o. Always
hold the glass cover with the other hand to
prevent the cover from falling and breaking.
3. Remove the used bulb by pulling it directly out
of its holder.
4. Use a soft cloth to insert the new bulb.
Do not directly touch the surface of the bulb
with your ngers as oil from your skin can
damage the bulb.
5. To reattach the glass cover, align the metal
hook with the left side of the light housing.
Slide the opposite end of the glass cover into
the metal bracket on the right side of the housing,
then push the metal hook into the left side of the
housing until it snaps securely into position.
REPLACING THE OVEN LIGHT
WARNING

10
Before cleaning, ensure the oven is turned o by
pressing the START/CANCEL button on the control
panel. The oven is o when the button backlight is
no longer illuminated.
Remove the power plug from the power outlet.
Allow the oven and all accessories to cool
completely before disassembling and cleaning.
CLEANING THE OUTER BODY
AND DOOR
1. Wipe the outer body with a soft, damp sponge.
A non-abrasive liquid cleanser or mild spray
solution may be used to avoid build-up of stains.
Apply the cleanser to the sponge, not the oven
surface, before cleaning.
2. To clean the glass door, use a glass cleaner
or mild detergent and a soft, damp sponge or
soft plastic scouring pad. Do not use an abrasive
cleanser or metal scouring pad as these will
scratch the oven surface.
3. Wipe the LCD screen with a soft damp cloth.
Apply cleanser to the cloth and not the LCD
surface.Cleaning with dry cloth or abrasive
cleaners may scratch the surface.
4. Let all surfaces dry thoroughly prior to inserting
the power plug into a power outlet and turning
the oven on.
CLEANING THE INTERIOR
The walls on the inside of the oven feature a
non-stick coating for easy cleaning.To clean any
spattering that may occur while cooking, wipe the
walls with a soft, damp sponge. A non-abrasive
liquid cleanser or mild spray solution may be used
to avoid build-up of stains. Apply the cleanser to
the sponge, not the oven surface, before cleaning.
Avoid touching the quartz heating elements.
WARNING
Use extreme caution when cleaning the quartz
heating elements. Allow the oven to cool completely,
then gently rub a soft, damp sponge or cloth along
the length of the heating element.
Do not use any type of cleanser or cleaning agents.
Do not use any standard oven cleaner to clean the
interior of the oven as this will deteriorate the metal
surface.
Let all surfaces dry thoroughly prior to inserting
the power plug into a power outlet and turning the
oven ON.
CLEANING THE CRUMB TRAY
1. After each use, slide out the crumb tray
and discard crumbs.Wipe the tray with a soft,
damp sponge. A non-abrasive liquid cleanser
may be used to avoid build-up of stains.
Apply the cleanser to the sponge, not the tray,
before cleaning. Dry thoroughly.
2. To remove baked-on grease, soak the tray
in warm soapy water then wash with a soft
sponge or soft plastic scouring pad.
Rinse and dry thoroughly.
3. Always ensure to re-insert the crumb tray into
the oven after cleaning and prior to inserting
the power plug into a power outlet and turning
the oven on.
CLEANING THE WIRE RACK,
GRILLING RACK, ROASTING PAN
AND PIZZA PAN
1. Wash all accessories in warm soapy water
with a soft sponge or soft plastic scouring pad.
Rinse and dry thoroughly. Do not use abrasive
cleansers, metal scouring pads or metal utensils
to clean any of the accessories as they may
damage the surfaces.
2. To extend the life of your accessories,
we do not recommend that these be placed
in the dishwasher.
STORAGE
1. Ensure the oven is turned o by pressing the
START/CANCEL button on the control panel.
The oven is o when the button backlight
is no longer illuminated.
2. Remove the power plug from the power outlet.
Allow the oven and all accessories to cool
completely before disassembling and cleaning
3. Ensure the oven and all accessories are clean
and dry.
4. Ensure the crumb tray is inserted into the oven;
the grilling rack is inserted into the roasting pan
and resting on the wire rack in the middle rack
height position.
5. Ensure the door is closed.
6. Store the appliance in an upright position
standing level on its support legs. Do not
store anything on top.The only exception
is the optional Sage Bamboo Cutting Board
and Serving Tray.
Care & Cleaning

11
EN
POSSIBLE PROBLEM EASY SOLUTION
Oven will not switch “ON.” • Check that the power plug is securely inserted into the outlet.
• Insert the power plug into an independent outlet.
• Insert the power plug into a dierent outlet.
• Reset the circuit breaker if necessary.
I would like to have the oven
LCD default settings back.
• The oven will remember the last setting used for each function
unless you remove the plug from the power outlet.
• To restore the oven’s default settings for each function, remove
the plug from the power outlet.Wait 5 seconds, then plug back in.
The LCD display light has
gone out.
• The oven goes into standby mode if not used for 10 minutes.
When in standby mode, the LCD screen will cease to illuminate,
however all function options will still be visible.
• To re-activate the oven out of standby mode, press the
START/CANCEL button on the control panel, or turn any dial.
The LCD screen will re-illuminate.
The pizza does not cook
evenly.
• Some large pizzas may brown unevenly in compact ovens.
Open the oven door half way through the cooking time
and turn the pizza 90 degrees for more even darkness.
The Magnetic Auto-Rack
Eject comes out too far
when I open the door.
• Always open the door slowly and in a controlled manner when
the wire rack is inserted into the middle rack height position
to prevent the wire rack from ejecting too quickly.
I cannot select the FROZEN
FOOD button.
• The FROZEN FOOD button is only selectable during the TOAST,
CRUMPET, PIZZA and COOKIES functions.
Steam is coming out from
the top of the oven door.
• This is normal.The door is vented to release steam created
from high-moisture content food such as frozen breads.
The heating elements
appear to be pulsing.
• Element IQ™accurately controls the heat inside the oven
by pulsing the power in the heating elements in short bursts.
This is normal.
Water is dripping onto the
bench top from under door.
• This is normal.The condensation created from high moisture
content food such as frozen breads will run down the inside
of the door and can drip onto the bench top.
The temperature reading
on the LCD screen doesn’t
match the temperature
measured inside the oven.
• To ensure the measurements are standardized, the oven
temperatures have been calibrated in the TOAST position (centre
of the middle rack with no tray in place). Re-check the temperature
in this position, ensuring not to open the oven door for 10 minutes
as heat will escape each time the door is opened. Note that the
‘preheat’ alert sounds at 75% of the target temperature.
Troubleshooting

12
POSSIBLE PROBLEM EASY SOLUTION
The ‘preheat’ alert sounds
at a lower temperature than
what is displayed on the
LCD screen.
• The ‘preheat’ alert sounds at 75% of the target temperature.
This provides the fastest, combined preheating and cooking time.
• This is because when the ‘preheating’ alert sounds, signalling
the user to open the oven door and insert food, there is dramatic
temperature loss inside the oven.If the alert sounded at 100%
of the target temperature, opening the door would mean a lot of
this waiting time is “wasted.” We have calculated that by sounding
the alert at 75% of the target temperature, followed by the oven
door being opened to place food inside the oven, that we still
recover to the target temperature up to 2 minutes faster.This
is why the temperature on the LCD screen does not match the
target temperature at the‘preheat’ alert. In total, it takes the oven
approximately 8–10 minutes from start-up, including opening the
oven door when the ‘preheat’ alert sounds, to reach the target
temperature.To ensure the fastest heat up time, the Sage oven uses
the maximum allowable power from the outlet (1500W for baking,
2400W for toasting).
The LCD screen displays
‘E01.’
• The LCD screen will display ‘E01’ when there is a non-resettable
issue with the appliance. Should this occur, immediately remove the
power cord from the power outlet and call Sage Customer Service.
The LCD screen displays
‘E02.’
• The LCD screen will display ‘E02’ when there is a non-resettable
issue with the appliance. Should this occur, immediately remove the
power cord from the power outlet and call Sage Customer Service.
The LCD screen displays
‘E03.’
• The LCD screen will display ‘E03’ if the oven temperature is above
the set maximum limit. Remove the plug from the power outlet,
allow the oven to cool for 15 minutes, then plug back in.
• Call Sage Customer Service if the ‘E03’ message continues.
The LCD screen displays
‘E04.’
• The LCD screen will display ‘E04’ if the room temperature is below
the set minimum. Unplug the oven and relocate to a warmer area.
The LCD screen displays
‘E05.’
• The LCD screen will display ‘E05’ when there is a non-resettable
issue with the appliance. Should this occur, immediately remove the
power cord from the power outlet and call Sage Customer Service.
