Sagem F@st 2644 User manual

SAGEM F@stTM 2604
SAGEM F@stTM 2644
Reference Manual
253 080 888-A
Edition of May 2008

SAGEM F@st™ 2604/2444 Reference Manual - 253080888-A
Sagem Communications document. Reproduction and disclosure prohibited Page 0-1
Sagem Communications assiduously monitors technical developments and is constantly
seeking to improve its products in order to let its clients take full advantage of them. It therefore
reserves the right to modify its documentation accordingly without notice.
All brands mentioned in this guide are registered by their respective owners:
- SAGEM F@st™ is a registered brand of Sagem Communications.
- WindowsTM and Internet ExplorerTM are registered brands of Microsoft Corporation.
The purpose of this reference manual is to give users the functions for operating and managing
the equipment. The only access level required (Administrator) is protected by a password and
allows one to access these functions in read and write mode for all the user and network
parameters (Login: admin; password: admin).
Configuration of the router by HTTP is described in detail (cf. section 5).
To ease legibility of the reference manual, the term "router" will be used throughout the
document to designate SAGEM F@stTM 2604 and SAGEM F@stTM 2644 equipment.
Guide to symbols used in this manual
Warns you not to do an action, or commit a serious omission.
Gives you important information which you must take into account

SAGEM F@st™ 2604/2444 Reference Manual - 253080888-A
Page 0-2 Sagem Communications document. Reproduction and disclosure prohibited
How should the document be used?
This reference manual is organised into sections and annexes. These sections and annexes
cover the following subjects.
Section 1 Presentation of SAGEM F@stTM 2604 and 2644 equipment
Section 2 Description of SAGEM F@stTM 2604 and 2644 equipment
Section 3 Installation of SAGEM F@stTM 2604/2644 equipment
Section 4 Configuration of network parameters
Section 5 Configuration of the router by HTTP
Section 6 Description of Internet access service
Section 7 Description of TV over ADSL service
Section 8 Updating the application
Annex A Troubleshooting
Annex B CE compliance declaration
Annex C Environment
Annex D Technical Characteristics
Annex E Default configuration
Annex F Glossary
Annex G Connection technology

SAGEM F@st™ 2604/2444 Reference Manual - 253080888-A
Sagem Communications document. Reproduction and disclosure prohibited Page 0-3
Contents
Pages
Guide to symbols used in this manual 0-1
How should the document be used? 0-2
Contents 0-3 to 0-6
List of figures 0-7
1. Introduction 1-1
1.1 Presentation 1-2
1.2 Composition of router pack 1-4
1.3 (Minimum) prerequisites 1-5
2. Description and connection of router 2-1
2.1 Description 2-2
2.1.1 Connectors 2-3
2.1.2 LEDs 2-4
2.2 Connecting the ports of your router 2-5
2.3 Installing your SAGEM F@stTM 2604/2644 2-6
2.3.1 Powering up 2-6
2.3.2 Connecting the ADSL cable 2-6
2.3.3 Connecting to your computer 2-8
2.3.3.1 Connecting the Ethernet interface of your router to your computer 2-8
2.3.3.2 Connecting the Wi-Fi interface of your router to your computer 2-9
2.3.4 Connecting the Ethernet interface of your router to your TV decoder 2-10
2.4 Installation instructions 2-11
3. Installing and configuring the SAGEM F@stTM 2604/2644 router 3-1
4. Configuration of network parameters 4-1
5. Information / Configuration 5-1
5.1 Accessing the welcome screen 5-2
5.2 Recommendations 5-4
5.3 ADSL connection status 5-5
5.4 Display frame 5-5

SAGEM F@st™ 2604/2444 Reference Manual - 253080888-A
Page 0-4 Sagem Communications document. Reproduction and disclosure prohibited
5.5 Status 5-6
5.5.1 Summary 5-6
5.5.2 Diagnostics 5-7
5.6 Internet Connection 5-9
5.7 Wireless 5-10
5.7.1 Basic 5-10
5.7.1.1 Wireless - Basic 5-11
5.7.1.2 Quick Wireless - Security - Configuration 5-12
5.7.2 Security 5-15
5.7.2.1 Network Authentication 5-17
5.7.3 MAC Filter 5-33
5.7.4 Advanced 5-35
5.7.5 Quality of Service 5-39
5.8 NAT 5-42
5.8.1 Port forwarding 5-42
5.8.2 Port Triggering 5-47
5.8.3 DMZ Host 5-50
5.8.4 ALG 5-51
5.9 Advanced Setup 5-52
5.9.1 WAN 5-52
5.9.2 LAN 5-78
5.9.2.1 Advanced 5-80
5.9.3 Security 5-83
5.9.3.1 IP Filtering 5-83
5.9.3.2 Block Sites 5-87
5.9.4 Quality of Service 5-89
5.9.4.1 Queue Config 5-91
5.9.4.2 QoS Classification 5-93
5.9.5 Routing 5-98
5.9.5.1 Default Gateway 5-98
5.9.5.2 Static Route 5-99
5.9.5.3 RIP 5-101
5.9.6 DNS 5-103
5.9.6.1 DNS Server 5-103
5.9.6.2 Dynamic DNS 5-104
5.9.7 DSL 5-107
5.9.8 Port Mapping 5-110
5.9.9 Certificate 5-115
5.9.9.1 Local 5-115
5.9.9.2 Trusted CA 5-118
5.10 Advanced Status 5-120
5.10.1 WAN 5-120
5.10.2 Statistics 5-121
5.10.2.1 LAN 5-121
5.10.2.2 WAN 5-122
5.10.2.3 ATM 5-123
5.10.2.4 ADSL 5-124
5.10.3 Route 5-126
5.10.4 ARP 5-127
5.10.5 DHCP 5-128
5.10.6 Station Info 5-129

SAGEM F@st™ 2604/2444 Reference Manual - 253080888-A
Sagem Communications document. Reproduction and disclosure prohibited Page 0-5
5.11 Management 5-130
5.11.1 Settings 5-130
5.11.1.1 Backup 5-131
5.11.1.2 Update 5-133
5.11.1.3 Restore Default 5-134
5.11.2 System Log 5-135
5.11.3 SNMP Agent 5-140
5.11.4 TR-069 Client 5-142
5.11.5 Internet Time 5-144
5.11.6 Access Control 5-146
5.11.6.1 Services 5-146
5.11.6.2 IP Address 5-147
5.11.6.3 Passwords 5-149
5.11.7 Update Software 5-150
5.11.8 System Info 5-151
5.11.9 Save/Reboot 5-153
6. Internet access service 6-1
7. TV over ADSL service 7-1
7.1 Introduction 7-2
7.2 Access to the optional TV over ADSL service 7-2
8. Updating the firmware 8-1
A. Annex A - Troubleshooting A-1
A.1 Checking the assignment of an IP address A-2
A.2 Front panel LEDs A-3
A.3 Supervising your router A-4
A.4 "Diagnostics" tool A-5
A.5 Interpreting the LEDs A-7
A.5.1 The "ADSL" LED blinks slowly A-7
A.5.2 "Wi-Fi" LED off A-7
A.5.3 All LEDs are off A-7
A.6 Restarting your router A-8
A.7 Returning to the factory configuration A-8
A.8 Offline mode A-9
B. Annex B - Warnings for safety B-1
B.1 Warnings for safety B-2
B.1.1 Safety levels in relation to the case B-2
B.2 EC compliance declaration B-2

SAGEM F@st™ 2604/2444 Reference Manual - 253080888-A
Page 0-6 Sagem Communications document. Reproduction and disclosure prohibited
C. Annex C - Environment C-1
C.1 Directive E 2002/96/CE C-2
D. Annex D - Technical Characteristics D-1
D.1 Mechanics; Display D-2
D.2 Characteristics of the different interfaces D-3
D.3 Environmental characteristics D-5
D.4 Application and protocols D-6
E. Annex E - Default configuration E-1
E.1 Default username and password E-2
E.2 Default configuration for the local network(LAN) E-2
E.3 Default configuration for the local wireless network (WLAN) E-3
F. Annex F - Glossary F-1
G. Annex G - Connector Technology G-1
G.1 Pinouts of the " ADSL" connector G-2
G.2 Pinouts of the "PWR" connector G-2
G.3 Pinouts of the "ETH1", "ETH2", "ETH3" and "ETH4" connectors G-3

SAGEM F@st™ 2604/2444 Reference Manual - 253080888-A
Sagem Communications document. Reproduction and disclosure prohibited Page 0-7
List of figures
Figure 1.1 - Supervising your router .......................................................................................................... 1-2
Figure 2.1 - Overview of case.................................................................................................................... 2-2
Figure 2.2 - Interconnection of ports of SAGEM F@stTM 2604 et 2644 ..................................................... 2-5
Figure 2.3 - ADSL line / Power Supply Connection ................................................................................... 2-7

SAGEM F@st™ 2604/2444 Reference Manual - 253080888-A
Page 0-8 Sagem Communications document. Reproduction and disclosure prohibited

SAGEM F@st™ 2604/2444 Reference Manual - 253080888-A
Sagem Communications document. Reproduction and disclosure prohibited Page 1-1
1. Introduction
This section covers ¾presentation of the SAGEM F@stTM 2604 and
SAGEM F@stTM 2604 ranges
§ 1.1
¾composition of the packaging § 1.2
¾required hardware and software § 1.3

1 - Introduction
SAGEM F@st™ 2604/2444 Reference Manual - 253080888-A
Page 1-2 Sagem Communications document. Reproduction and disclosure prohibited
1.1 Presentation
This reference manual is dedicated to the SAGEM F@stTM 2604 and SAGEM F@stTM 2644
product ranges. These products are routers which give users, broadband Internet access from
their computer or their games console by various Ethernet (10 or 100 BASE-T) or Wi-Fi (IEEE
802.11g) interfaces via an ADSL/ADSL2/ ADSL2+ network.
Using these interfaces, this router enables you both to surf the Internet and to watch television.
It also lets you telephone over the Internet from an IP SIP telephone linked by Wi-Fi to your
router.
SAGEM F@stTM 2604 and SAGEM F@stTM 2644 products adapt the ADSL
function respectively for POTS (UIT G.992.1/3/5 - Annex A) and for ISDN
(UIT G.992.1/3/5 - Annex B).
Figure 1.1 - Supervising your router

1 - Introduction
SAGEM F@st™ 2604/2444 Reference Manual - 253080888-A
Sagem Communications document. Reproduction and disclosure prohibited Page 1-3
Its principal characteristics and functions are as follows:
¾High-performance secure Bridge/Router with ADSL/ADSL2/ADSL2+ interface,
¾User access:
•4 x 10/100BT Ethernet ports,
•1 Wi-Fi port (802.11b/g) by mini-PCI,
¾DHCP Client/Server/Relay,
¾DNS Server/ Relay,
¾Access control (FTP/TELNET/HTTP/SSH Client),
¾NAT/PAT router - FTP Compatibility, IRC, Net2Phone, Netbios, DNS, Netmeeting, VPN
passthrough (IPSec, IKE, PPTP, L2TP), CUSeeMe, RealAudio, Microsoft IM and others,
¾Security,
¾Firewall,
¾Spanning tree,
¾Multi-VC ATM and ATM Quality of service (CBR, UBR, VBR),
¾UpnP,
¾TR069,
¾QoS,
¾Upgrade Firmware (Local and Remote),
¾Backup/Restore and Upgrade configuration file (Local and Remote).

1 - Introduction
SAGEM F@st™ 2604/2444 Reference Manual - 253080888-A
Page 1-4 Sagem Communications document. Reproduction and disclosure prohibited
1.2 Composition of router pack
The router is supplied in a pack the composition of which changes according to the equipment
(SAGEM F@stTM 2604 and SAGEM F@stTM 2644):

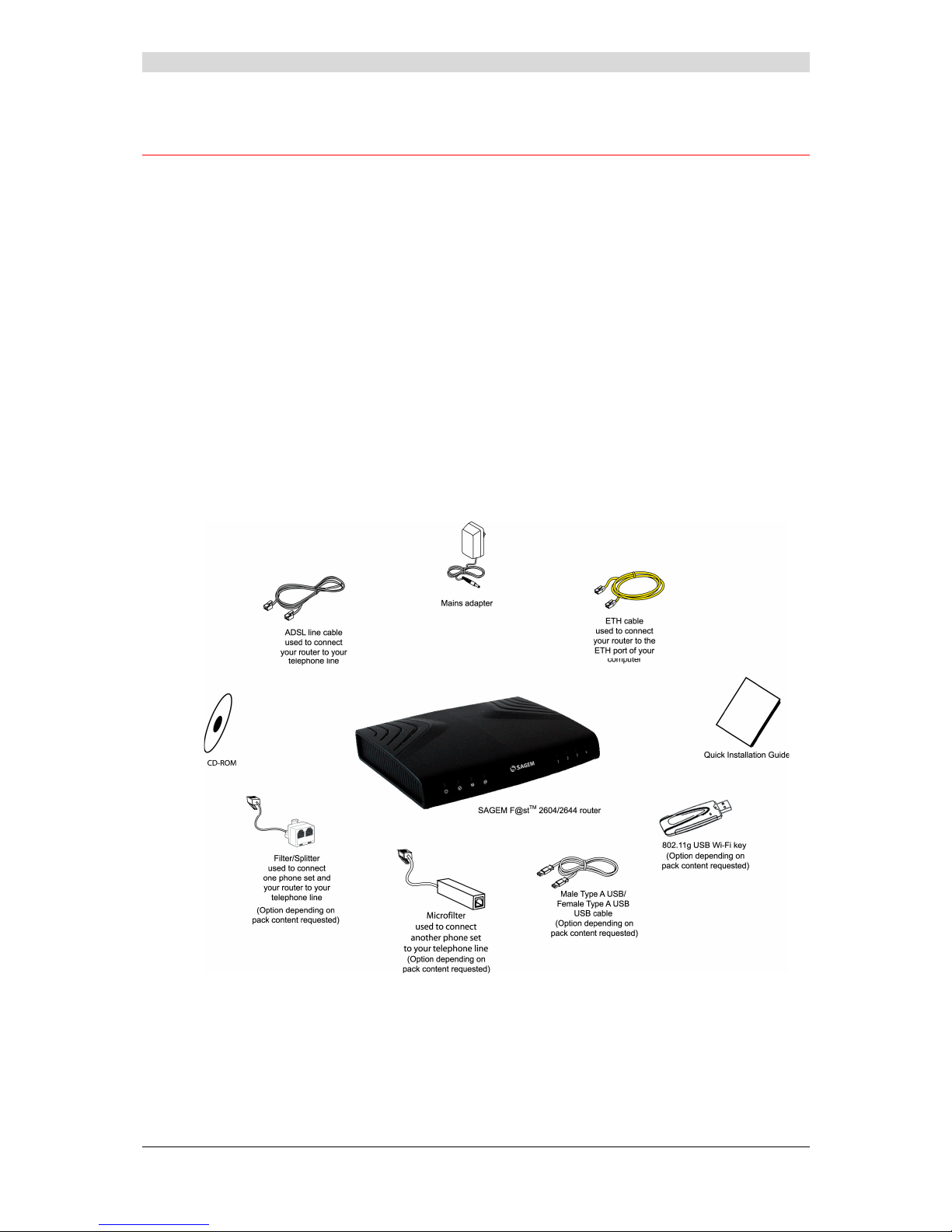

As an example, please find below the "pack" chosen for the SAGEM F@stTM 2604 router, i.e.:
¾1 SAGEM F@stTM 2604,
¾1 mains adapter unit,
¾1 Gray ADSL RJ11/RJ11 FDT line cord (length = 3 m),
¾1 Yellow Ethernet RJ45/RJ45 linking cord (length = 1.75 m),
¾1 Quick Installation Guide,
¾1 Installation CD-ROM,
¾1 USB Wi-Fi key (optional),
¾1 USB Type A male/Type A female cable (length = 1.5 m) (optional),
¾microfilter(s) (optional),
¾1 filter/splitter (optional).

1 - Introduction
SAGEM F@st™ 2604/2444 Reference Manual - 253080888-A
Sagem Communications document. Reproduction and disclosure prohibited Page 1-5
The CD ROM contains:
•the application for installing the USB interface.
•the Reference Manual (SAGEM F@stTM 2604 and SAGEM F@stTM 2644) in PDF format
file.
•the CE declaration of the chosen router.
Incomplete or damaged supply. If on its receipt the equipment is damaged or
incomplete, contact your supplier.
1.3 (Minimum) prerequisites
Using a router requires a minimum of:
¾a computer equipped with:
•a Wi-Fi 802.11b/g interface,
or
•an Ethernet interface (10BASE-T or 10/100BASE-T).
¾a WEB browser (Internet Explorer version 5 or higher recommended).
The minimum configuration of your computer must be:
¾for Windows: Pentium II, 400 MHz, RAM: 128 MB,
¾for MacOS: Power PC G3, 233 MHz, RAM: 128 MB,
¾a monitor of minimum resolution: 1024 x 768.
If you wish to use the Wi-Fi function (standard IEEE 802.11b/g), you must have the Wi-Fi
Standard pack (see annex G for use of Wi-Fi).
Before installing the router, we advise you to uninstall any modem or other router
(for example, an ADSL router).

1 - Introduction
SAGEM F@st™ 2604/2444 Reference Manual - 253080888-A
Page 1-6 Sagem Communications document. Reproduction and disclosure prohibited

SAGEM F@st™ 2604/2444 Reference Manual - 253080888-A
Sagem Communications document. Reproduction and disclosure prohibited Page 2-1
2. Description and connection
of router
This section covers ¾the description of your router § 2.1
¾connecting the ports of your router § 2.2
¾installing your router § 2.3
¾installation instructions § 2.4

2 - Description and connection of router
SAGEM F@st™ 2604/2444 Reference Manual - 253080888-A
Page 2-2 Sagem Communications document. Reproduction and disclosure prohibited
2.1 Description

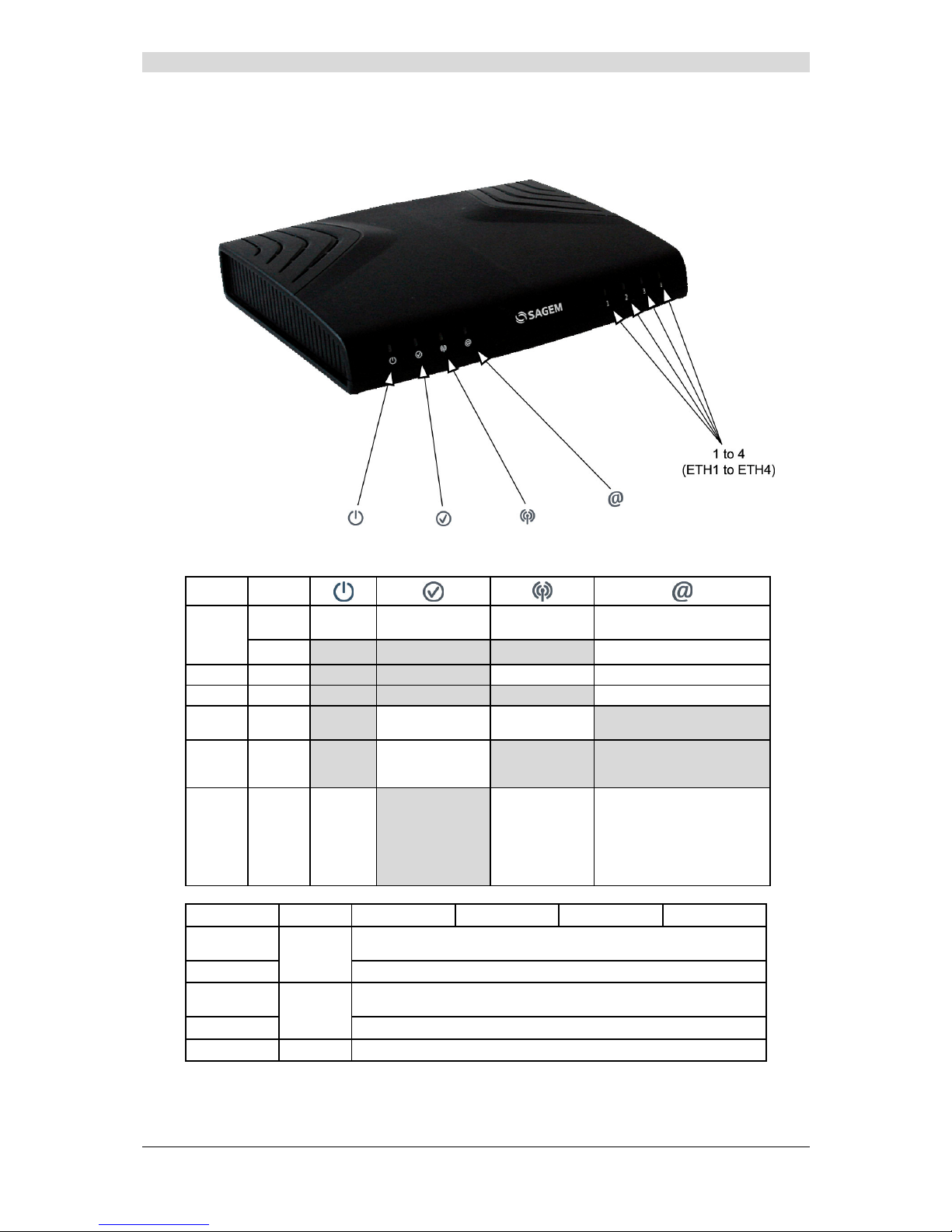

Figure 2.1 gives an overview of a router (SAGEM F@stTM 2604 or SAGEM F@stTM 2644).
Figure 2.1 - Overview of case
This case consists principally of a lid and a base. Inside is a printed circuit equipped with
electronic components.
The components of the base different according to the equipment (SAGEM F@stTM 2604 or
SAGEM F@stTM 2644)(see § 2.1.1)
The front face of the lid has eight display LEDs (see § 2.1.2).
The base has the LED ideograms, SAGEM's logo or the operator's logo.
Below the base is a label on which the product's identification code, series number and barcode
are shown.

2 - Description and connection of your router
SAGEM F@st™ 2604/2444 Reference Manual - 253080888-A
Sagem Communications document. Reproduction and disclosure prohibited Page 2-3
2.1.1 Connectors
Marking Meaning
ADSL RJ11 connector - 6 pts. This connector is identified by a grey line on the
base (SAGEM F@stTM 2604/2644).
It is used for the connection to an ADSL line (WAN interface).
ETH1 to ETH4 RJ45 connectors - 8 pts (10/100BASE-T Ethernet Interface). These
connectors are identified by a yellow line on the base.
They are used to connect to a computer or a television set (via a TV/Video
Decoder).
REG This button allows the router to be reset to the factory configuration
(see § A.7).
Note: It is reset relative to the other elements to prevent an accidental
loss of configuration.
On/Off switch.
PWR Miniature jack fixed connector.
This connector enables the router to be supplied with direct current from a
mains adapter unit.

2 - Description and connection of router
SAGEM F@st™ 2604/2444 Reference Manual - 253080888-A
Page 2-4 Sagem Communications document. Reproduction and disclosure prohibited
2.1.2 LEDs
The different LEDs of the figure above are described in the following table:
Status Colour
Green Power On ADSL Up Wi-Fi
activated A PPP session has been created
Lit
steady Amber x x x ADSL link is established
Flickering Green xx Wi-Fi Tx/Rx Tx/Rx traffic
Blinking Amber x x x ADS is training
Slow
Blinking Green xLine not detected Wi-Fi pairing x
Fast
Blinking Green x
ADSL
synchronisation
training
x x
Off Green Power Off Wi-Fi
deactivated
Power Off
or
Bridge mode
or
ADSL down
Status Colour 1 2 3 4
Lit on steady Ethernet port (ETH1, ETH2, ETH3 or ETH4) has detected a link with
100 Mbps device
Flickering
Green
Tx/Rx traffic at 100 Mbps
Lit on steady Ethernet port (ETH1, ETH2, ETH3 or ETH4) has detected a link with
10 Mbps device
Flickering
Amber
Tx/Rx traffic at 10 Mbit/s
Off x No link detected on the Ethernet port
