SAGEMCOM SX682 WiMAX User manual

SX682 WiMAX / engbt / SX682_FUG_EN_9 / Cover_front.fm / 17.5.11
Schablone 2011_04_07
SX682 WiMAX
User Guide – User
This device works in a frequency band for which no general licence has been obtained
from your National Authority for Frequency Management. Please contact your service
provider or your National Authority for Frequency Management about licensing before
putting this device into service.

2
Contents
SX682 WiMAX / engbt / SX682_FUG_EN_9 / SX682_SE681IVZ.fm / 17.5.11
Schablone 2011_04_07
Contents
For your safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Safety precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Trademarks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Information on Specific Absorption Rate (SAR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Information about the optional outdoor antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
SX682 WiMAX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

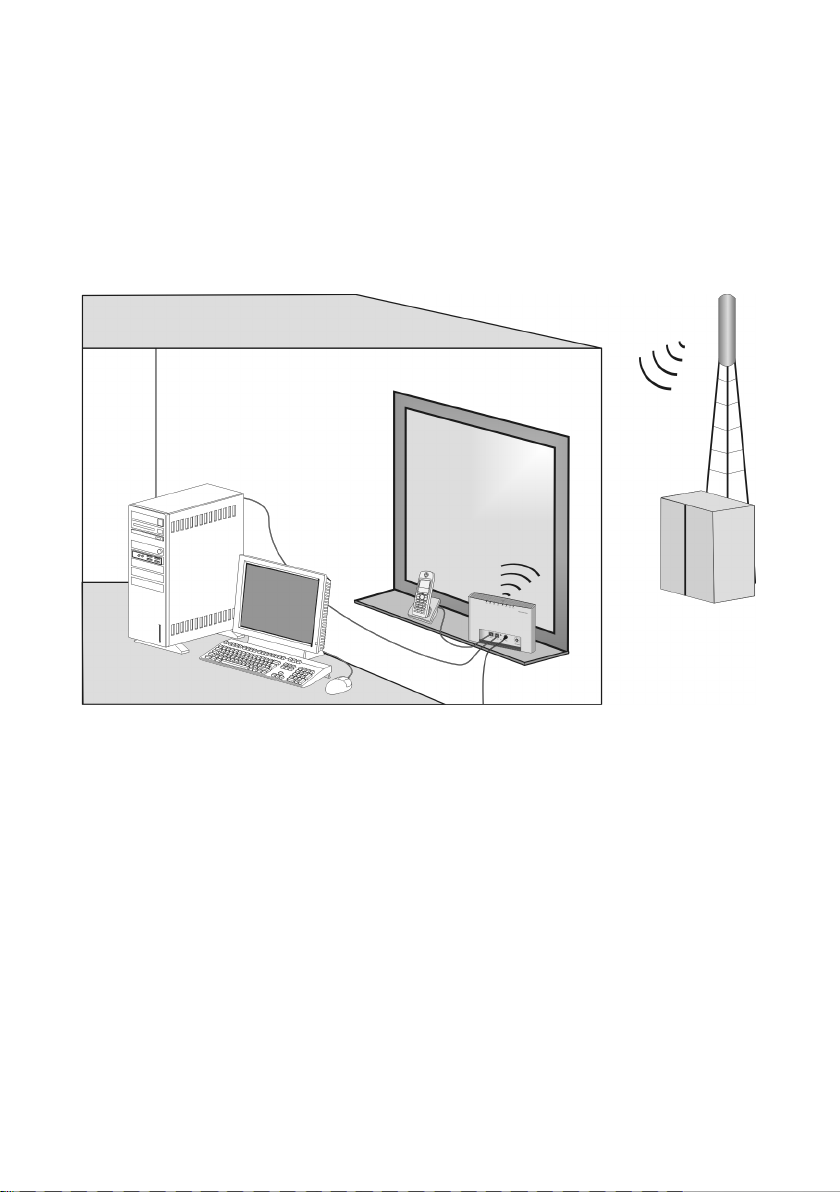

What is WiMAX? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
SX682 WiMAX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Product features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Product overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

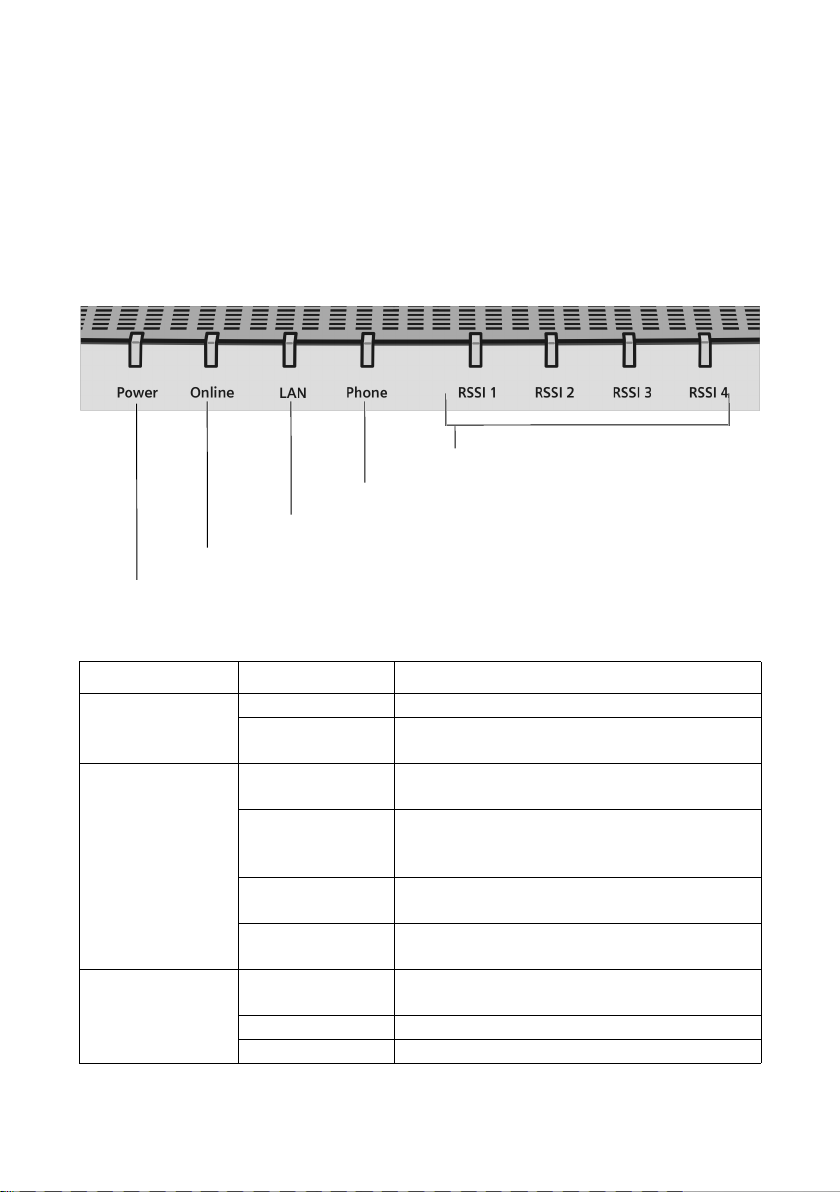

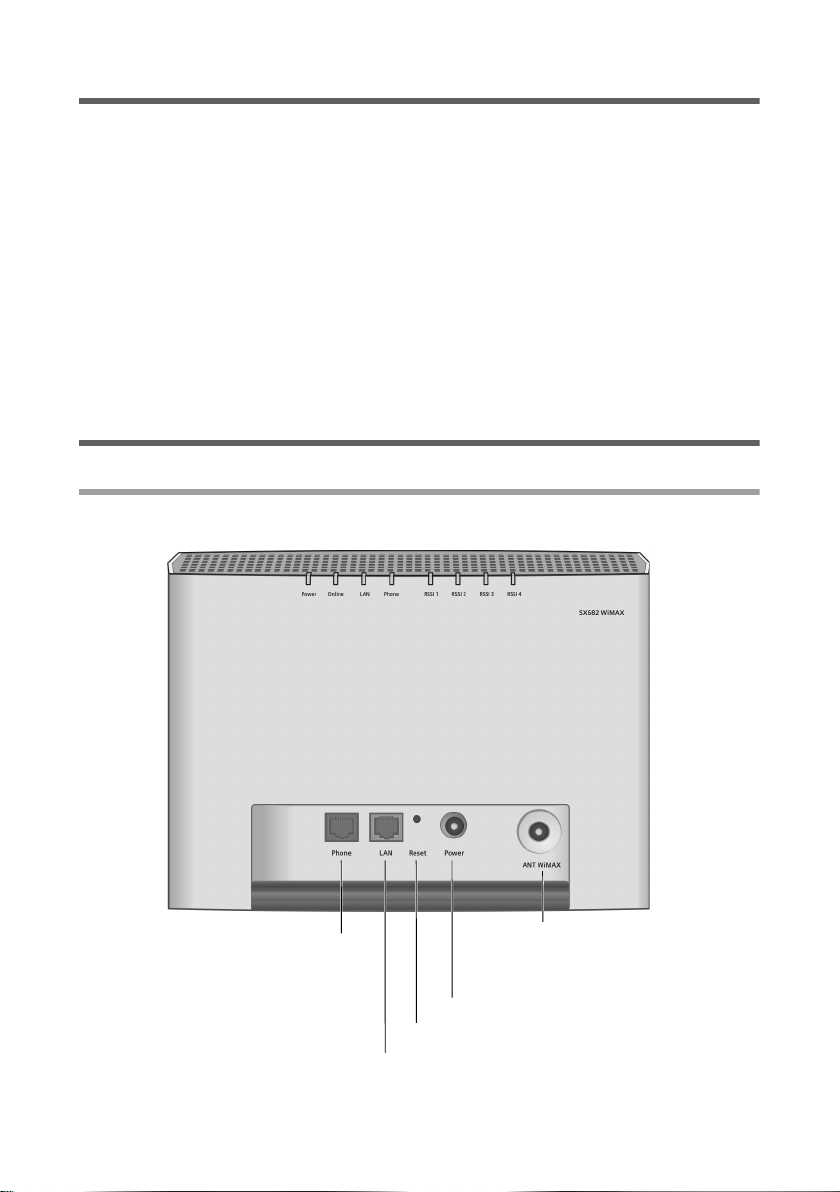

Connectors and LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Installing the SX682 WiMAX . . . . . . . . . . . . . . . . . . . . . . . . 13
Choosing your location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
System requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Connecting the SX682 WiMAX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Connecting the outdoor antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Connecting the PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

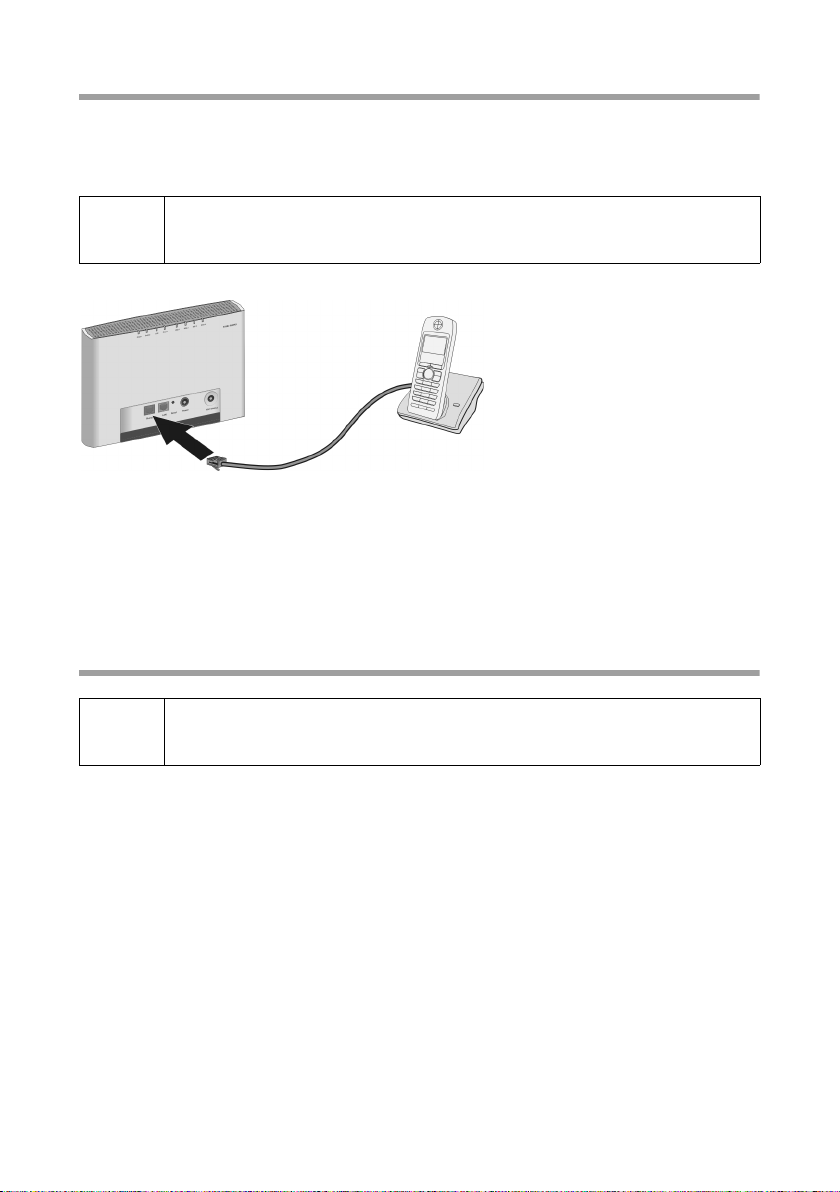

Connecting a telephone, fax machine or answer machine . . . . . . . . . . . . . . . . 18
Switching on the devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Restarting and resetting the SX682 WiMAX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Rebooting the SX682 WiMAX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Returning the SX682 WiMAX to factory settings . . . . . . . . . . . . . . . . . . . . . . . . 20
Configuration with the Web browser . . . . . . . . . . . . . . . . . 21
User interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Launching the user interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
UI elements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Setting the language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Opening online Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Menu structure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
The Home page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Basic Setup Wizard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Starting the Basic Setup Wizard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Entering access data for the WiMAX network . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Setting up Internet access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Selecting the antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Adjusting the antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Establishing a radio connection to a WiMAX network . . . . . . . . . . . . . . . . . . . . 28
Precisely aligning the antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Setting up VoIP access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

3
Contents
SX682 WiMAX / engbt / SX682_FUG_EN_9 / SX682_SE681IVZ.fm / 17.5.11
Schablone 2011_04_07
Advanced Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Setting the operating mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Configuring Internet access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Setting up the Internet Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Setting up DNS servers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Enabling or disabling the firewall . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Port Forwarding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Opening the firewall for a selected PC (Exposed Host) . . . . . . . . . . . . . . . . . . 38
LAN configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Setting up Internet telephony (VoIP) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
WiMAX configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Antenna selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Administration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
System password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Restoring factory settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Restart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Updating the firmware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Internet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Local network LAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Telephony . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Device status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Radio status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Using the SX682 WiMAX . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Making a phone call or faxing with the SX682 WiMAX . . . . . . . . . . . . . . . . . . . . . . 51
Making calls via VoIP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Receiving VoIP phone calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Telephone functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Confirmation tones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Other faults and problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Before contacting customer service or your provider . . . . . . . . . . . . . . . . . . . . 61
Checking the connection to the SX682 WiMAX . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Configuring the Web browser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Setting up an HTTP proxy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Allowing pop-up windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Outdoor antenna specifications (optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Putting into service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
CE declaration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

4
Contents
SX682 WiMAX / engbt / SX682_FUG_EN_9 / SX682_SE681IVZ.fm / 17.5.11
Schablone 2011_04_07
Open Source Software used in the product . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Warranty regarding further use of the Open Source Software . . . . . . . . . . . . . 67
Open Source Software used . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Acknowledgements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Open Source Software Licenses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

5
For your safety
SX682 WiMAX / engbt / SX682_FUG_EN_9 / Safety.fm / 17.5.11
Schablone 2011_04_07
For your safety
Please read the safety instructions carefully before putting into service.
Safety precautions
General safety instructions
If you give the SX682 WiMAX to someone else, make sure you also give them its
documentation.
The SX682 WiMAX must only be used as described in these installation instruc-
tions.
Safety instructions for connection
Only use the mains adapter supplied, as indicated on the underside of the SX682
WiMAX.
Safety precautions for the SX682 WiMAX
The operation of medical appliances may be affected. Be aware of the technical
conditions in your particular environment, e.g. doctor's surgery.
The SX682 WiMAX and the antenna can interfere with the functioning of medical
devices such as pacemakers. Keep at least 20 cm between the devices and the
pacemaker. For more information, consult your doctor.
The device may cause an unpleasant humming noise in hearing aids.
Do not use the devices in environments with a potential explosion hazard, e.g. car
paint shops, or in a humid environment (bathroom etc.).
The Ethernet function (LAN socket, LAN) and the FXS function (analogue phone
port, Phone) are designed exclusively for connection inside a building.
Cleaning and care
Wipe the SX682 WiMAX with a damp cloth (do not use solvent) or an antistatic cloth.
Never use a dry cloth. This can cause static.
Trademarks
Microsoft Windows 2000, Windows XP, Windows Vista and Internet Explorer are
registered trademarks of the Microsoft Corporation.
Mozilla Firefox is a registered trademark of the Mozilla Organization.

6
Information on Specific Absorption Rate (SAR)
SX682 WiMAX / engbt / SX682_FUG_EN_9 / Safety.fm / 17.5.11
Schablone 2011_04_07
Information on Specific Absorption Rate (SAR)
This device meets the limits for protecting the health of the public from the effecs of
exposure to electromagnetic fields when it is operated in connection with the desig-
nated antenna(s) like described in the user manual.
Your device is a radio transmitter and receiver. It is designed and manufactured not to
exceed the limits for exposure to emission from electromagnetic fields recommended
by international guidelines from the International Commission on Non-Ionizing Radia-
tion Protection (ICNIRP). These limits are part of comprehensive guidelines for the pro-
tection of the public and establish permitted levels of exposure to electromagnetic radi-
ation for the population. The guidelines were confirmed by independent scientific
organisations through periodic and thorough evaluation of scientific studies. The limits
include a substantial safety margin designed to assure the safety of all persons, regard-
less of age and health.
The exposure limit employs a unit of measurement known as the Specific Absorption
Rate, or SAR. The SAR limit stated in the international guidelines is 2.0 W/kg. Tests for
SAR are conducted in all frequency bands with the device transmitting at its highest
power level with minimum possible distance to the body. The actual SAR level of the
device during operation with the designated antenna(s) is below the maximum value
and is additionally decreased by a distance to the device. This is because the device is
designed to operate at multiple power levels so as to use only the power required to
enable seamless network connection.
Information about the optional outdoor antenna
Wall duct:
To connect the SX682 WiMAX to the outdoor antenna, the antenna cable must be fed
through the wall to the outside of the building. It must be possible to make a suitable
wall or window duct at or near the location of the SX682 WiMAX.
Only one of the antennas listed on page 13 must be used.
The outdoor antenna must be installed and put into service by a qualified
electrician.
Only commence the outdoor work once you have taken all the nec-
essary steps to make the location safe.
Be sure to observe the safety instructions.

7
Information about the optional outdoor antenna
SX682 WiMAX / engbt / SX682_FUG_EN_9 / Safety.fm / 17.5.11
Schablone 2011_04_07
Setting up the antenna mast:
There should not be any obstructions (walls, trees etc.) in front of the antenna.
The antenna mast must be structurally secure. Check how secure the various attach-
ments are.
The antenna mast must be within reach of the cable. Ideally, the antenna cable should
be protected outside (from frost, sun, unauthorised and mechanical influences etc.).
In particular, make sure the antenna mast has sufficient load capacity. If you are mount-
ing the mast on the roof, make sure the roof is fully sealed again afterwards.
Lightning protection
The antenna mast should be positioned near a lightning conductor. A suitable lightning
conductor must be installed where necessary.
The outdoor antenna is not designed to be struck directly by lightning and must be pro-
tected accordingly. The antenna must therefore be mounted in areas that are protected
against lightning (Lightning Protection Zone 0B). The corresponding separation dis-
tance (IEC 62305) must be complied with.
Earthing and lightning protection work may only be carried out by electricians specifi-
cally qualified for such work.
The best results will be obtained if the outdoor
antenna is in sight of the WiMAX base station
(cf. Fig. 1).
If a line of sight is not possible, you can reflect the
radio waves off neighbouring buildings. To do
this, direct the antenna at the building it is to
reflect off and not at the base station (cf. Fig. 2).
Fig. 1
Fig. 2

8
Information about the optional outdoor antenna
SX682 WiMAX / engbt / SX682_FUG_EN_9 / Safety.fm / 17.5.11
Schablone 2011_04_07
The appropriate earthing clamps must be used to create an equipotential bonding
between a cable shield and an equipotential bonding bar that complies with regula-
tions.
Please observe the standard DIN VDE 0855-300 and find out more on the Internet at
http://www.dehn.de.
Antenna cable and antenna connection:
It must be possible to connect the outdoor antenna to the SX682 WiMAX by means of
an antenna cable.
Please note that the antenna connection must be protected from the impact of rain and
other weather effects.
Use cable clamps to attach the cable to the mast. Please note that the cable must be
long enough to turn the antenna at a later stage.
Antenna alignment:
When aligning the antenna, we recommend asking a second person to run the Basic
Setup Wizard on the PC and to check the reception quality on the screen; see Chapter
"Basic Setup Wizard" on page 27.
After installation:
Tighten all screw connections to the torques listed in the installation instructions.
Secure the antenna cable with cable clamps and cable ties. The cable must be pro-
tected from exposure to pressure and tension.
i
Aligning the antenna using acoustic signals
If neither you nor the assistant are able to check the signal strength on
screen while the antenna is being aligned, you can monitor it via a radio
system. To do this you will need, for example, two cordless phones,
mobile phones or radio devices:
Activate Tone on on the configuration PC.
Establish an internal connection between the two handsets and
switch on the loudspeaker on both devices.
Leave one handset next to the configuration PC and carry the other
with you (belt clip).
You will now be informed of the signal strength by means of beeps. The
closer together the sequence of beeps, the better the connection quality.

9
SX682 WiMAX
SX682 WiMAX / engbt / SX682_FUG_EN_9 / Product_intro.fm / 17.5.11
Schablone 2011_04_07
SX682 WiMAX
What is WiMAX?
WiMAX stands for "Worldwide Interoperability for Microwave Access", a modern wire-
less network technology that enables fast Internet connection even in remote areas.
With WiMAX technology you are no longer dependent on a DSL infrastructure in your
home or place of work. Instead, you connect your PC or network wirelessly to radio
stations operated in your region by your provider. As a result, WiMAX gives you fast,
economical broadband Internet access, even in places that are not connected to the
DSL cable network.
The WiMAX standard IEEE 802.16 generally defines WiMAX technology. Your SX682
WiMAX already meets the latest IEEE 802.16e-2005 standard, a mobile WiMAX stand-
ard that offers many extra possibilities.
SX682 WiMAX
With your SX682 WiMAX, you can make use of everything the Internet has to offer:
Downloads
– Even large files download quickly to your PC.
– Complex Website designs are no longer characterised by the time they take to
download – you can enjoy flash animation and high-resolution graphics immedi-
ately after clicking a link.
Audio
– Play back audio files straight from the Internet.
– Listen to the radio via the Internet in superb digital quality.
Video
– View short or longer films you find on the Internet without tedious waiting times.
– Watch television via the Internet (IPTV).
– Use "Video on Demand" and order films that are transmitted to you via the
Internet.
Real time
– Take part in video conferences and feel as if you are sitting in the same room as
the people you are talking to.
– Speak to and see your chat partners.
VoIP
– Benefit from the economical telephone rates for Internet telephony (Voice over
IP, VoIP). Your PC does not even need to be switched on.

10
Product features
SX682 WiMAX / engbt / SX682_FUG_EN_9 / Product_intro.fm / 17.5.11
Schablone 2011_04_07
Product features
Wireless high-speed Internet access with a transmission rate of up to 20 Mbps
(14 Mbps downlink, 6 Mbps uplink)
Standard compatibility: IEEE 802.16e-2005
Compatible with all current operating systems
Suitable for home and business facilities
Multi-protocol support: TCP/IP, FTP, HTTP and other Internet related protocols
Easy to set up without installing software
Internet and VoIP connection without the hassle of entering access data
DHCP server and routing functions
High performance and quality of service
Optional: outdoor antenna for improved connection quality
Product overview
Connectors and LEDs
Connectors
FXS port for telephone,
fax machine or answer
machine
Reset button
Ethernet port
Mains adapter connector
Antenna connection for external
antenna

11
Product overview
SX682 WiMAX / engbt / SX682_FUG_EN_9 / Product_intro.fm / 17.5.11
Schablone 2011_04_07
For information about the optional outdoor antenna, please refer to "Connecting the
outdoor antenna" on page 16.
For information on connecting the mains adapter, please refer to "Switching on the
devices" on page 18.
For information on the reset button, please refer to "Restarting and resetting the
SX682 WiMAX" on page 19.
For information on the Ethernet port, please refer to "Connecting the PC" on
page 17.
LEDs
The LEDs indicate the status of the SX682 WiMAX and the current signal strength.
Name LED Meaning
Power: power
supply
Lights up green The SX682 WiMAX is powered correctly.
Does not light up The SX682 WiMAX is not powered correctly
or the power supply has failed.
Online: active
connection
Lights up green The SX682 WiMAX is registered with a
WiMAX network and ready for use.
Does not light up The SX682 WiMAX is not registered with a
WiMAX network; it is not possible to estab-
lish an Internet connection.
Flashes green The SX682 WiMAX is establishing a connec-
tion with a WiMAX network.
Lights up red The SX682 WiMAX is not ready. Possible
cause: device is overheating or faulty.
LAN: Ethernet
port
Lights up green Correct cable connection with a powered
connection partner.
Does not light up No or incorrect cable connection.
Flashes green Data transfer via the Ethernet port.
RSSI: signal quality
LAN: Ethernet port
Online: active connection
Power: power supply
Phone: telephone (VoIP)

12
Product overview
SX682 WiMAX / engbt / SX682_FUG_EN_9 / Product_intro.fm / 17.5.11
Schablone 2011_04_07
Phone: tele-
phone
Lights up green The phone connection is active and regis-
tered with a VoIP provider. You can make
calls via the Internet.
Does not light up The telephone connection is not active or not
registered with a VoIP provider. You cannot
make calls via the Internet.
Flashes green The connected telephone is active: it is being
used to make a call or there is an incoming
call.
RSSI:
signal quality
0 to 4 LEDs light
up green
The LEDs on the SX682 WiMAX help you to
position the antenna more easily. The LEDs
indicate the signal quality; the more LEDs
that light up, the better the signal reception.
All 4 LEDs flash
green
The SX682 WiMAX is being reset to the fac-
tory settings; see "Returning the SX682
WiMAX to factory settings" on page 20.
i
The connection quality can be detected in two different ways:
CINR (Carrier to Interference and Noise Ratio) measures the signal
quality.
RSSI (Received Signal Strength Indication) measures the signal
strength.
The LEDs indicate either RSSI or CINR values. The used method is pre-
configured by your operator. If RSSI is used the RSSI 1 - RSSI 4 LEDs
will show the signal strength.
Name LED Meaning

13
Installing the SX682 WiMAX
SX682 WiMAX / engbt / SX682_FUG_EN_9 / Installation.fm / 17.5.11
Schablone 2011_04_07
Installing the SX682 WiMAX
The SX682 WiMAX can only be used with the device's integrated antenna or with one
of the following outdoor antennas:
This user guide assumes that installation of the outdoor antenna has been completed.
Choosing your location
Choose a location that enables you to simply set up the following connections with-
out any further work.
– Connect the Ethernet cable for connection to a PC or network.
– Connect the power lead to the mains socket.
Stand the SX682 WiMAX upright on an even, non-slip surface.
Lay the cables in such a way that nobody can tread on or trip over them.
Position the SX682 WiMAX so that you can see the LEDs.
Do not cover the openings in the SX682 WiMAX housing to ensure the heat can cir-
culate; otherwise, the duty cycle of the device will be reduced or the SX682 WiMAX
switched off to avoid overheating.
Do not operate the SX682 WiMAX under the influence of direct heat sources (e.g.
directly in the sun).
3.5 GHz 18 dBi WiMAX Antenna Outdoor "Antenna cable 3 m"
2.6 GHz 15 dBi WiMAX Antenna Outdoor "Antenna cable 3 m"
3.5 GHz versions should be used for the European Economic Area.
The following requirements apply:
All the external antennas used for this product must undergo a confor-
mity assessment procedure.
The 3.5 GHz antennas listed here meet the European requirements and
guarantee the functionality of the complete system.
During the conformity assessment procedure it was ensured that the
SAR limits set down in directive 99/519/EC are observed. Verification
was performed using EN 50385.
The outdoor antenna must be installed and put into service by a qualified
electrician.
The notes in the enclosed installation instructions must be followed.

14
Choosing your location
SX682 WiMAX / engbt / SX682_FUG_EN_9 / Installation.fm / 17.5.11
Schablone 2011_04_07
If you use the integrated antenna:
Position the SX682 WiMAX directly in a window, so that the side with the LEDs and
connectors is pointing into the room, towards you. Wherever possible, position the
SX682 WiMAX on one of the upper storeys. Note that obstructions, particularly
doors and wall coverings containing metal can affect data transmission.
Position the SX682 WiMAX as far away as possible from metallic objects and
coated foils.
SX682 WiMAX with integrated antenna
PC with SX682
WiMAX
WiMAX network
base station

15
System requirements
SX682 WiMAX / engbt / SX682_FUG_EN_9 / Installation.fm / 17.5.11
Schablone 2011_04_07
SX682 WiMAX with outdoor antenna
System requirements
To use the SX682 WiMAX, the following requirements have to be fulfilled.
You will need a PC that meets the following requirements:
– PC with a free LAN interface 10/100BaseT (network adapter). The network
adapter on the configuration PC must support one of the following modes:
10BaseT Half Duplex, 10BaseT Full Duplex, 100BaseT Half Duplex, 100BaseT
Full Duplex. The TCP/IP protocol has to be set up on the PC (standard installa-
tion for Windows XP and Windows Vista; if you are using a different Windows
operating system, read the separate instructions on network configuration, if
necessary).
– A Web browser is installed on the configuration PC (e.g. Internet Explorer or
Mozilla Firefox).
To access the Internet you will need to register your SX682 WiMAX with a WiMAX
Internet provider. To use Internet telephony, your provider will need to register a
VoIP account for your SX682 WiMAX.
i
When used with the integrated antenna or the outdoor antenna, the
SX682 WiMAX complies with the regulations on limiting the effect of
electromagnetic fields on the general population.
PC with SX682 WiMAX
WiMAX network base
station

16
Connecting the SX682 WiMAX
SX682 WiMAX / engbt / SX682_FUG_EN_9 / Installation.fm / 17.5.11
Schablone 2011_04_07
Connecting the SX682 WiMAX
Connect the SX682 WiMAX in the following order:
1. If you use the outdoor antenna, have it installed by a qualified electrician. Connect
the antenna cable from outside to the SX682 WiMAX.
2. Connect the PC to the SX682 WiMAX.
3. Connect an analogue terminal (telephone, fax machine, answer machine).
4. Connect the SX682 WiMAX to the mains power supply and switch all the devices
on.
Connecting the outdoor antenna
Screw the connector of the antenna
cable into the ANT WiMAX connec-
tor on your SX682 WiMAX. In order to
disconnect the antenna cable from
the connector, open the screw con-
nection.

17
Connecting the SX682 WiMAX
SX682 WiMAX / engbt / SX682_FUG_EN_9 / Installation.fm / 17.5.11
Schablone 2011_04_07
Connecting the PC
Connecting SX682 WiMAX to the PC
Connect one Ethernet cable plug to the Ethernet port on the SX682 WiMAX.
Connect the other plug of the Ethernet cable to the LAN interface on the PC.
Optional: connecting several terminals
If you wish to connect several terminals (for example a PC and a laptop) and establish
an Internet connection with all the devices, connect a switch or hub to your SX682
WiMAX.
!
Use either the Ethernet cable that is supplied or a standard network cable
(CAT-5) to connect the device to the PC. It is not important whether the
Ethernet cable has straight or crossed wiring.
Always use a shielded Ethernet cable.
i
A DHCP server is integrated into your SX682 WiMAX. Please ensure
that a second DHCP server is not activated on your server. For details on
this, read the operating instructions for your switch/hub.

18
Connecting the SX682 WiMAX
SX682 WiMAX / engbt / SX682_FUG_EN_9 / Installation.fm / 17.5.11
Schablone 2011_04_07
Connecting a telephone, fax machine or answer machine
You can connect an analogue terminal, such as a telephone with cord, cordless tele-
phone, fax machine or answer machine, and operate them via the Internet in future
(Internet telephony/VoIP).
If your analogue terminal has a TAE plug, first connect this to the adapter (connect a
telephone to the F-coded socket, a fax machine or answer machine to the N-coded
socket). Then connect the adapter plug to the Phone connection on the SX682
WiMAX.
If necessary connect the telephone, fax machine or answer machine to the mains
power supply.
Switching on the devices
Connect the mains adapter plug to the SX682 WiMAX socket.
Power up the PC.
Connect the mains adapter to the mains power supply.
The system starts up and performs a self-test. After the self-test, the SX682 WiMAX
continually attempts to register with a WiMAX network. Registration may be suc-
cessful immediately. If not, registration will take place when the SX682 WiMAX is
being configured.
i
Depending on the connection plug on your analogue terminal, you may
require an additional adapter (TAE socket on the RJ11 plug).
Connect the plug on the ana-
logue terminal to the Phone
connection on the SX682
WiMAX.
!
Only use the SX682 WiMAX with the mains adapter supplied.

19
Restarting and resetting the SX682 WiMAX
SX682 WiMAX / engbt / SX682_FUG_EN_9 / Installation.fm / 17.5.11
Schablone 2011_04_07
Check the LEDs during startup:
LEDs during startup:
–ThePower power supply LED lights up green, and the SX682 WiMAX starts a
self-test. If the LED does not light up, check that the mains adapter is connected
correctly and the power socket is live.
–TheLAN Ethernet LED is continuously lit green. If the LED does not light up,
check that the Ethernet cable is connected correctly.
– If registration with a WiMAX network has already been successful, the Online
LED lights up green. If the LED does not light up, register your SX682 WiMAX
during configuration.
Restarting and resetting the SX682 WiMAX
Rebooting the SX682 WiMAX
Briefly press the reset button (for less than 5 seconds). The configuration settings
will remain, the SX682 WiMAX will be restarted.
You can also restart the SX682 WiMAX via the user interface or by briefly cutting the
power supply.
The reset button is located inside the SX682
WiMAX so that it cannot be pressed accidentally.
If you need to restart or reset the SX682 WiMAX,
use a thin object such as an opened up paper
clip.

20
Restarting and resetting the SX682 WiMAX
SX682 WiMAX / engbt / SX682_FUG_EN_9 / Installation.fm / 17.5.11
Schablone 2011_04_07
Returning the SX682 WiMAX to factory settings
If you no longer have access to your SX682 WiMAX, you can also restore factory set-
tings with the reset button on the back of the device.
Press and hold the reset button for more than 5 seconds.
The 4 RSSI LEDs will begin to flash green. The configuration settings are returned to
the factory settings and the SX682 WiMAX is restarted. This process takes about
25 seconds. The SX682 WiMAX will then automatically try to set up a connection to a
WiMAX network; depending on the connection quality, 0 to 4 RSSI LEDs will perma-
nently light up green.
Factory settings
After restoring the factory settings, your SX682 WiMAX will be in its original condition:
Proceed as follows to start operating your device again:
!
When the factory settings are restored, all personal settings are deleted.
Menu Setting
Basic Setup Wizard Execute the Basic Setup Wizard to configure your device
and to establish a connection to the WiMAX network, see
"Basic Setup Wizard" on page 27.
Advanced Settings –
Administration –
System Password
Protect the configuration interface of your device with a
password, see "System password" on page 43.
If the device came from your provider with a preset sys-
tem password, this will now be valid again. Please check
the documents supplied by your provider.
