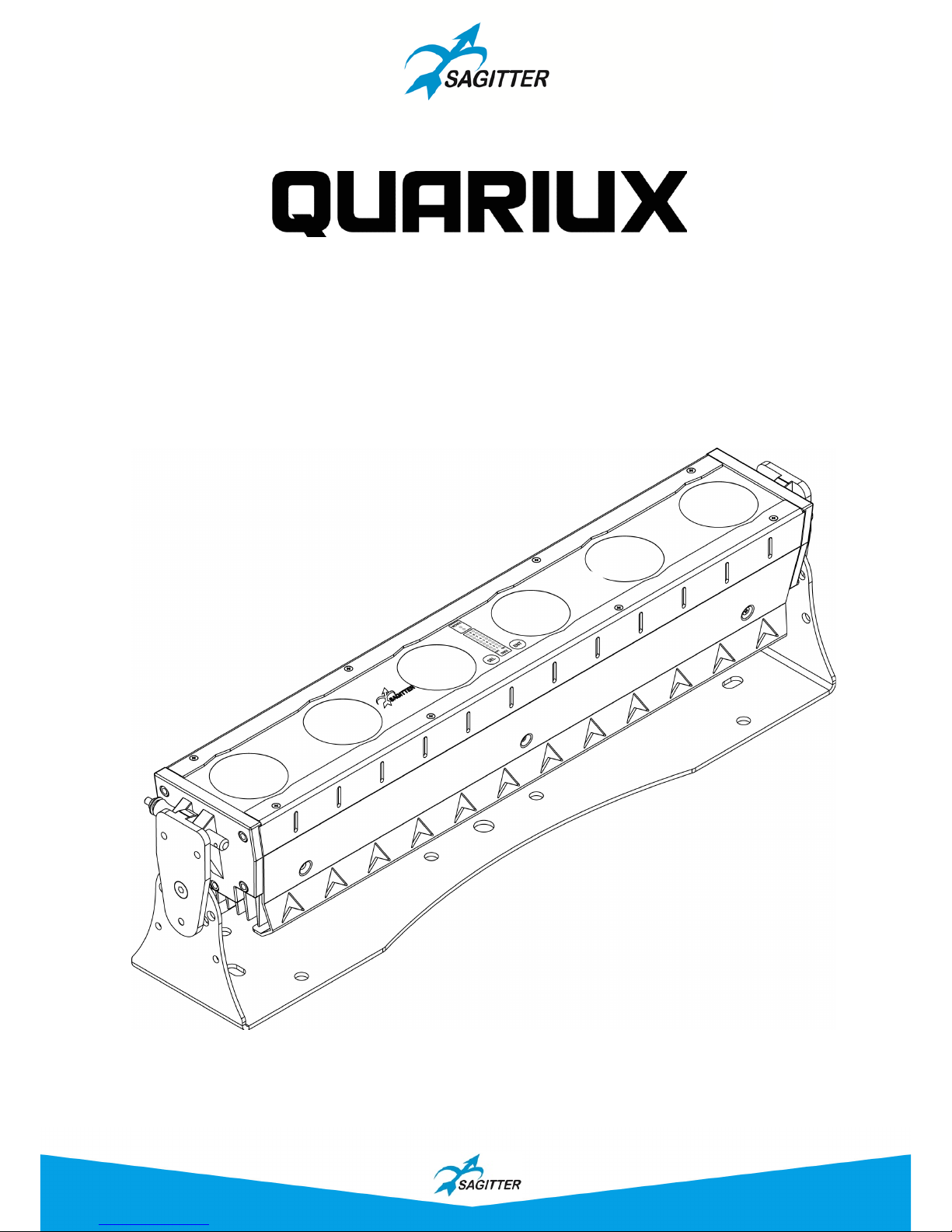

Sagitter QUARIUX User manual

Rev.44/18
6x30W COB led bar
User Manual

2

Index
Introduction .........................................................................................................................................4
CE Conformity ......................................................................................................................................7
Technical Specification.........................................................................................................................8
Mechanical Parts and Dimensions .......................................................................................................9
Bracket Drilling & Beam Aiming...........................................................................................................9
Hook up the Safety Rope ...................................................................................................................10
LED Bar linking....................................................................................................................................10
Vertical array linking ..........................................................................................................................11
SSZ Solid state zoom (only some models)..........................................................................................11
Rear Panel ..........................................................................................................................................12
Connections .......................................................................................................................................13

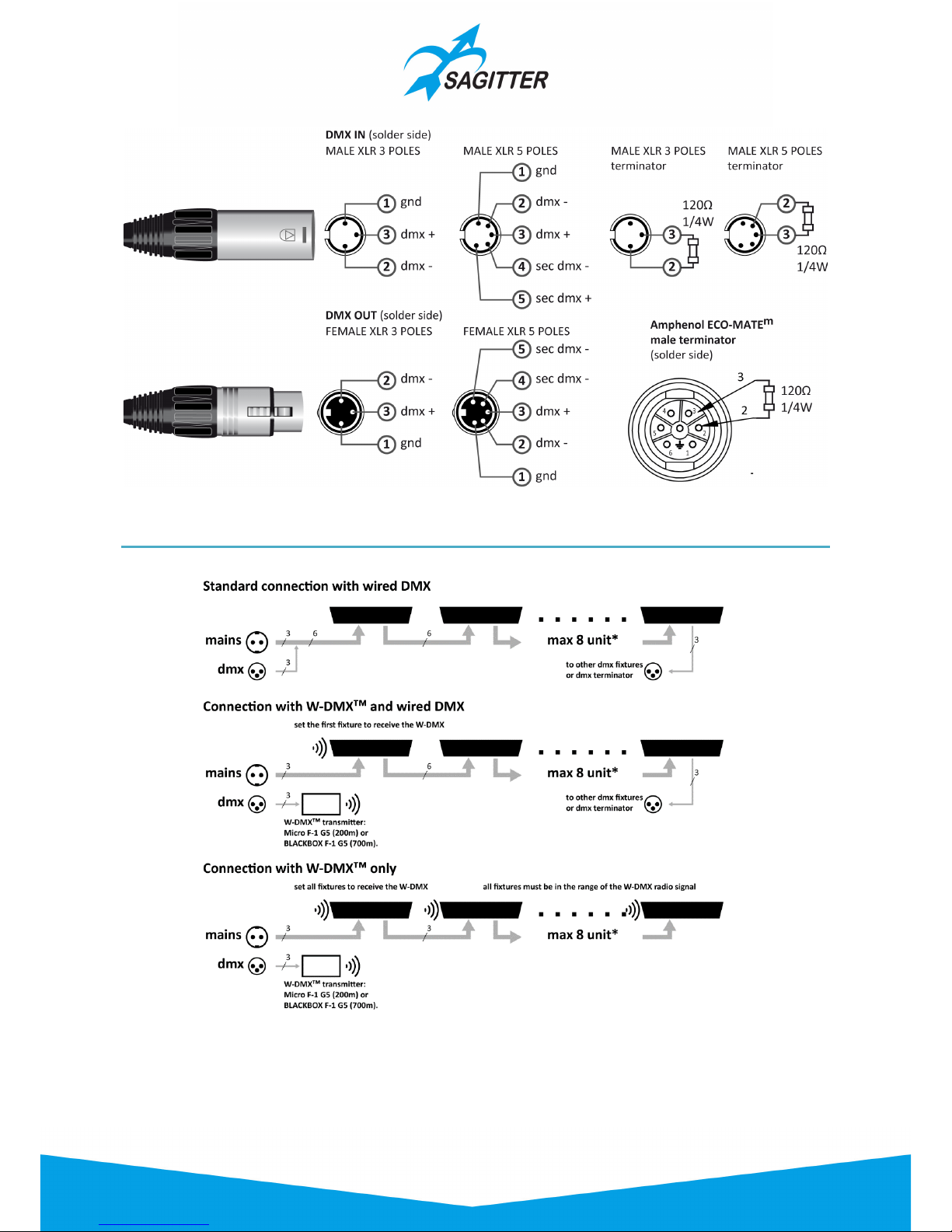

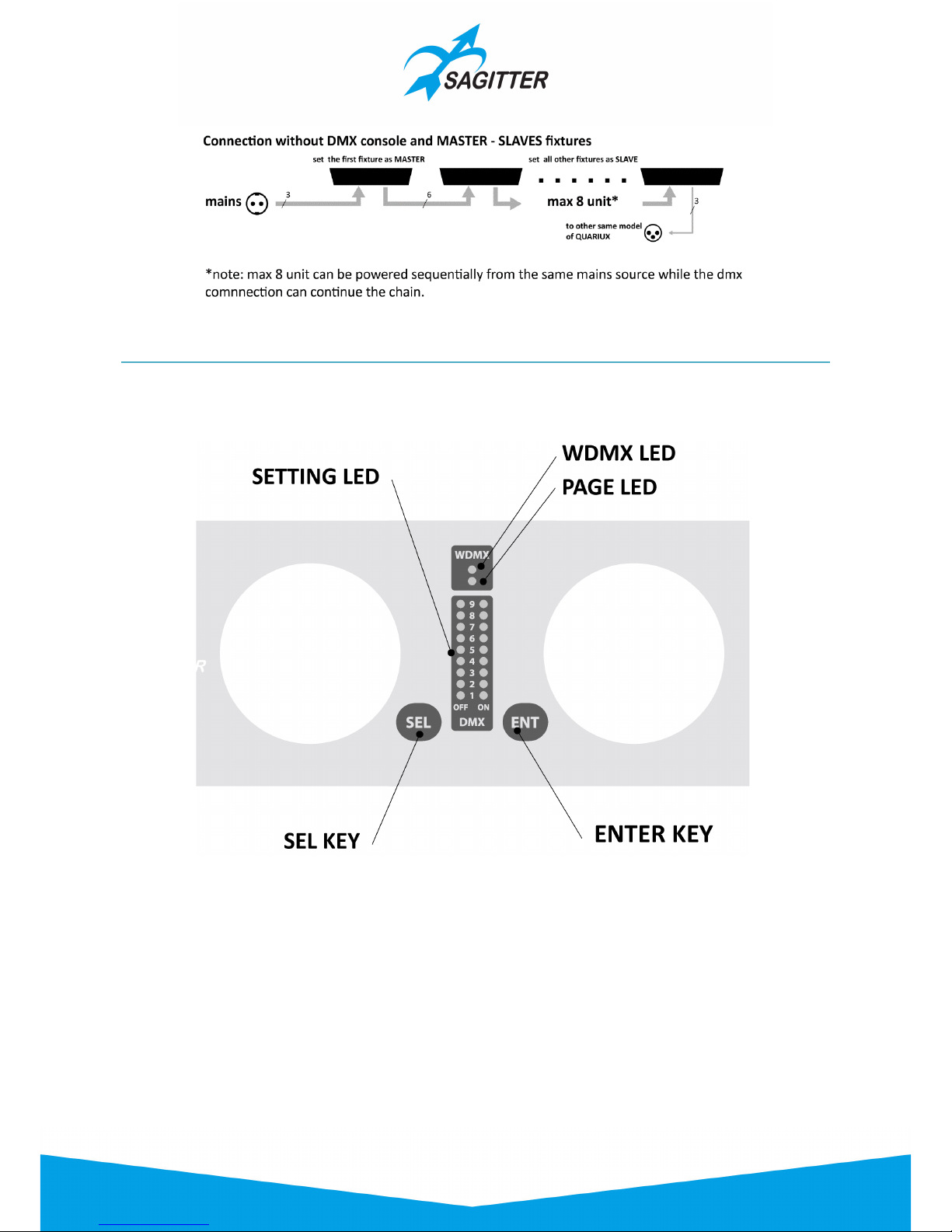

Connection Example ..........................................................................................................................14
Control Panel......................................................................................................................................15

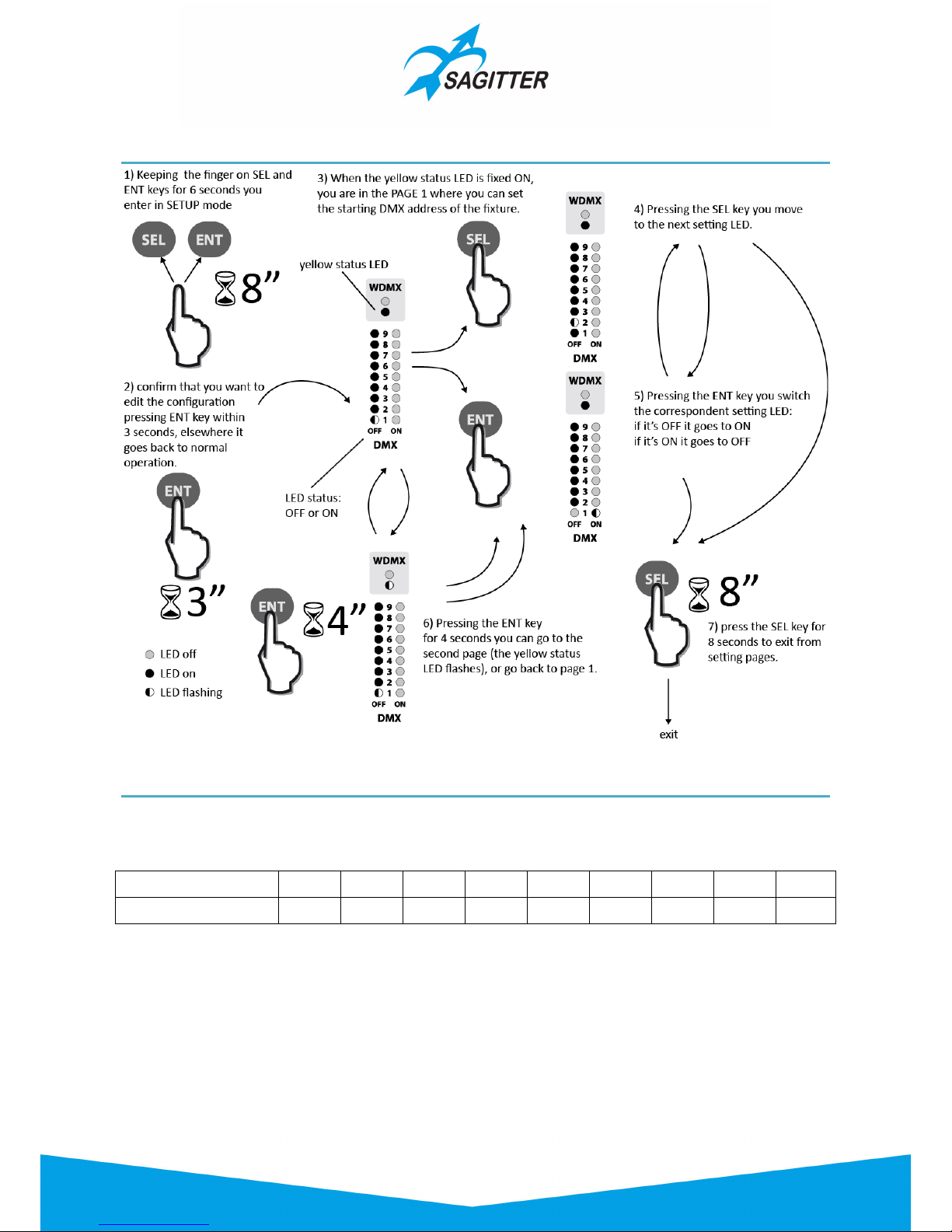

Setup Mode........................................................................................................................................16
Page 1: DMX Address.........................................................................................................................16
Page 2 : Fixture Parameters...............................................................................................................17
Enable and Pair the W-DMX™............................................................................................................17
Attribute Table ...................................................................................................................................18
Macro Table .......................................................................................................................................19
3

Introduction
Thank You for choosing a Sagitter products!
Please refer to the instructions and warnings contained in this user manual, please retain it for
future reference.
This manual contains information about the installation and use of the device.
The information contained in this publication has been carefully prepared and checked. However,
it is not assumed any responsibility for any inaccuracies. All rights are reserved and this document
cannot be copied, photocopied, reproduced in whole or in part without previous written
permission of PROEL. PROEL reserves the right to make, without notice, any aesthetical, functional
or design changes or modifications in every one of its products. PROEL doesn't assume any
responsibility for the use or application of the products here described.
PACKAGING, SHIPPING AND COMPLAINT
•This unit package has been submitted to ISTA 1A integrity tests. We suggest you control the
unit conditions immediately after unpacking it.
•If any damage is found, immediately advise the dealer. Keep all unit packaging parts to allow
inspection.
•Proel is not responsible for any damage that occurs during shipment.
•Products are sold “delivered ex warehouse” and shipment is at charge and risk of the buyer.
•Possible damages to unit should be immediately notified to forwarder. Each complaint for
manumitted package should be done within eight days from product receipt.
WARRANTY AND PRODUCTS RETURN
•Proel products have operating warranty and comply their specifications, as stated by
manufacturer.
•Proel warrants all materials, workmanship and proper operation of this product for a period of
two years from the original date of purchase. If any defects are found in the materials or
workmanship or if the product fails to function properly during the applicable warranty period,
the owner should inform about these defects the dealer or the distributor, providing receipt or
invoice of date of purchase and defect detailed description. This warranty does not extend to
damage resulting from improper installation, misuse, neglect or abuse. Proel S.p.A. will verify
damage on returned units, and when the unit has been properly used and warranty is still valid,
then the unit will be replaced or repaired. Proel S.p.A. is not responsible for any "direct
damage" or "indirect damage" caused by product defectiveness.
MAINTENANCE AND DISCLAIMER
•Clean with not scraping sponge or cloth.
•Proel S.p.A. reserves the right to change these specifications at any time without notice.
•Proel S.p.A. declines any liability for damages to objects or persons caused by lack of
maintenance, improper use, installation not performed with safety precautions and at the state
of the art.
4

WHAT’S IN THE BOX
N. 1 QUARIUX 6x30W COB led bar.
N. 1 QUARIUX Support
N. 2 M8x35 screw with nut.
N. 1 Amphenol ECO-MATE C01630F006-10012 Right angled female cable connector.
N. 1 QUARIUX User Manual.
Warnings & Safety Instructions
DISPOSAL OF OLD ELECTRICAL & ELECTRONIC EQUIPMENT
This marking shown on the product or its literature, indicates that it should not be
disposed with other household wastes at the end of its working life. To prevent possible
harm to the enviroment or human health from uncontrolled waste disposal, please
separate this from other types of wastes and recycle it responsibly to promote the
sustainable reuse of material resources. Household users should contact either the
retailer where they purchased this product, or their local government office, for details of where
and how they can take this item for environmentally safe recycling. Business users should contact
their supplier and check the terms and conditions of the purchase contract. This product should
not be mixed with other commercial wastes for disposal.
The lightning symbol with arrow in an equilateral triangle intends to alert the user to the
presence of not insulated "dangerous voltages" within the product's enclosure that may be
of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point symbol within an equilateral triangle intends to alert the user to the
presence of important instructions for use and maintenance on the accompanying
documents of the product.
The “F” inside an equilateral reversed triangle means that the product is suitable for
mounting on normally flammable surfaces.
GENERAL SAFETY INSTRUCTIONS
•Before using this product read carefully the following safety instructions.
•Read the manual entirely and preserve it for future reference.
•When using any electric product, basic precautions should always be taken, including the
following:
•The product should be connected to a power supply only of the type described on the
operating instructions or as marked on the product.
•This product is not suitable for household illumination.
•Do not modify the fixture or install accessories and upgrade kits that are not the Proel original
ones.
INSTALLATION WARNINGS
People involved in the installation and maintenance of the device must:
•Be a qualified operator.
5

•Follow the instructions of this manual and the rules of a state of art installation in the theaters,
in the halls and in any place the fixture is installed.
•Make sure all the parts for fixing the product are in good condition.
•Make sure that the anchor point is stable before positioning the product.
•Make sure the safety cable must be properly attached to the device and fixed to the supporting
structure so that, in case of failure of the primary supporting system, it has the lowest possible
fall of the device.
•Make sure that if the safety cable wear, must be replaced with an original spare.
MINIMUM DISTANCE OF ILLUMINATED OBJECTS
•The projector must be positioned so that the objects hit by the beam of light are at least 0.2
meter from the lens of the projector.
MINIMUM DISTANCE FROM FLAMMABLE MATERIALS
•The device is suitable for mounting on normally flammable surfaces.
REFERENCE TEMPERATURES
•The room temperature range of use of the device varies between -20°C (min) and +35°C (max):
the device should not be used outside that range.
•Below the ambient temperature Ta = 35°C the light emission is guaranteed at maximum
intensity for an undefined time, above this temperature an internal protection turn off the light
temporarily until the internal temperature goes below the operative limit.
•The maximum temperature of the housing is Tc = 70°C ensuring the correct ventilation to the
fixture frame.
IP67 PROTECTION RATING
•The device is protected against the dust penetration (first digit 6) and against a temporary
immersion in water, up to 1m for 30 minutes, (second digit 7). Suitable for outdoor use.
PROTECTION AGAINST ELECTRIC SHOCK
•The device must be connected to a power supply system with an efficient grounding system.
•The earth connection is made using the Amphenol ECO-MATE connectors as input and output
for the mains, signal and ground. Always check carefully the cables and connectors to ensure an
efficient grounding for each QUARIUX single unit and the whole QUARIUX lighting system.
•Moreover, it is recommended to protect power supply lines of the product from indirect
contact and / or shorting to earth by using appropriately sized anti electrical shock switch.
CONNECTION TO THE MAINS
•The electrical connection must be carried out by a qualified electrician.
•Ensure that the mains frequency and voltage correspond to those the equipment is designed
for, as shown in the electrical data label. This label also shows the power consumption that is
necessary to refer to evaluate the maximum number of devices that can be connected to the
electricity line, in order to avoid power overloading.
•In case of non-use, it is recommended to unplug the projector from the mains.
6

WARNING
CAUTION. Do not look directly at the light source. Do not look at the beam with lenses,
glasses, mirrors or similar optical instruments that could change the convergence of light,
causing serious damage to people and / or things.
IN CASE OF FAULT
•Do not operate on the product. Refer servicing to an authorized maintenance center.
CE Conformity
PROEL S.p.A hereby, declares that this product complies with the essential requirements and other
relevant provisions of:
•Directive 2014/35/EU (LVD), as stated in EN 61347-1, EN 61347-2-13, EN 60598-1, EN 60598-2-1
and EN 60598-2-17 standards.
•Directive 2014/30/EU (EMC), as stated in EN 55015, EN 61000-3-2/3-3, and EN 61547
standards.
•Directive 2011/65/EU (RoHS).
•Directive 2014/53/EU (RED), as stated in EN 300328V2.1.1, EN 301489-1V2.2.0 and EN 301489-
17V3.2.0 standards.
7

Technical Specification
Light Source
6x30W COB led
LED lifespan: >50.000h
LED refresh frequency: >500Hz flicker free
Optic system
Beam angle: 12° (standard)
SSZ: Solid State Zoom 12°-90° (Z models only)
Optional optic: 24°/48°/80°/12°x90°asymmetric
Aiming with support: ±60° at 20° step
Color system
RGBW / RGB / RGBL / CW / WW / VW
Macro colors selectable via DMX
Effects
Linear dimmer 16 bit 0 - 100%
Electronic strobo 1-20 flash/s adjustable speed
Overboost Blinder
Control & Programming
DMX configurations: 1/2/3/5/7/10 channels
4 dimmer curves selectable
Protocol USITT DMX 512
Master/Slave mode
Preset macro colors with speed regulation
Static Color: static reproduction of one color
Touch pad with led indicators
Integrated wireless dmx W-DMX ™
Structure
Aluminum, black or custom color
Lexan, resistant to cuts and perforations
Fast pin coupling system
Bracket for anchoring and ground support
Operating temperature from -20°C to +35°C
IP rating: IP 67
Convection cooling system without fans
Power supply
Mains Voltage: 100-240 V~ 50/60 Hz
Power consumption: 180 W max
Amphenol ECO-MATEm6 pole + PE, IN/OUT power connection and
DMX signal
Weight and dimensions
Weight: 3.9 kg (4.5 kg with stand)
Dimension: 520 x 88 x 103 mm (549 x 100 x 150 mm with stand)
8

Mechanical Parts and Dimensions
Bracket Drilling & Beam Aiming
Use the centre Ø13mm hole for an ALISCAF or Hook clamp to fix the bracket at a stage structure or
use the Ø9mm holes for wall/ceiling mounting.
The light beam of the LED bar can be aimed with 20° steps arranging the screws in the holes at
each side of the bracket.
9

Hook up the Safety Rope
When the fixture operates as suspended, a safety rope, that ensures a supplementary
fixing in case of failure of the main fixing, must be always used.
The hook of the optional PLH232 safety rope can be fixed in one of the four angular arrow holes as
shown in the figure below. The rope must be arranged so that it has the shortest travel possible in
case of its intervention.
LED Bar linking
The LED bars can be attached to the bracket or linked together using the supplied locking pin or
using the supplied M8 screws and bolt for a fixed installation.
10

Vertical array linking
The QUARIUX LED bars can be arranged vertically as shown up to a maximum of 8 units.
SSZ Solid state zoom (only some models)
The SSZ solid state zoom is a feature available only in some models identified by a Z letter as last
letter in the code/name of the fixture. It consists of a frost filter that can be controlled by a proper
DMX channel (see tables further in this manual), which allows to have a variable beam that varies
from 12° (transparent filter) to about 90° (full frost filter) as shown below.
11

Rear Panel
The LED bar has two Amphenol ECO-MATEmconnectors on the rear panel: the male connector is
the power INPUT and the female connector is the power OUTPUT. The power OUTPUT can be
used to link another QUARIUX LED bar, if not used it should be kept closed using the provided
plug.
WARNING: the maximum number of linkable QUARIUX is 8 units.
The rear panel features also a GORE® Protective Vent, which is used to equalize the pressure and
avoid the condensation water in the sealed enclosure. While keeping out solid and liquid
contaminants, it improves the safety, reliability and service life of the fixture in outdoor
environment.
12

Connections
The LED bar is supplied with one Amphenol ECO-MATEmfemale connector for cable type C016-
30F006-10012 and one AMPHENOL female cover type C016 00V000 000 12 to ensure the IP67
feature if the output is not used.
A state of the art connection must be provided by a qualified operator, following the
instructions below:
The previous instructions also show how to arrange an output connection to link more than one
QUARIUX unit using an ECO-MATEmmale connector for cable type C016-30K006-10012.
Note: for long cable running of the DMX signal the end connection must be terminated with a 120
ohm resistor. In the figure below the termination circuit for XLR male connectors and Amphenol
ECO-MATEmmale connectors is shown.
13

Connection Example
14

Control Panel
The LED bar has a small control panel at the center of the front lens, which consists of two touch
sensitive keys, 9 setting LED and 2 status LED, needed to set properly the fixture.
The LED are working only in SETUP MODE, as described in the following paragraph.
The upper status LED is blue: it lights up when the W-DMX ™ is active, it stays off when W-DMX ™
is not active.
The lower status LED is yellow: it lights up and stays fixed to indicate setting PAGE 1 and flashes for
setting PAGE 2.
15

Setup Mode
Page 1: DMX Address
DMX address defines the starting address to control the fixture using the USITT DMX512 protocol.
The number of channels occupied by the fixture is set on page 2.
The starting address is set up summing the corresponding number of each setting LED that is ON:
Setting LED:
1
2
3
4
5
6
7
8
9
Number to sum:
1
2
4
8
16
32
64
128
256
So if you want to set the number 200, you have to turn ON the LED: 8, 7, 4 corresponding to the
sum of 128 + 64 + 8 = 200. The starting number is set as 1 as a factory default setting. Please note
that the maximum number practically usable is 512 – “number of attributes” of the fixture.
16

Page 2 : Fixture Parameters
The following table shows how to set the fixture’s parameters on SETUP page 2.
LED 1-2 OFF-OFF: the fixture attributes are configured as extended (see the attributes table)
OFF-ON: the fixture attributes are configured as reduced (see the attributes table)
ON-OFF: the fixture is configured as MASTER (see macro table)
ON-ON: the fixture is configured as SLAVE, in other words it receives the commands
from the MASTER fixture.
LED 3 OFF: W-DMX ™ is disabled
ON: W-DMX ™ is enabled
Note: activating the internal W-DMX ™
receiver does not exclude the DMX wire
connection. Unplug the DMX cable if you want to use only the W-DMX ™.
LED 4-7
When the fixture is configured as MASTER these bits set the macro (see macro table)
LED 8-9 When the fixture is configured as MASTER these bits set the macro speed:
OFF-OFF: the macro runs at 1/8 speed (slower)
OFF-ON: the macro runs at 1/4 speed
ON-OFF: the macro runs at 1/2 speed
ON-ON: the macro runs at full speed (faster)
Enable and Pair the W-DMX™
Entering in SETUP mode is possible to check the W-DMX™ status by means of the W-DMX BLUE
LED:
A) W-DMX BLUE LED is OFF: the unit has not been paired before with a transmitter and it
waits to be paired with one transmitter;
B) W-DMX BLUE LED is fixed ON: the unit has been paired before with a transmitter and the
transmitter is active;
C) W-DMX BLUE LED is flashing: the unit has been paired before with a transmitter but the
transmitter is turned off or missing or different. The unit waits for the transmitter
previously paired to change its status as B. In case you want to pair it with another
transmitter you have to un-pair the unit changing its status as A, with a method explained
below.
To enable the W-DMX go to LED 3 of page 2, press the ENT key one time to switch the LED 3 to ON
position. Please note that enabling the W-DMX doesn’t mean that the unit is paired, but that the
unit is able to receive DMX data from the wireless.
To disable the W-DMX go to LED 3 of page 2, press the ENT key one time to switch the LED 3 to
OFF position. Please note that disabling the W-DMX doesn’t mean that the unit is unpaired, but
that the unit is unable to receive DMX data from the wireless.
To pair fixtures to a transmitter press the red button on the transmitter for 1 second (Pairing
receivers): all QUARIUX that are turned on and that are not paired before to another transmitter
(status A) will be paired with this transmitter (status B).
17

To un-pair all fixtures simultaneously press the red button on the transmitter for 5 second
(Unpairing receivers): all QUARIUX that are turned on and are paired (status B) will be un-paired
from this transmitter and will be in status A.
To un-pair a single QUARIUX fixture go to LED 3 of page 2: with the LED 3 switched ON (W-DMX is
active), press and hold the ENT key for 5 seconds to un-pair, the correspondent LED 3 will flash
more rapidly for some seconds. At the end the W-DMX BLUE LED turns off and the unit goes to
status A, ready to be paired again.
Attribute Table
QUARIUX RGBW (7 channels) and RGBWZ (8 channels) extended table:
Channel
Attribute Name
Range
Description
1
Red
0-255
0 = No red > 255 = maximum
2
Green
0-255
0 = No green > 255 = maximum
3
Blue
0-255
0 = No blue > 255 = maximum
4
White
0-255
0 = No white > 255 = maximum
5
Dimmer
0-255
Light intensity dimmer from 0 = no light to 255 = full
6 Shutter 0-255 0 = No Shutter
1-255 = Shutter strobe velocity from slow to fast
when channel 7 value is within 15-89 range, this
channel determines the Rainbow velocity, from 0 slow
to 255 fast.
7 Rainbow 0-14
15-29
30-44
45-59
60-74
75-89
90-104
105-119
120-134
135-149
150-164
165-179
180-194
195-209
210-224
225-239
240-255
None
Rainbow fade 100%
Rainbow fade 50%
Rainbow snapstart
Rainbow + White Fade 100%
Rainbow + White Fade 50%
Red
Red / Green (Yellow)
Green
Green / Blue (Cyan)
Blue
Blue / Red (Magenta)
White
Red / Green / Blue / White Full
White 3200 K
White 4000 K
White 5600 K
8*
Zoom
0-255
SSZ control beam from 12° to 90° (*SSZ only)
18

QUARIUX RGBW (4 channels) and RGBWZ (5 channels) reduced table:
Channel
Attribute Name
Range
Description
1
Red
0-255
0 = No red > 255 = maximum
2
Green
0-255
0 = No green > 255 = maximum
3
Blue
0-255
0 = No blue > 255 = maximum
4
White
0-255
0 = No white > 255 = maximum
5*
Zoom
0-255
SSZ control beam from 12° to 90° (*SSZ only)
Macro Table
Each macro is a dmx sequence or a dmx fixed setup that is sent from a Quariux fixture set as
Master to other Quariux fixtures set as Slave and connected via DMX cable. The following table
shows the pre-configured macros on RGBW and RGBWZ models:
Macro
LED 4
LED 5
LED 6
LED 7
Brief effect description
1
OFF
OFF
OFF
OFF
Rainbow Fade 100%
2
OFF
OFF
OFF
ON
Rainbow Fade 50%
3
OFF
OFF
ON
OFF
Rainbow Snapstart
4
OFF
OFF
ON
ON
Rainbow + White Fade 100%
5
OFF
ON
OFF
OFF
Rainbow + White Fade 50%
6
OFF
ON
OFF
ON
Red
7
OFF
ON
ON
OFF
Red / Green (Yellow)
8
OFF
ON
ON
ON
Green
9
ON
OFF
OFF
OFF
Green / Blue (Cyan)
10
ON
OFF
OFF
ON
Blue
11
ON
OFF
ON
OFF
Blue / Red (Magenta)
12
ON
OFF
ON
ON
White
13
ON
ON
OFF
OFF
Red / Green / Blue / White Full
14
ON
ON
OFF
ON
White 3200 K
15
ON
ON
ON
OFF
White 4000 K
16
ON
ON
ON
ON
White 5600 K
19

PROEL S.p.A.
(World Headquarters - Factory)
Via alla Ruenia 37/43
64027 Sant’Omero (Te) – Italy
Tel: +39 0861 81241
Fax: +39 0861 887862
www.proel.com
www.sagitter.com
20
Table of contents
Other Sagitter Dj Equipment manuals

Sagitter
Sagitter QUIVER User manual

Sagitter
Sagitter SG PIKEONE1R User manual

Sagitter
Sagitter SG QUARTZ300 User manual

Sagitter
Sagitter SG HALFPAR24 User manual

Sagitter
Sagitter SG AQUPAR18 User manual

Sagitter
Sagitter SG IPLEDBAR24C User manual

Sagitter
Sagitter Led Blinder 4 User manual

Sagitter
Sagitter Halfpar 24x3W RGB/FCSG HALFPAR24 User manual

Sagitter
Sagitter SG IPLED24C User manual

Sagitter
Sagitter ARCHER B10 User manual
