Sahara S325 User manual

S325 Barbecue
Photograph is not to scale. Speci cation
subject to change without prior notice.
• Use outdoors only.
• Read the instructions before using the appliance. Failure to follow
instructions could result in death, serious bodily injury, and/or
property loss.
• WARNING: accessible parts may be very hot. Keep young children
away.
• Do not move the appliance during use.
• Turn off the gas supply at the gas cylinder after use.
• Do not modify the appliance. Misuse or failure to follow the instructions
may be dangerous and will invalidate your warranty. This does not
affect your statutory rights.
• Retain these instructions for future reference.
• Leak test your barbecue annually. Check the hose connections are
tight and leak test each time you reconnect the gas bottle.
FOR YOUR SAFETY
IF YOU SMELL GAS:
1. Shut off gas to the appliance.
2. Extinguish any open fl ame.
3. Open barbecue lid or hood.
4. If odour continues, discontinue use and contact your local dealer.
FOR YOUR SAFETY
1. Do not store or use petrol or other fl ammable vapours or
liquids in the vicinity of this or any other appliance.
2. A gas bottle not connected for use shall not be stored in the
vicinity of this or any other appliance.
691A

Ref Description Illustration Qty Ref Description Illustration Qty
1
2
3
4
5
6
7
8
9
10
11
2
2
1
1
2
1
1
1
2
1
1
2
1
1
2
1
1
1
1
12
13
14
15
16
17
18
19
Large
Wheel
Side
Frame
Base Panel
Base Trim
Cylinder
Brackets
Sink
Searing
Grill
Cooking
Grill
Vapourising
Bar
Barbecue
Lid
Warming
Rack
Side Trays
Handle
Gas Hose and
Regulator
Front Panel
Brackets
Front Panel
Large
Drip Tray
Grease Cup
Bracket
Grease
Cup
Page 3
Parts Supplied

Page 4
Fixings Supplied
Tools Required For Assembly
• Philips Head Screwdriver (provided)
• Ball head hexagon wrench (provided)
• 22mm Spanner (provided)
Before You Start
• Check the contents of the box and make sure you have all the parts and ttings listed. If not,
contact our Helpline 00 353 1 2873797 and we will be able to help you.
• When you are ready to start, make sure that you have plenty of space and a clean dry area
for assembly.
• Before cooking on this barbecue, turn the barbecue on at the medium to high temperature
and burn for 30 minutes to allow curing of vapourising bars and to burn off cleaning residue
materials.
Assembly
• Please lay out all nuts and bolts and check lengths before assembly. It is recommended that
the carton is cut open and spread out on the oor and used as a protective surface during
assembly. Refer to the assembly diagrams as necessary.
• Important - while every precaution has been made in the manufacture of this product, care
must be taken during assembly in case sharp edges are present.
• Remove all transit packaged parts from the inside of the grill body before assembling.
Important - follow gas leak test advice before use. Ensure all connections are tight and secure.
• This product is for OUTDOOR USE ONLY.
• NEVER use indoors, in an enclosed area or below ground level.
• This barbecue is intended for use with LPG bottled gas only. (A regulator of 37mbar for Propane
gas.)
• NEVER use an adjustable regulator with this barbecue.
M6x12mm
Hex Bolt
M6x80mm
Bolt
Spacer
A
B
C
D16
4
4
12
Ref Description Illustration Qty Ref Description Illustration Qty
M4x10mm
Bolt
NOTE: Fixings not shown to actual size.

Page 5
Assembly Step 1
Large Wheel x2 Side Frame x2
M6 x 12 Hex Bolt
(ref:A) x6
Left
Right
Base Panel
ORDER OF FIXINGS
FOR WHEEL FITTING
Base Panel
Base Trim
Assemble barbecue frame as shown below, using 6 of the M6 x 12 Hex Bolts
(ref:A) to attach the side frames and base trim to the base panel. The base
trim must be positioned on the base panel before the side frames are
attached.
Note: Do not fully tighten bolts.
Fit the 2 large wheels to the side frames using the pretted bolt and washers
attached to the wheels.

Page 6
Assembly Step 2
Cylinder Brackets x2
Fit the two cylinder brackets using 5 of the M6 x 12 Hex Bolts (ref:A).
M6 x 12 Hex Bolt
(ref:A) x5

Page 7
Assembly Step 3
M6 x 80mm Bolt
(ref:B) x4
Lay the assembled frame on a clean surface on the ground and t the
barbecue sink to the frame as shown using 4 of the M6 x 80 Bolts (ref:B) and 4
spacers (ref:C).
Note: Fully tighten all bolts at this stage.
Frame
Barbecue
Sink
Position of Spacers
(view from back)
Spacer
(ref:C) x4
Assembled Barbecue
& Frame
Sink

Cooking Grill Searing Grill
Cooking Grill x1
1. Place the vapourising bars into the barbecue sink as shown below.
2. Place the searing grill and cooking grill into the barbecue sink as shown.
Note: Ensure that the cooking grill is positioned directly above the vapourising
bars.
Searing Grill x1 Vapourising Bars x2
Vapourising
Bars
Page 8
Assembly Step 4

1. Position the barbecue lid onto the barbecue sink and align the brackets.
2. Secure on either side of the hood using the pre-tted bolts (M6x12mm
Hex Bolt).
3. Place the warming rack into position as shown below.
Warming Rack x1
Warming Rack
Barbecue Lid x1
Page 9

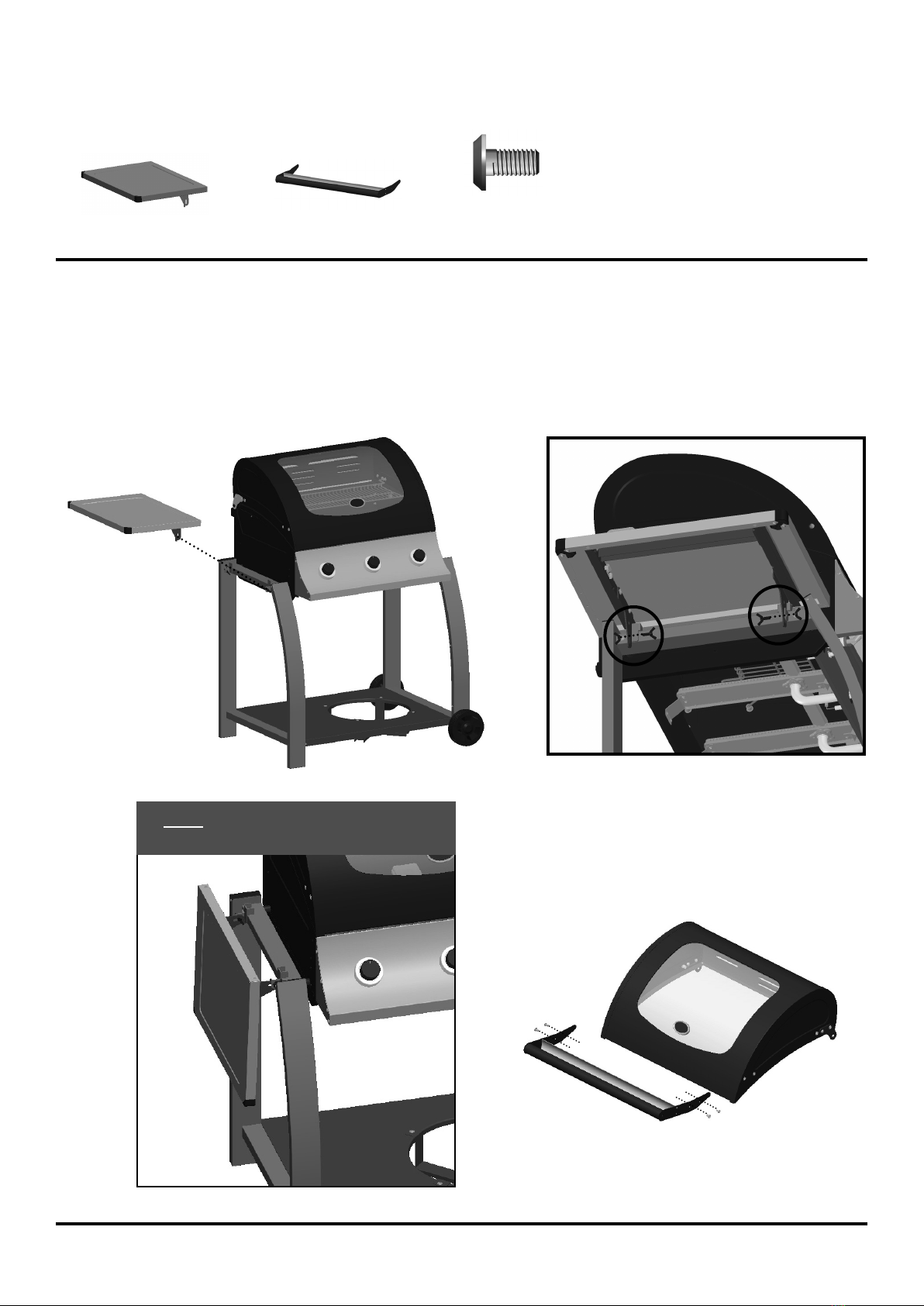

Assembly Step 5

Handle
Secure side trays onto the side frames using the 2 pre-tted M6 wing bolts and
nuts like below.
Fit the handle to the hood using 4 of the M6 x 12 Hex Bolts.
Side Trays x2
Note: side trays can be folded down
for easy storage.
M6 x 12 Hex Bolt
(ref:A) x4
Page 10

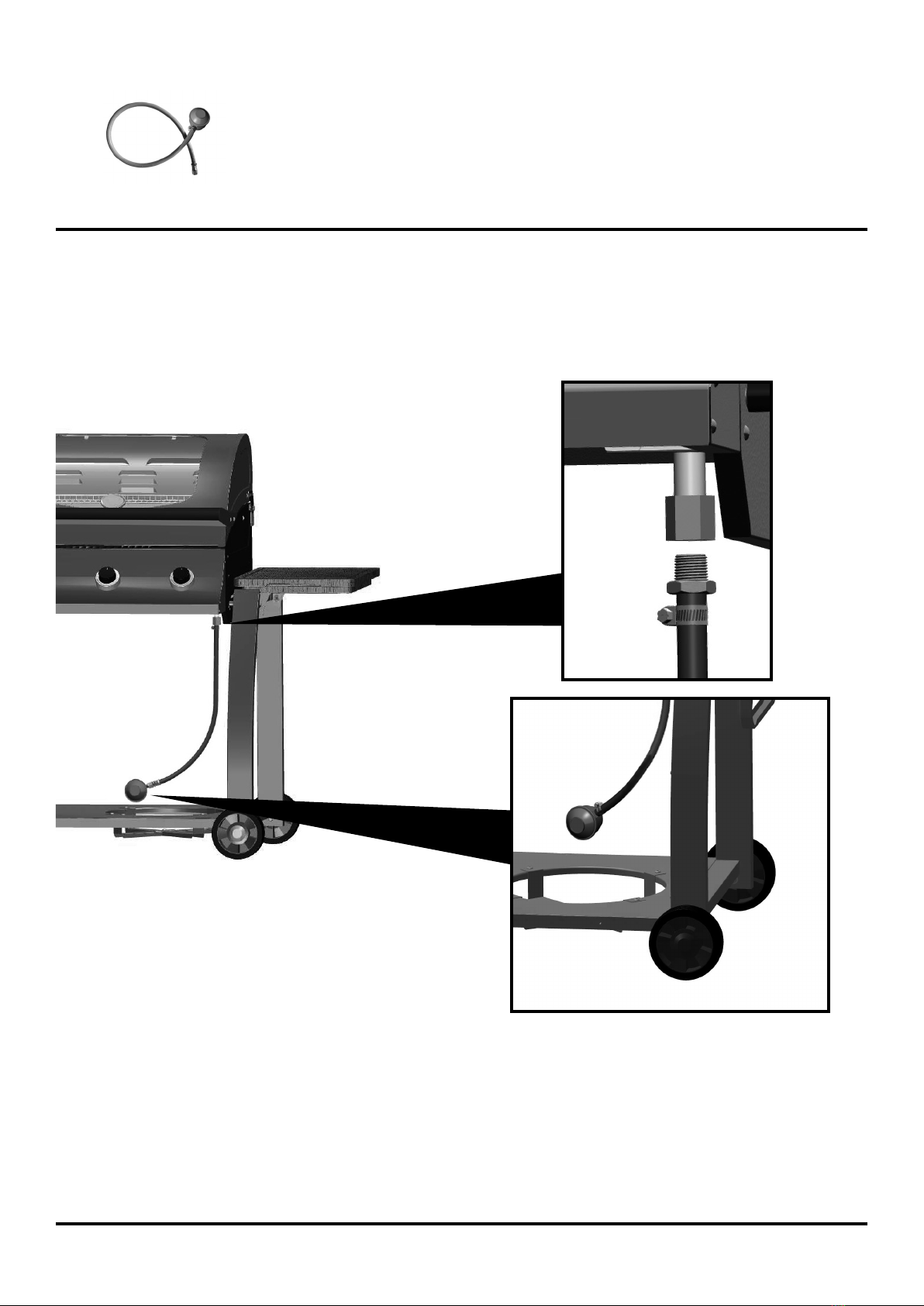

Assembly Step 6

Gas Hose and
Regulator
Screw the hose connection onto the bottom of the barbecue as shown and
then gently pinch with a spanner to secure. DO NOT overtighten.
IMPORTANT - PERFORM LEAK TESTING AT THIS STAGE BEFORE USE.
SEE ‘LEAK TESTING’ SECTION OF MANUAL FOR INSTRUCTIONS.
FAILURE TO CHECK AND PERFORM THE LEAK TEST COULD CAUSE SERIOUS
INJURY, AND DAMAGE THE BARBECUE.
IMPORTANT - PLEASE ENSURE THE GAS HOSE IS FREE OF KINKS AND TWISTS.
Page 11

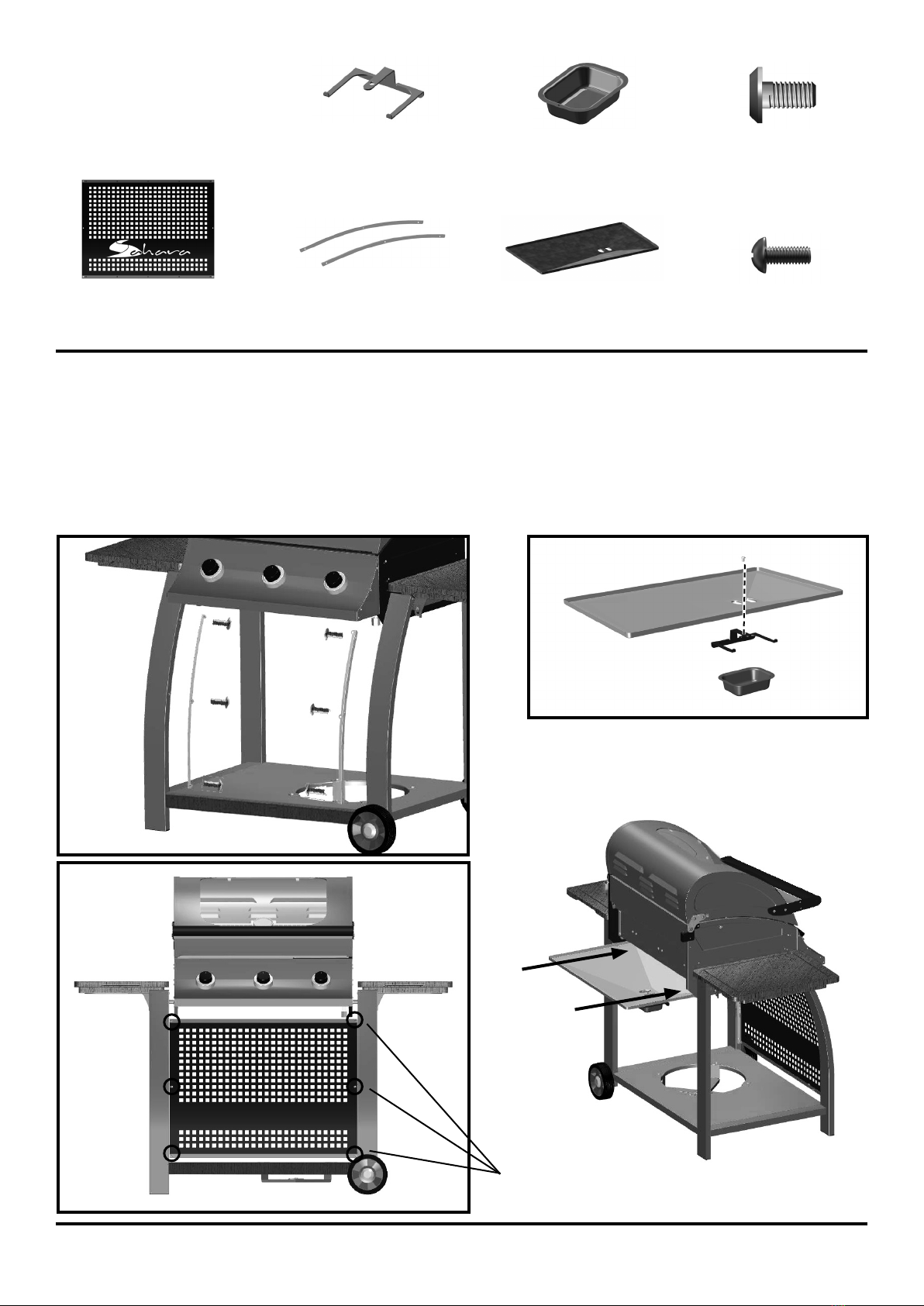

Assembly Step 7

Assembly Step 8
1. Secure the front panel brackets to the side frames using 6 of the M4x10
Bolts (ref:D).
2. Attach the front panel to the brackets using 6 of the M4x10 Bolts (ref:D).
3. Attach the grease cup bracket to the grease tray using 1 of the M6x12 Hex
Bolts (ref:A) and then slide the grease cup into the grease cup bracket. Slide
the grease tray into the back of the barbecue as shown below.
Front Panel x1 Large Drip Tray x1
Front Panel
Brackets x2
M4x10 Bolts
(ref:D)
Page 12
Note: grease cup needs to be
on the opposide side to the gas
cylinder.
Grease Cup Bracket Grease Cup
M4x10 Bolt
(ref:D) x12
M6 x 12 Hex Bolt
(ref:A) x1

Page 13
Leak Testing
• IMPORTANT – PERFORM LEAK TEST BEFORE USE
• NEVER use an open ame to test for leaks at anytime, DO NOT IGNITE THE BARBECUE DURING THE
LEAK TESTING.
• To be performed in a well ventilated area.
• Conrm all the control knobs are in the off position.
• Check for leaks by brushing a solution of 1/2 water and 1/2 soap over all the gas system joints, including
all valve connections, hose connections and regulator connections.
• Ensure soap solution has been applied to all connections – connect the regulator to the gas cylinder,
open the gas control valve on the regulator allowing gas to ow.
• OBSERVE – if bubbles form over any part of the joints there is a leak.
• Turn off the gas and tighten all joints
• Repeat test. If bubbles form again, do not use the barbecue. Please contact our helpline for
assistance: Phone: 00 353 (0)1 2873797 | Email: [email protected]
• Leak test annually and whenever the gas bottle is removed or replaced.
Gas and Regulator
• This barbecue can use either propane or butane LPG bottled gas.
• Propane bottles, will supply gas all year round, even on cold winter days.
• Butane bottles, will supply sufcient gas in summer. Butane gas must not be used in colder temperatures.
The regulator will need to be changed if using a butane cylinder.
Contact your local gas supplier for advice.
• The bottle should be positioned underneath the main barbecue body.
• Gas bottles should never be stored or laid on their side.
• Never store gas bottles indoors.
• For optimal performance, we suggest the following:
• This barbecue is intended for use with LPG bottled gas only. (A regulator of 28mbar must be used for
Butane gas or 37mbar for Propane gas.)
• This appliance has been supplied with a PROPANE REGULATOR (conforming to EN 12864)
• NEVER use an adjustable regulator with this barbecue.
• Please contact your local gas supplier for advice on suitable gas bottles and regulators.
Fitting Instructions
• This barbecue is for OUTDOOR USE ONLY and should be placed in a well-ventilated area.
• Take care to ensure that it is not placed UNDER any combustible surface.
• The sides of the barbecue should NEVER be closer than 1 metre from any combustible surface.
• This appliance must be kept away from ammable materials during use.
• Important – Do not obstruct any ventilation openings in the barbecue body.
• Should you need to change the gas bottle, conrm that the barbecue is switched off, and that there are no
sources of ignition (cigarettes, open ame, sparks, etc.) nearby before proceeding.
• Inspect the gas hose to ensure that it is free of any twisting or tension. The hose should hang freely with
no bends, folds, or kinks that could obstruct free ow of gas. Apart from the connection point, no part of
the hose should touch any hot barbecue parts.
• Always inspect the hose for cuts, cracks, or excessive wear before use.
• If the hose is damaged, it must be replaced with a hose suitable for use with LPG and meet the national
standards for the country of use. The length of the hose shall not exceed 1.5m.
• N.B – The date on U.K orange hose is the date of manufacture, not the expiry date.
315mm
580mm
Maximum
bottle size

Page 14
Connecting to the Cylinder
• Conrm all barbecue control knobs are in the off position.
• Connect the regulator to the gas bottle according to your regulator and bottle dealer’s instructions.
Use Instructions
Before proceeding, make certain that you understand the WARNINGS section of this manual.
• Preparation before cooking – To prevent foods from sticking to the cooking grill, it is recommended to
apply a light coat of cooking oil to the food before placing on the grill.
• Note: When cooking for the rst time, paint colours may change slightly as a result of high
temperatures. This is normal and should be expected.
Lighting the Barbecue
1. Open the barbecue lid and turn on gas supply at gas cylinder.
2. Push control dial in and slowly turn to “ ” position.
3. If burner does not light, return to OFF position and try again.
4. Once ignition has occured, hold dial in for at least 10 seconds to ensure the burner stays lit.
5. If burner does not light or stay lit after holding dial in for 10 seconds, turn the dial to OFF position
and wait for 1 minute and try again. Do not continuously hold the dial in as you may cause a build
up of gas.
6. In windy conditions shield from wind to ensure easy lighting.
7. Turn control dial to alter burner settings as required.
After ignition, the burners should be burned at the low position for 3-5minutes in order to preheat the
barbecue.
After completion of preheating, turn burners to low position and close hood for best cooking results.
Manual Lighting Instructions
• Remove the cooking grills, searing grill and vapour bar from barbecue.
• Place a lit match beside the burner (at the same location as the sparker shield)
• Push and turn the right most control knob anti-clockwise to the high position.
• After successful lighting, light each burner from left to right as desired.
• If burner fails to ignite after repeated attempts, contact the help line number stated in this manual.
Grill Cooking
The Vapour bar evenly distributes the heat across the cooking grill area. The natural food juices
produced during cooking fall onto the hot vapour bar below and vapourise. Even cooking of food will be
achieved by using the barbecue with the hood down. This should only be done with the burner on low.
Flare-Up Control
IMPORTANT – FLARE UPS CAN OCCUR FROM RESIDUE FAT AND JUICES DRIPPING ONTO THE
BURNERS AND HOT VAPOUR BAR. To reduce this, regularly clean the burners and vapour bar. To
control are-up, it is advisable to trim away excess fat from meat and poultry before grilling. The
burners should always be placed on the low setting during cooking. Always protect your hands when
handling anything near cooking surface of the barbecue.
End of Cooking Session
After each cooking session, open the barbecue lid, turn the barbecue burners to the ‘high’ position and burn
for 5 minutes. This procedure will burn off cooking residue, thus making cleaning easier.
To Turn Off:
1. Push the dial in and turn to the OFF position.
2. Turn the gas off and disconnect at the cylinder when not in use.

Page 15
Care and Maintenance
• Regularly clean your barbecue between uses and especially after extended periods of storage.
• Ensure the barbecue and it’s components are sufciently cool before cleaning.
• Do not leave the barbecue exposed to outside weather conditions or stored in damp, moist areas.
• Never douse the barbecue with water when its surfaces are hot.
• Never handle hot parts with unprotected hands. Use protective gloves when handling particularly hot
components.
• In order to extend the life and maintain the condition of your barbecue, we strongly recommend that the unit
is covered when left outside for any length of time, especially during the winter months.
• IMPORTANT – We recommend that servicing of this appliance should be performed either after every 100
hours of use or annually, which ever is achieved soonest.
Caution
• Regularly clean your barbecue after every use.
• If you smell gas – turn off the barbecue, extinguish all ames, open the barbecue hood. If the odour
continues, immediately contact your gas supplier.
• In the event of an uncontrollable re, immediately disconnect the gas cylinder moving it away from re and
contact the re services. DO NOT PUT YOURSELF AT RISK!
• Ensure aerosols are not used near this unit when in use.
• Ensure all packaging and plastic bags are disposed of safely.
Cooking Grill
• Clean with hot soapy water.
• To remove any food residue, use a mild cream cleaner on a non-abrasive pad.
• Rinse well and dry thoroughly.
Burner Maintenance
• In normal usage, burning off the residue after cooking will keep the burners clean.
• The burners should be removed and cleaned annually, or whenever heavy build-up is found, to ensure that
there are no signs of blockage (debris, insects) in either the burner portholes or the venturi tubes of the
burners tted over the valve outlets.
• If the burner portholes or venturi tubes become blocked, they must be cleared before using the BBQ.
Vapourising Bar
• Clean the vapourising bars after 3-4 barbecues with soap and warm water using a low abrasive cleaning
cloth or sponge!
Drip Tray
• Regularly empty the small grease cup.
• The large tray can be removed for cleaning.
Barbecue Body
• Regularly remove excess grease or fat from the barbecue body with a soft plastic or wooden scraper.
• It is not necessary to remove all the grease from the body. If you need to clean fully, use hot soapy water
and a cloth, or nylon-bristled brush only.
• Remove cooking surfaces and burners before full cleaning.
• Use a damp cloth with warm water and washing up liquid to clean the glass window. Do not use any
abrasive materials.
• Do not immerse the gas controls or manifold in water.
• Check burner operation after carefully retting into body.
Fixings
• All screws and bolts, etc. should be checked and tightened on a regular basis.
Storage
• Store your barbecue in a cool dry place.
• Cover the burners with aluminium foil in order to prevent insects or other debris from collecting in burner holes.
• If the barbecue is to be stored indoors, the gas bottle must be disconnected and left outside. The gas bottle
should always be stored outside, in a dry, well-ventilated area, away from any sources of heat or ignition.
• Do not let children tamper with the bottle.

Page 16
Warnings
This product is for OUTDOOR USE ONLY.
• Important – Ensure the barbecue is positioned on at level ground to aid with fat/grease run off.
• Important – LEAK TEST THE BARBECUE WHEN FULLY ASSEMBLED BEFORE FIRST USE. In
addition, always leak test the unit – annually, when dismantled, when parts are replaced, of if the gas
cylinder is removed or replaced. FAILURE TO DO THIS COULD CAUSE SERIOUS INJURY, OR
DAMAGE TO THE BARBECUE.
• NEVER use indoors, in an enclosed area or below ground level.
• This barbecue is intended for use with LPG bottled gas only. (A regulator of 28mbar must be used for
Butane gas or 37mbar for Propane gas.)
• This appliance has been supplied with a PROPANE REGULATOR (only use with Propane gas.)
• NEVER use an adjustable regulator with this barbecue.
• Failure to read and follow these instructions could result in serious injury or damage to property.
• This product will become hot when in use – take care when touching.
• Keep children and pets at a safe distance from the unit when in use.
• DO NOT move this product when in use.
• Always turn off gas supply at the gas cylinder when not in use.
• Any modication of this barbecue may be dangerous.
• DO NOT leave this product unattended when in use.
• Any parts sealed by the manufacturer or his agent must not be altered by the user.
• ALWAYS position the gas cylinder underneath the main body and ensure the cylinder is
vertical at all times.
• When igniting, always have the lid open.
• ONLY use barbecue on a at LEVEL non-ammable surface or ground.
• When positioning, ensure the unit is a minimum of 1 metre from ammable items or structure.
• This barbecue is not intended for use with charcoal or other similar fuel.
• Always leak test the unit – annually, when dismantled, when parts are replaced, or if the gas cylinder is
removed or replaced.
• DO NOT use petrol, white spirit, lighter uid, alcohol or other similar chemicals to ignite the barbecue.
• When storing the barbecue or gas cylinder, ensure they are away from ammable materials or liquids.
• The gas cylinder must not be stored next to this or any other appliance.
• Always follow care and maintenance instructions – regularly maintain your barbecue.
• DO NOT allow grease, fat or food residue to build up in or on the barbecue – RISK OF FIRE.
• Always replace worn parts – do not use barbecue if a leak, wear, or damage is found.
• Never overload the grill with food – evenly space over the cooking grill surface, ensuring sufcient air
circulation to the burners.
• DO NOT store or cover the barbecue until fully cooled.
• This product is not suitable for Lava Rock.
• Accessible parts may be very hot. Keep young children away.
DO NOT leave your BBQ uncovered when not in use. Store your appliance in a shed or garage when not in
use to protect against the effects of extreme weather conditions, particularly if you live near coastal areas.
Prolonged exposure to sunlight, standing water, sea-air/saltwater can all cause damage to your appliance.
(A cover may not be sufcient to protect your appliance in some of these situations)

22
CE Approval: 2797/22
Heat Input: 13kW
Burner: 3 Burner
Injector Size: 1.0mm
Gas/Pressure: Butane-28mbar/Propane-37mbar
Gas Consumption: 936 grams per hour
Gas Category: I3+
Specications are subject to change without prior notice.
This barbecue is manufactured by:
Global Headquarters
Universal Innovations, Kilcoole Industrial Estate,
Kilcoole, Co. Wicklow, Ireland.
Page 17
Food Cooking Information
Please read and follow this advice when cooking on your barbecue.
• ALWAYS wash your hands before or after handling uncooked meat and before eating.
• ALWAYS keep raw meat away from cooked meat and other foods.
• Before cooking, ensure barbecue grill surfaces and tools are clean and free of old food residue.
• DO NOT use the same utensils to handle cooked and uncooked foods.
• Ensure all meat is cooked thoroughly before eating.
• CAUTION - eating raw or under cooked meat can cause food poisoning
(e.g bacteria strains such as E.coli)
• To reduce the risk of under cooked meat, cut open to ensure it is cooked all the way through internally.
• CAUTION - if meat has been cooked sufciently, the meat juices should be clear in colour and there
should be no traces of pink/red juice or meat colouring.
• Pre-cooking of larger meat or joints is recommended before nally cooking on your barbecue.
• After cooking on your barbecue, always clean the grill cooking surfaces and utensils.
Technical Data

BARBECUE GUARANTEE
This barbecue is made by Universal Innovations. It is made to an exacting quality standard
and is covered by the following guarantee. The product has a 10 year limited warranty,
regarding proper use.
Sink + Hood: 10 years (no rust through/burn through/excludes fading/colour change)
Cooking grill: 10 years (no rust through/burn through/excludes fading/colour change)
Burner/Vaporising bar/Warming rack: 2 years (no rust through/burn through)
All other parts: 2 years
THIS GUARANTEE DOES NOT AFFECT YOUR STATUTORY RIGHTS IN ANY WAY. IF YOU
NEED ANY ASSISTANCE PLEASE DO NOT HESITATE TO CONTACT US AT THE FACTORY.
DO NOT BRING GOODS BACK TO PLACE OF PURCHASE.
HELPLINE Dublin Ireland: 00 353 1 2873797 or at
Email: [email protected] / Web: www.saharabbqs.com
Refer to Care and Maintenance section for advice on proper use. Following these
guidelines will ensure better performance and maximum lifetime of the barbecue.
Universal Innovations strive to lead the eld in product design and innovation. If you
have any comments regarding this product we would be delighted to hear from you.
Troubleshooting
Problem Possible Cause Solution
Burner will not light using the LP gas cylinder is empty Replace with full cylinder
ignition system
Faulty regulator Have regulator checked or
replace
Obstructions in burner Clean burner
Obstructions in gas jets Clean jets and gas hose
or gas hose
Electrode wire is loose Reconnect wire
Electrode or wire is Change electrode and wire
damaged
Low ame or ashback (re in LP gas cylinder too small Use larger cylinder
burner tube - a hissing or
roaring noise may be heard)
Obstructions in burner Clean burner
Obstructions in gas jets Clean jets and gas hose
or gas
Windy conditions Use BBQ in a more
sheltered position
Gas valve knob difcult to turn Gas valve jammed Replace gas valve
If you have any queries or require advice or spare parts for this product, please call
our Customer Helpline Number [phone]
or for online help - Email: [email protected] / Web: www.saharabbqs.com
